Description
Features

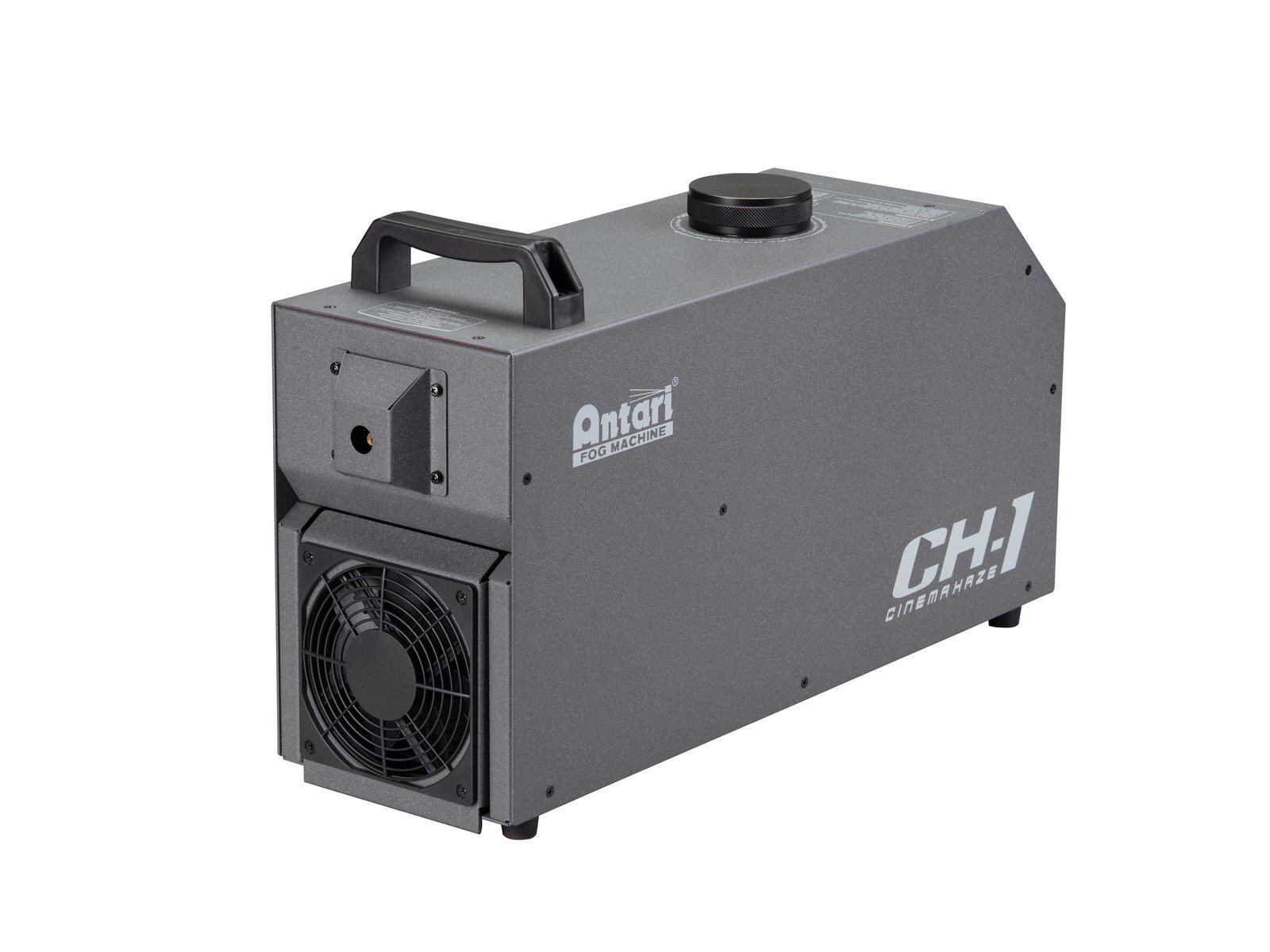

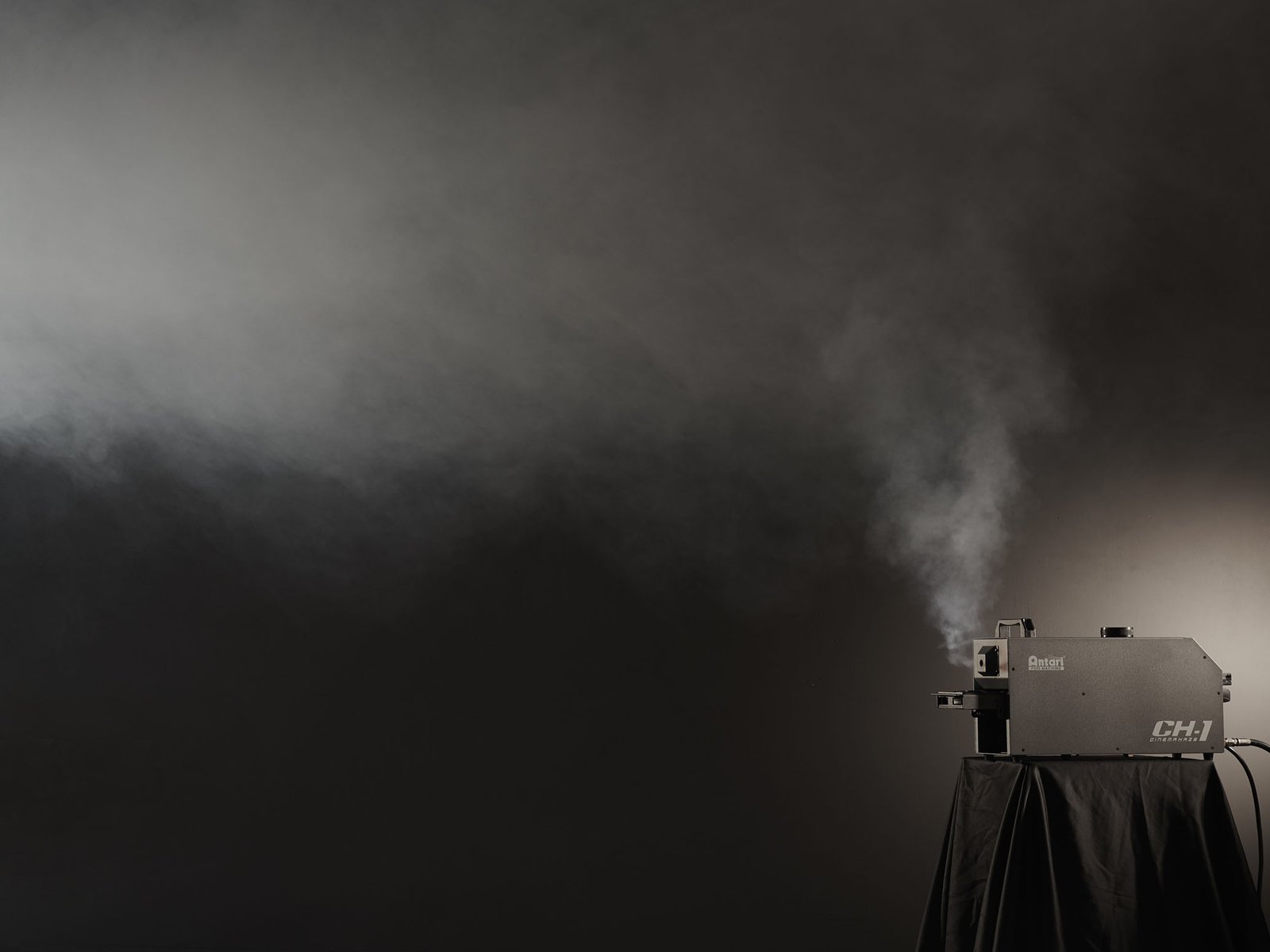

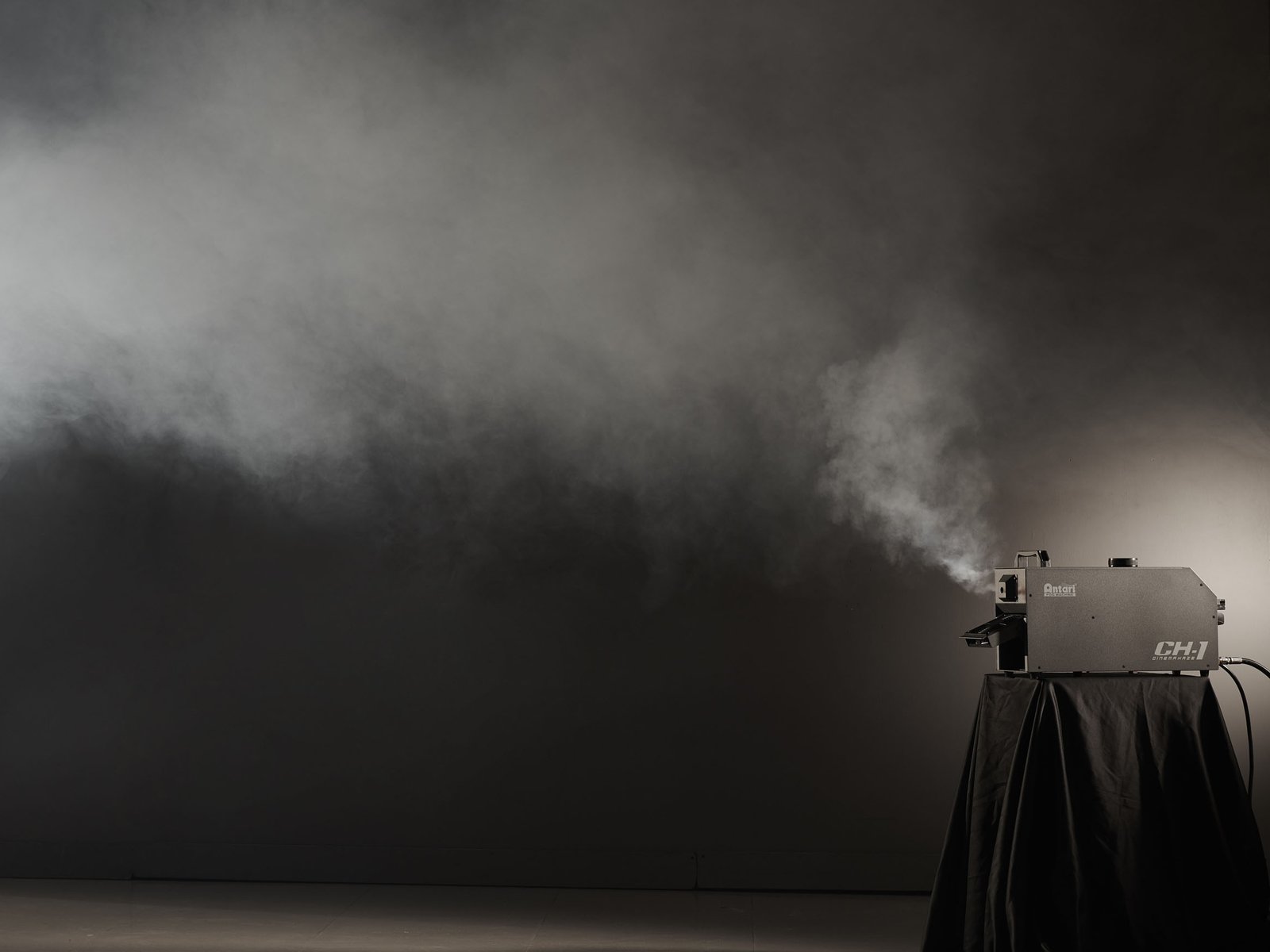

Silent CO2 hazer for smooth and very long-lasting haze
- Ideal for filming or applications where silence is crucial
- Produces large amounts of smooth haze with a very long hang time
- No pump or compressor comes built-in
- Adjustable output angle
- Timer function
- Control via DMX; W-DMX by wireless solution (optional); timer
- TFT display
- Very quiet working noise
- Operates on oil-based fluid
- For application areas such as: Stage; theater; rental; video and photography
- Application possibility: Standing
Package contents

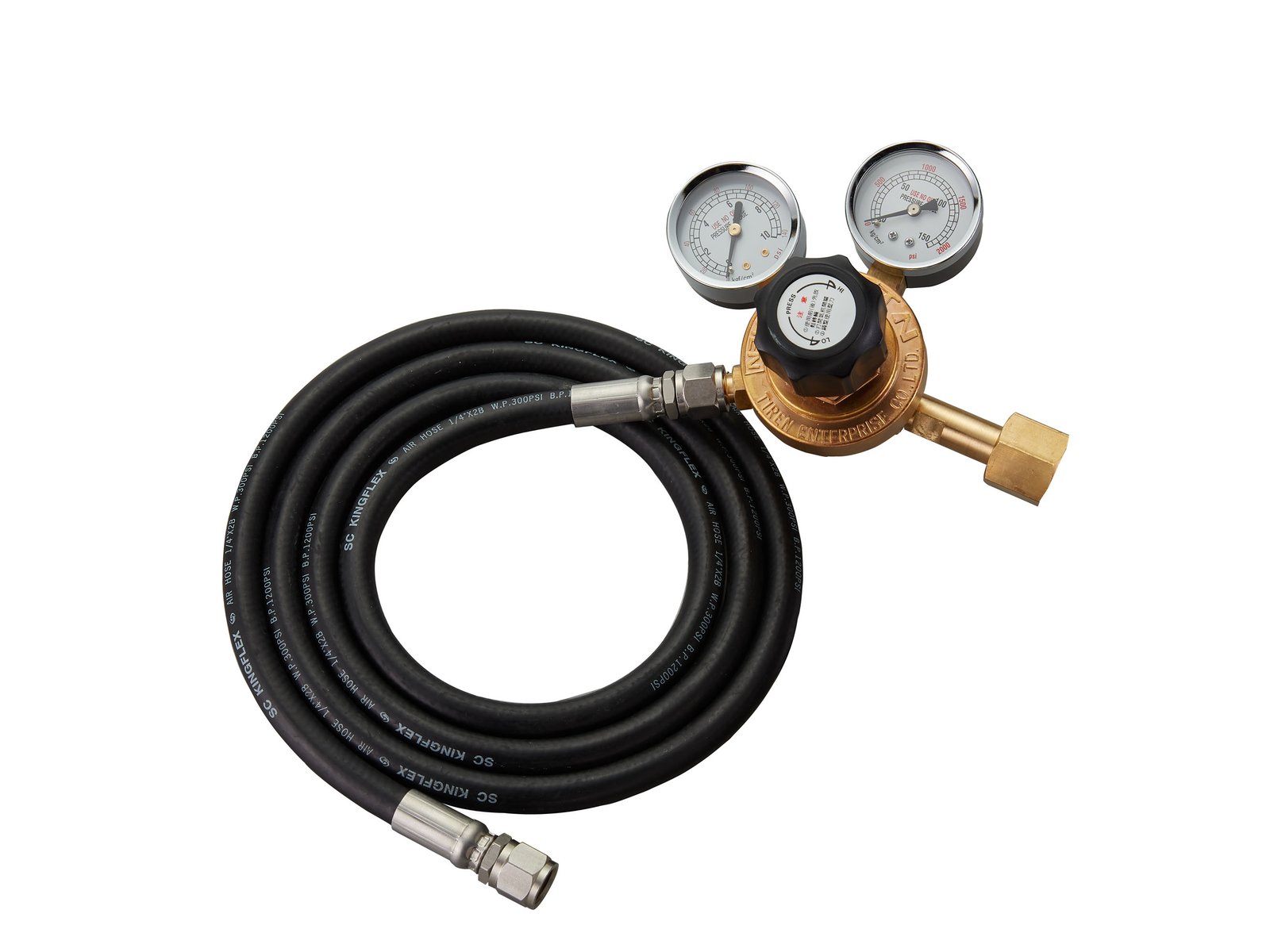

- 1 x device, 1 x user manual, 1 x power cord, 1 x tube, 1 x adapter
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 1250 W |
| IP classification: | IP20 |
| Power connection: | Mains input via PowerCON TRUE (M) mounting version power supply cord with safety plug (provided) |
| Warm-up time: | Approx. 8 min |
| Tank capacity: | 2,5 l oil-based fluid fixed tank |
| Fluid consumption: | Approx. 2 ml/min at 2,78 bar |

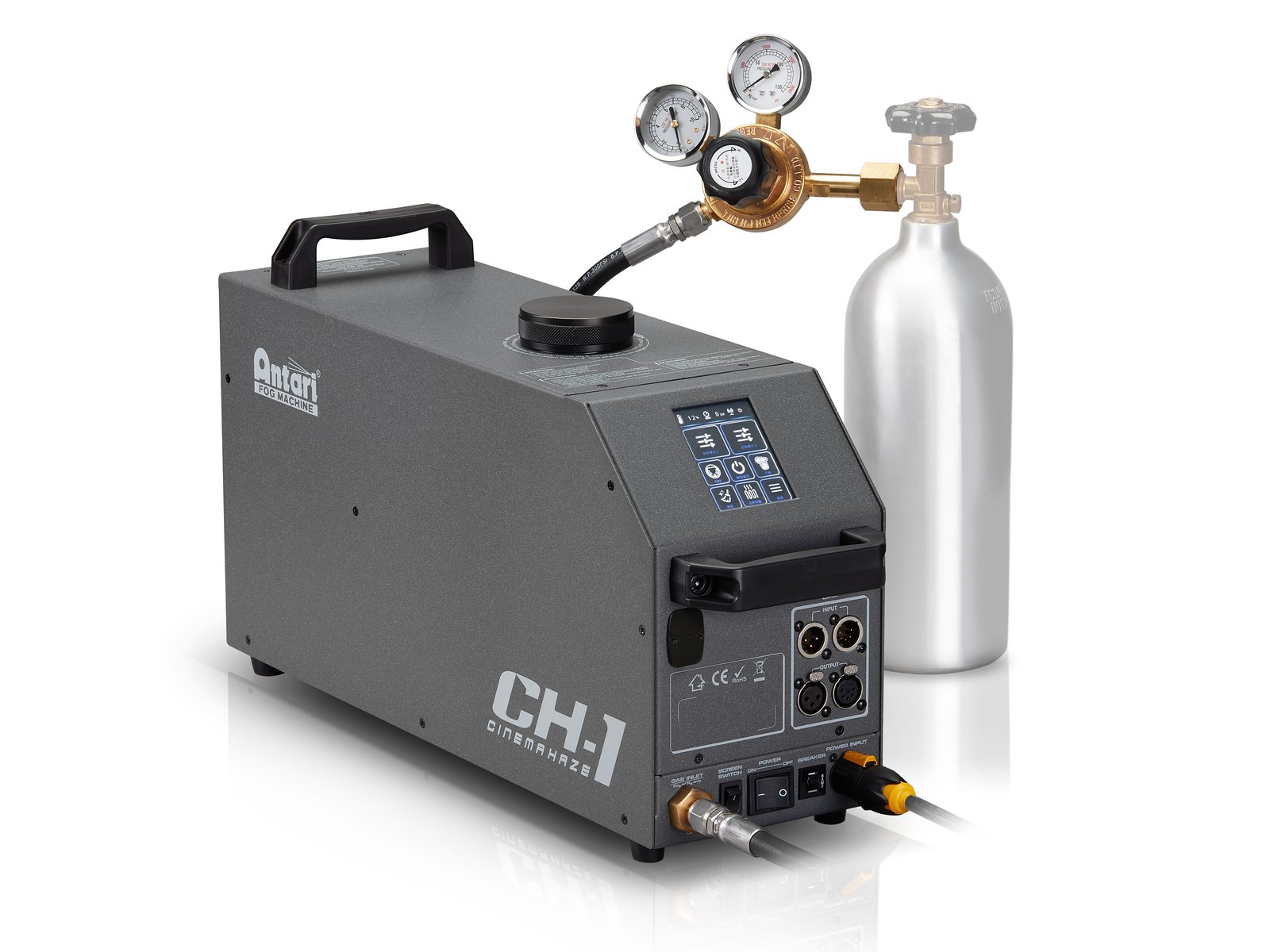

| Gas type: | CO2; N2 |
| Gas pressure range: | 3,4 – 4,1 bar |
| Gas consumption: | 0,36 kg/h at 2,76 bar 0,18 kg/h at 1,38 bar |
| DMX channels: | 1; 3; 5 |

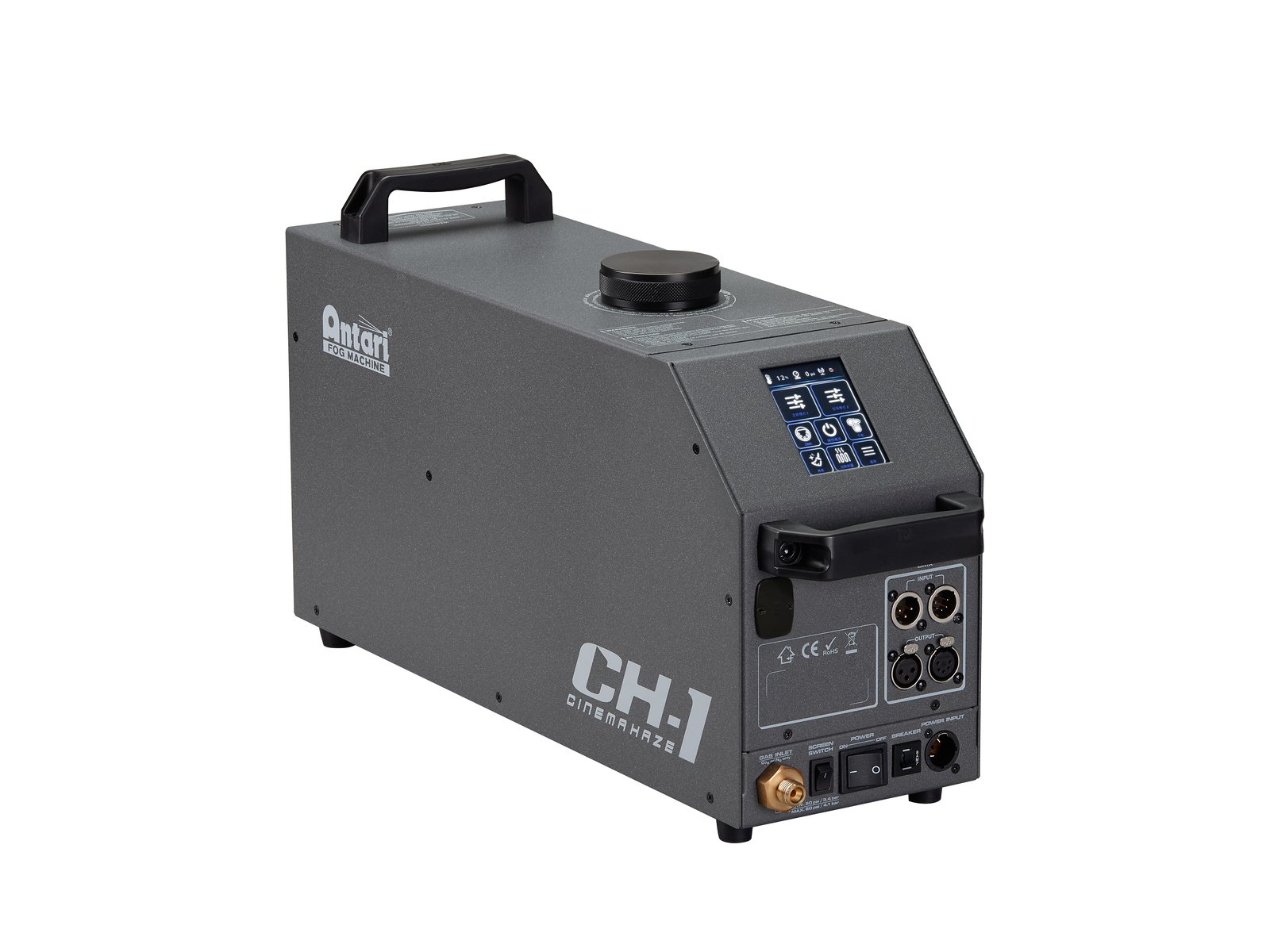

| DMX input: | 3-pin XLR (M) mounting version 5-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version 5-pin XLR (F) mounting version |
| Control: | DMX; W-DMX by wireless solution (optional); timer |
| Housing color: | Grey |
| Display type: | TFT display |
| Color: | Grey |
| Dimensions: | Length: 57,9 cm Width: 16,4 cm Height: 31,1 cm |
| Weight: | 18,30 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4710586554076 | 20,45 kg | 68cm x 28cm x 44cm |
