Description
Features
1820 W fog machine with LED illumination, vertical & horizontal operation

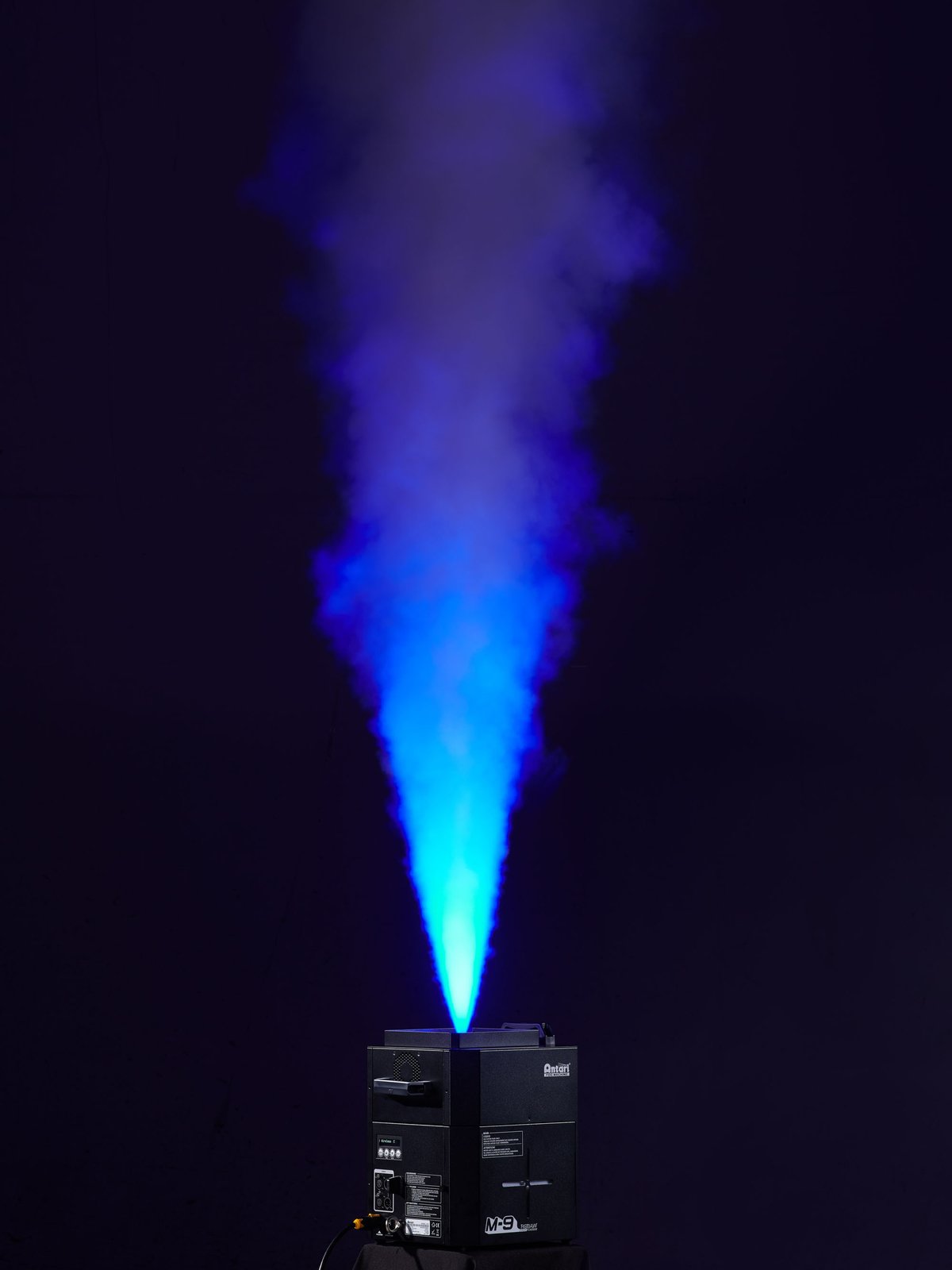

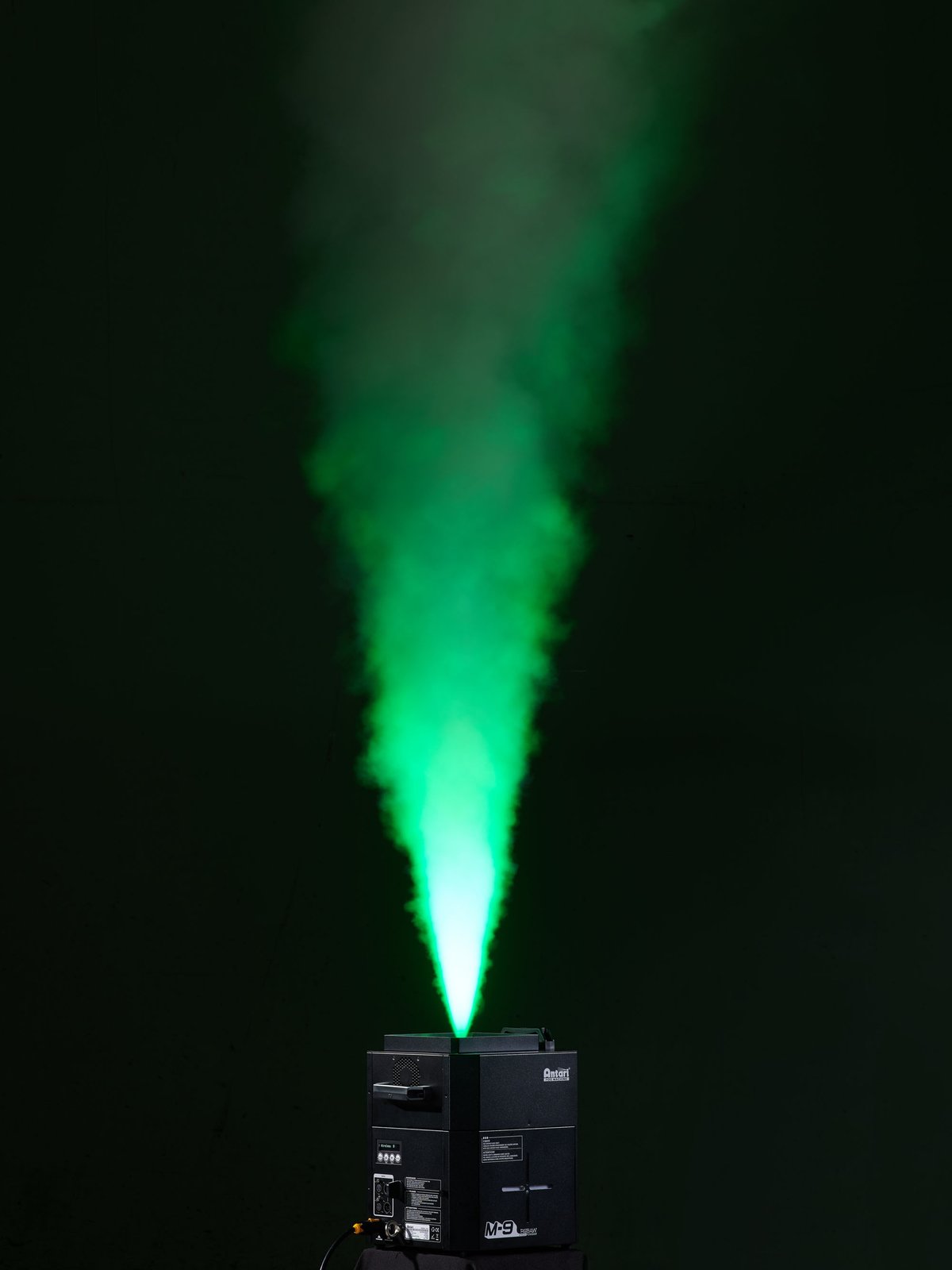

- Output nozzle with RGBAW LED illumination for impressive effect presentations
- New housing design allows upward and downward fog output
- Adjustable timer with interval, duration and output volume
- Continuous output
- Rugged metal housing
- 27 powerful LEDs 8 W high-power 5in1 PCL RGBWA (homogenous color mix)
- Output distance: Horizontal approx. 12 m

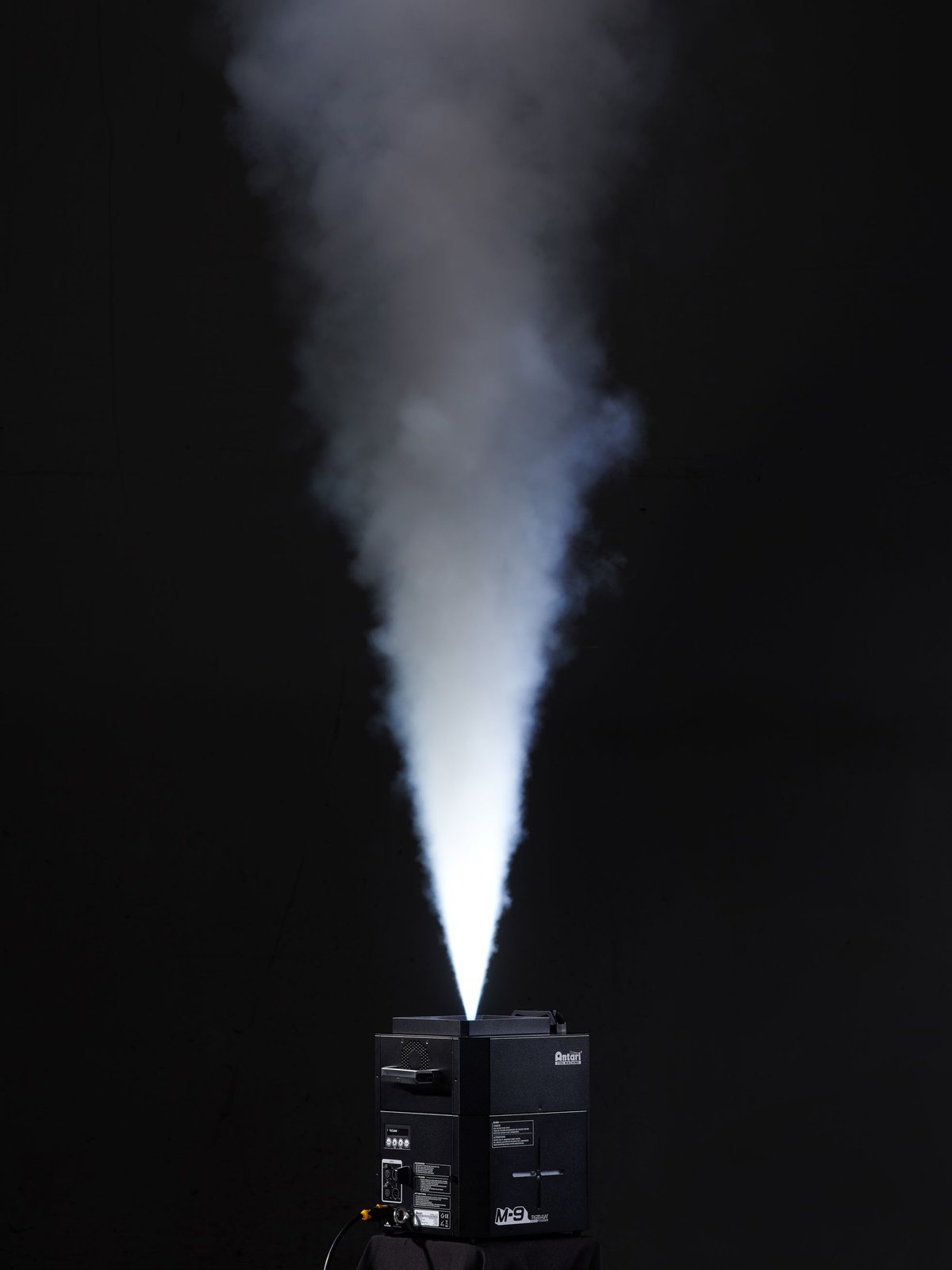

- Output distance: Vertical approx. 10 m
- 8 integrated show programs
- Direct color selection for 25 preset colors
- Control via wireless remote control; W-DMX by wireless solution (optional); DMX; master/slave function; timer
- Wireless remote control: operating range up to 50m
- Built with NEUTRIK connector
- For application areas such as: Clubs/dancing school; stage; theater; rental
- Big tank capacity
- With level indication
- Operates on water-based fluid
- Removable tank
- Application possibility: Standing
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x remote control, 1 x declaration of conformity, 1 x container, 2 x tube
Technical specifications
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 1670 W |
| IP classification: | IP20 |
| Power connection: | Mains input via PowerCON TRUE (M) mounting version power supply cord with safety plug (provided) |
| LED type: | 27 x 8 W high-power 5in1 PCL RGBWA (homogenous color mix) |
| Warm-up time: | Approx. 14 min |
| Output distance: | Vertical approx. 10 m Horizontal approx. 12 m |
| Tank capacity: | 6 l water-based fluid removable tank |
| Fluid consumption: | Approx. 400 ml/min |
| DMX channels: | 10; 15; 25 |
| DMX input: | 3-pin XLR (M) mounting version 5-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version 5-pin XLR (F) mounting version |
| Control: | Wireless remote control; W-DMX by wireless solution (optional); DMX; master/slave function; timer |
| Range: | Wireless remote control: range up to 50m |
| Carrier frequency: | 433,92 MHz |
| Housing color: | Black |
| Use of brands: | Built with NEUTRIK connector |
| Color: | Black |
| Dimensions: | Width: 32,1 cm Depth: 39,3 cm Height: 42 cm |
| Weight: | 24,85 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4719850654887 | 27,00 kg | 54,8cm x 47,5cm x 56,8cm |
