Description
Features

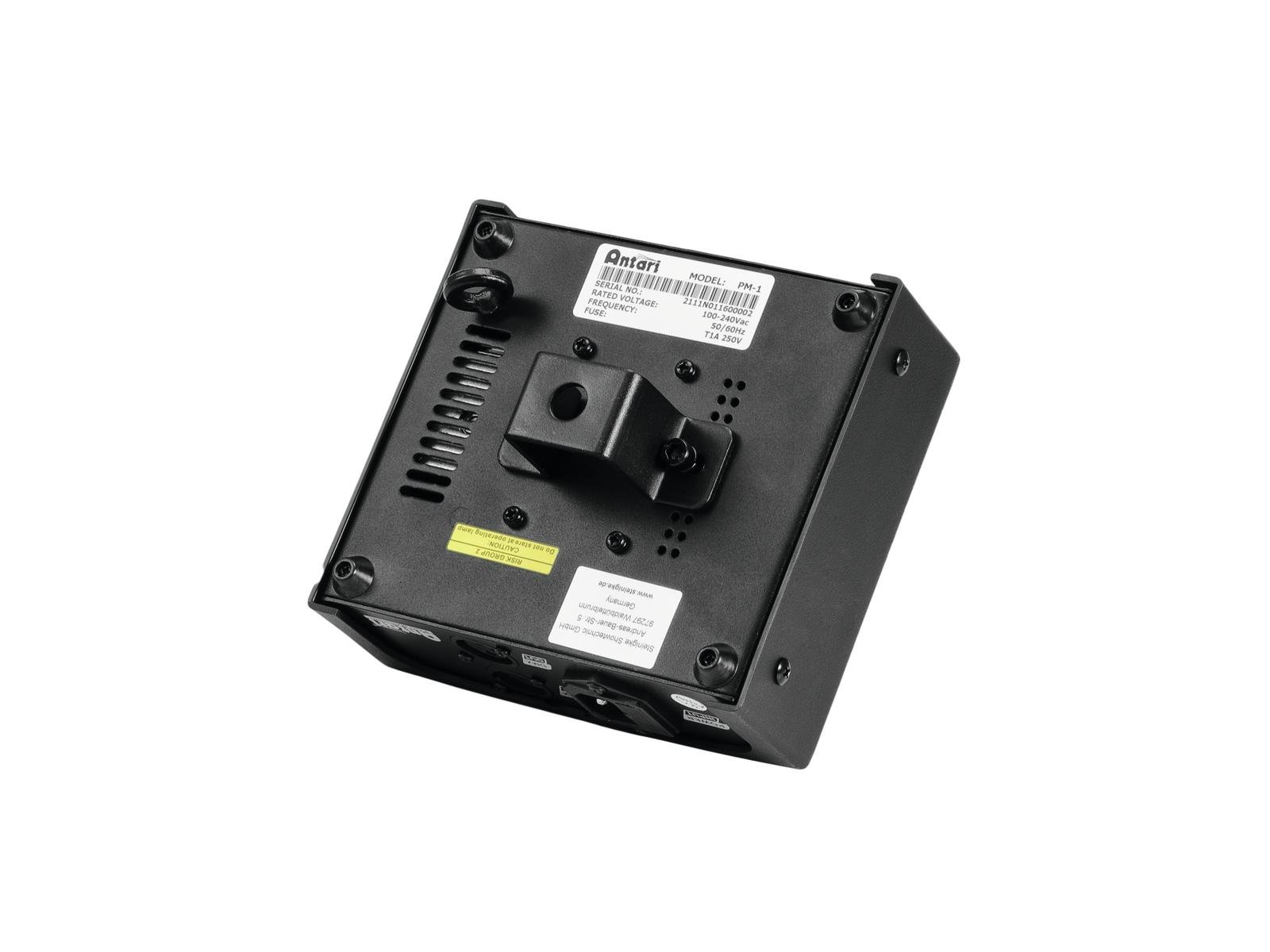

Pan motor for S-500 snow machine
- Pan rotation and speed adjustable
- Metal chassis with plastic cover
- Control via DMX; stand-alone
- With omega bracket
- Monochrome 4 digit 7-segment LED display
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x safety eyelet, 1 x mounting bracket, 2 x nut, 2 x screw, 2 x knurled screw, 7 x washer
Technical specifications
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 11 W |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Speed: | , 120 ° |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; stand-alone |
| Housing color: | Black |
| Attachment system: | Omega bracket |
| Display type: | Monochrome 4 digit 7-segment LED display |
| Dimensions: | Width: 15,4 cm Depth: 16,9 cm Height: 15 cm |
| Weight: | 2,25 kg |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397573190 | 2,52 kg | 22cm x 24cm x 21cm |
