EUROLITE DMX Move Controller 512 PRO

Description

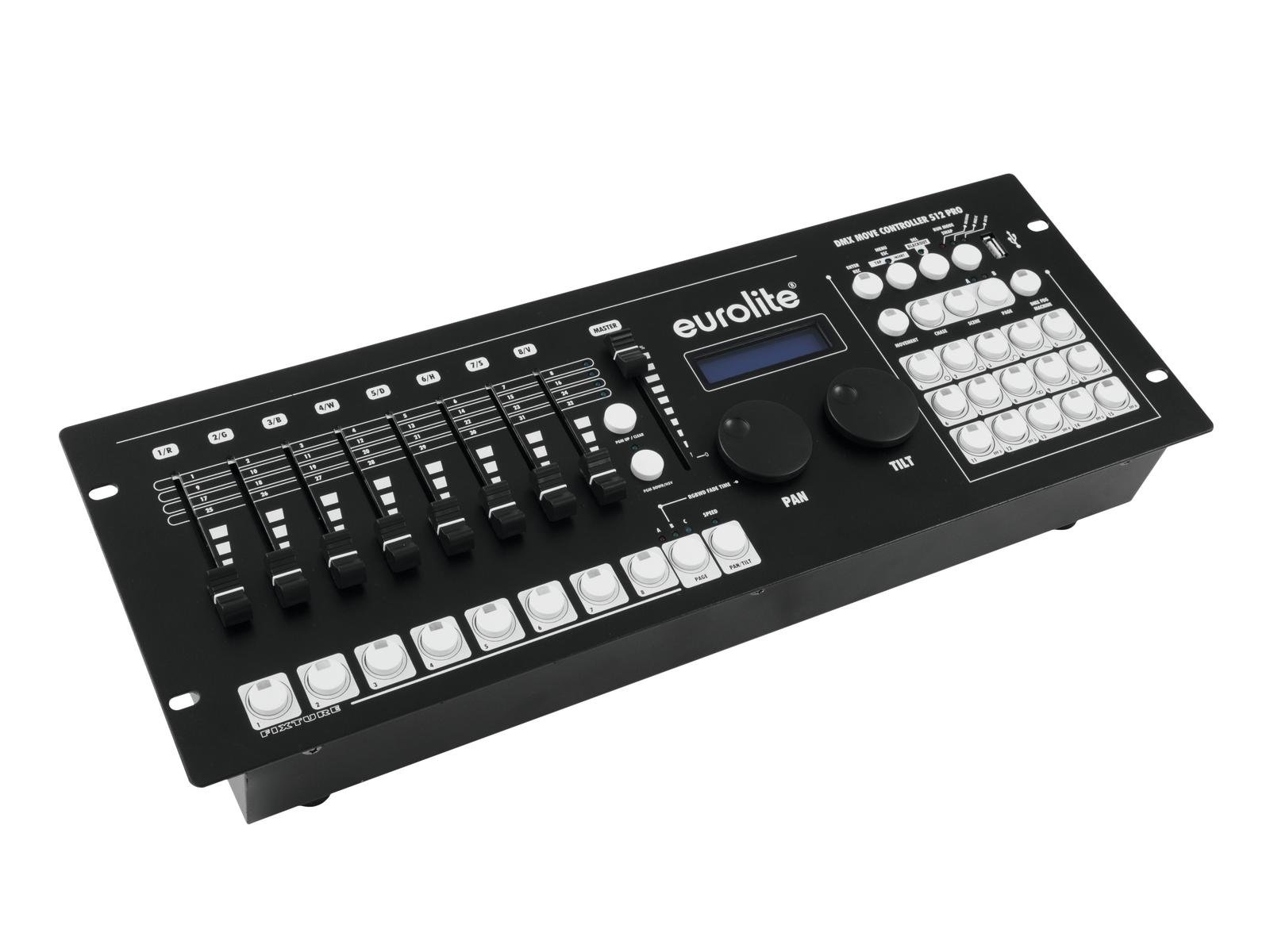

Move Controller 512 PRO

Unique in its class

Such a quality has never been there for light controllers of this size. The Move Controller scores with its equipment, conception and a special feature: motorized faders.

With the DMX Move Controller 512 Pro, 24 DMX lighting effect devices with up to 34 channels per device can be controlled. It is perfectly suited for use with moving lights and devices having RGB or RGBW LEDs. The compact measurements make it the perfect companion for mobile users.

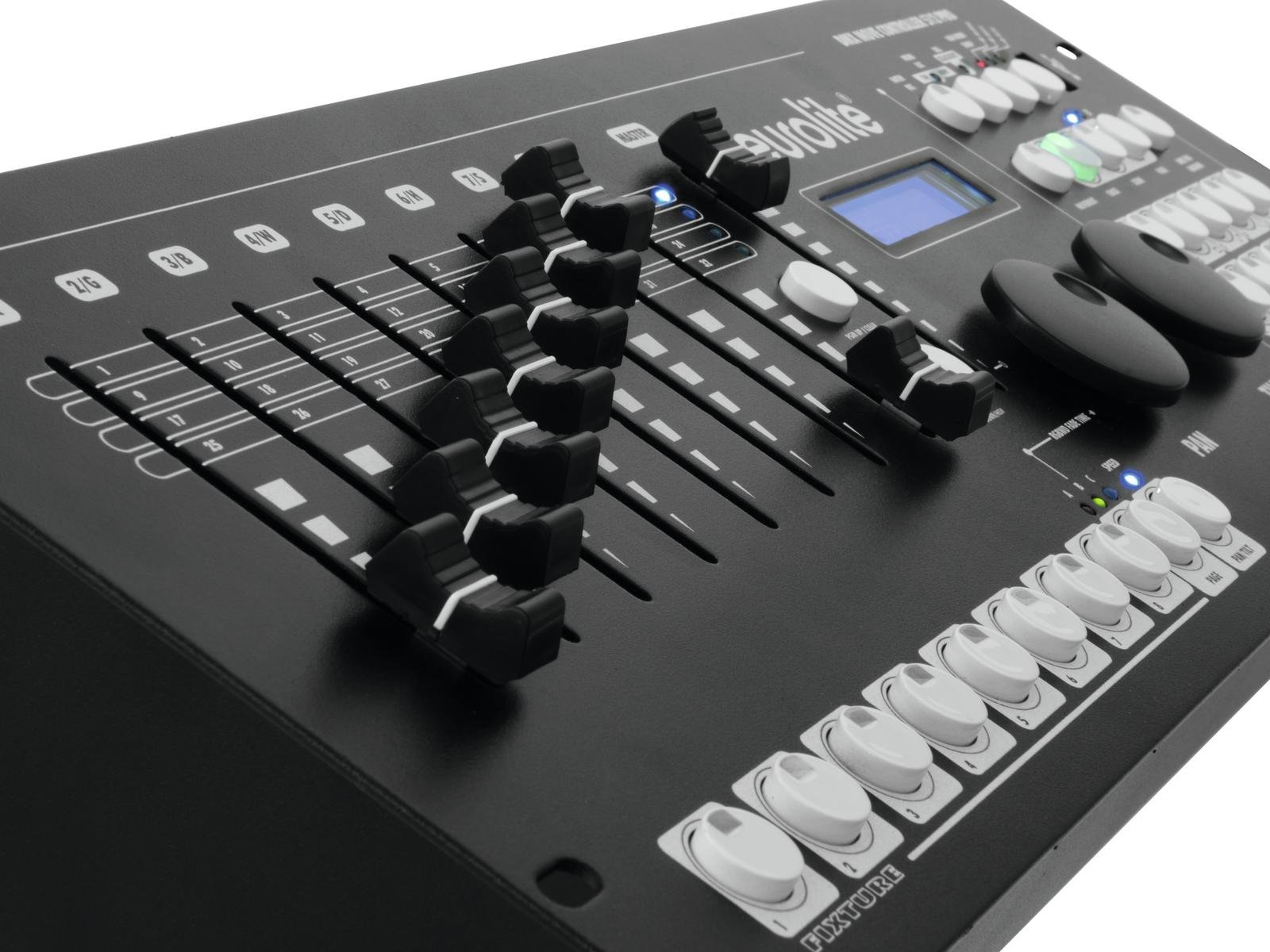

Motorised fader

What makes the controller particularly user friendly are its motorized faders. When switching between banks, chases and scenes, the faders return to their programmed position and can so easily be changed again. A feature, which could only be found in much more expensive and bigger controllers until now.

Illuminated buttons

Especially comfortable are the color-illuminated buttons. Users can orientate themselves easily at a glance. The DMX Move Controller 512 PRO offers seven pre-programmed color effects and 9 movement patterns. Several color effects and movement patterns can be used at the same time.

USB connector

Via integrated USB connection, back-ups of the programmed light shows as well as fixture patchings can be saved on a conventional USB stick. Software can also be updated this way.

Versatile

Due to its various possibilities, the controller‘s use is not limited to a certain stage size. It is suited for small light shows as well as for big stages and is a perfect device for ambitious beginners as well as for long-time professionals.

»The Eurolite controller is perfectly suited for controlling the band’s light show. Also hirers, who are looking for a simple controller, which even untrained users can work with, will be interested in the DMX Move Controller Pro. Not least because with this controller, different setups can be saved on a stick and so you can pre-program a light show for your customer.«

issue 05/2016

Features

Console with motorized faders, color & motion effects (24 devices/34 channels)

• DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
• 512 DMX channels can be assigned and inverted as desired to 34 control channels (softpatch)
• For 24 fixtures with max. 34 control channels each
• USB port for storing program data
• Quick programming thanks to 9 integrated movement patterns and 6 color effects (pan/tilt position, fade time and running time adjustable)
• Several movement patterns and color effects can be used simultaneously
• Manual, time-controlled or sound-controlled chase running mode
• 3 DMX fixture levels can be controlled
• 8 motorized DMX channel faders for user-friendly control
• The motor faders provide a precise overview of the parameters when switching the individual banks, chases and scenes
• 2 jog wheels for pan/tilt
• Master fader for color and dimmer channels
• Blackout function
• Color-illuminated buttons provide easy orientation
• Programmable 30 scenes/chases each with 485 cues distributed over 2 page/s
• Can transmit up to 512 DMX channels
• Control via DMX; RDM
• Firmware can be updated
• (19″) 48.3 cm rack installation 4 U
• Desktop console housing
• For application areas such as: Clubs/dancing school; stage; mobile djs / entertainer
• Silent operation

Package contents

• 1 x controller, 1 x user manual, 1 x power cord
