Description
This compact 4-fold splitter is designed for reliable distribution of DMX512 signals in rigs. The unit features 3-pin XLR connectors with status indicators, and a M10 threaded insert for truss attachment. Delivery includes a power cord.
Features
4-fold DMX splitter for truss mounting
- Mini splitter with 3-pin XLR terminals
- Rugged metal housing
Package contents

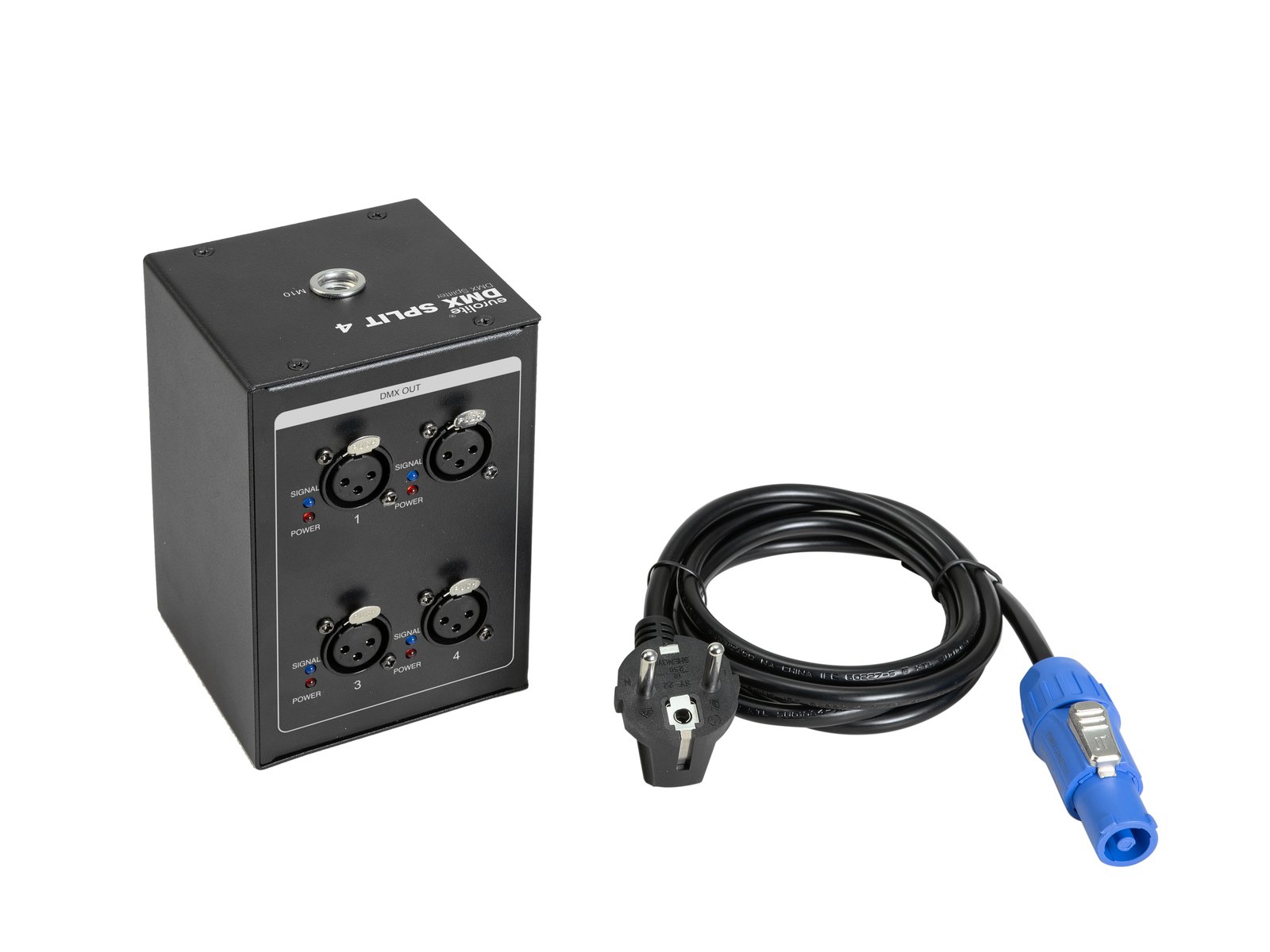

- 1 x device, 1 x power cord, 1 x user manual, 4 x foot
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 1,5 W |
| Output current: | Max. 10 A |

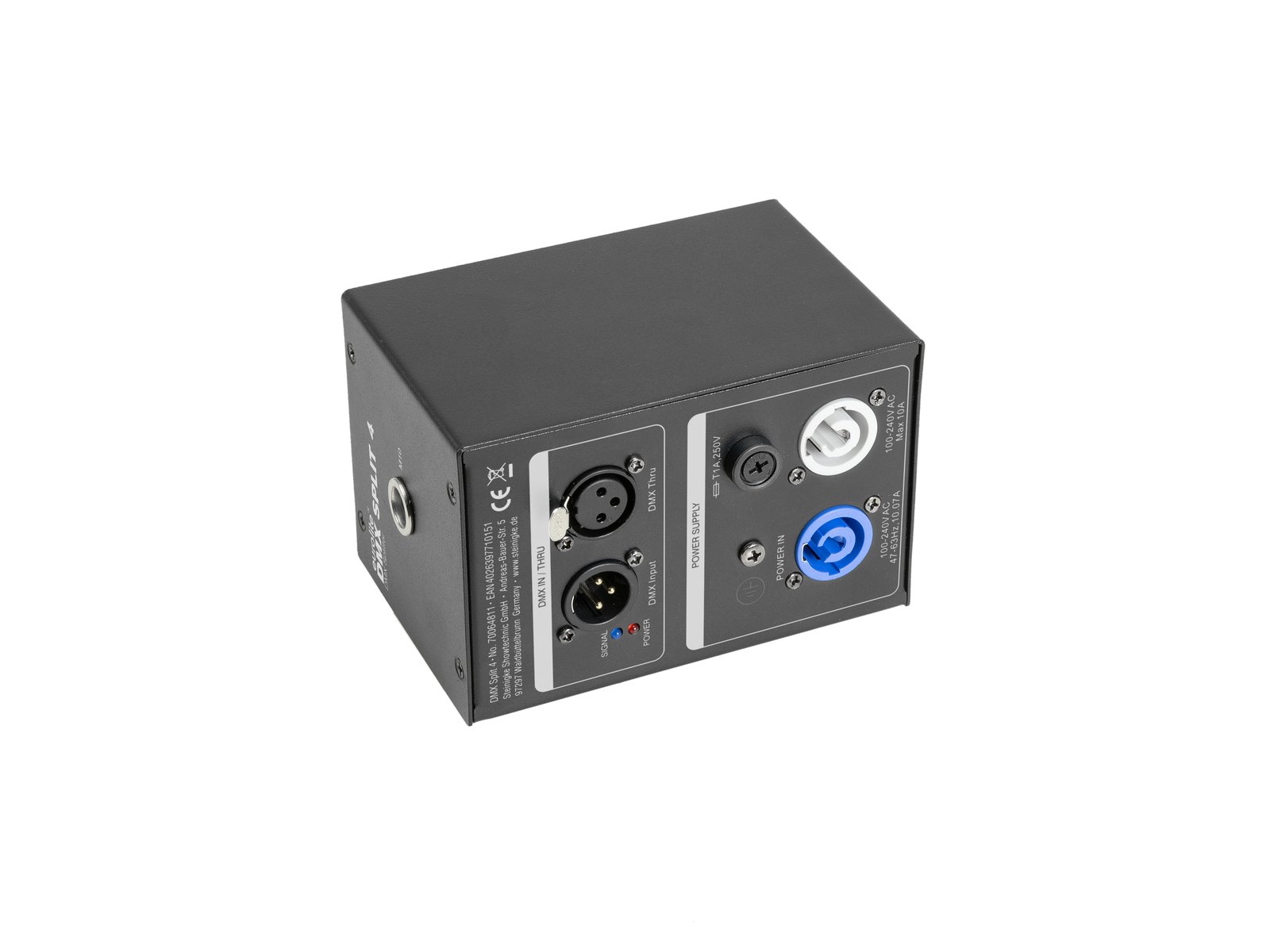

| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| DMX input: | 1 x 3-pin XLR (M) mounting version |

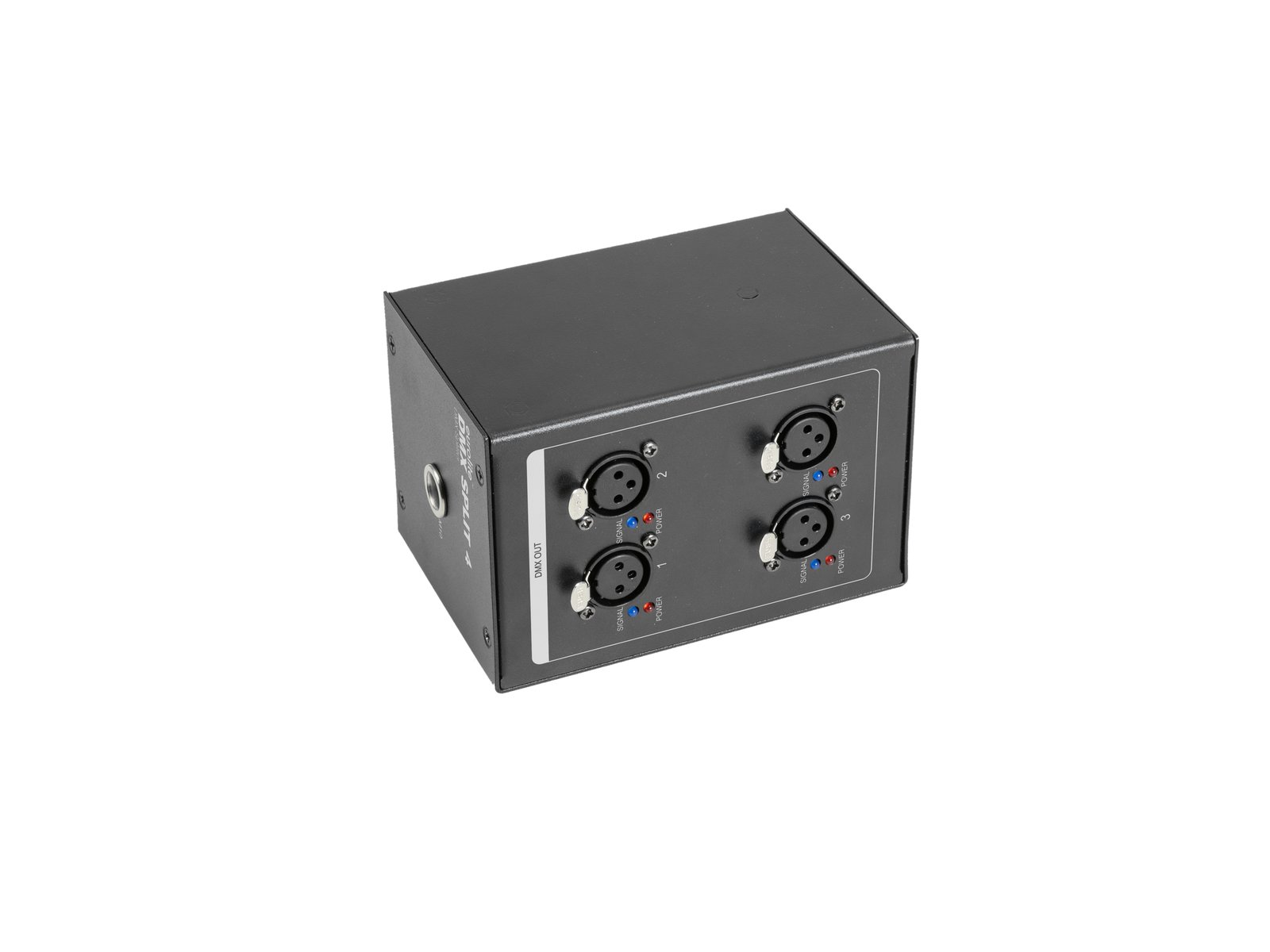

| DMX output: | 4 x 3-pin XLR (F) mounting version separate (galvanic) 1 x 3-pin XLR (F) mounting version Bypass |
| Status LED: | Power, DMX |
| Dimensions: | Length: 9 cm Width: 9,5 cm Height: 14 cm |
| Weight: | 990 g |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397710151 | 1,17 kg | 26cm x 19cm x 13cm |
