Description
Features

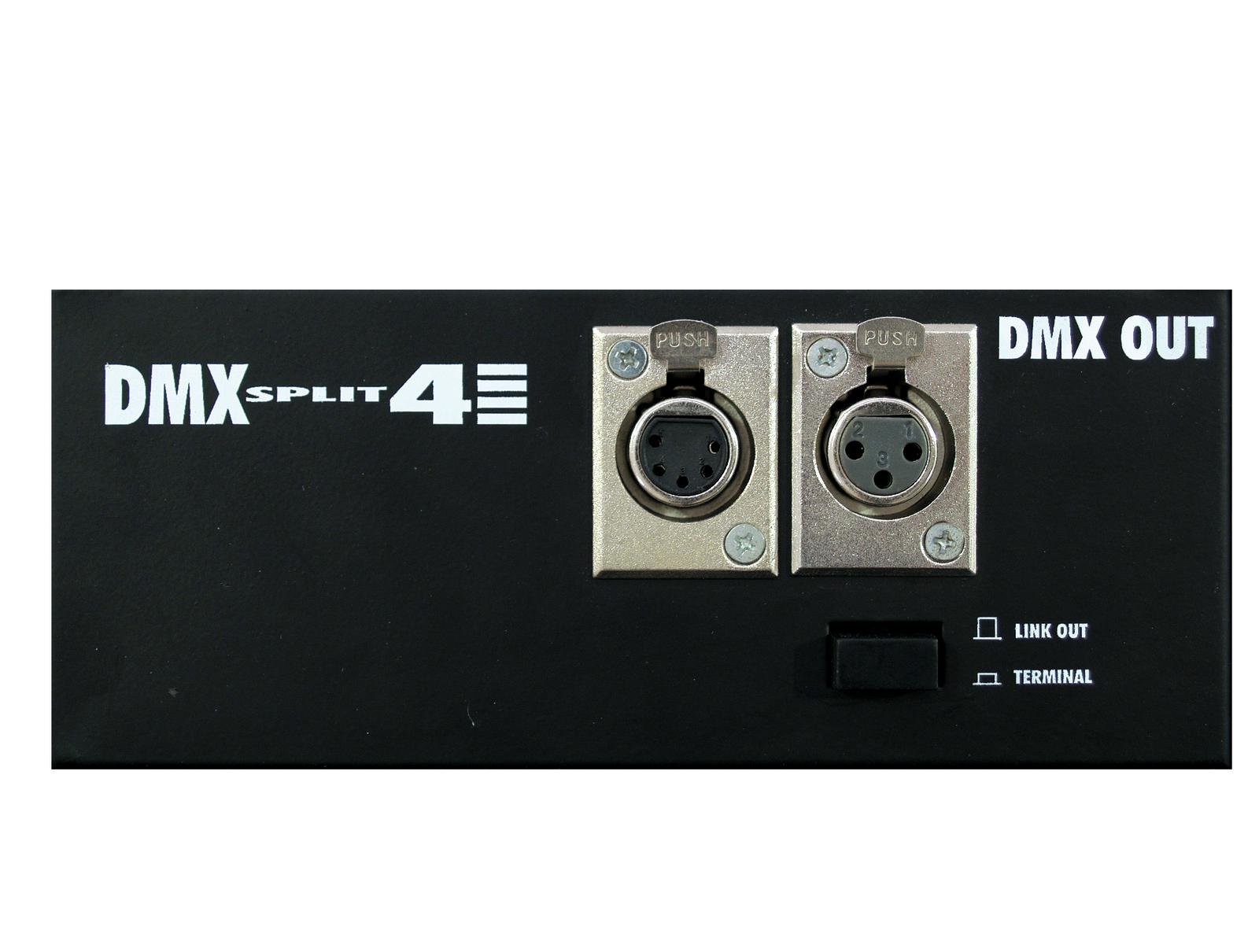

Splitter with 4 galvanically isolated outputs, 3-pin & 5-pin XLR sockets
- DMX splitter for splitting one DMX input signal to 4 DMX outputs
- Input and outputs galvanically isolated
- Input and outputs with a set of respective power supply and internal fuse
- Switchable termination resistor
- Each DMX output with independent driver and status indicator
Package contents
- 1 x device, 1 x user manual
Technical specifications
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 20 W |
| Power connection: | Fixed power supply cord with safety plug |
| DMX input: | 1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version |
| DMX output: | 4 x 3-pin XLR (F) mounting version separate (galvanic) with independent driver and status indicator 4 x 5-pin XLR (F) mounting version separate (galvanic) with independent driver and status indicator 1 x 5-pin XLR (F) mounting version Bypass 1 x 3-pin XLR (F) mounting version Bypass |
| Control elements: | Bypass/terminating resistor switch |
| Dimensions: | Width: 32,5 cm Depth: 19 cm Height: 8 cm |
| Weight: | 2,55 kg |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397573442 | 2,90 kg | 35cm x 25cm x 15cm |
