Description
EUROLITE freeDMX Interface
Control light via app

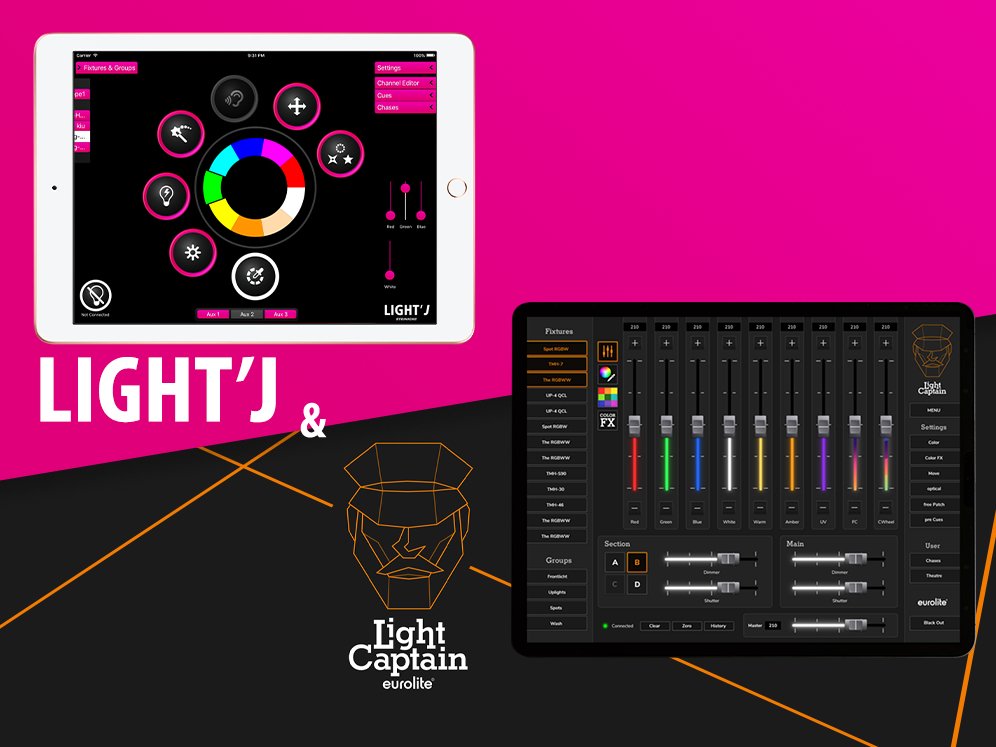

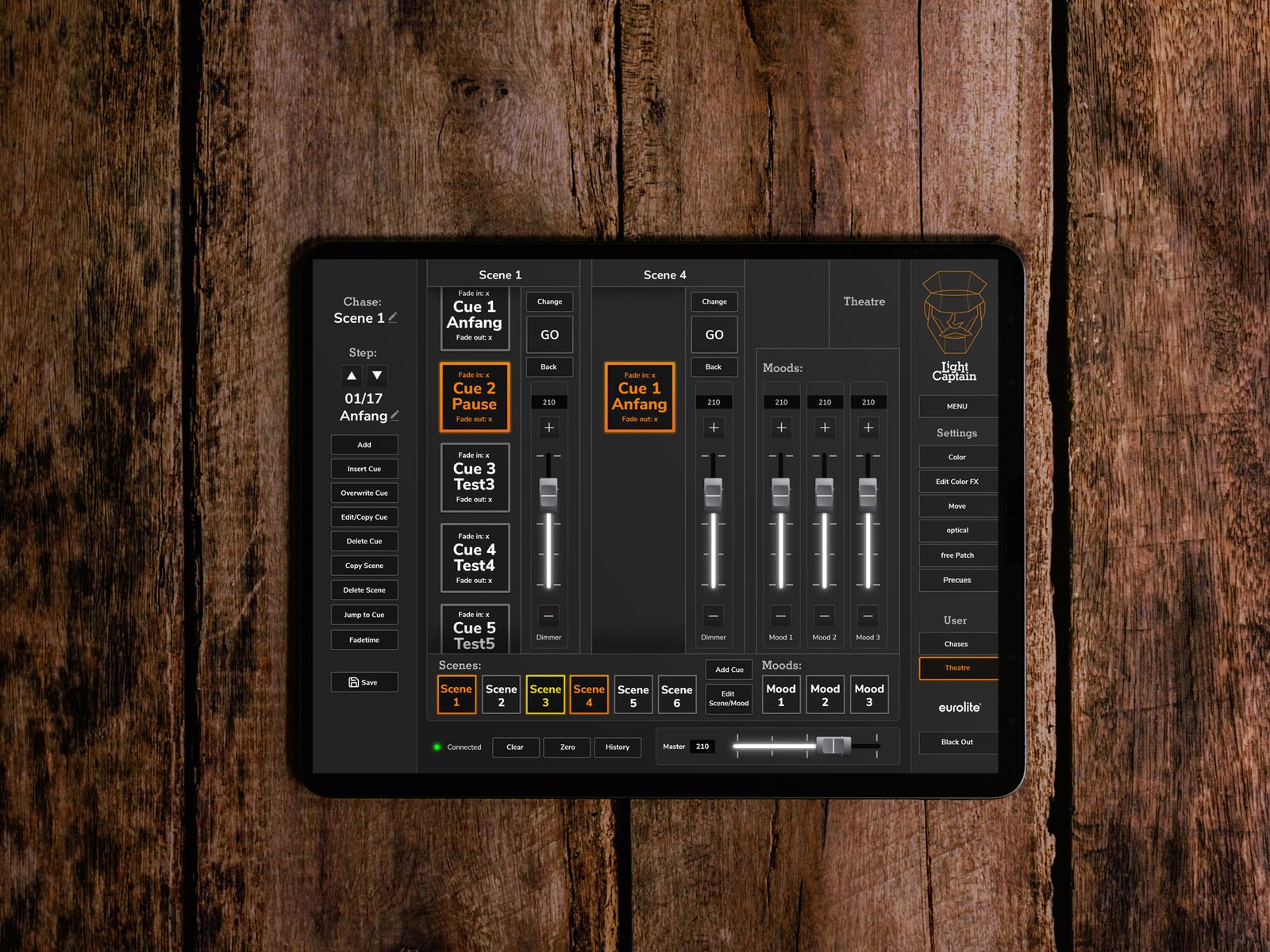

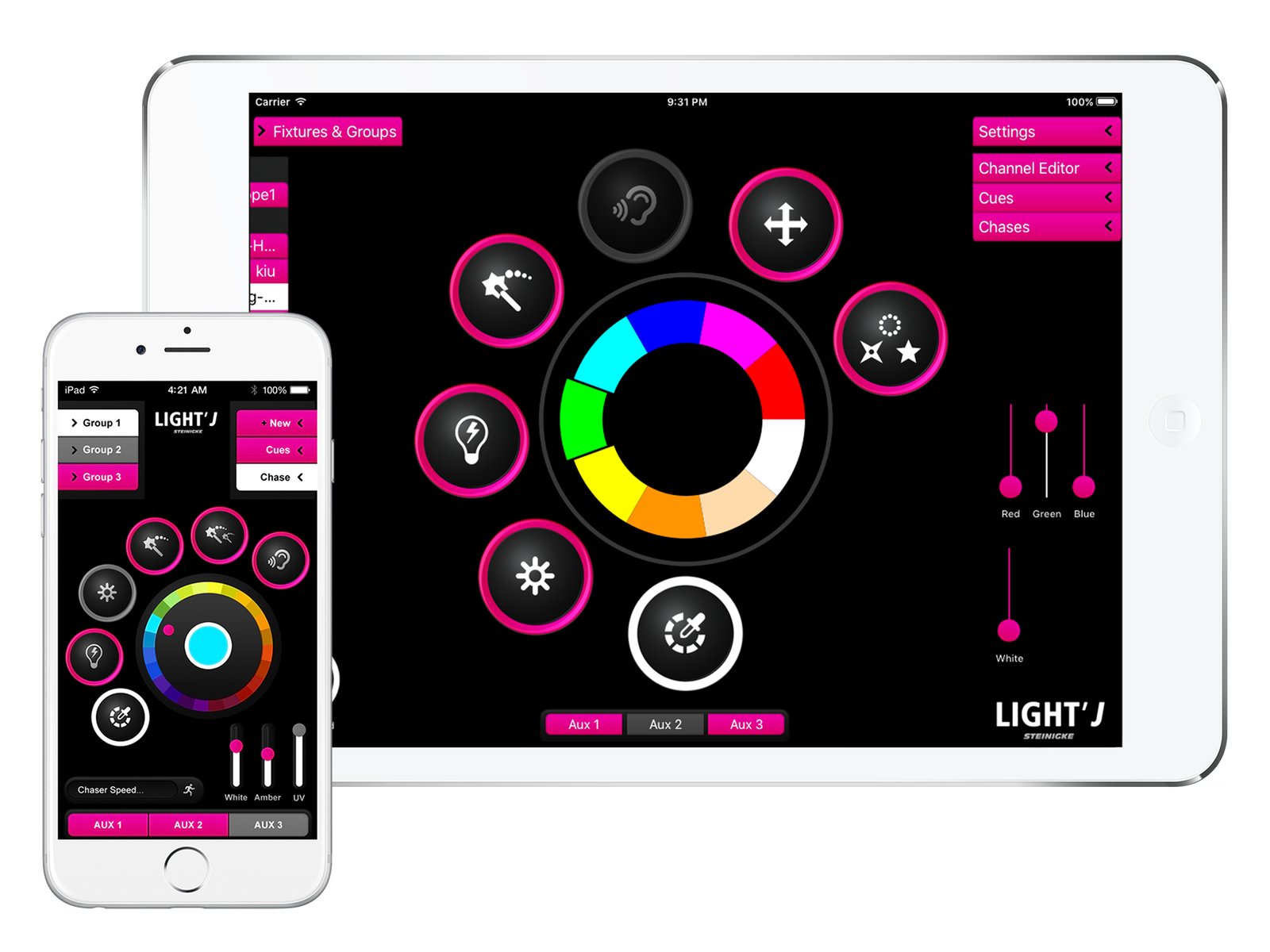

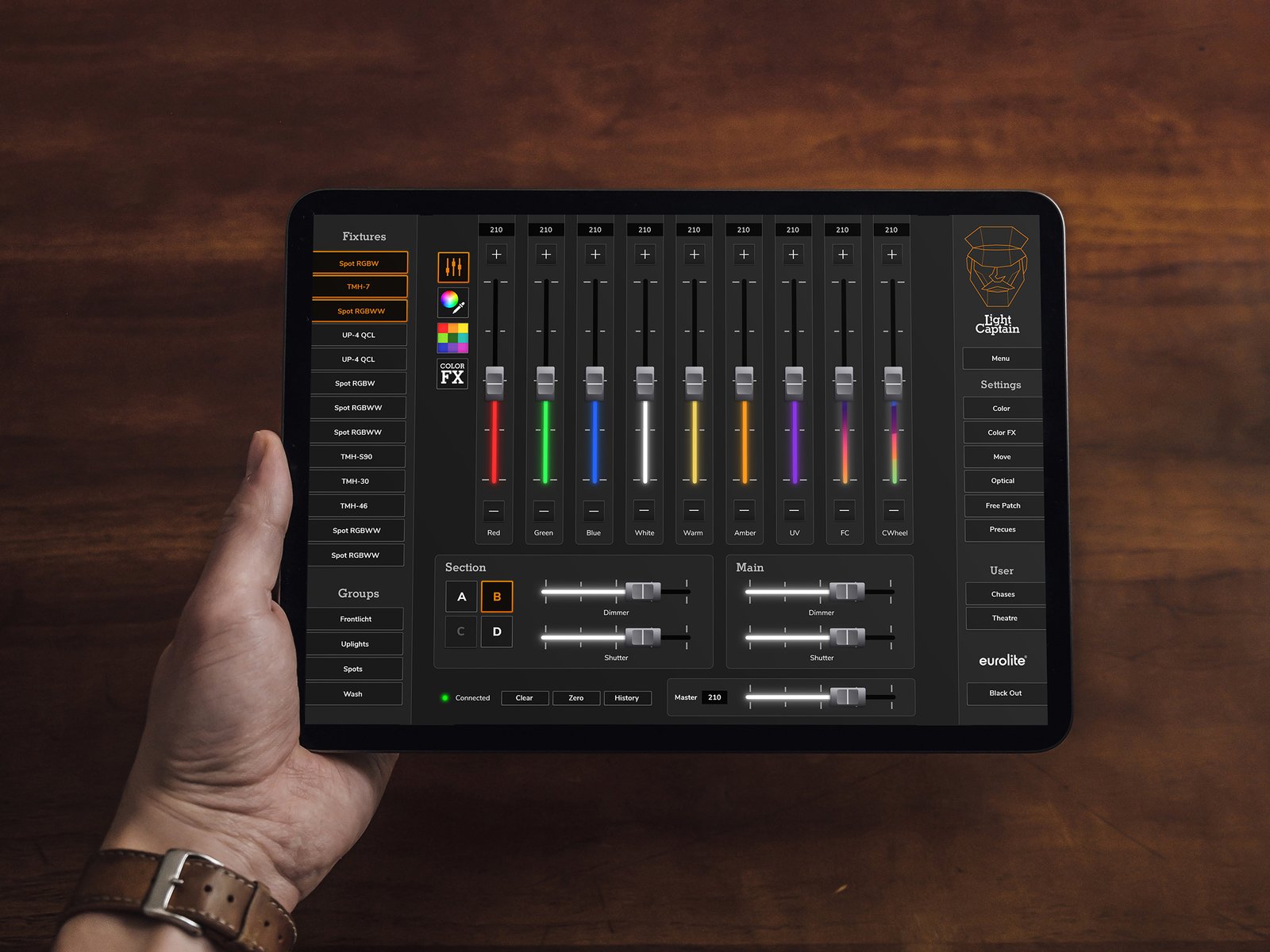

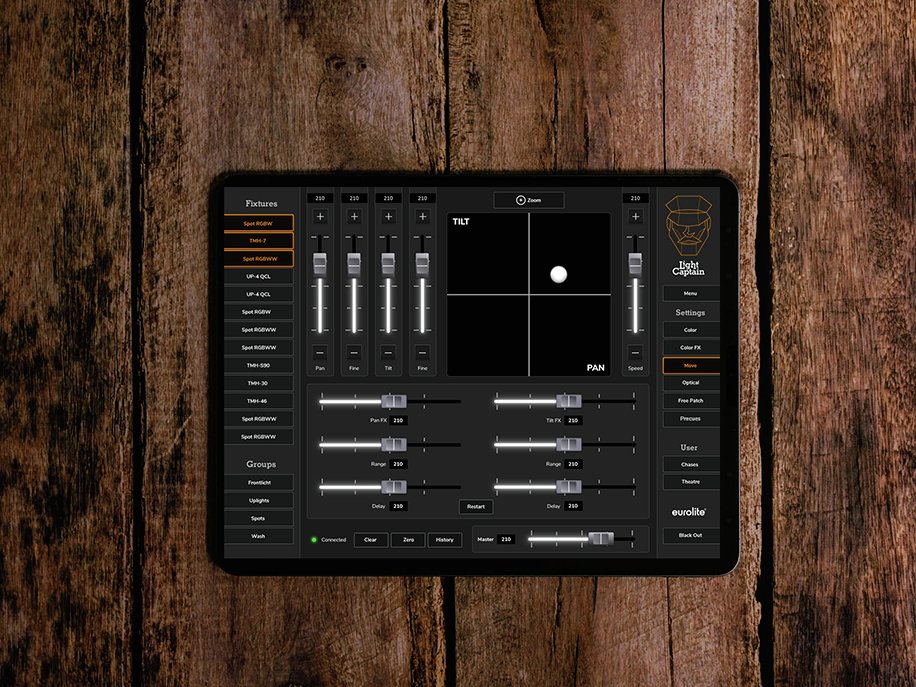

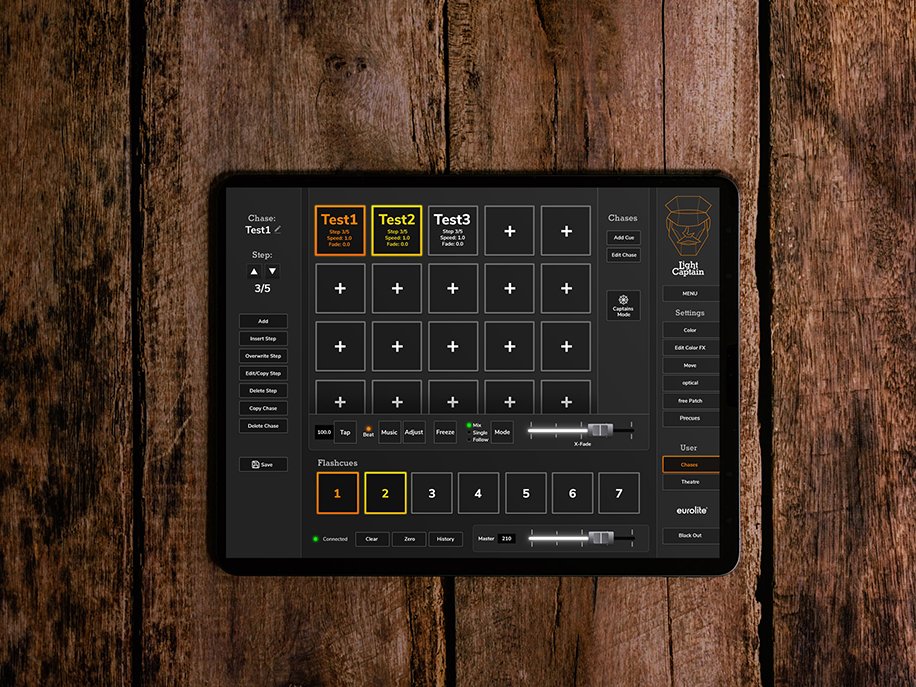

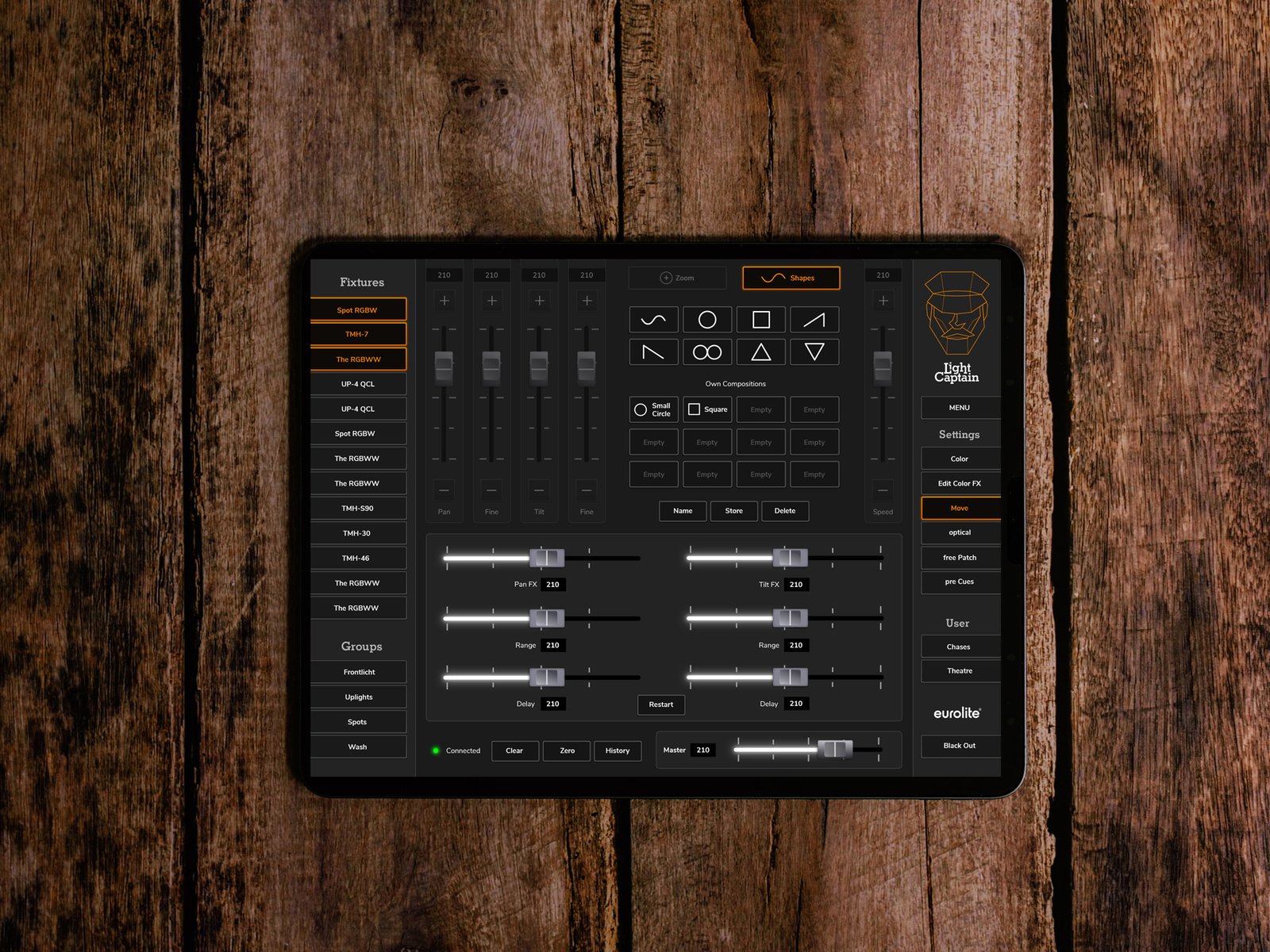

Control your fixtures, lighting effects or even moving heads conveniently from your tablet. In addition to the freeDMX Interface, all you need is one of our apps (Light Captain or Light’J) as an innovative lighting controller.
Suitable Apps:
How it works:
Simply connect the fixtures to the freeDMX via DMX cable or QuickDMX and connect it to your mobile device using the integrated Wi-Fi module: you can already control your light via app.
Features
Wi-Fi DMX interface for apps & programs like Light Captain

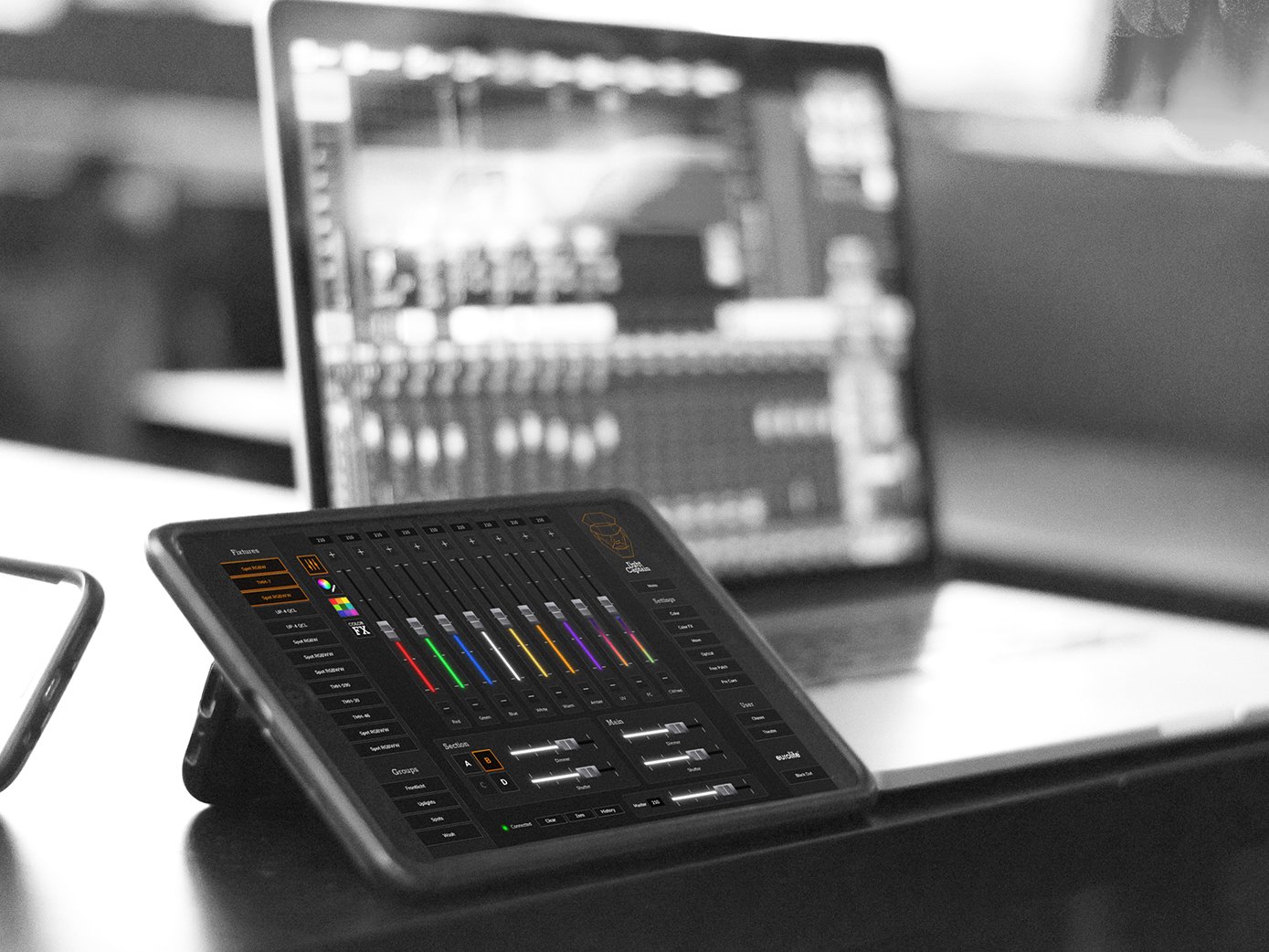

- Wi-Fi DMX interface for wireless lighting control from your tablet or PC
- Receives the control signals via the network and transmits them to the DMX line via cable
- Works with iOS and Android devices
- The apps’ online fixture library is continuously updated and already includes more than 300 Eurolite and Futurelight fixtures – easily add new ones via the fixture profile editor
- Configuration via integrated webserver
- Access point and infrastructure mode
- 1 DMX feed-through output

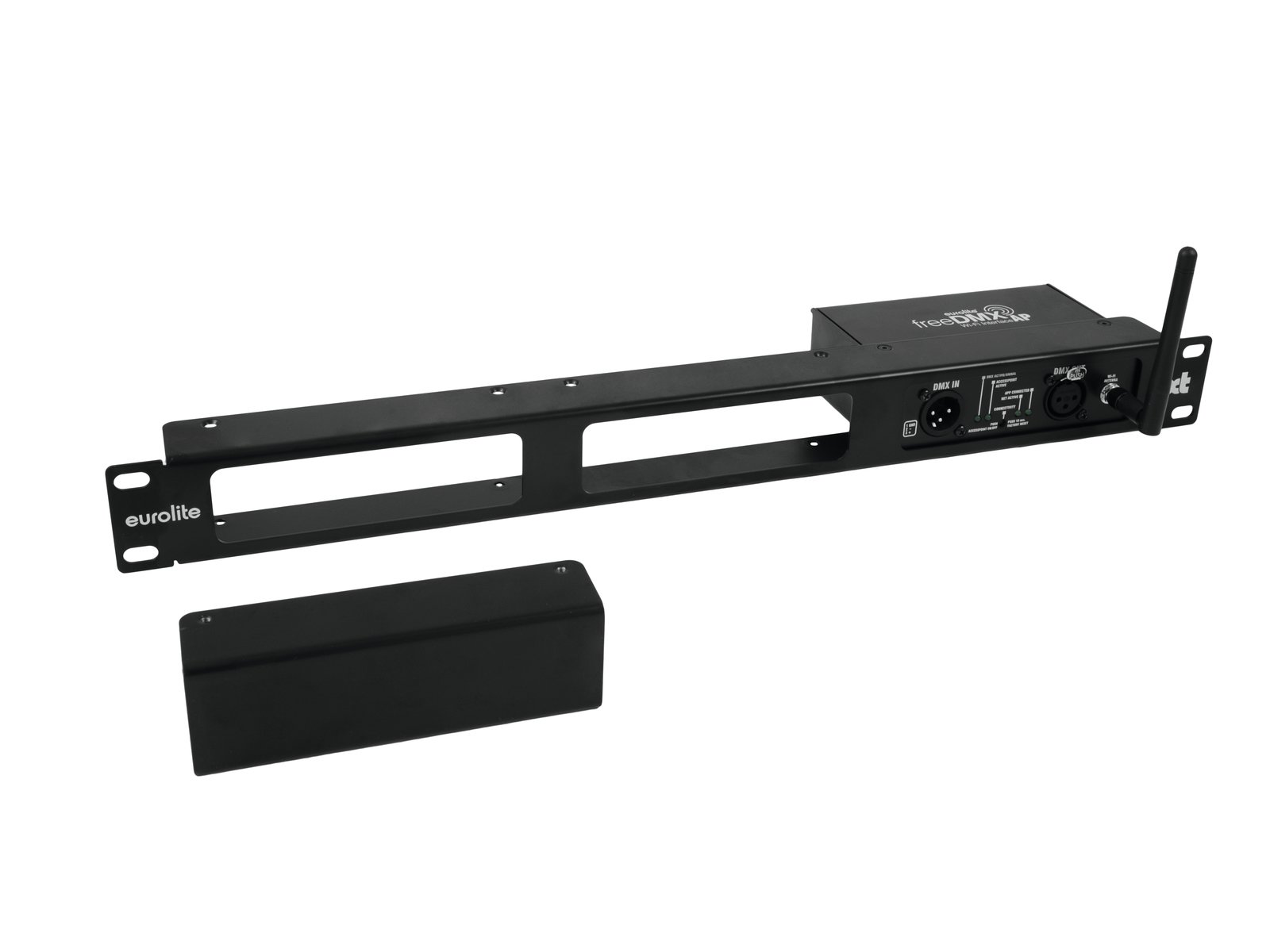

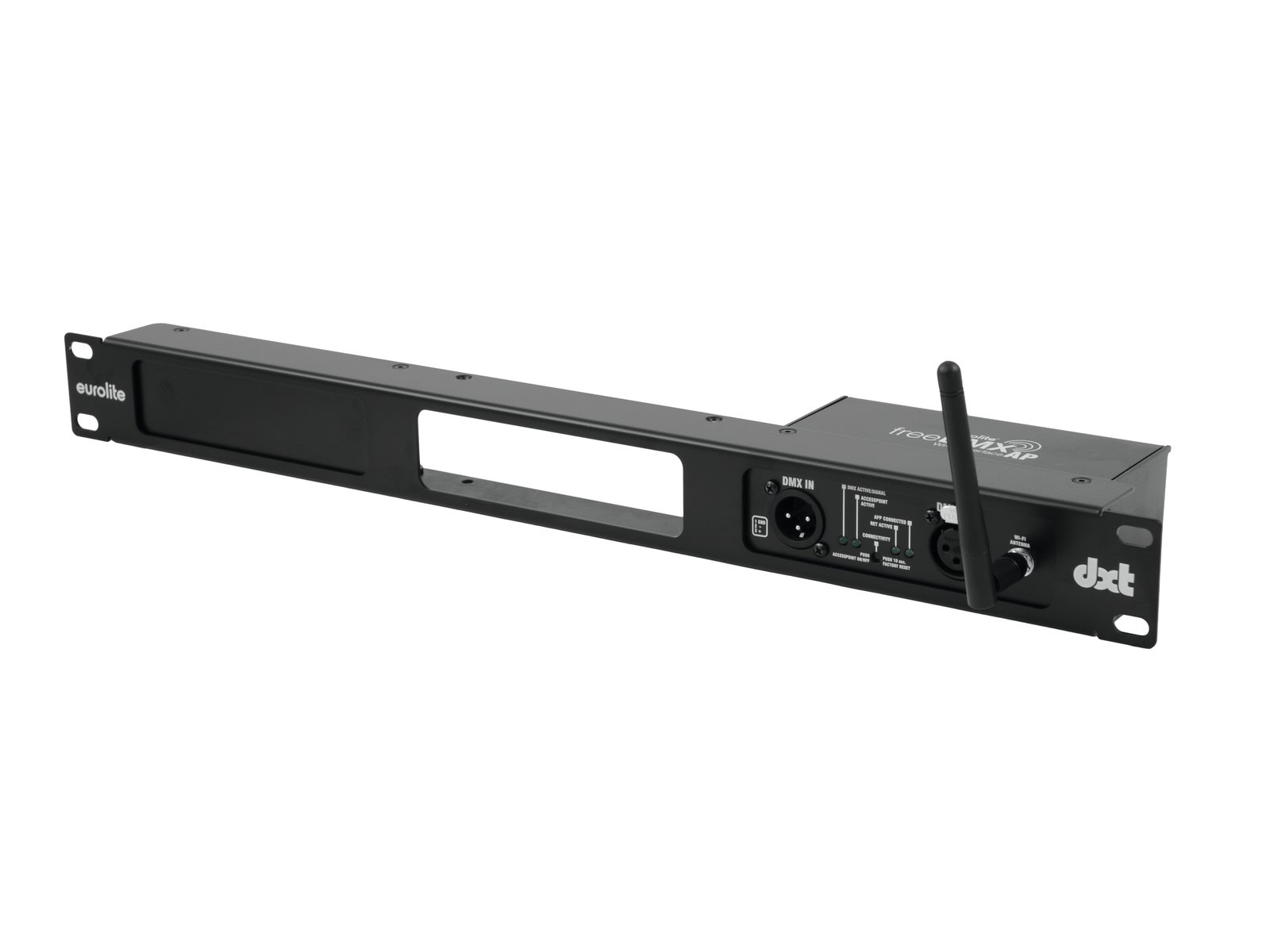

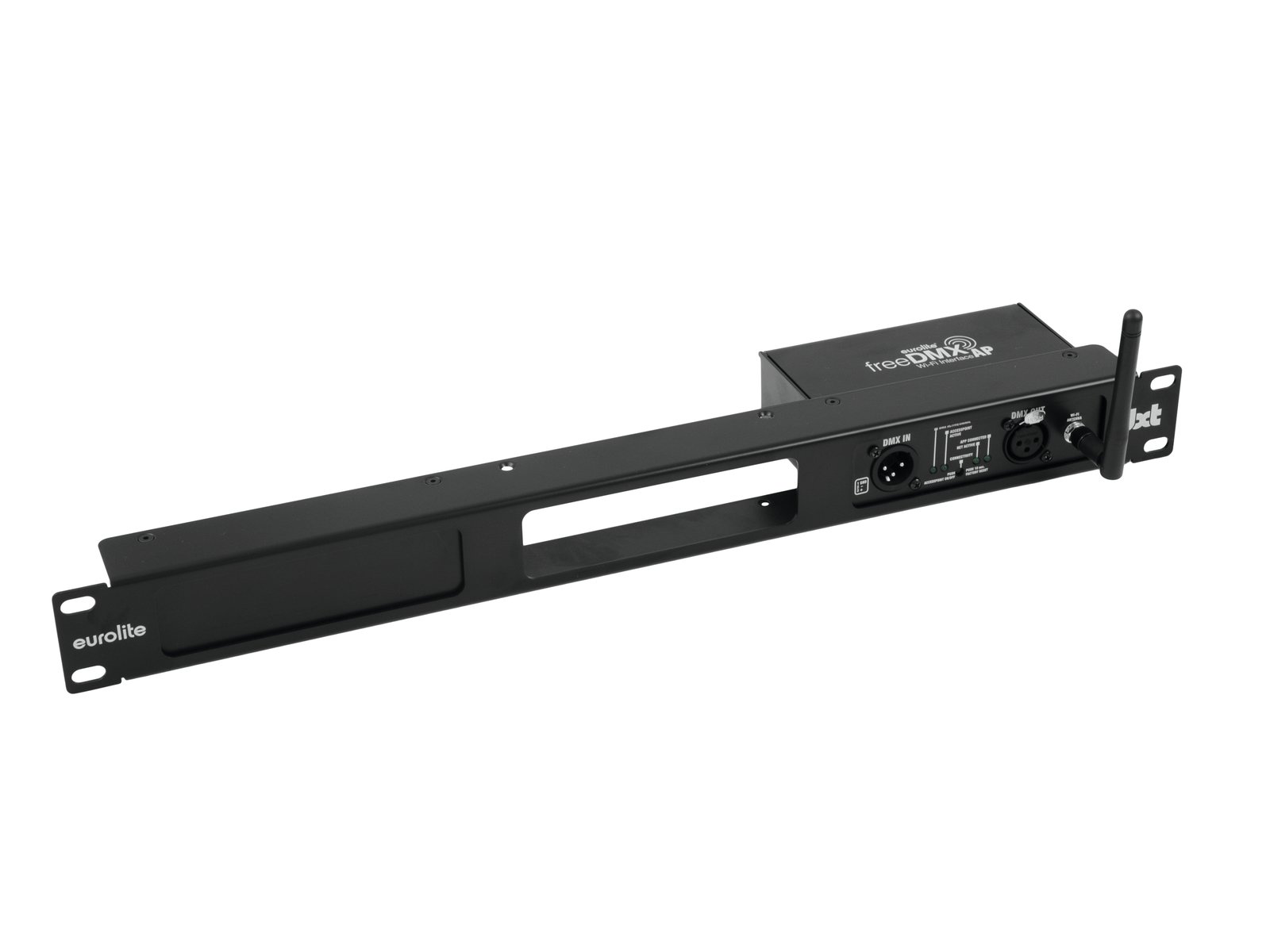

- Mounting kits for racks, desks and truss systems available as an option
- Can transmit up to 512 DMX channels
- Control via DMX; Light´J app; Wi-Fi; Light Captain App; Art-Net
- 2.4 GHz license-free worldwide
- Operating range up to 60m in the open air
- Operating range up to 30m in buildings
- Built with NEUTRIK connector
- In connection with f.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC)
- Made in Germany
- For application areas such as: Clubs/dancing school; wedding/gala/events; stage; theater; mobile djs / entertainer
- Silent operation
Package contents
- 1 x device, 1 x external mains adapter, 4 x foot, 2 x user manual, 1 x antenna, 1 x declaration of conformity
Technical specifications

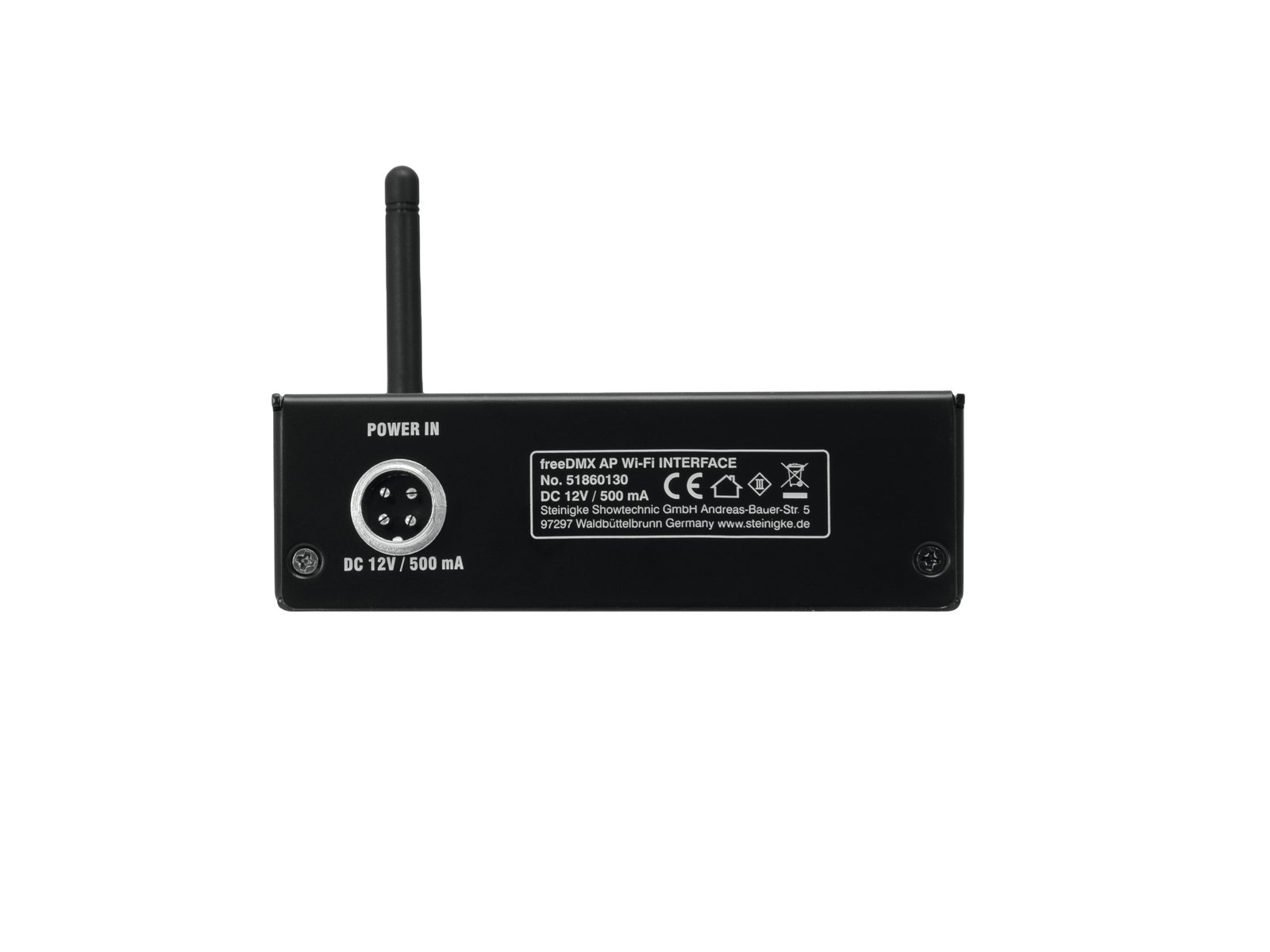

| Power supply: | 100-240 V AC, 50/60 Hz 12 V DC 1 A |
| IP classification: | IP20 |
| Wi-Fi: | Standard: IEEE 802.11 b/g/n |
| DMX channels: | Output 512 |

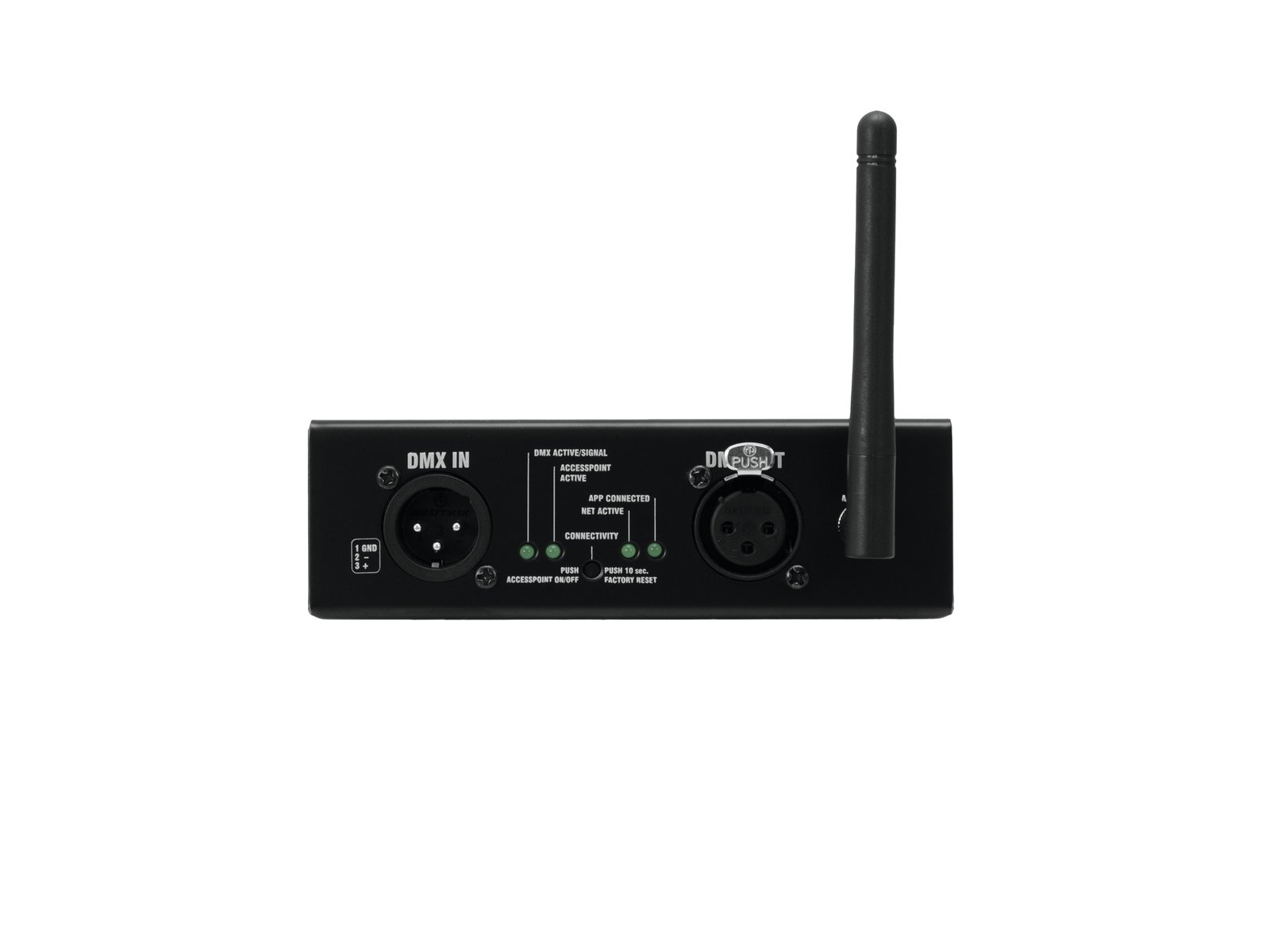

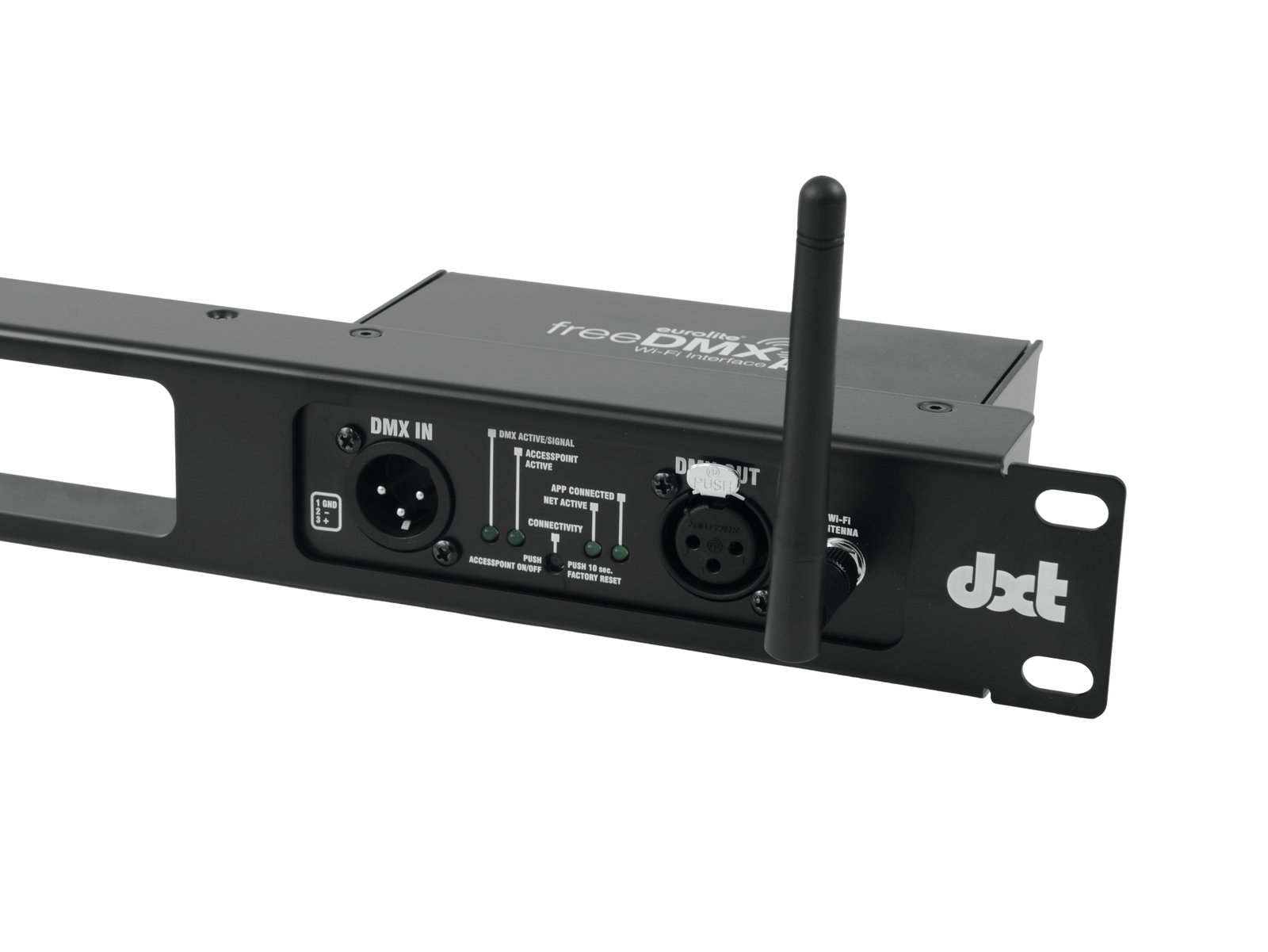

| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; Light´J app; Wi-Fi; Light Captain App; Art-Net |
| Range: | Range up to 60m in the open air Range up to 30m in buildings |
| Frequency band: | 2.4 GHz |
| Antenna gain: | 2 dBi |
| Status LED: | Signal, pairing, link, chanal source |
| Use of brands: | Built with NEUTRIK connector |
| Color: | Black |
| PC connect: | F.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC) |
| Dimensions: | Width: 13 cm Depth: 11,5 cm Height: 4,1 cm |
| Weight: | 640 g |
| Noise classification: | Class 0 (no noise at all) |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397564808 | 0,72 kg | 24,5cm x 16cm x 5cm |
