Description
Features
LED beam effect with RGBW color mixing and 8 RGB hypno rings
- 8 powerful LEDs 10 W SMD 4in1 QCL RGBW
- 96 powerful LEDs 0,2 W SMD 5050 3in1 TCL RGB
- Dimmer electronic; color fade; color change; color blend; Rotation speed; Rotation direction
- Multi beam effect
- 2 integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); sound to light via microphone; master/slave function
- Fuzzy sound control: program continues automatically during periods without music or bass-beat
- Flicker-free
- 4 digit 7-segment LED display

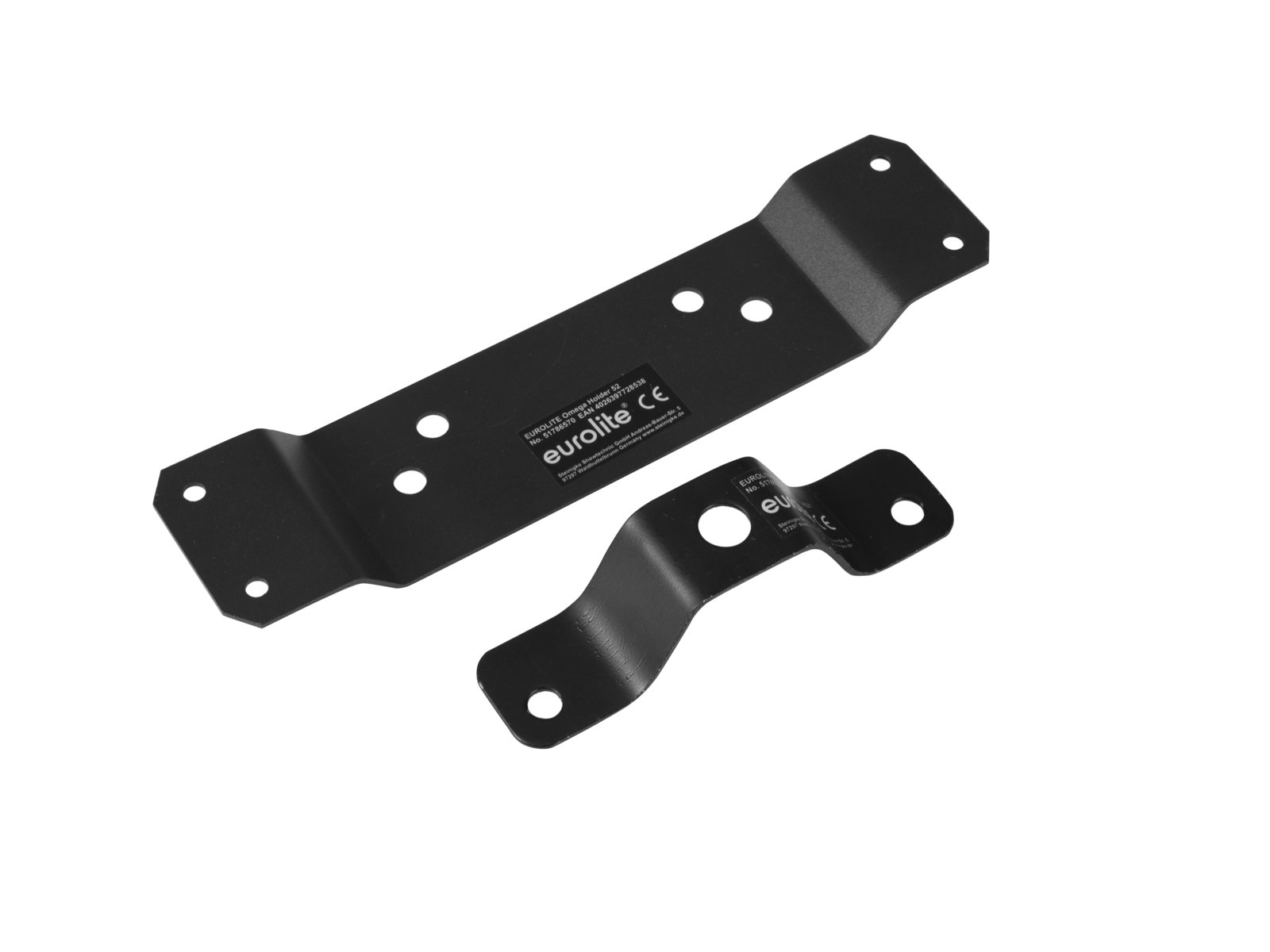

- With omega bracket; with mounting bracket
- Application possibility: Standing; suspended
- Preprogrammed in Light Captain; Colorchief
- For application areas such as: Clubs/dancing school; wedding/gala/events; party room; mobile djs / entertainer; restaurants, bars and hotels
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 2 x omega bracket, 2 x screw
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 75 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug |
| Fuse: | 5 x 20 mm, T 3,15 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 8 x 10 W SMD 4in1 QCL RGBW 96 x 0,2 W SMD 5050 3in1 TCL RGB |
| Max. TILT movement: | 360° positioning infinity |
| Max. PAN movement: | 540° |
| Flash rate: | 0 – 20 Hz |
| DMX channels: | 16 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); sound to light via microphone; master/slave function |
| Preprogrammed in: | Light Captain; Colorchief |
| Projection: | Flicker-free |
| Illuminance in Lux (lx): | Red (R) 1m: 4812 lx, 3m: 1146 lx, 6m: 271 lx Green (G) 1m: 8250 lx, 3m: 2434 lx, 6m: 723 lx Blue (B) 1m: 3015 lx, 3m: 604 lx, 6m: 153 lx Cold white (CW) 1m: 14513 lx, 3m: 3918 lx, 6m: 817 lx |
| Housing color: | Black |
| Attachment system: | Omega bracket Mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Diameter mounting holes: | 4 x Ø5mm |
| Material: | Plastic |
| Dimensions: | Width: 27,0 cm Depth: 21,0 cm Height: 35,5 cm |
| Weight: | 4,50 kg |
| Noise classification: | Class 2 (slight noise) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397726992 | 5,10 kg | 32cm x 25cm x 42cm |
