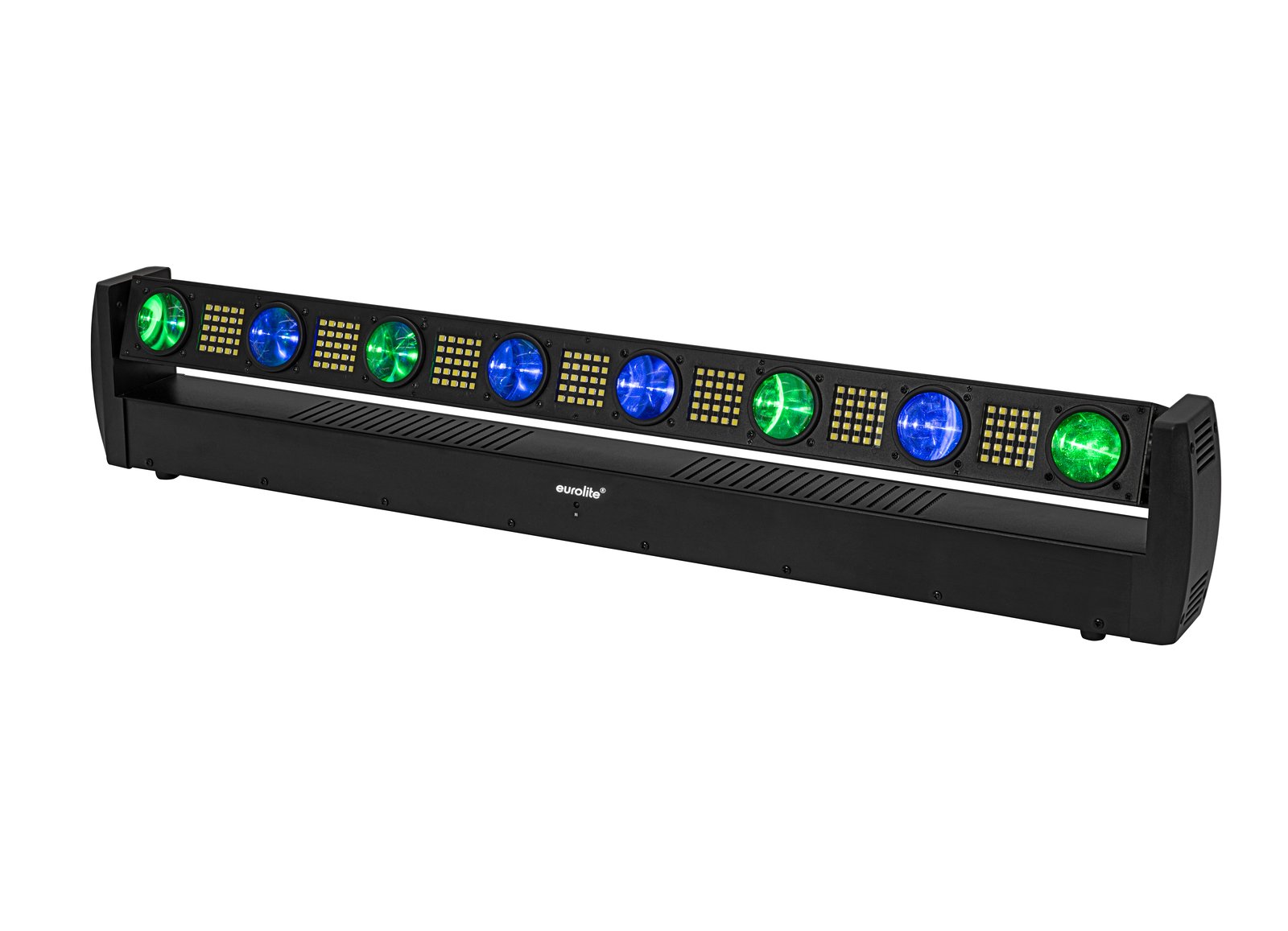

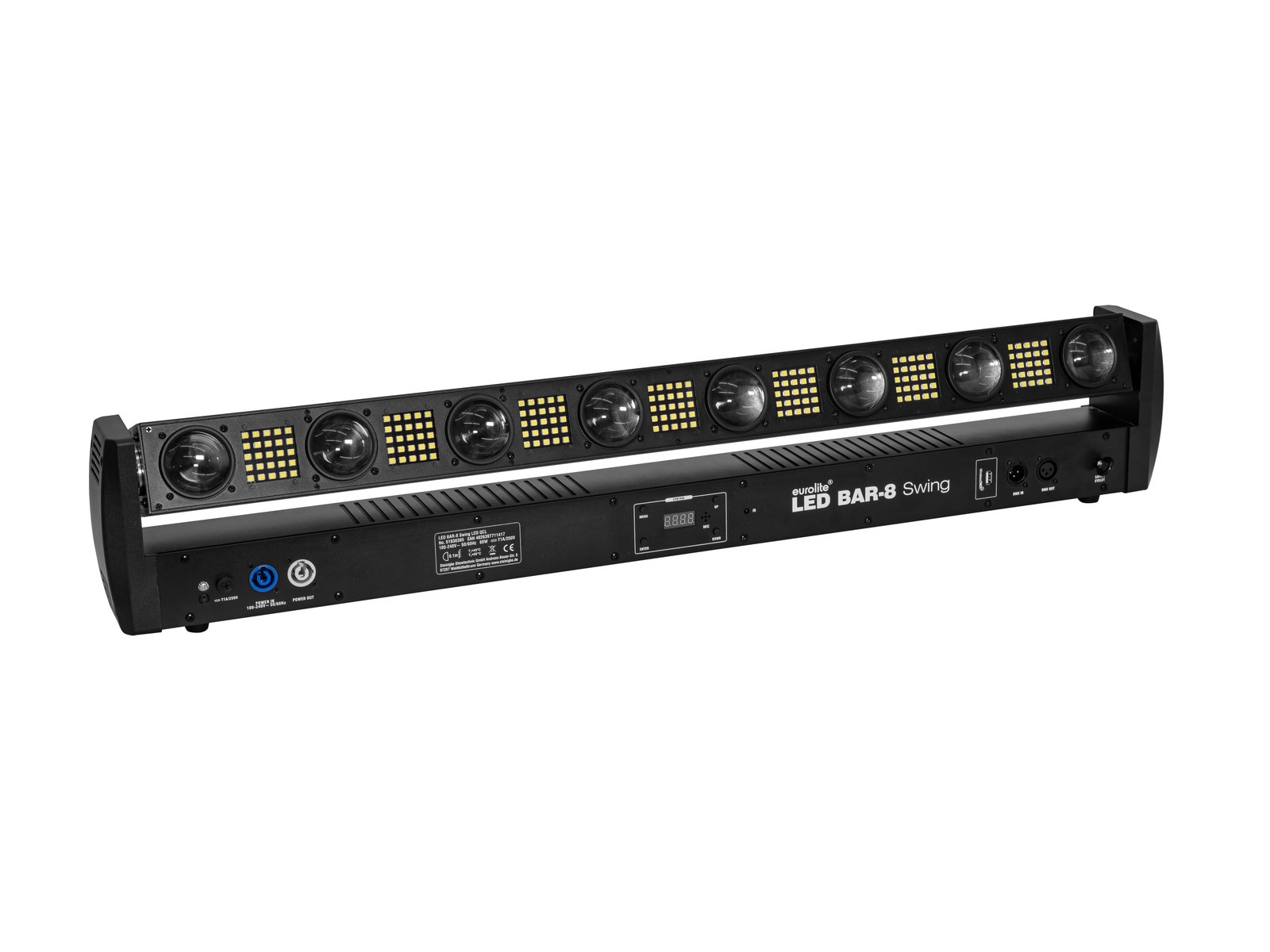

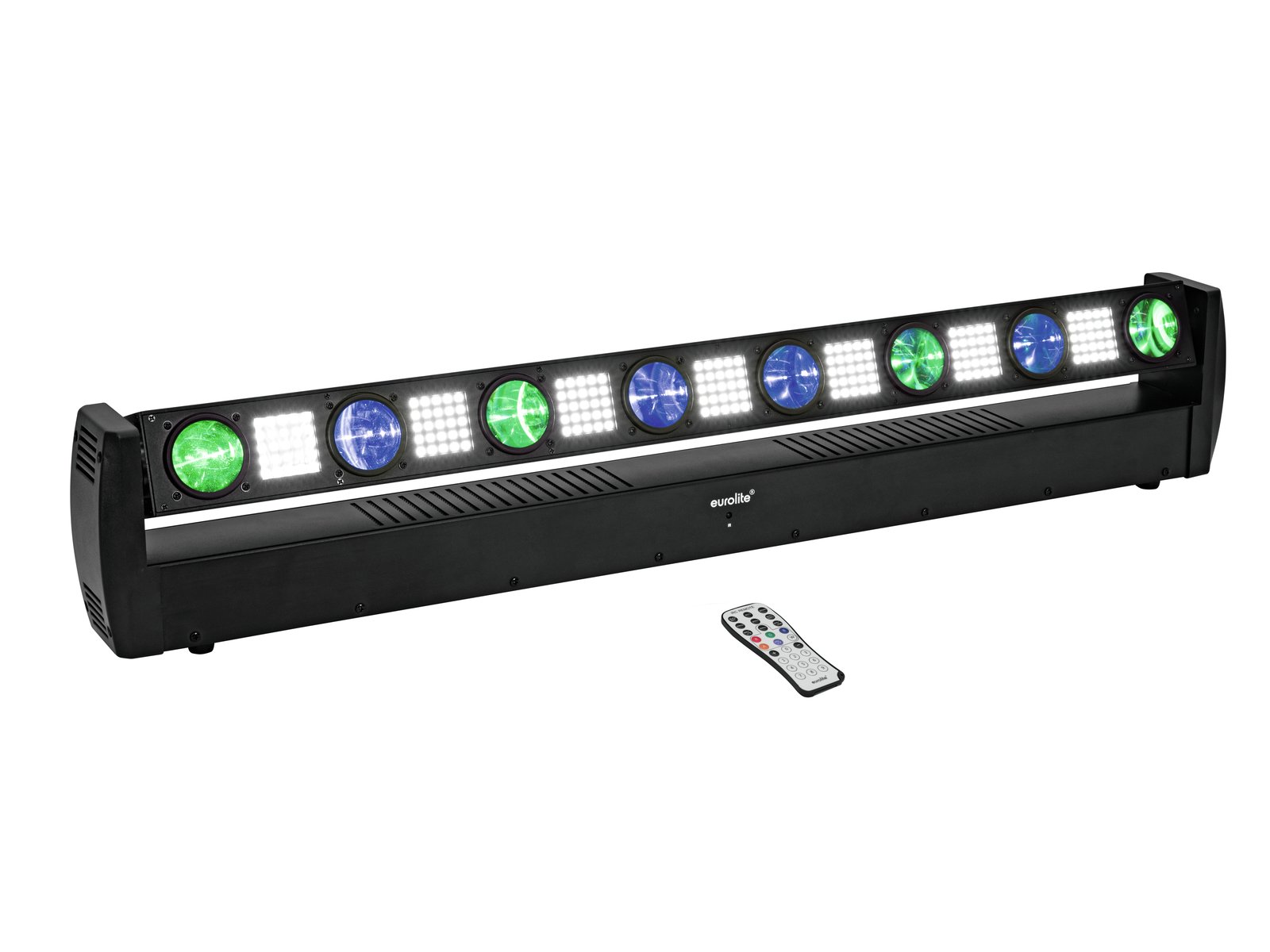

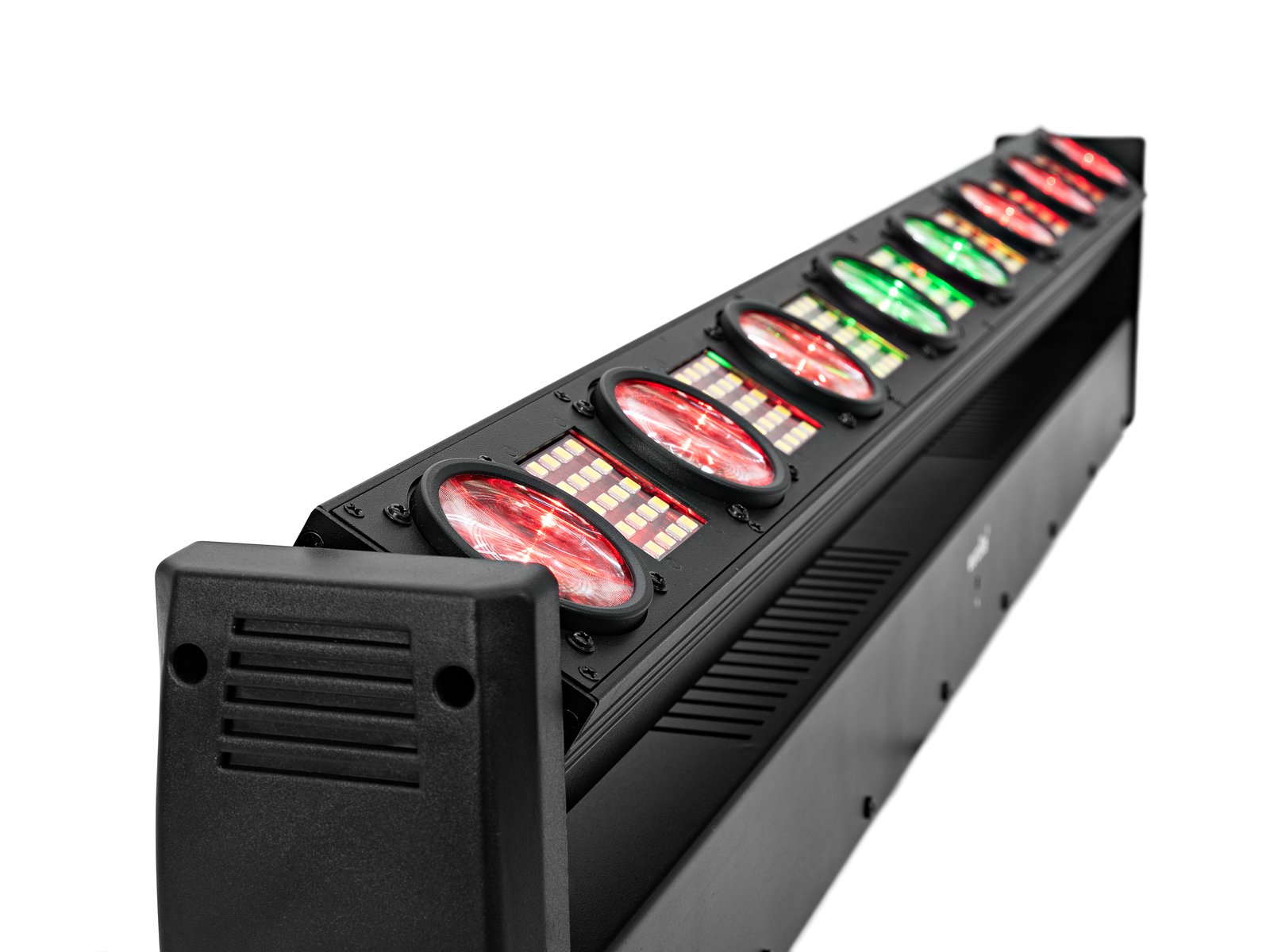

EUROLITE LED BAR-8 Swing QCL bar

 399,00 excl. VAT

Tiltable LED light effect bar with 8 beams and strobe effect

SKU: 51930385 Category: Tags: , , , , ,

Description

Features

Tiltable LED light effect bar with 8 beams and strobe effect

  • Strobe effect; uplight effect; multi beam effect
  • Vertical inclination angle adjustable
  • Direct color selection for 18 preset colors
  • The device is cooled by passive convection cooling
  • Control via stand-alone; IR remote control; DMX; QuickDMX via USB (optional); master/slave function; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); sound to light via microphone

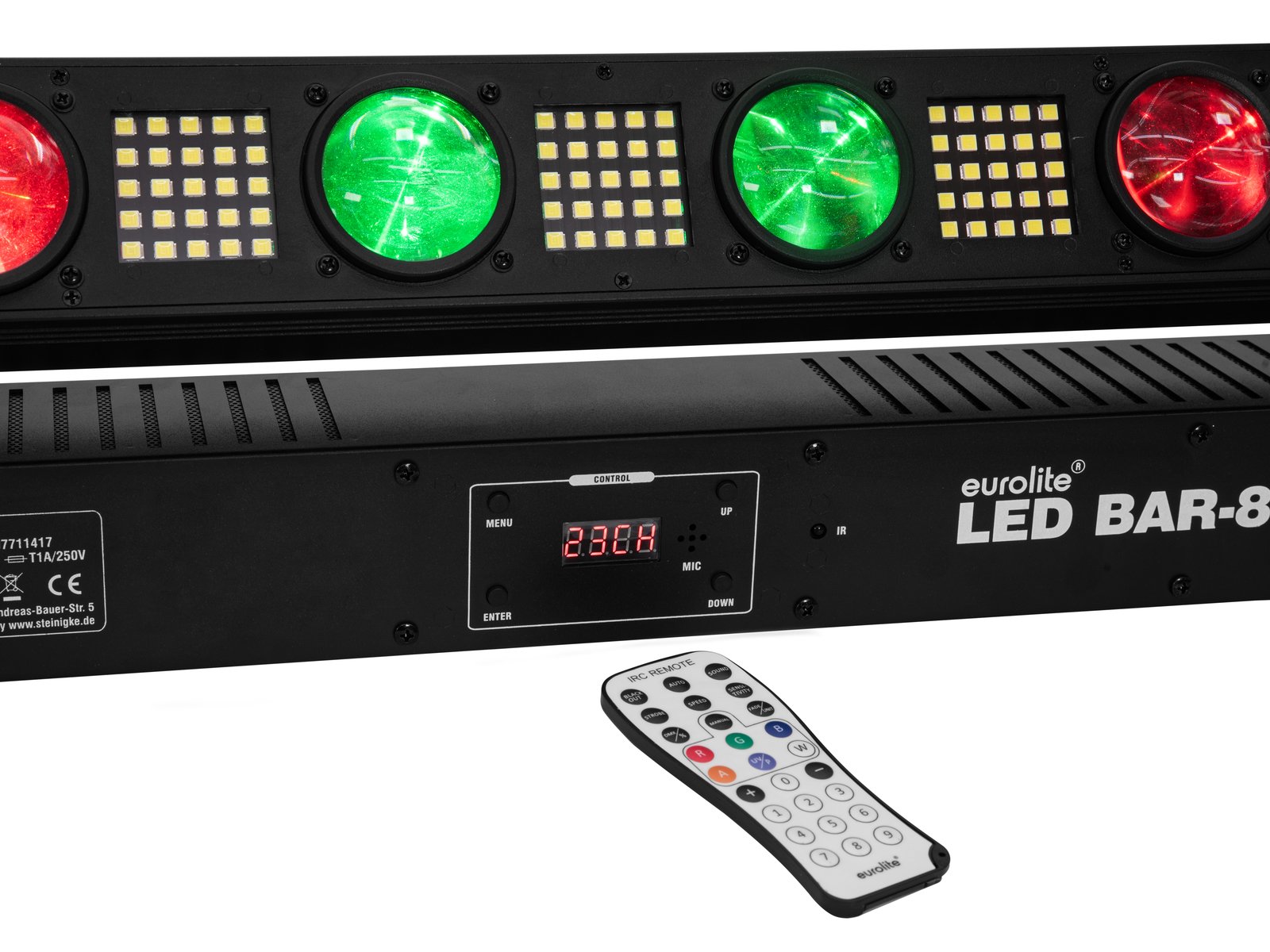

  • 4 digit 7-segment LED display
  • Dimmer electronic; color fade; color change; color blend adjustable; color selection
  • 5 integrated show programs
  • Preprogrammed in Colorchief; Light Captain

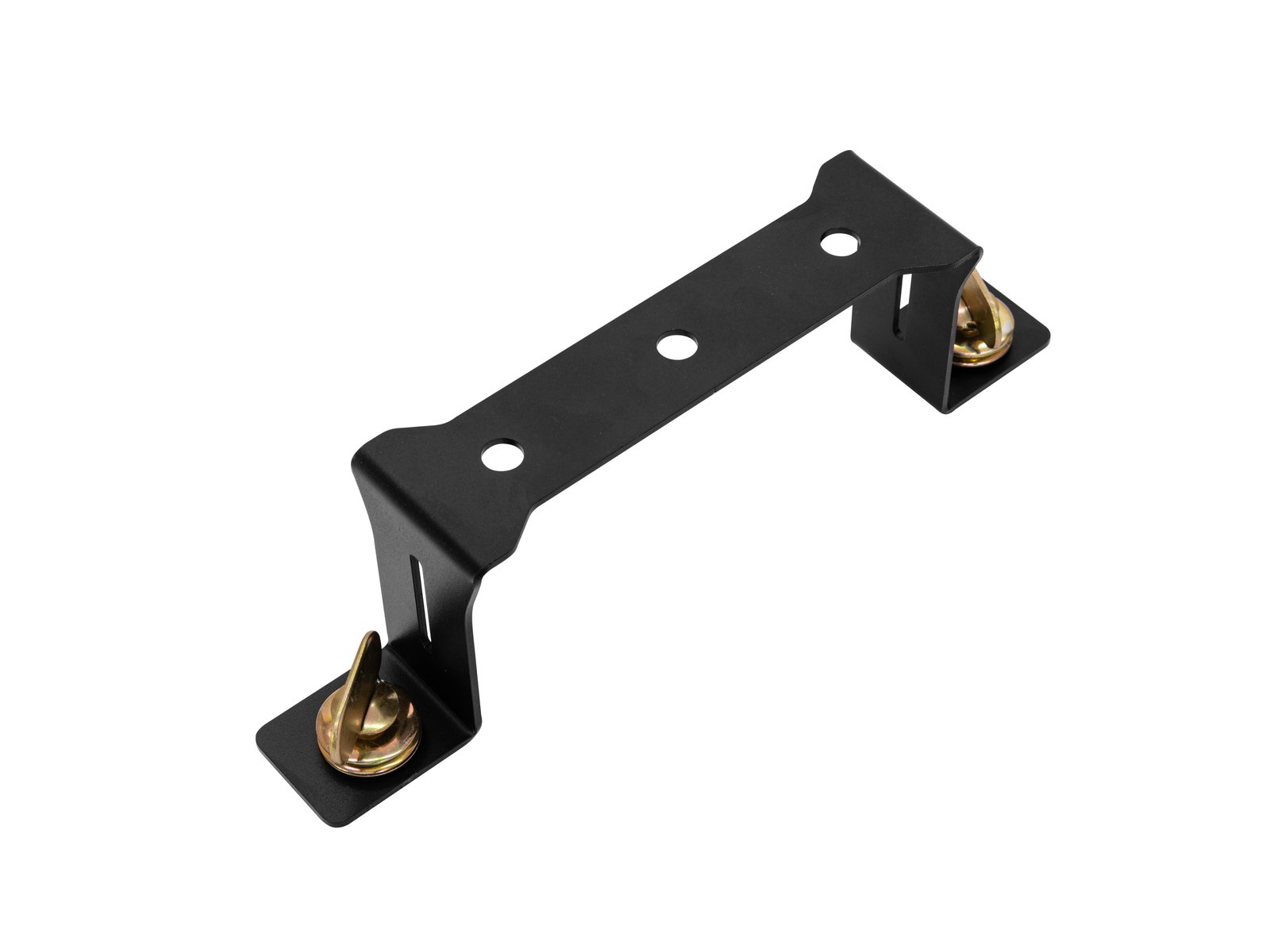

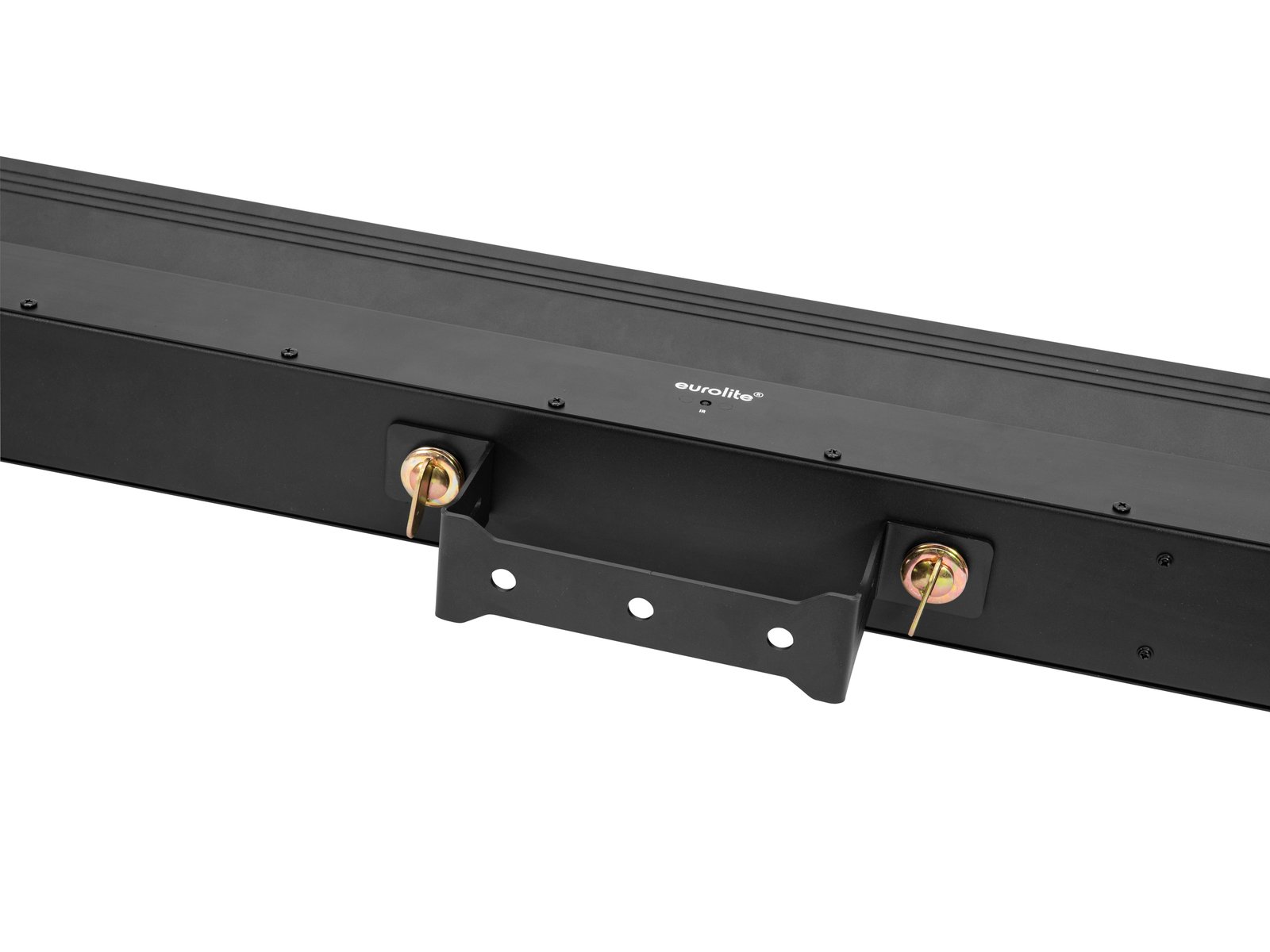

  • With mounting bracket
  • Mains input and output for power linking up to 8 units
  • For application areas such as: Clubs/dancing school; stage; mobile djs / entertainer; rental
  • Very quiet working noise
  • Application possibility: Standing; suspended

spotlight

  • 8 powerful LEDs 8 W high-power 4in1 QCL RGBW
    8 segments controlled separately
  • With a beam angle of 1°

strobes

  • 175 powerful LEDs 0,2 W SMD 5050 cold white (CW)
    7 segments controlled separately
  • With a beam angle of 120°

Package contents

  • 1 x light effect, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery

Technical specifications

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 80 W
IP classification: IP20
Protection class: Protection class I
Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output: P-Con (gray), mounting version
Fuse: 5 x 20 mm, T 1 A fuse replaceable
Max. TILT movement: 215° positioning
Flash rate: 0 – 20 Hz
DMX channels: 8; 12; 23; 27; 49
DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Cooling: Passive convection cooling
Control: Stand-alone; IR remote control; DMX; QuickDMX via USB (optional); master/slave function; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); sound to light via microphone
Preprogrammed in: Colorchief; Light Captain
Illuminance in Lux (lx): Cold white (CW) 1m: 8183 lx, 3m: 1527 lx, 6m: 372 lx
Cold white (CW) 1m: 66 lx, 3m: 9 lx, 6m: 2 lx
Housing color: Black
Attachment system: Mounting bracket
Display type: 4 digit 7-segment LED display
USB port: Type A
Dimensions: Length: 1 m
Depth: 10,7 cm
Height: 25,1 cm
Weight: 7,30 kg
Noise classification: Class 1 (very slight noise, suitable for noise-sensitive environments)
Photobiological safety: Risk Group 0
Strobes
LED type: 175 x 0,2 W SMD 5050 cold white (CW)
Beam angle: 120°
Beam angle (1/2 peak): 120°
Spotlight
LED type: 8 x 8 W high-power 4in1 QCL RGBW
Beam angle:
Beam angle (1/2 peak): 1° multicolor
Remote control
Battery: 1 x button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product: Not designed for household room illumination
Intended use: Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397711417 8,15 kg 105,5cm x 14,5cm x 26,5cm

Additional information

Weight 8 kg
Dimensions 105 × 14 × 26 cm
Brand

Eurolite
