Eurolite CBT-6 COB TCL Tower
AN EYE-CATCHER FOR YOUR PARTY

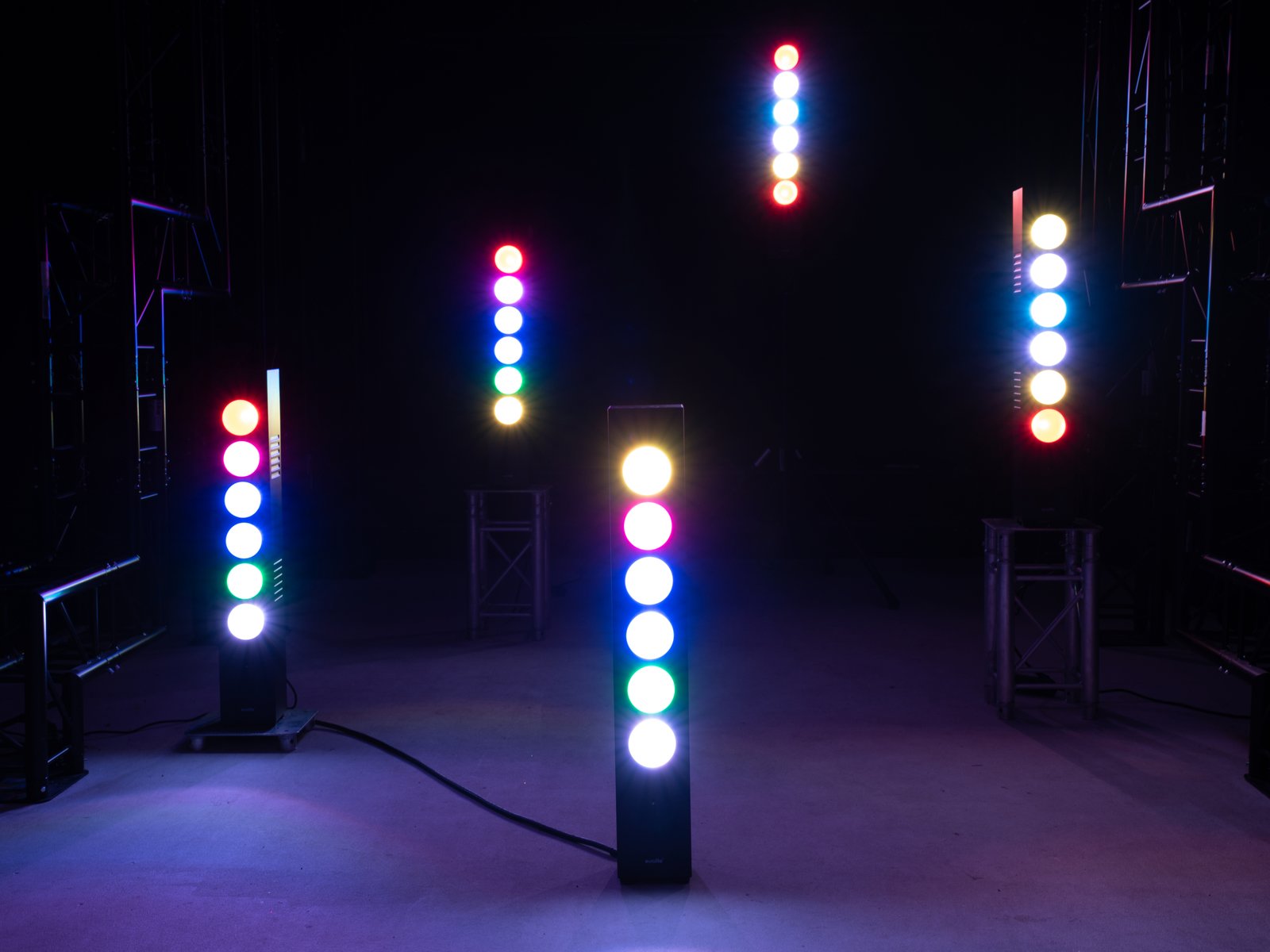

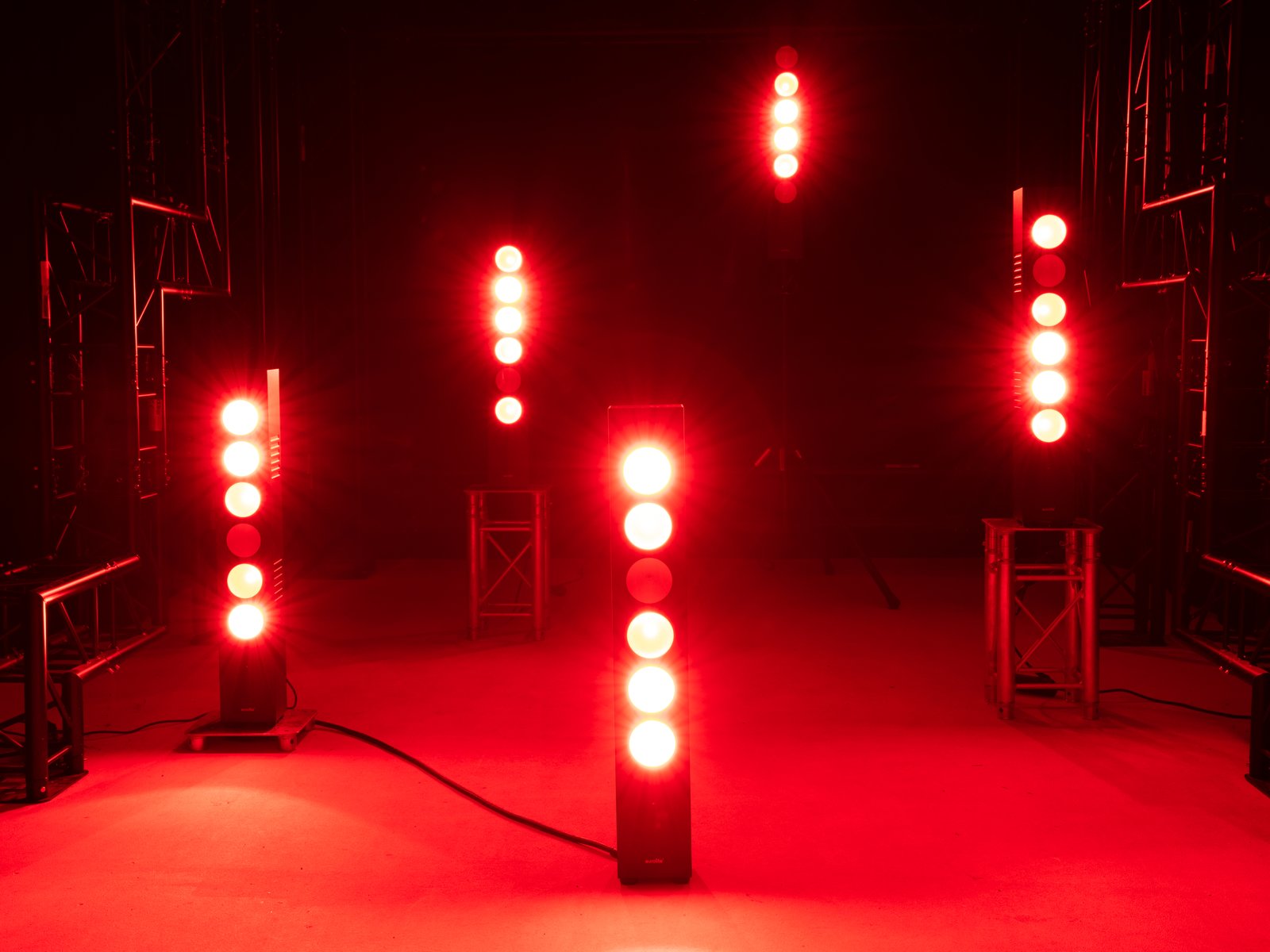

The LED-Tower CBT-6 by Eurolite is the ideal eye-catcher especially for mobile DJs, small bands and solo entertainers: Mounted right and left of the DJ desk or band, the vertical effect gives your performance a professional look.
EQUIPMENT
The LED Tower is equipped with six powerful 30 Watt COB LEDs in RGB. Thanks to its slim design and the included carrying bag, it is especially suitable for mobile applications. Thanks to the tripod sleeve it can be mounted on a stand; however, you can also place the CBT-6 directly on the ground.
CONTROL

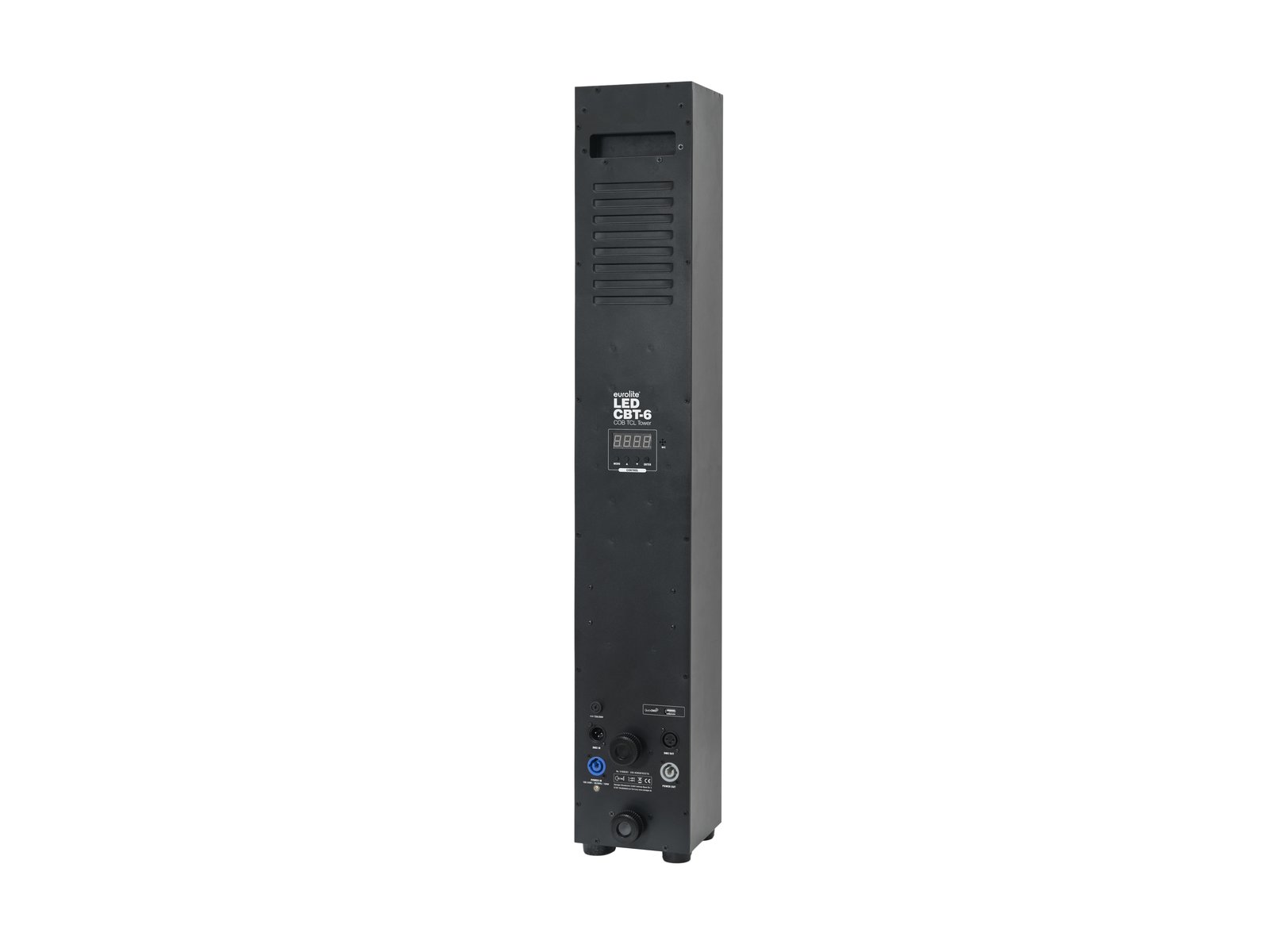

The tower can be controlled by DMX. In auto and music mode you can use integrated show programs. The direct color selection for 18 colors and further functions such as color change, color fading as well as dimmer and strobe effects give you a lot of design freedom. The LED light effect column is compatible with QuickDMX, the wireless DMX system from Eurolite. A phantom-powered USB socket for wireless transmission of the DMX signal via a QuickDMX receiver is located on the back of the device. P-Con power connections allow you to easily connect up to eight devices in series.
Features
LED light effect column with RGB color mixing, incl. IR remote control
- LED tower with integrated DMX control unit and stand sleeve for tripod installation
- 6 powerful LEDs COB (chip-on-board) 3in1 TCL RGB
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Strobe effect; multi beam effect
- Integrated show programs
- Direct color selection for 18 preset colors
- The device is cooled by low-noise cooling fan
- Control via DMX; IR remote control; stand-alone; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 38°
- Preprogrammed in LED PC-Control 512; EASY SHOW 1; Light Captain
- Mains input and output for power linking up to 8 units
- For application areas such as: Wedding/gala/events; party room; mobile djs / entertainer
- Application possibility: Standing; on stand
Package contents
- 1 x light effect, 1 x power cord, 1 x user manual, 1 x remote control, 1 x battery, 1 x bag
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 100 W |
| IP classification: | IP20 |
| Power connection: | Mains input via P-Con (blue), mounting version |
| Power output: | 1 x P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 2 A |
| Lamp type: | LED lamp |
| LED type: | 6 x COB (chip-on-board) 3in1 TCL RGB |
| Flash rate: | 0 – 20 Hz |
| DMX channels: | 2; 3; 5; 18; 9; 21 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Low-noise cooling fan |
| Control: | DMX; IR remote control; stand-alone; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | LED PC-Control 512; EASY SHOW 1; Light Captain |
| Projection: | Flicker-free |
| Beam angle: | 38° |
| Beam angle (1/2 peak): | 38° |
| Beam angle (1/10 peak): | 70° |
| Housing color: | Black |
| Dimensions: | Width: 17 cm Depth: 15 cm Height: 96 cm |
| Weight: | 7,60 kg |
| Noise classification: | Class 2 (slight noise) |
| Photobiological safety: | Risk Group 0 |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397670776 | 9,20 kg | 104,5cm x 25,5cm x 26cm |
