Description
Features

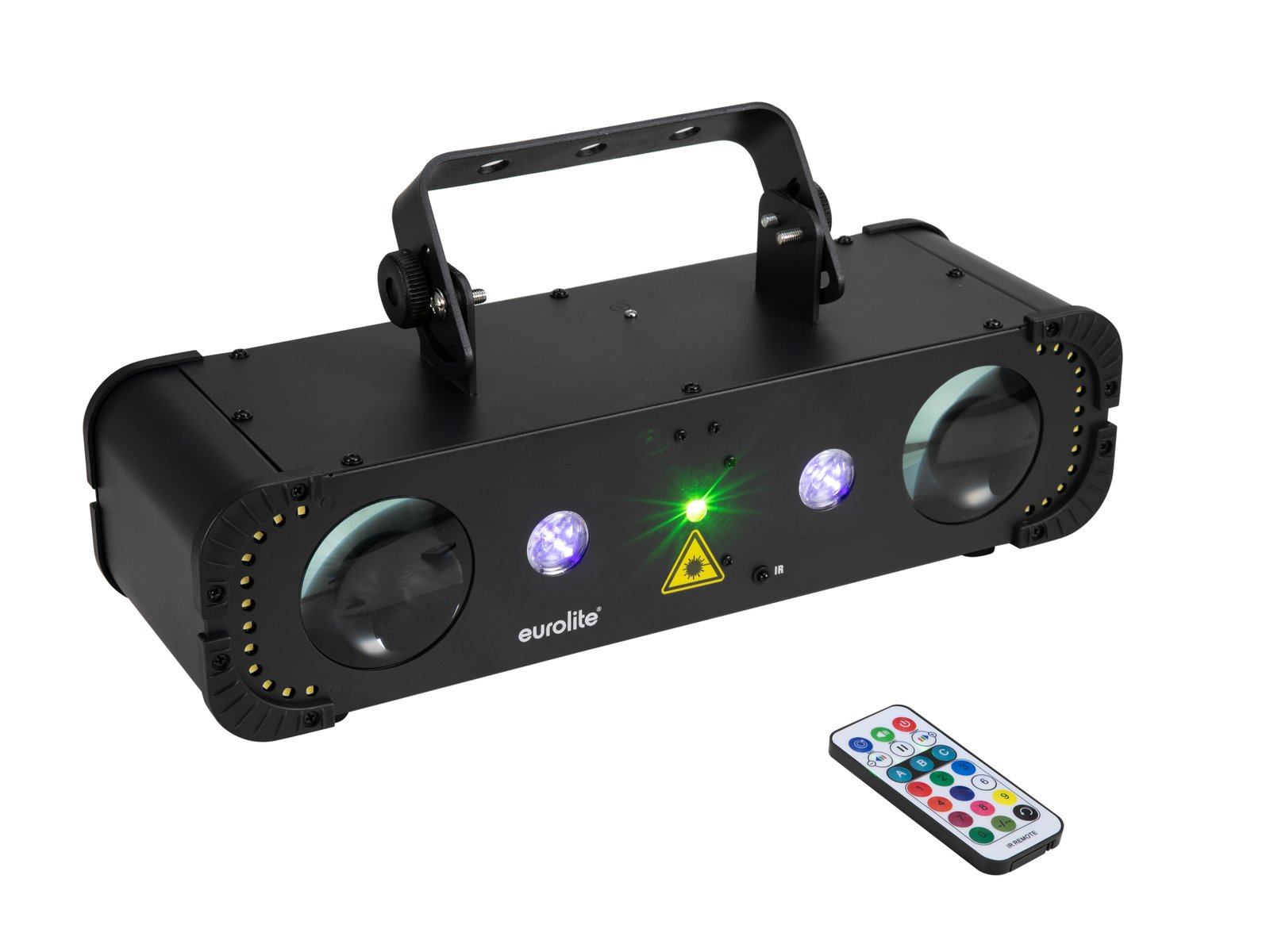

4in1 light effect with LED matrix, blacklight, RG laser and stroboscope
- 2 laser diodes project hundreds of red and green laser beams
- Matrix, blacklight, laser and strobe can be controlled individually
- 14 integrated show programs
- Control via DMX; IR remote control; stand-alone; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- With mounting bracket
- Preprogrammed in Light Captain; Light´J
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; party room; mobile djs / entertainer; restaurants, bars and hotels
- Very quiet working noise
- Application possibility: Suspended; standing; on stand
laser
- Laser class 2M
does not require additional protective measures or appointment of a laser safety officer
spotlight
- 2 powerful LEDs 3 W high-power ultra violet (UV)
- UV effect
light effect
- 128 powerful LEDs 5 mm R/G/B/W/A
- Flower effect; multi beam effect
strobes
- 24 powerful LEDs 0,5 W SMD cold white (CW)
- Strobe effect
Package contents
- 1 x remote control, 1 x battery, 1 x device, 1 x user manual, 1 x power cord
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 30 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x IEC connector (F) mounting version |
| Fuse: | 5 x 20 mm, T 1 A fuse replaceable |
| Lamp type: | LED lamp |
| DMX channels: | 2; 5; 8; 10 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX; IR remote control; stand-alone; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light Captain; Light´J |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | Monochrome 4 digit 7-segment LED display |
| Dimensions: | Length: 40,5 cm Depth: 20 cm Height: 14,5 cm |
| Weight: | 2,85 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Spotlight | |
| LED type: | 2 x 3 W high-power ultra violet (UV) |
| Light effect | |
| LED type: | 128 x 5 mm R/G/B/W/A |
| Strobes | |
| LED type: | 24 x 0,5 W SMD cold white (CW) |
| Laser | |
| Laser class: | 2M |
| Laser color: | R/G |
| Laser module: | Red (R) 100 mW 650nm Green (G) 30 mW 532nm |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397701852 | 3,30 kg | 46cm x 19cm x 22cm |
