Description
Features

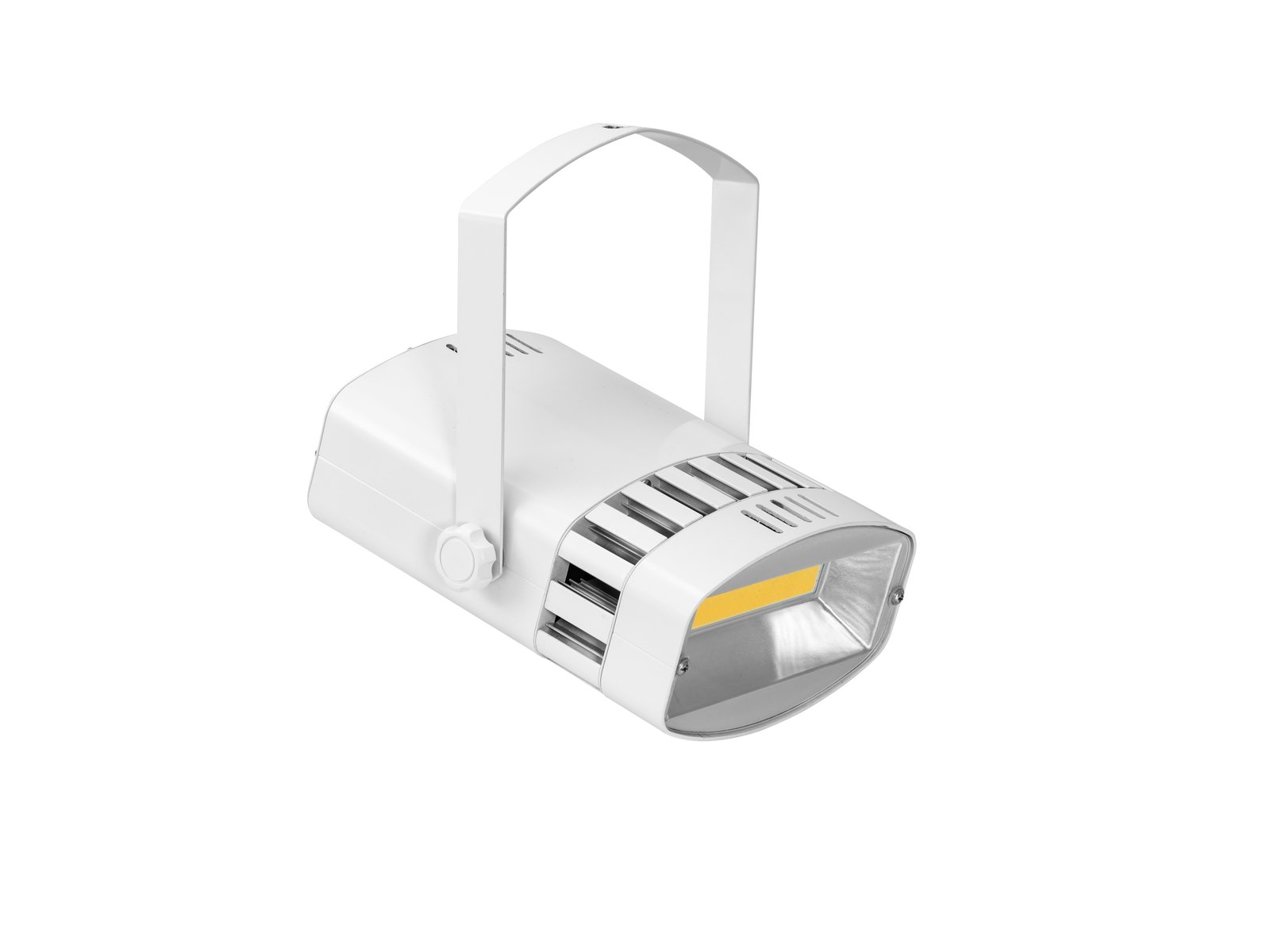

Bright, neutral white spotlight, wide beam angle and 70 W LED
- 1 powerful LED 70 W COB (chip-on-board) neutral white (NW)
- With a beam angle of 72°
- Good color rendering index (CRI)
- The device is cooled by cooling fan
- With mounting bracket
- Control via plug and play
- For application areas such as: Trade fair and shop fitting; installation
- Application possibility: Suspended; on stand
Package contents
- 1 x spotlight, 1 x holder, 1 x screw, 1 x nut, 1 x user manual
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 70 W |
| IP classification: | IP20 |
| Power connection: | Fixed power supply cord with safety plug |
| Lamp type: | LED lamp |
| LED type: | 1 x 70 W COB (chip-on-board) neutral white (NW) |
| Cooling: | 1 x cooling fan |
| Control: | Plug and play |
| Beam angle: | 72° |
| Beam angle (1/2 peak): | 72° |
| Beam angle (1/10 peak): | 116° |
| Color temperature: | 4190K |
| Color rendering index (CRI): | 82 Ra |
| Illuminance in Lux (lx): | 1m: 4348 lx, 3m: 546 lx, 6m: 159 lx |
| Luminous flux: | 4600 lm |
| Housing color: | White |
| Attachment system: | Mounting bracket |
| Dimensions: | Width: 19,8 cm Depth: 21,2 cm Height: 22 cm |
| Weight: | 1,62 kg |
| Noise classification: | Class 2 (slight noise) |
| Energy efficiency class (A – G): | G |
| EPREL-Nr: | 1519629 |

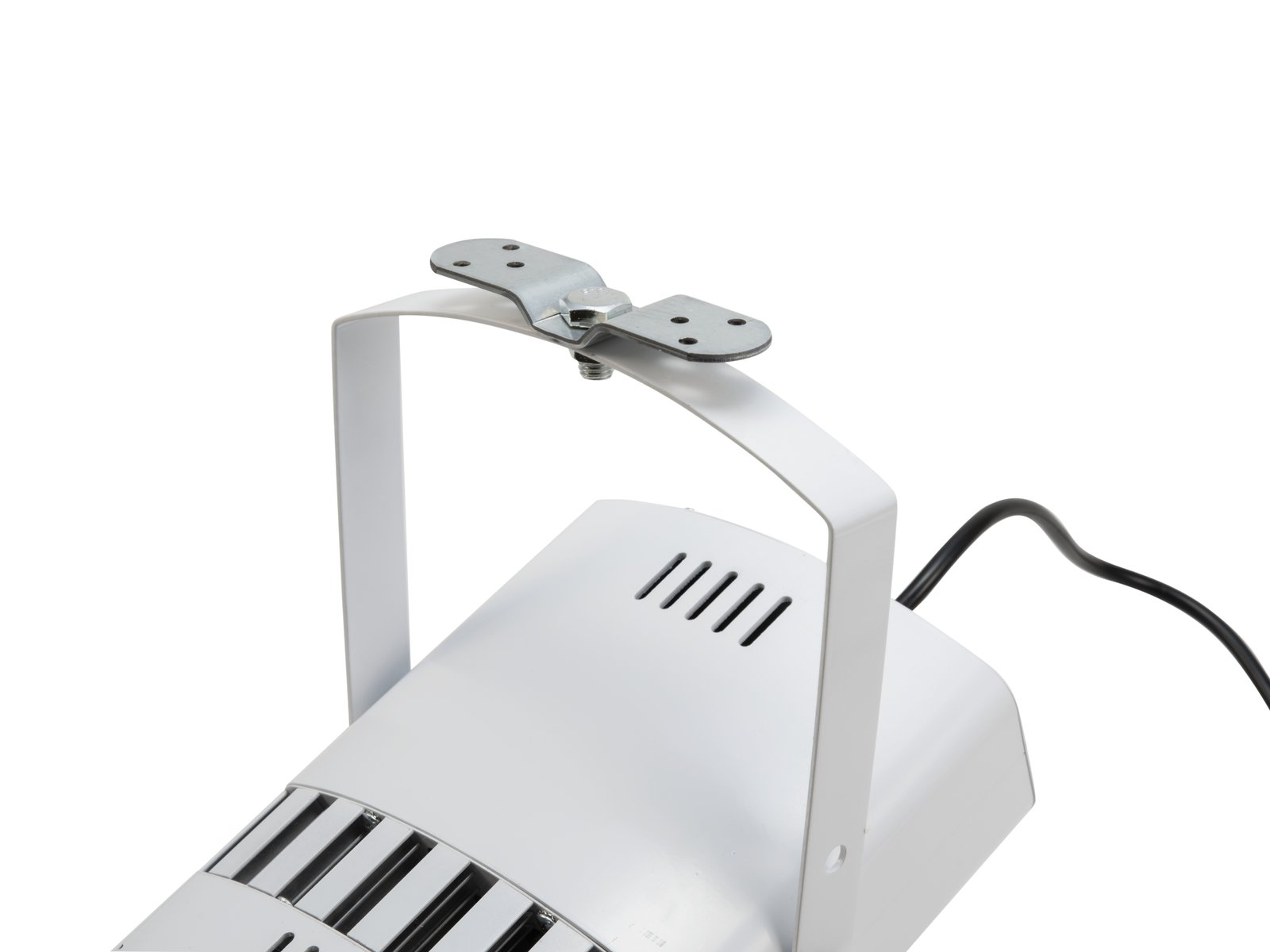

| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø10mm; 1 x Ø8mm |
| Material: | Metal, 2 mm |
| Holder | |
| Diameter mounting holes: | 1 x Ø10mm; 6 x Ø4mm |
| Material: | Metal, 2,5 mm |
| Color: | Silvergrey, zinc-plated |
| Dimensions: | Length: 10,5 cm Width: 2,8 cm |
| Power cord | |
| Cable construction: | 3 x 0,75 mm² H05VV-F |
| Cable length: | Approx. 0,9 m |
| Color: | Black |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397648188 | 1,78 kg | 30cm x 21cm x 11cm |
