Description
Features
Asymmetrical floodlight for uniform surface lighting with RGB, lime and indigo blue
- 42 powerful LEDs 5 W SMD R/G/B/L/I
- Color blend stepless; Dimmer electronic
- Frost filter provides a soft, homogeneous light
- Direct color selection for 12 preset colors
- 5 integrated show programs
- Wash effect; strobe effect
- Control via stand-alone; master/slave function; DMX
- Adjustable fan speed
- Mains input and output for power linking up to 8 units
- Flicker-free
- With mounting bracket
- OLED display
- Very quiet working noise
- The device is cooled by temperature-controlled fan
- For application areas such as: Stage; theater; rental
- Application possibility: Standing; suspended
- Patented technology from ETC
Package contents
- 1 x spotlight, 1 x user manual, 1 x power cord, 1 x mounting bracket, 2 x knurled screw, 2 x washer, 1 x plug (male)
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 180 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | P-Con (gray), mounting version |
| Device fuse: | 5 x 20 mm, T 3,15 A fuse serviceable |
| LED type: | 42 x 5 W SMD R/G/B/L/I |
| DMX channels: | 1; 3; 5; 7 |

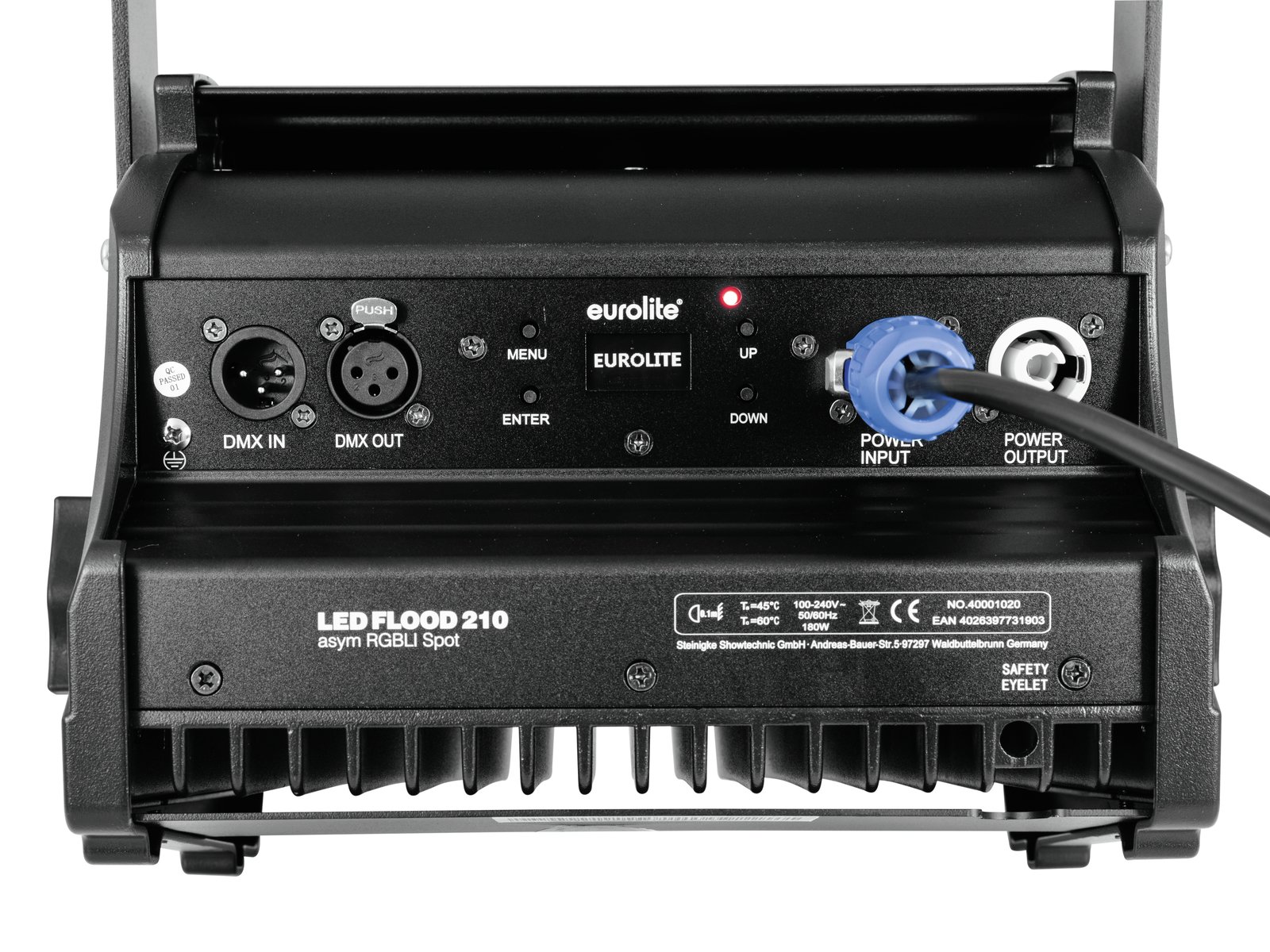

| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | Stand-alone; master/slave function; DMX |
| Projection: | Flicker-free |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | OLED display |
| Status LED: | DMX |
| Dimensions: | Width: 31,5 cm Depth: 22,0 cm Height: 28,5 cm |
| Weight: | 5,90 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Partent: | ETC |
| Partent number: | U.S. Patent No. 10,378,730, U.S. Design Patent No. D847,402, German Patent No. 102017125693.8, UK Patent No. 2558728, European Union Design Registration 004518116-0001, UK Design Registration 6022588 |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397731903 | 6,70 kg | 31,5cm x 29,5cm x 29cm |
