Description
Features

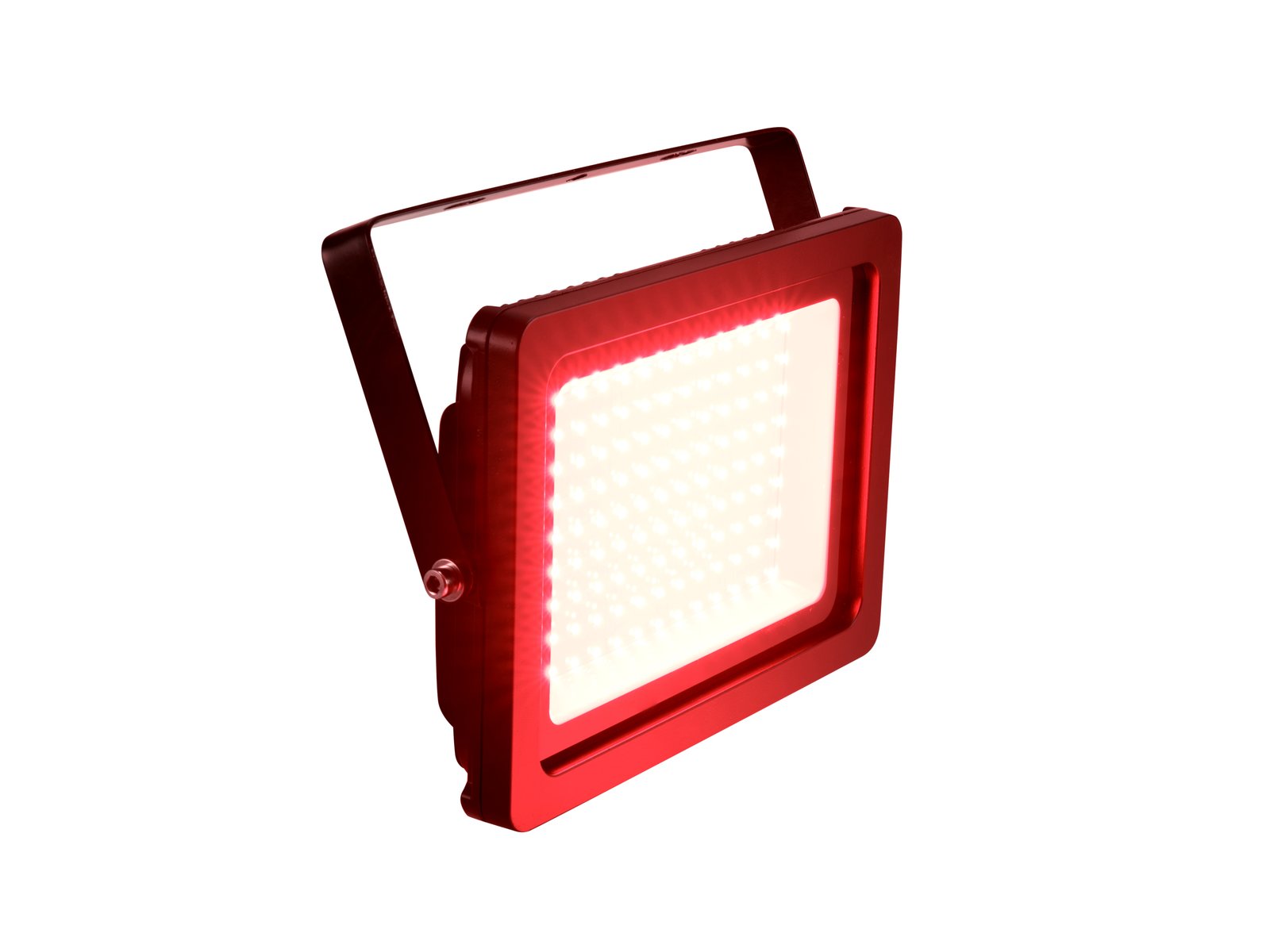

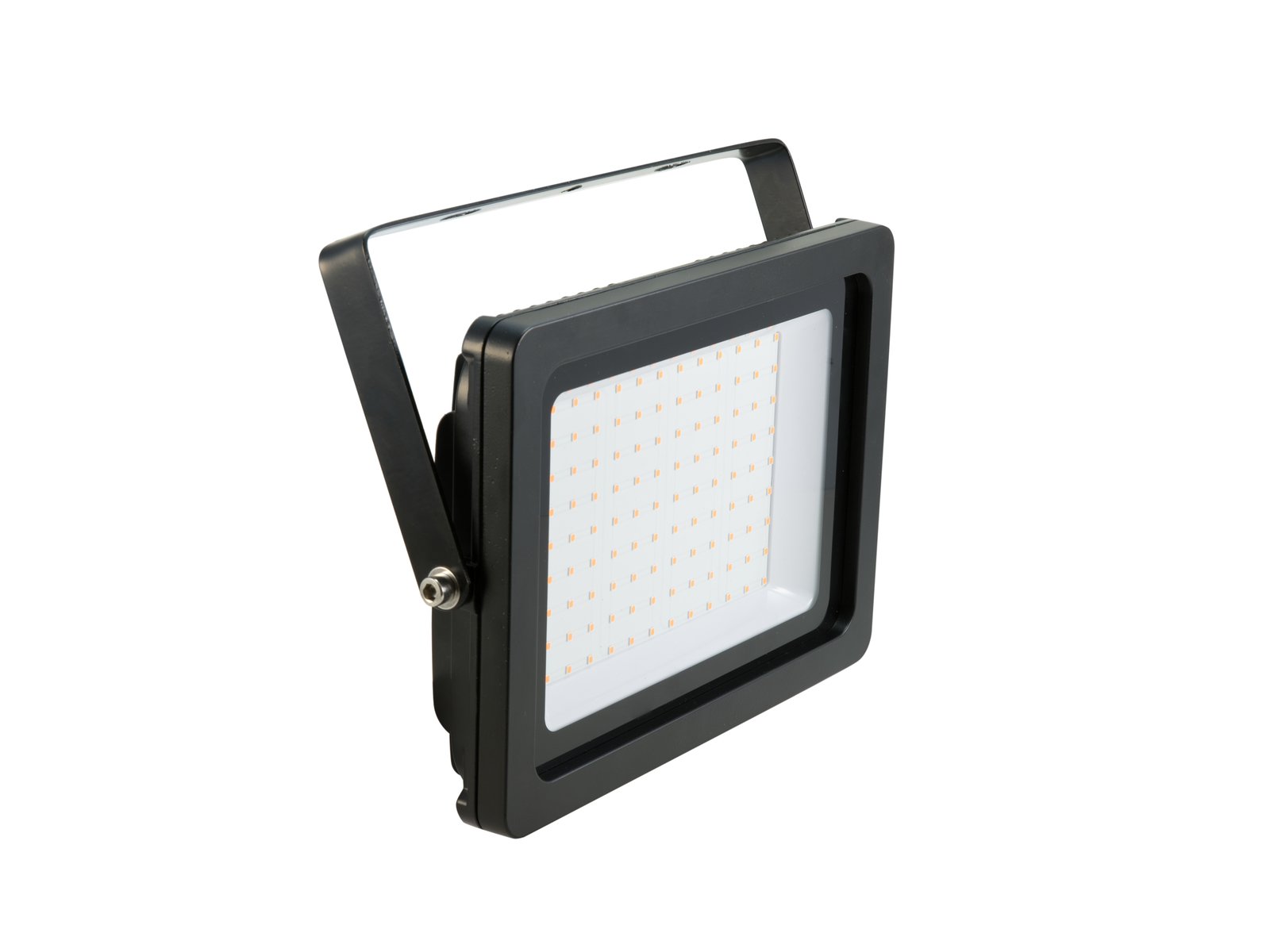

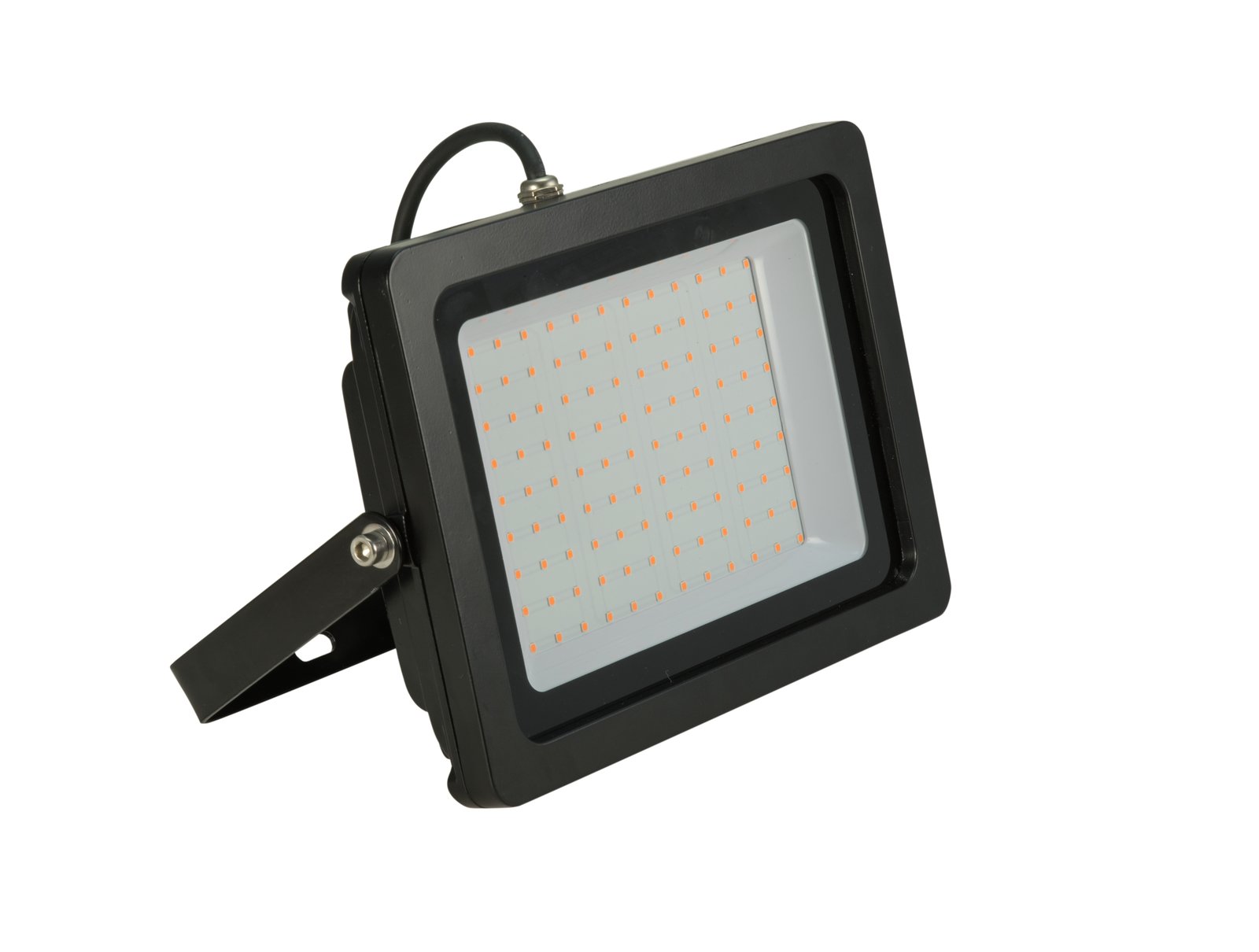

Flat IP65 outdoor floodlight with 108 SMD-LEDs red (R)
- 108 powerful LEDs SMD 2835 red (R)
- The device is cooled by passive convection cooling
- Control via plug and play
- With mounting bracket
- Suitable for outdoor use IP65
- Available in various colors
- Silent operation
- For application areas such as: Installation; restaurants, bars and hotels; architecture
- Application possibility: Suspended
Package contents
- 1 x spotlight, 1 x user manual
Technical specifications
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 110 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 1,0 mm² H05RN-F |
| Cable length: | Approx. 1 m |
| Lamp type: | LED lamp |
| LED type: | 108 x SMD 2835 red (R) |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Beam angle (1/2 peak): | 80° |
| Beam angle (1/10 peak): | 120° |
| Color of light: | Red |
| Housing color: | Black matte |

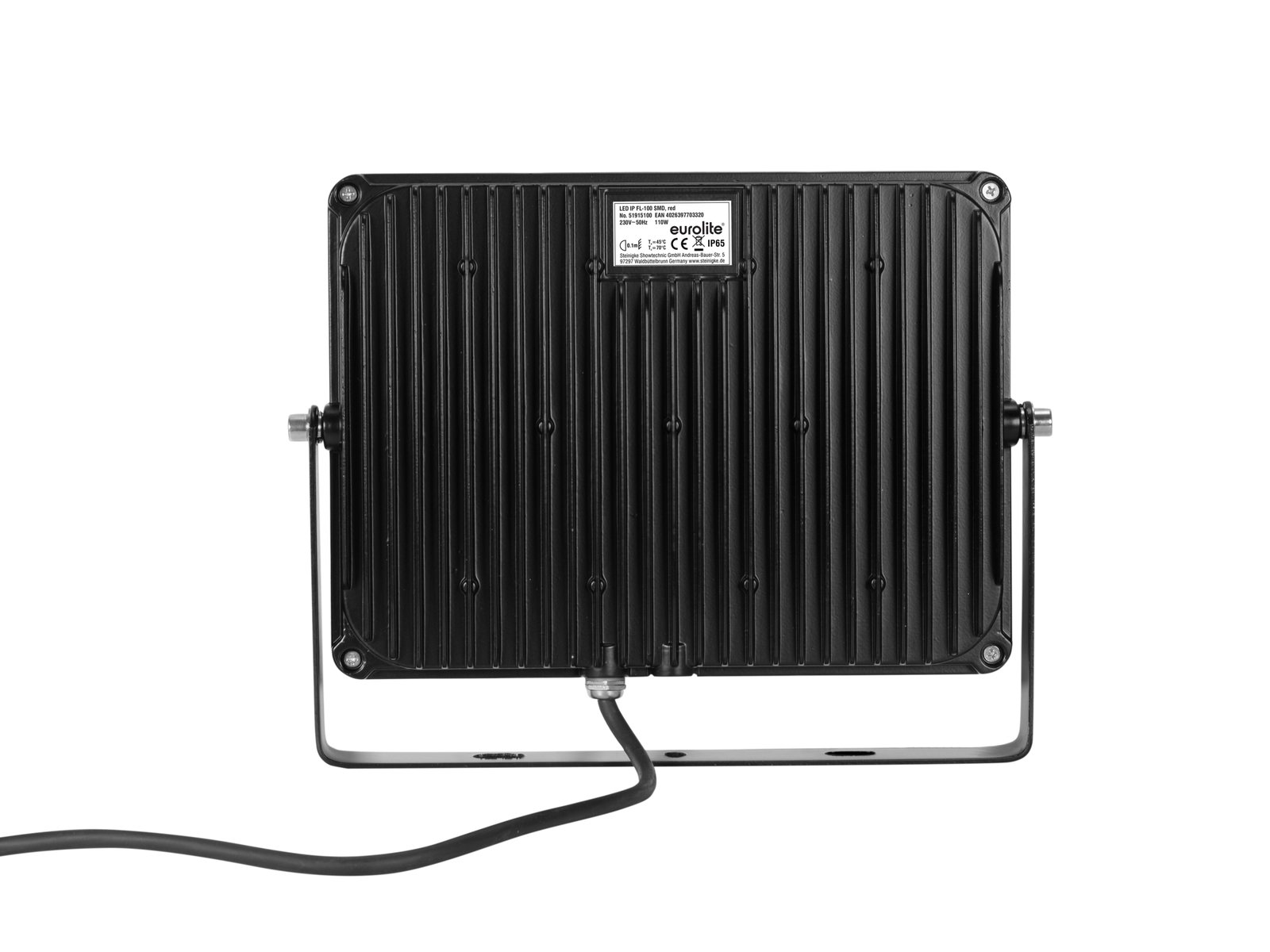

| Attachment system: | Mounting bracket |
| Material: | Aluminum casting |
| Dimensions: | Width: 30 cm Depth: 4,2 cm Height: 24,5 cm |
| Weight: | 1,95 kg |
| Noise classification: | Class 0 (no noise at all) |
| Mounting bracket | |
| Diameter mounting holes: | 3 x Ø8mm |
| Material: | Metal, 2 mm |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397703320 | 2,05 kg | 4,5cm x 31,5cm x 27,5cm |
