Description
Features

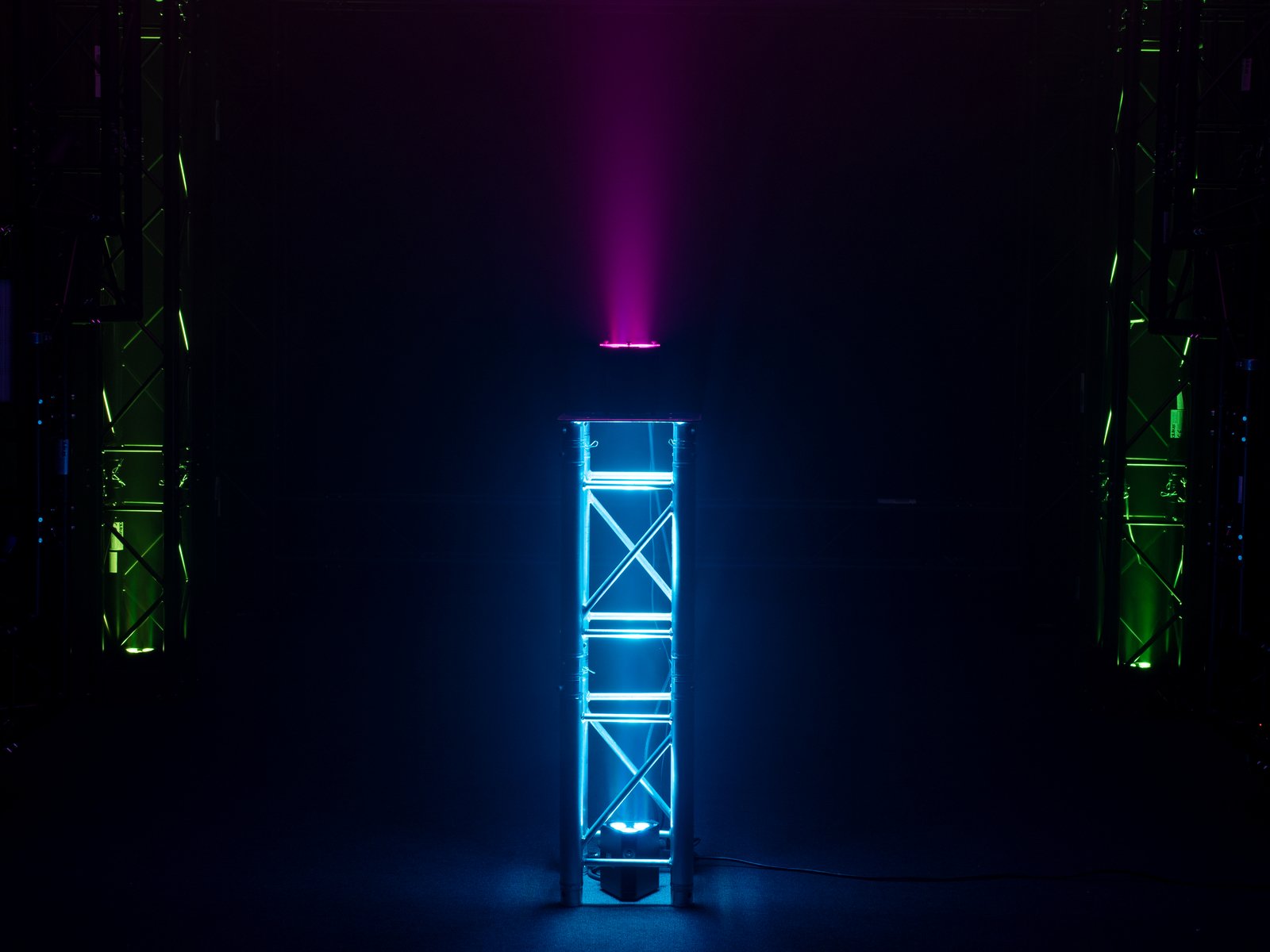

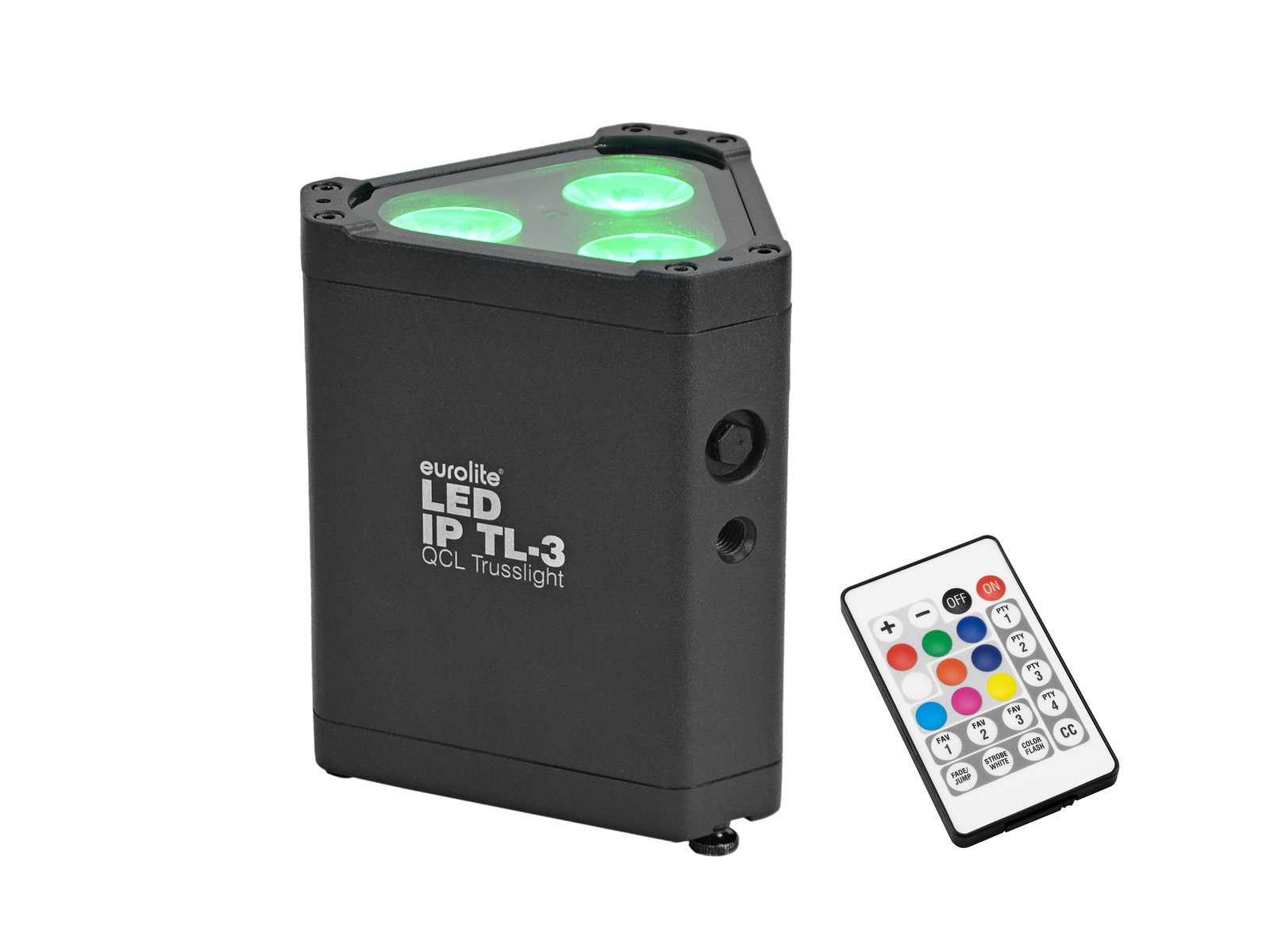

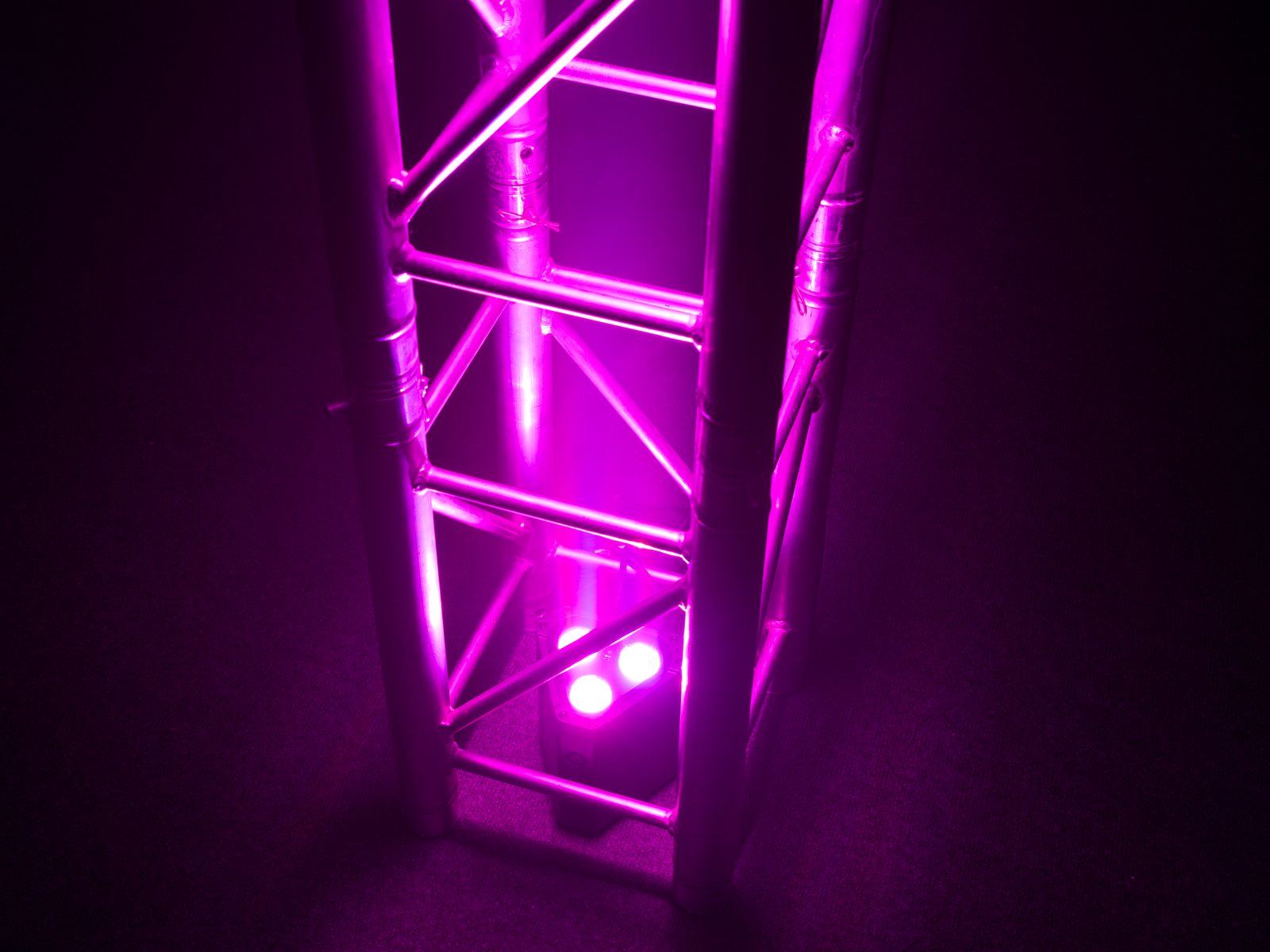

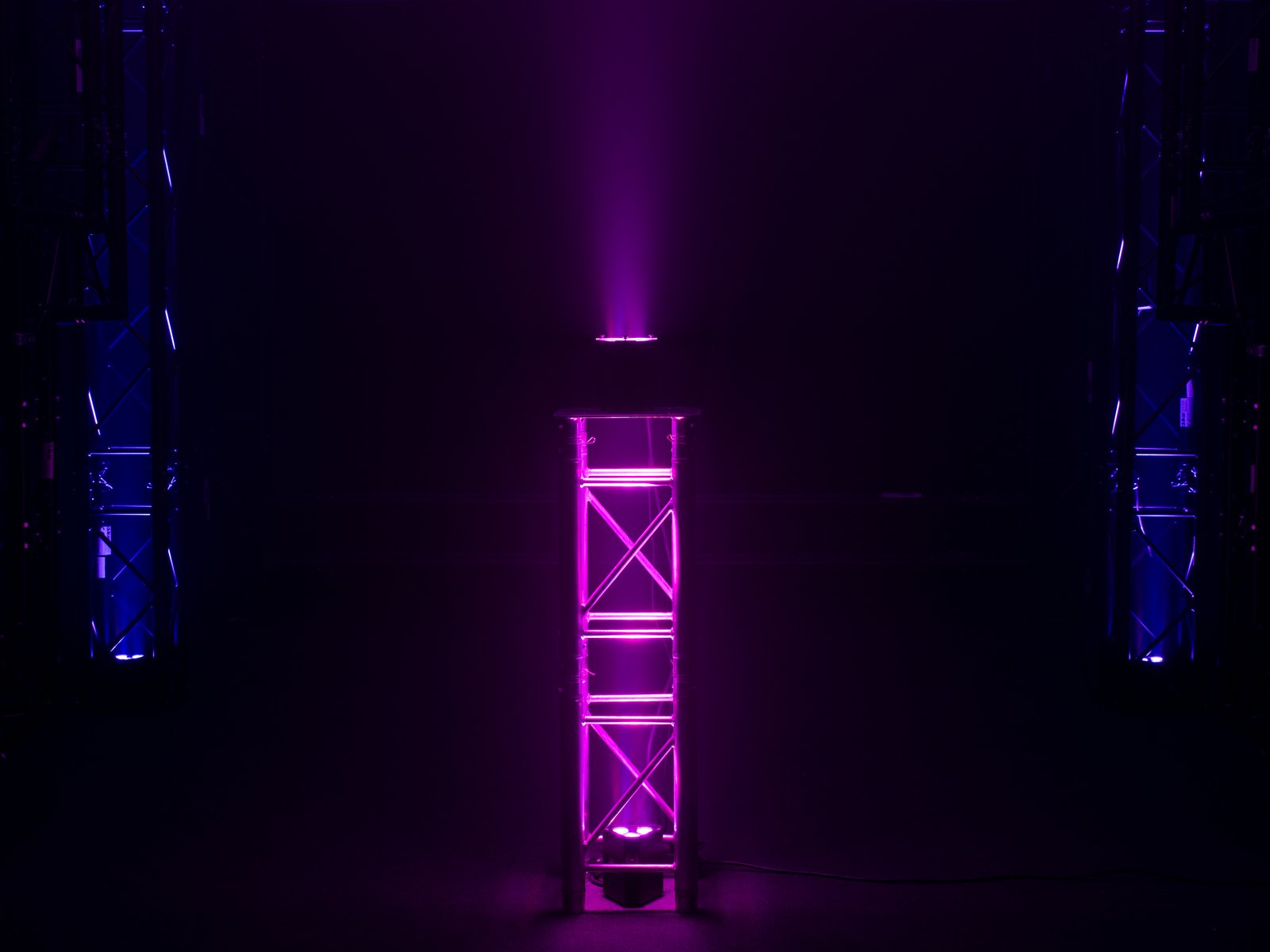

Weather-proof LED spot (IP65) ideal as trusslight or uplight with bright 3x10W RGBW LED
- Compact and bright

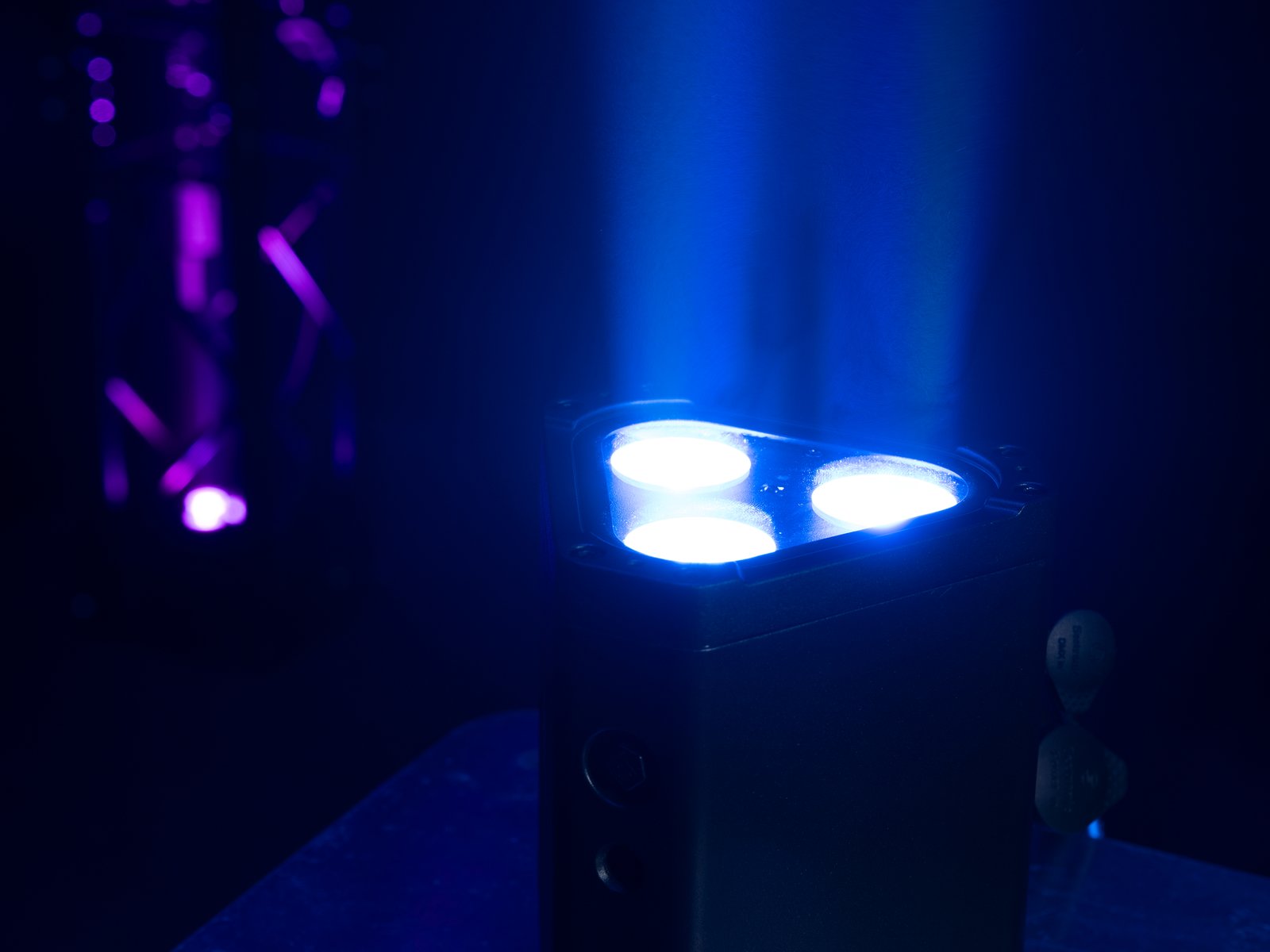

- 3 powerful LEDs 10 W 4in1 QCL RGBW (homogenous color mix)

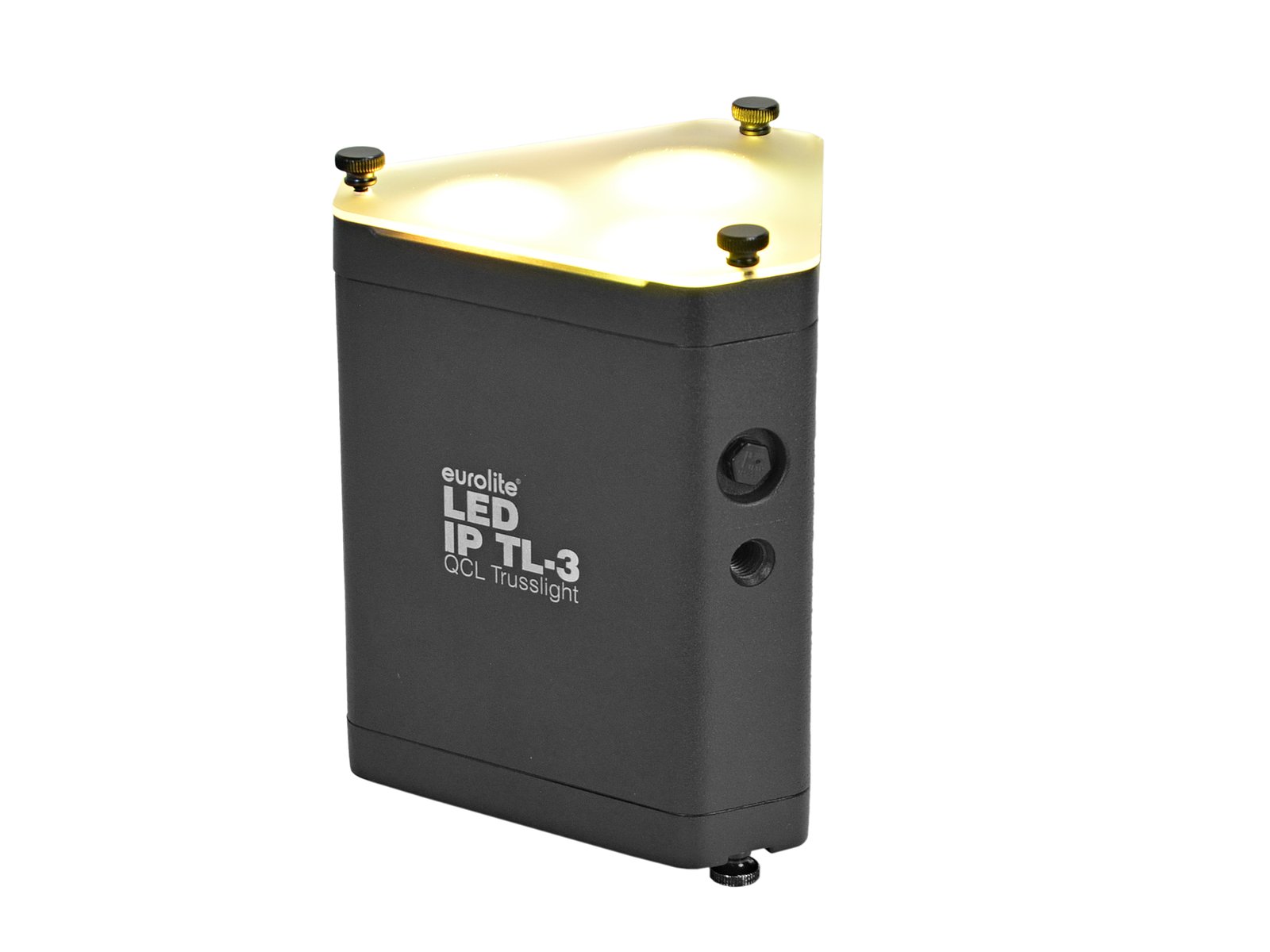

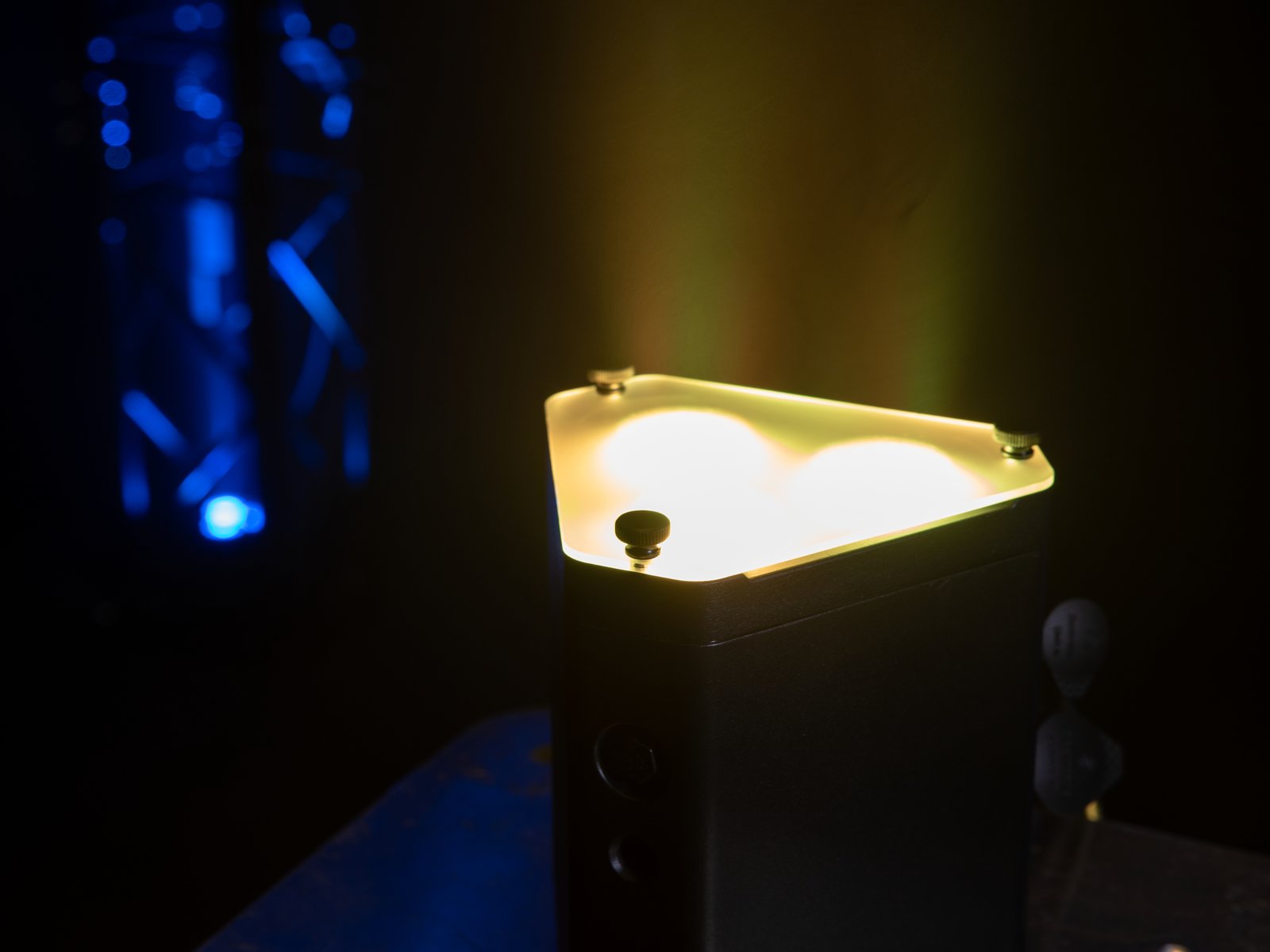

- Additional frost filter provides a wide, soft and homogeneous light
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; Dimmer speed (step response) with adjustable response; white balance

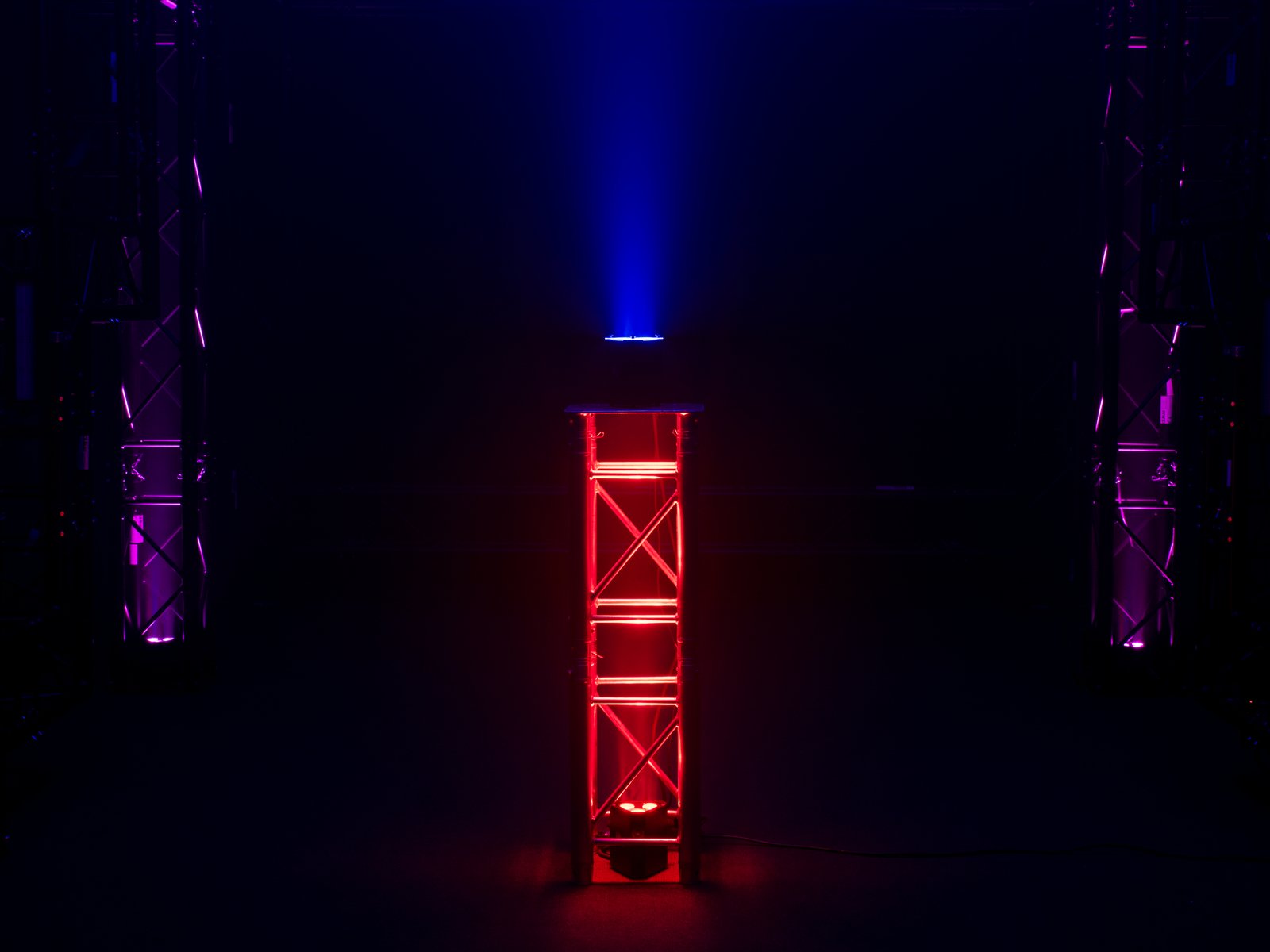

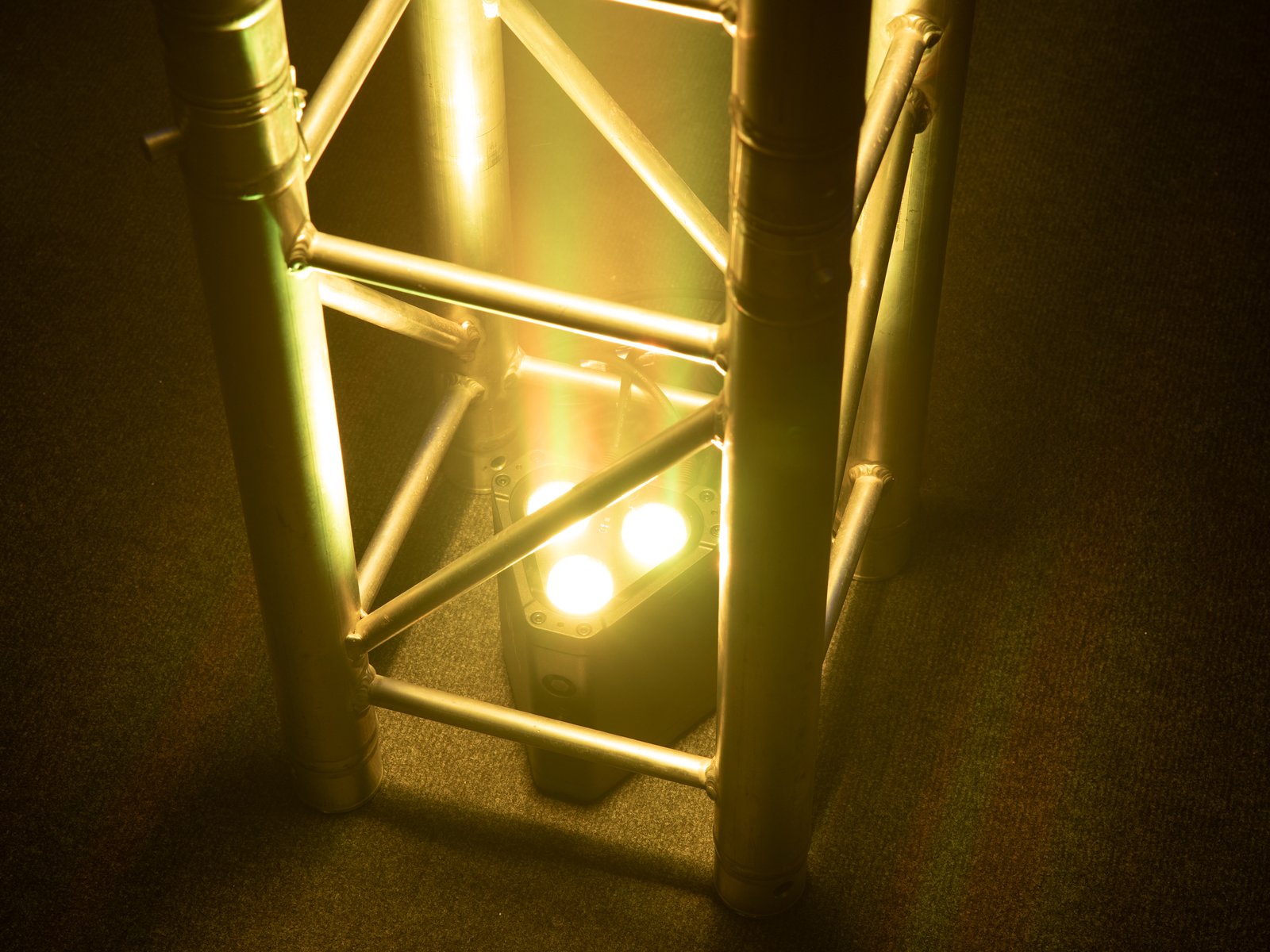

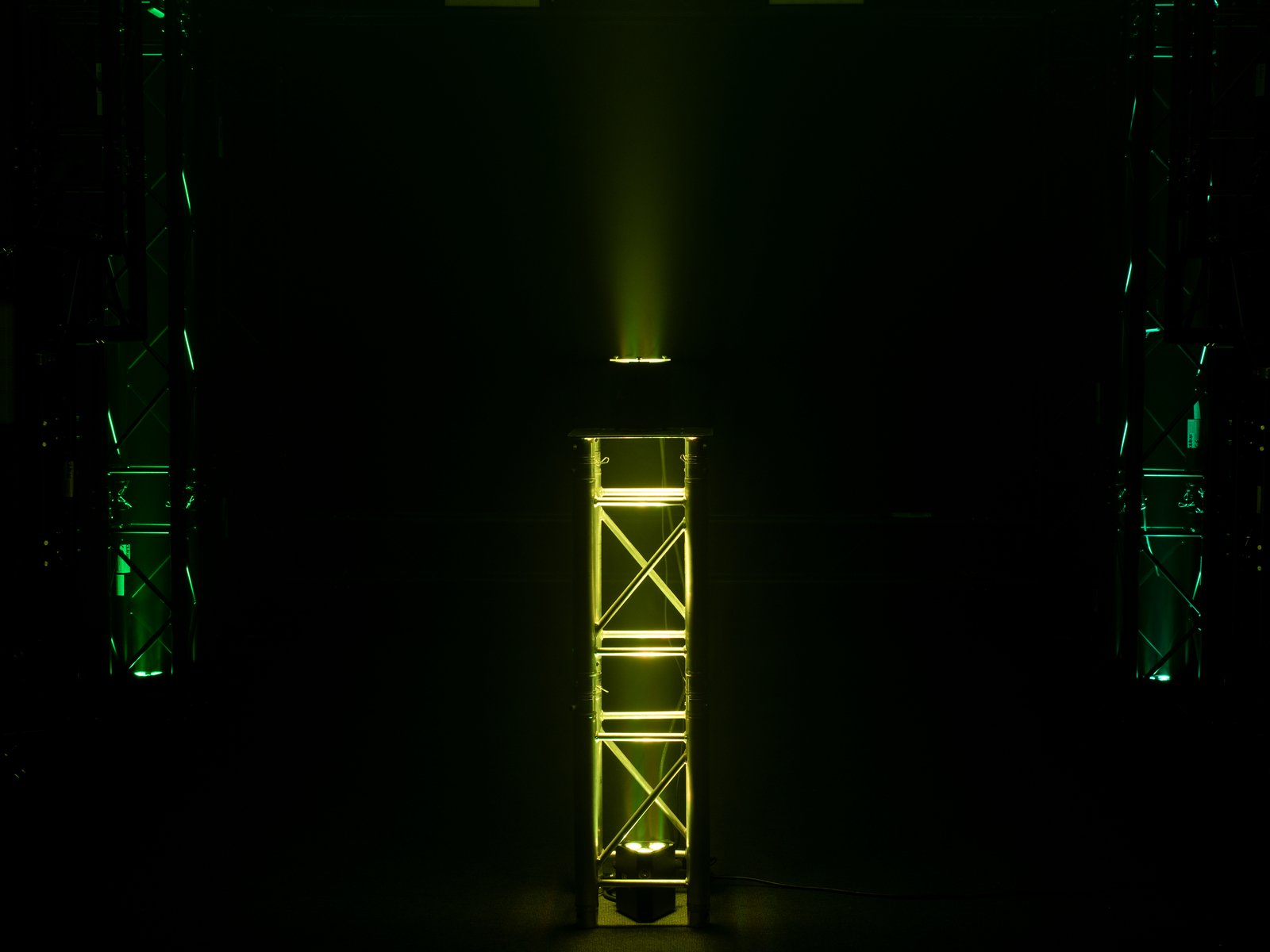

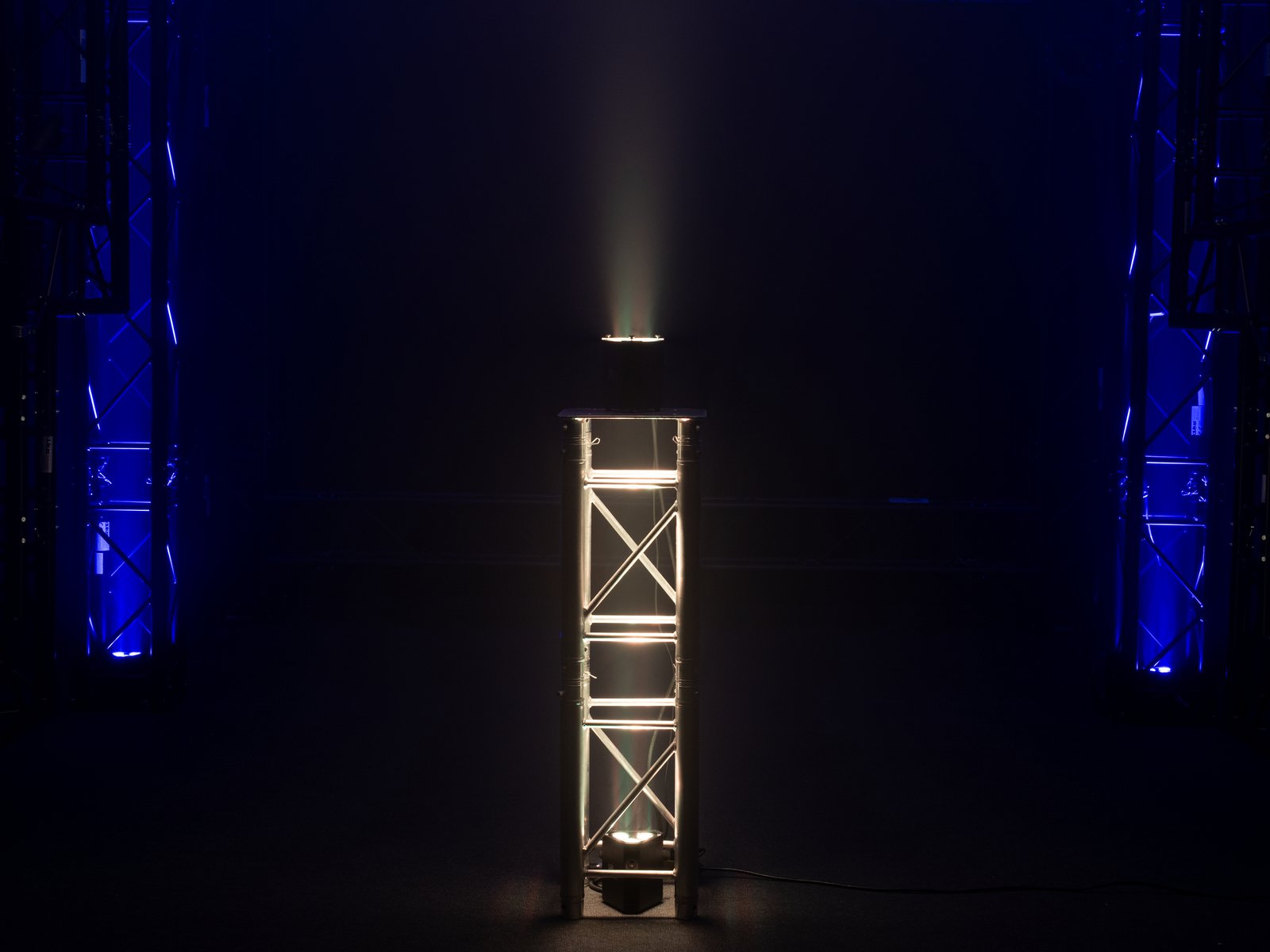

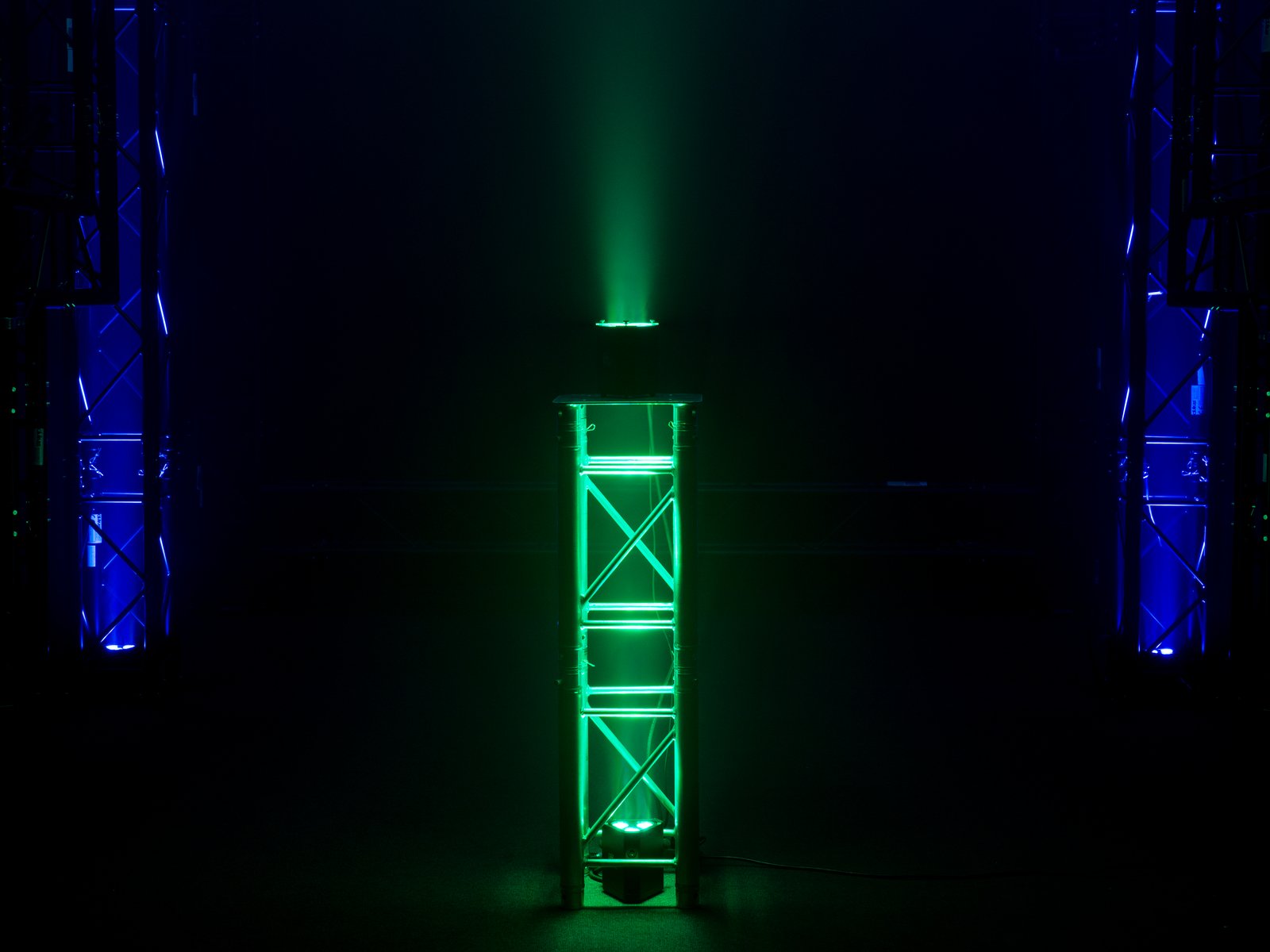

- Uplight effect
- 36 integrated show programs
- Direct color selection for 15 preset colors
- Control via stand-alone; DMX; master/slave function; IR remote control; RDM
- 3 buttons on the remote control for saving your own settings
- With a beam angle of 10°
- Flicker-free

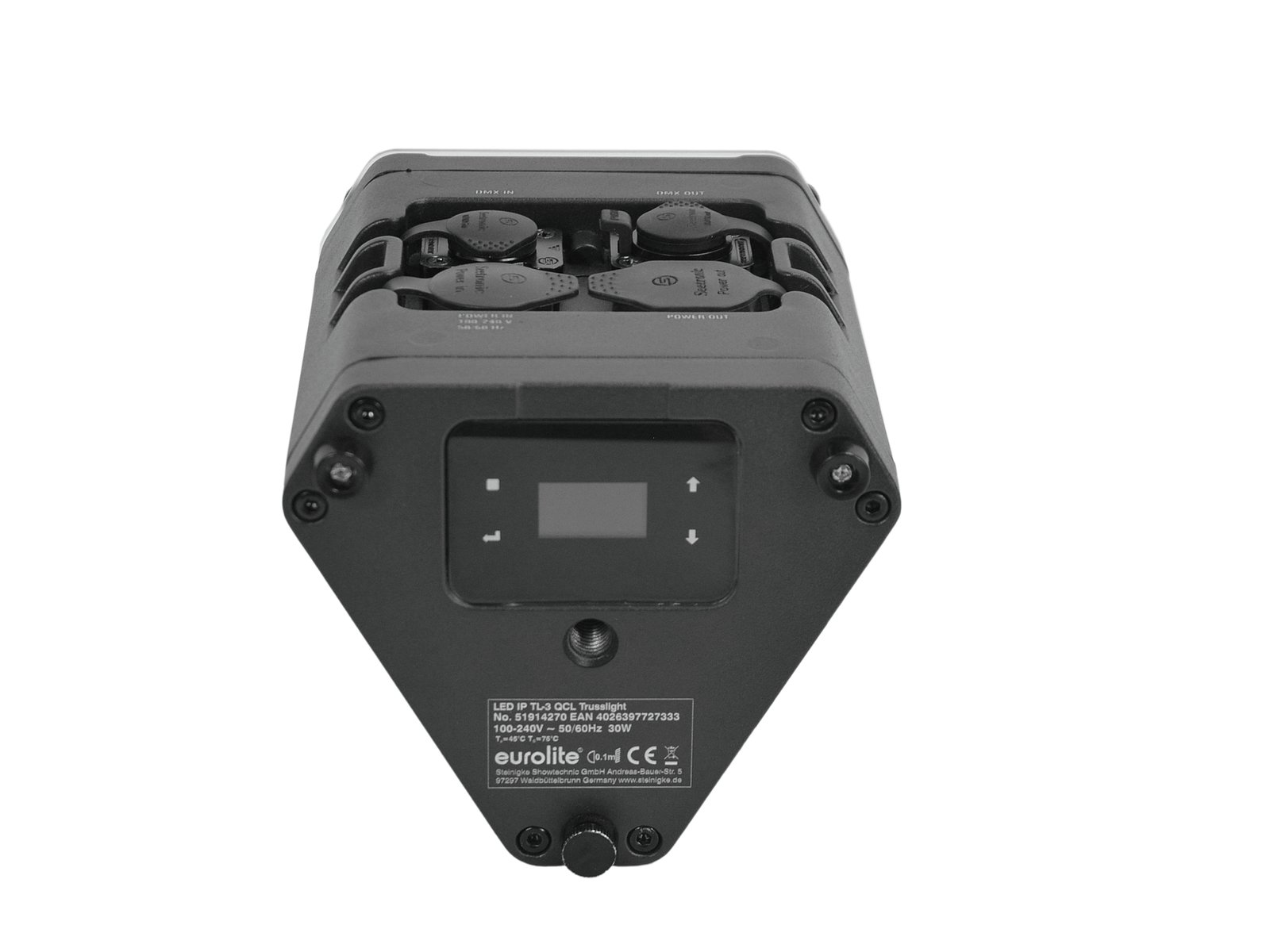

- OLED display
- Mains input and output for power linking up to 8 units
- The device is cooled by passive convection cooling
- Suitable for outdoor use IP65
- With pressure compensation membrane
- For application areas such as: Stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; video and photography
- Silent operation
- Application possibility: Standing; suspended
- Threaded inserts for suspended installation
- Preprogrammed in EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; LED EASY OPERATOR 4×4; LED EASY OPERATOR 4×6; Light Captain; Light´J
- Built with SEETRONIC connector
Package contents
- 1 x spotlight, 1 x user manual, 1 x power cord, 1 x frost filter, 1 x remote control, 1 x battery, 3 x knurled screw
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 30 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |

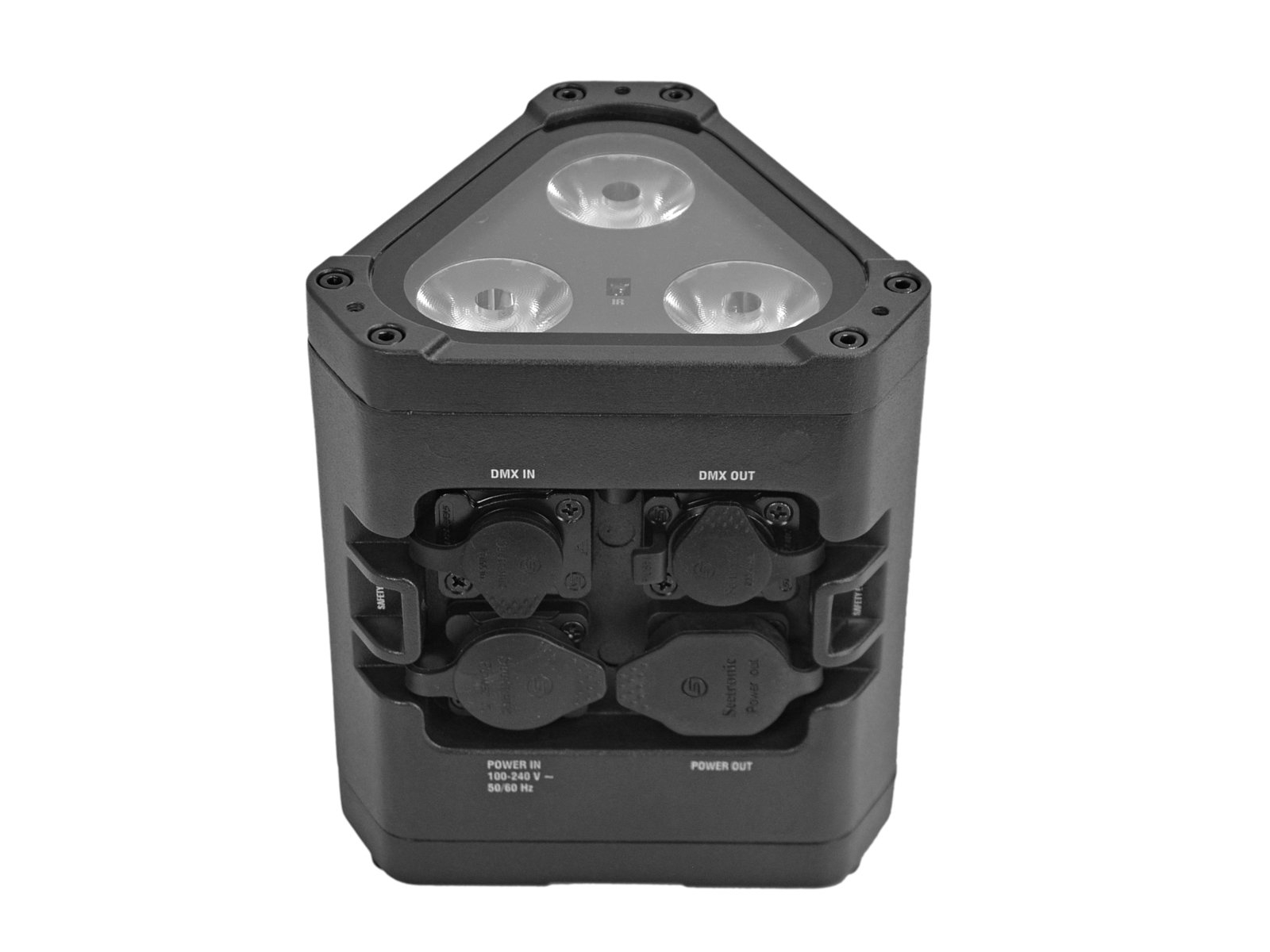

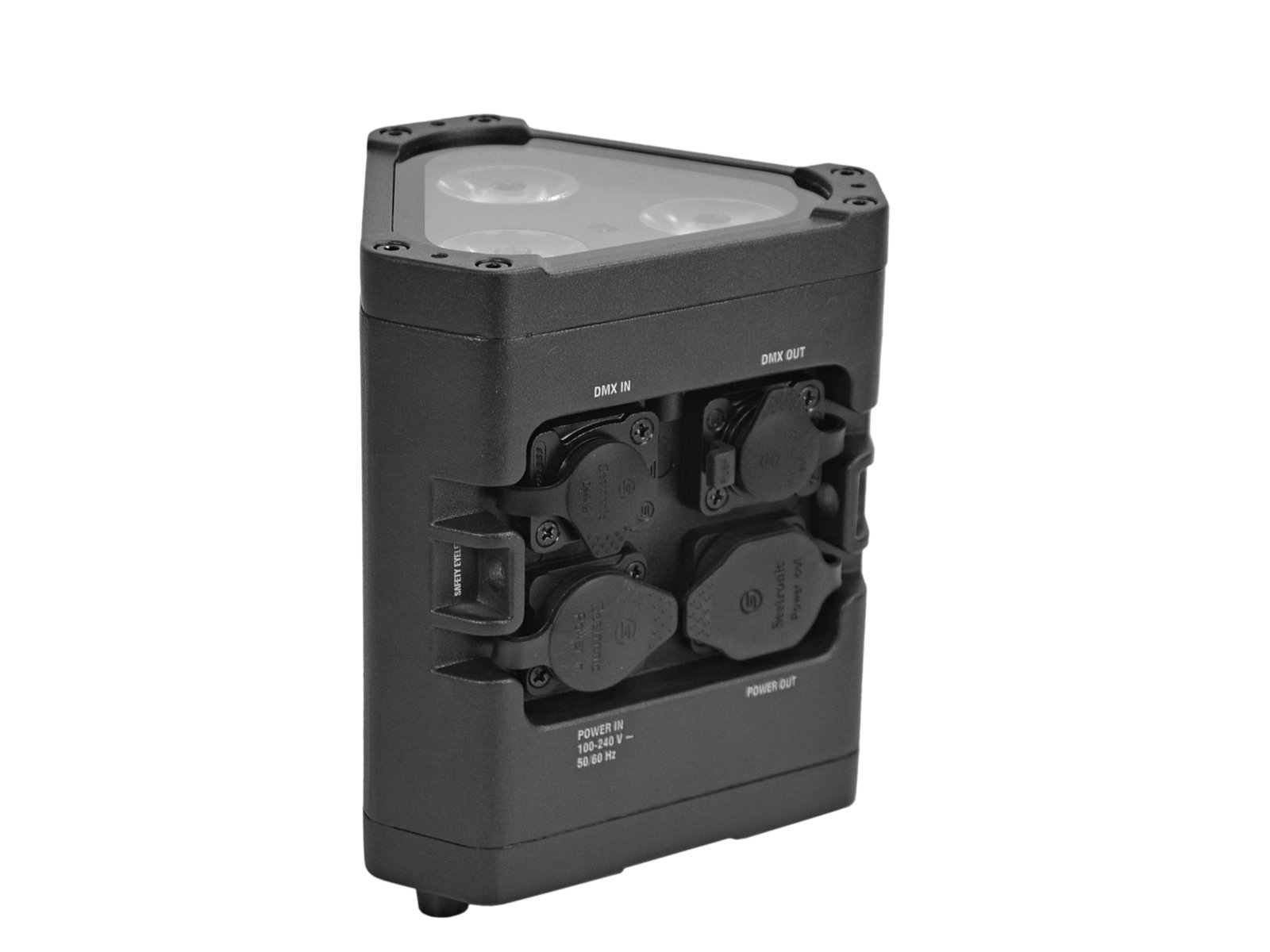

| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug (provided) |
| Power output: | IP T-Con (F) mounting version |
| Lamp type: | LED lamp |
| LED type: | 3 x 10 W 4in1 QCL RGBW (homogenous color mix) |
| Flash rate: | 1 – 23 Hz |
| DMX channels: | 3; 4; 6; 8; 11 |
| DMX input: | 3-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; DMX; master/slave function; IR remote control; RDM |
| Preprogrammed in: | EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; LED EASY OPERATOR 4×4; LED EASY OPERATOR 4×6; Light Captain; Light´J |
| Projection: | Flicker-free |
| Beam angle: | 10° |
| Beam angle (1/2 peak): | 10° Frost filter 20° |
| Beam angle (1/10 peak): | 20° Frost filter 45° |
| Housing color: | Black |
| Attachment system: | 2x M10 thread |
| Display type: | OLED display |
| Use of brands: | Built with SEETRONIC connector |
| Dimensions: | Length: 13,1 cm Depth: 11,8 cm Height: 15,3 cm |
| Weight: | 1,90 kg |
| Noise classification: | Class 0 (no noise at all) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397727333 | 2,12 kg | 20cm x 18cm x 20cm |
