Description

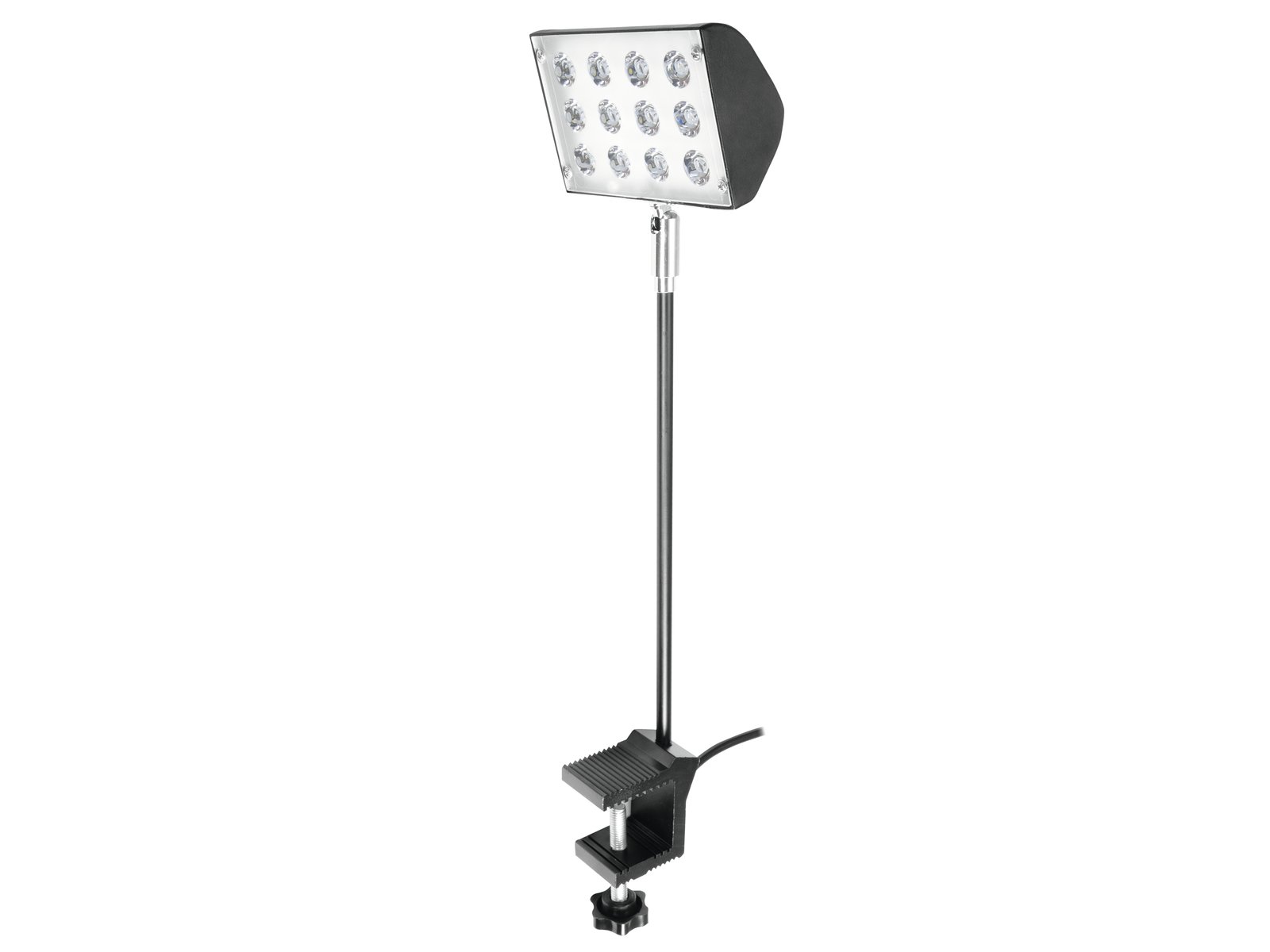

The Eurolite KKL-12 LED floodlight illuminates trade fair booths, shop windows, workshops and even weatherproof outdoor areas.
You can purchase the KKL-12 in three simple casing colors: black, white and silver.
You can purchase the KKL-12 in three simple casing colors: black, white and silver.
Features
Warm white 12 W LED light on an extension arm with clamp holder
- Inclination-angle of the device head: horizontally approx. 320°, vertically approx. 85°
- Unique design
- 12 powerful LEDs 1 W high-power warm white (WW)
- The device is cooled by passive convection cooling
- Control via plug and play
- Easy installation
- With a beam angle of 40°
- Various versions available
- Silent operation
- For application areas such as: Advertisement/Shop window; Trade fair and shop fitting
- Application possibility: Suspended; wall mounting
Package contents
- 1 x spotlight, 1 x knurled screw, 1 x plate, 1 x user manual
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 12 W |
| IP classification: | IP20 |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 0,75 mm² H05VV-F |
| Cable length: | Approx. 1,5 m |
| Lamp type: | LED lamp |
| LED type: | 12 x 1 W high-power warm white (WW) |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Setup: | Easy installation |
| Beam angle: | 40° |
| Beam angle (1/2 peak): | 40° |
| Beam angle (1/10 peak): | 75° |
| Color temperature: | 3200K |
| Illuminance in Lux (lx): | 1m: 1028 lx, 3m: 134 lx, 6m: 38 lx |
| Luminous flux: | 752 lm |
| Housing color: | Black |
| Dimensions: | Length: 45 cm Width: 13 cm Depth: 12 cm |
| Weight: | 810 g |
| Noise classification: | Class 0 (no noise at all); Class 0 (no noise at all) |
| Energy efficiency class (A – G): | G |
| EPREL-Nr: | 1263088 |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397606652 | 0,96 kg | 49cm x 14cm x 5,5cm |
