EUROLITE LED KLS-190 Compact Light Set

Description

LED KLS-190

Classic looks, powerful light

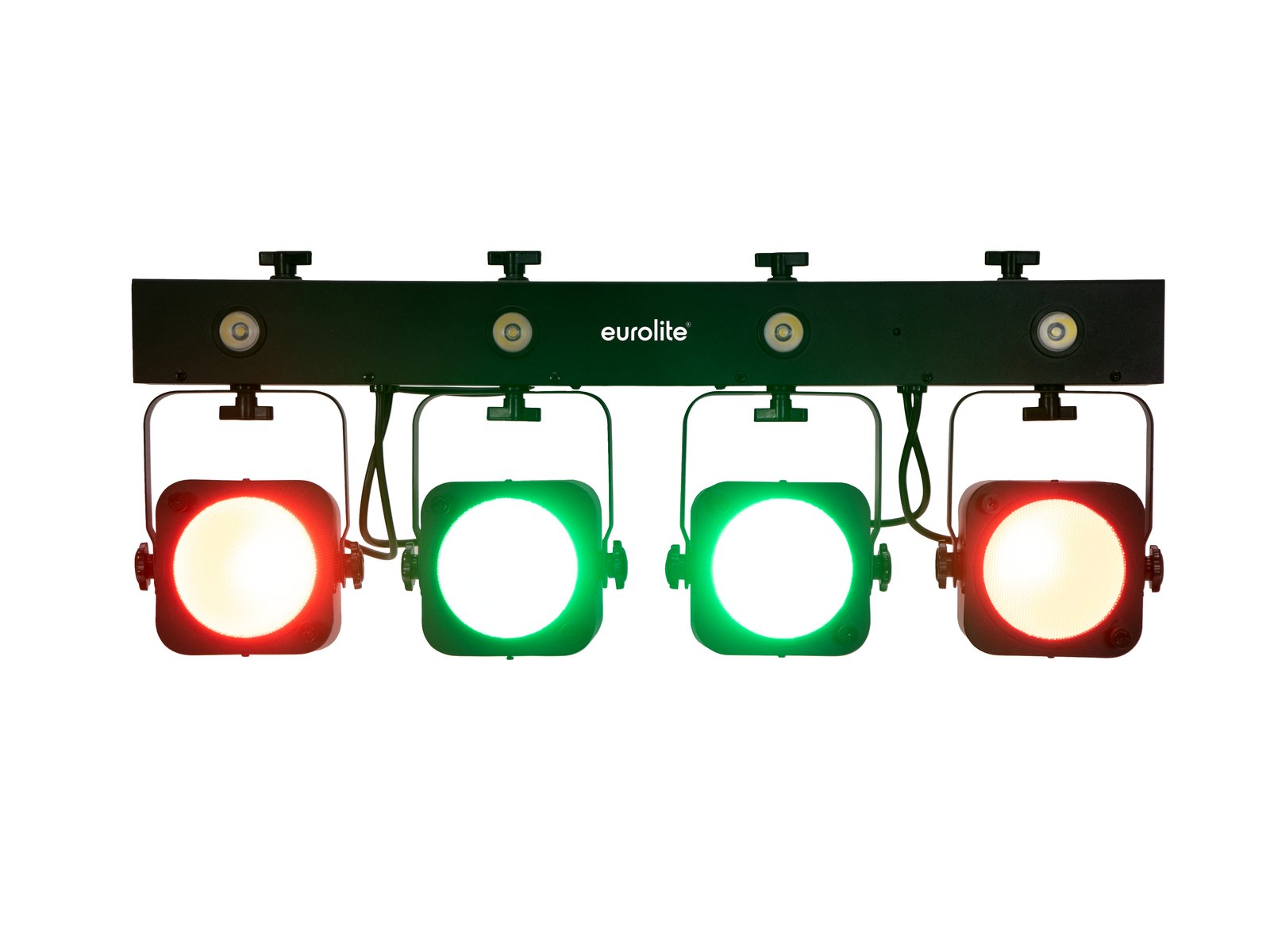

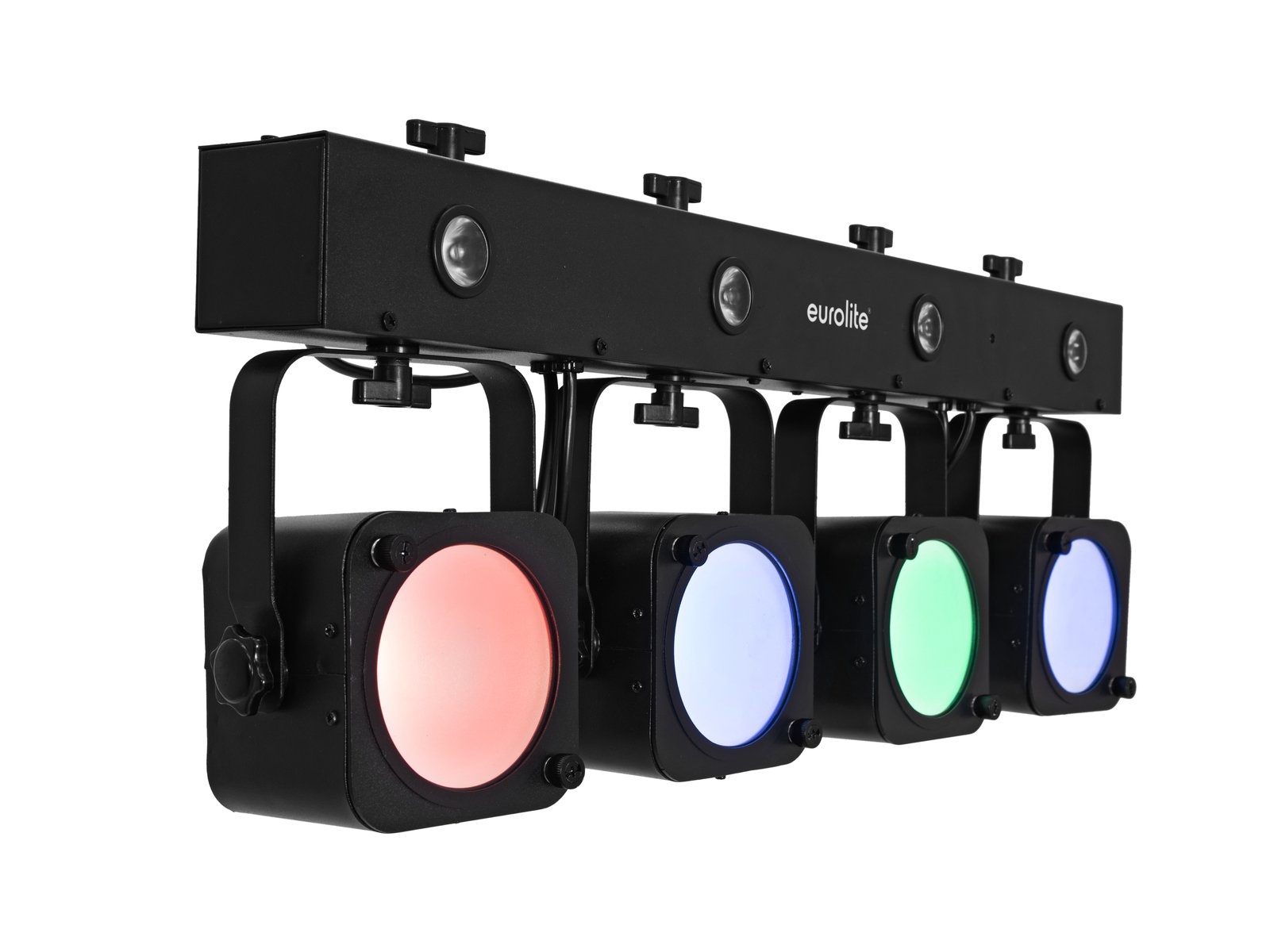

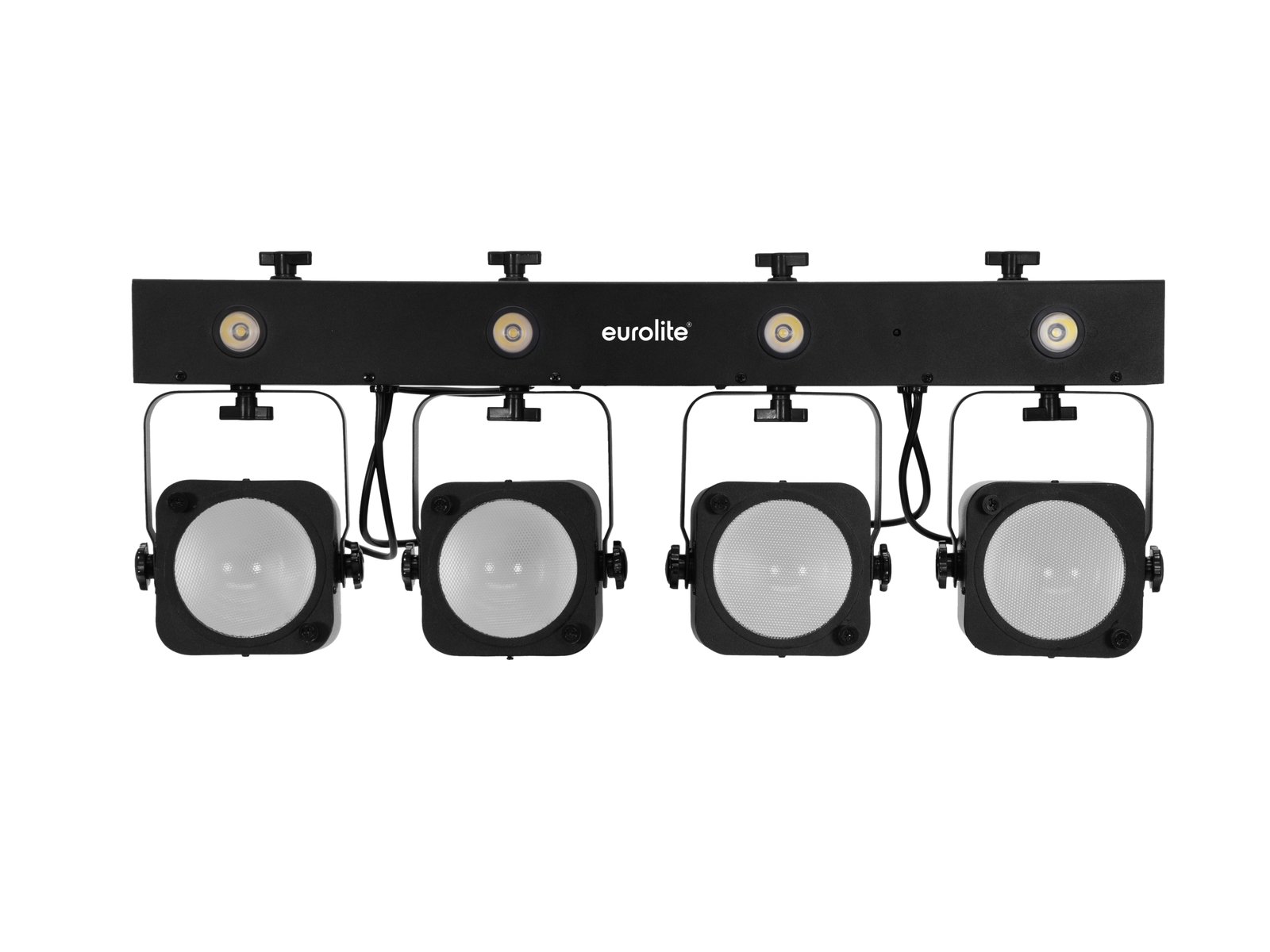

A KLS with COB LEDs that convinces with its classic appearance and its powerful and homogeneous light: With the KLS-190, Eurolite now offers exactly such a spotlight bar.

Equipment

4 spots with 30 watts each and RGB color mixing are used. The wide beam angle can be limited from 42° to narrow 9° by using a lens included in delivery. The mounting of the lens is very simple and can be done in seconds. In addition, 4 cold white LEDs are installed in the bar, which can be used for stroboscope effects.

Control and stand-alone programs

The compact light set is controlled via DMX. For operation via wireless DMX, the KLS-190 offers a USB socket into which a Quick DMX receiver can be plugged. But even without external control, 19 well thought-out stand-alone and audio programs each provide a variety of effects. The strobe LEDs can be switched on if desired in addition to the programs.

Flexible setup

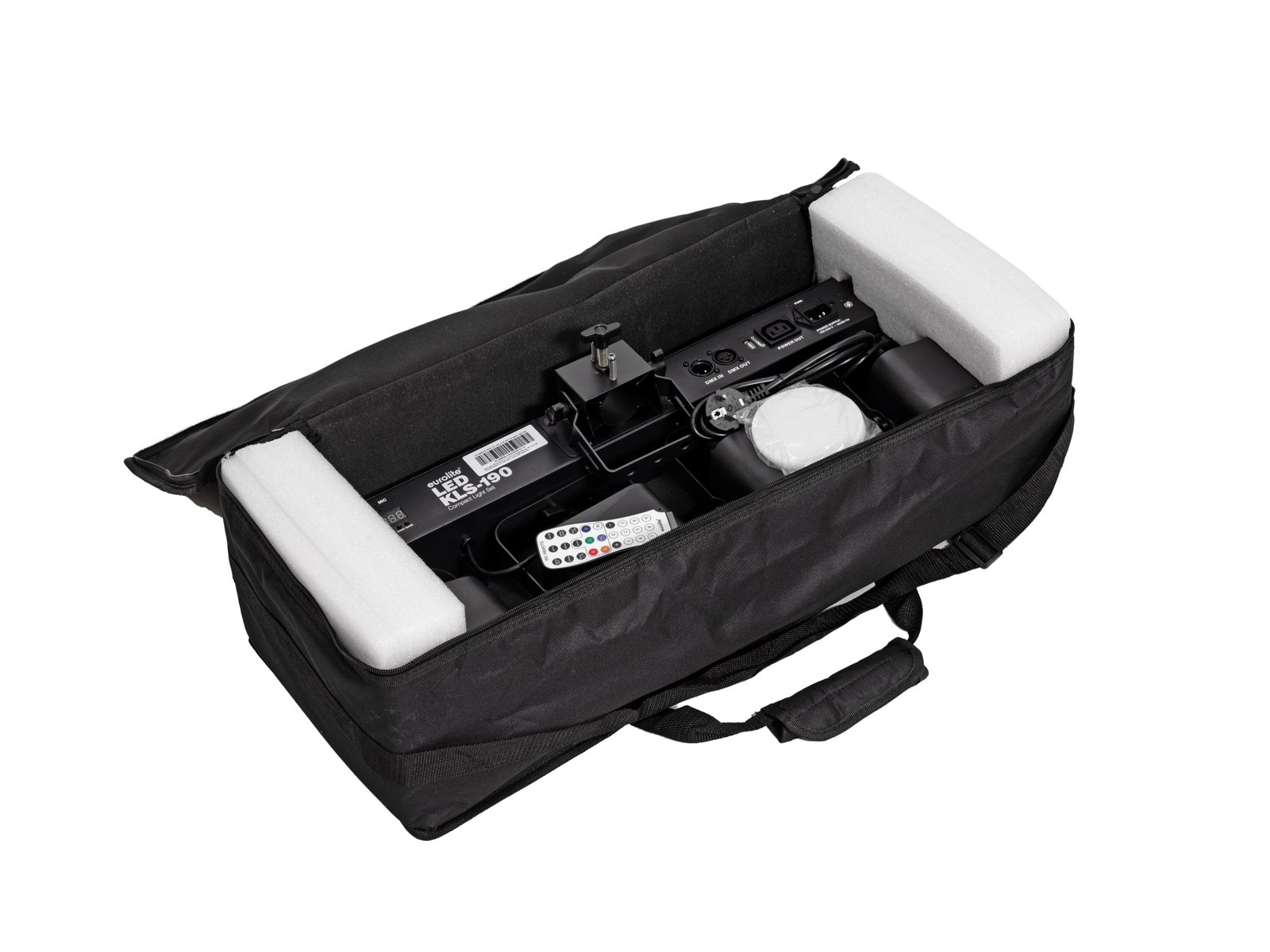

The special mounting system of the KLS-190 not only allows the bar to be mounted on a stand, it also allows the stand rod to be pushed through to attach a spotlight or loudspeaker box on top. Up to 4 additional spotlights or effects can also be mounted on the KLS-190 itself. The power supply for these devices can be provided via the cold device output of the bar. A transport bag is included.

Features

Bar with 4 RGB spots, 4 white strobe LEDs and QuickDMX USB port

• Crossbar with integrated DMX control unit and stand sleeve
• Compact lightweight
• Two additional frost filters provide a soft, homogeneous light
• Movable and tiltable spotlights
• Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
• Strobe effect
• 19 integrated show programs
• Direct color selection for 18 preset colors
• The device is cooled by passive convection cooling
• Control via DMX; sound to light via microphone; IR remote control; master/slave function; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• With a beam angle of 9°
• Preprogrammed in EASY SHOW 1; Light´J; LED PC-Control 512; Light Captain; EASY SHOW 2; EASY SHOW 3
• Silent operation
• Mains input and output for power linking up to 8 units
• Application possibility: On stand; suspended
• For application areas such as: Wedding/gala/events; party room; mobile use; mobile djs / entertainer

spotlight

• 4 powerful LEDs 30 W COB (chip-on-board) 3in1 TCL RGB (homogenous color mix)
  spots controlled separately

bar

• 4 powerful LEDs 3 W high-power cold white (CW)
  LEDs controlled separately

Package contents

• 1 x spotlight, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery, 1 x bag, 8 x frost filter
