Description

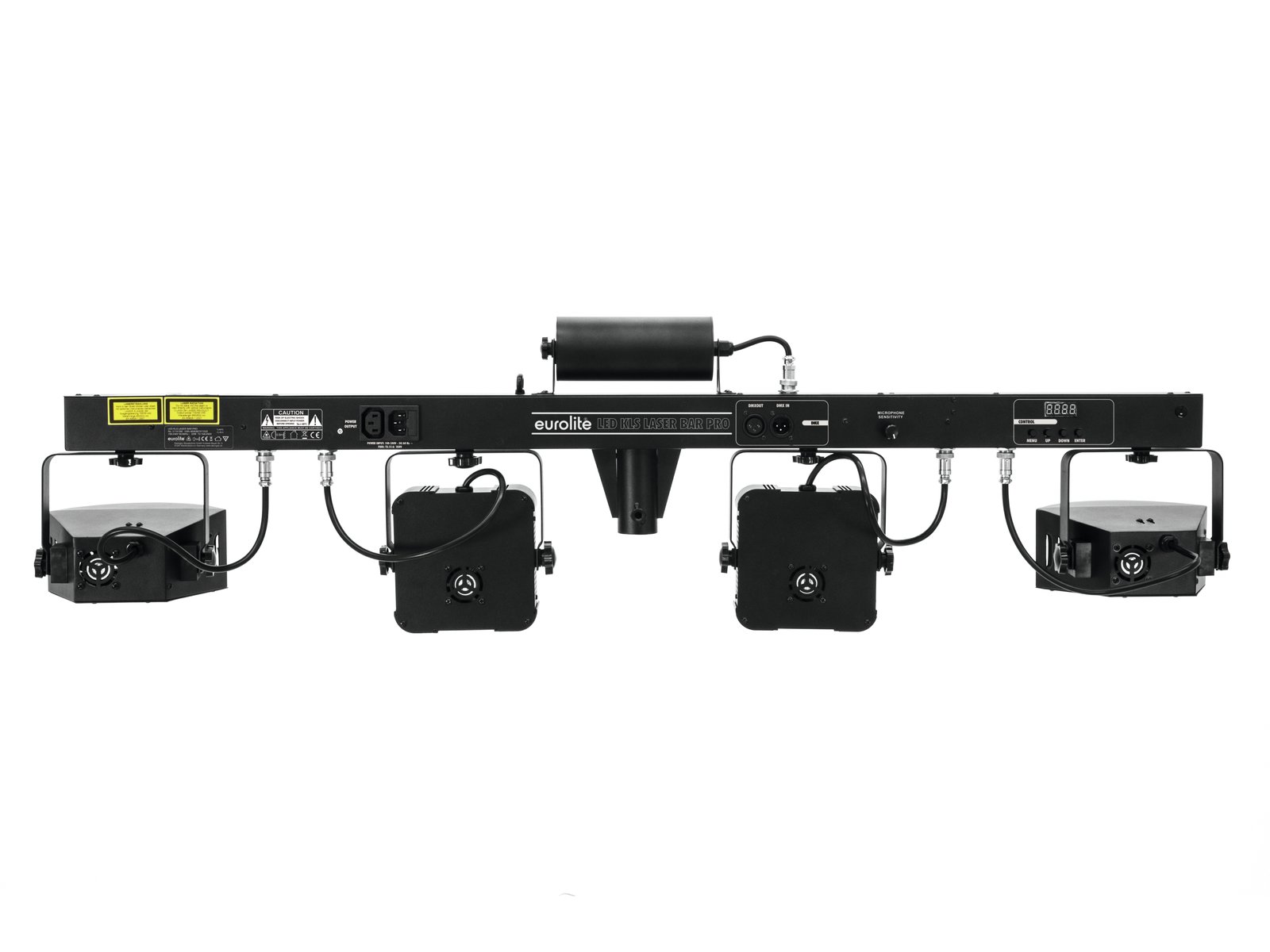

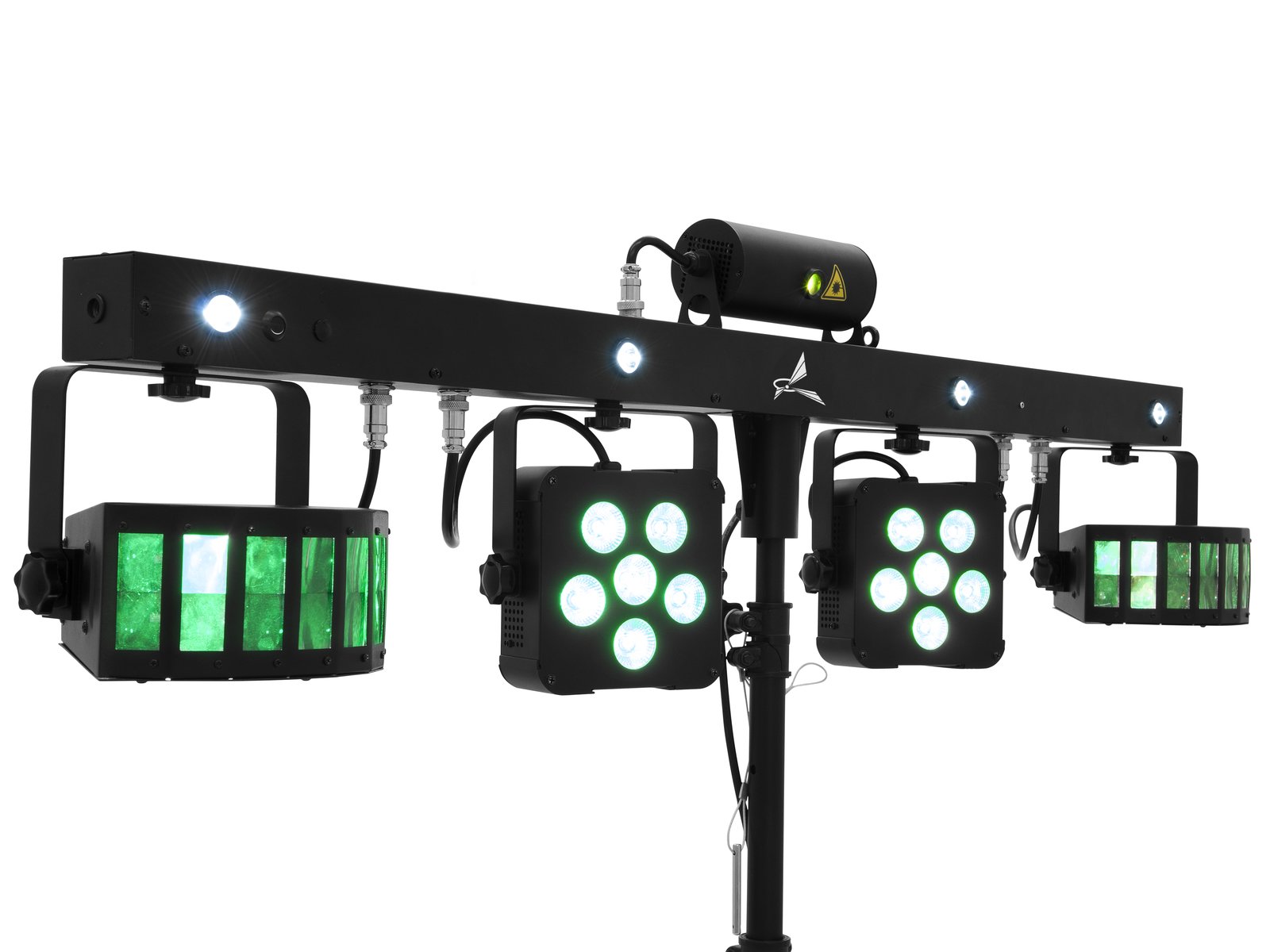

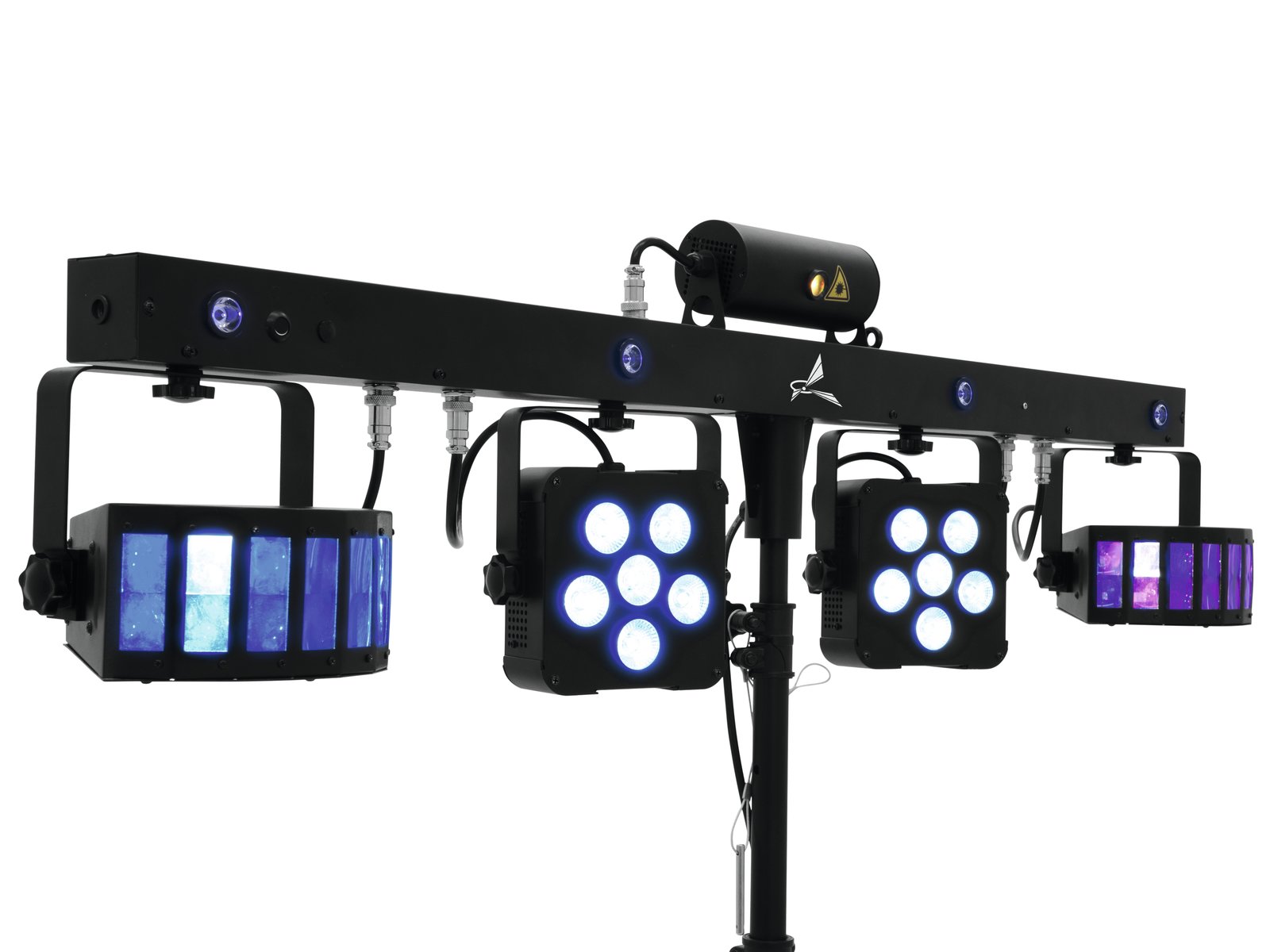

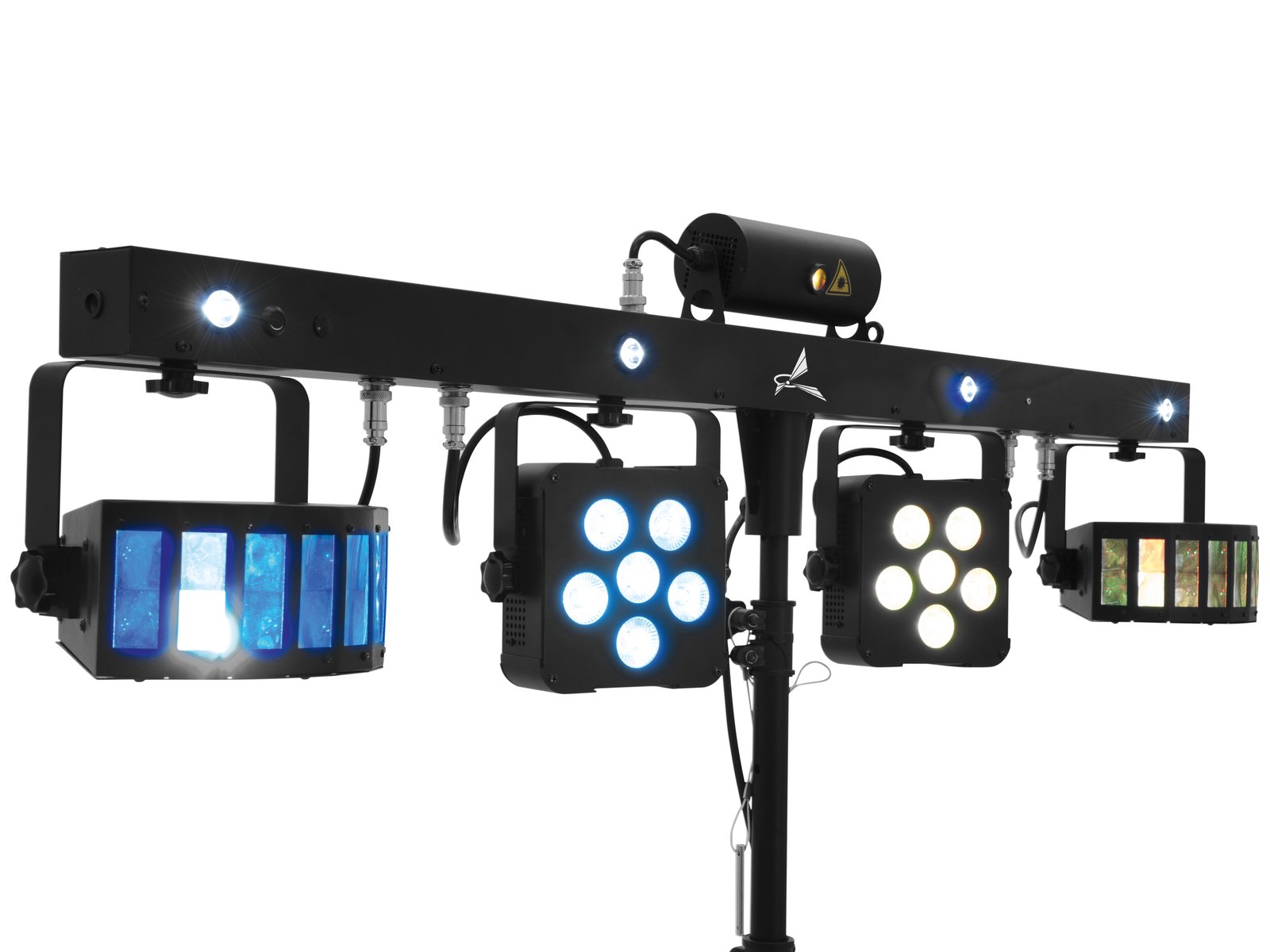

LED KLS Laser Bar PRO FX Light Set
The consistent further development
KLS have enjoyed great popularity since their introduction. Especially with mobile DJs and small bands, they have become an integral part of the setup. The KLS Laser Bar PRO FX continues the idea of the all-in-one solution.
More power
The bar has more power in the spots (6 x 6 W), the derbies (6 x 2 W) and the strobes (4 x 2 W) than its predecessors. Only the laser has remained the same power with class 2M – because this is the only way it can still be operated without approval in Germany (for operation in other countries, please check the local regulations).
Strobes with UV
The strobes are now also equipped with BCL LEDs. In addition to white, UV is also installed under each lens, giving the bar even more flexibility.
equipment

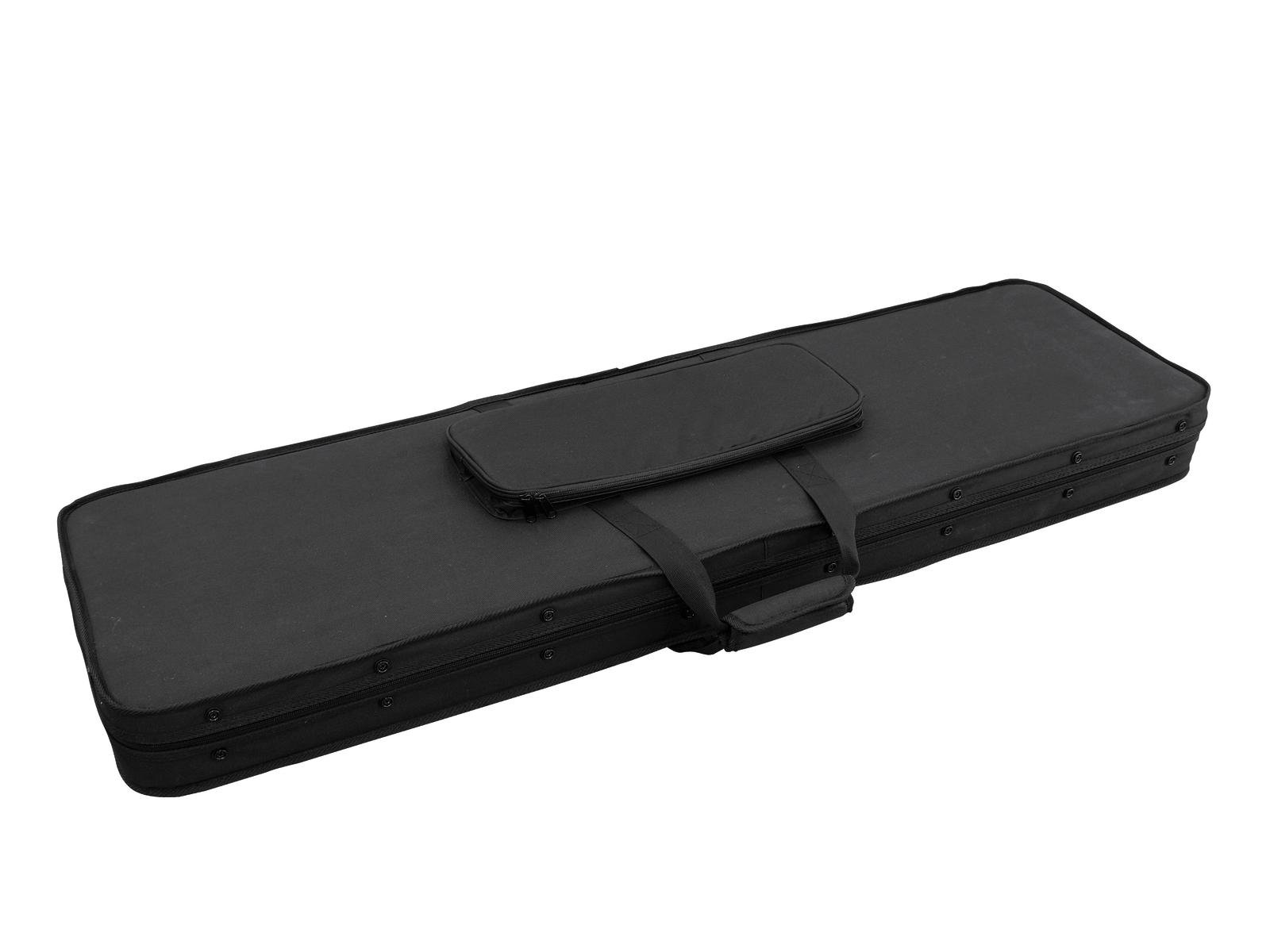

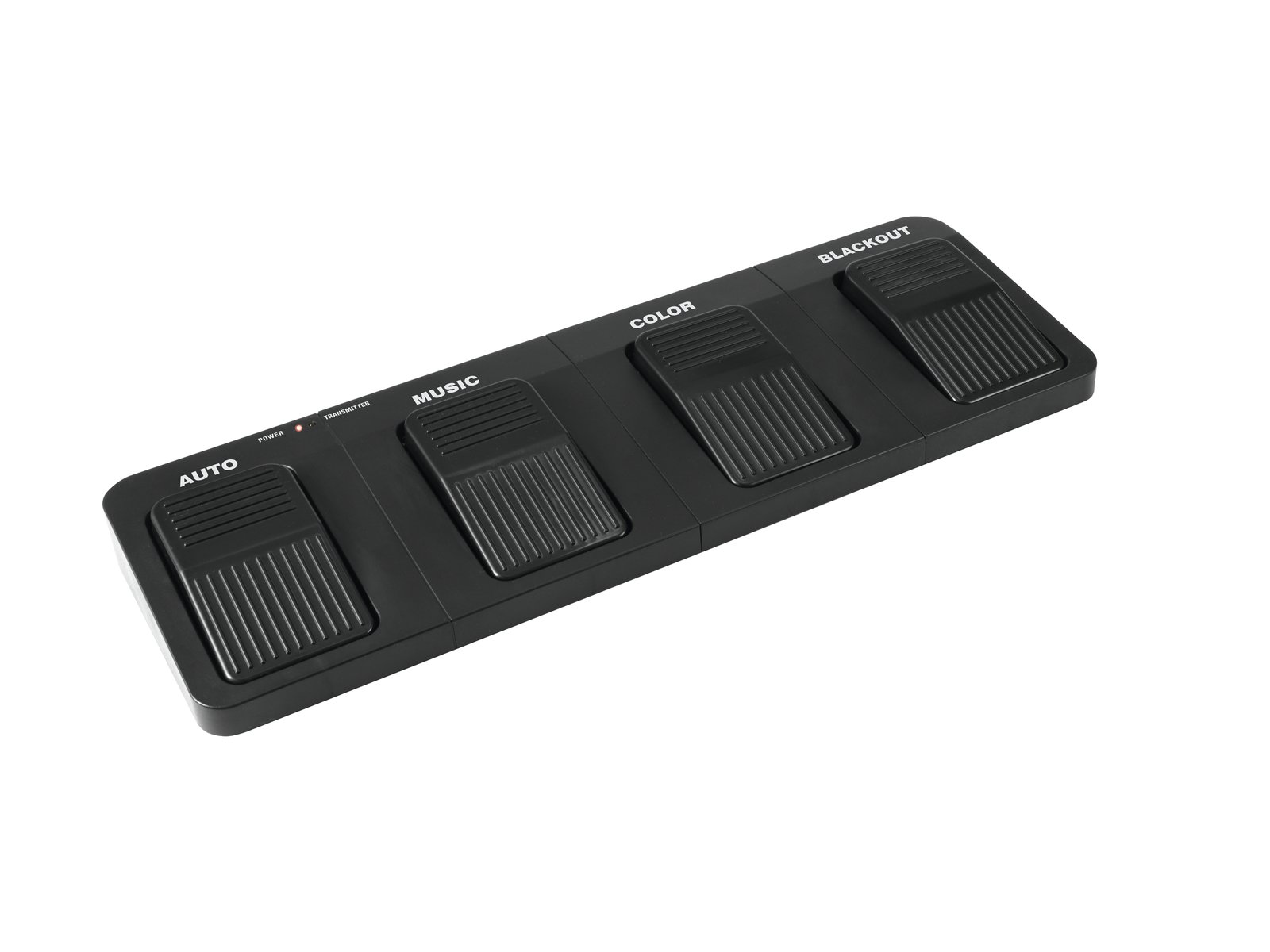

Included in the delivery: footoperated switch, remote control and a transport bag
Features
Bar with 2 strong derbies and spots, white/UV strobe LEDs, laser (RG, 2M)
- Enhanced version with very high brightness and additional UV LEDs
- Compact lightweight
- Crossbar with integrated DMX control unit and stand sleeve

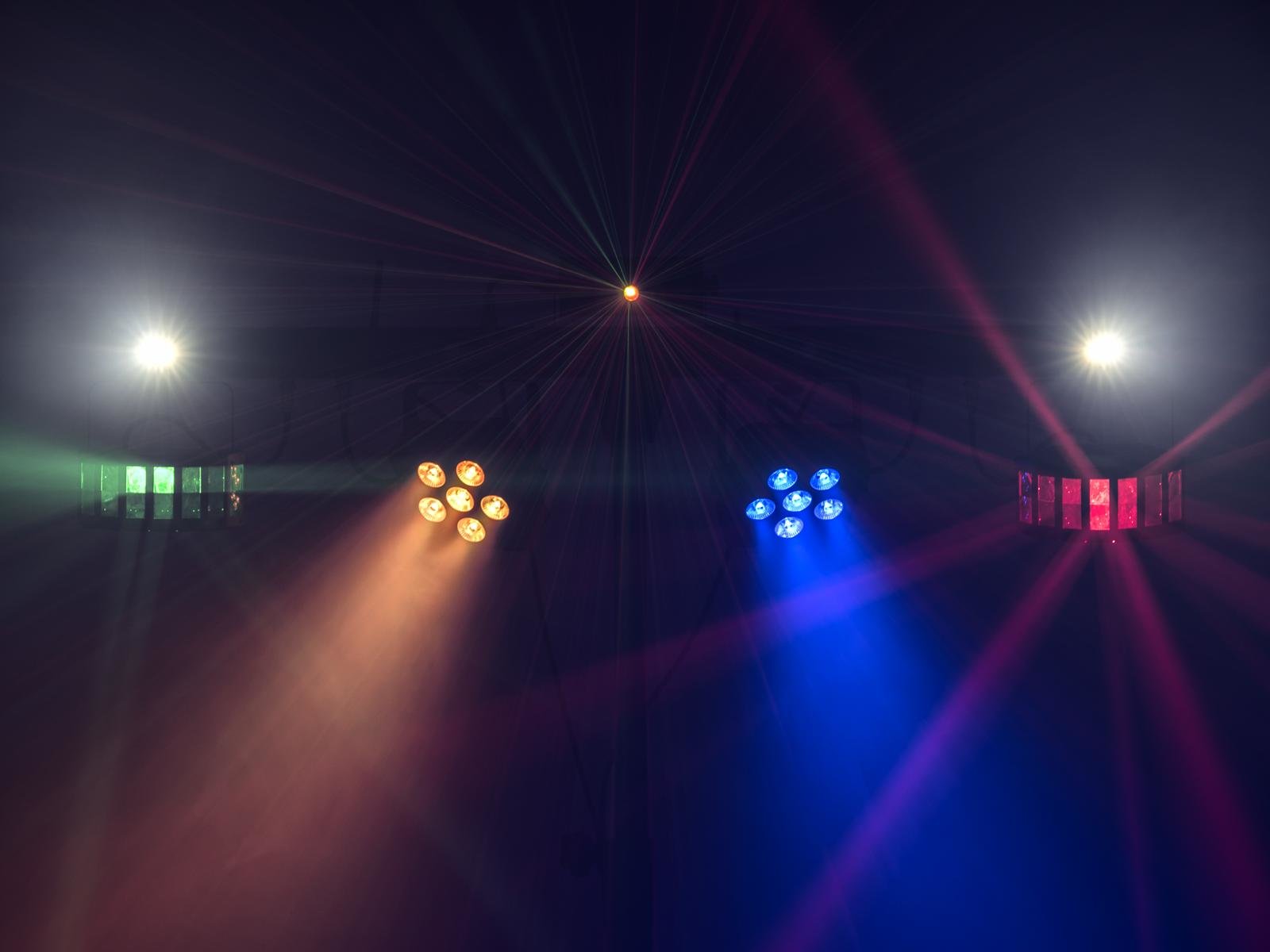

- 2 laser diodes project hundreds of red and green laser beams
- 2 rotating derbies for mirror ball effects
- When fog is used, this effect becomes especially attractive
- For application areas such as: Wedding/gala/events; mobile use; clubs/dancing school; mobile djs / entertainer; rental
- 39 integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; IR remote control; sound to light via microphone; wireless footswitch; master/slave function
- With mounting bracket
- Preprogrammed in EASY SHOW 1; Light´J; LED PC-Control 512; Light Captain; EASY SHOW 2; EASY SHOW 3
- Mains input and output for power linking up to 8 units
- Laser; multi beam effect; flower effect; UV effect; strobe effect
- Application possibility: On stand
laser
- Laser class 2M
does not require additional protective measures or appointment of a laser safety officer
spotlight
- 6 powerful LEDs 6 W high-power 3in1 TCL RGB (homogenous color mix)
spots controlled separately - With a beam angle of 13°
light effect
- 6 powerful LEDs 2 W high-power R/G/B
spots controlled separately
bar
- 4 powerful LEDs 2 W high-power 2in1 BCL CW/UV (homogenous color mix)
LEDs controlled separately
Package contents
- 1 x device, 1 x power cord, 1 x user manual, 1 x declaration of conformity, 1 x remote control, 1 x foot control, 2 x knurled screw, 2 x washer, 2 x mounting bracket, 2 x battery, 1 x bag
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 150 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x IEC connector (F) mounting version |
| Fuse: | 5 x 20 mm, T 3,15 A |
| Lamp type: | LED lamp |
| DMX channels: | 3; 5; 10; 28 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; IR remote control; sound to light via microphone; wireless footswitch; master/slave function |
| Preprogrammed in: | EASY SHOW 1; Light´J; LED PC-Control 512; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Housing color: | Black |
| Attachment system: | 2x mounting bracket |
| Dimensions: | Width: 1,030 cm Depth: 6,1 cm Height: 38,7 cm |
| Weight: | 10,00 kg |
| Noise classification: | Class 2 (slight noise) |
| Power cord | |
| Cable length: | 3 m |

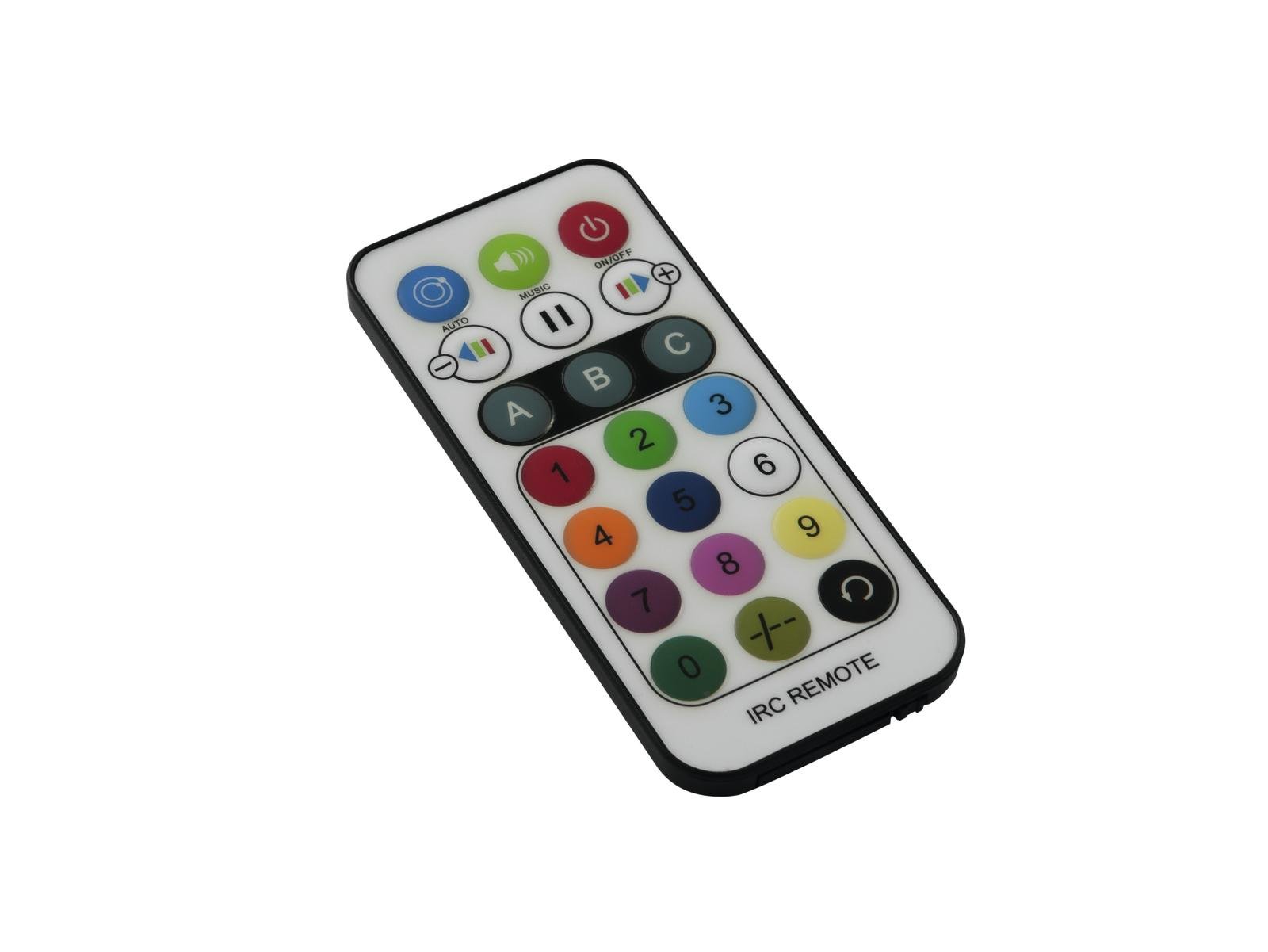

| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Foot control | |
| Battery: | 1 x 9.0 V E block 6F22 zinc carbon included |
| Laser | |
| Laser class: | 2M |
| Laser color: | R/G |
| Laser module: | Red (R) 100 mW 650nm Green (G) 30 mW 532nm |
| Light effect | |
| LED type: | 6 x 2 W high-power R/G/B |
| Flash rate: | 0 – 30 Hz |
| Spotlight | |
| LED type: | 6 x 6 W high-power 3in1 TCL RGB (homogenous color mix) |
| Beam angle: | 13° |
| Beam angle (1/2 peak): | 13° |
| Beam angle (1/10 peak): | 20° |
| Bar | |
| LED type: | 4 x 2 W high-power 2in1 BCL CW/UV (homogenous color mix) |
| Flash rate: | 0 – 30 Hz |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397571523 | 11,75 kg | 117cm x 14cm x 60cm |
