Description

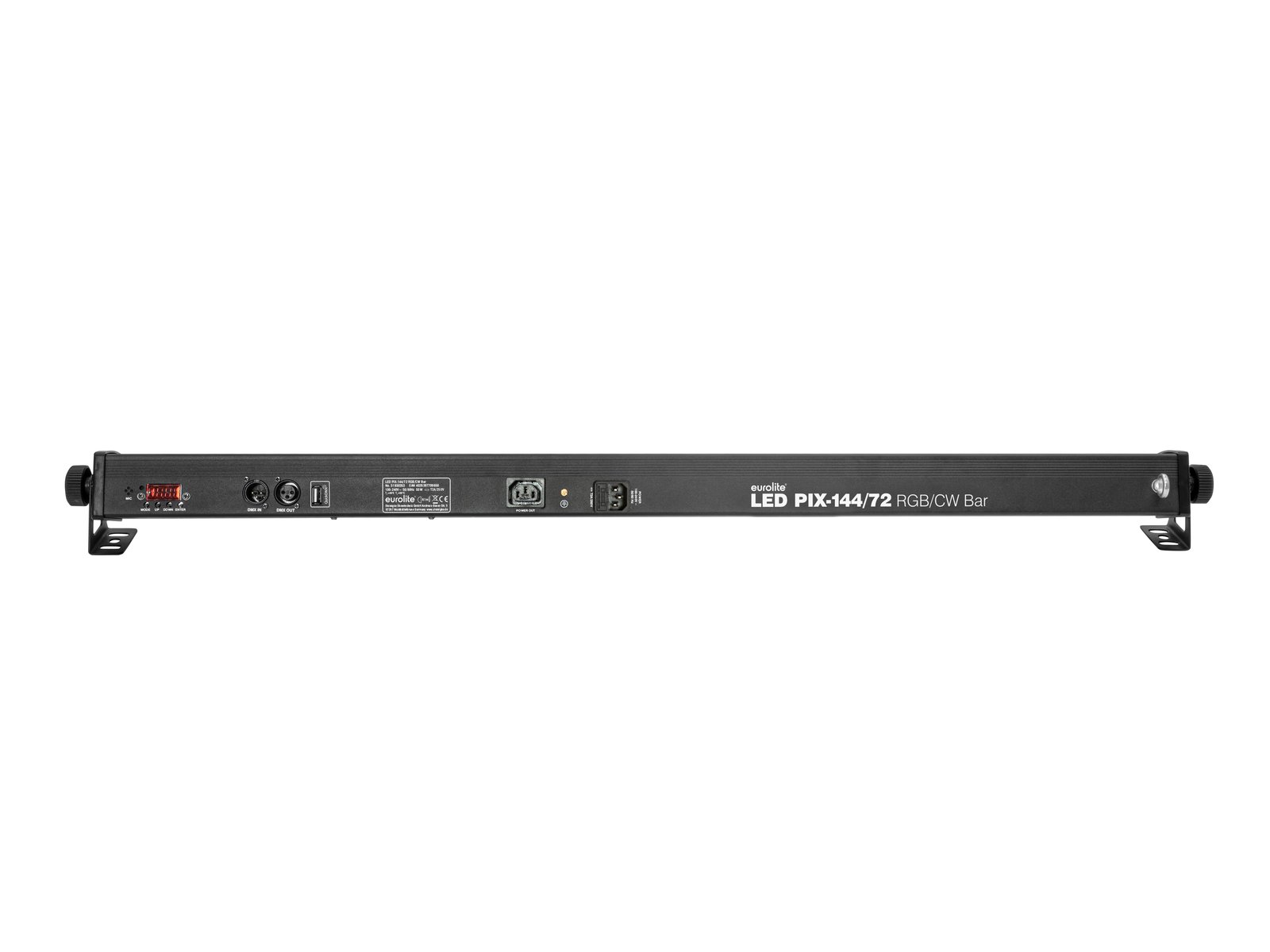

Eurolite LED PIX-144

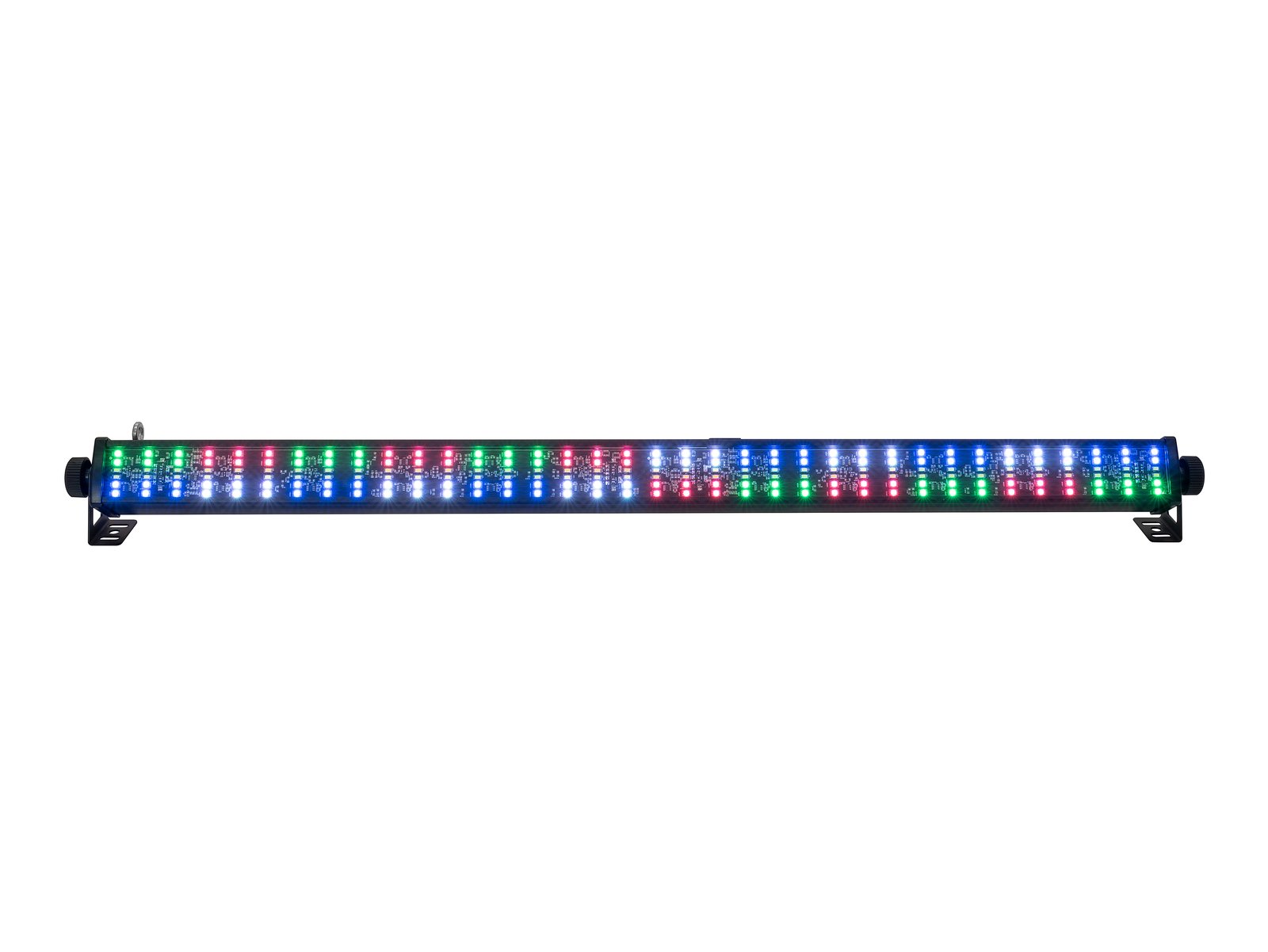

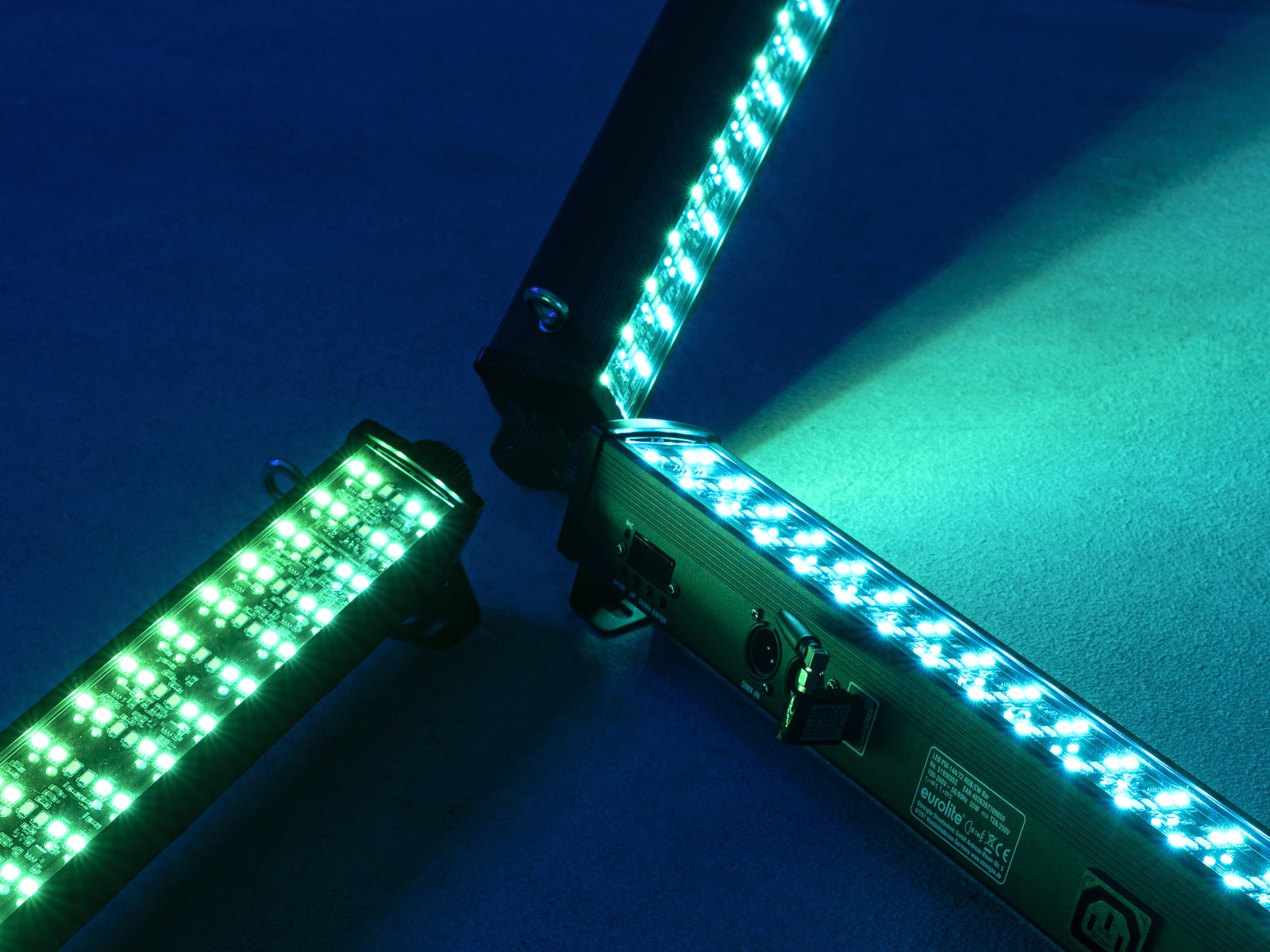

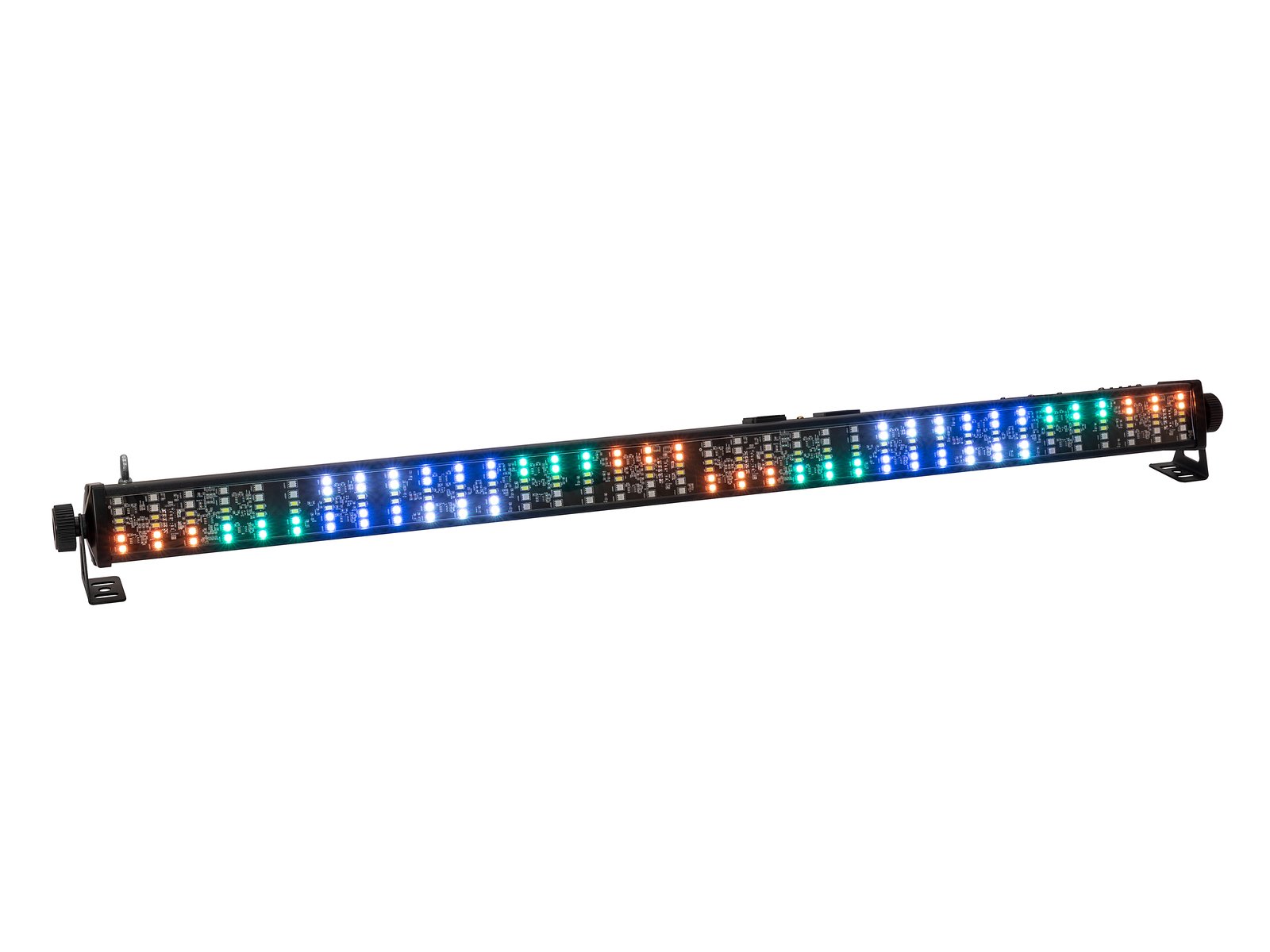

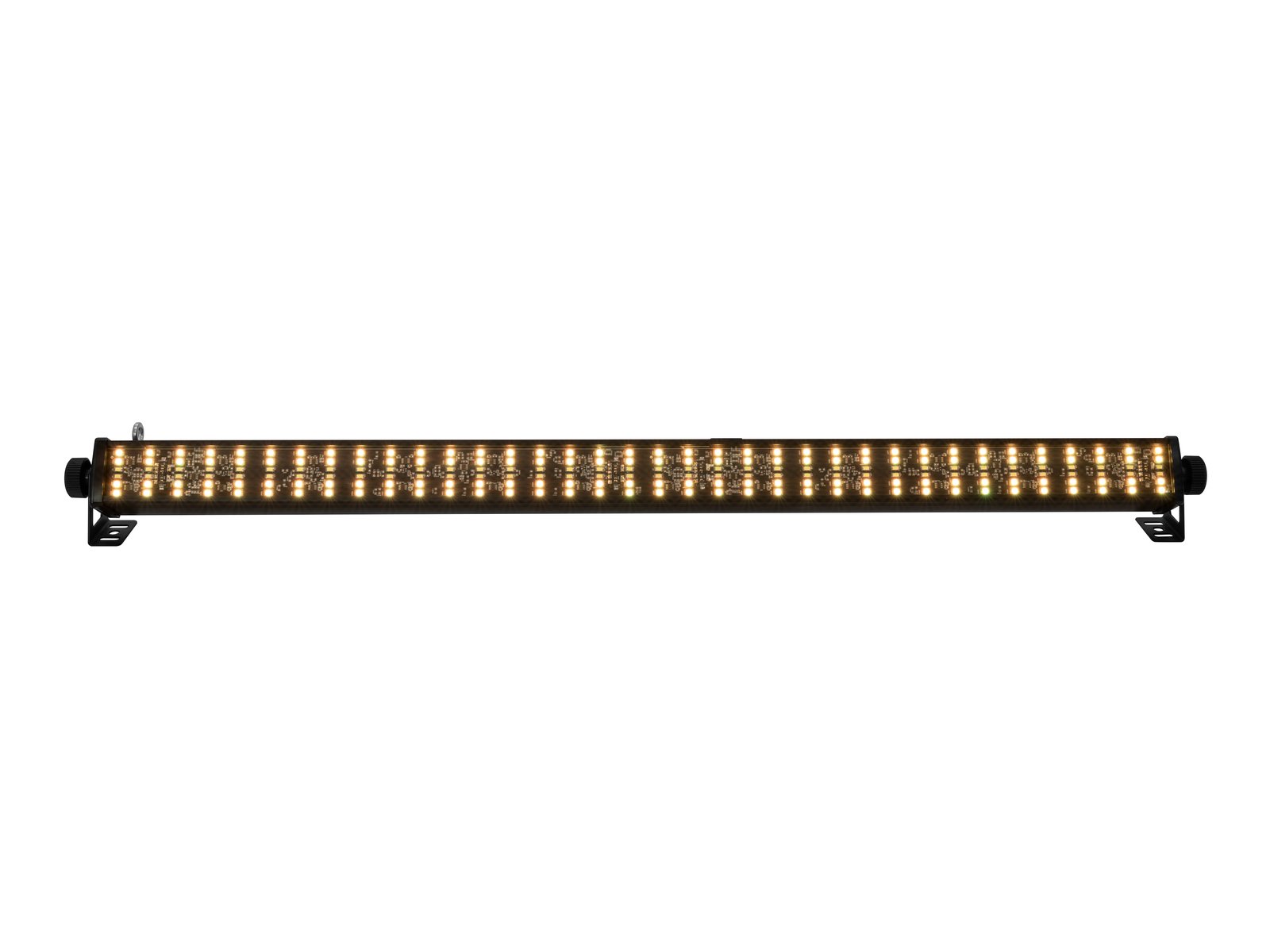

The PIX-144 RGB/CW Bar is a light bar with SMD LEDs in RGB and cool white with pixel control.
Equipment

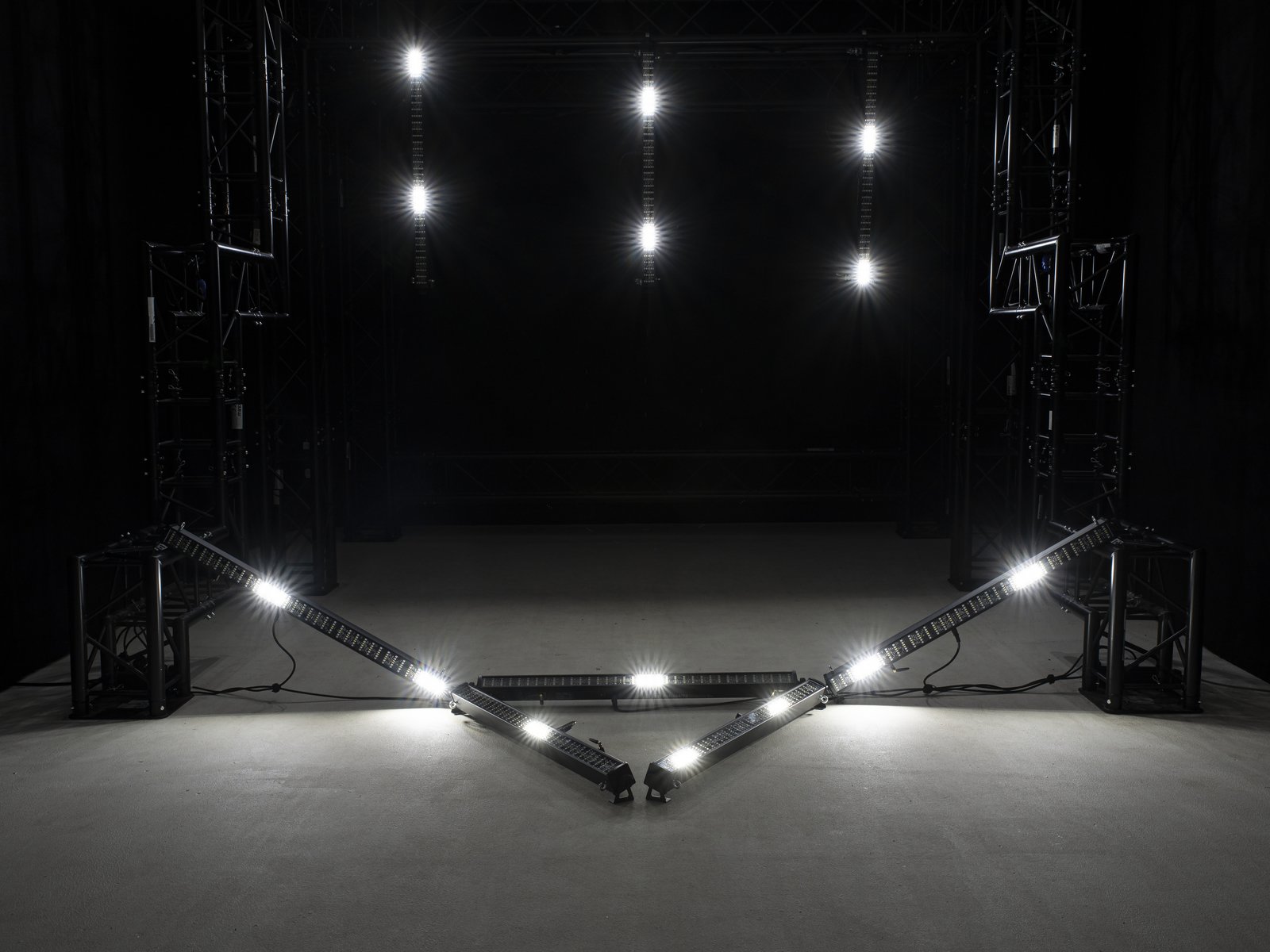

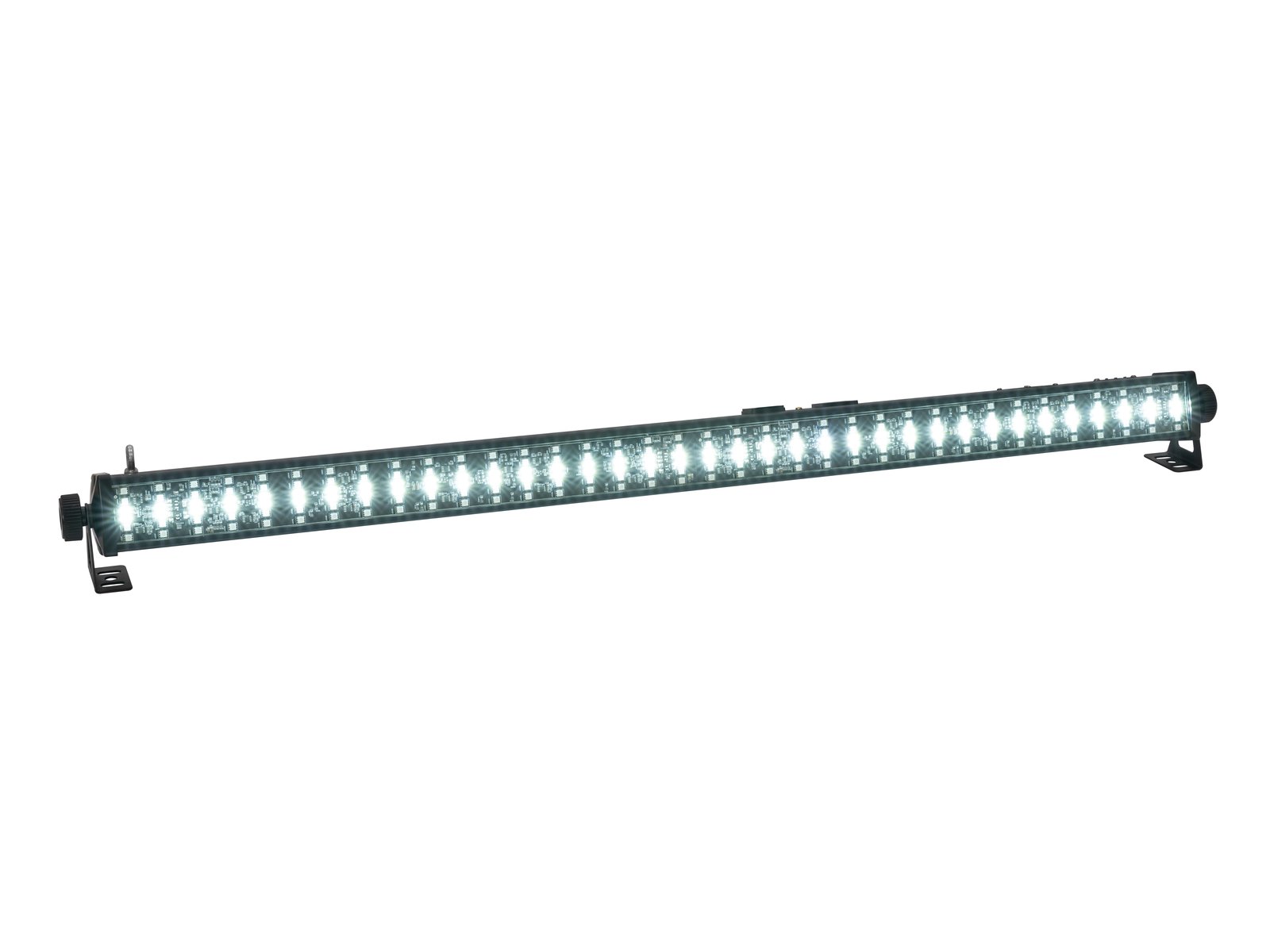

The PIX-144 RGB/CW features 144 LEDs with RGB color mixing and 72 extremely bright, cool white LEDs for blinder and strobe effects. The duration of the individual flashes can be adjusted.
Control

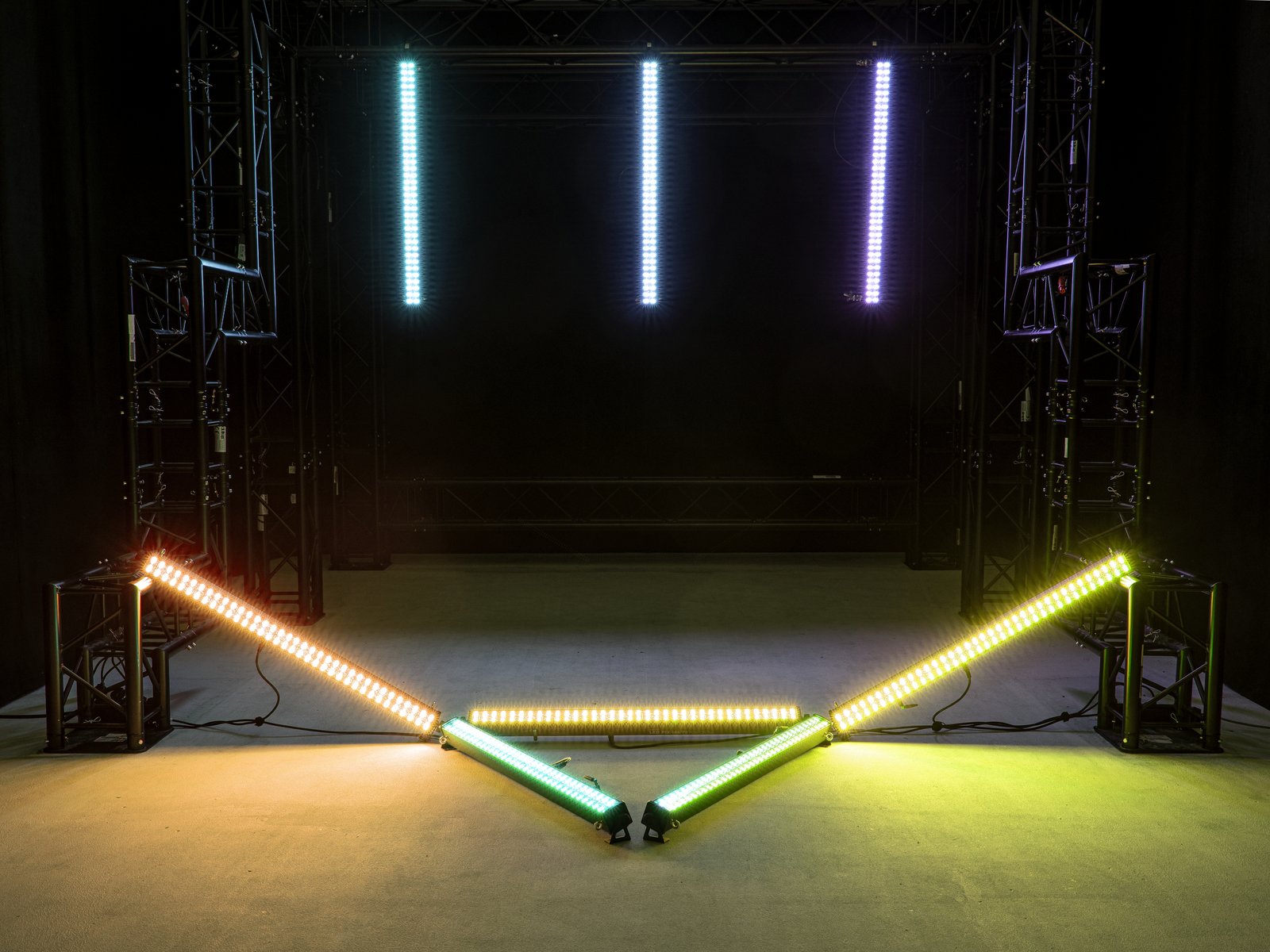

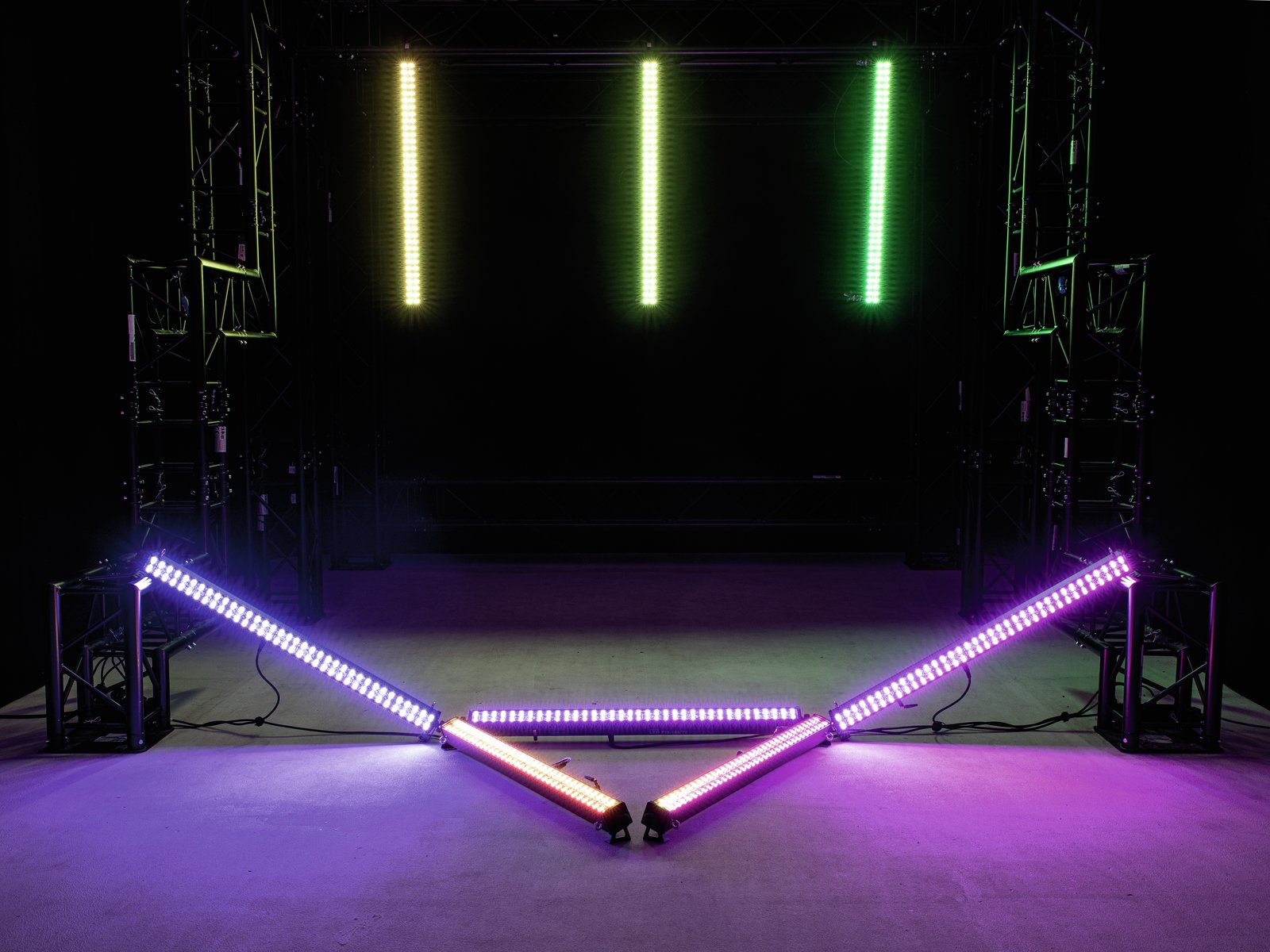

The white LEDs can be controlled via DMX in 12 individual pixel segments, the colored LEDs even in 24 areas. In addition, there are various well thought-out programs for the white and colored LEDs, which can also run in standalone mode or via music control.
Features
LED light bar with wide beam SMD LEDs (RGB/CW) and pixel control
- 144 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
segments controlled separately - 72 powerful LEDs SMD 5730 cold white (CW)
- 16 integrated show programs
- The device is cooled by passive convection cooling
- Control via stand-alone; master/slave function; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 120°
- With mounting bracket
- 4 digit 7-segment LED display
- Color change adjustable; Dimmer electronic; color blend stepless; running light; background color adjustable
- Strobe effect
- Preprogrammed in Light´J; Light Captain
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; party room; restaurants, bars and hotels; advertisement/Shop window
- Silent operation
- Application possibility: Suspended; wall mounting
Package contents
- 1 x bar, 1 x user manual, 1 x power cord, 2 x mounting bracket, 2 x screw, 2 x washer
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 55 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: | IEC connector (F) mounting version |
| Fuse: | 5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 144 x SMD 5050 3in1 TCL RGB (homogenous color mix) 72 x SMD 5730 cold white (CW) |
| Flash rate: | 10 Hz |
| DMX channels: | 6; 16; 84 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; master/slave function; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light´J; Light Captain |
| Projection: | Flicker-free |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° |
| Housing color: | Black |
| Attachment system: | 2x mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Dimensions: | Length: 1,085 m Depth: 6,5 cm Height: 9,0 cm |
| Weight: | 1,63 kg |
| Noise classification: | Class 0 (no noise at all) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397709650 | 1,94 kg | 103cm x 12cm x 11cm |
