Description
Features

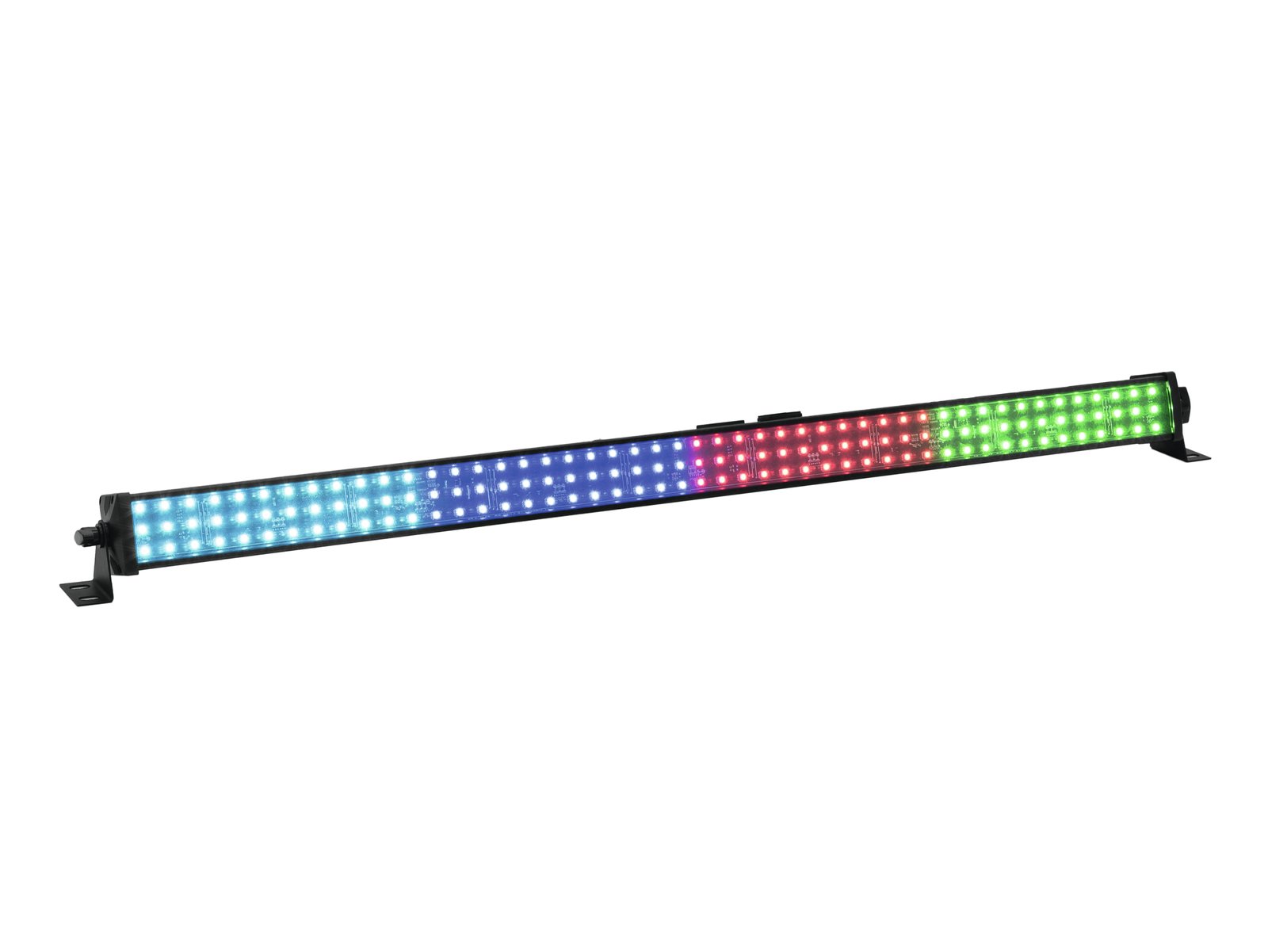

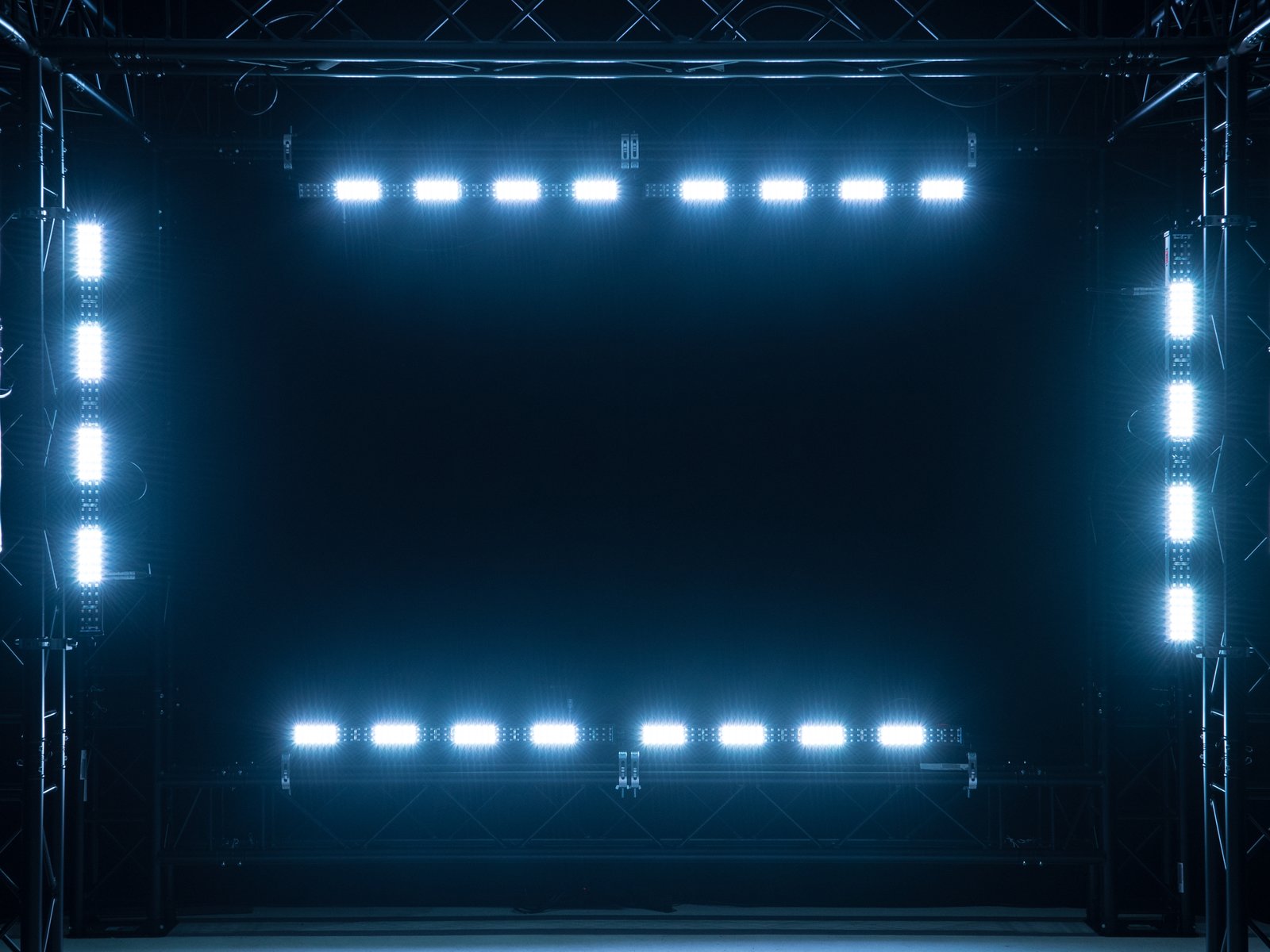

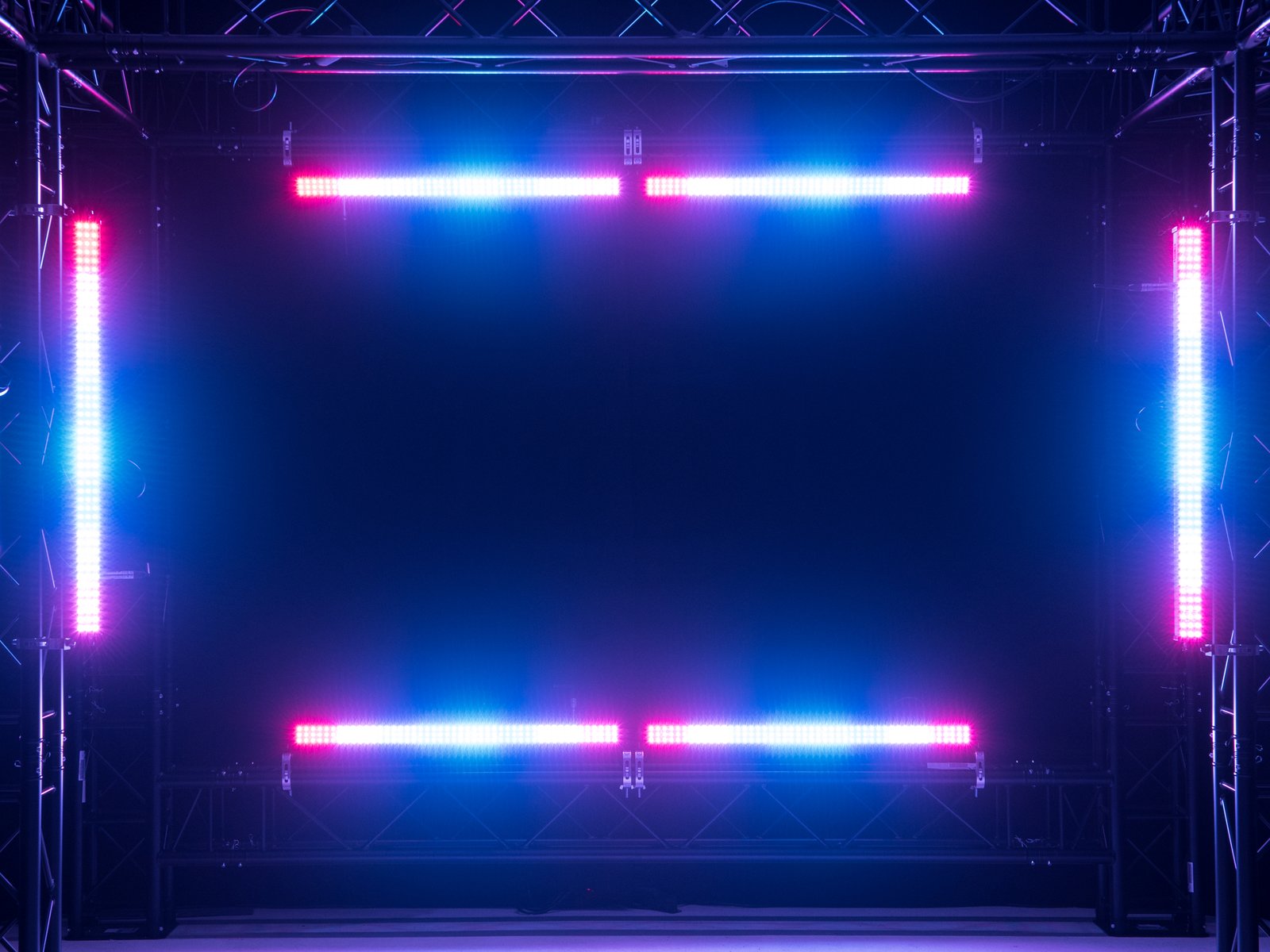

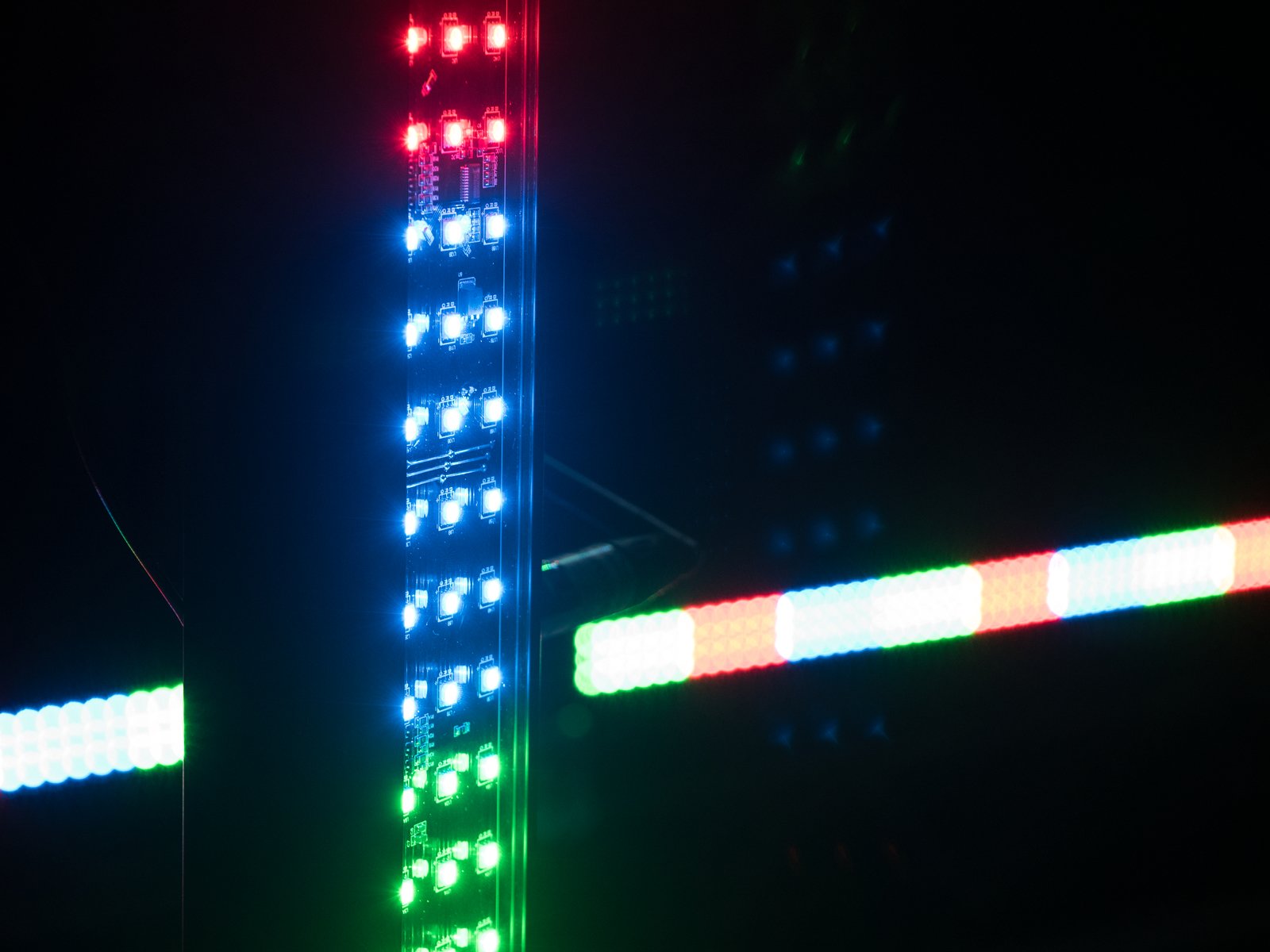

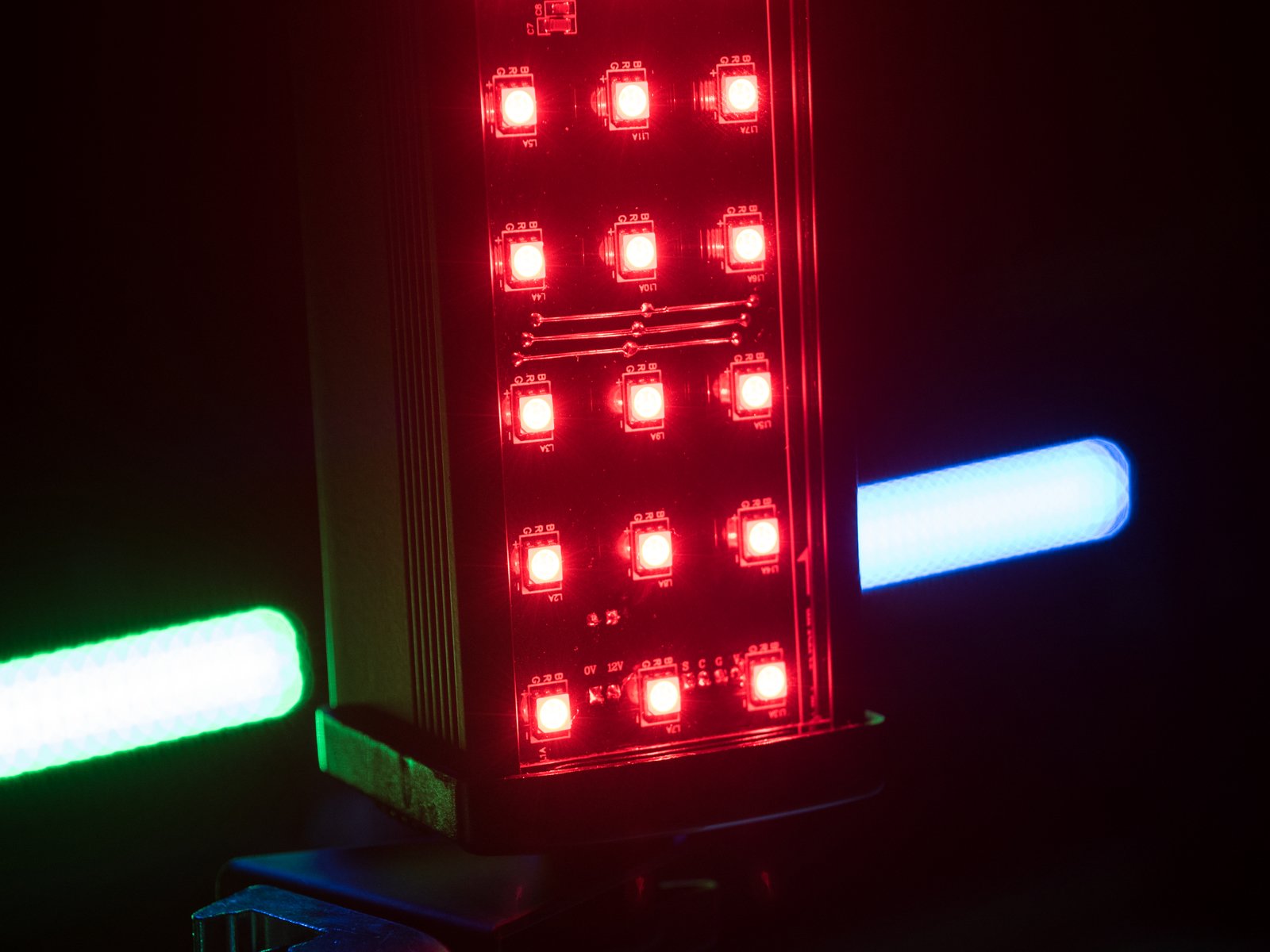

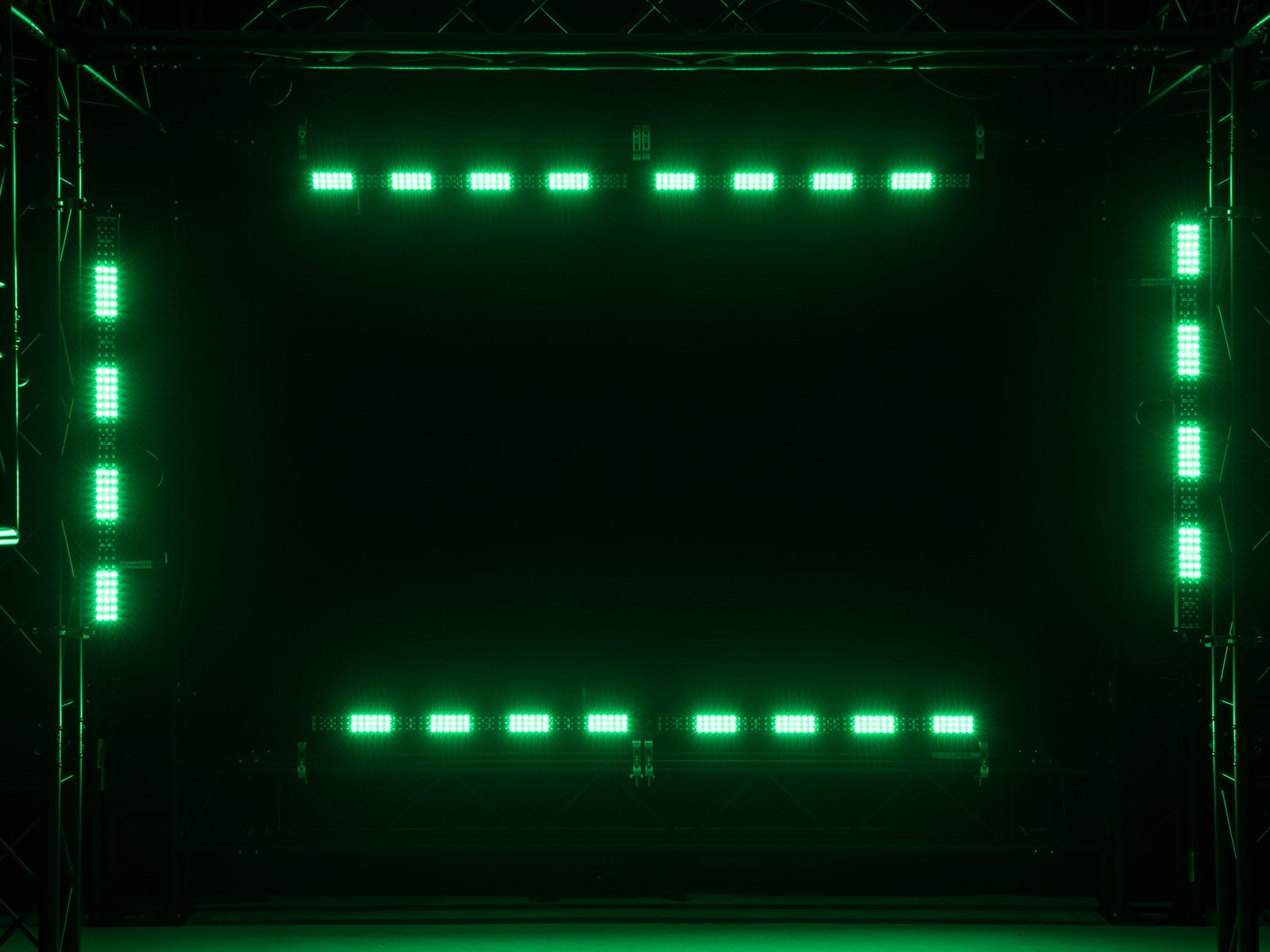

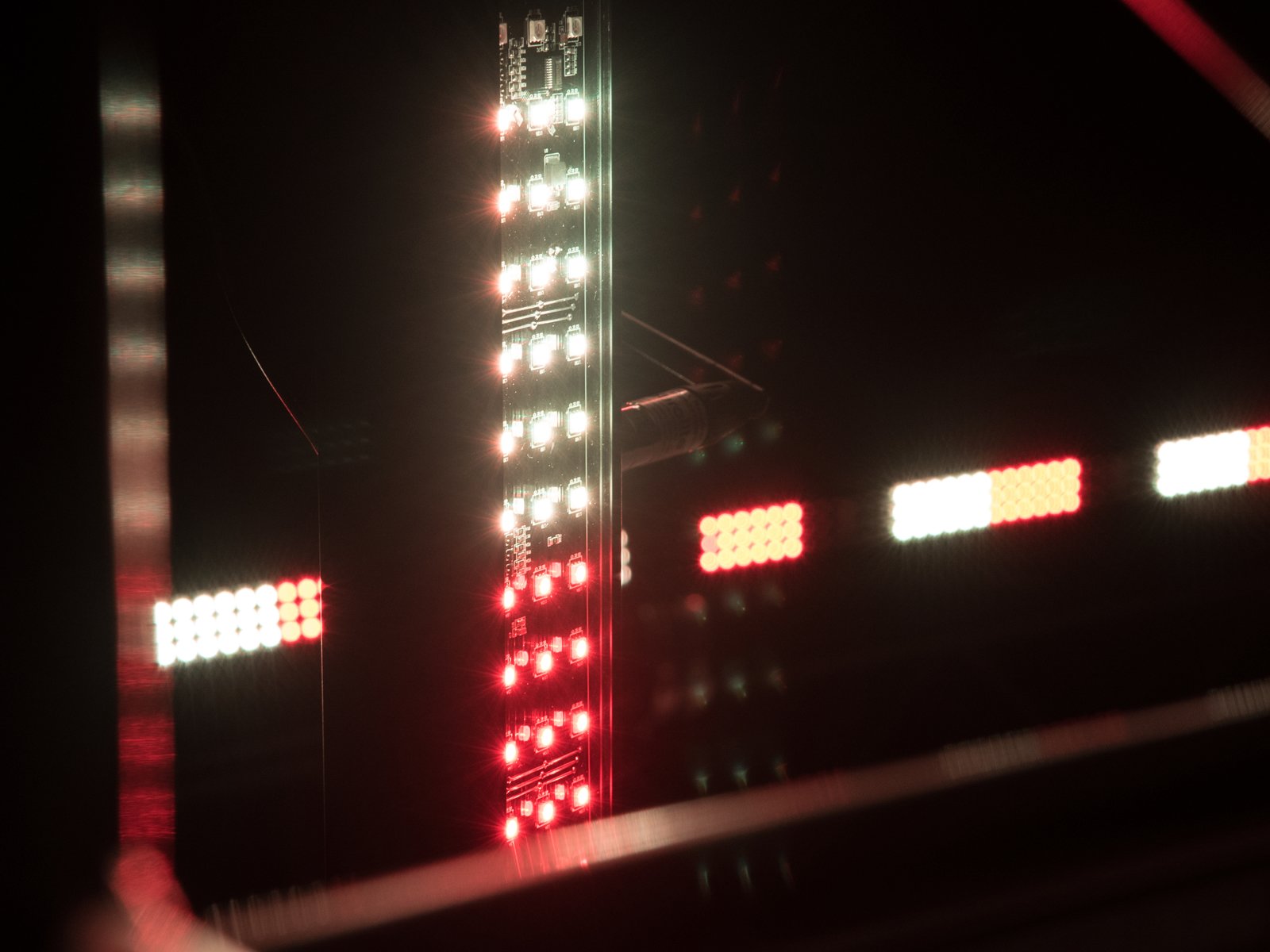

Bar (100 cm) with 144 wide beam SMD LEDs (RGB), 8 segments
- 144 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
8 segments controlled separately - Dimmer electronic; color blend stepless; color change adjustable; colors preset
- Strobe effect
- The device is cooled by passive convection cooling
- Control via DMX; sound to light via microphone
- Flicker-free

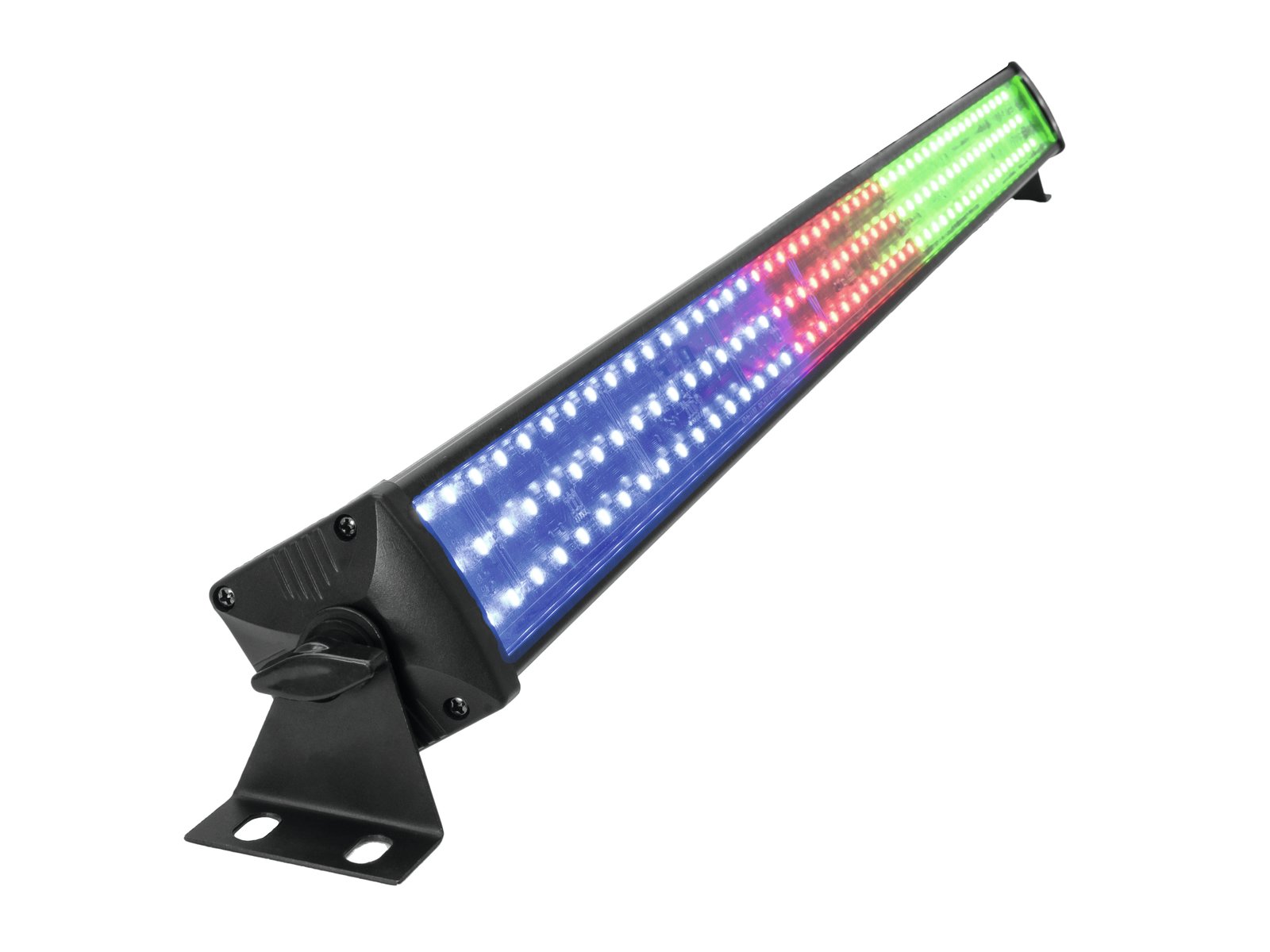

- With mounting bracket
- 4 digit 7-segment LED display
- Preprogrammed in Light´J; LED PC-Control 512; Light Captain
- Silent operation
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; party room; restaurants, bars and hotels; mobile djs / entertainer
- Application possibility: Suspended; wall mounting
knurled screw
- M8 thread
Package contents
- 1 x light effect, 1 x power cord, 2 x mounting bracket, 2 x knurled screw, 2 x washer, 1 x user manual
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 25 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x IEC connector (F) mounting version |
| Fuse: | 5 x 20 mm, T 1 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 144 x SMD 5050 3in1 TCL RGB (homogenous color mix) |
| Flash rate: | 0 – 20 Hz |
| DMX channels: | 3; 5; 6; 12; 24; 48 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | DMX; sound to light via microphone |
| Preprogrammed in: | Light´J; LED PC-Control 512; Light Captain |
| Projection: | Flicker-free |
| Housing color: | Black |
| Attachment system: | 2x mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Material: | Aluminum casting |
| Dimensions: | Length: 1,02 m Depth: 6,5 cm Height: 8 cm |
| Weight: | 1,54 kg |
| Noise classification: | Class 0 (no noise at all) |
| Power cord | |
| Cable construction: | 3 x 0,75 mm² H05VV-F |
| Cable length: | Approx. 1,2 m |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø11mm; 2 x Ø8mm; 1 x Ø8,5mm |
| Material: | Metal, 2 mm |
| Knurled screw | |
| Thread: | M8 thread x 16 mm |
| Washer | |
| Material: | Rubber |
| Dimensions: | Height: 3 mm Diameter: Ø 2 cm |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397618037 | 1,86 kg | 105cm x 12cm x 11cm |
