Description
Features

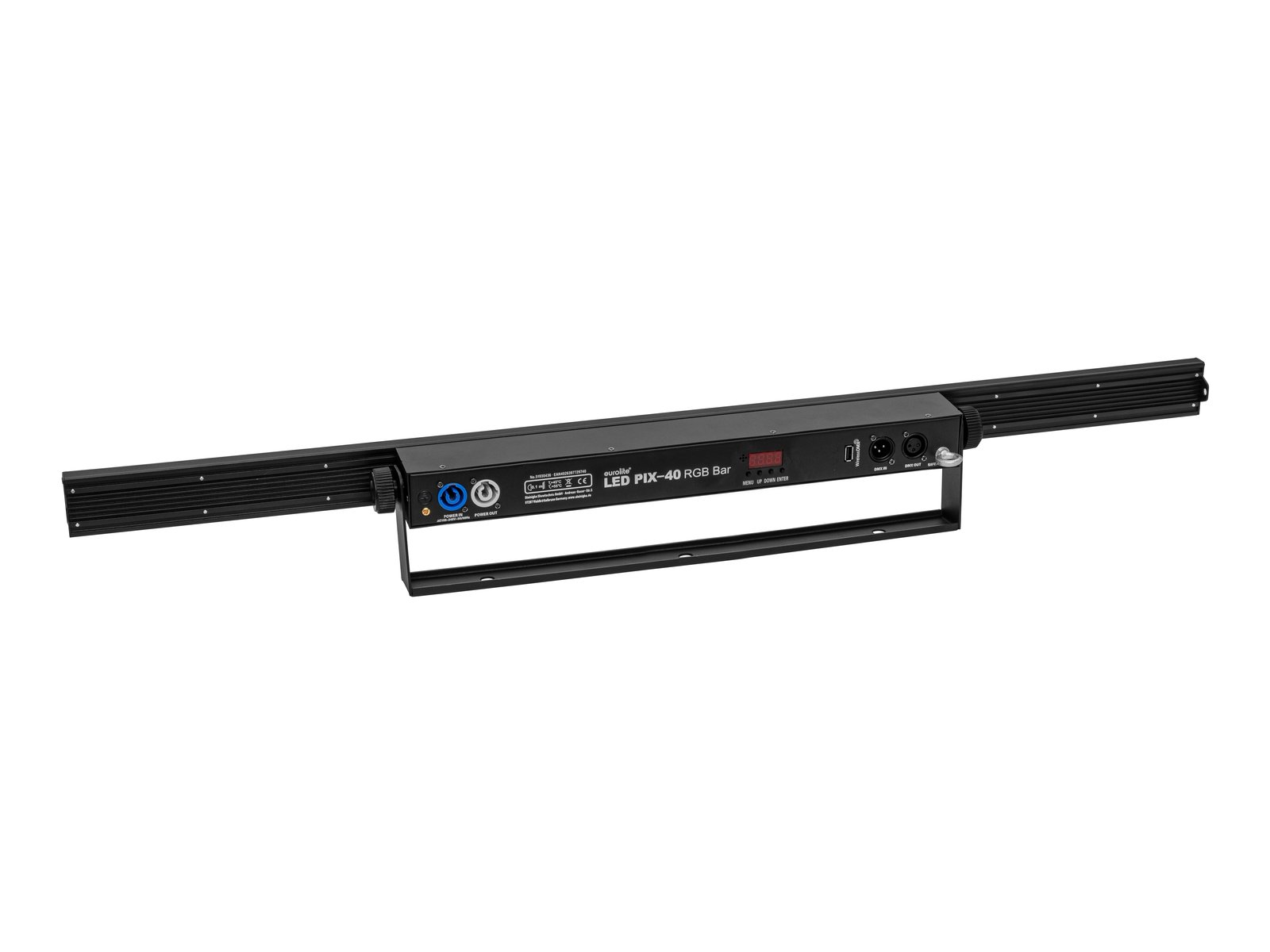

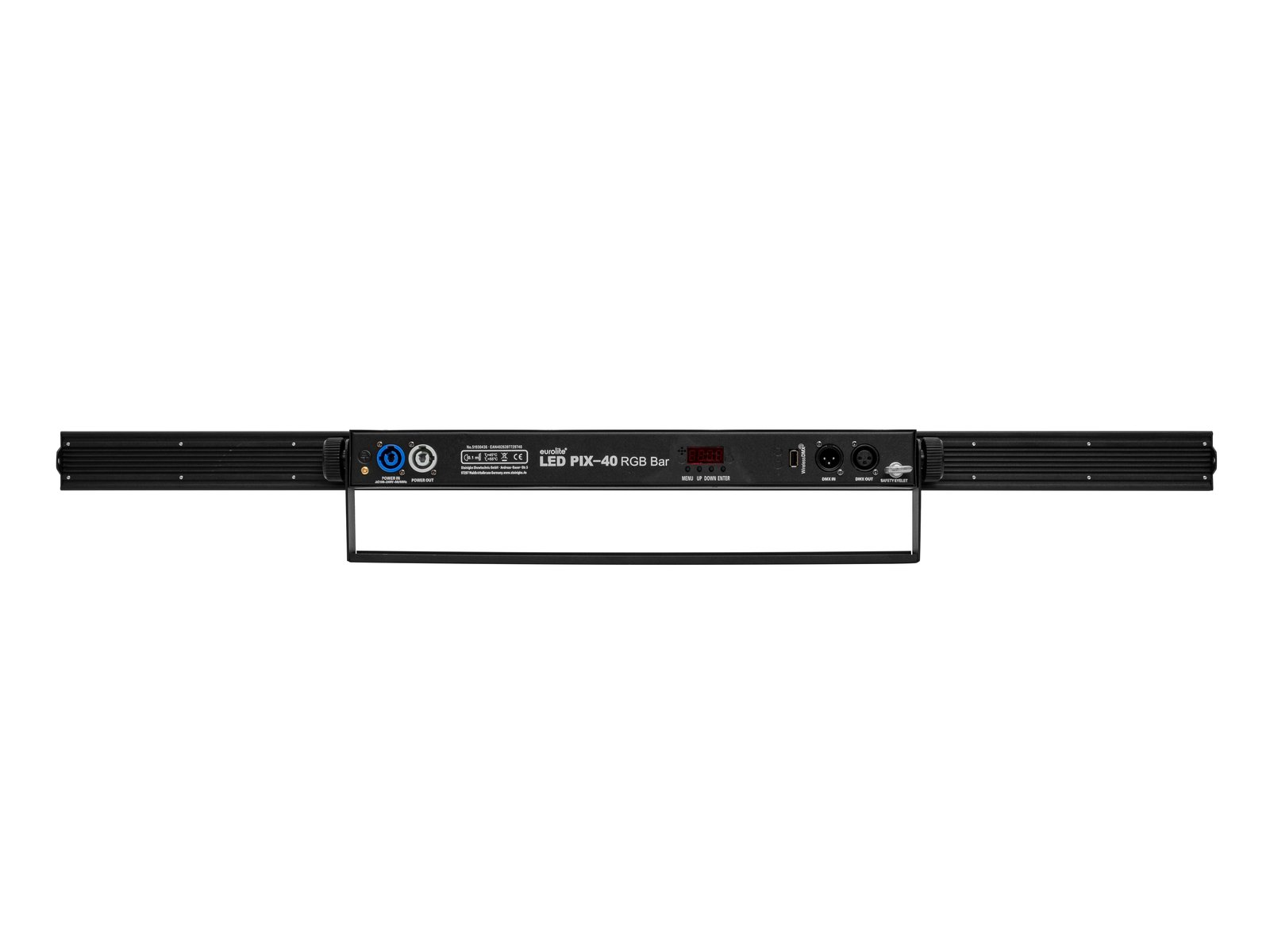

LED beam bar with narrow beam SMD LEDs (RGB) and pixel control
- 40 powerful LEDs 3 W SMD 3535 3in1 TCL RGB
LEDs controlled separately - Dimmer electronic; color blend stepless; background color adjustable; running light adjustable; program speed adjustable
- Beam effect
- 30 integrated show programs
- Direct color selection
- The device is cooled by passive convection cooling
- Control via stand-alone; sound to light; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 2°
- With mounting bracket
- 4 digit 7-segment LED display
- Mains input and output for power linking up to 8 units
- Application possibility: Suspended
- Preprogrammed in Light Captain
- For application areas such as: Clubs/dancing school; stage; mobile djs / entertainer; restaurants, bars and hotels; rental
- Silent operation
Package contents
- 1 x light effect, 1 x power cord, 1 x mounting bracket, 1 x user manual
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 65 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | P-Con (gray), mounting version |
| Device fuse: | T 5 A fuse fix in power supply |
| Lamp type: | LED lamp |
| LED type: | 40 x 3 W SMD 3535 3in1 TCL RGB |
| Flash rate: | 0 – 20 Hz |
| DMX channels: | 3; 11; 120 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; sound to light; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light Captain |
| Projection: | Flicker-free |
| Beam angle: | 2° |
| Beam angle (1/2 peak): | 2° |
| Beam angle (1/10 peak): | 5 |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Dimensions: | Length: 1,005 m Depth: 8,0 cm Height: 11,5 cm |
| Weight: | 3,00 kg |
| Noise classification: | Class 0 (no noise at all) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397729740 | 3,60 kg | 105cm x 20cm x 11cm |
