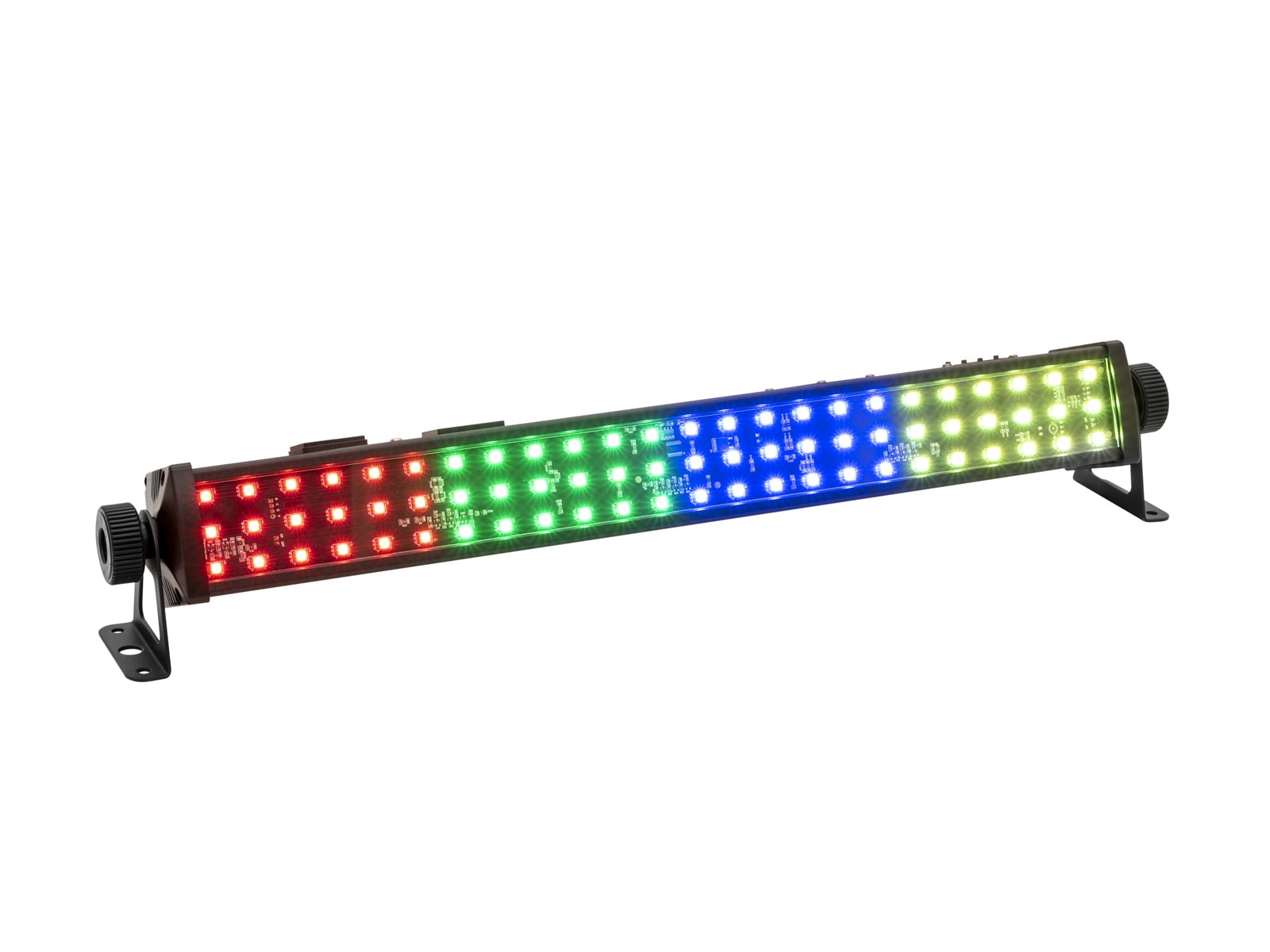

EUROLITE LED PIX-72 RGB Bar
No half portion!

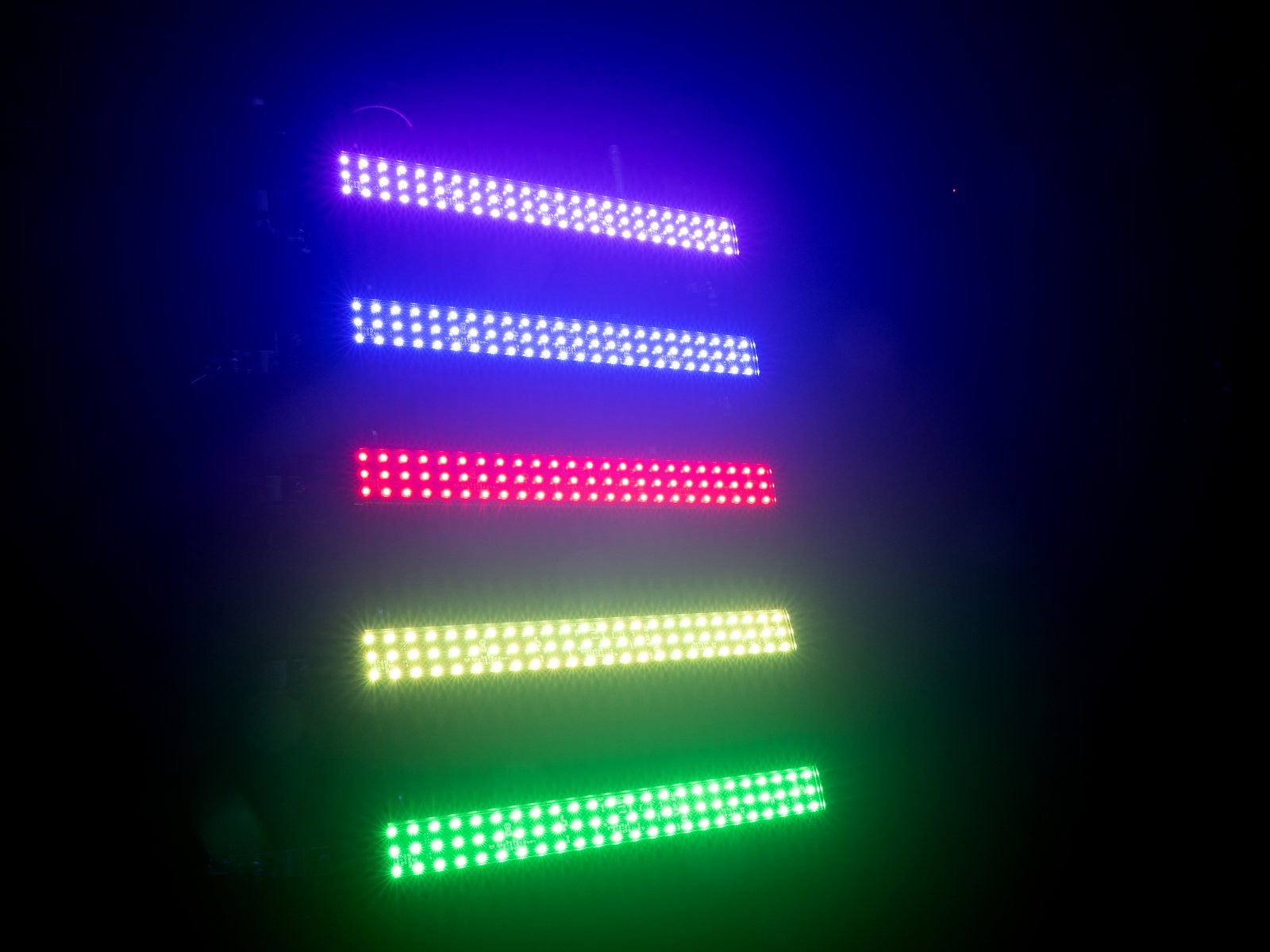

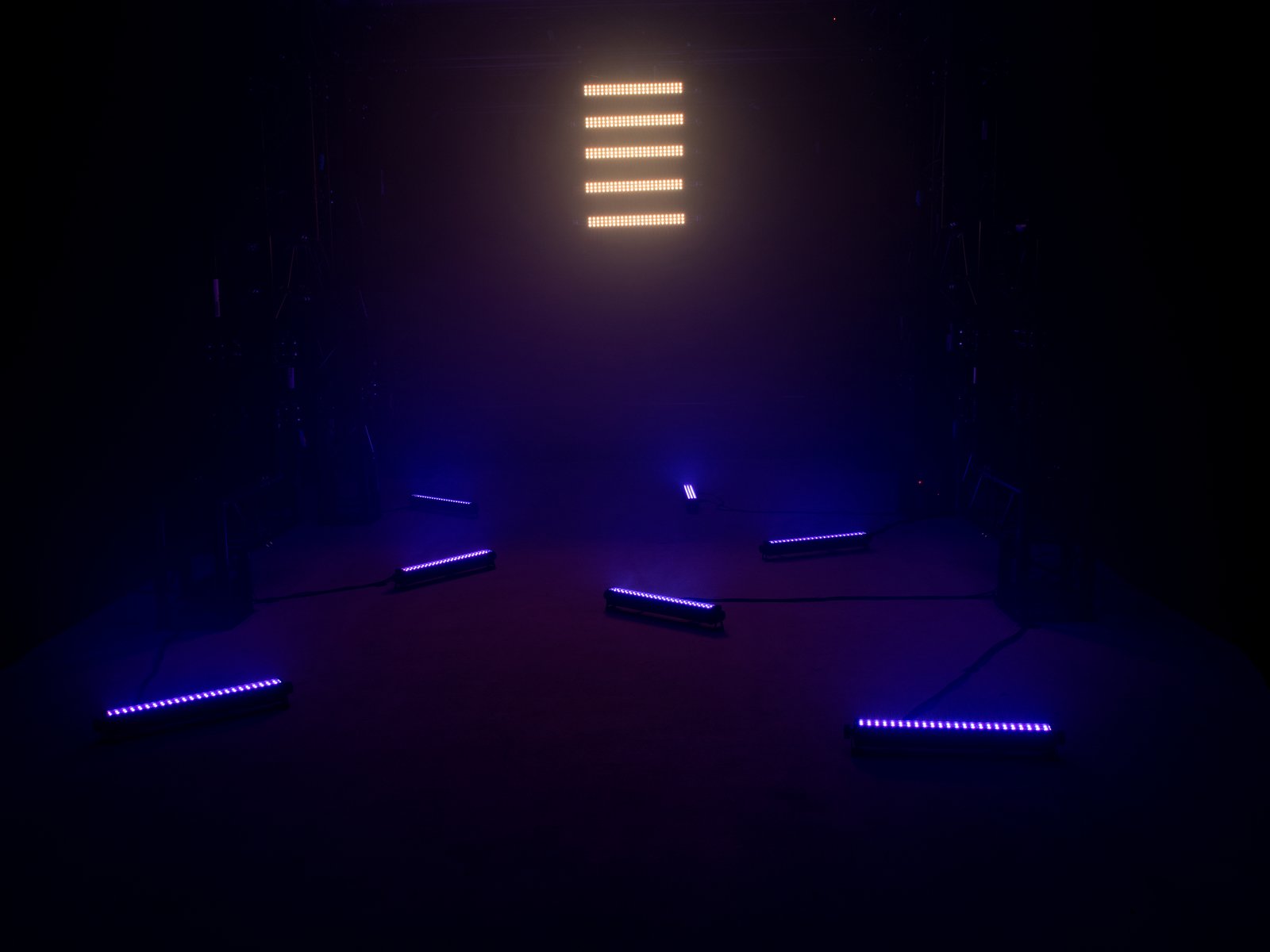

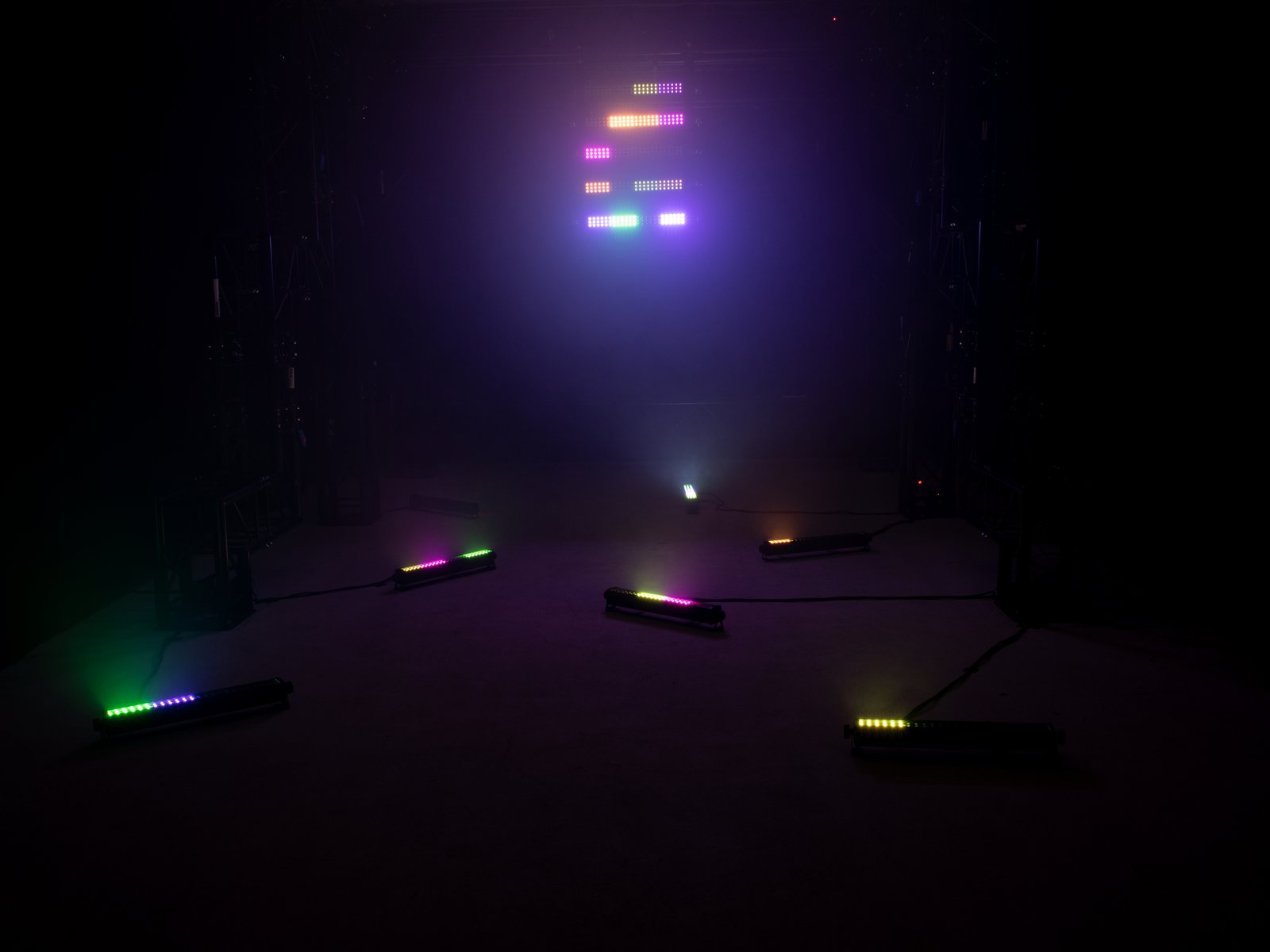

With the PIX-72, Eurolite has cut another LED bar in half: The PIX-72 is the half-brother of the PIX-144, so its light surface consists “only” of 72 SMD LEDs that can be controlled in four segments. The extremely broad emitting light of these bars is perfectly suited to illuminate surfaces or to integrate the bar into the stage set in such a way that the audience looks directly at the illuminated surfaces. The color mixture is based on red, green and blue.
Features
Bar (50 cm) with 72 wide beam RGB LEDs, 4 segments
- 72 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
4 segments controlled separately - Dimmer electronic; color blend stepless; color change adjustable; colors preset
- Strobe effect
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; master/slave function; sound to light via microphone
- Flicker-free
- With a beam angle of 120°

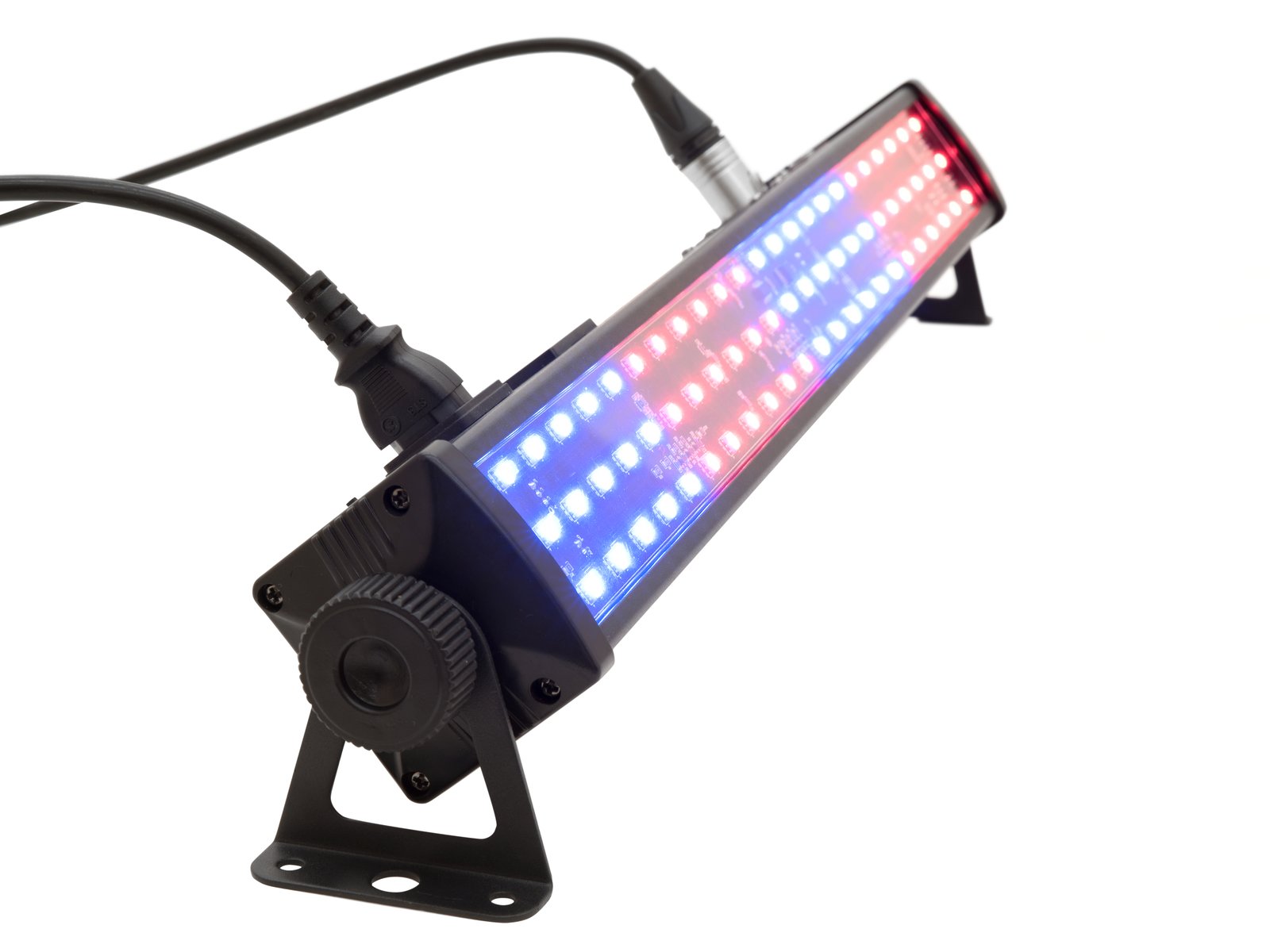

- With mounting bracket
- 4 digit 7-segment LED display
- Preprogrammed in Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3

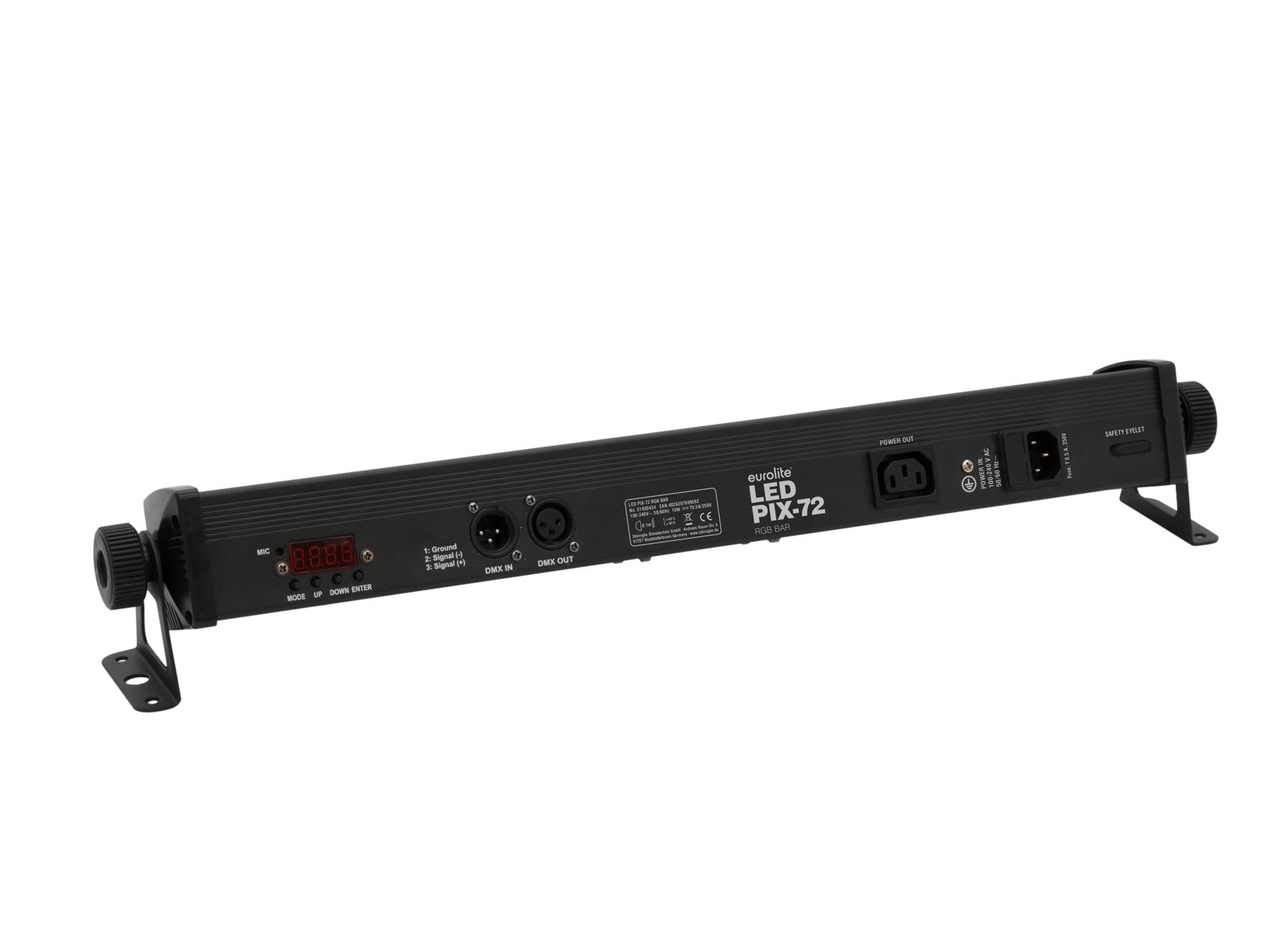

- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; party room; restaurants, bars and hotels; mobile djs / entertainer
- Silent operation

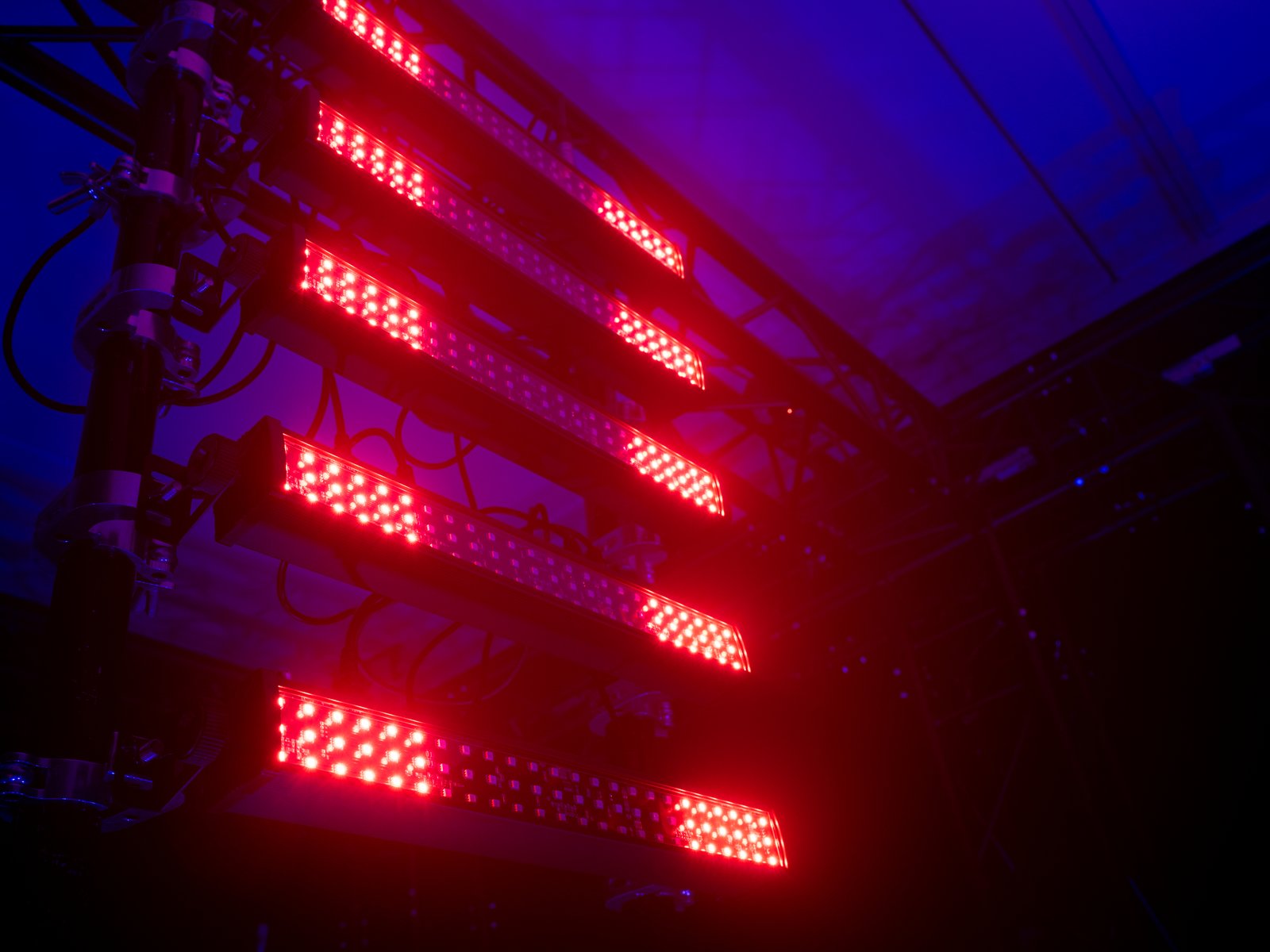

- Application possibility: Suspended; wall mounting
knurled screw
- M8 thread
Package contents
- 1 x light effect, 1 x power cord, 2 x mounting bracket, 2 x knurled screw, 2 x washer, 1 x user manual
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 15 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug included |
| Power output: | IEC connector (F) mounting version |
| Fuse: | T 0,5 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 72 x SMD 5050 3in1 TCL RGB (homogenous color mix) |
| Flash rate: | 0 – 20 Hz |
| DMX channels: | 3; 5; 6; 12 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; DMX; master/slave function; sound to light via microphone |
| Preprogrammed in: | Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3 |
| Projection: | Flicker-free |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° |
| Housing color: | Black |
| Attachment system: | 2x mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Material: | Aluminum casting |
| Dimensions: | Length: 56,5 cm Depth: 7,0 cm Height: 9,0 cm |
| Weight: | 1,03 kg |
| Noise classification: | Class 0 (no noise at all) |
| Power cord | |
| Cable construction: | 3 x 0,75 mm² H05VV-F |
| Cable length: | Approx. 1,2 m |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø11mm; 2 x Ø8mm; 1 x Ø8,5mm |
| Material: | Metal, 2 mm |
| Knurled screw | |
| Thread: | M8 thread x 16 mm |
| Washer | |
| Material: | Rubber |
| Dimensions: | Height: 3 mm Diameter: Ø 2 cm |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397699562 | 1,20 kg | 54,5cm x 11,5cm x 11cm |
