Description

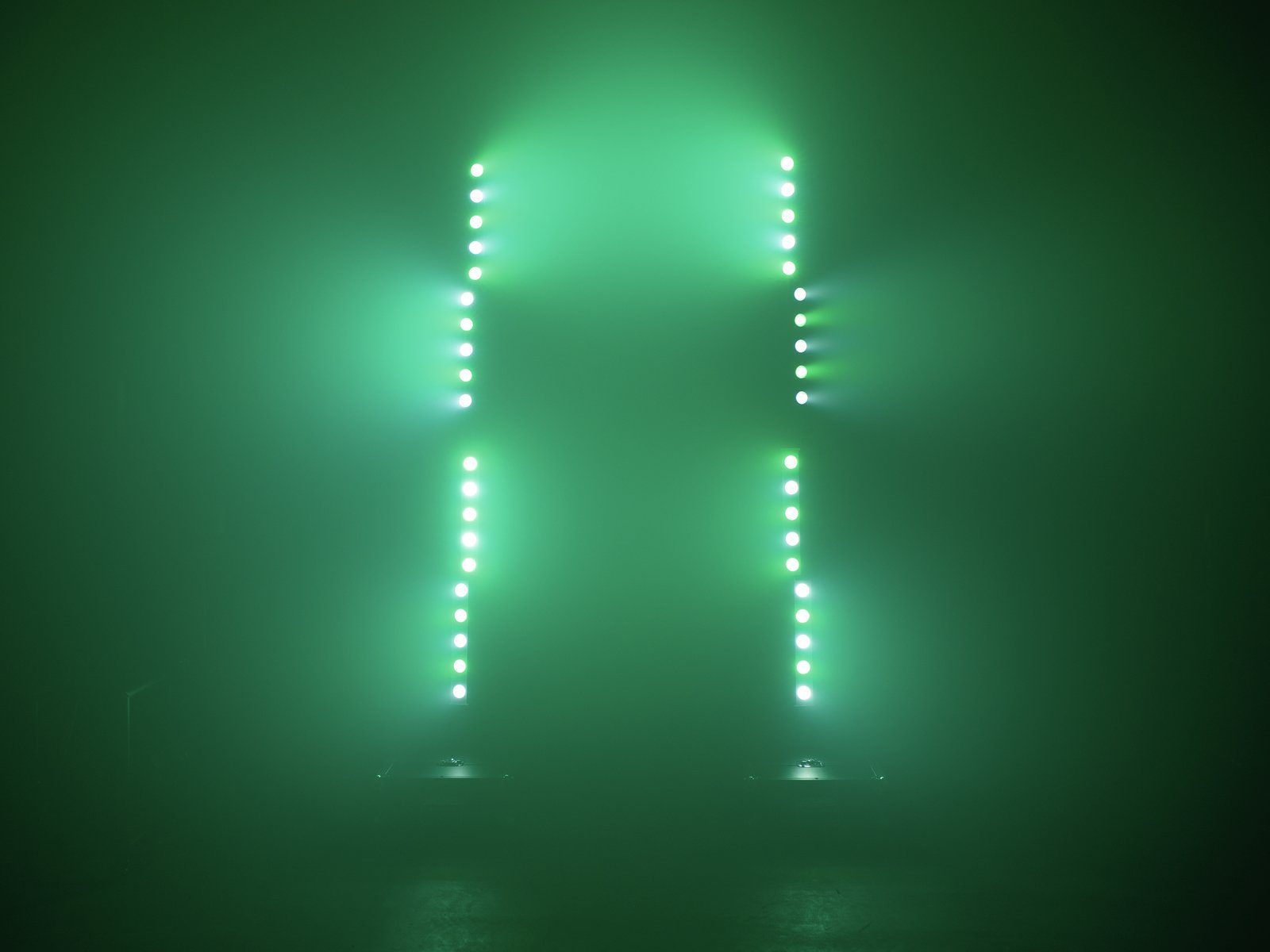

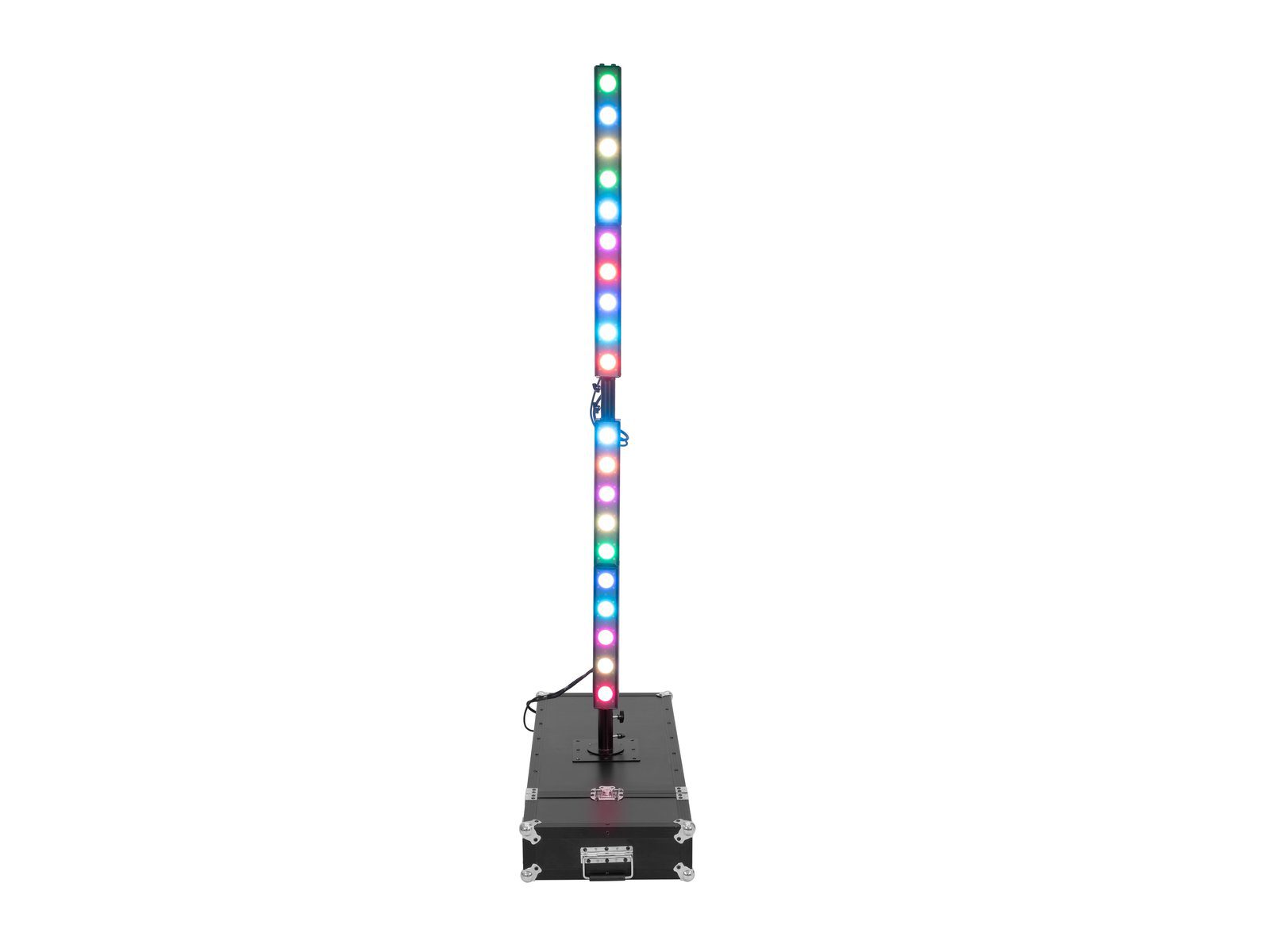

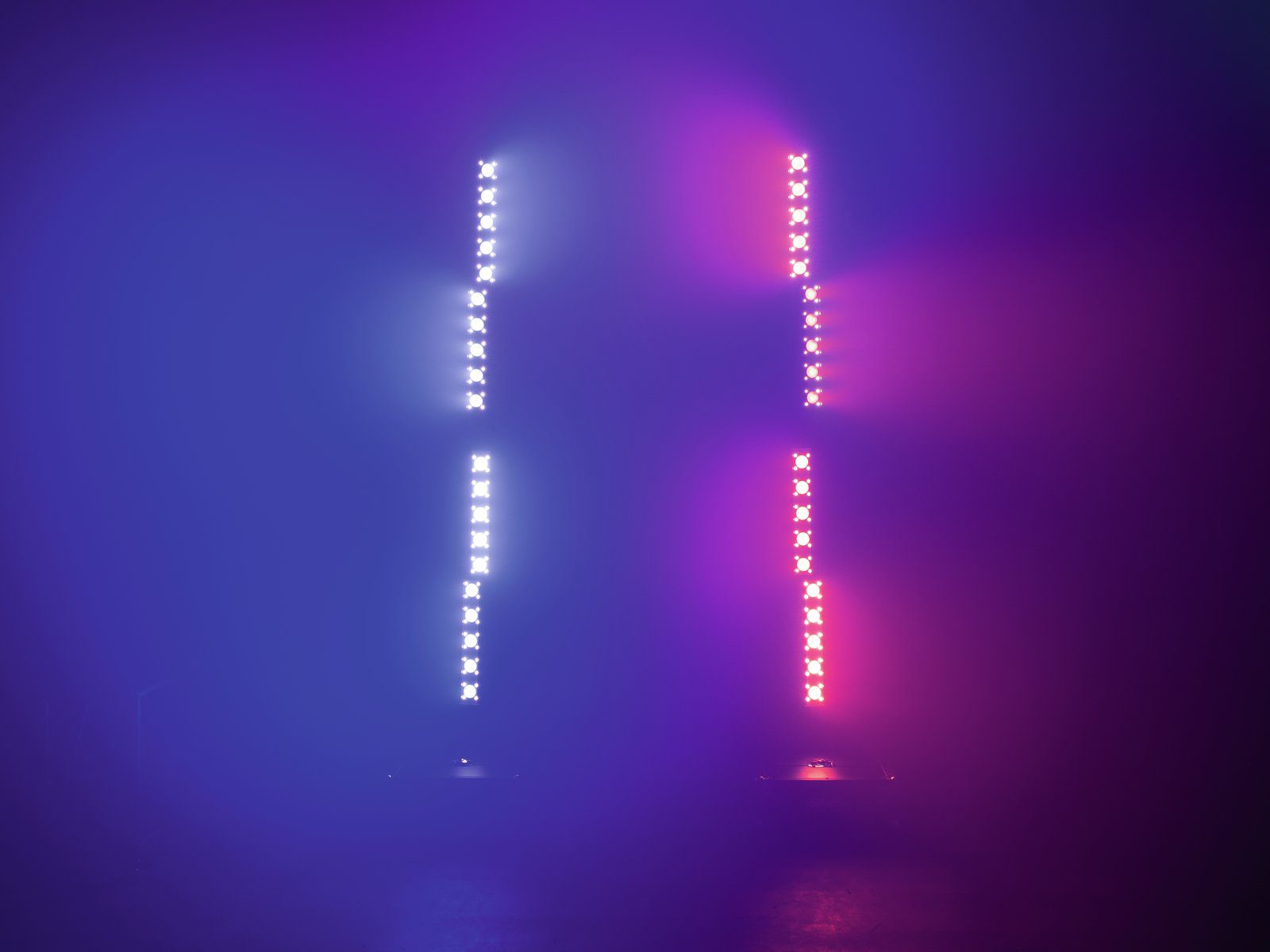

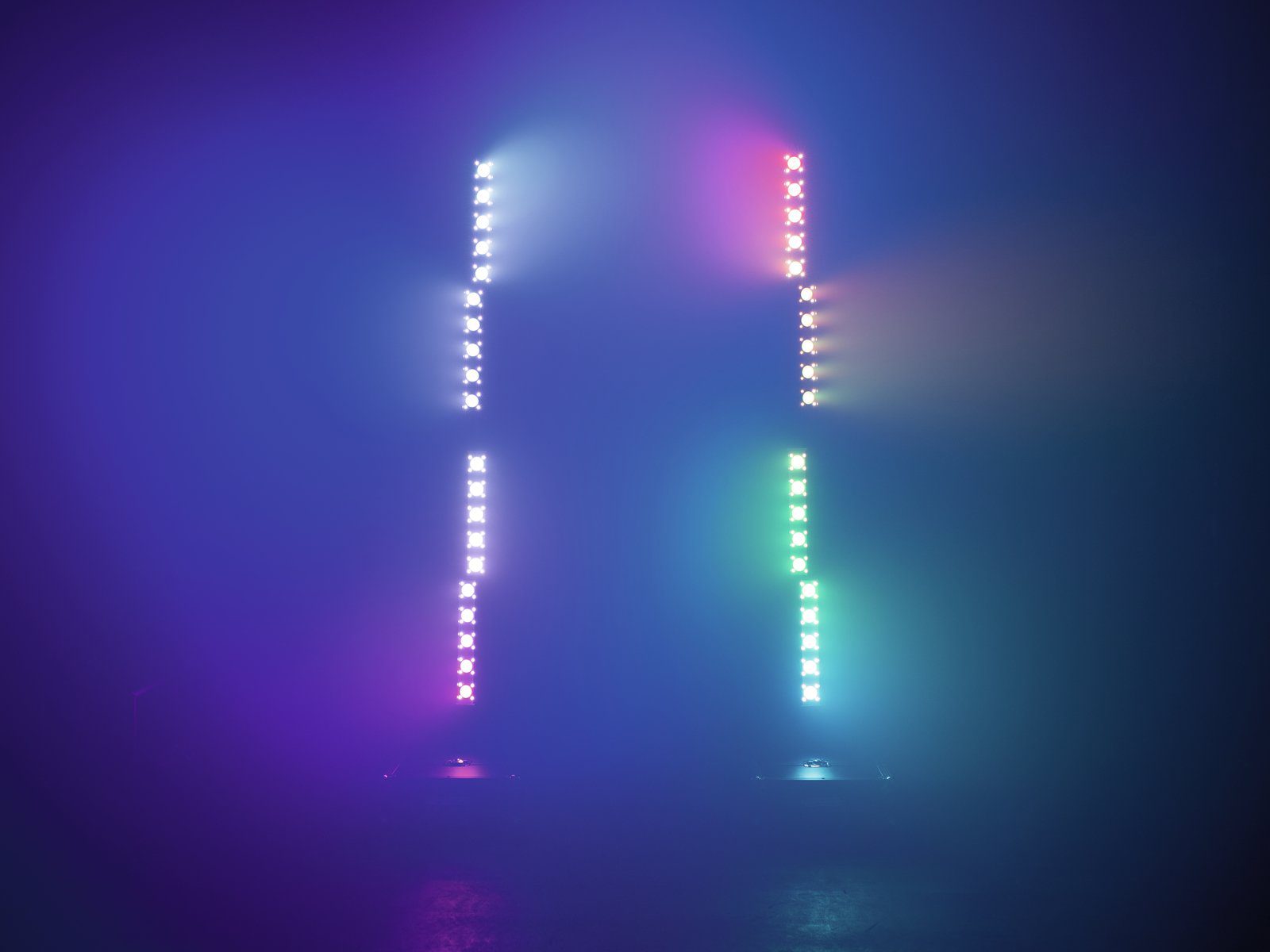

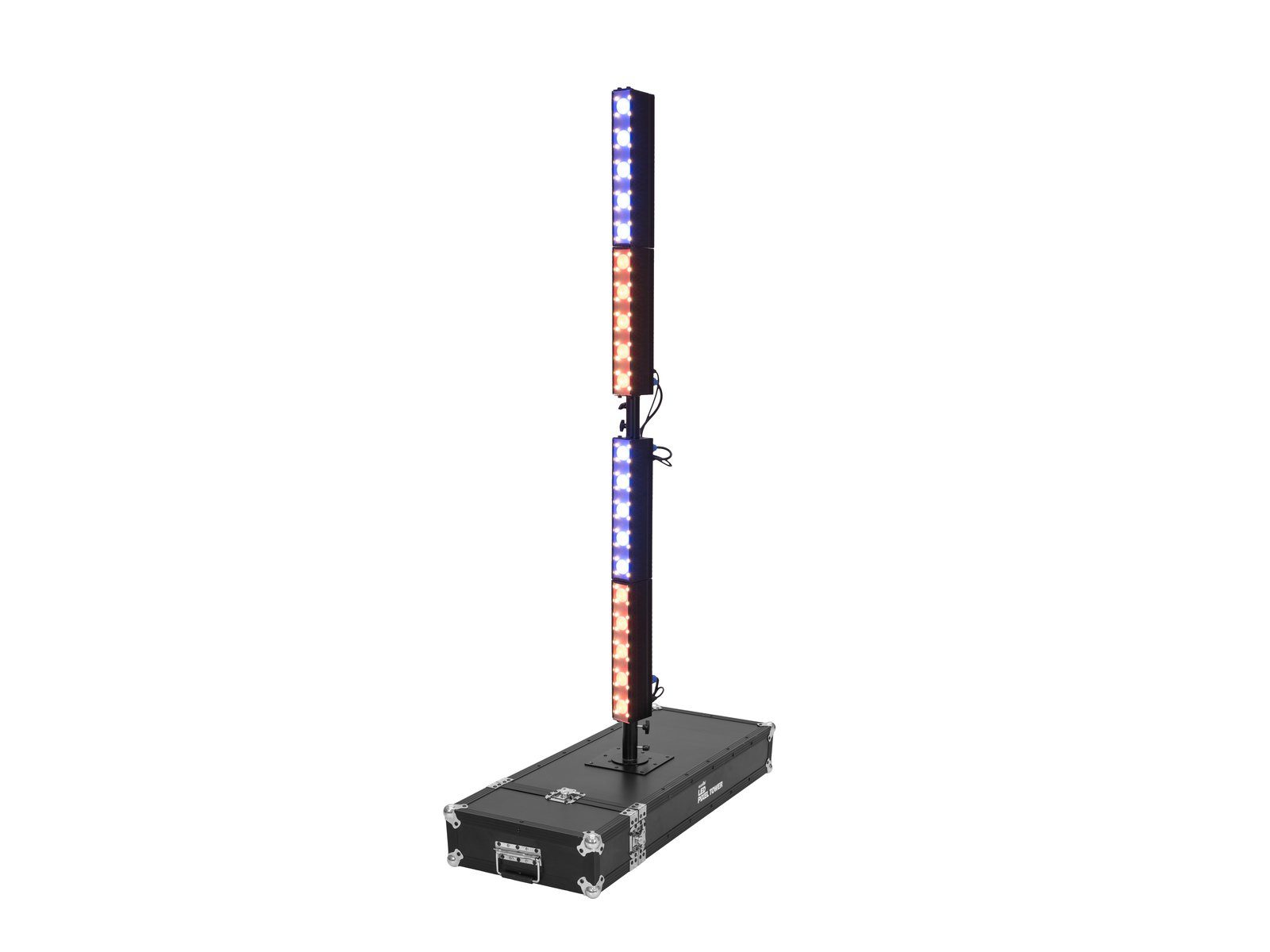

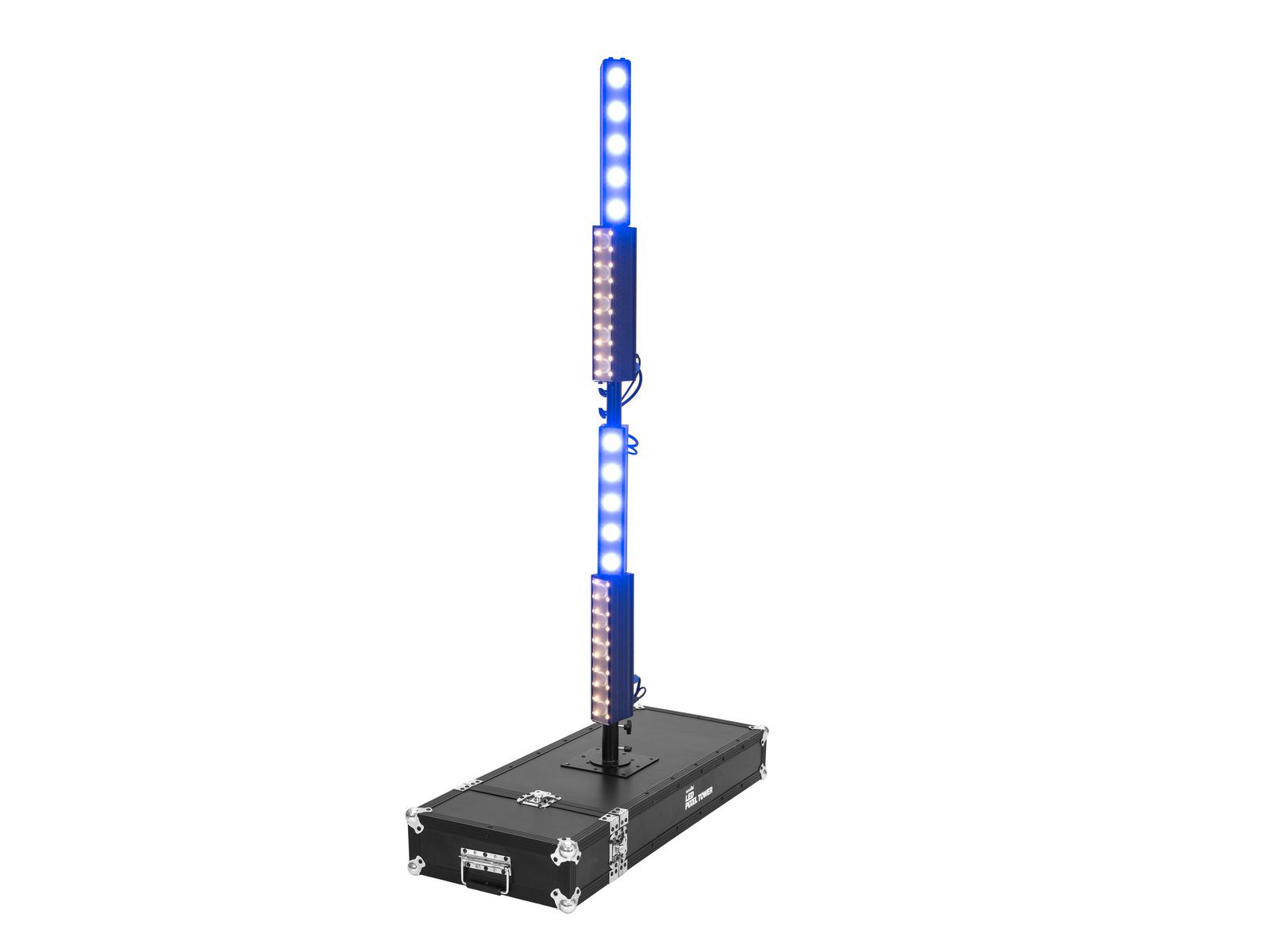

The Eurolite Pixel Tower is a versatile, portable lighting system. The system consists of 2 individual light columns, each consisting of 2 rotating segments. The columns can be set up individually or in combination.


The control can be done via different DMX modes. But even without external control, the possibilities are manifold: 95 different stand-alone programs designed by a German lighting designer can be set directly via the menu. These can run with or without the white ambient LEDs, at different speeds or music-controlled.



Features

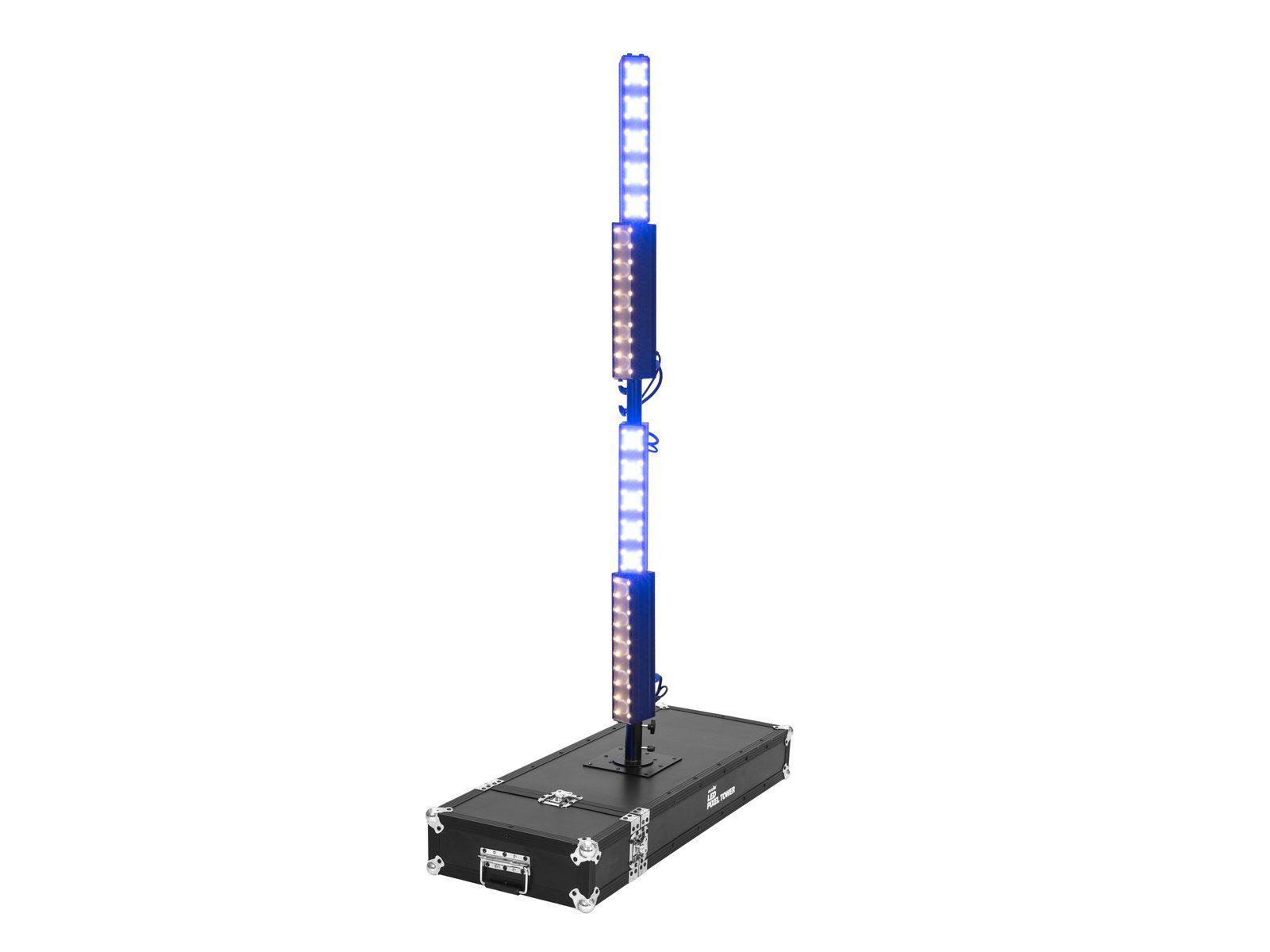

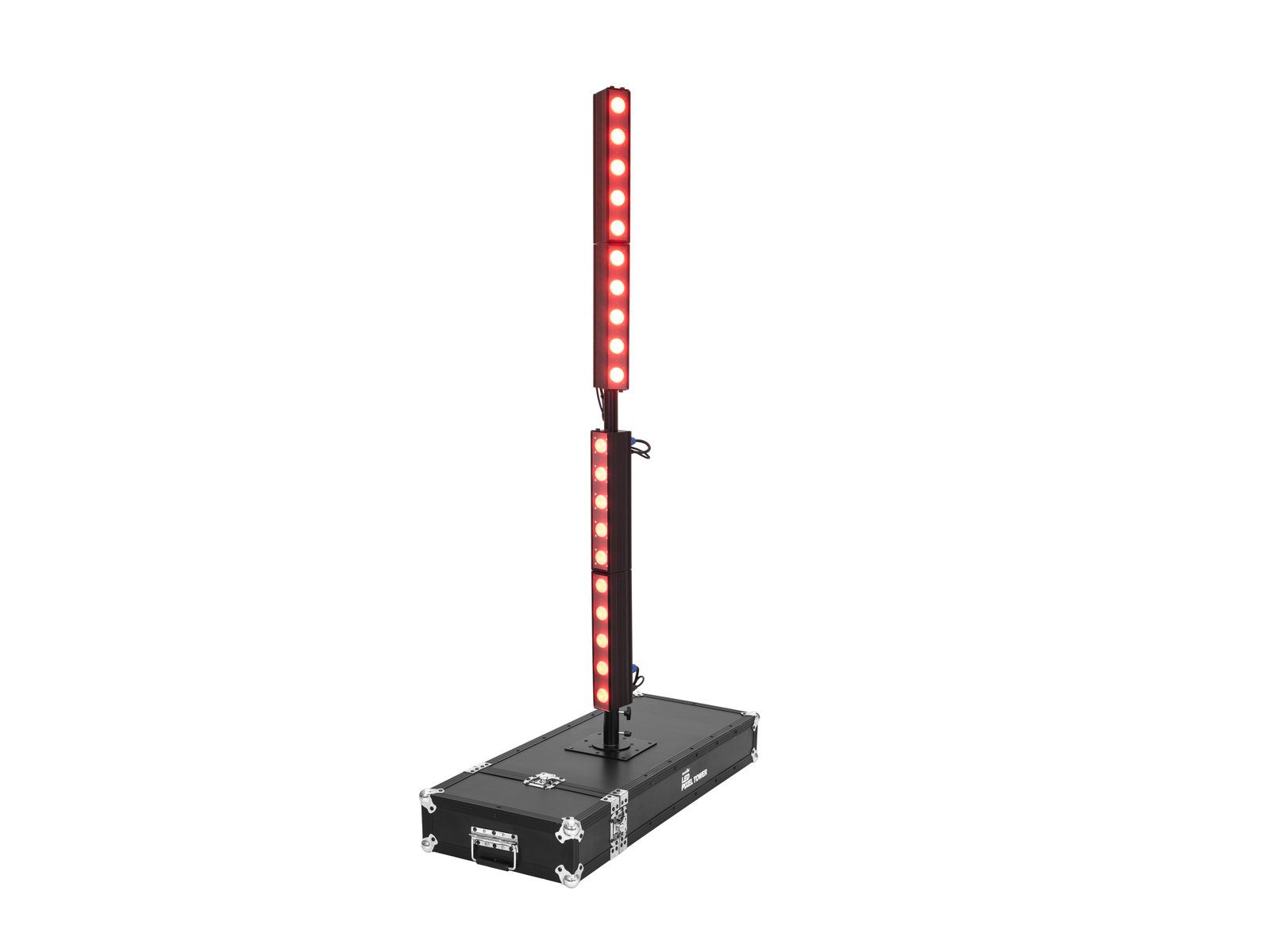

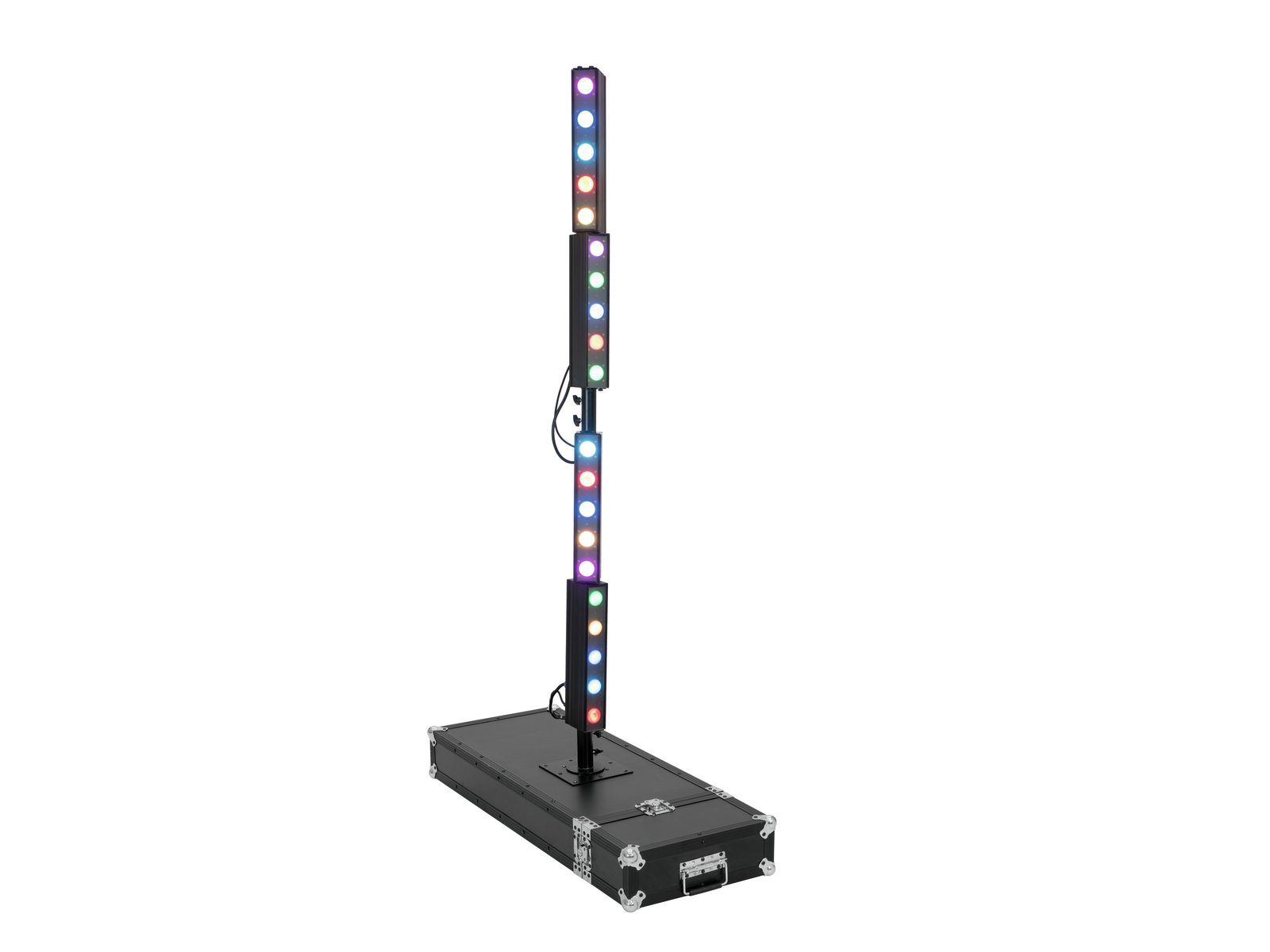

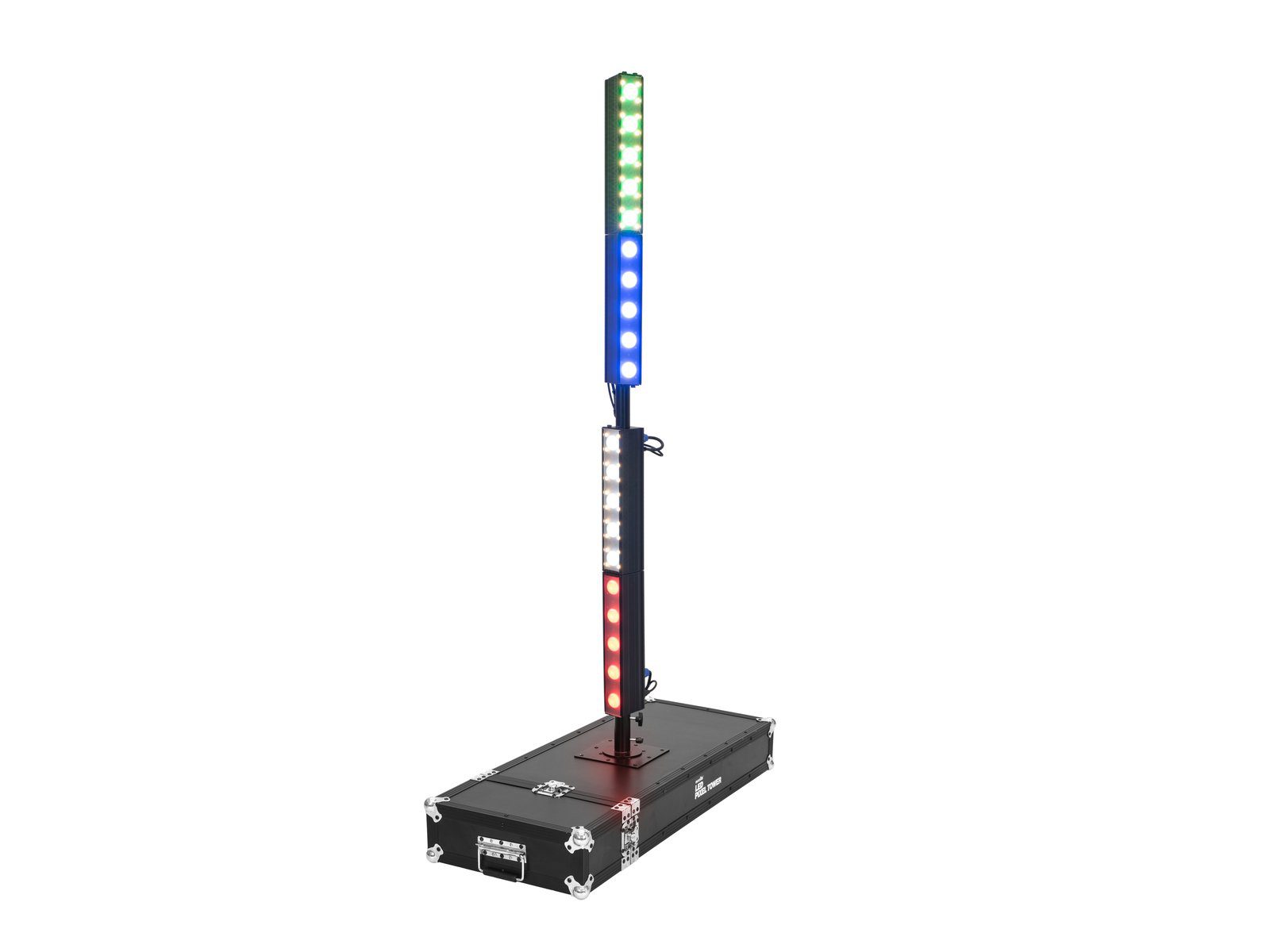

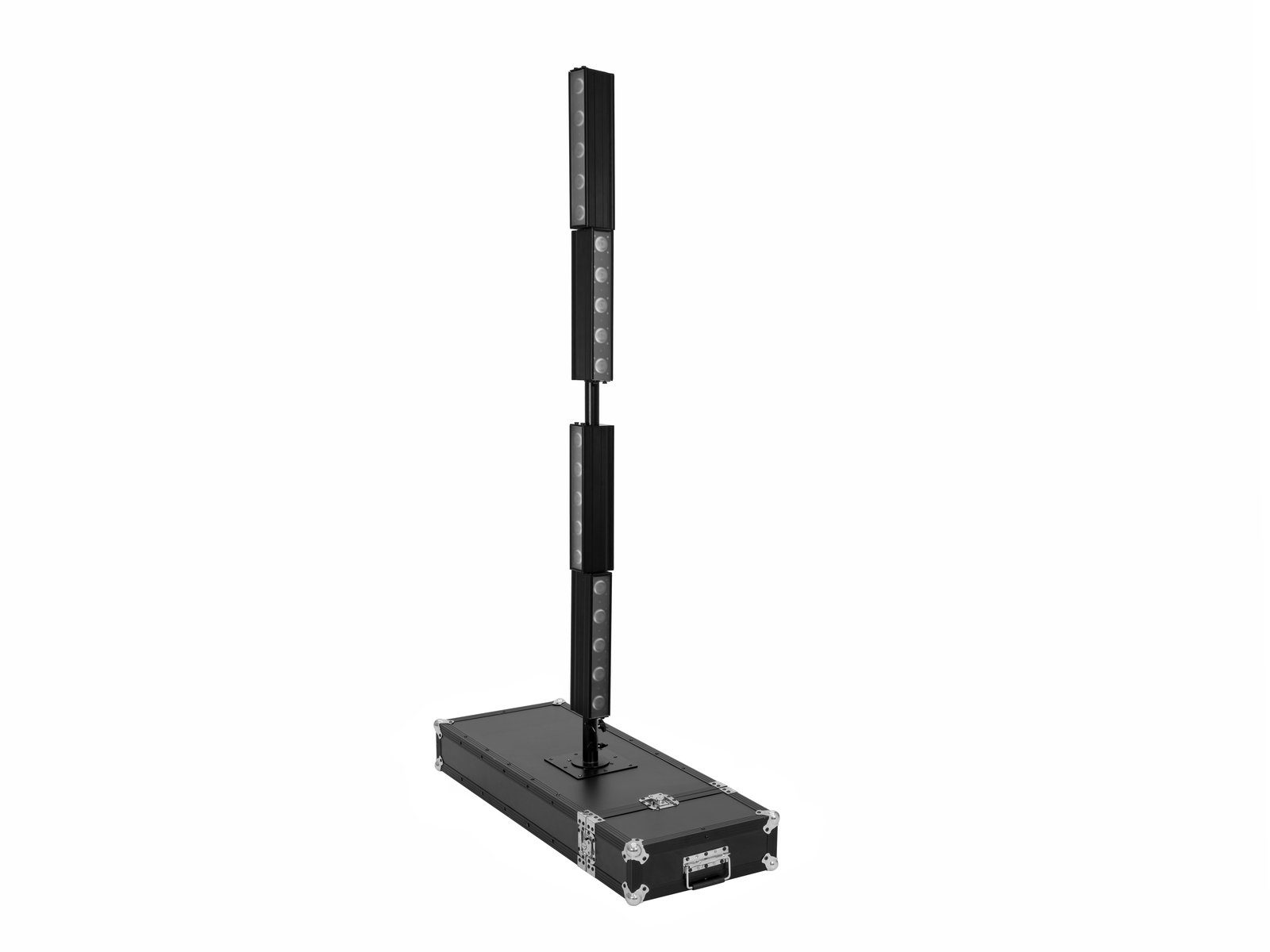

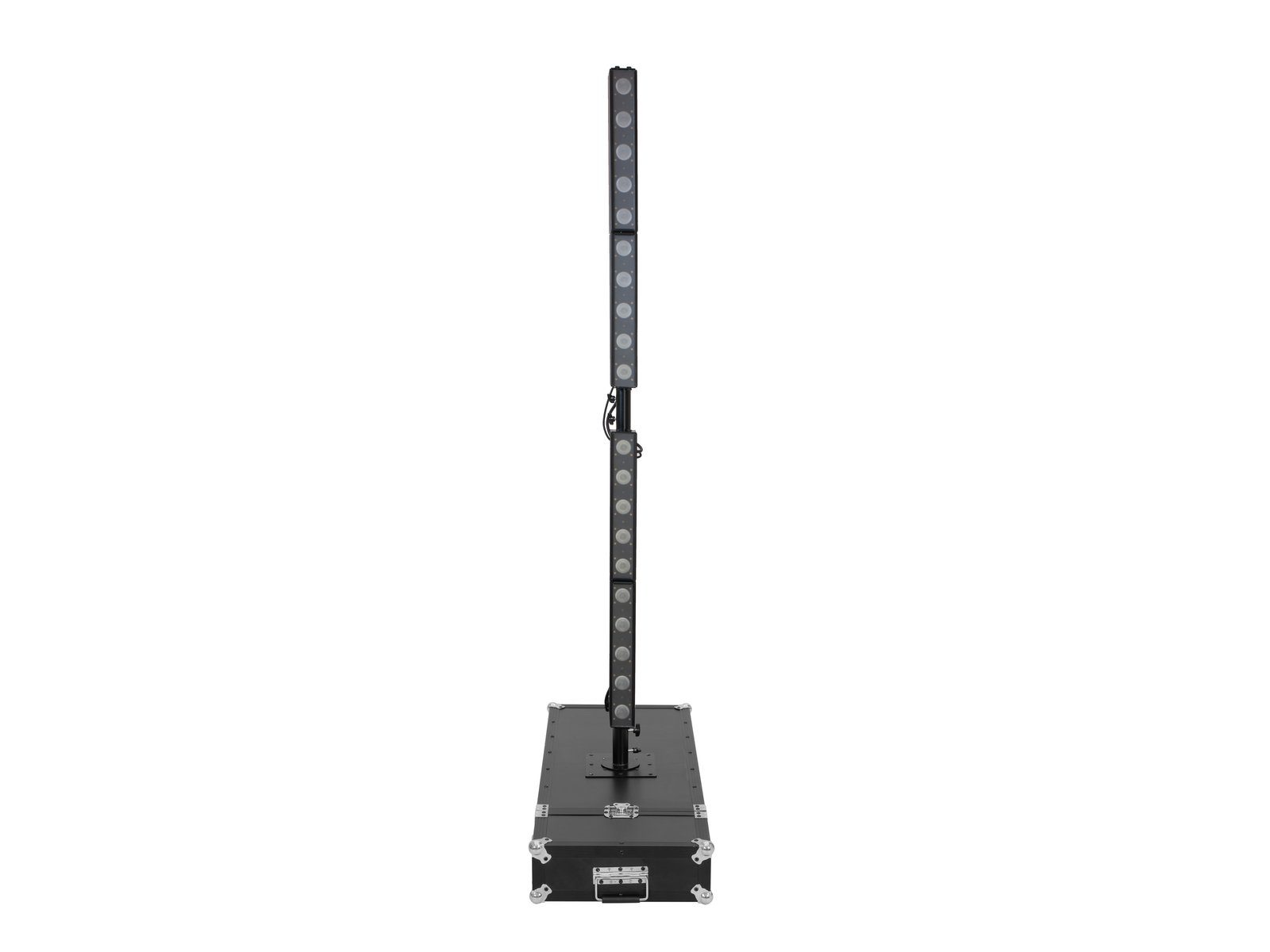

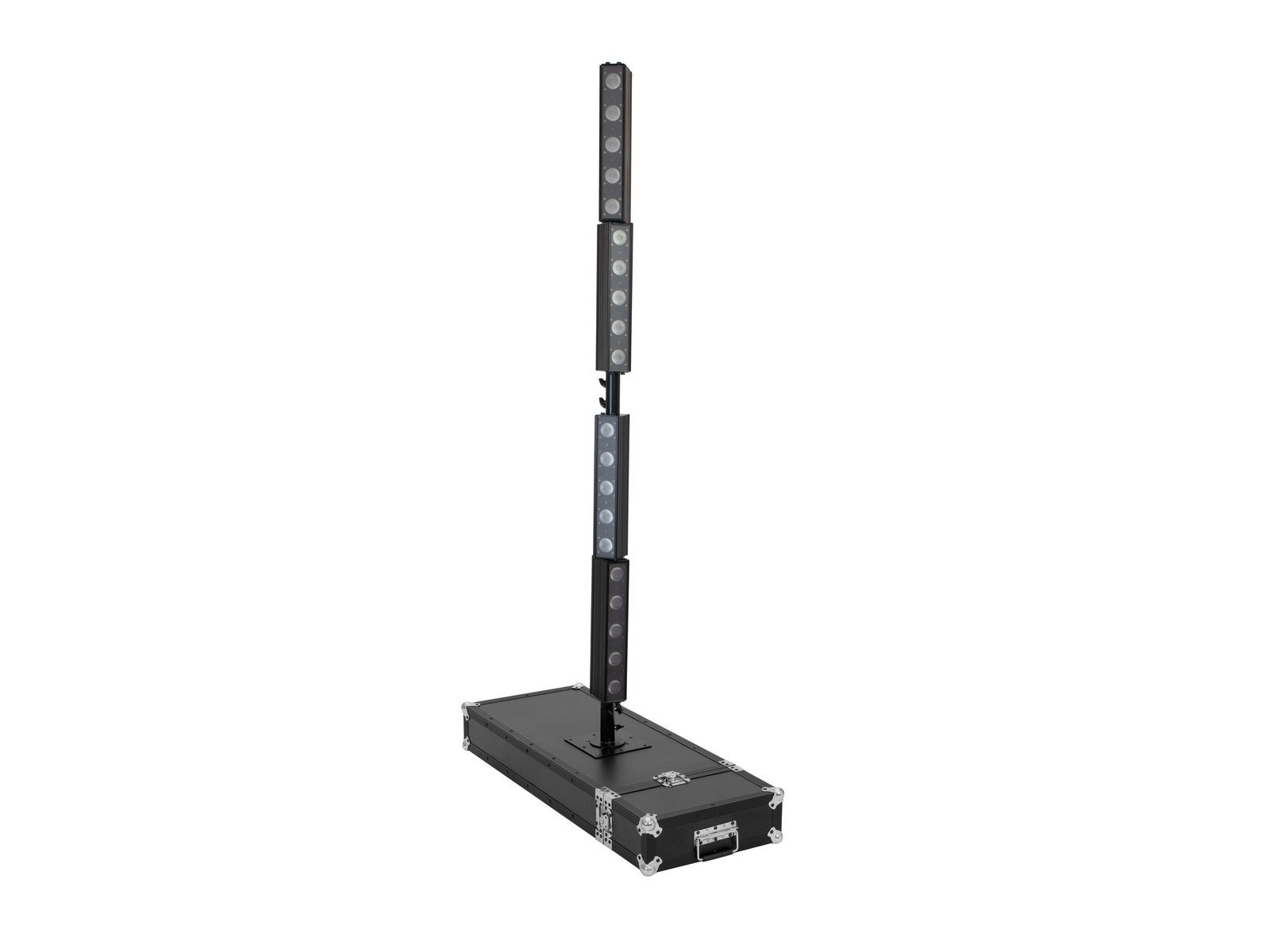

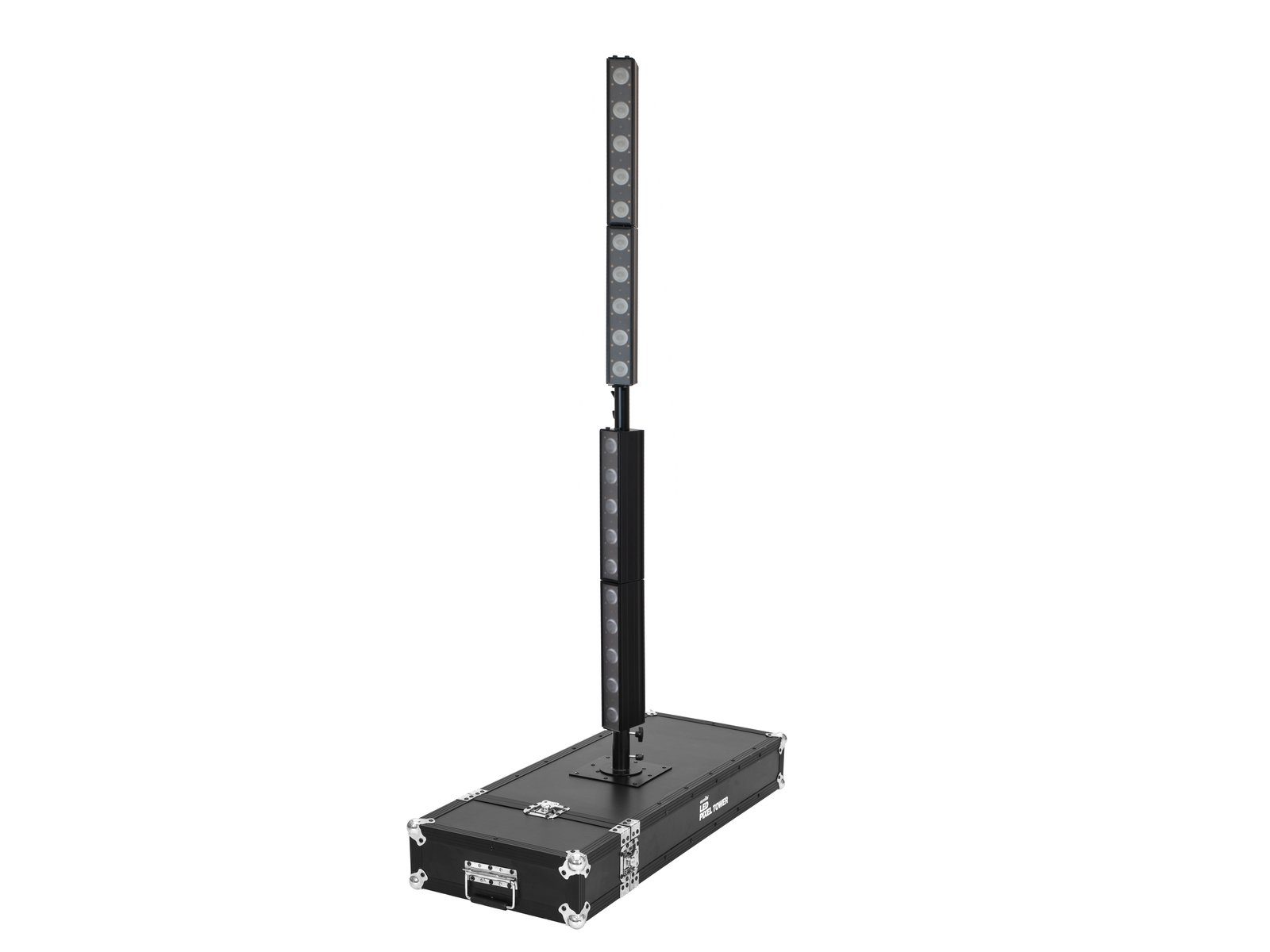

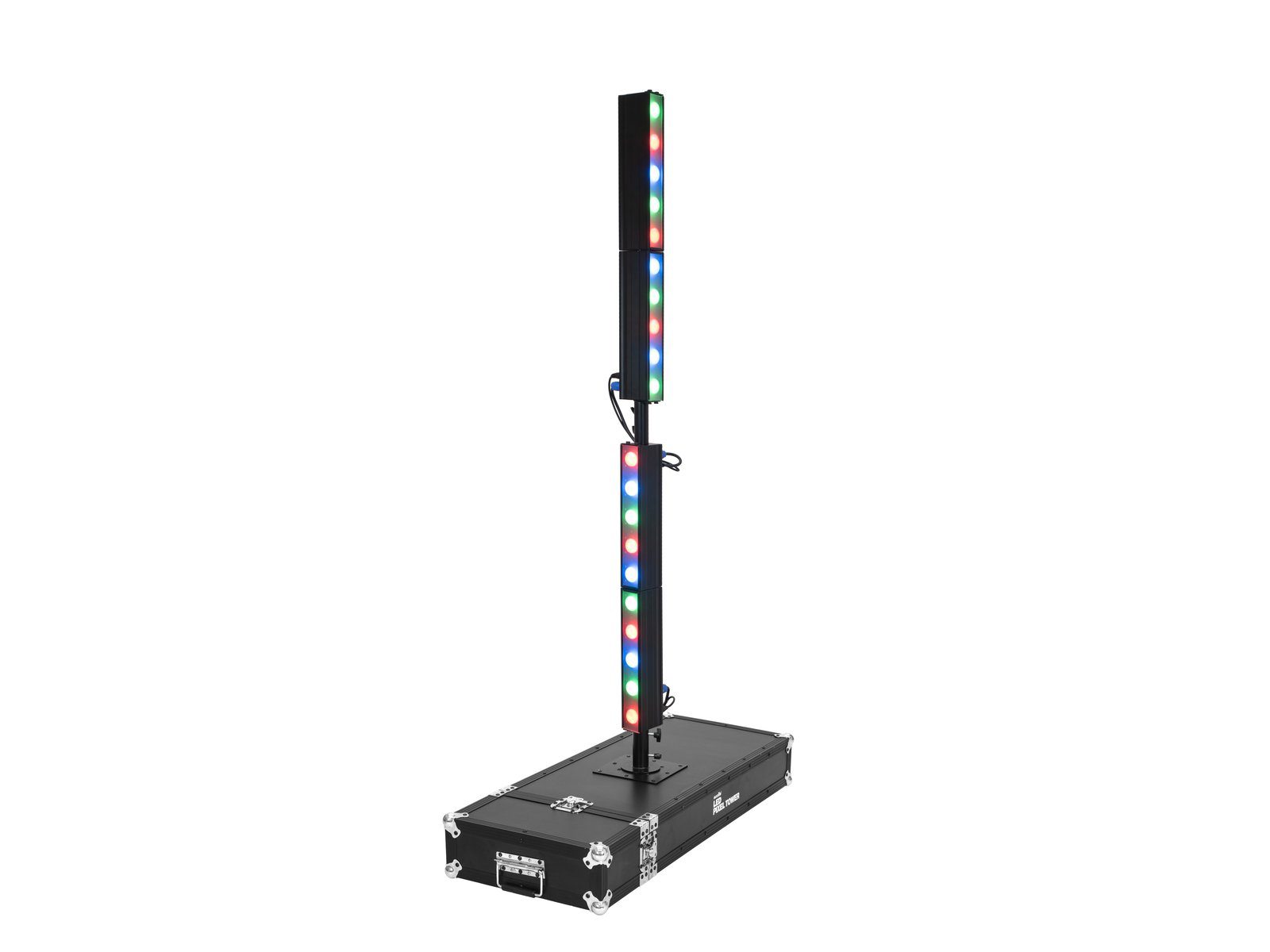

Multifunctional vertical light effect with mounting option on the supplied case

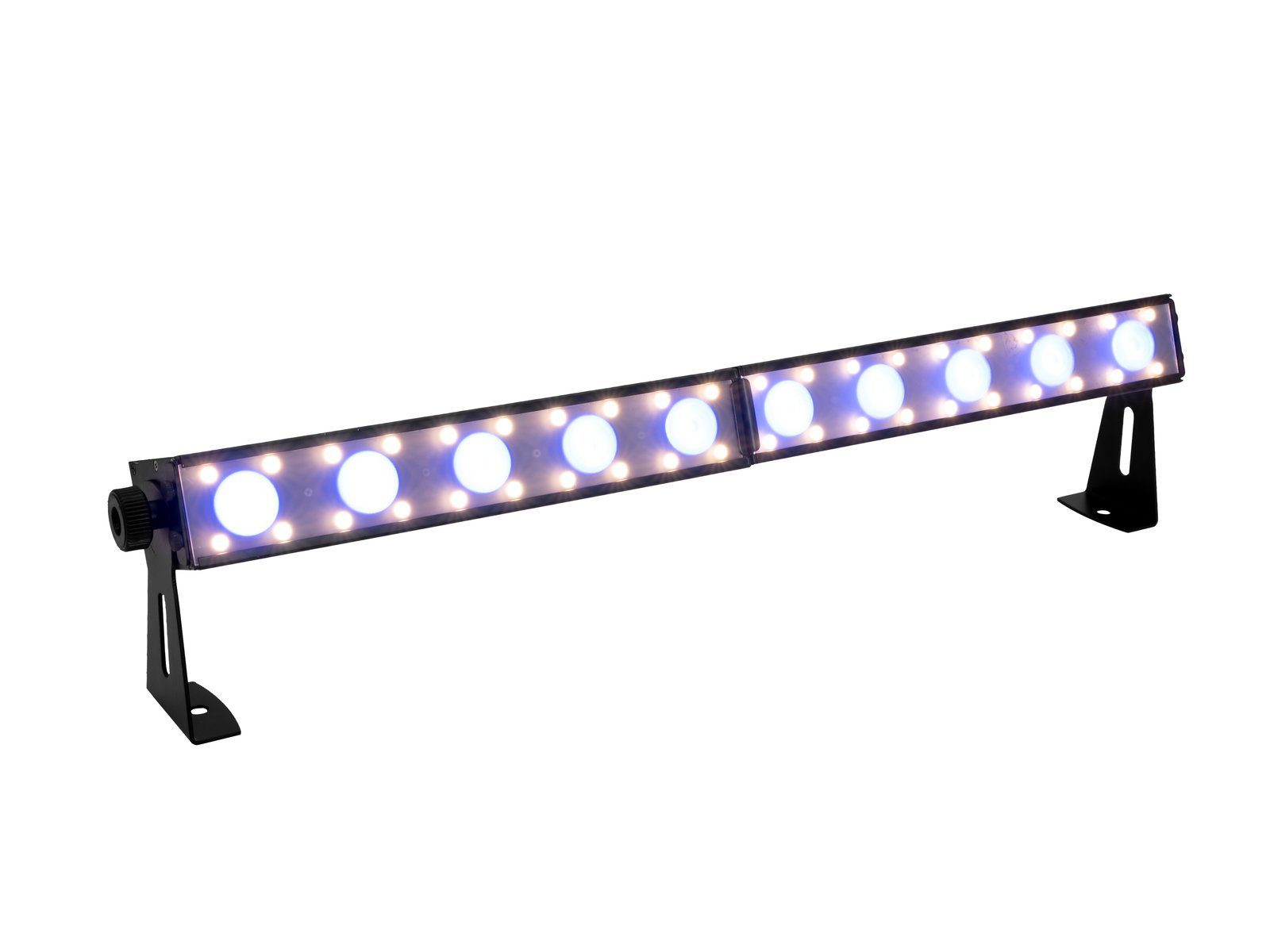

- Every LED bar can be manually rotated centrally at the joint

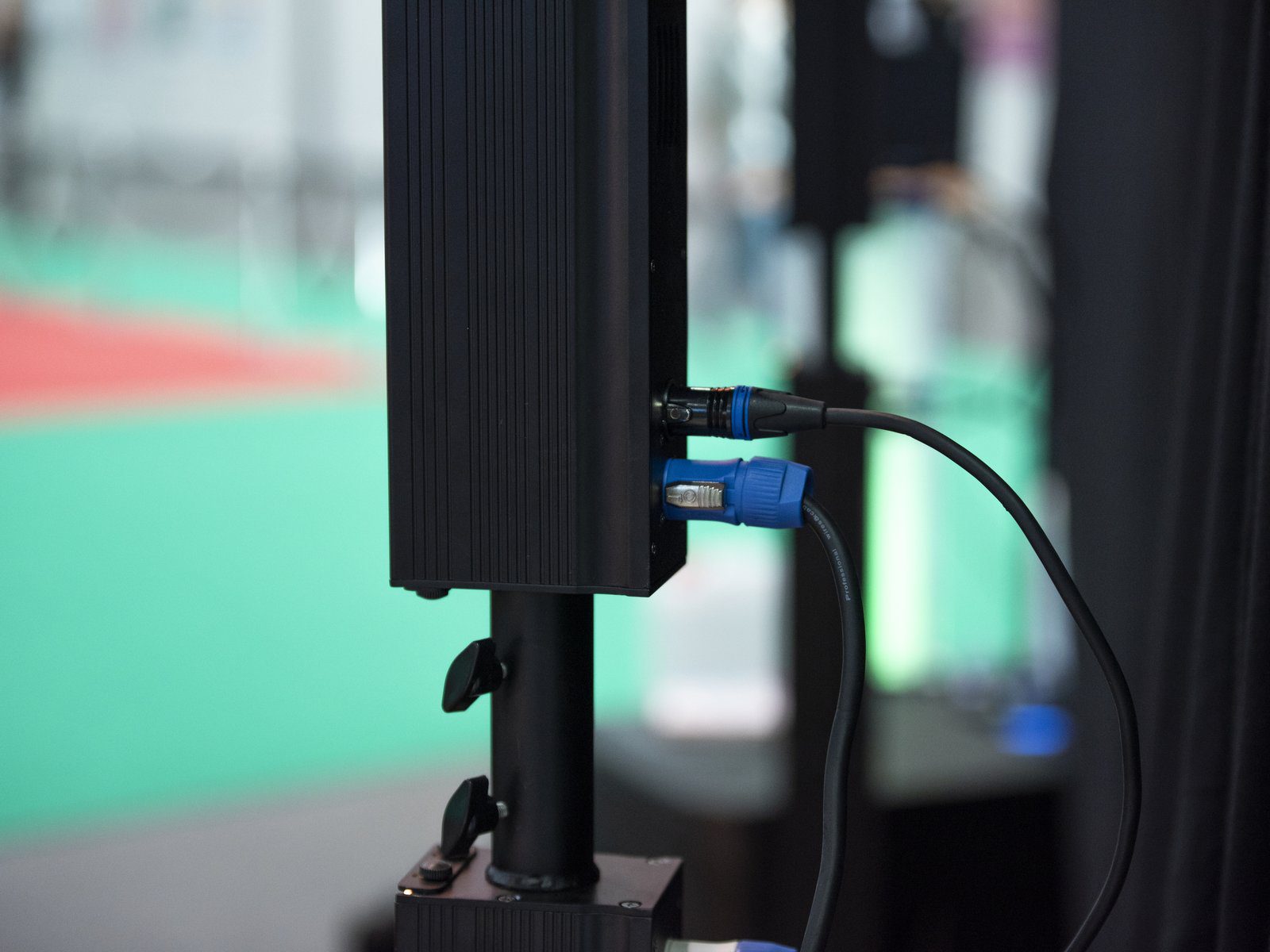

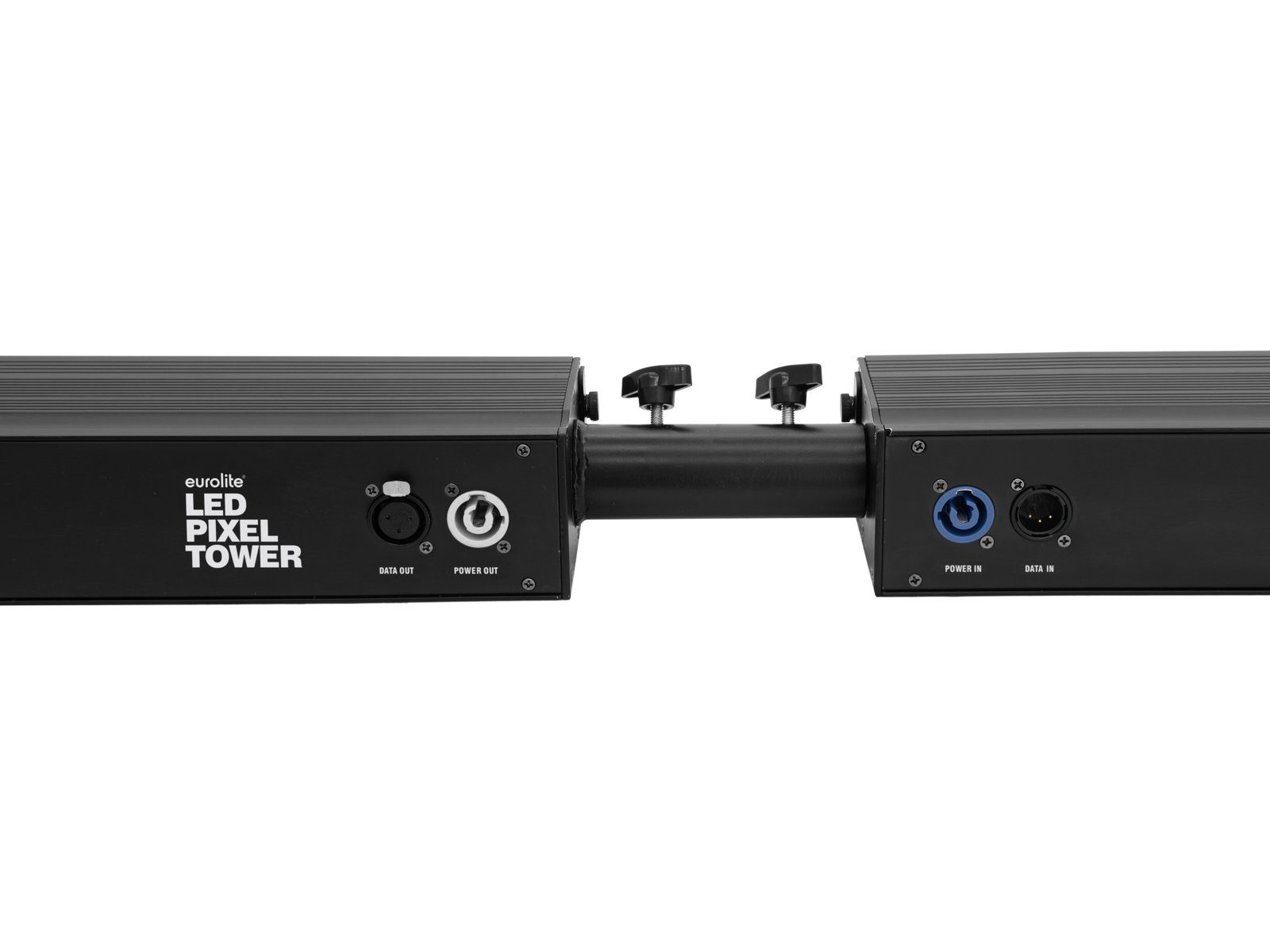

- Connection between the two LED bars can be extended spatially at will via P-Con and 3-pin XLR cables

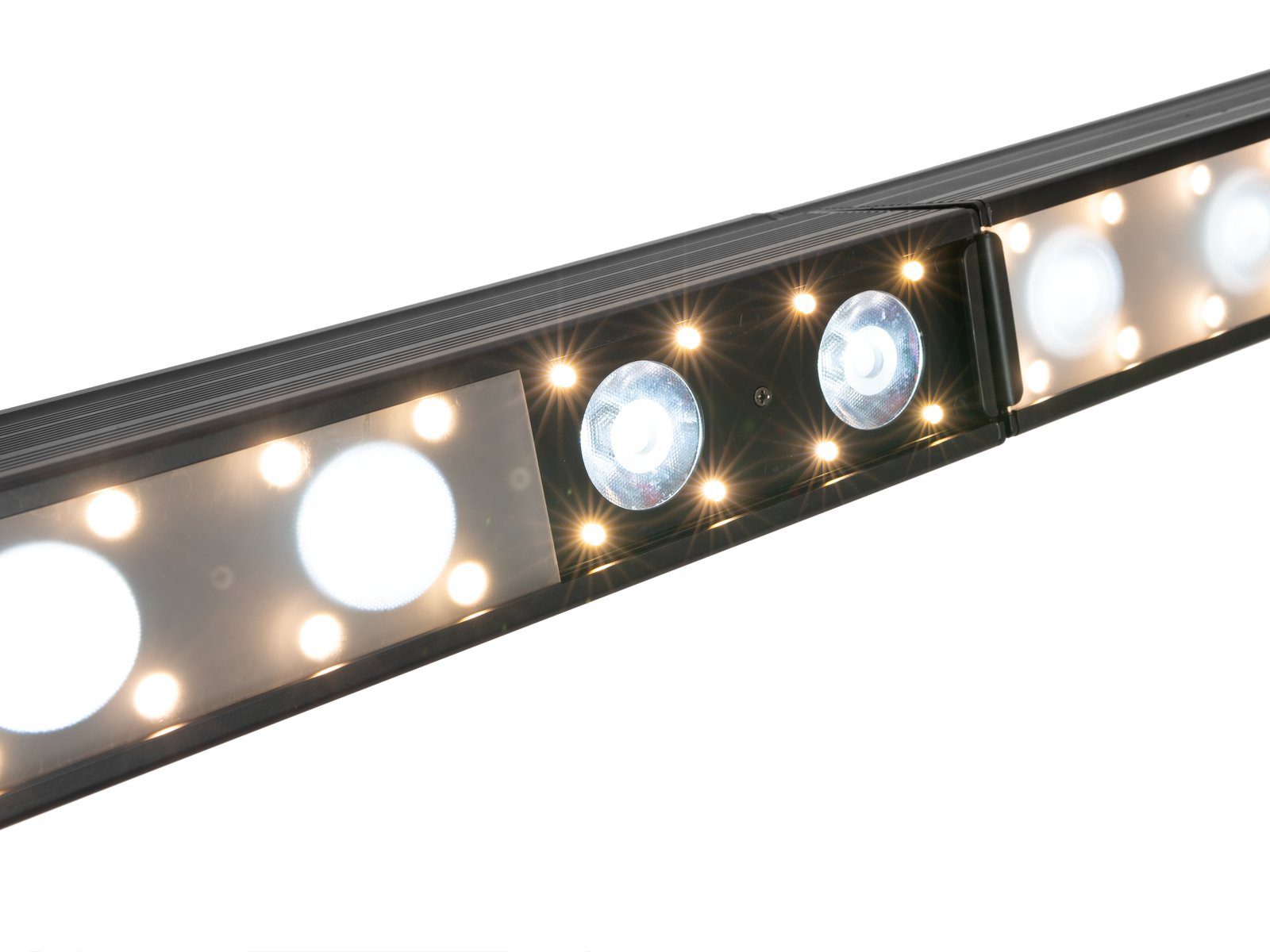

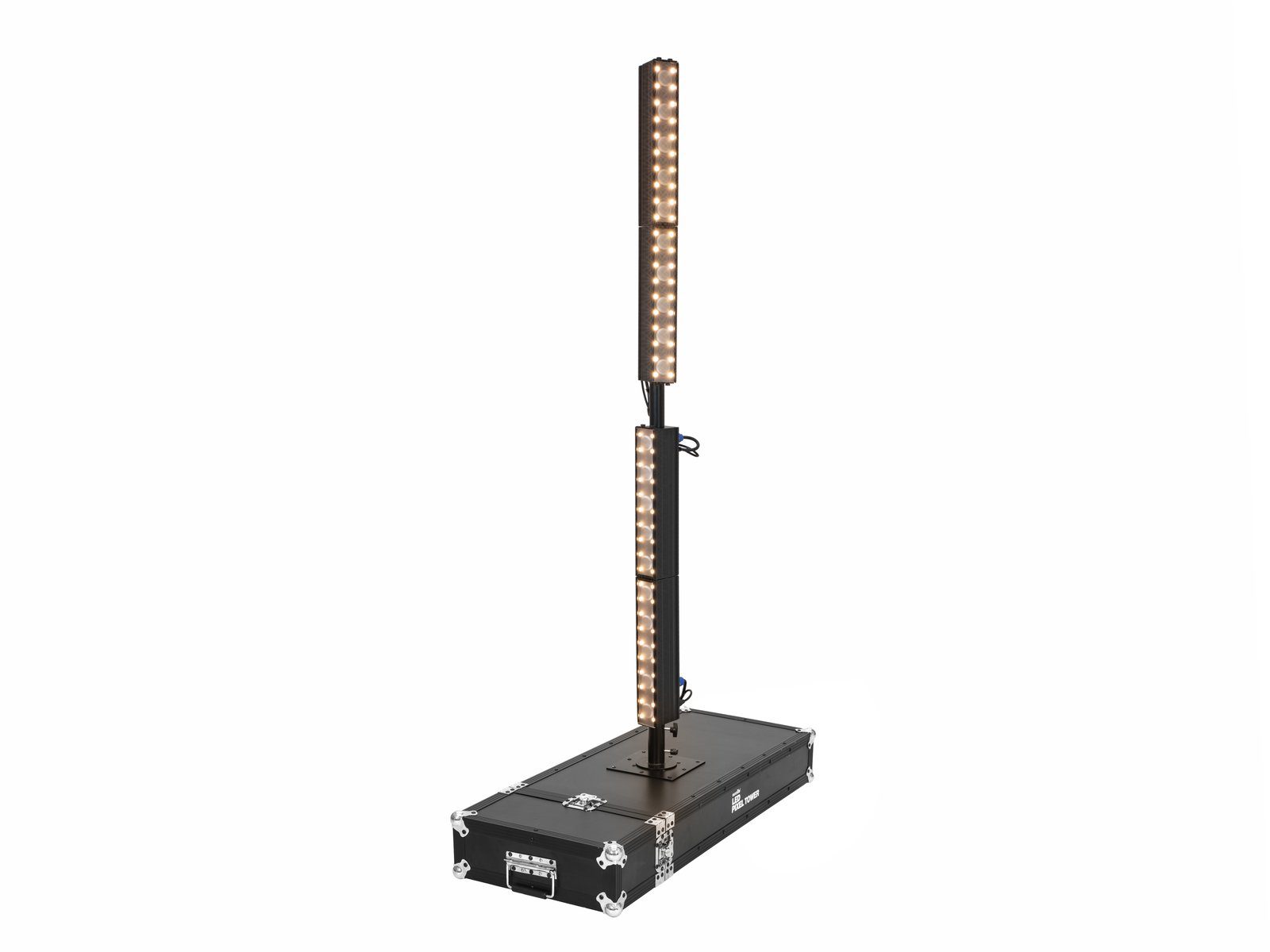

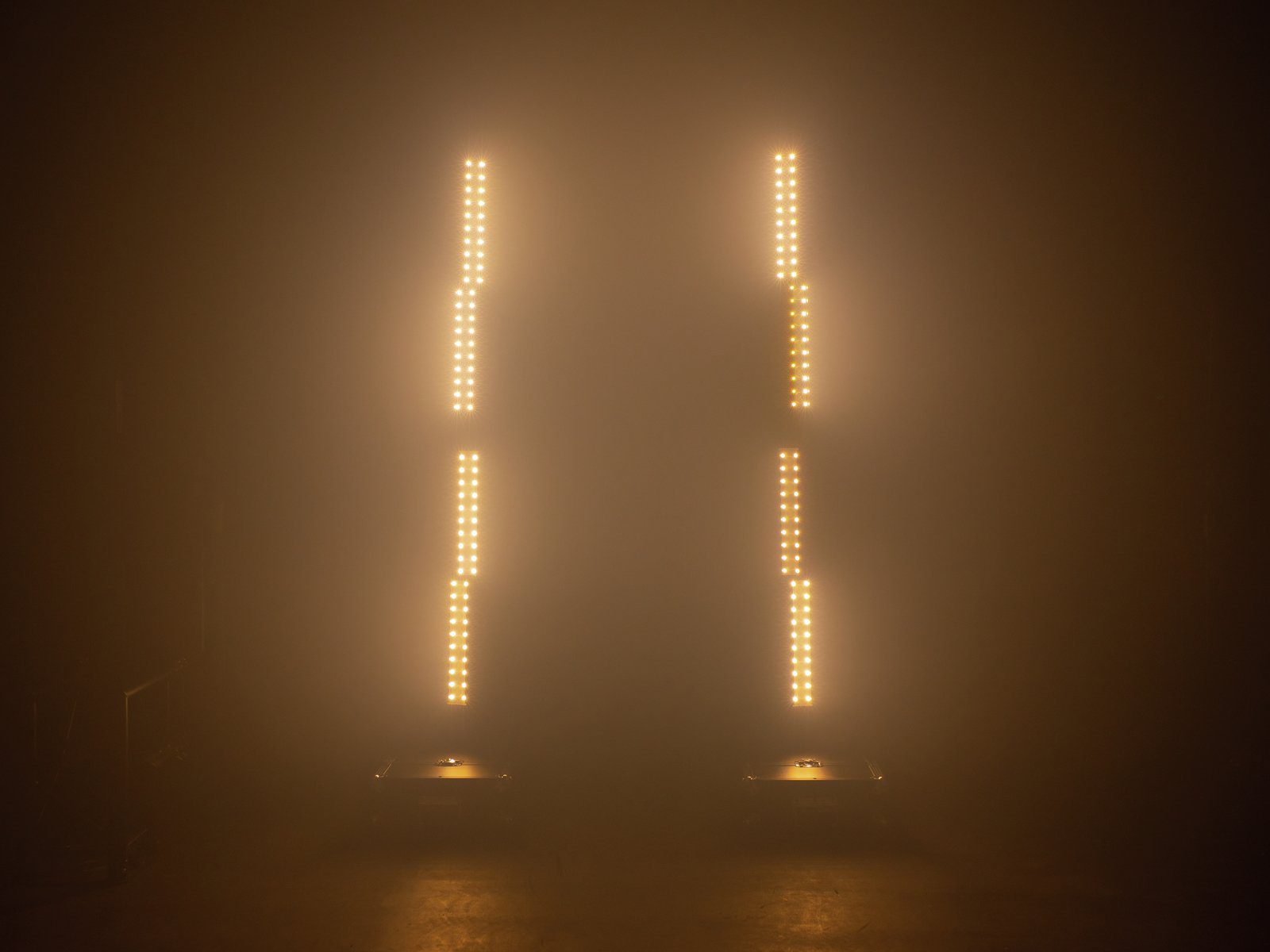

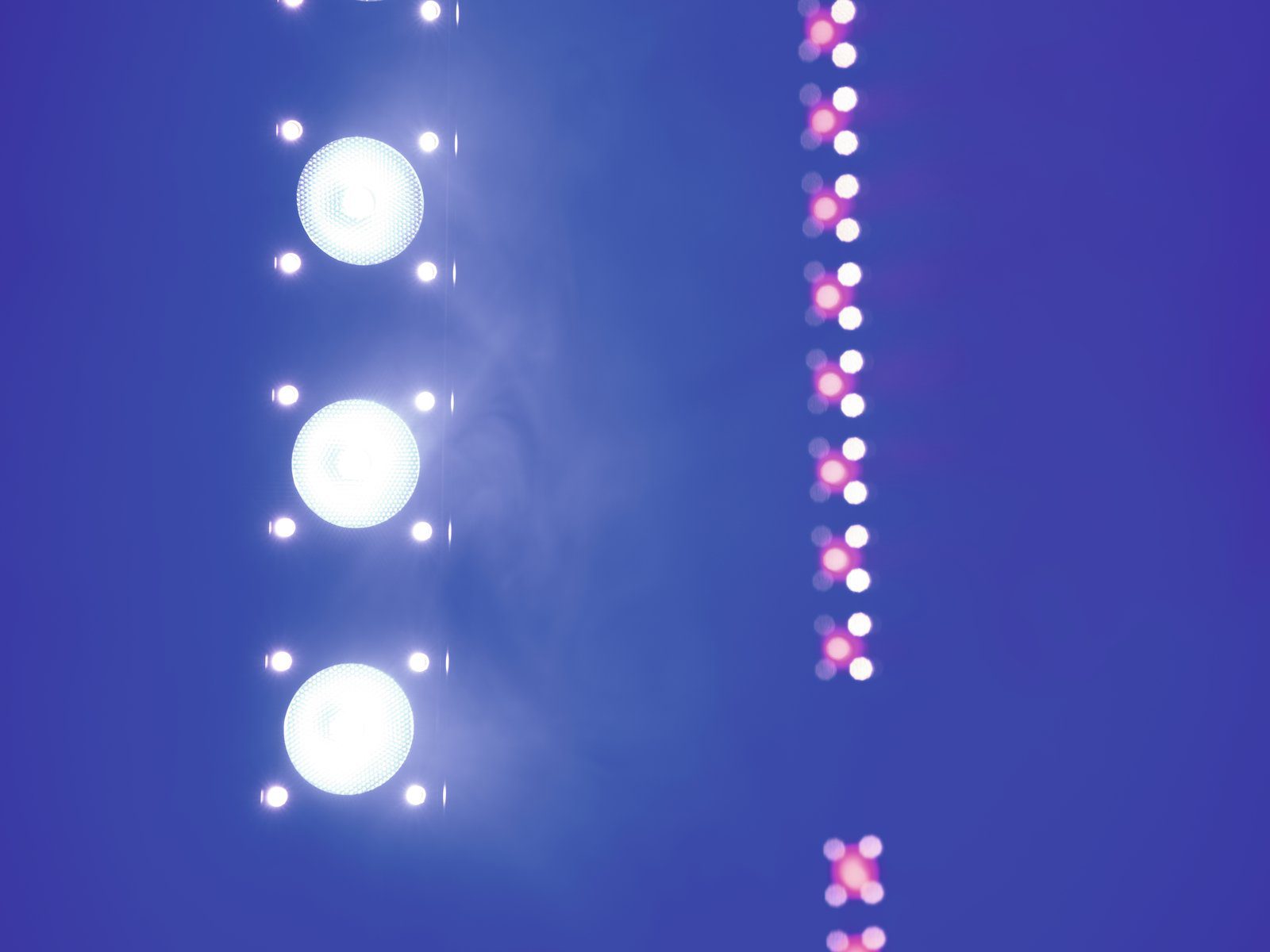

- 80 powerful LEDs 0,3 W SMD 5050 warm white (WW)

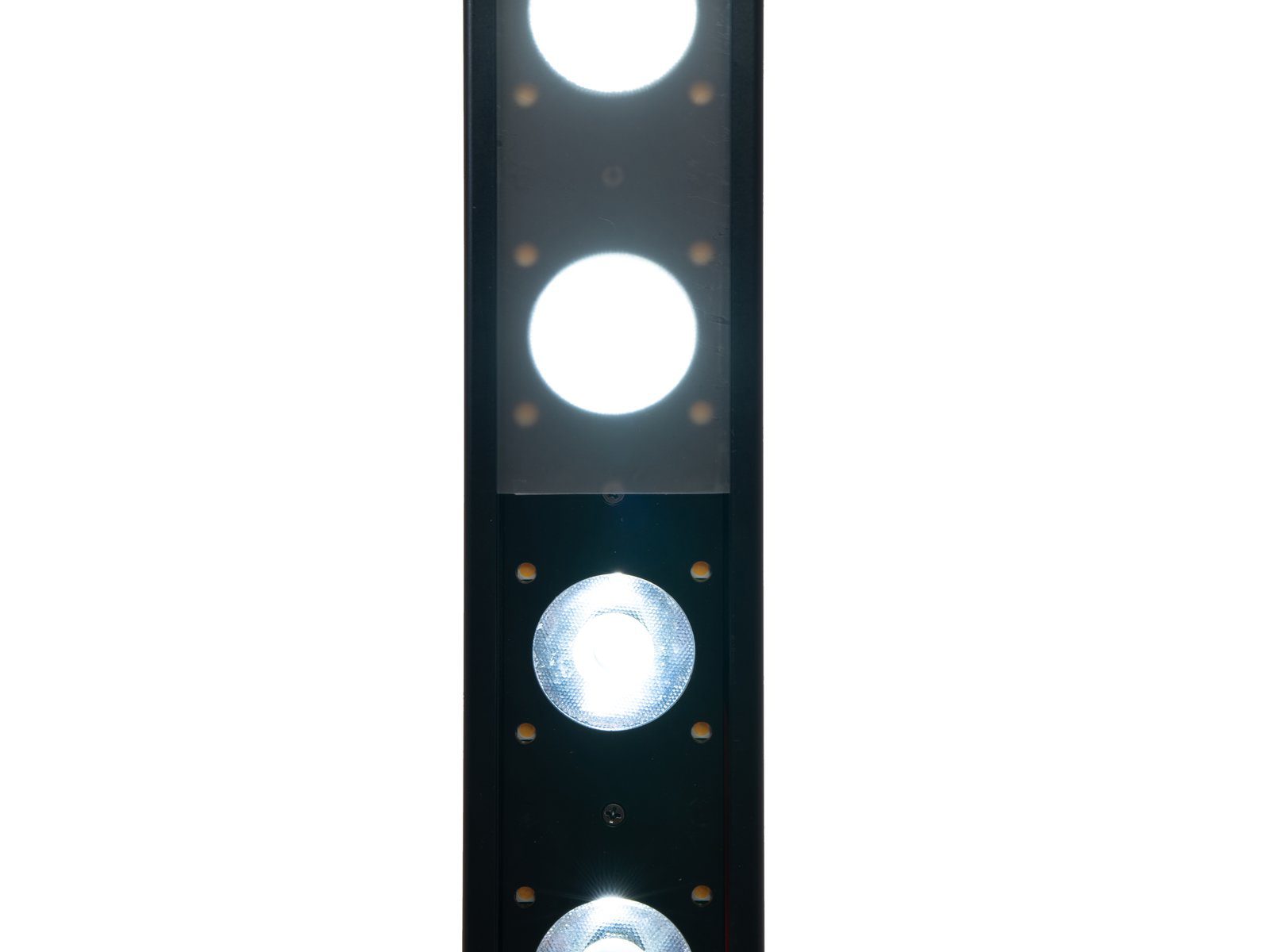

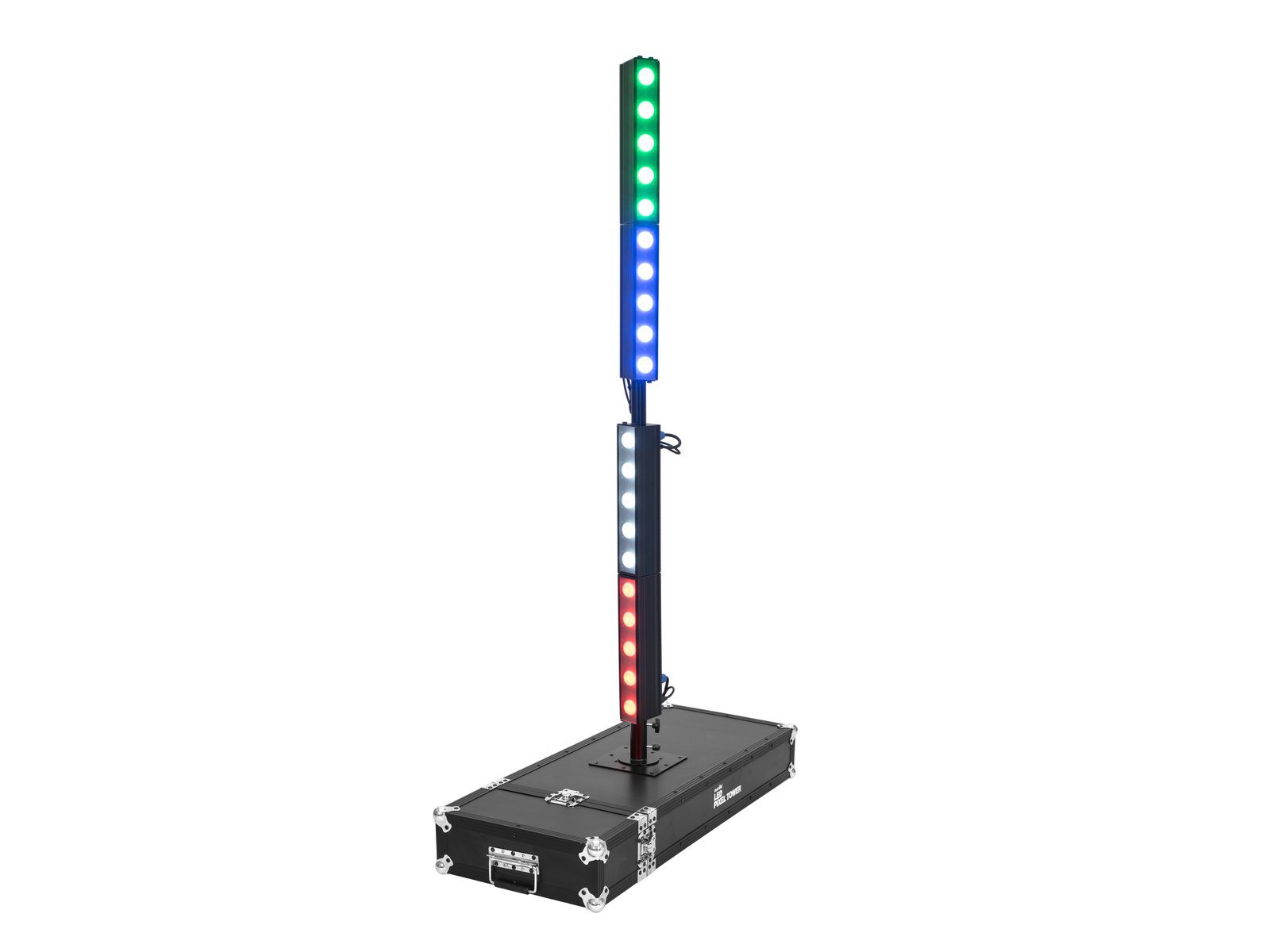

4 segments controlled separately - 20 powerful LEDs 15 W high-power 4in1 QCL RGBW (homogenous color mix)
LEDs controlled separately - Dimmer electronic; color blend stepless; color change adjustable; colors preset
- Strobe effect
- 96 integrated show programs
- The device is cooled by passive convection cooling
- Control via DMX; sound to light via microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); IR remote control; stand-alone
- With a beam angle of 8°

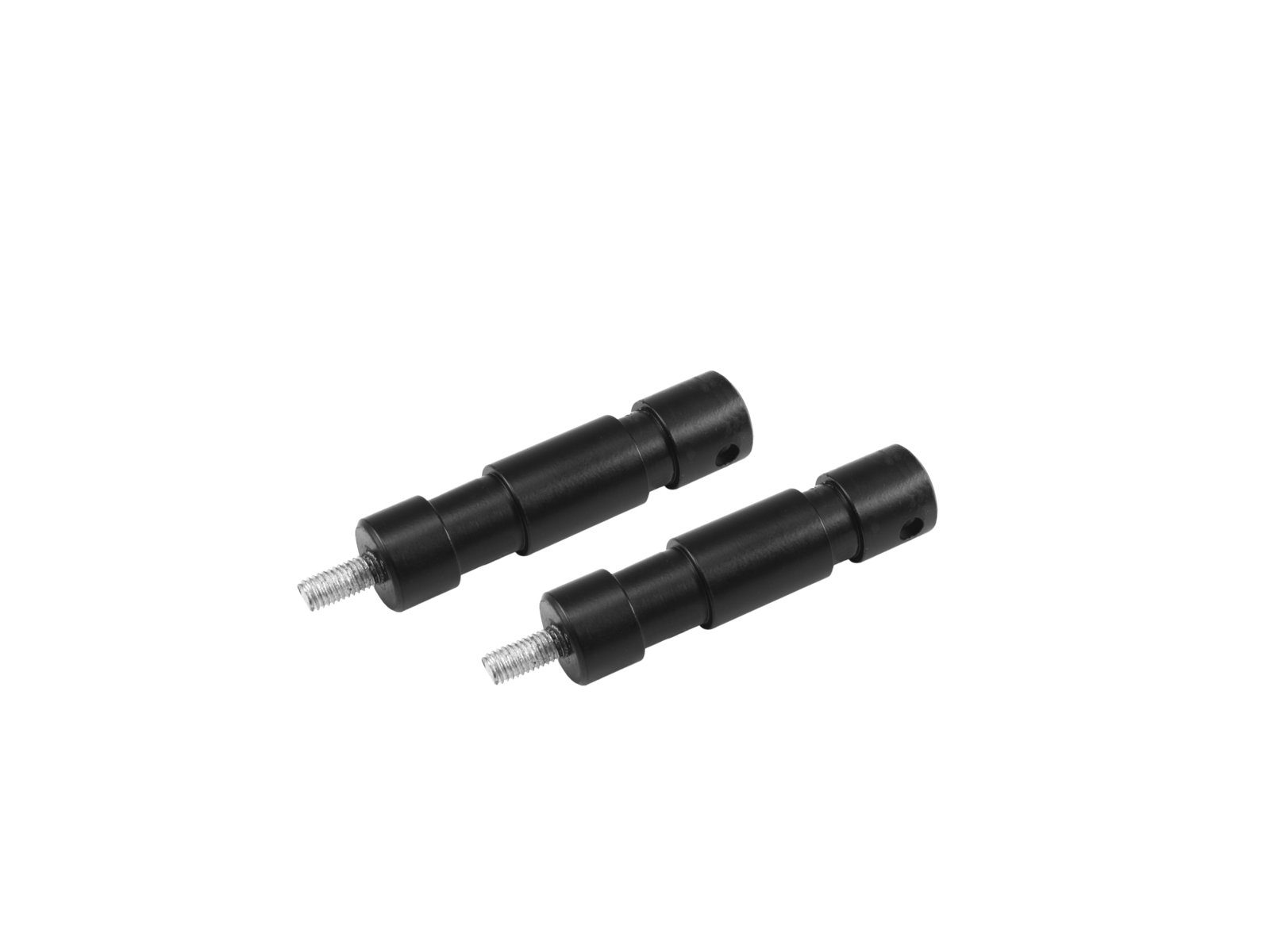

- TV spigot
- Silent operation
- Preprogrammed in LED PC-Control 512; Light Captain; Light´J

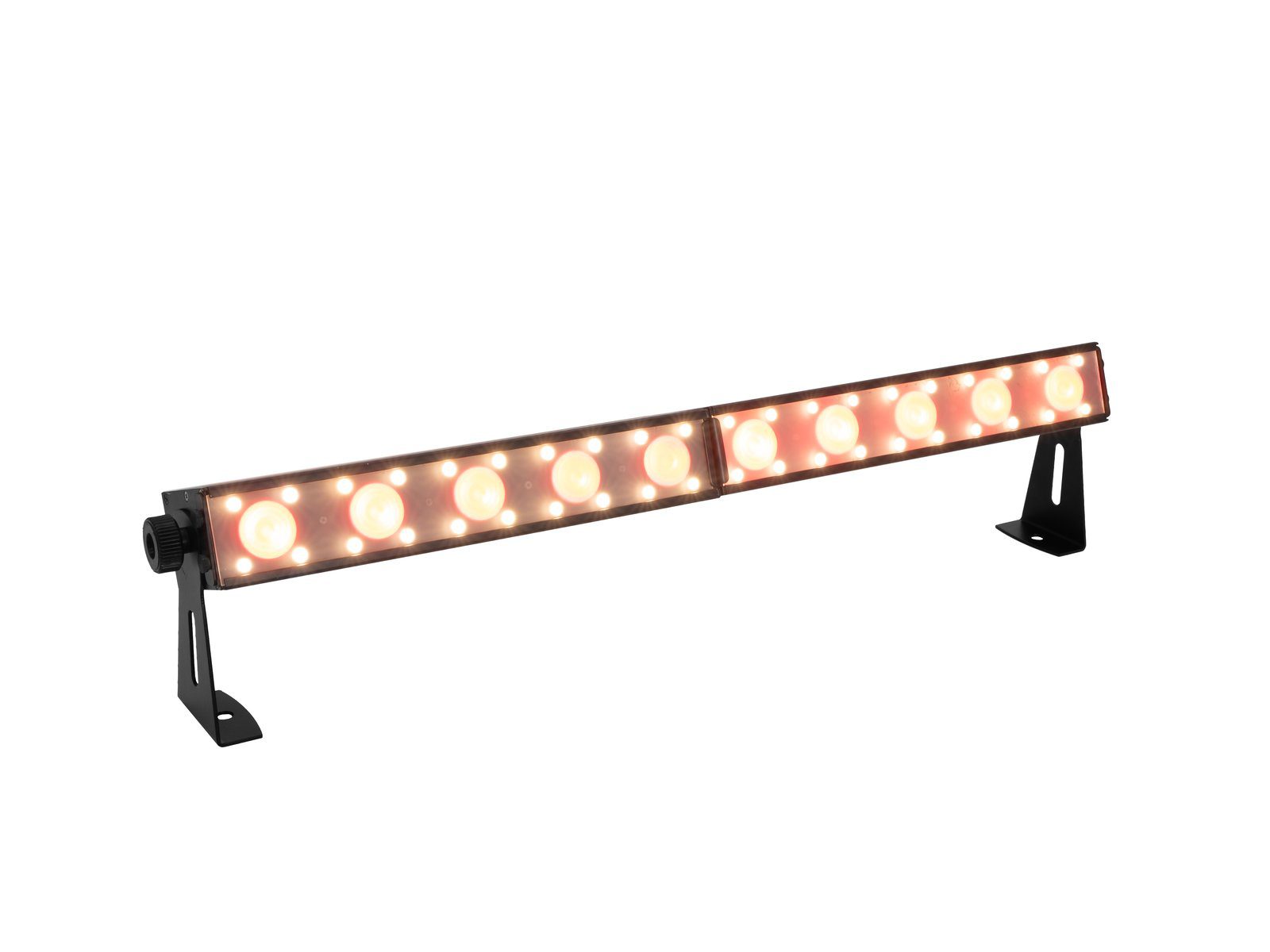

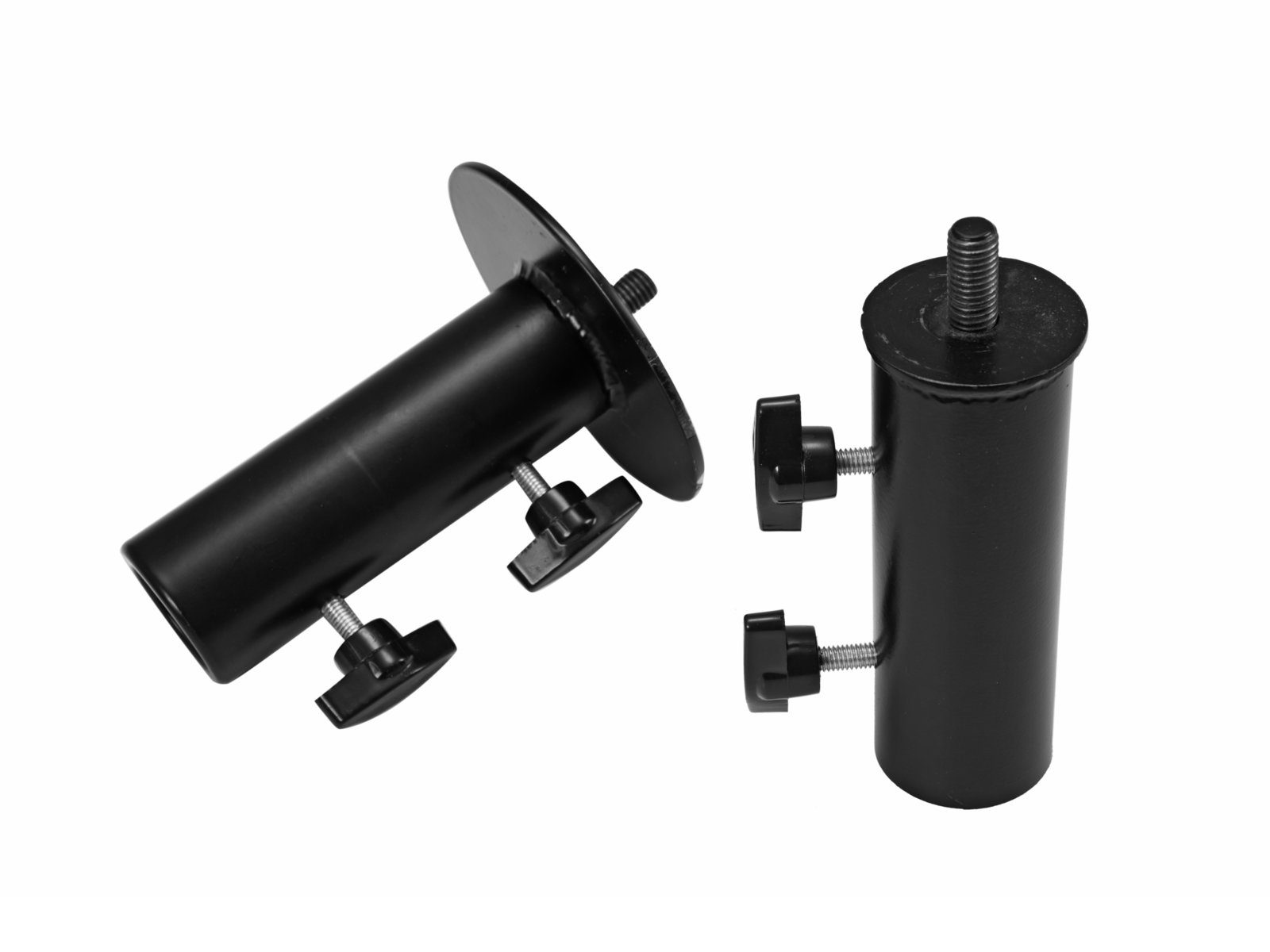

- With mounting bracket
- For application areas such as: Wedding/gala/events; mobile use; stage; mobile djs / entertainer

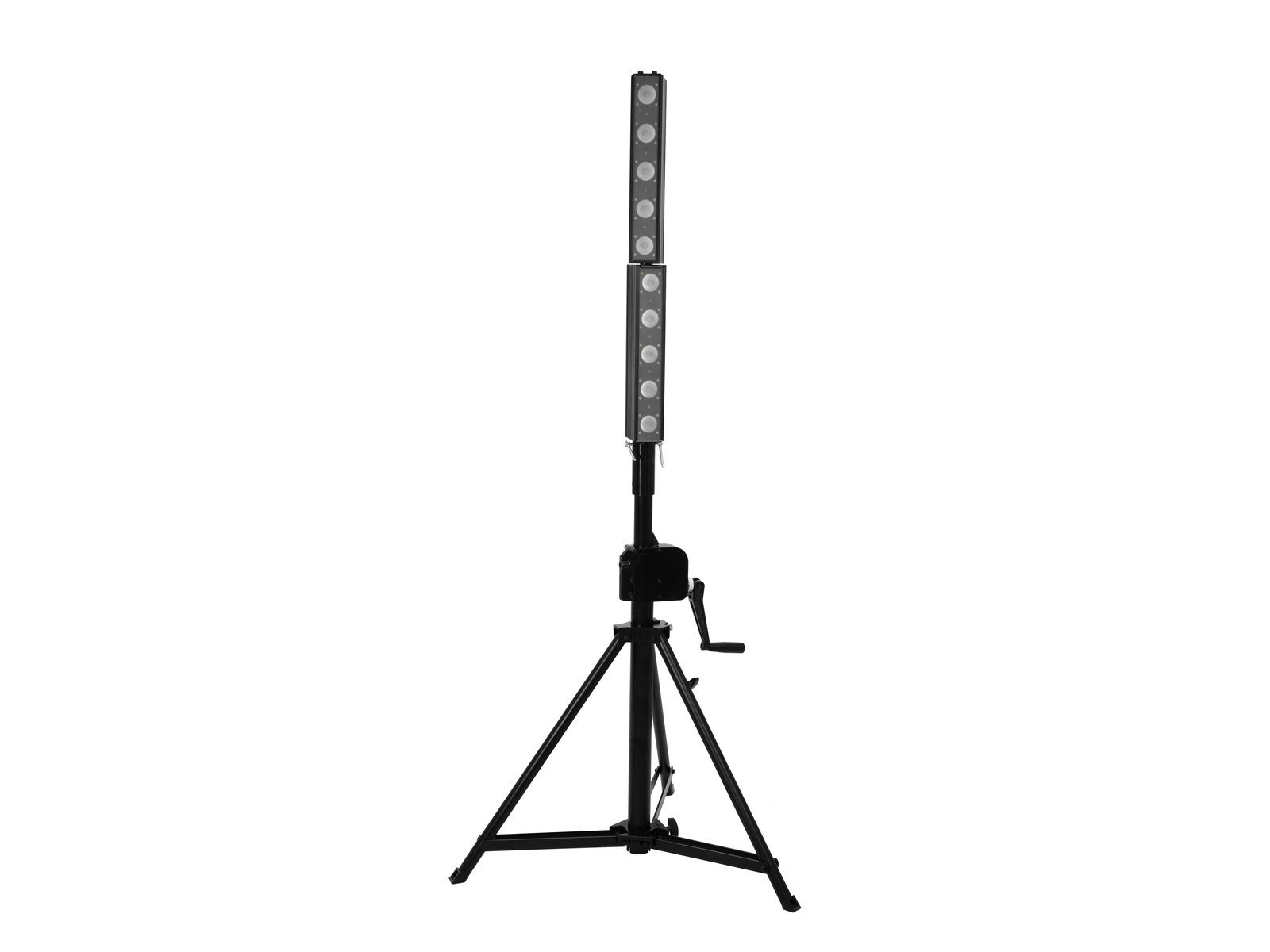

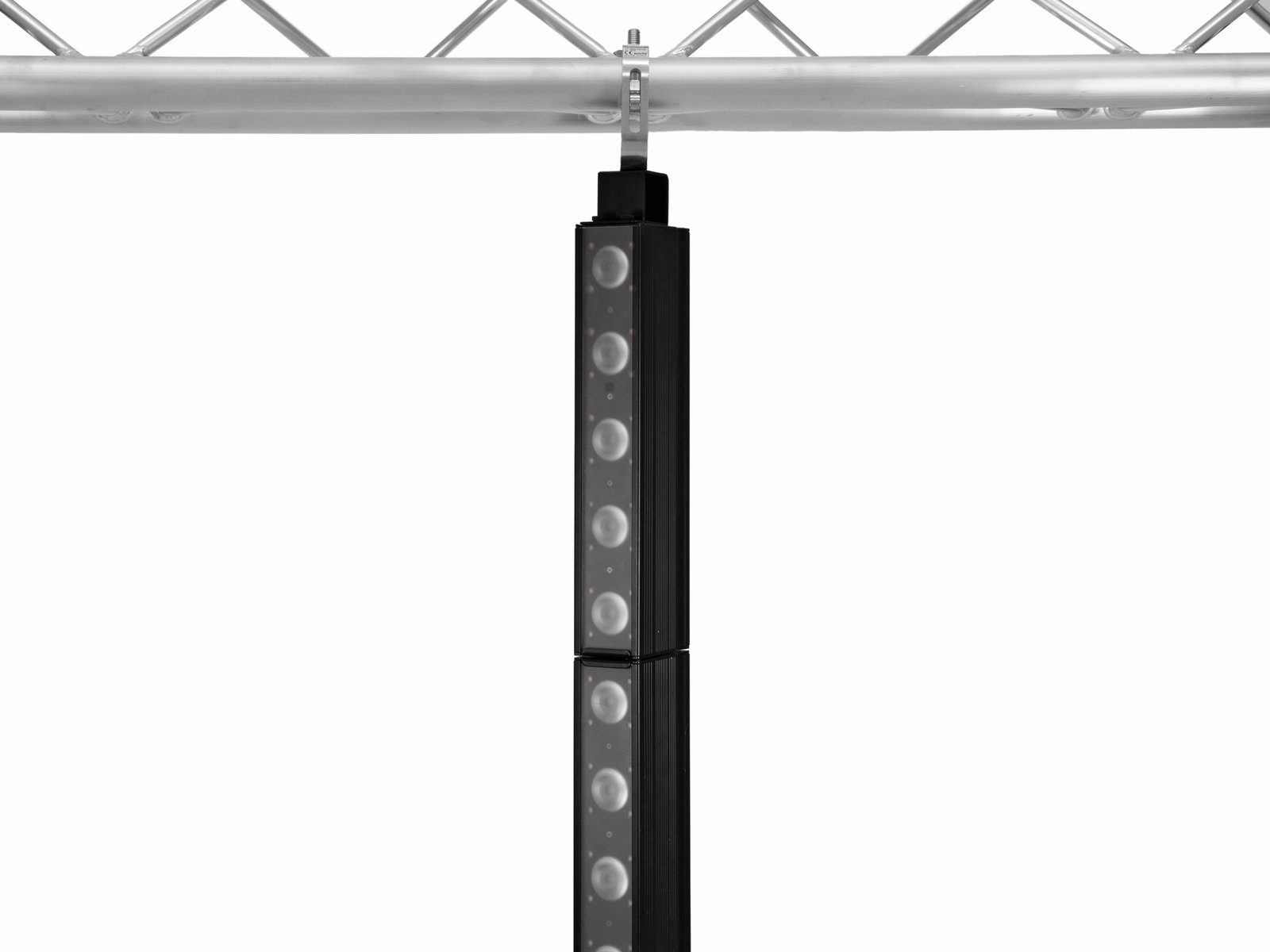

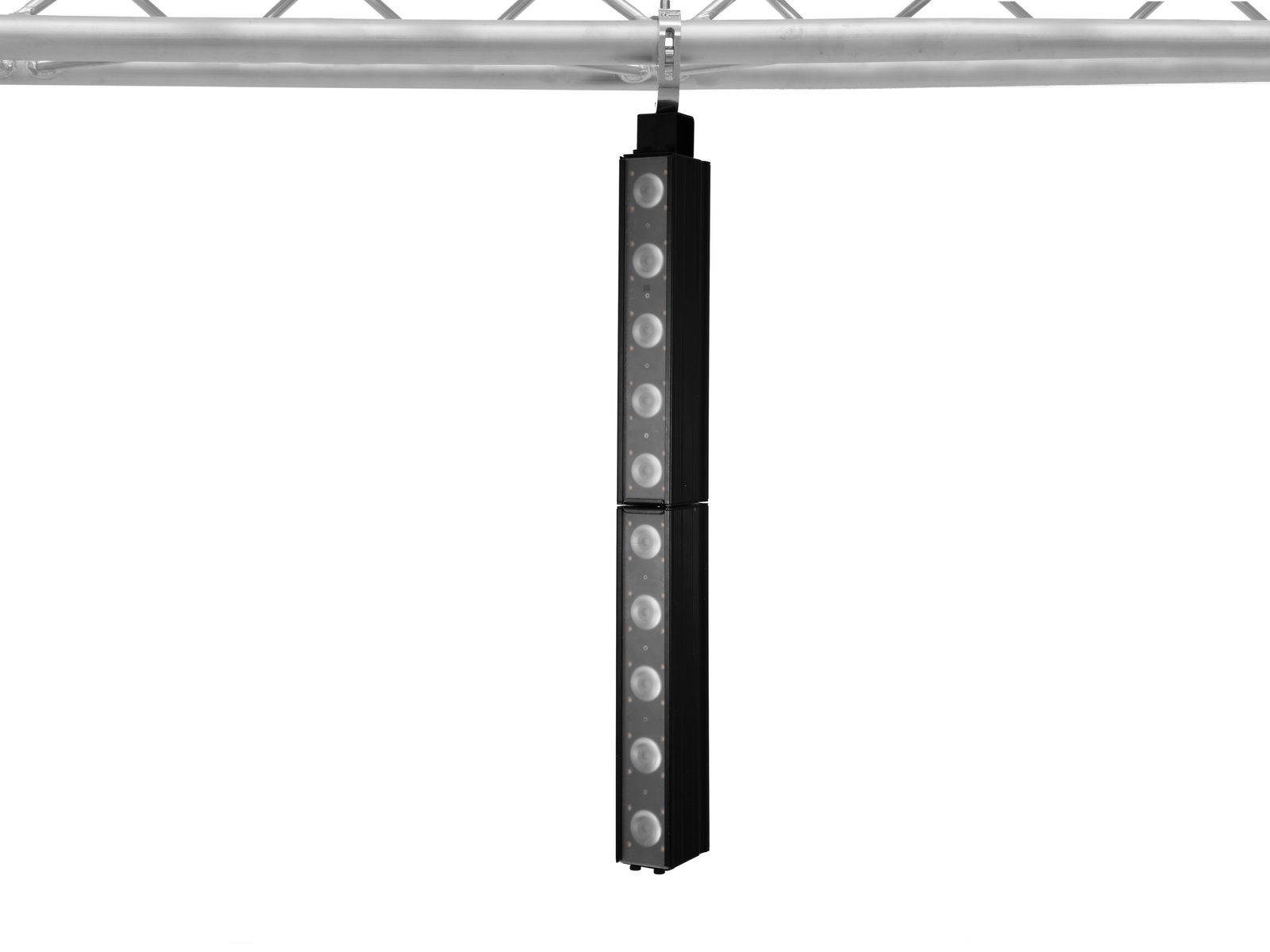

- Application possibility: Standing; suspended; on stand
Package contents

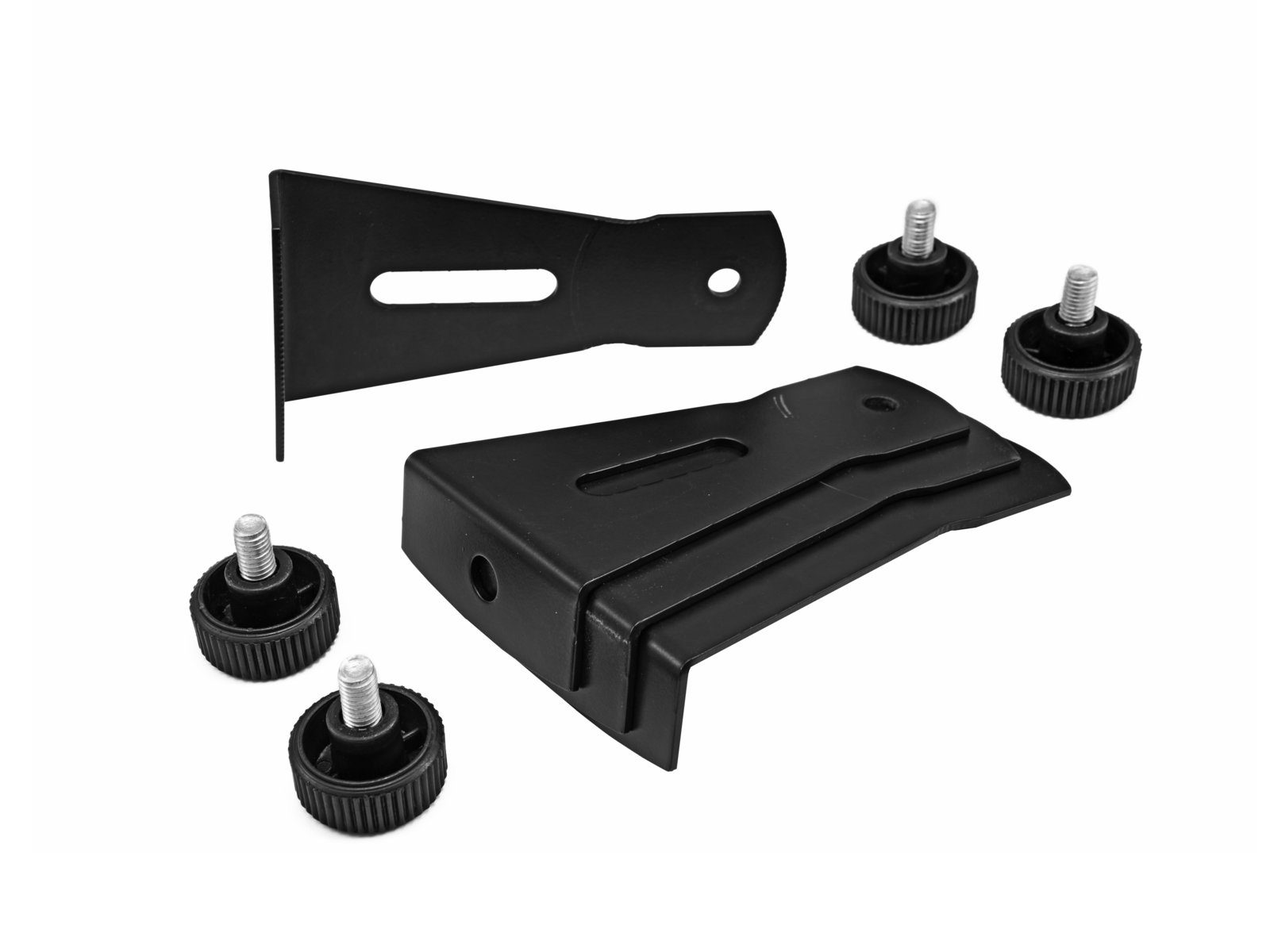

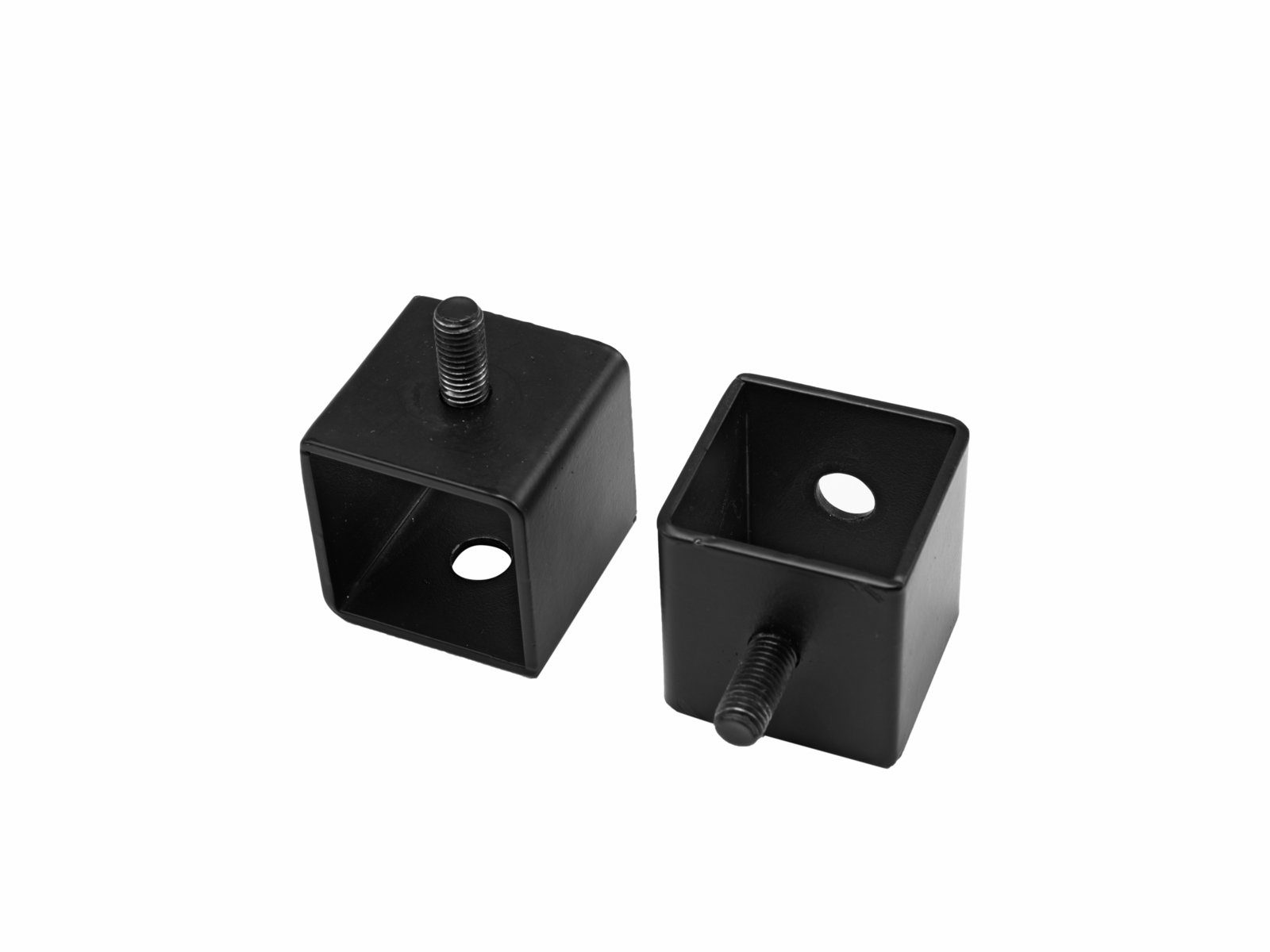

- 2 x segment, 1 x remote control, 1 x case, 1 x user manual, 2 x power cord, 4 x angle, 1 x stand, 4 x washer, 4 x frost filter, 8 x knurled screw, 1 x holder, 2 x mounting bracket, 3 x XLR cable
Technical specifications
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 250 W |
IP classification: | IP20 |
Lamp type: | LED lamp |

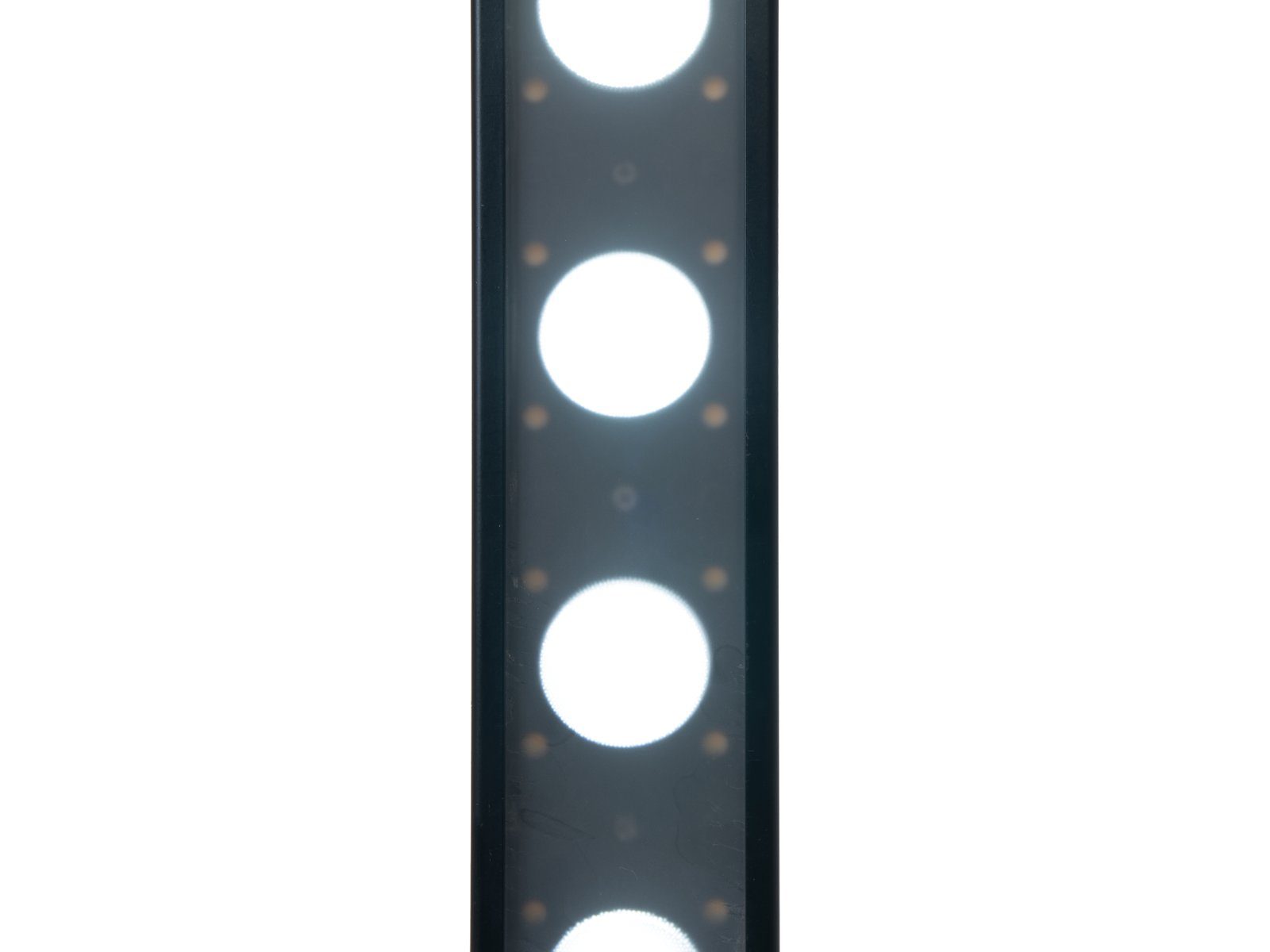

LED type: | 80 x 0,3 W SMD 5050 warm white (WW) 20 x 15 W high-power 4in1 QCL RGBW (homogenous color mix) |
DMX channels: | 12; 20; 27; 84; 5 |

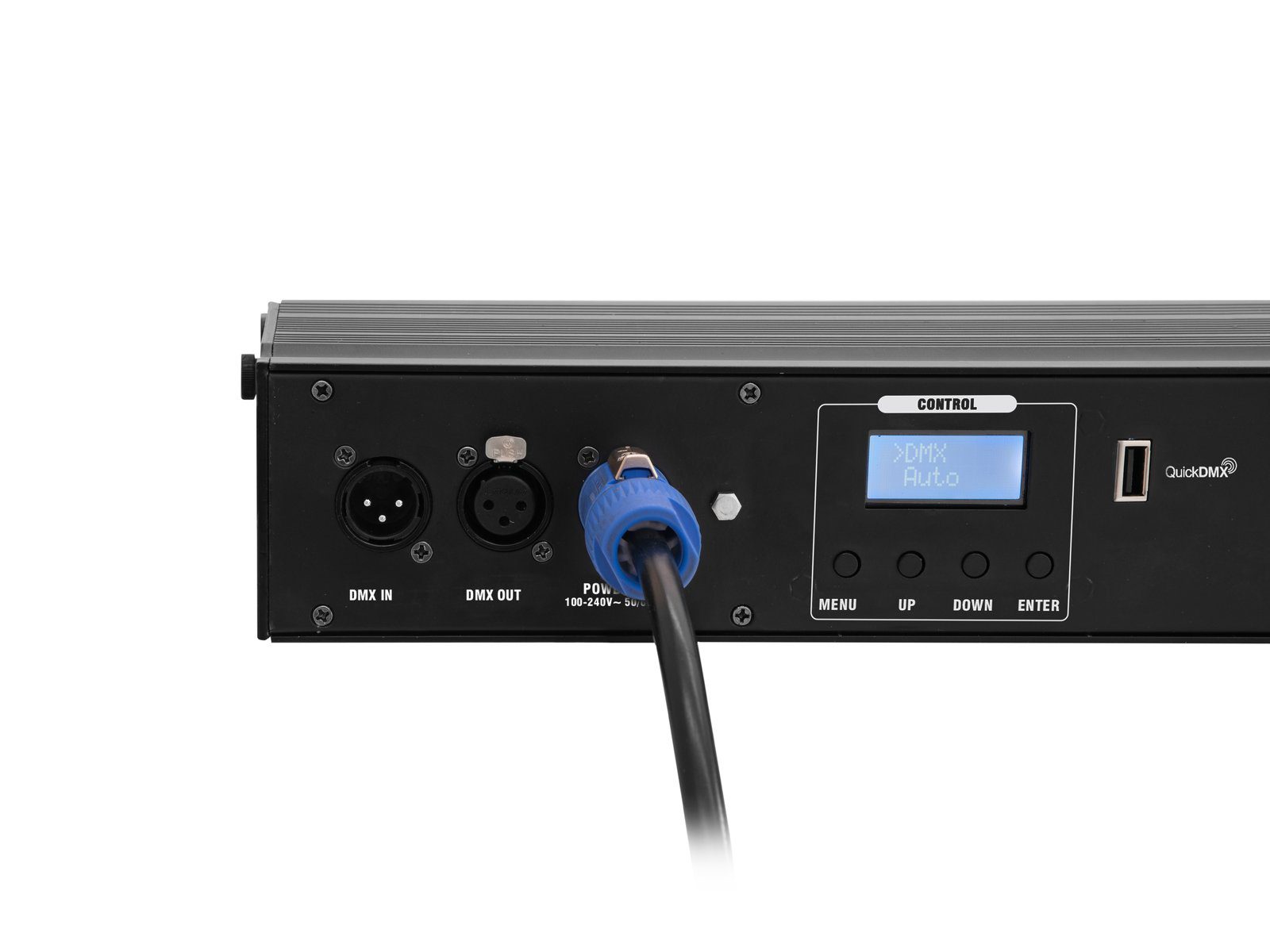

DMX input: | 1 x 3-pin XLR (M) mounting version |
DMX output: | 1 x 3-pin XLR (F) mounting version |
Cooling: | Passive convection cooling |
Control: | DMX; sound to light via microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); IR remote control; stand-alone |
Preprogrammed in: | LED PC-Control 512; Light Captain; Light´J |
Beam angle: | 8° |
Beam angle (1/2 peak): | 8° |
Housing color: | Black |
Attachment system: | TV spigot Ø 28mm Mounting bracket |
Weight: | 12,00 kg |
Noise classification: | Class 0 (no noise at all) |
Device | |
Dimensions: | Length: 1,1 m Width: 44 cm Height: 2 m |
Segment | |

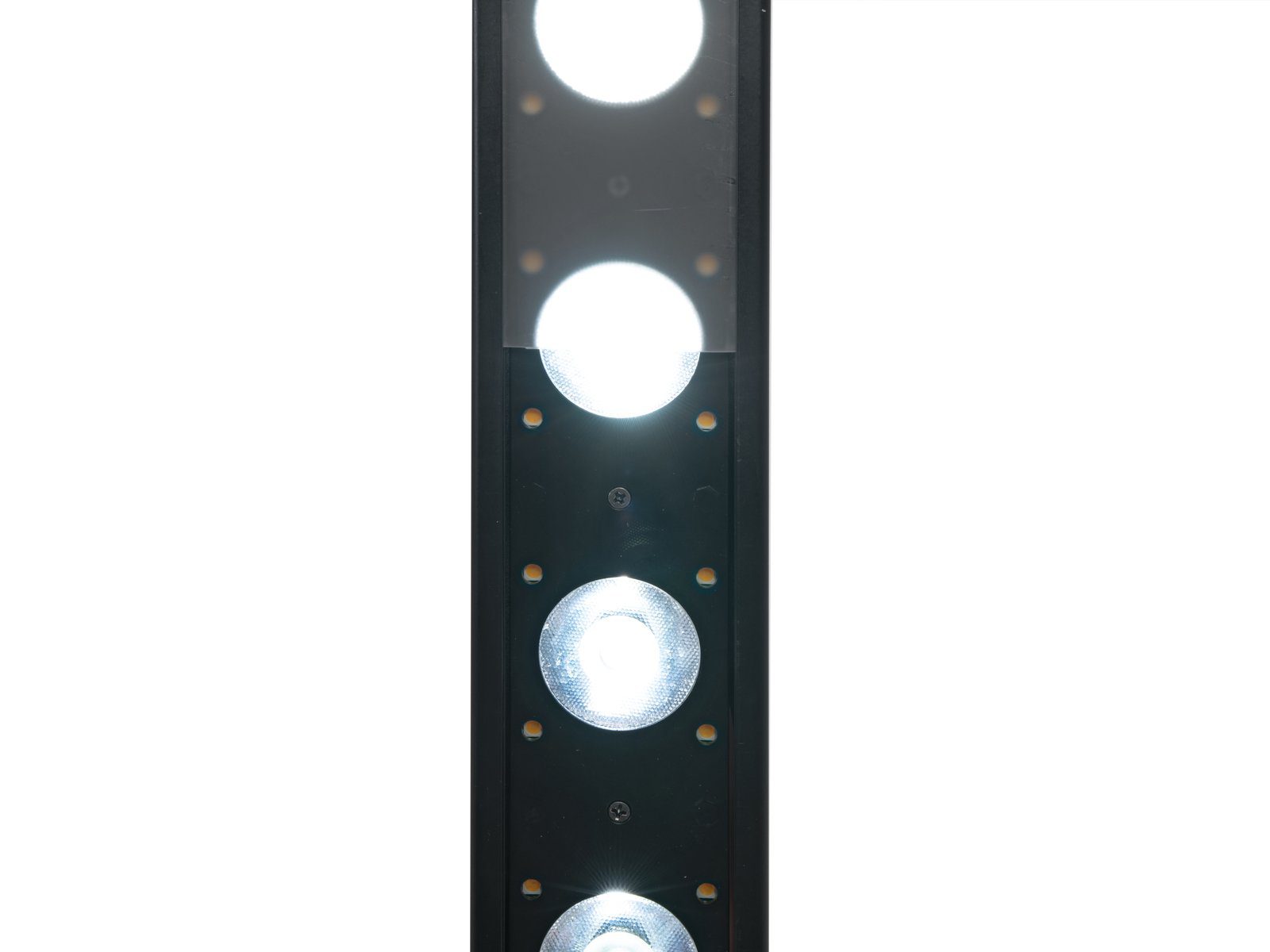

Dimensions: | Length: 92 cm Width: 10,1 cm Height: 7 cm |

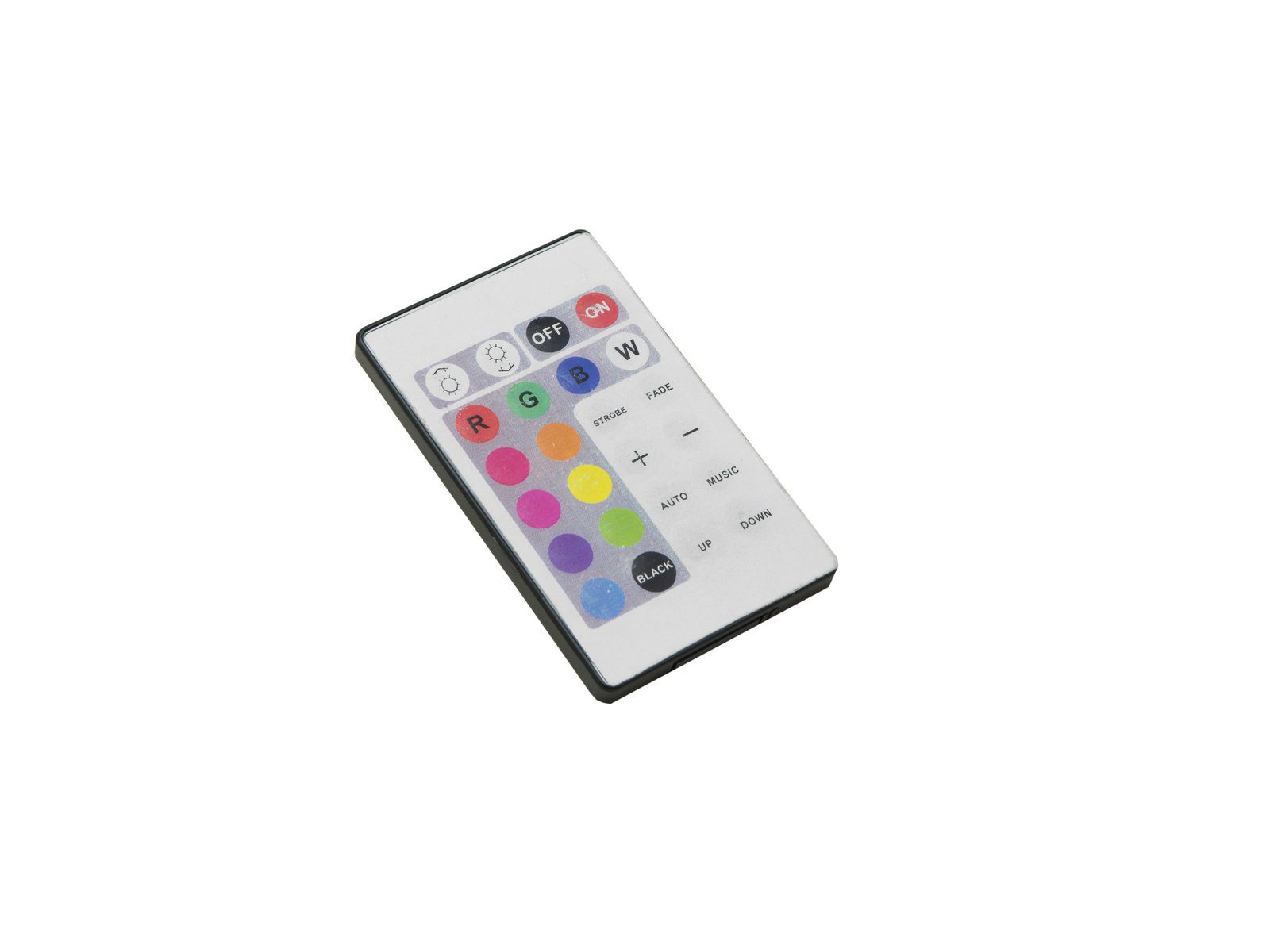

Remote control | |
Battery: | Button cell 3.0 V CR2025 lithium manganese built-in |

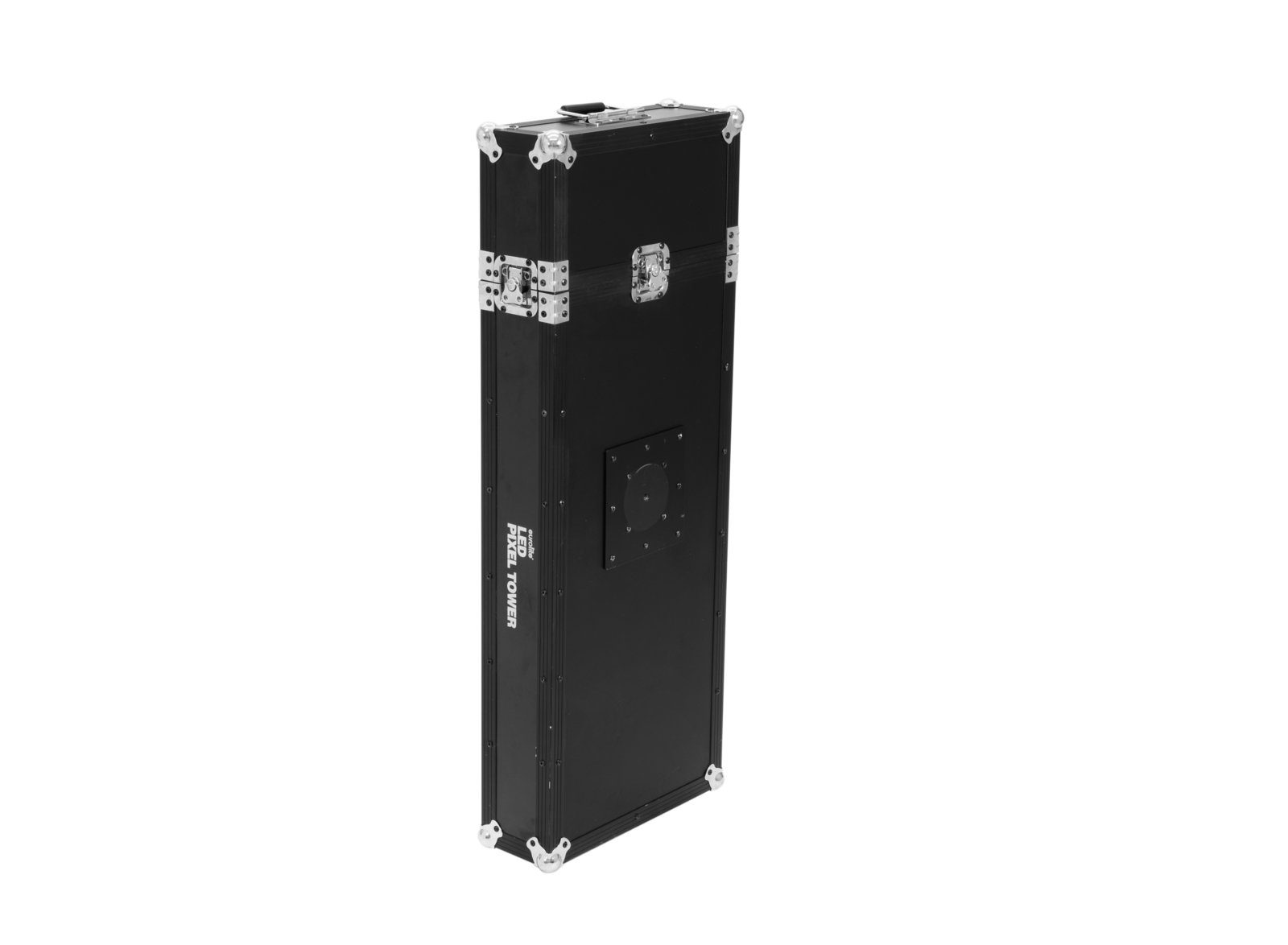

Case | |

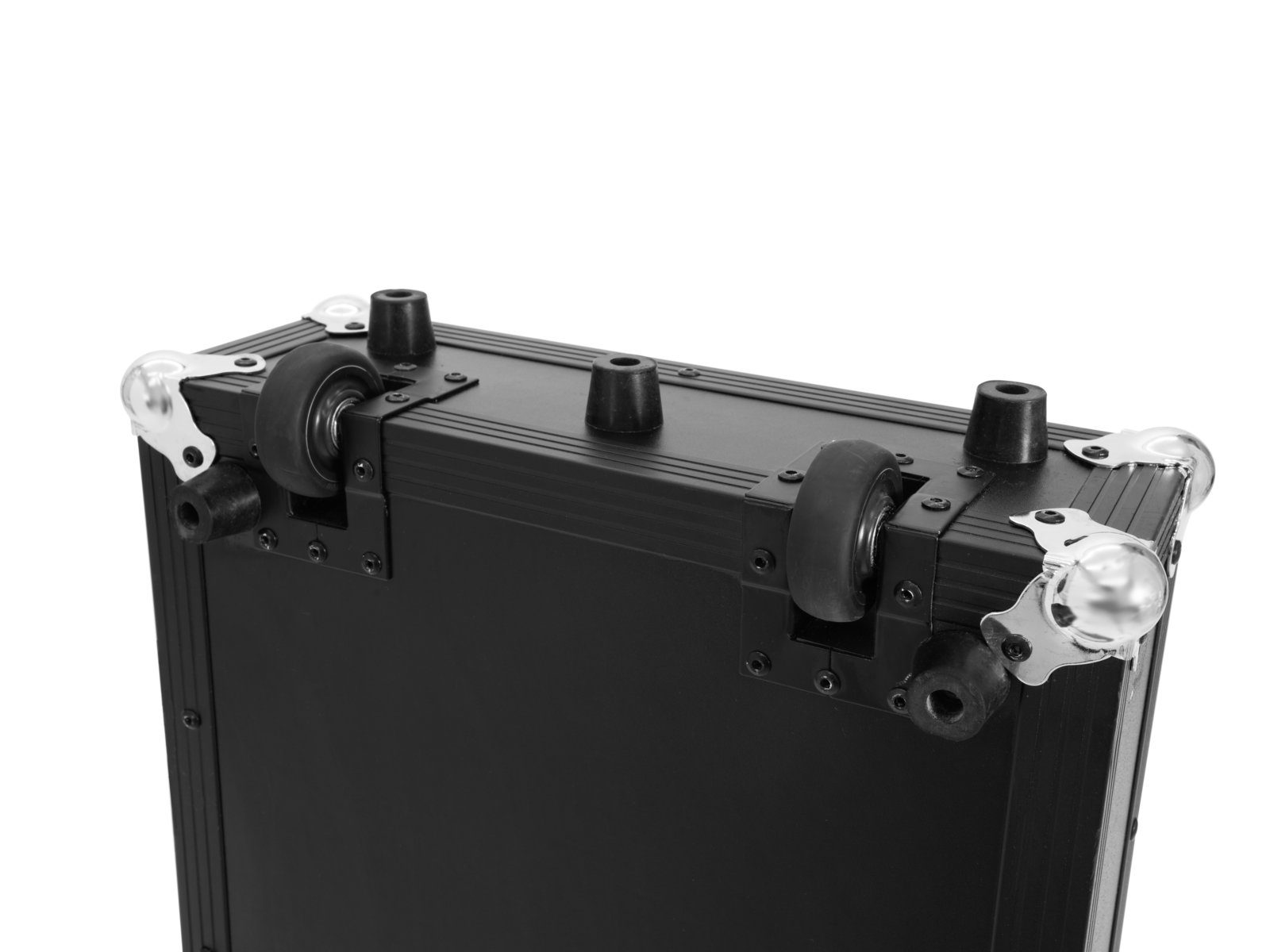

Dimensions: | Length: 1,1 m Width: 44 cm Height: 18 cm |
PU | EAN | Weight | Dimensions |
---|---|---|---|
1 | 4026397657128 | 28,30 kg | 110cm x 42cm x 16,5cm |
