Description
Features

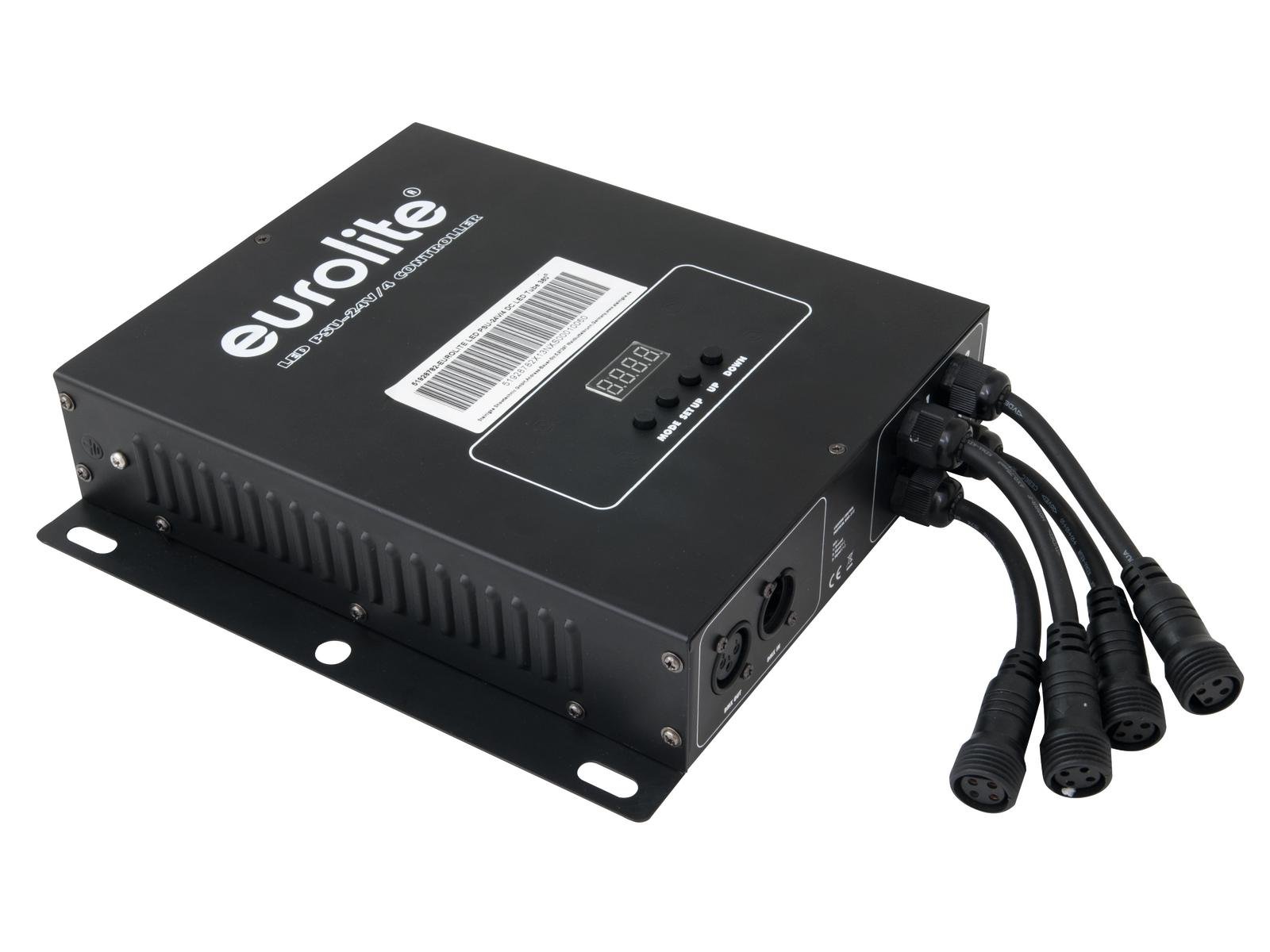

Controller for EUROLITE LED Pixel Tubes 360°
- Controller and power supply unit for 4 LED light tubes
- Color change adjustable; Dimmer electronic; color blend stepless
- Strobe effect
- Control via stand-alone; DMX; sound to light via microphone; master/slave function
- 3 digit 7-segment LED display
- Preprogrammed in LED PC-Control 512
Package contents
- 1 x device, 1 x user manual, 1 x power cord
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 95,00 W |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x IEC connector (F) mounting version |
| DMX channels: | 5; 7; 14; 84; 192; 312 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | Stand-alone; DMX; sound to light via microphone; master/slave function |
| Preprogrammed in: | LED PC-Control 512 |
| Maximum connection: | 4 tubes |
| Display type: | 3 digit 7-segment LED display |
| Output: | 24 V DC; |
| Dimensions: | Width: 24 cm Depth: 29 cm Height: 6 cm |
| Weight: | 2,05 kg |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397502237 | 2,40 kg | 37cm x 31cm x 10,5cm |
