Description
Features

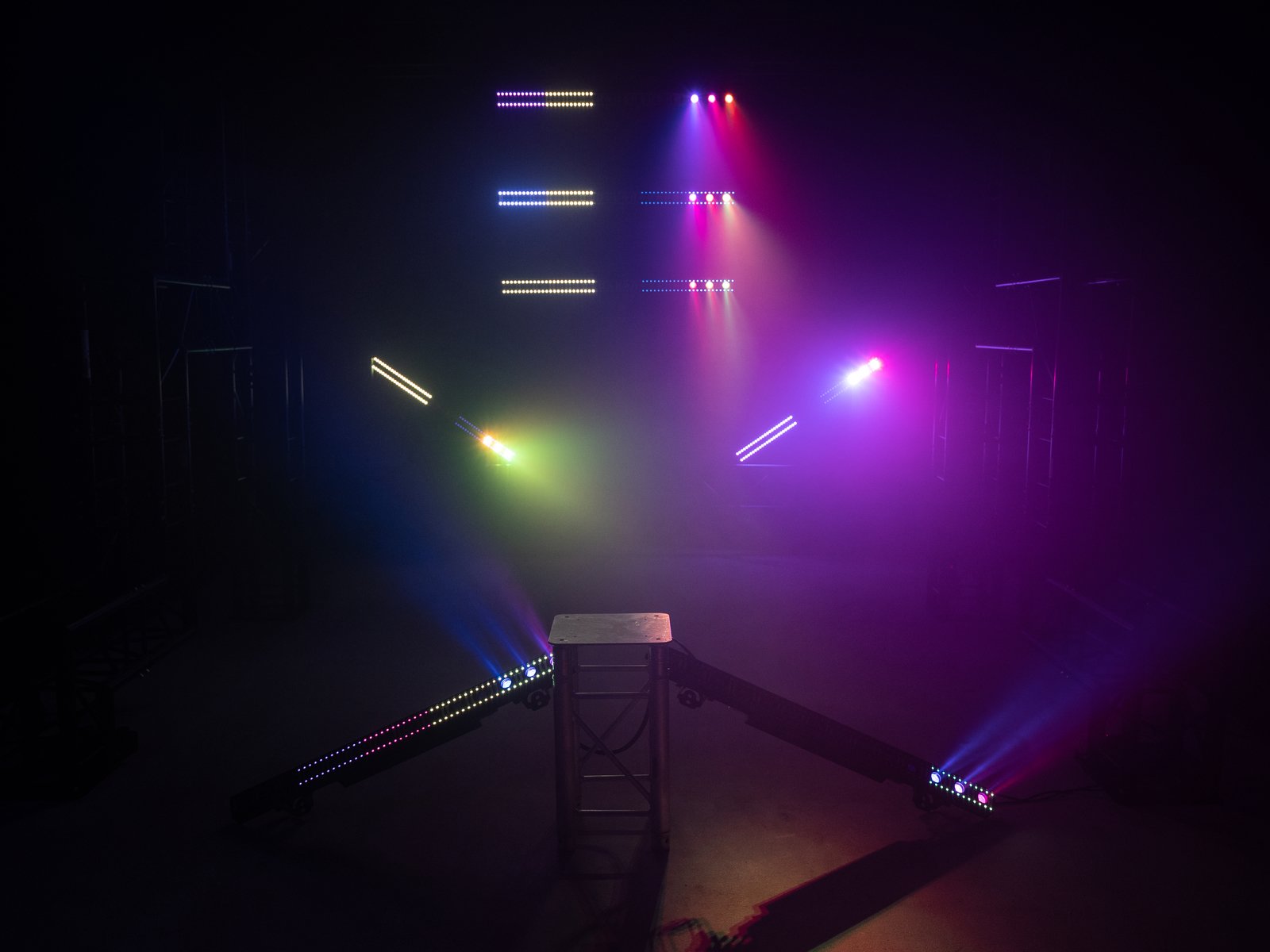

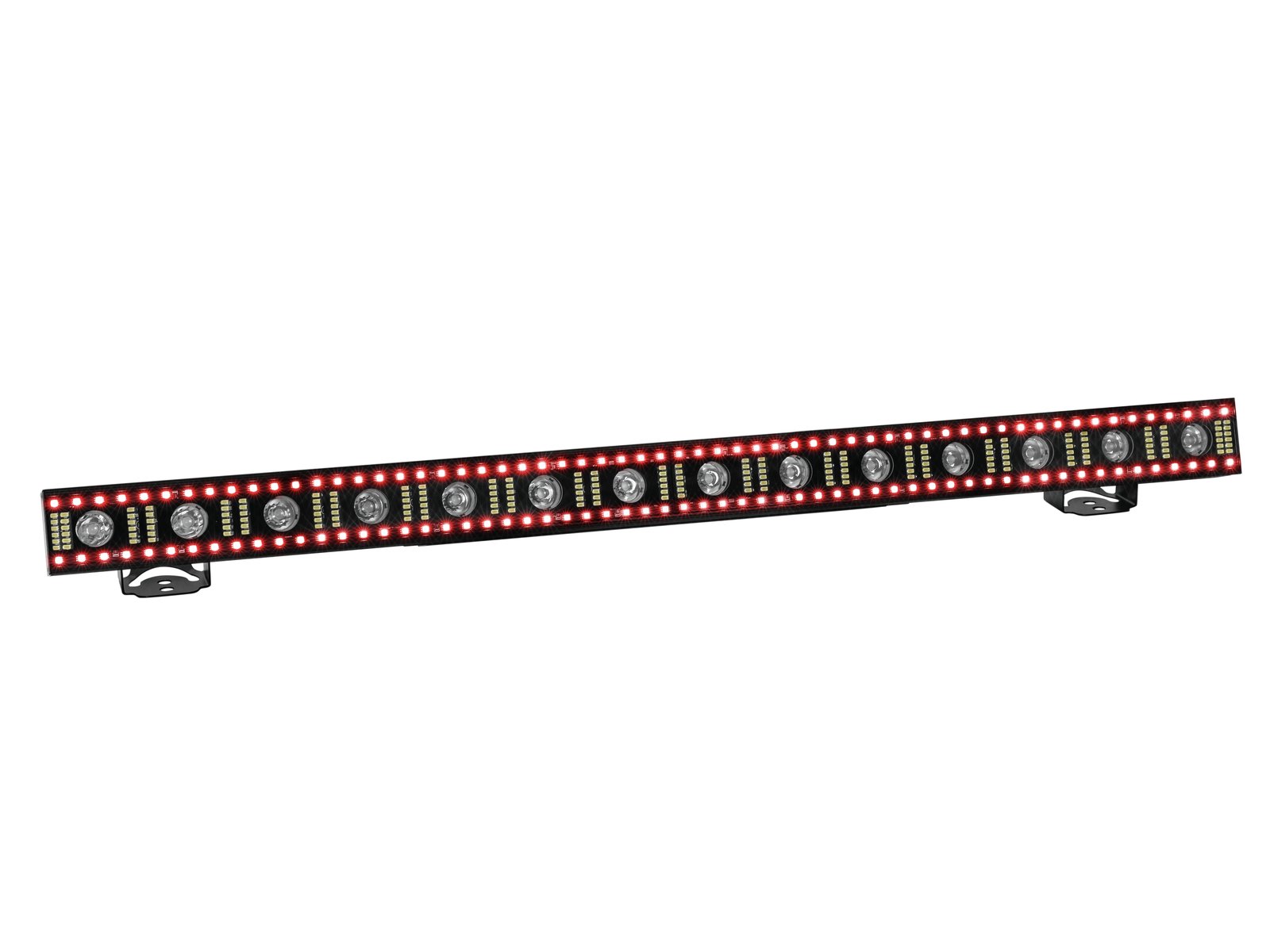

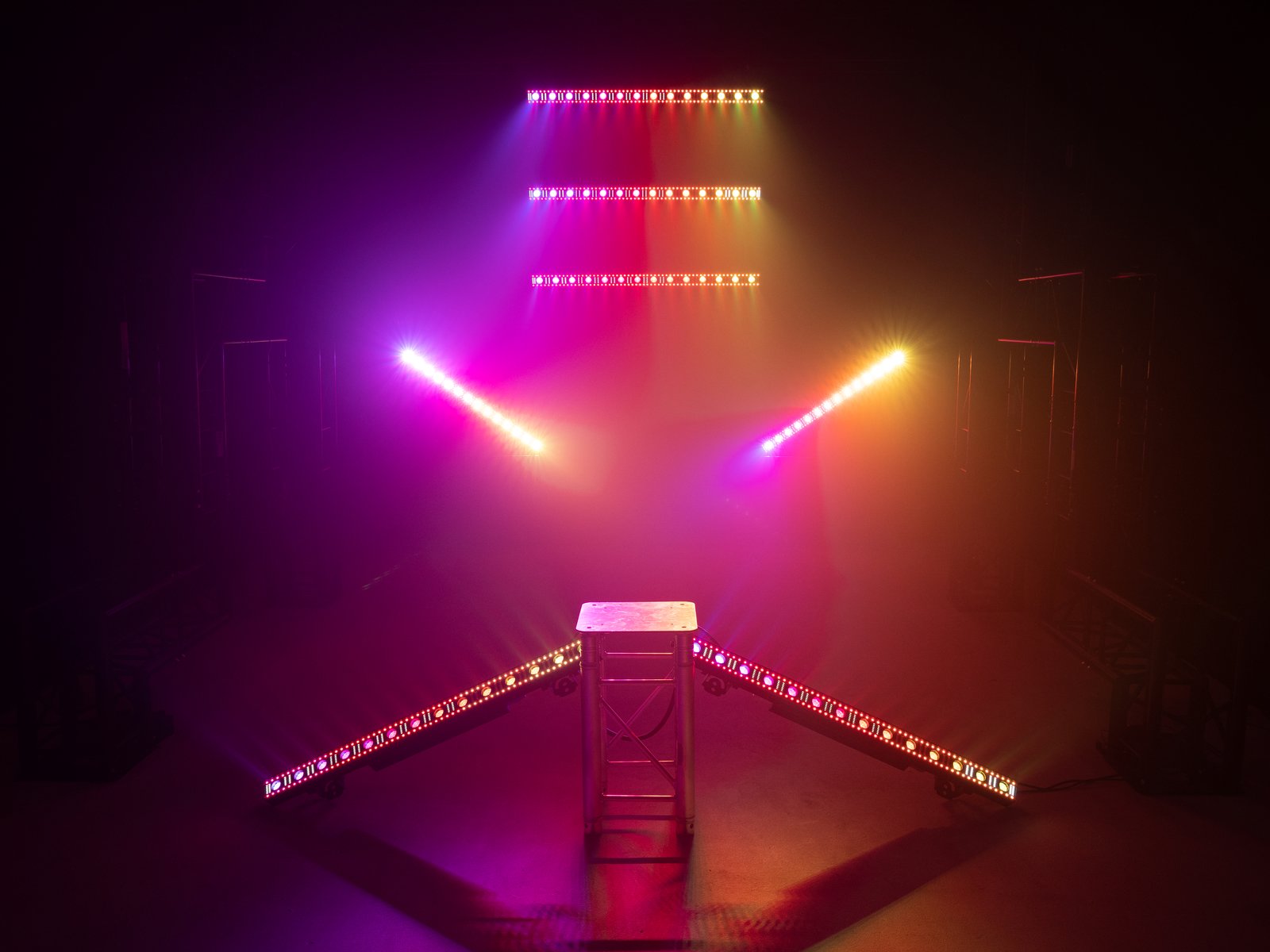

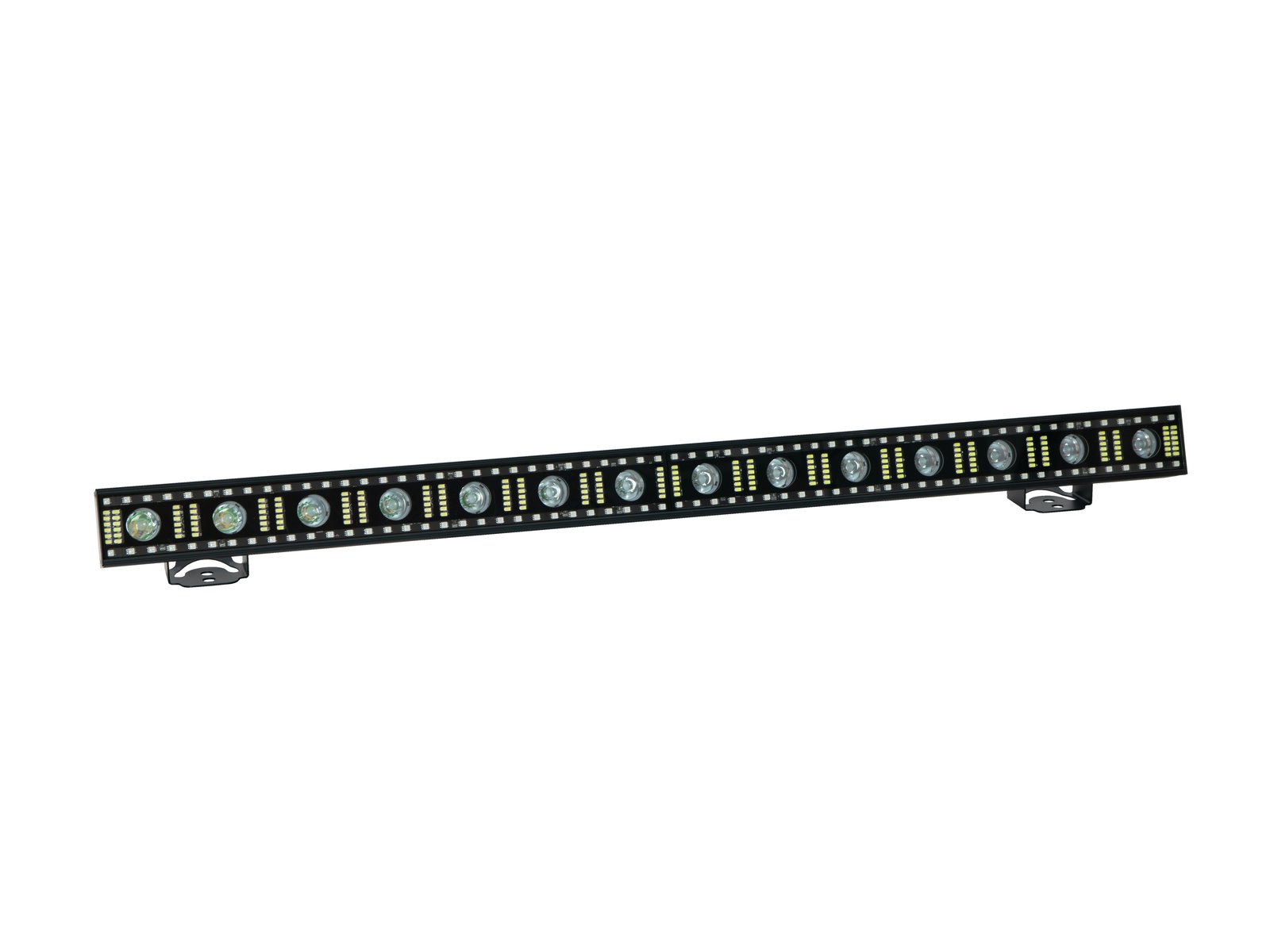

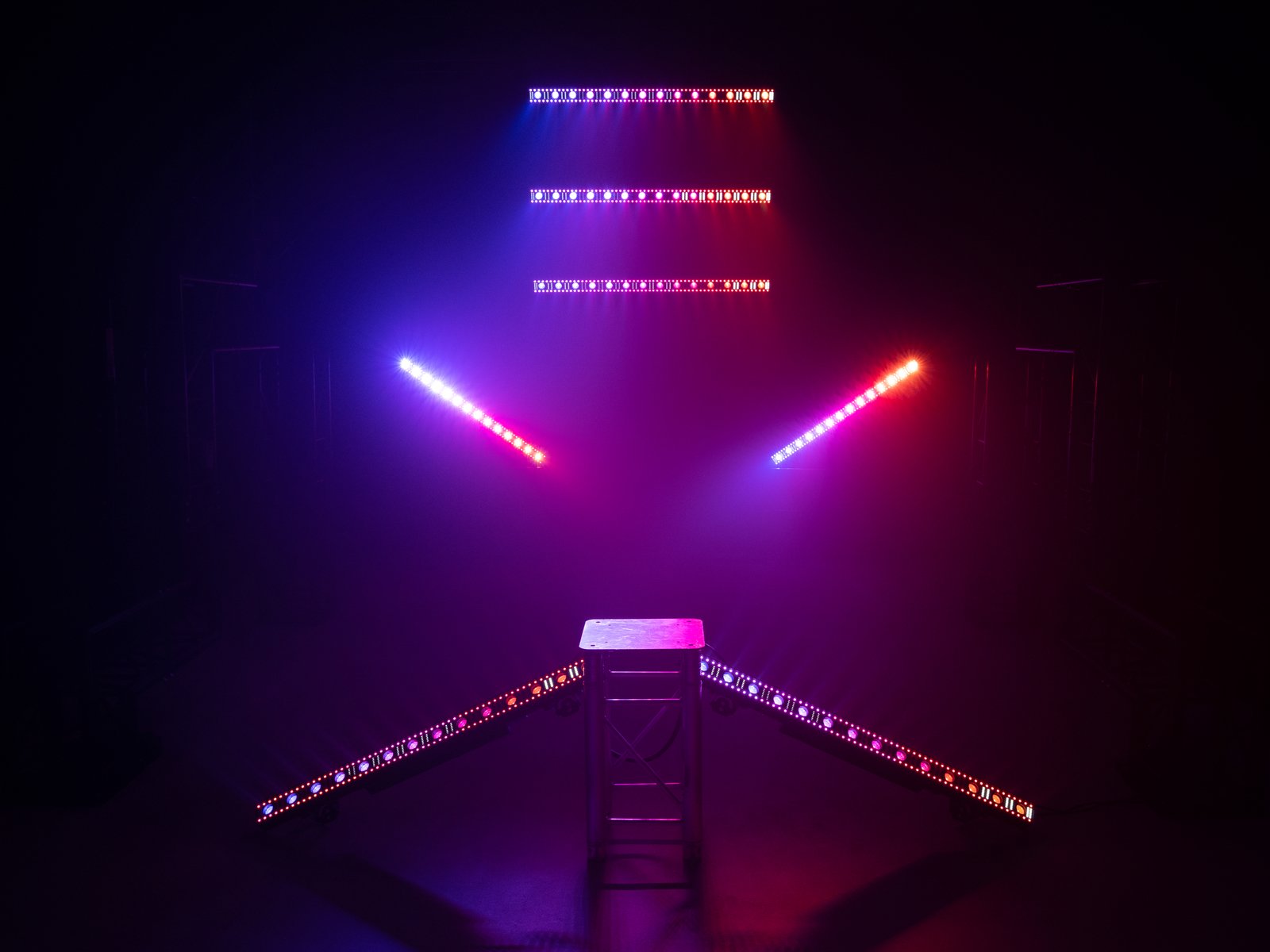

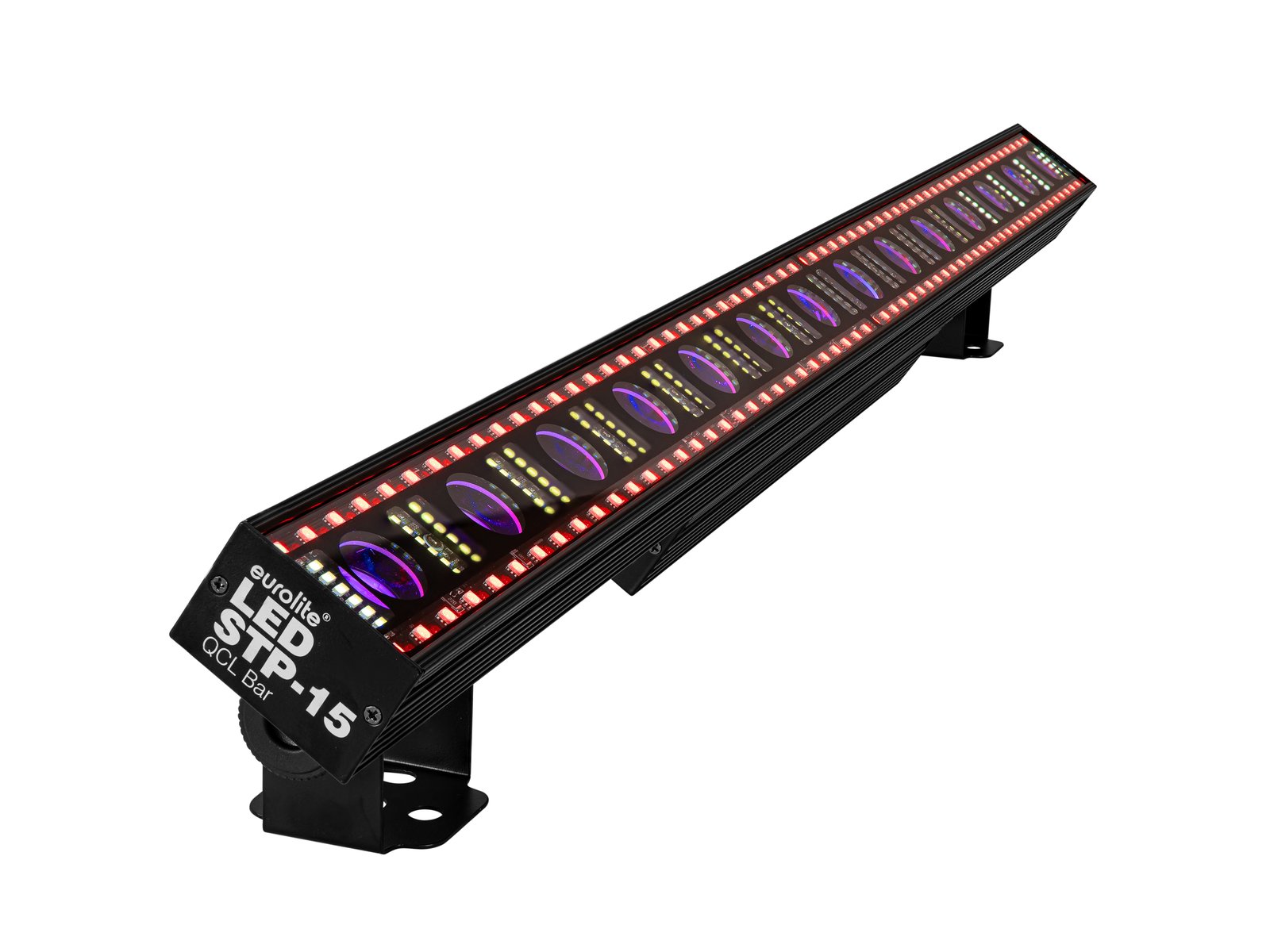

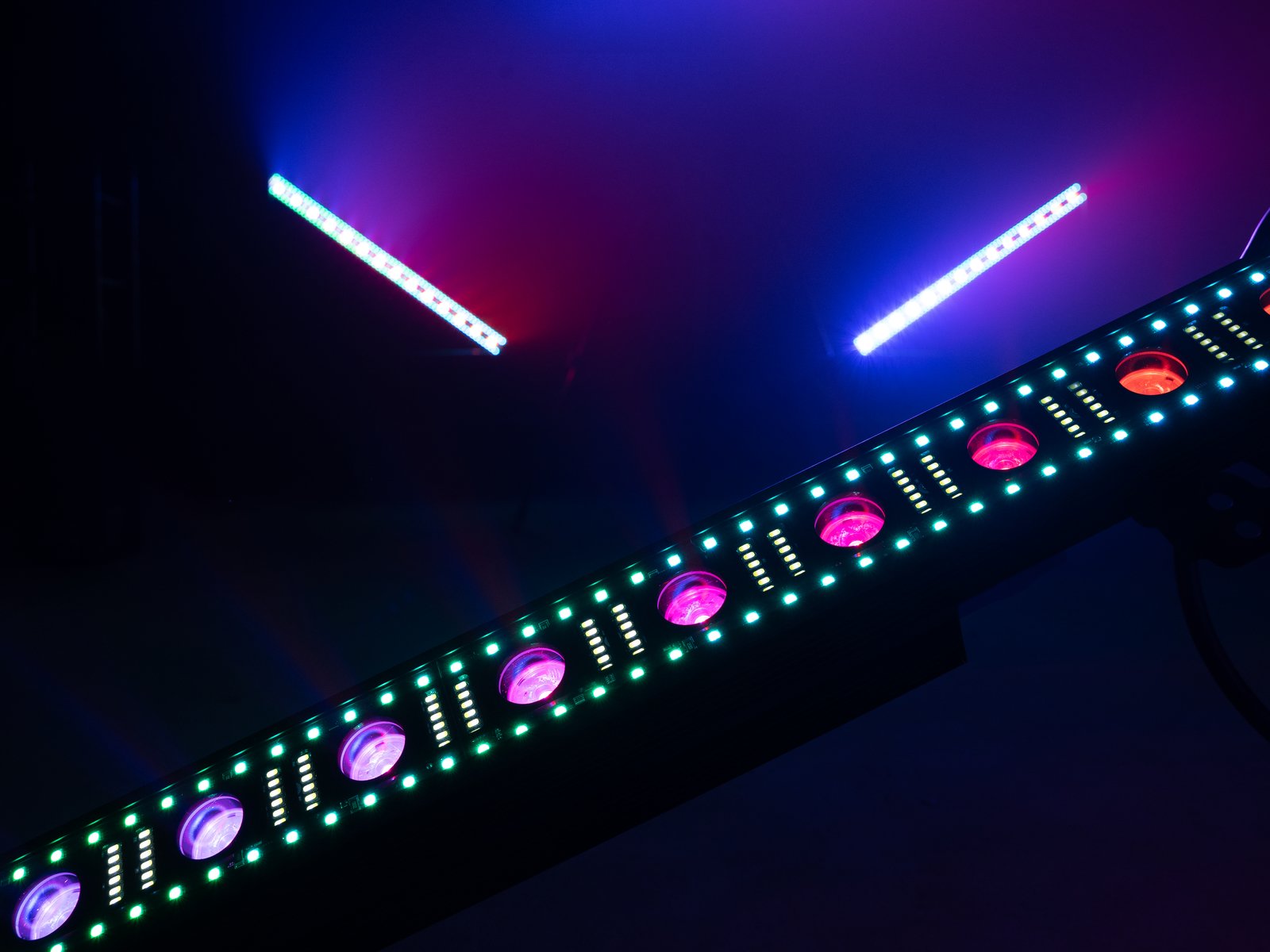

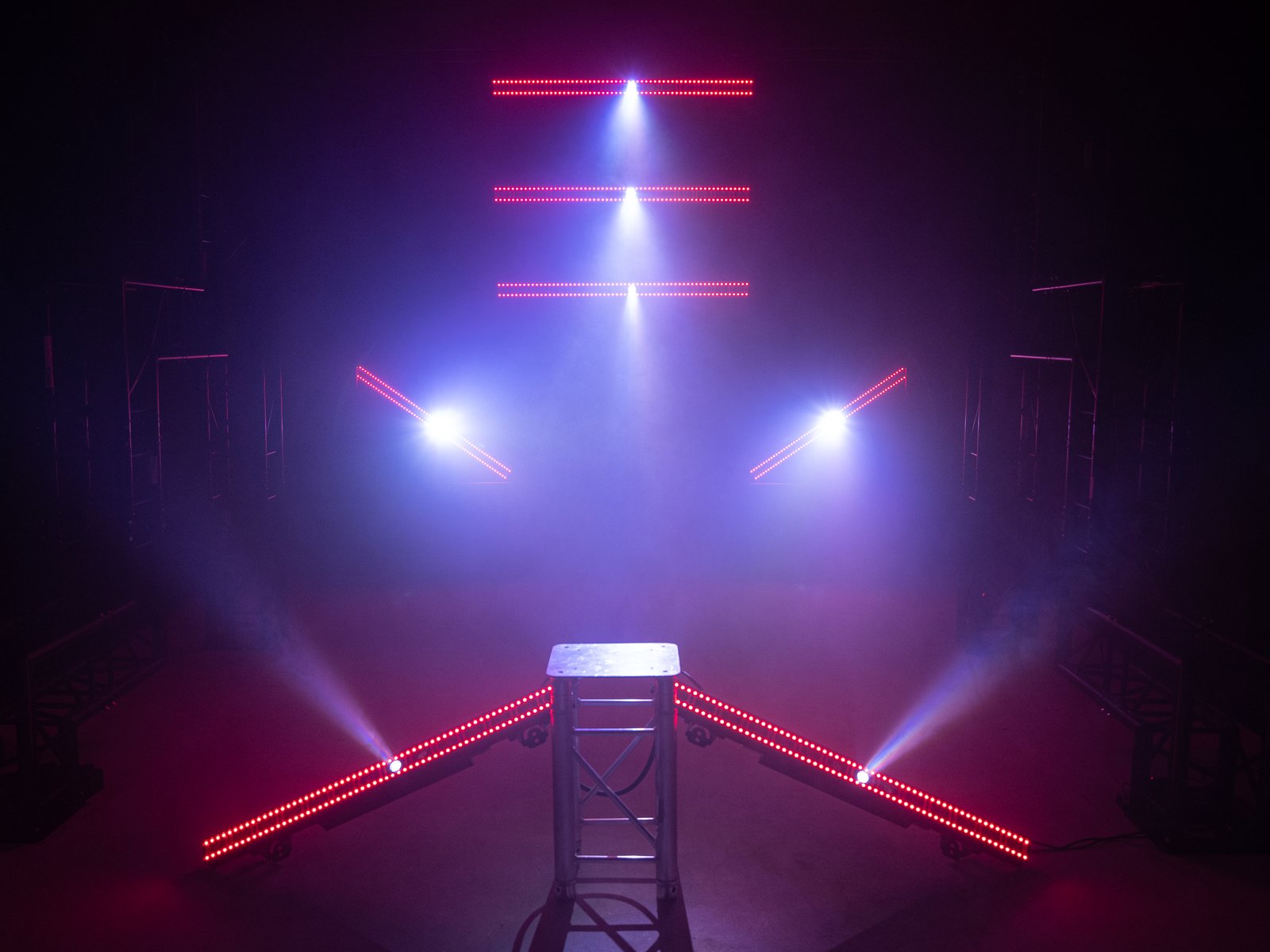

3in1 LED bar with RGBW beam effects, color animations and stroboscope

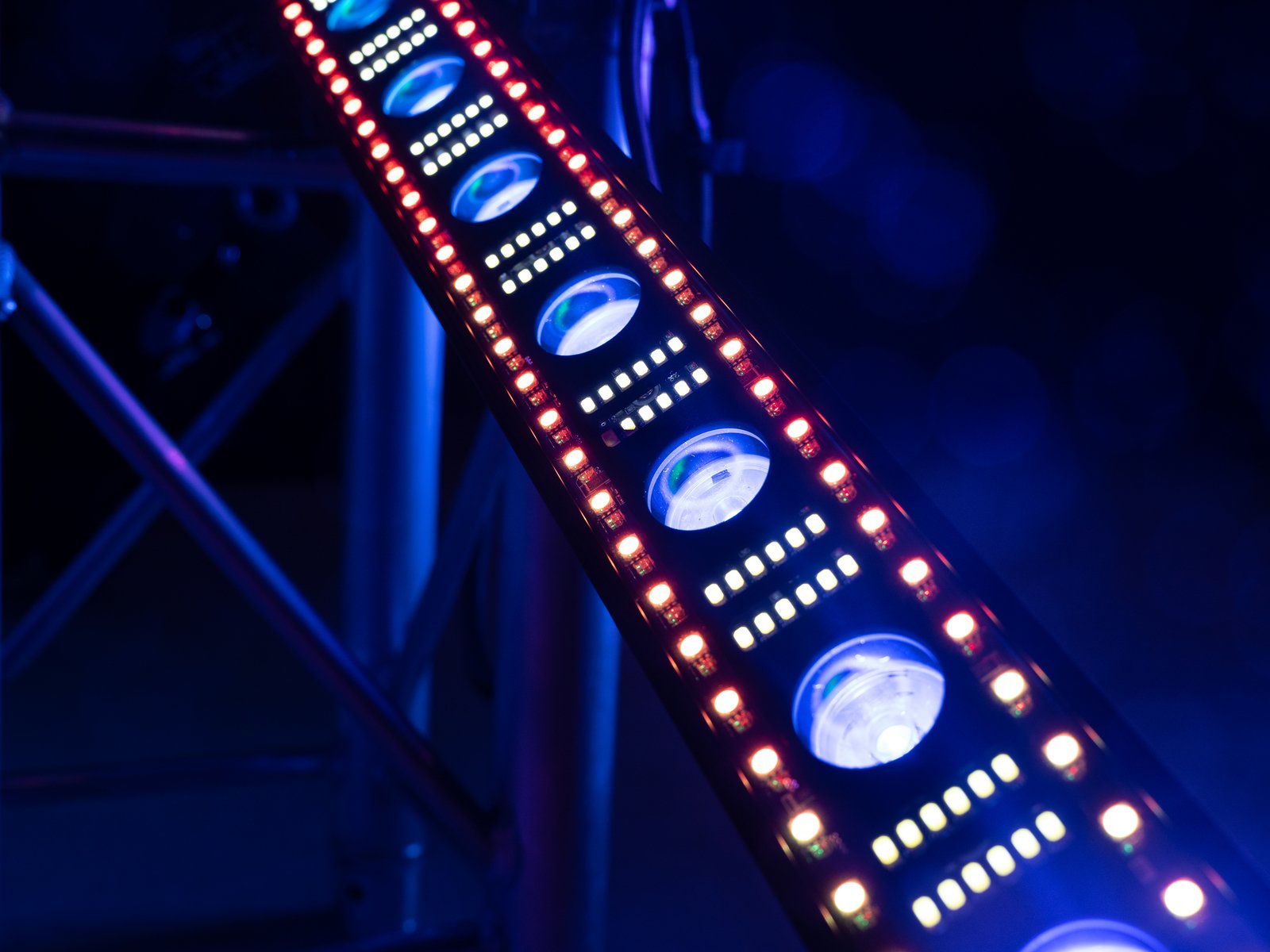

- 14 powerful LEDs 5 W high-power 4in1 QCL RGBW (homogenous color mix)
- 120 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
- 180 powerful LEDs SMD 5730 cold white (CW)
- Color blend stepless; running light adjustable; colors preset; Dimmer electronic; background color adjustable; color macros adjustable
- Strobe effect
- 7 integrated show programs
- Direct color selection for 38-42 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; sound to light via microphone; master/slave function; DMX
- Flicker-free
- With a beam angle of 10°

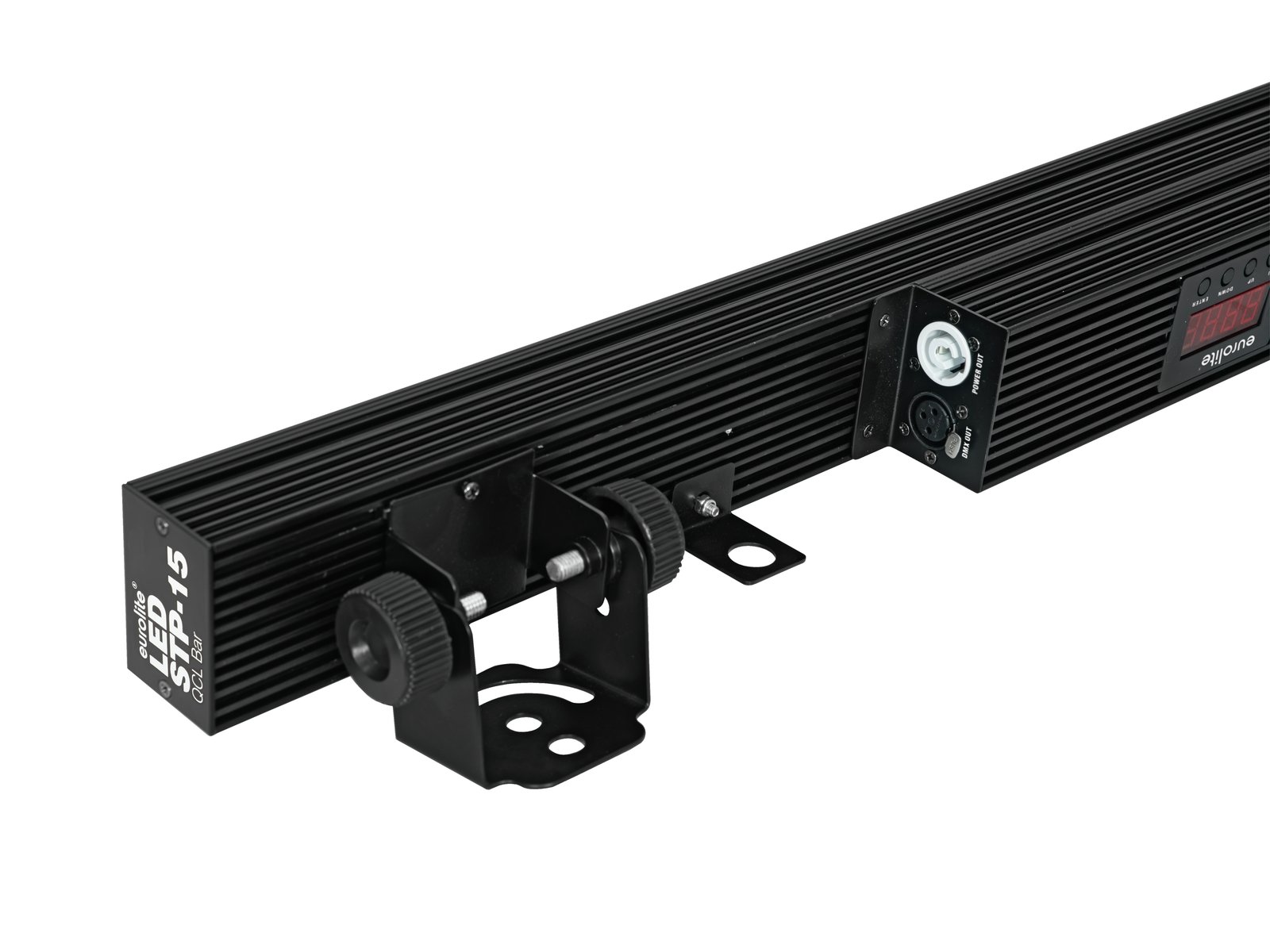

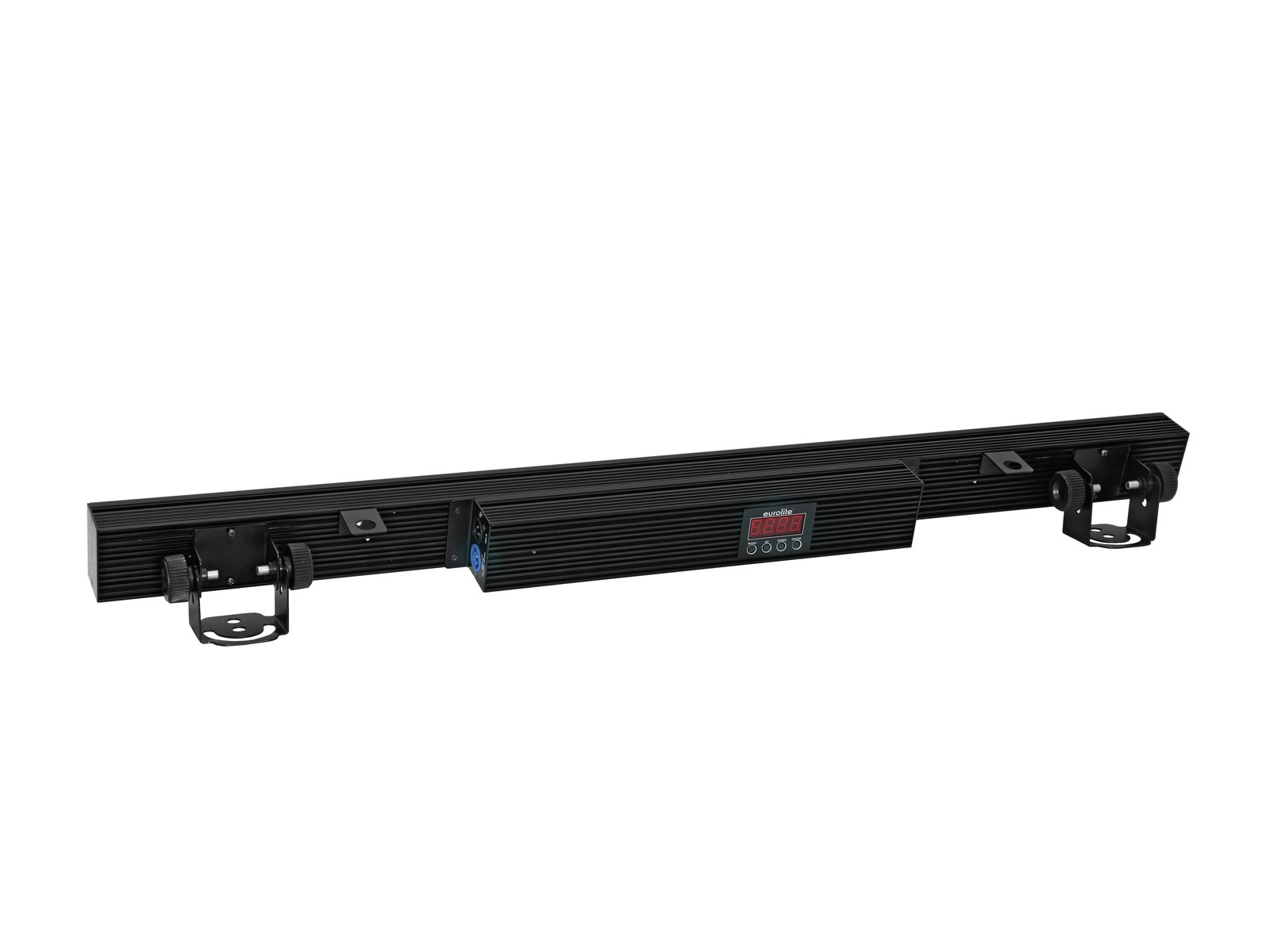

- With mounting bracket

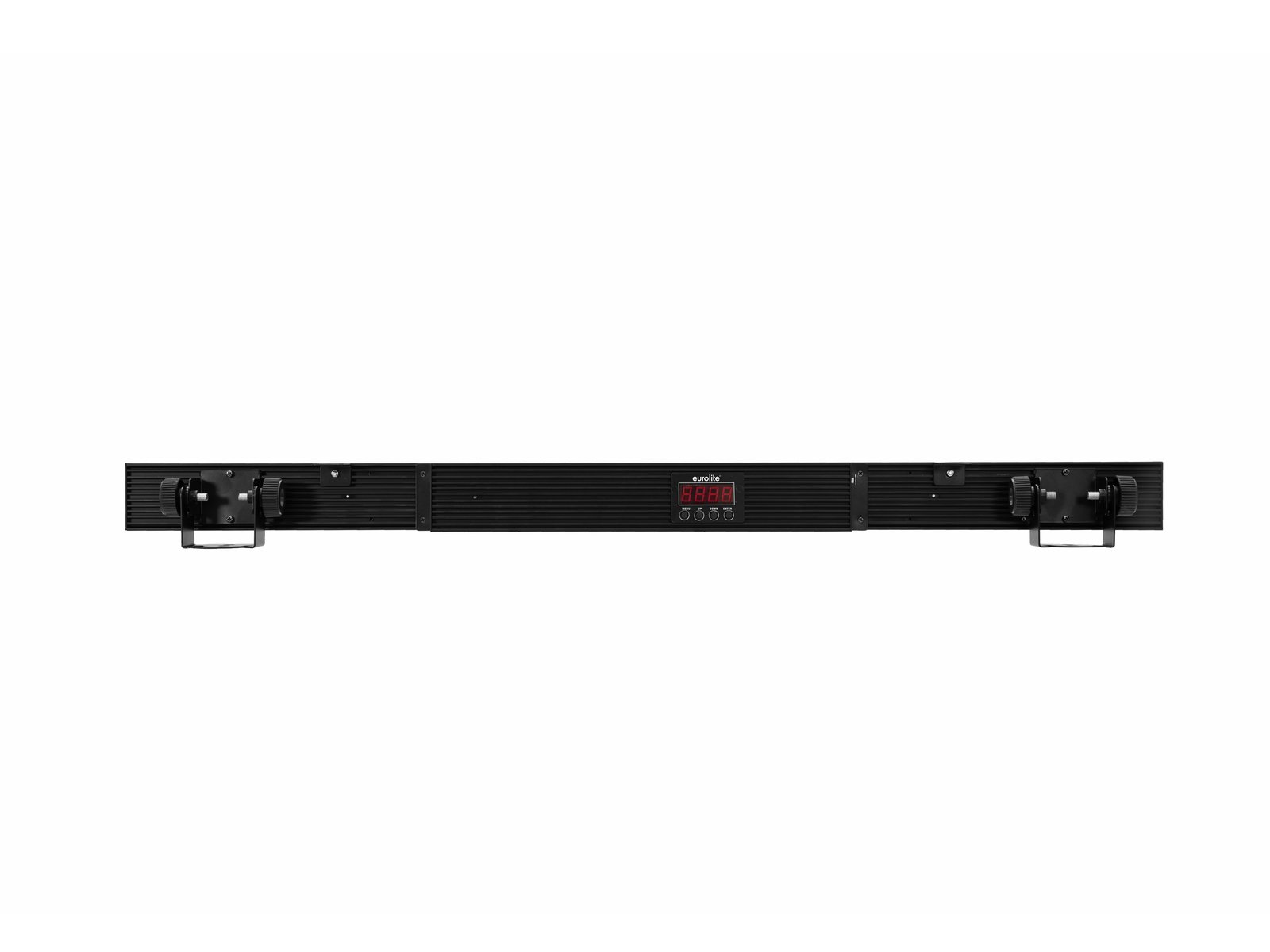

- 4 digit 7-segment LED display
- Preprogrammed in Light Captain
- Mains input and output for power linking up to 8 units
- Built with SEETRONIC connector

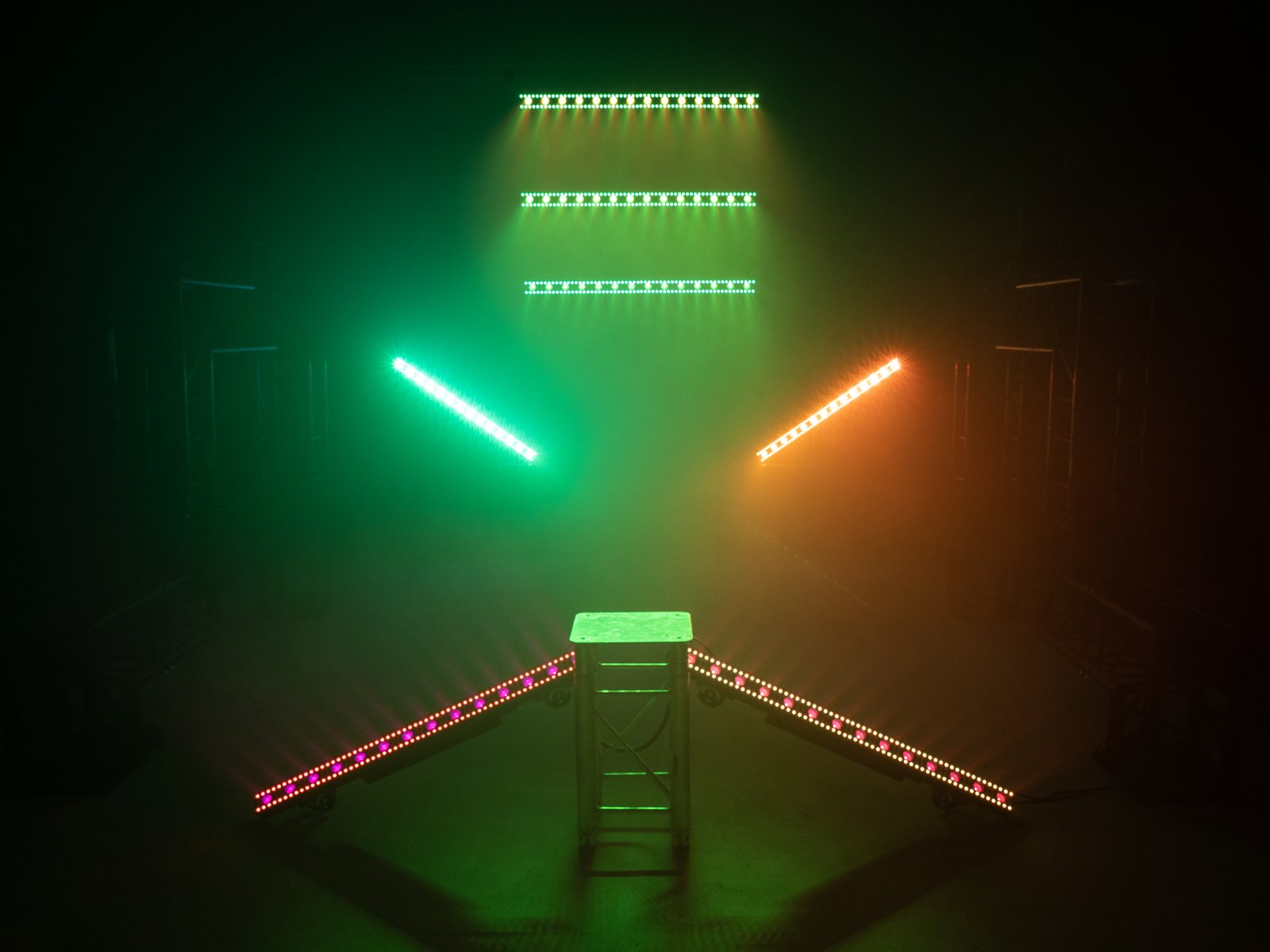

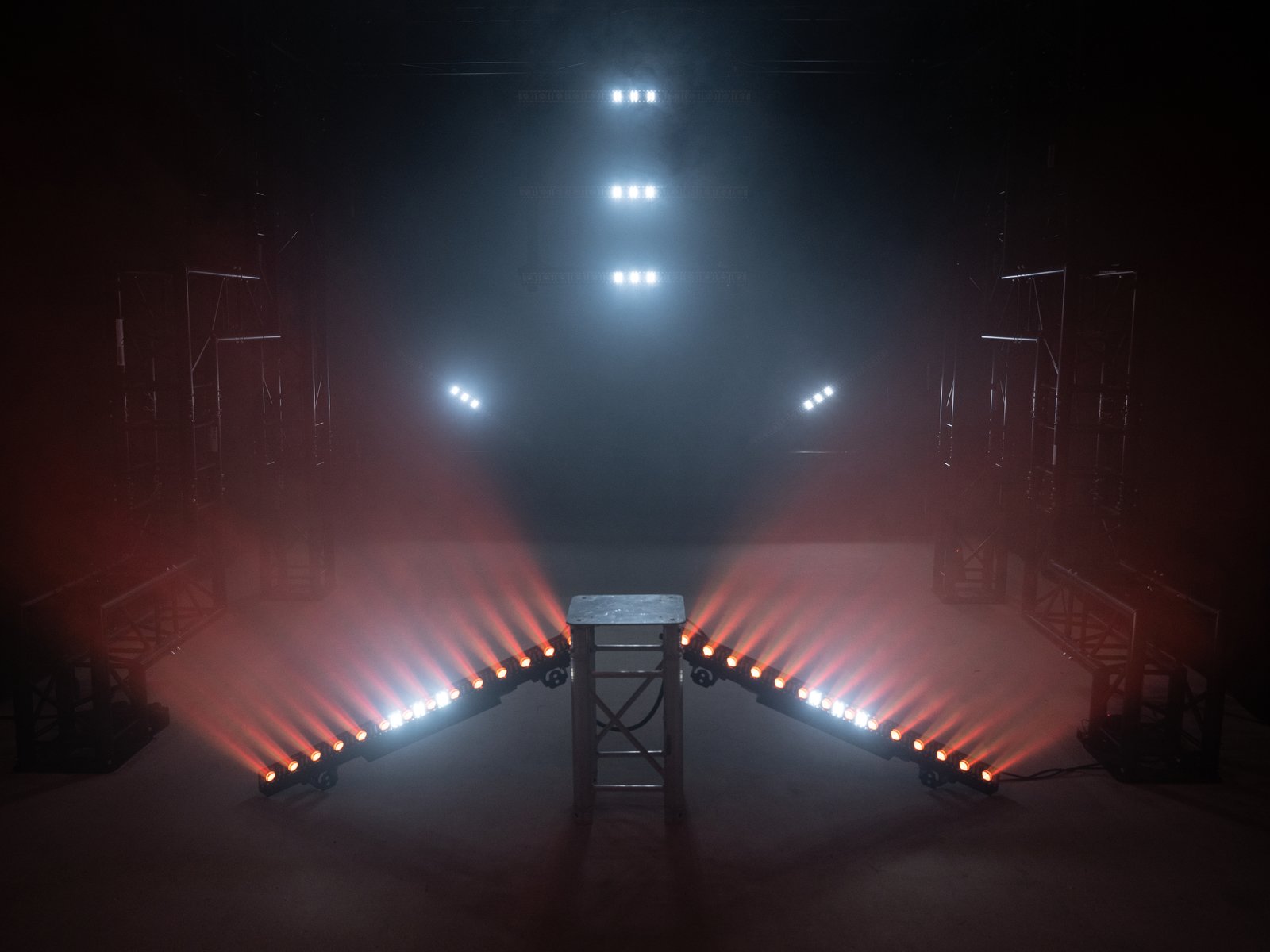

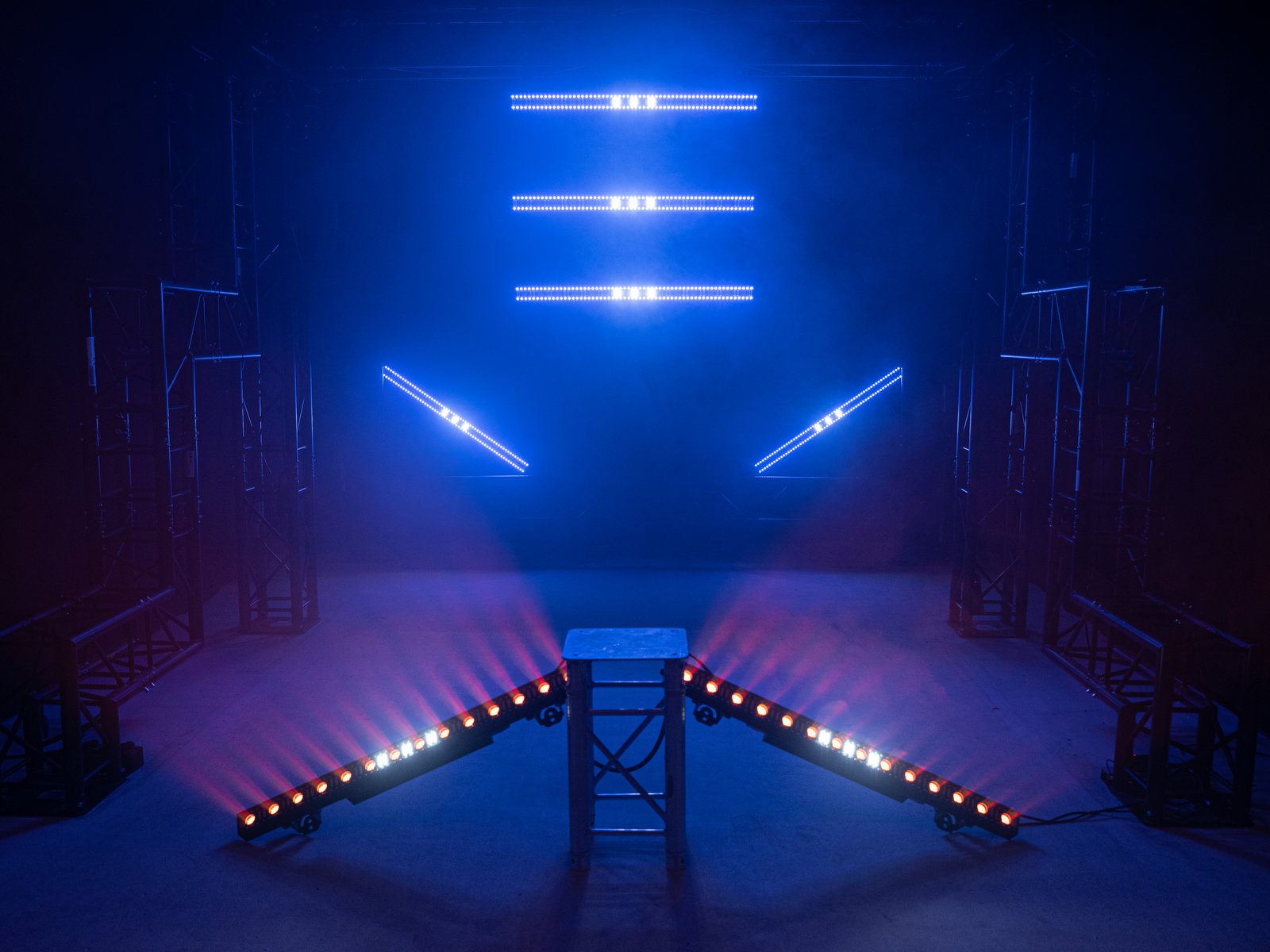

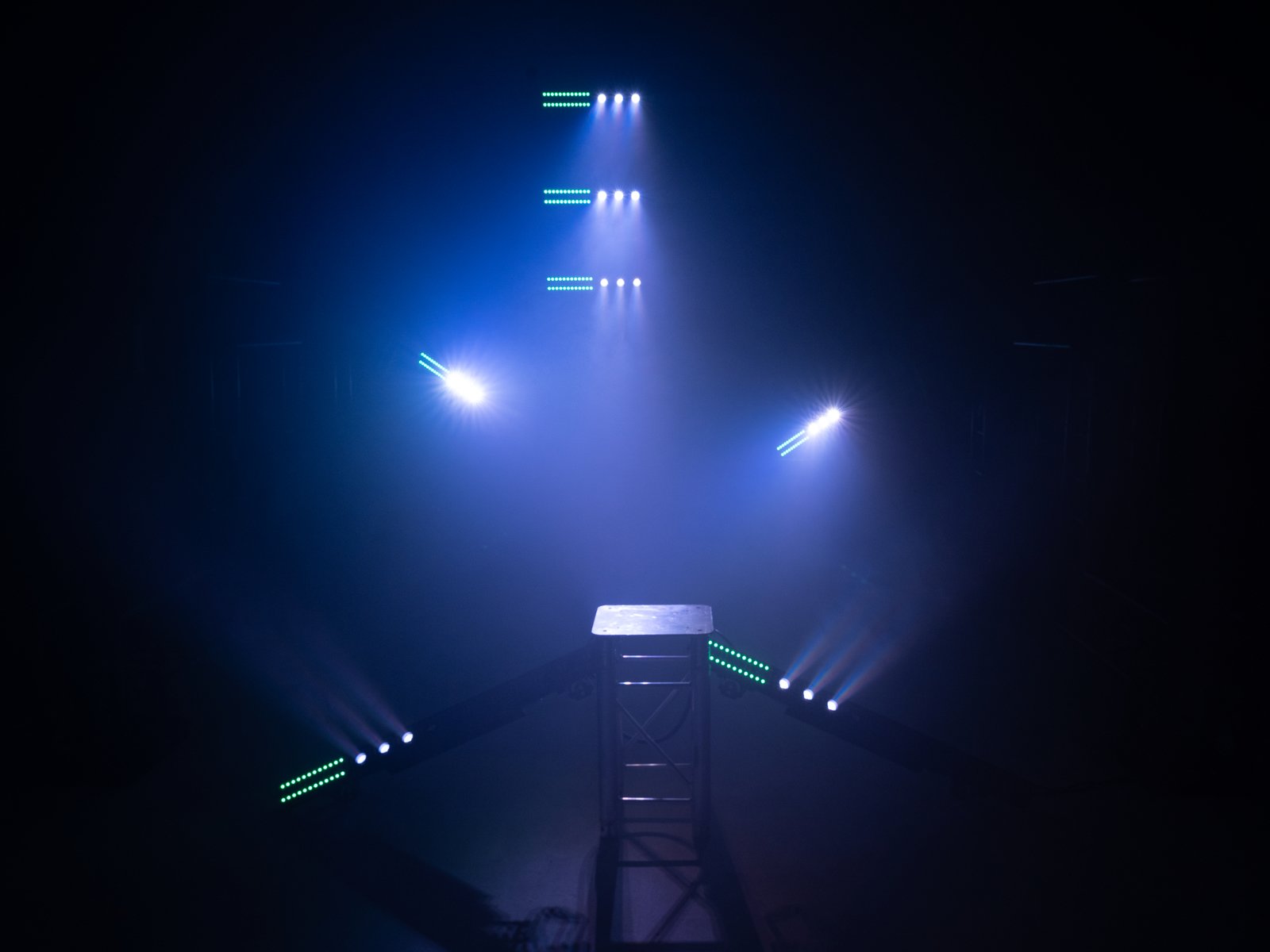

- For application areas such as: Clubs/dancing school; installation; stage; restaurants, bars and hotels
- Silent operation
- Application possibility: Suspended; wall mounting
Package contents
- 1 x light effect, 1 x user manual, 1 x power cord
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 120 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |

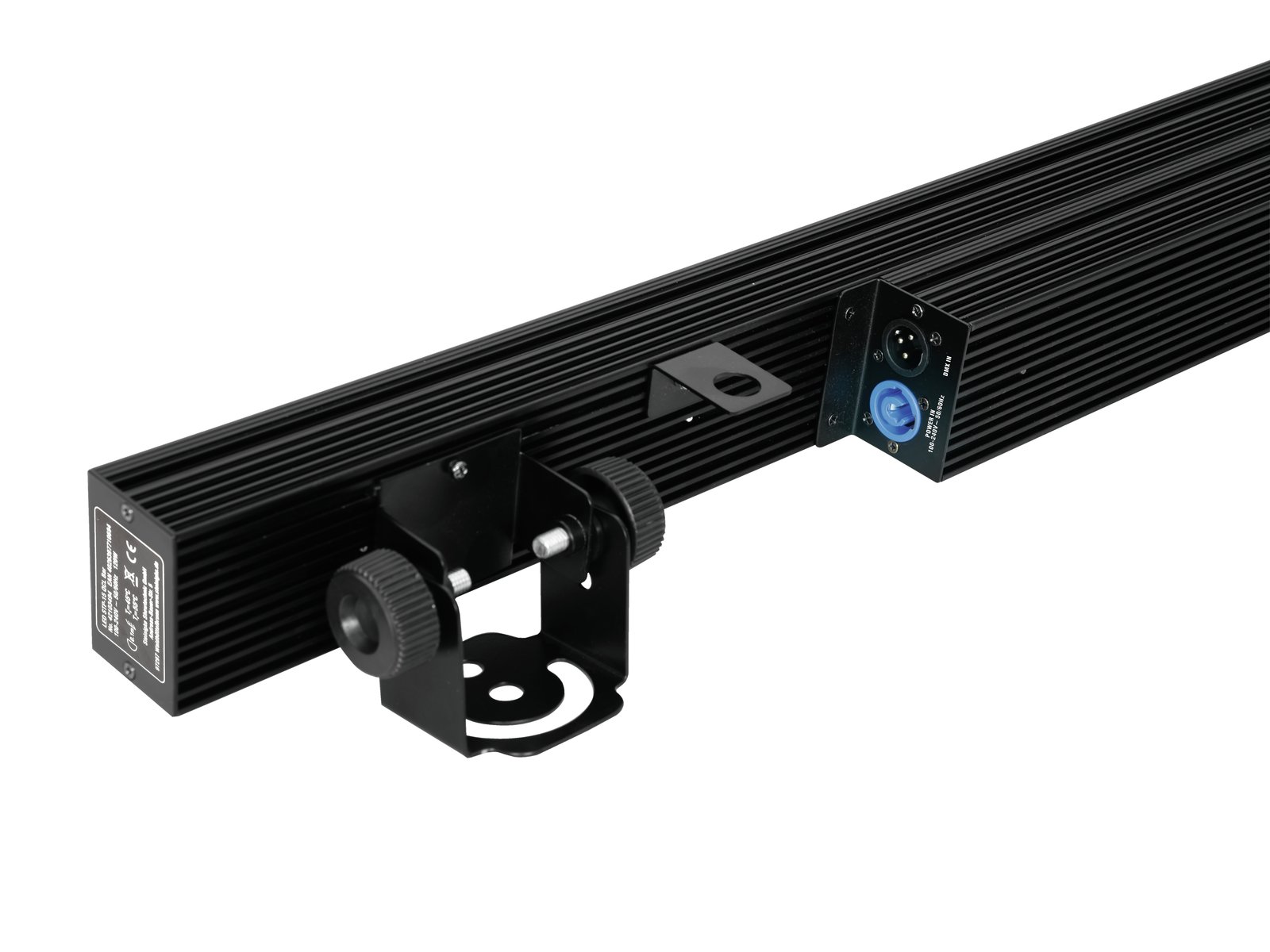

| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Lamp type: | LED lamp |
| LED type: | 14 x 5 W high-power 4in1 QCL RGBW (homogenous color mix) 120 x SMD 5050 3in1 TCL RGB (homogenous color mix) 180 x SMD 5730 cold white (CW) |
| Flash rate: | 0 – 20 Hz |
| DMX channels: | 9; 11; 17; 19 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; sound to light via microphone; master/slave function; DMX |
| Preprogrammed in: | Light Captain |
| Projection: | Flicker-free |
| Beam angle: | 10° |
| Beam angle (1/2 peak): | Beam 10° Ambient light 120° |
| Beam angle (1/10 peak): | Beam 20° |
| Housing color: | Black |
| Attachment system: | 2x mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Use of brands: | Built with SEETRONIC connector |
| Dimensions: | Length: 1 m Depth: 6,7 cm Height: 12,0 cm |
| Weight: | 3,96 kg |
| Noise classification: | Class 0 (no noise at all) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397710694 | 4,48 kg | 105cm x 12,5cm x 16cm |
