Description
The LED Strobe SMD PRO 540 DMX RGB combines three functions in one fixture: It is equipped with 540 bright RGB SMD LEDs for both dynamic strobe effects and slower blinder effects.

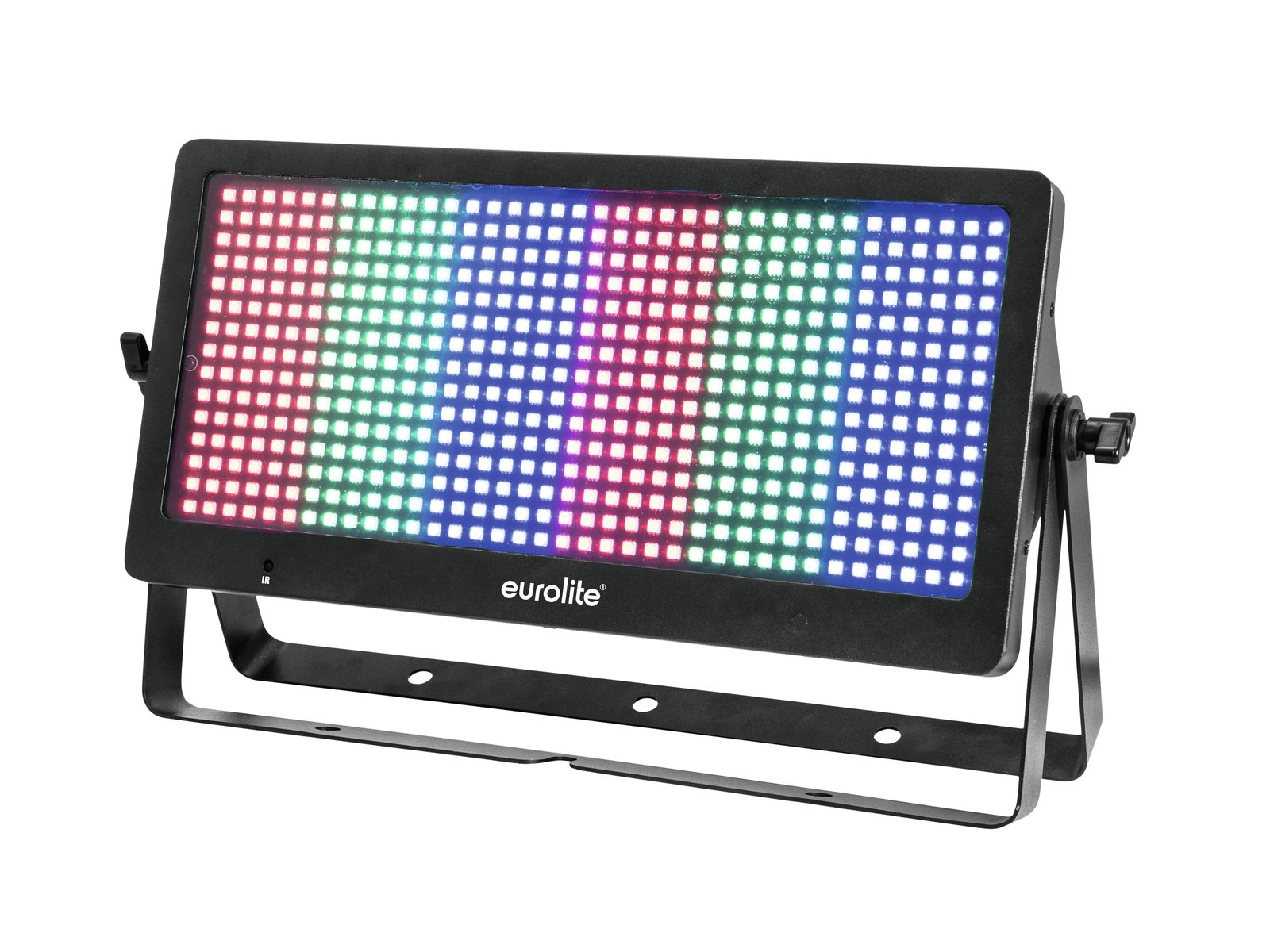

Depending on the selected DMX mode, the color LEDs can be split in up to 6 individual control segments which can be used to create amazing color effects. You can choose from 17 preset colors. The built-in SMD LEDs are flicker-free and therefore the effect can also be used in a TV studio.
The fixture has 3-pin DMX connectors as well as a P-Con input and output to connect it to the mains. For a structured and versatile use, you can choose from 8 different DMX modes with 2, 3, 4, 5, 7, 9, 18 or 22 DMX channels respectively. Addressing and settings can be made via the built-in control unit or from a distance via the included IR remote control.
Features
Multifunctional strobe/flood/blinder with 540 bright SMD RGB LEDs
- 540 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
6 segments controlled separately - Strobe effect; wash effect; Blinder effect
- 5 integrated show programs
- Direct color selection for 17 preset colors
- Control via stand-alone; DMX; IR remote control; sound to light via microphone; master/slave function
- Flicker-free
- With double bracket
- 4 digit 7-segment LED display
- Color blend stepless; Dimmer electronic
- Preprogrammed in Light´J; LED PC-Control 512; Light Captain
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; stage; mobile djs / entertainer; rental
- Very quiet working noise
- Application possibility: Standing; suspended; on stand
Package contents
- 1 x light effect, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 120 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x IEC connector (F) mounting version |
| Lamp type: | LED lamp |
| LED type: | 540 x SMD 5050 3in1 TCL RGB (homogenous color mix) |
| Flash rate: | 0 – 20 Hz |
| DMX channels: | 2; 3; 4; 5; 7; 9; 18; 22 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Control: | Stand-alone; DMX; IR remote control; sound to light via microphone; master/slave function |
| Preprogrammed in: | Light´J; LED PC-Control 512; Light Captain |
| Projection: | Flicker-free |
| Attachment system: | Double bracket |
| Display type: | 4 digit 7-segment LED display |
| Dimensions: | Width: 43 cm Depth: 6 cm Height: 25,5 cm |
| Weight: | 3,46 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397617528 | 3,81 kg | 45cm x 11cm x 33cm |
