Description
LED Strobe SMD Pro 864 DMX RGB by Eurolite
3in1: Strobe, Floodlight, Blinder
The new Eurolite Strobe Pro 864 is not only a very bright strobe: the device is capable of continuous light and can therefore also be used as a blinder or floodlight. It gets its light power from 864 SMD-5050 LEDs, which provide a potent light output and a particularly wide beam angle of 120 degrees. The color mixing is based on red, green and blue, from which countless other colors can be mixed. Even an aggressive cold white for stroboscopic tasks or a warm white for blinding effects are no problem.
Different DMX modes
Depending on the task, there are different DMX modes. In the smallest mode with 5 channels, the three colors can be controlled, the total brightness can be adjusted and the music mode as well as a simple strobe function can be activated. This mode is ideal when the spotlight is to be used as a blinder or floodlight.
Real all-rounder

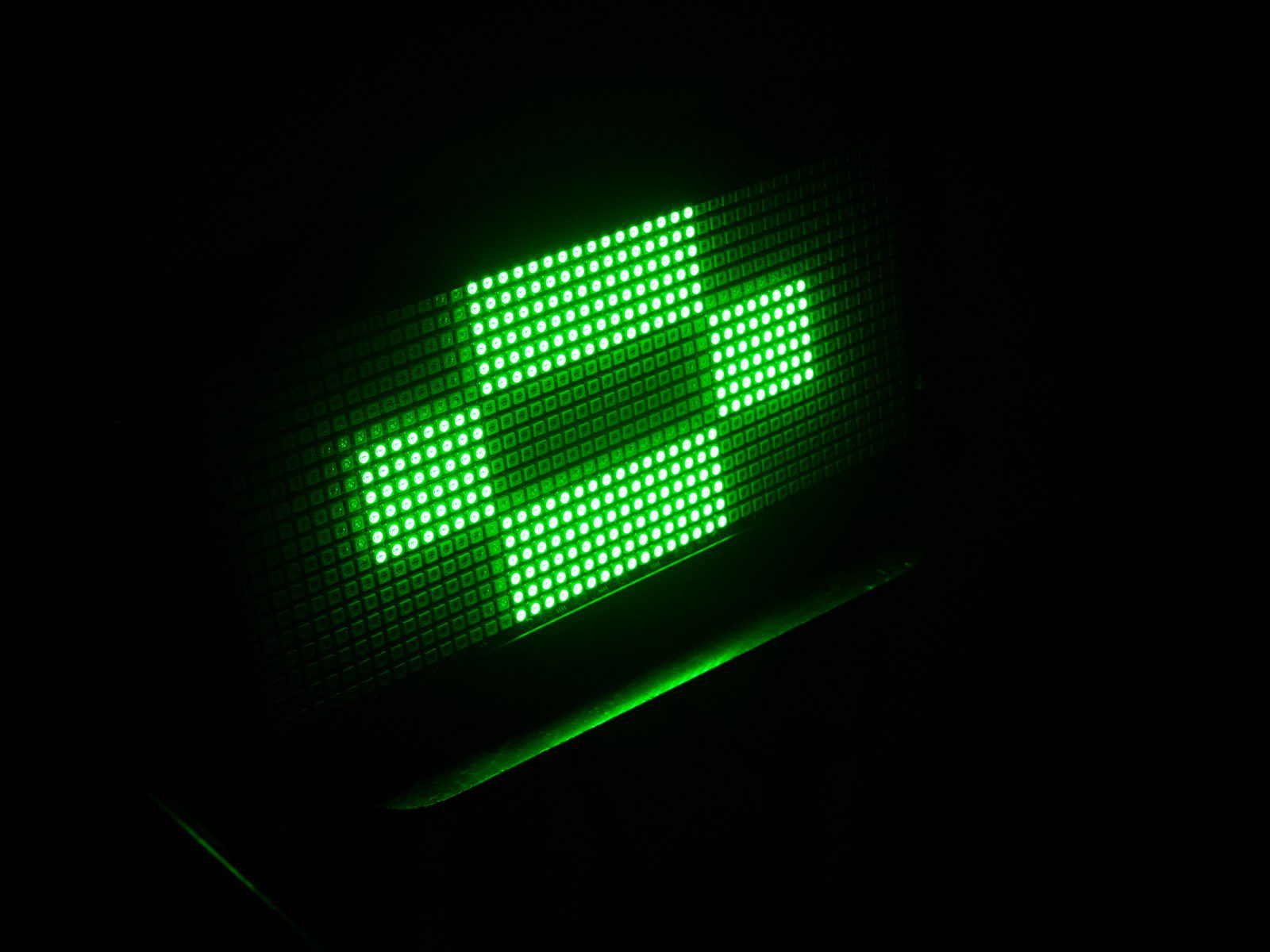

In the larger 9-channel mode, you have access to various strobe effects, can set not only the frequency but also the duration of each flash and call up various color programs. Ideal, therefore, for stroboscope use, but also for use as an all-round spotlight. Another special feature comes to full effect in the largest DMX mode: In this mode, 18 pixels can be controlled individually by means of 54 DMX channels. The device is therefore also ideal for matrix tasks.
Price-performance: top

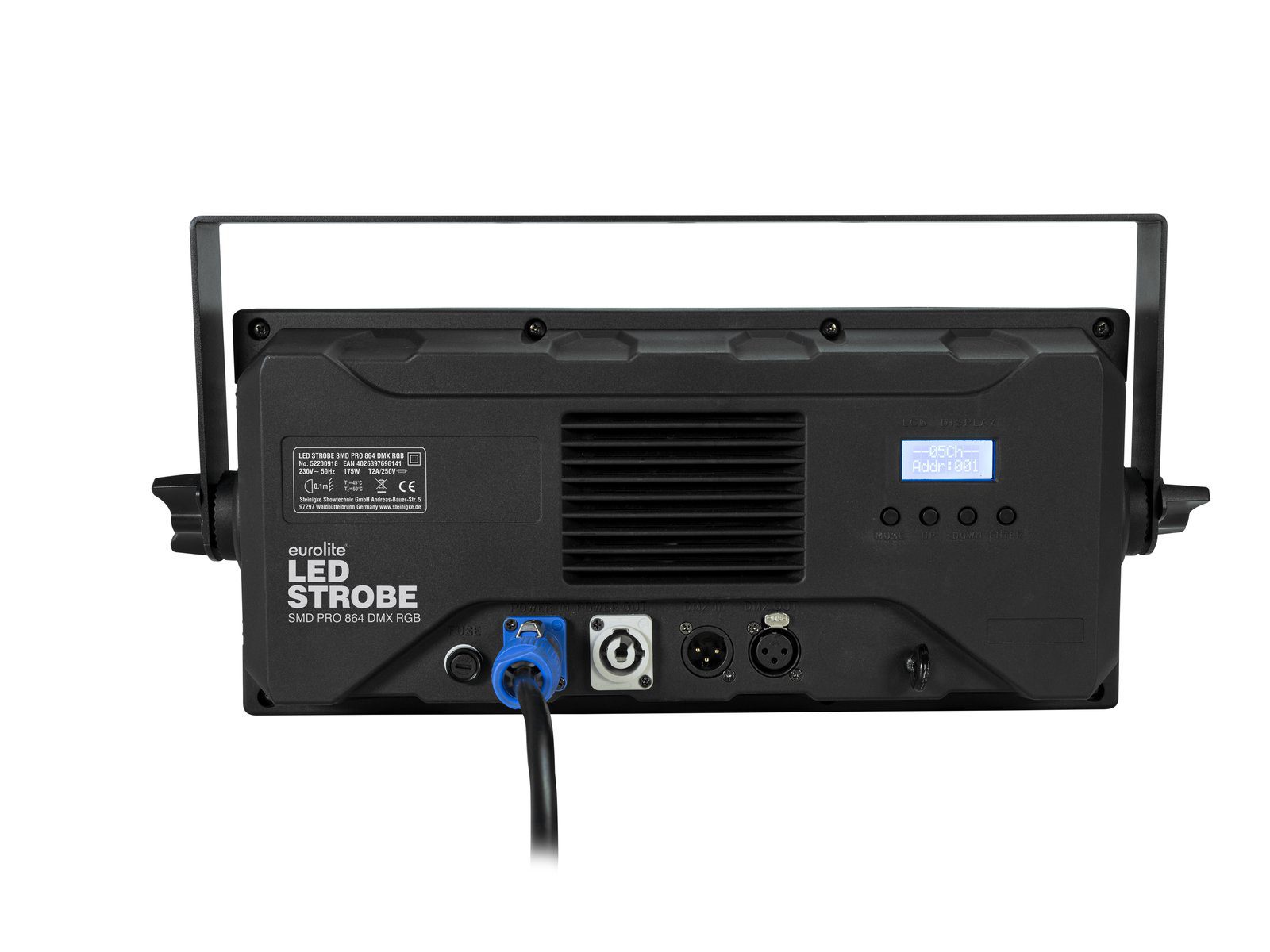

During development, Eurolite paid attention to creating a reliable spotlight that meets professional requirements, but does not deeply impact the wallet. The housing is simple in design, but high quality in workmanship and very robust. The brackets are stable and hold well in the set position. The power is fed in via a P-Con connector; up to 6 devices may be operated in series via the P-Con outputs.
Features
3in1 LED effect light with RGB color mixing
- 864 powerful LEDs 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
18 segments controlled separately - Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Strobe effect; wash effect; Blinder effect
- Integrated show programs
- The device is cooled by temperature-controlled fan
- Control via stand-alone; DMX; sound to light
- Flicker-free
- With mounting bracket
- Monochrome LCD display
- Preprogrammed in Light Captain
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; stage; mobile djs / entertainer; rental
- Very quiet working noise
- Application possibility: Suspended
Package contents
- 1 x light effect, 1 x power cord, 1 x user manual
Technical specifications
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 175 W |
| IP classification: | IP20 |
| Protection class: | Protection class II |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Fuse: | T 2 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 864 x 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix) |
| DMX channels: | 5; 13; 54 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | Stand-alone; DMX; sound to light |
| Preprogrammed in: | Light Captain |
| Projection: | Flicker-free |
| Beam angle (1/2 peak): | 120° |
| Attachment system: | Mounting bracket |
| Display type: | Monochrome LCD display |
| Dimensions: | Width: 46,0 cm Depth: 13,5 cm Height: 22,5 cm |
| Weight: | 4,51 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397696141 | 5,17 kg | 47cm x 27,5cm x 19,5cm |
