Description

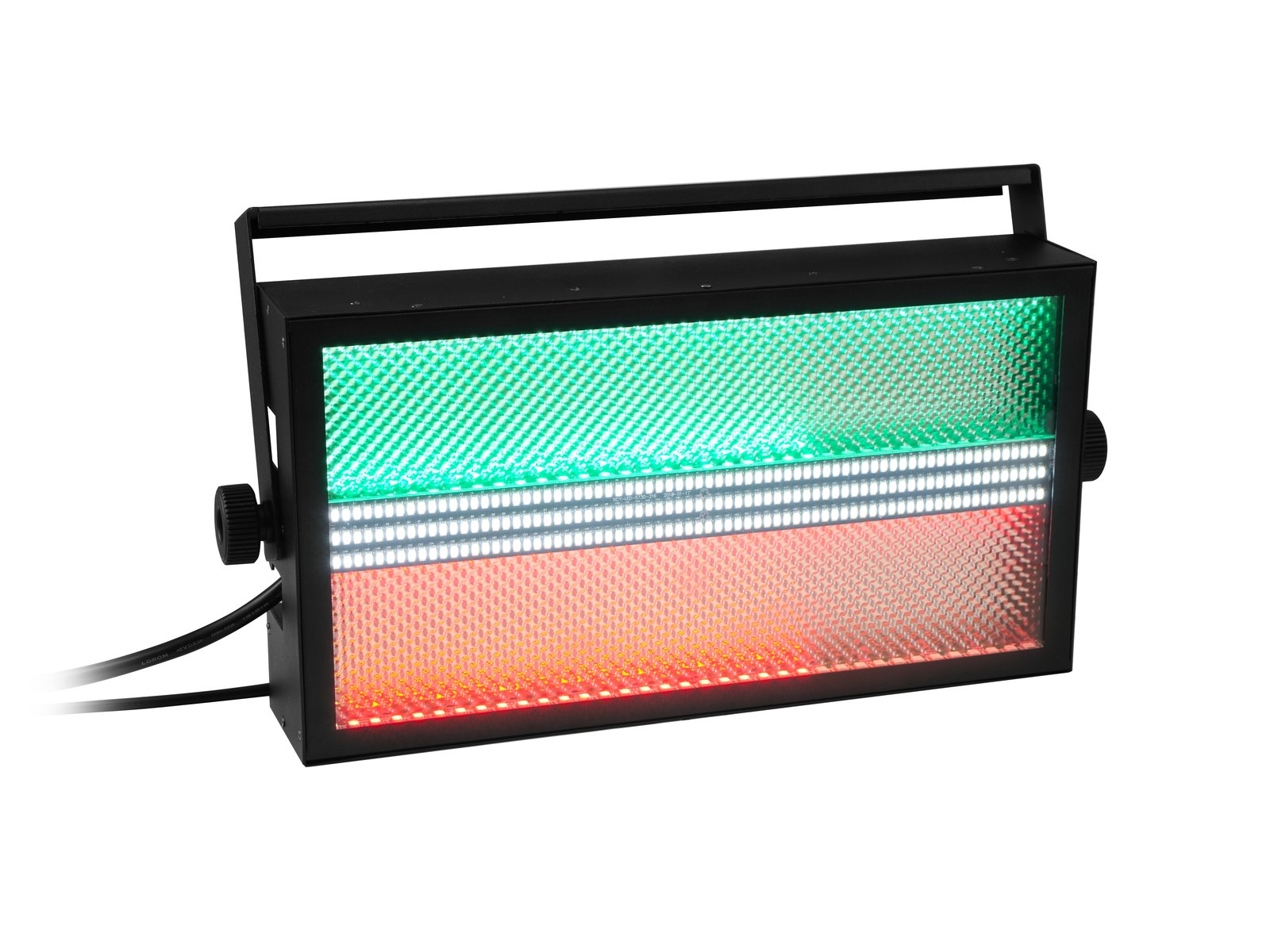

Eurolite LED Super Strobe ABL
I want it all! Strobe and Ambient Light in one device

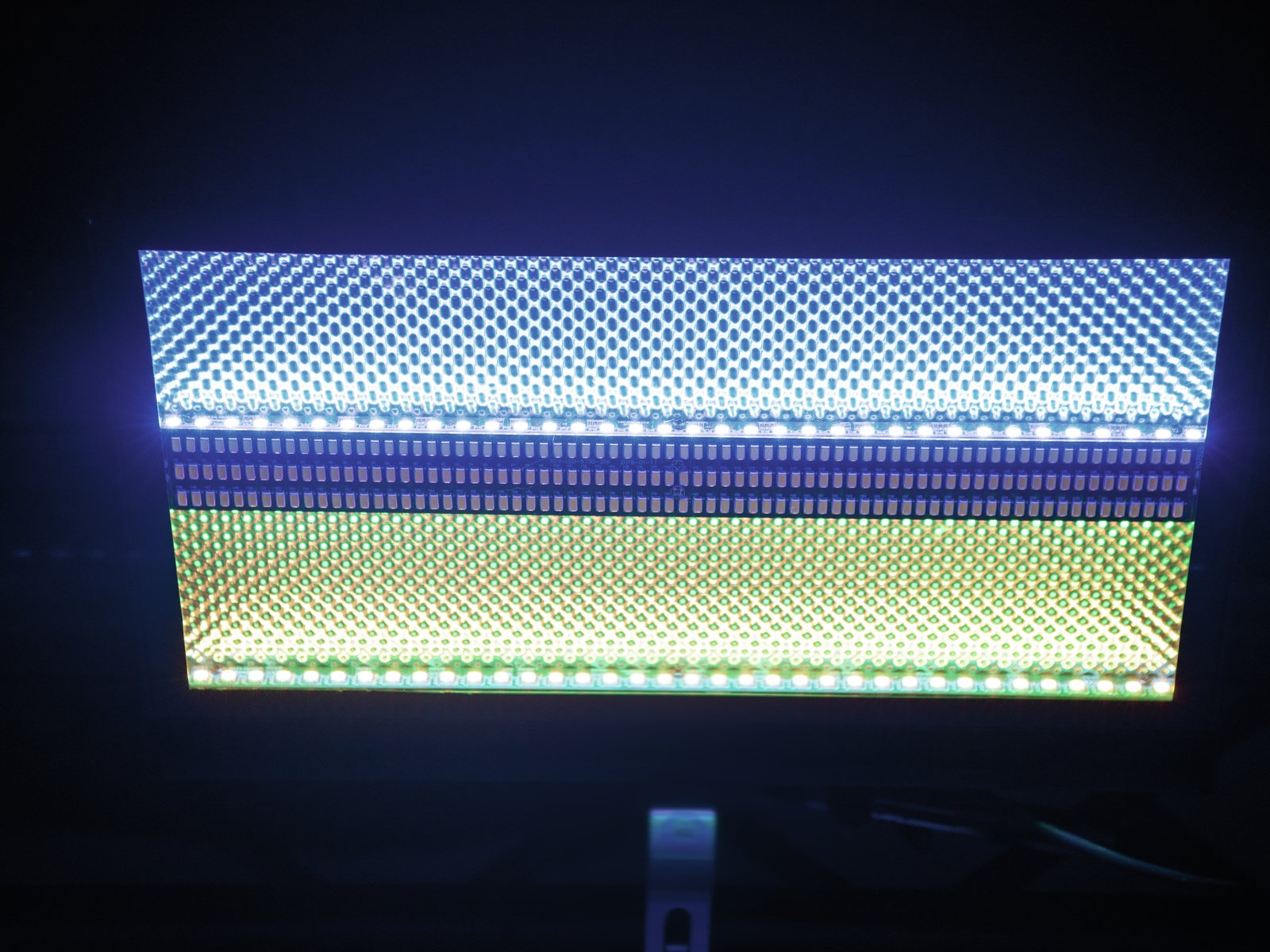

Why only use a stroboscope when you can have a great Ambient Light at the same time? The LED Super Strobe ABL combines both: 216 cold white, extremely bright SMD LEDs provide the typical stroboscope effect. They can also be permanently lit and used as blinders.

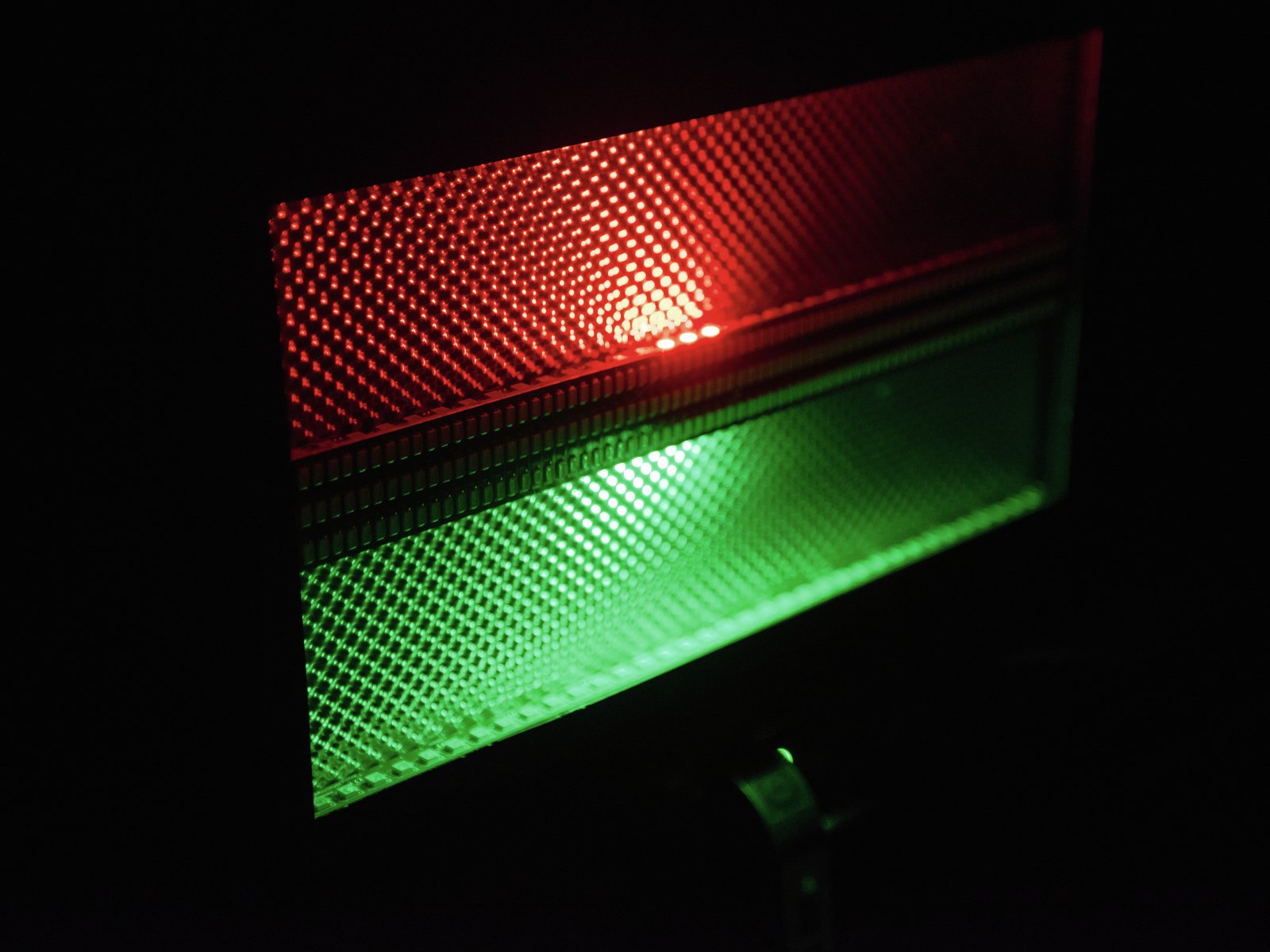

In addition, 144 SMD LEDs with RGB color mixing illuminate the reflective surface and provide pleasant mood lighting. These LEDs can be controlled as one, four or even 48 individual segments.
Features
LED lighting effect with threefold effects
- Flat metal housing with integrated wall holders
- 216 powerful LEDs 0,5 W SMD 5730 cold white (CW)
- 144 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
LEDs controlled separately - Strobe effect; wash effect; Blinder effect
- 17 integrated show programs
- Control via master/slave function; DMX; stand-alone; sound to light
- Flicker-free
- With mounting bracket
- 4 digit 7-segment LED display
- Dimmer electronic; color blend stepless
- Mains input and output for power linking up to 8 units
- Preprogrammed in LED PC-Control 512; EASY SHOW 1; Light Captain
- For application areas such as: Clubs/dancing school; stage; restaurants, bars and hotels; mobile djs / entertainer
- Very quiet working noise
- Application possibility: Suspended; on stand
Package contents
- 1 x light effect, 1 x mounting bracket, 1 x power cord, 2 x knurled screw, 2 x washer, 1 x user manual
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 95 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, F 2 A fuse replaceable |
| LED type: | 216 x 0,5 W SMD 5730 cold white (CW) 144 x SMD 5050 3in1 TCL RGB (homogenous color mix) |
| DMX channels: | 7; 13; 22; 148 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | Master/slave function; DMX; stand-alone; sound to light |
| Preprogrammed in: | LED PC-Control 512; EASY SHOW 1; Light Captain |
| Projection: | Flicker-free |
| Beam angle (1/2 peak): | 120° |
| Attachment system: | Mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Diameter mounting holes: | 2 x Ø5mm; 6 x Ø9mm |
| Dimensions: | Width: 45,5 cm Depth: 8,5 cm Height: 25,5 cm |
| Weight: | 4,26 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Mounting bracket | |
| Diameter mounting holes: | 3 x Ø11mm; 2 x Ø8mm |
| Material: | Metal, 2 mm |
| Power cord | |
| Cable construction: | 3 x 1,0 mm² H05RN-F |
| Cable length: | Approx. 1,5 m |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397651812 | 4,65 kg | 46cm x 15,5cm x 30cm |
