Description

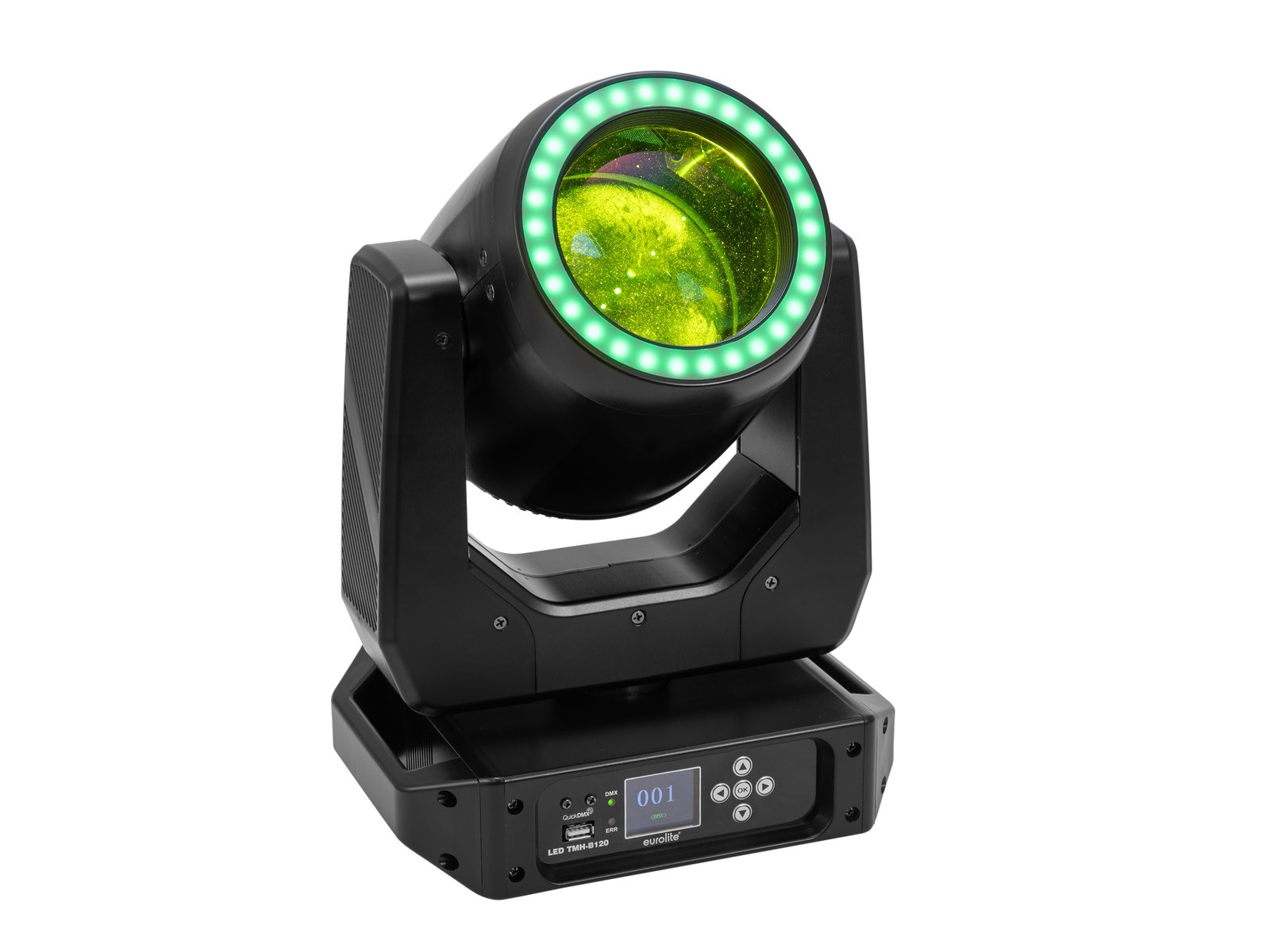

EUROLITE LED TMH-B120
The TMH-B120 Moving Spot-Beam is a true standout with its powerful 120-watt white LED and ultra-narrow beam angle of just 2°. This compact all-rounder is perfect for stages, clubs, and mobile DJs.


Thanks to efficient cooling, the B120 remains reliable even during long operating times. The multi-color LCD display, sturdy carrying handles, and rubber feet ensure easy handling. With the Omega bracket, it can be mounted either standing or hanging.
The B120 is flicker-free and provides various options in case of DMX signal loss, such as hold or blackout. Pre-programmed settings for control via Light Captain further simplify its use.

Features
LED moving head beam with hypno ring, color wheel, static gobo wheel, prism and focus
- 1 powerful LED 120 W COB (chip-on-board) cold white (CW)
- 30 powerful LEDs 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
- Positioning within 540° PAN, 240° TILT
- Color wheel; gobo wheel with static gobos; focus motor-driven; frost filter; prism 8-fold rotating
- Dimmer
- Beam effect
- Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 13 gobos und open
shake effect - 4 integrated show programs
- The device is cooled by cooling fan at the base; cooling fan at the Head
- Control via stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function
- Flicker-free
- DMX fail mode (hold; zero values)
- With a beam angle of 2°
- With omega bracket
- Multicolor LCD display
- 2 Rugged carrying handles
- 4 rubber feet
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; stage; mobile djs / entertainer; rental
- Application possibility: Standing; suspended
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Preprogrammed in Light Captain
Package contents
- 1 x moving light, 1 x power cord, 1 x omega bracket, 1 x safety eyelet, 1 x user manual
Technical specifications
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 170 W |
IP classification: | IP20 |
Protection class: | Protection class I |
Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
Cable construction: | 3 x 1,0 mm² H05VV-F |
Cable length: | 1,1 m |
Power output: | P-Con (gray), mounting version |
Fuse: | 5 x 20 mm, T 2 A fuse replaceable |
Lamp type: | LED lamp |
LED type: | 1 x 120 W COB (chip-on-board) cold white (CW) 30 x 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix) |
Max. TILT movement: | 240° exact positioning (16 bit resolution) auto position correction (feedback) |
Max. PAN movement: | 540° exact positioning (16 bit resolution) auto position correction (feedback) |
Flash rate: | 1 – 20 Hz |
Equipment: | Color wheel; gobo wheel with static gobos; focus motor-driven; frost filter; prism 8-fold rotating |
Color generation: | Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions |
Gobos: | Gobo wheel with static gobos, 13 gobos und open Shake effect |
DMX channels: | 21 |
DMX input: | 3-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version |
Cooling: | 1 x cooling fan at the base 1 x cooling fan at the Head |
Control: | Stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function |
Preprogrammed in: | Light Captain |
Projection: | Flicker-free |
DMX fail mode: | Hold; zero values |
Beam angle: | 2° |
Beam angle (1/2 peak): | Beam 2° Ring 120° |
Beam angle (1/10 peak): | Beam 2° Ring 120° |
Color temperature: | 8500K |
Housing color: | Black |
Attachment system: | Omega bracket |
Display type: | Multicolor LCD display |
Status LED: | DMX, fault |
USB port: | Type A |
Carrying handle: | 2 pc/pcs |
Transport aid: | 4 x rubber feet |
Material: | Plastic |
Dimensions: | Width: 26,0 cm Depth: 23,5 cm Height: 37,5 cm |
Weight: | 6,95 kg |
Legal specifications | |
Special product: | Not designed for household room illumination |
Intended use: | Show effect lighting |
PU | EAN | Weight | Dimensions |
---|---|---|---|
1 | 4026397738513 | 7,80 kg | 43cm x 30cm x 34cm |
