Description
Features

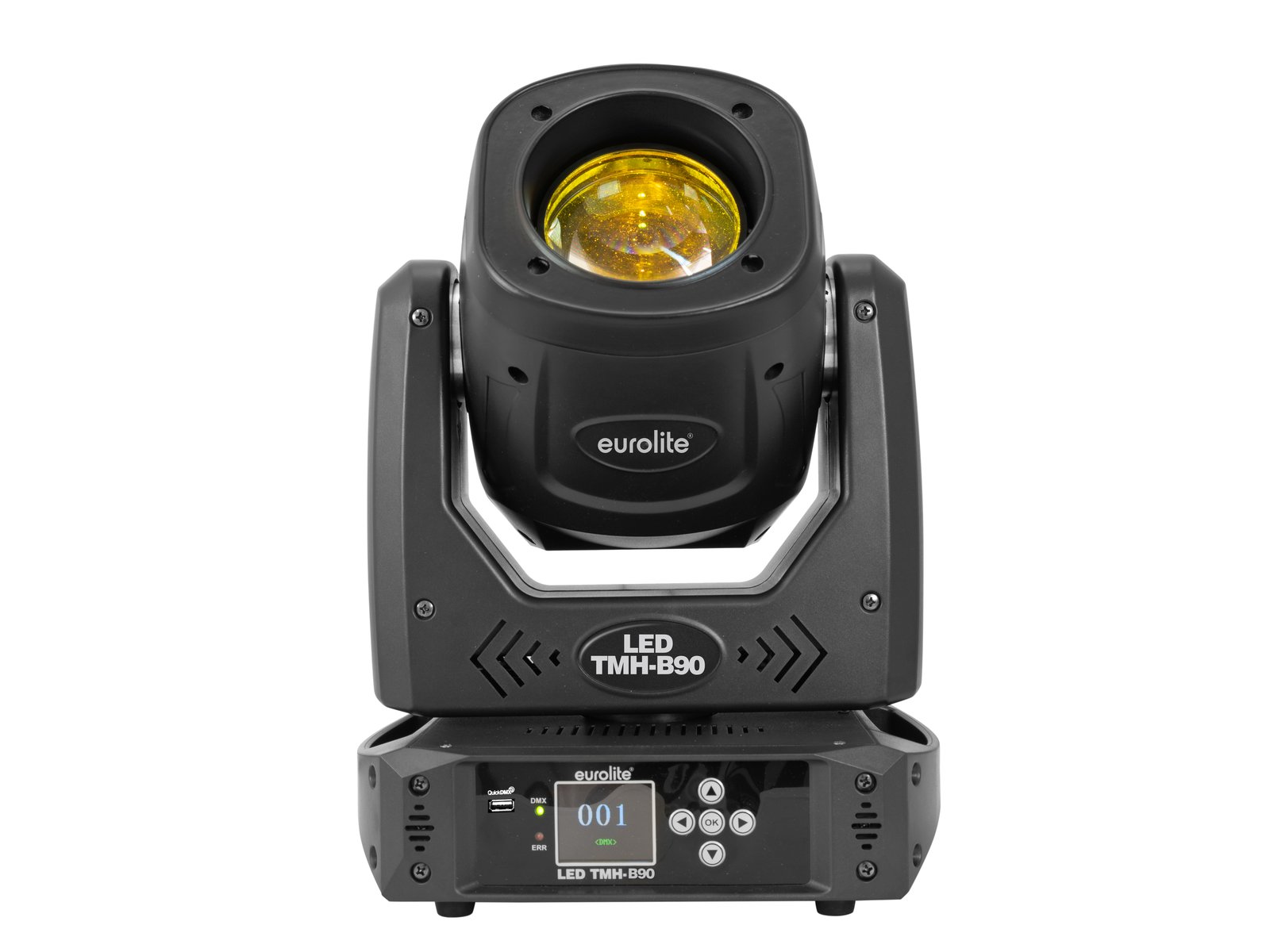

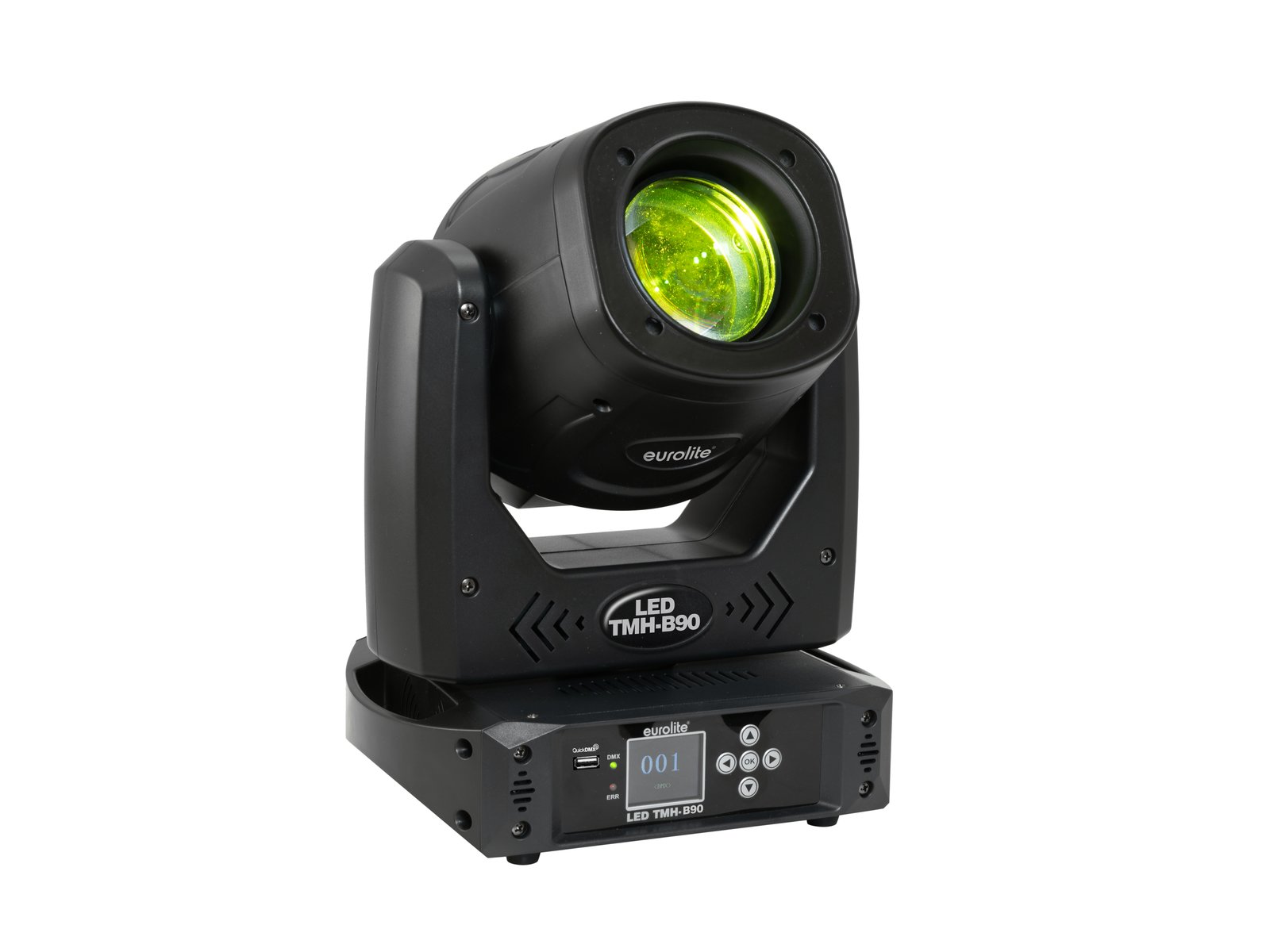

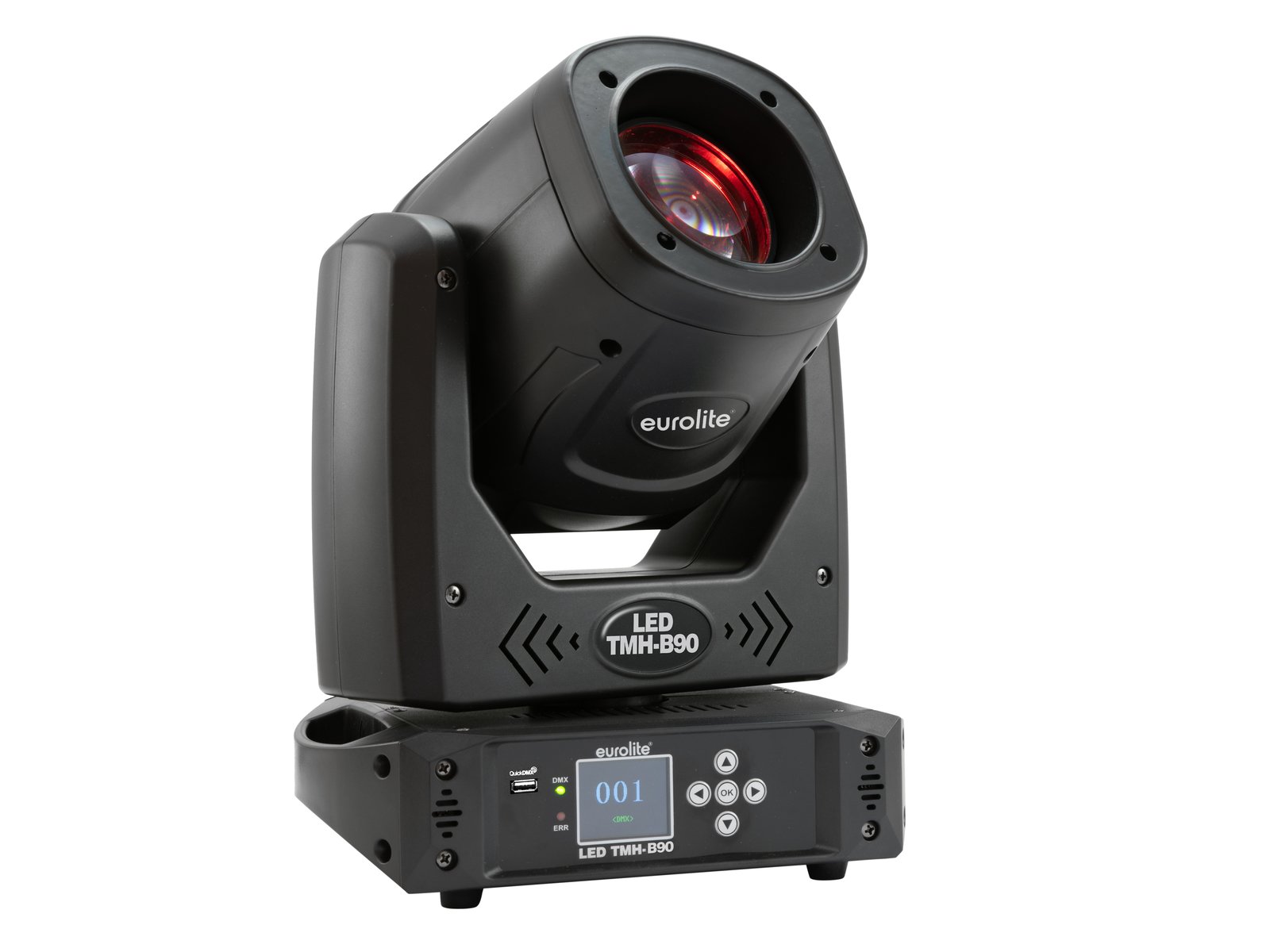

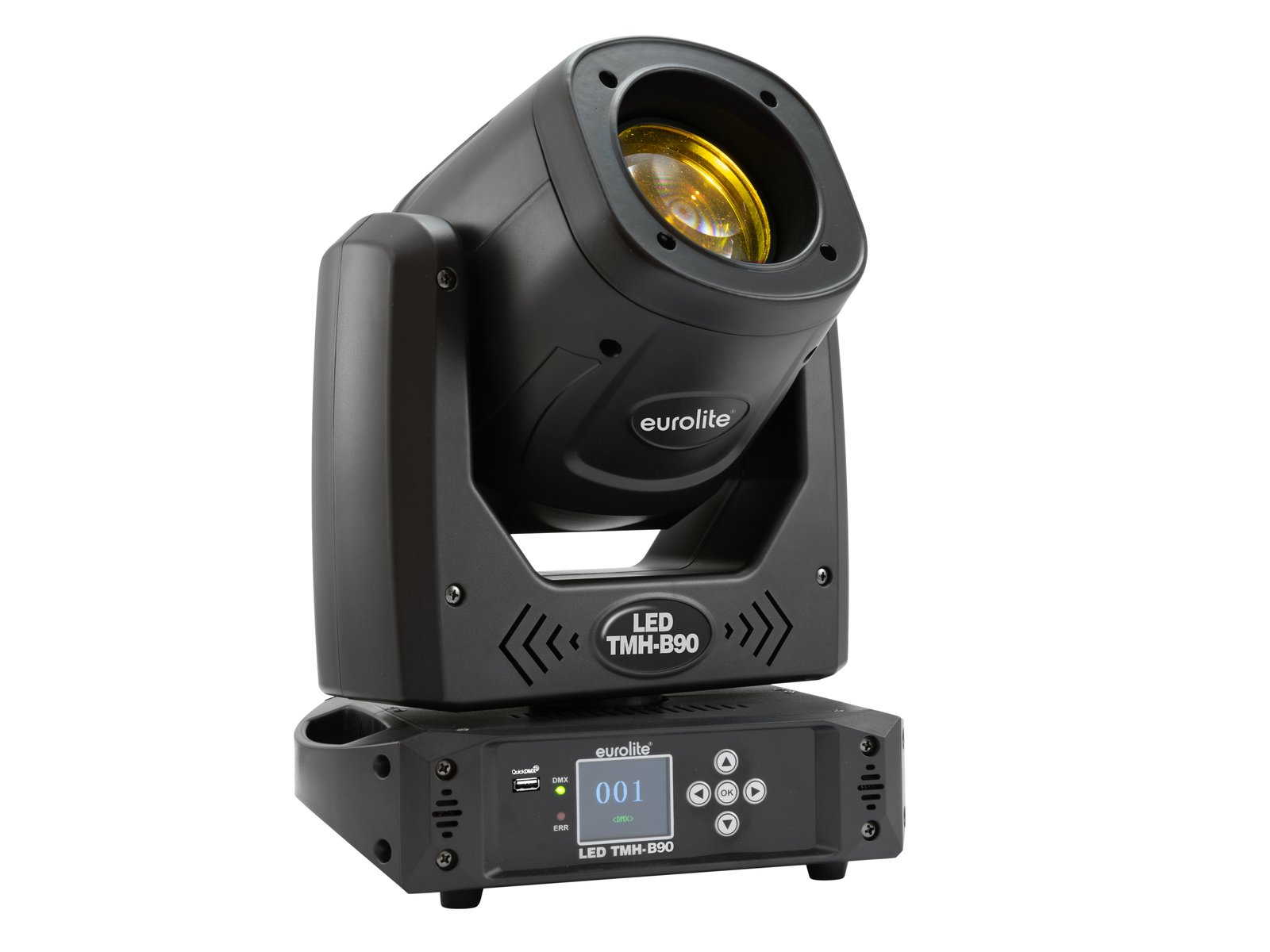

LED moving head beam with color wheel, static gobo wheel, prism and focus
- 1 powerful LED 90 W COB (chip-on-board) cold white (CW)
- Positioning within 540° PAN, 200° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Color wheel; gobo wheel with static gobos; focus motor-driven; prism 8-fold rotating; frost filter
- Beam effect
- Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 13 gobos und open
shake effect - Integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 3°
- Good color rendering index (CRI)
- LCD display
- Dimmer electronic
- Preprogrammed in Light Captain; EASY SHOW 3; Light´J
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; wedding/gala/events; stage; mobile djs / entertainer
- Application possibility: Standing; suspended
Package contents

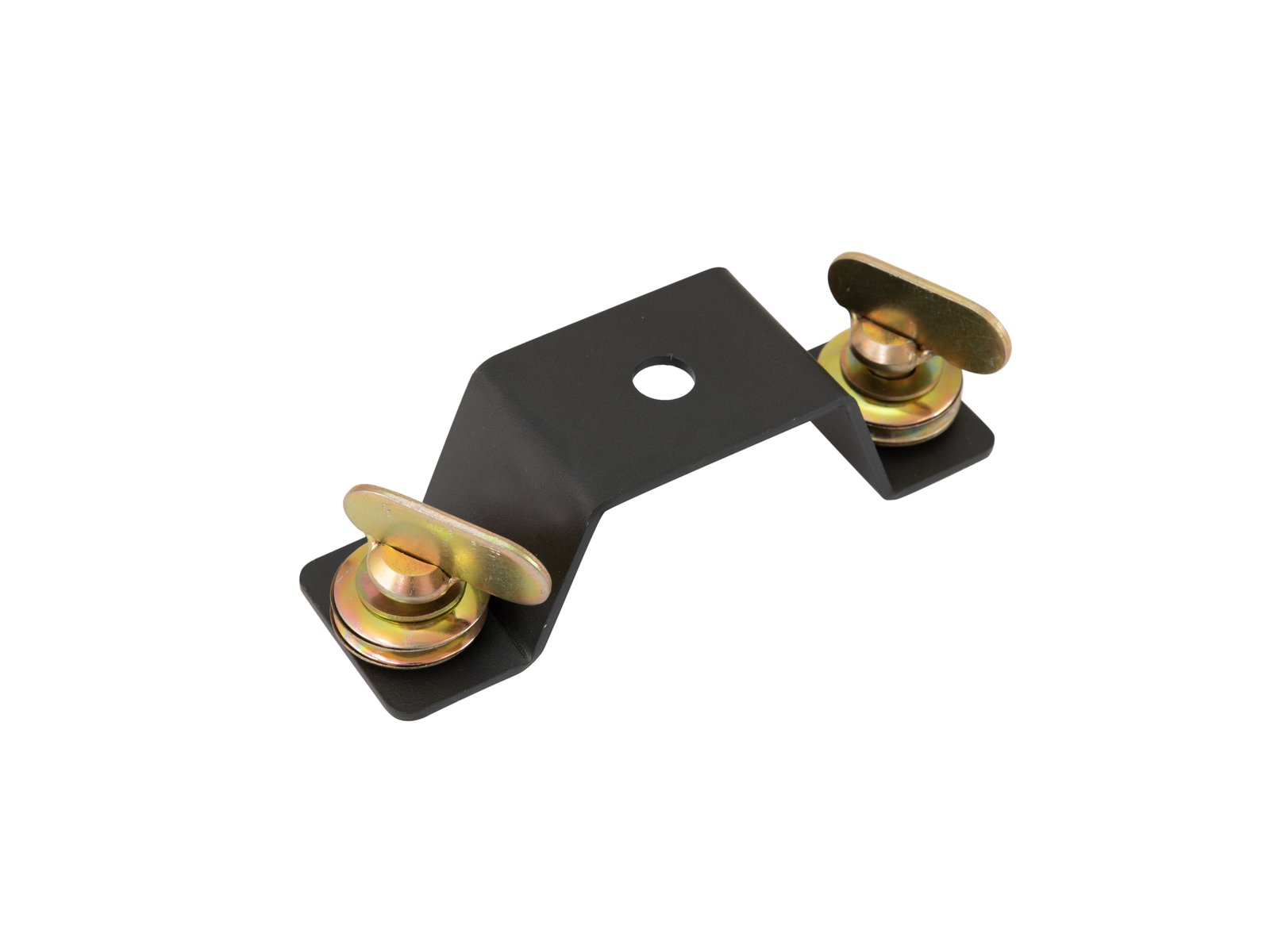

- 1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x safety eyelet
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 125 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |

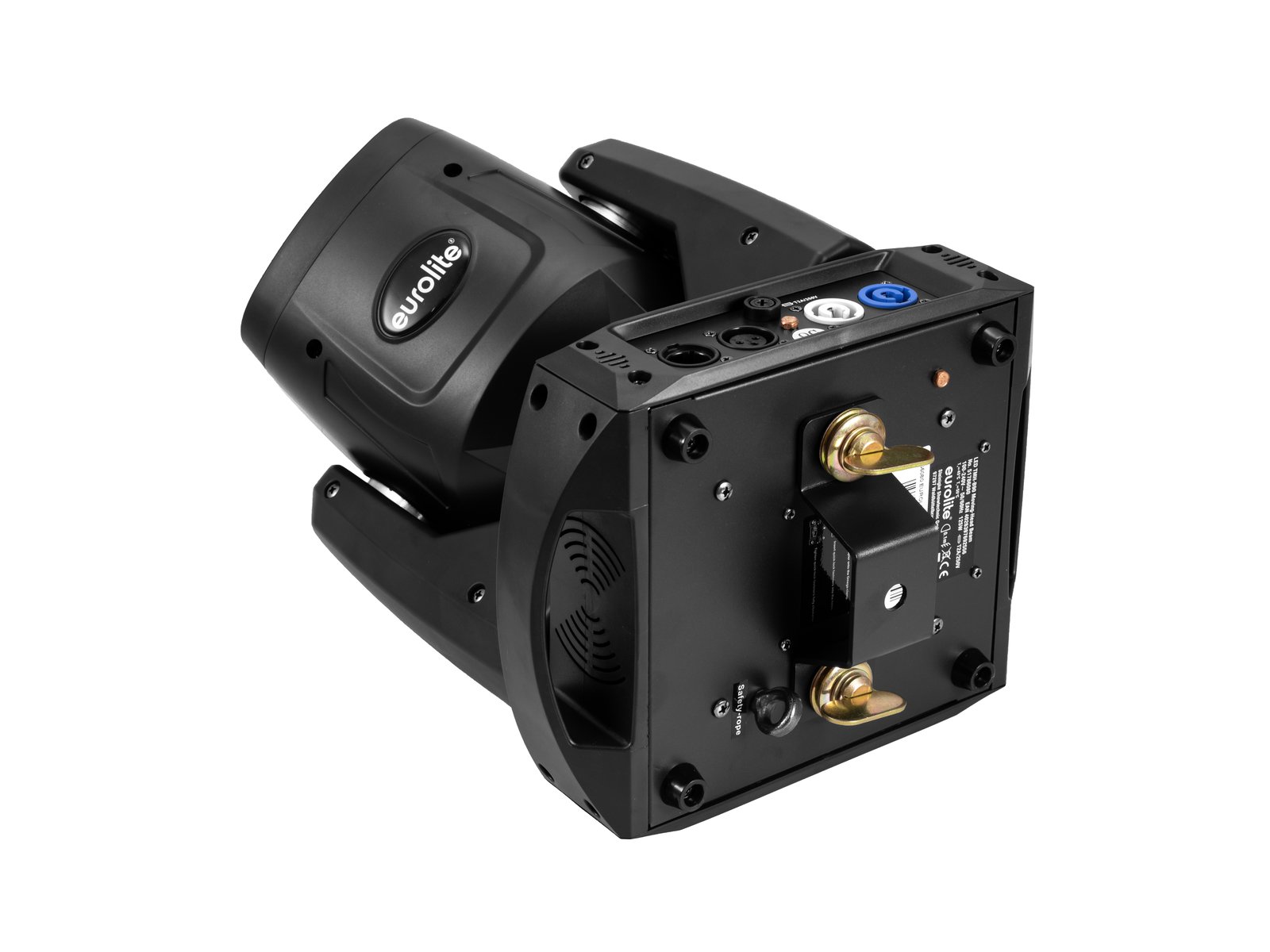

| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Device fuse: | 5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 1 x 90 W COB (chip-on-board) cold white (CW) |
| Max. TILT movement: | 200° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: | 540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Flash rate: | 2 – 20 Hz |
| Equipment: | Color wheel; gobo wheel with static gobos; focus motor-driven; prism 8-fold rotating; frost filter |
| Color generation: | Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions |
| Gobos: | Gobo wheel with static gobos, 13 gobos und open Shake effect |
| DMX channels: | 14 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light Captain; EASY SHOW 3; Light´J |
| Projection: | Flicker-free |
| Beam angle: | 3° |
| Beam angle (1/2 peak): | 3° |
| Color rendering index (CRI): | 80 Ra |
| Illuminance in Lux (lx): | Cold white (CW) 3m: 33839 lx, 6m: 10454 lx |
| Housing color: | Black |
| Display type: | LCD display |
| Dimensions: | Width: 25,5 cm Depth: 20,5 cm Height: 33,0 cm |
| Weight: | 6,55 kg |
| Noise classification: | Class 2 (slight noise) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397692556 | 7,40 kg | 36cm x 32cm x 28cm |
