Description
EUROLITE TMH Bar S120
Four moving heads on one bar

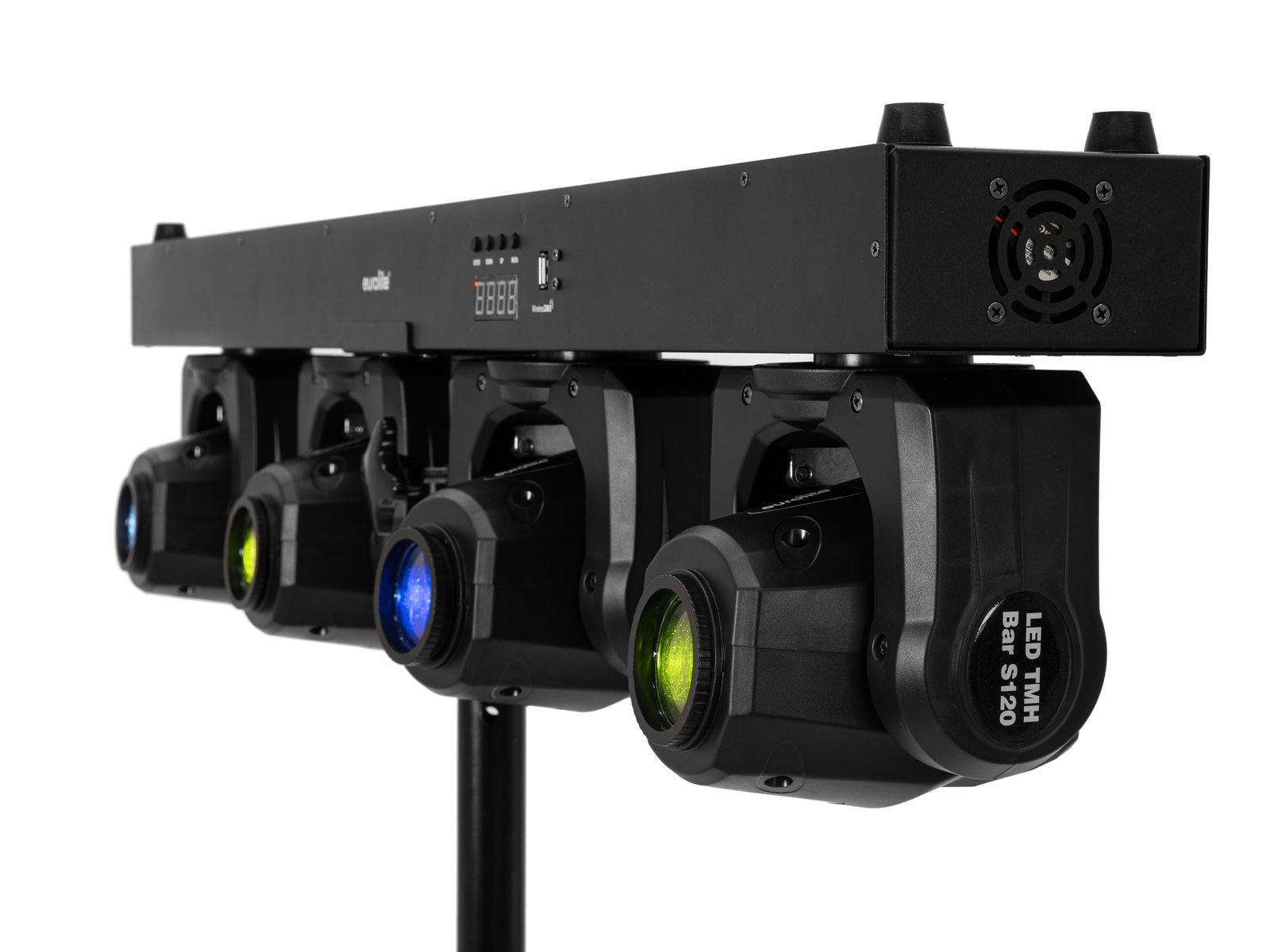

The EUROLITE TMH Bar S120 combines four fully-fledged moving heads on a single bar, with each head equipped with a powerful 30-watt LED. Each head can be controlled individually, allowing a high degree of flexibility in lighting design.
Inner values
Inside the devices there are 7 gobos and 8 colors, which can also be used as half colors between two color tones. The TMH Bar S120 offers a total of 8 different DMX modes for control. In the simplest mode, which only uses 3 channels, 22 automatic programs are available. These can run at an adjustable speed or be music-controlled. In the extended modes, the heads can be controlled together, in groups of two or each head individually.
Flexible installation

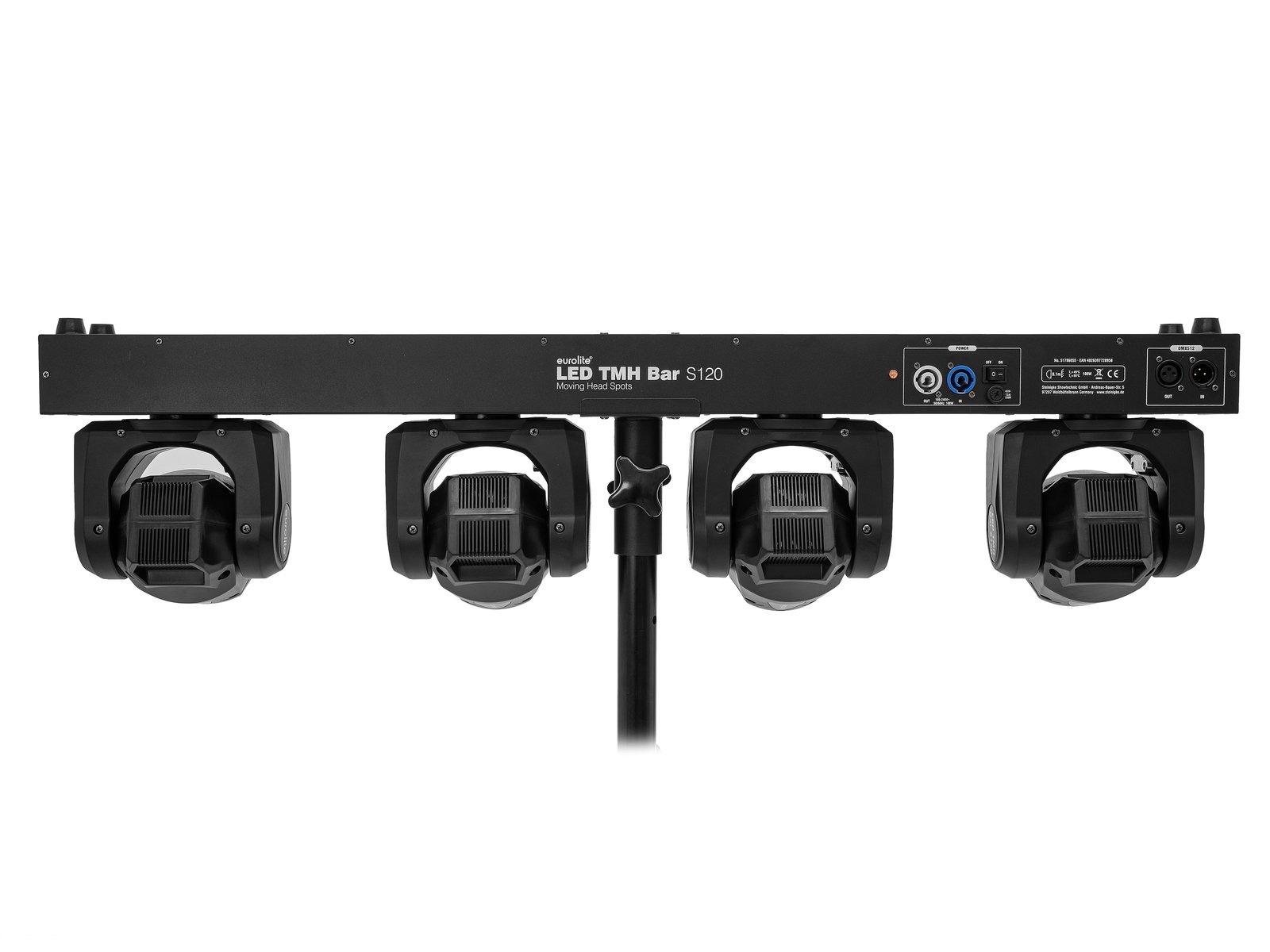

The bar can be mounted in a variety of ways: in the most basic scenario, it can be placed on a table or floor with its four rubber feet, which is particularly suitable for uplighting along a wall. Alternatively, the bar can be mounted on a stand using a 35mm stand sleeve. Suspension is also possible, for which two omega brackets are included in the scope of delivery. These can be used directly for mounting or fitted with hooks or clamps.
Connections
Power is supplied via a P-Con connection and there is also a corresponding output. The DMX connections are three-pin. The bar also has a USB socket into which a wireless DMX receiver for the Quick DMX or CRMX system can be plugged.
Features
LED lighting system with 4 individually controllable 30 W moving heads, gobo- and color wheel
- 4 powerful LEDs 30 W COB (chip-on-board)
- Control via stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution (optional)
- Gobo wheel with static gobos; focus manual; color wheel
- Gobo wheel with static gobos, 7 gobos and open
shake effect - Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed - Strobe effect; beam effect
- Positioning within 540° PAN, 180° TILT
- Exact positioning (16 bit resolution)
- Dimmer electronic
- Flicker-free
- With a beam angle of 13°
- Crossbar with integrated DMX control unit and stand sleeve
- With omega bracket

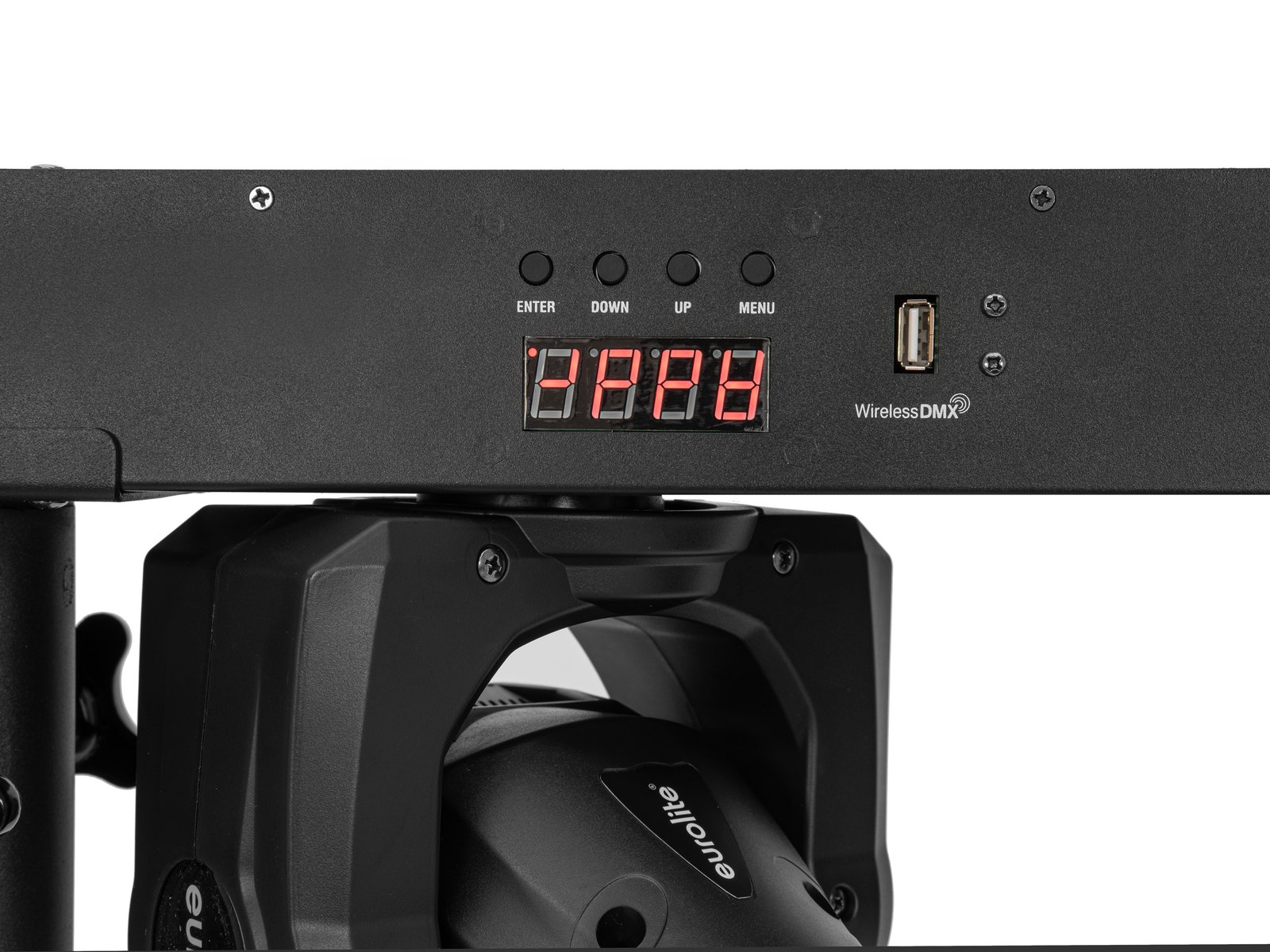

- 4 digit 7-segment LED display
- Rubber feet
- The device is cooled by temperature-controlled fan
- Mains input and output for power linking up to 8 units
- Preprogrammed in Colorchief; Light´J; Light Captain
- For application areas such as: Clubs/dancing school; wedding/gala/events; party room; mobile djs / entertainer
- Application possibility: Standing; suspended; on stand
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket, 2 x safety eyelet
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 100 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 4 x 30 W COB (chip-on-board) |
| Max. TILT movement: | 180° positioning; exact positioning (16 bit resolution) |
| Max. PAN movement: | 540° positioning; exact positioning (16 bit resolution) |
| Equipment: | Gobo wheel with static gobos; focus manual; color wheel |
| Color generation: | Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed |
| Gobos: | Gobo wheel with static gobos, 7 gobos and open Shake effect |
| DMX channels: | 3; 5; 9; 11; 17; 21; 30; 38 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | Stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution (optional) |
| Preprogrammed in: | Colorchief; Light´J; Light Captain |
| Projection: | Flicker-free |
| Beam angle: | 13° |
| Beam angle (1/2 peak): | 13° |
| Color temperature: | 7300K |
| Illuminance in Lux (lx): | Cold white (CW) 1m: 8899 lx, 3m: 856 lx, 6m: 205 lx |
| Housing color: | Black |
| Attachment system: | 2x omega bracket |
| Display type: | 4 digit 7-segment LED display |
| Transport aid: | Rubber feet |
| Dimensions: | Width: 1 m Depth: 17,5 cm Height: 28,0 cm |
| Weight: | 13,00 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397728958 | 15,00 kg | 108cm x 34cm x 25,5cm |
