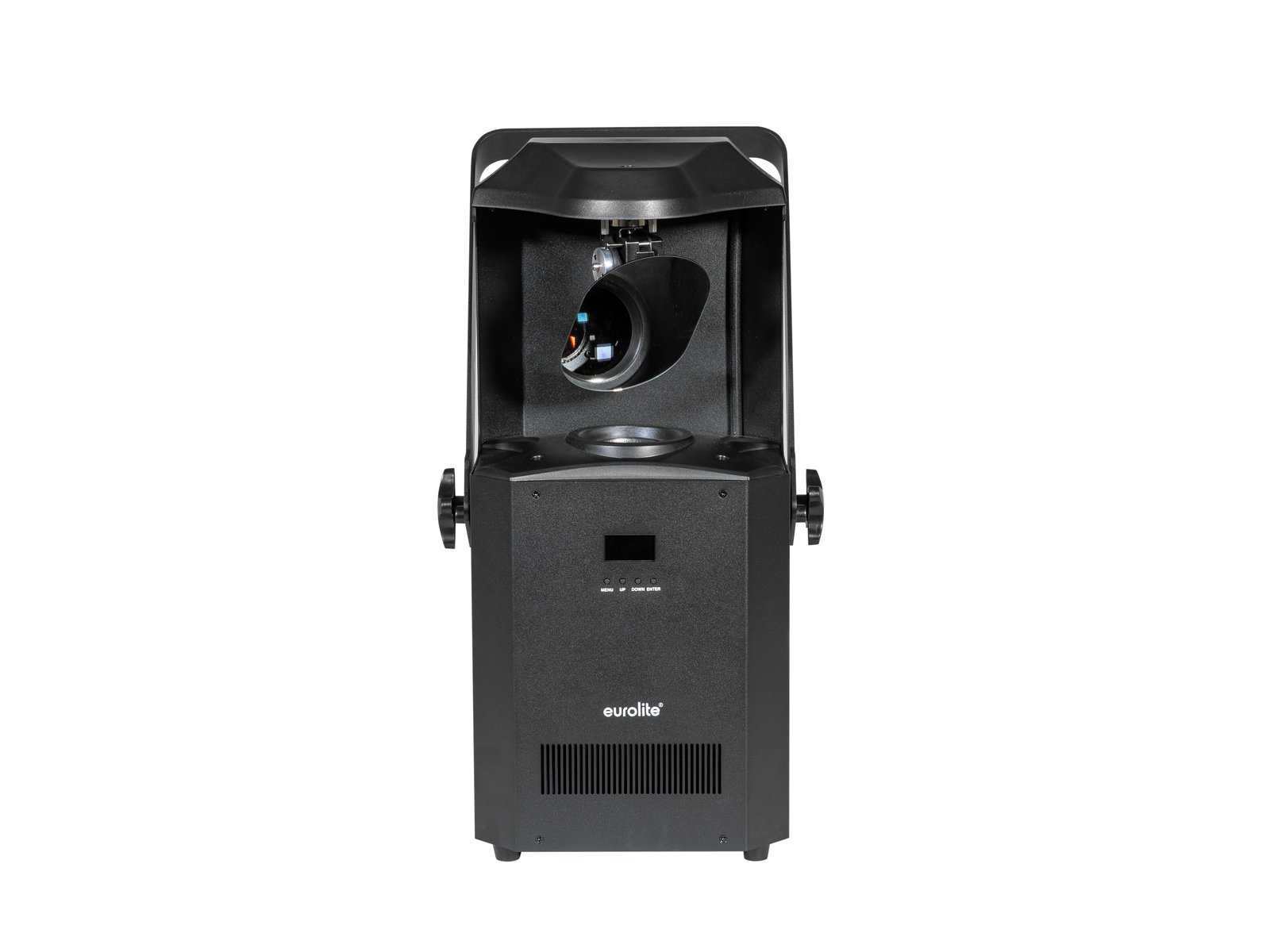

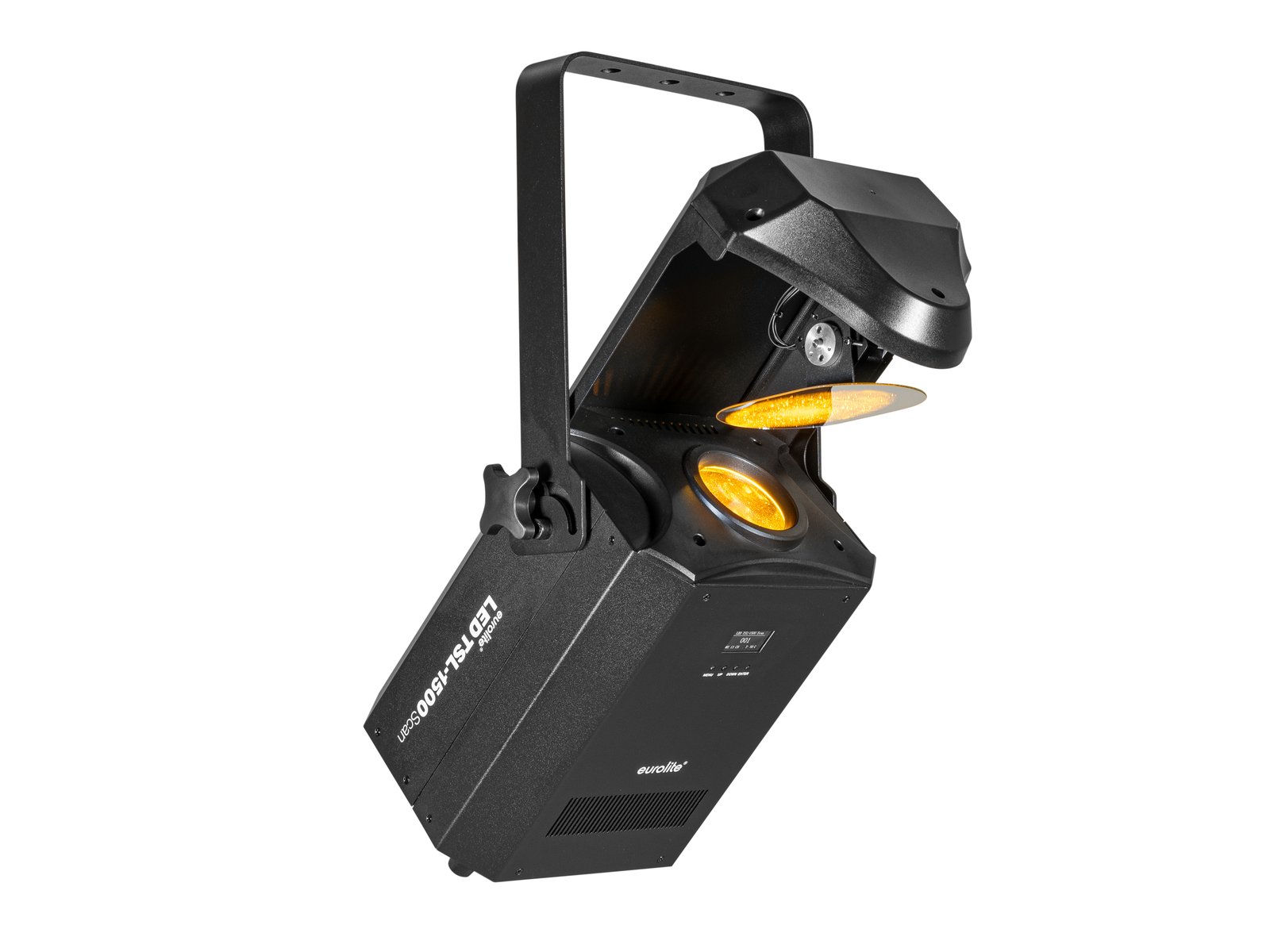

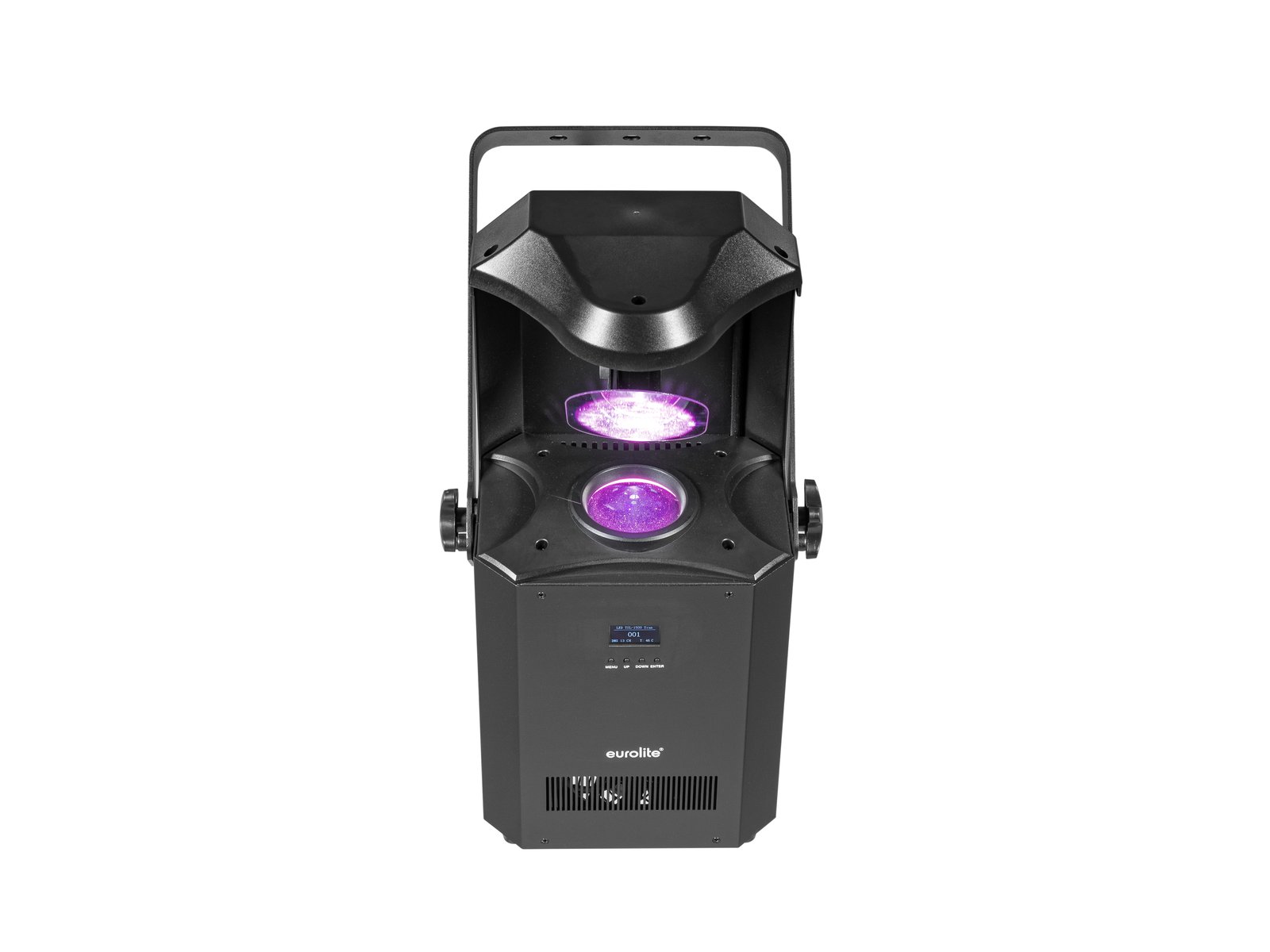

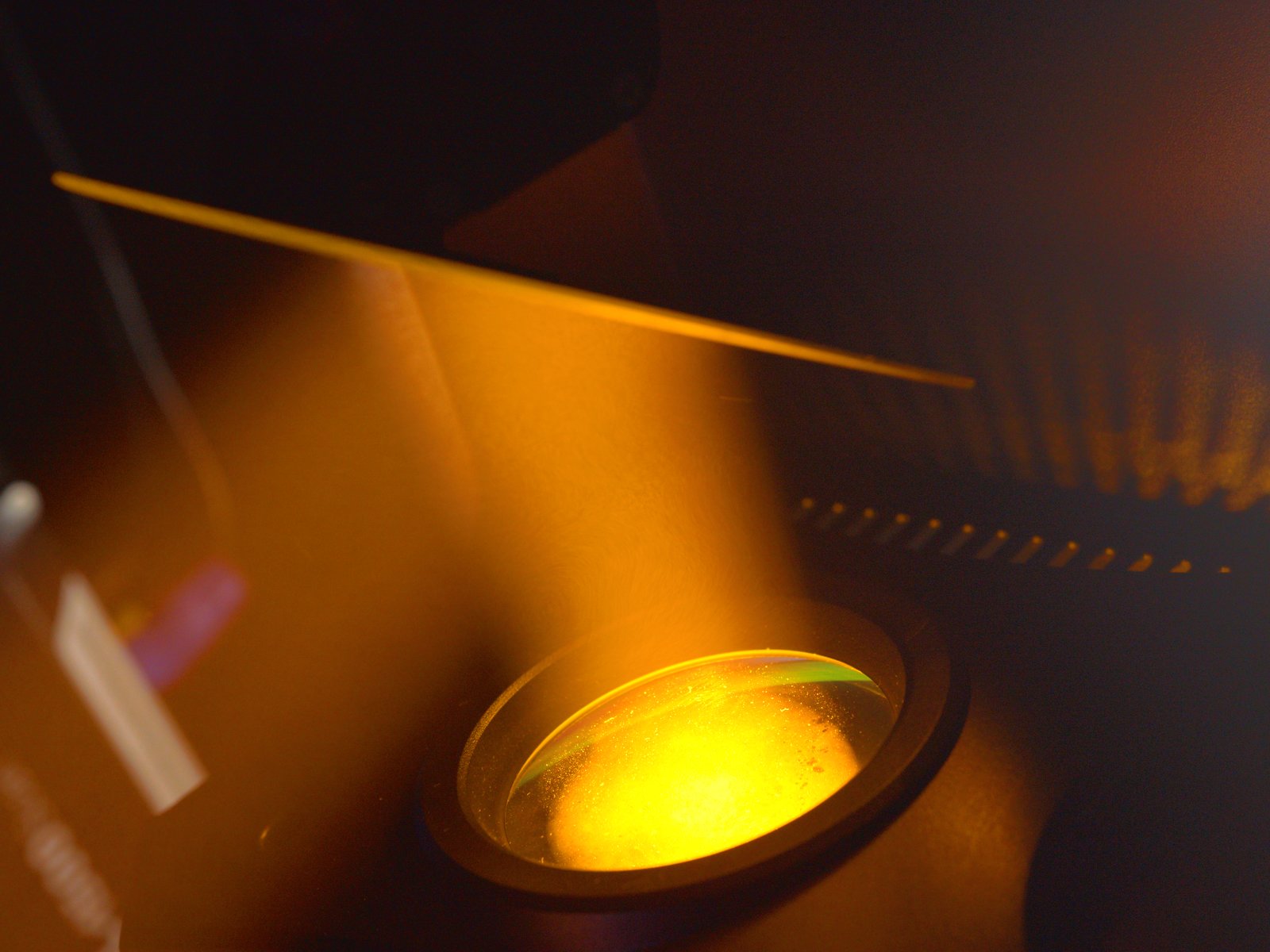

EUROLITE LED TSL-1500 Scan

 599,00 excl. VAT

Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus

SKU: 51786127 Category: Tag:

Description

Features

Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus

  • 1 powerful LED 150 W COB (chip-on-board) cold white (CW)
  • Positioning within 180° PAN, 70° TILT
  • Focus motor-driven; color wheel; gobo wheel with rotating gobos; prism 4-fold rotating
  • Dimmer electronic

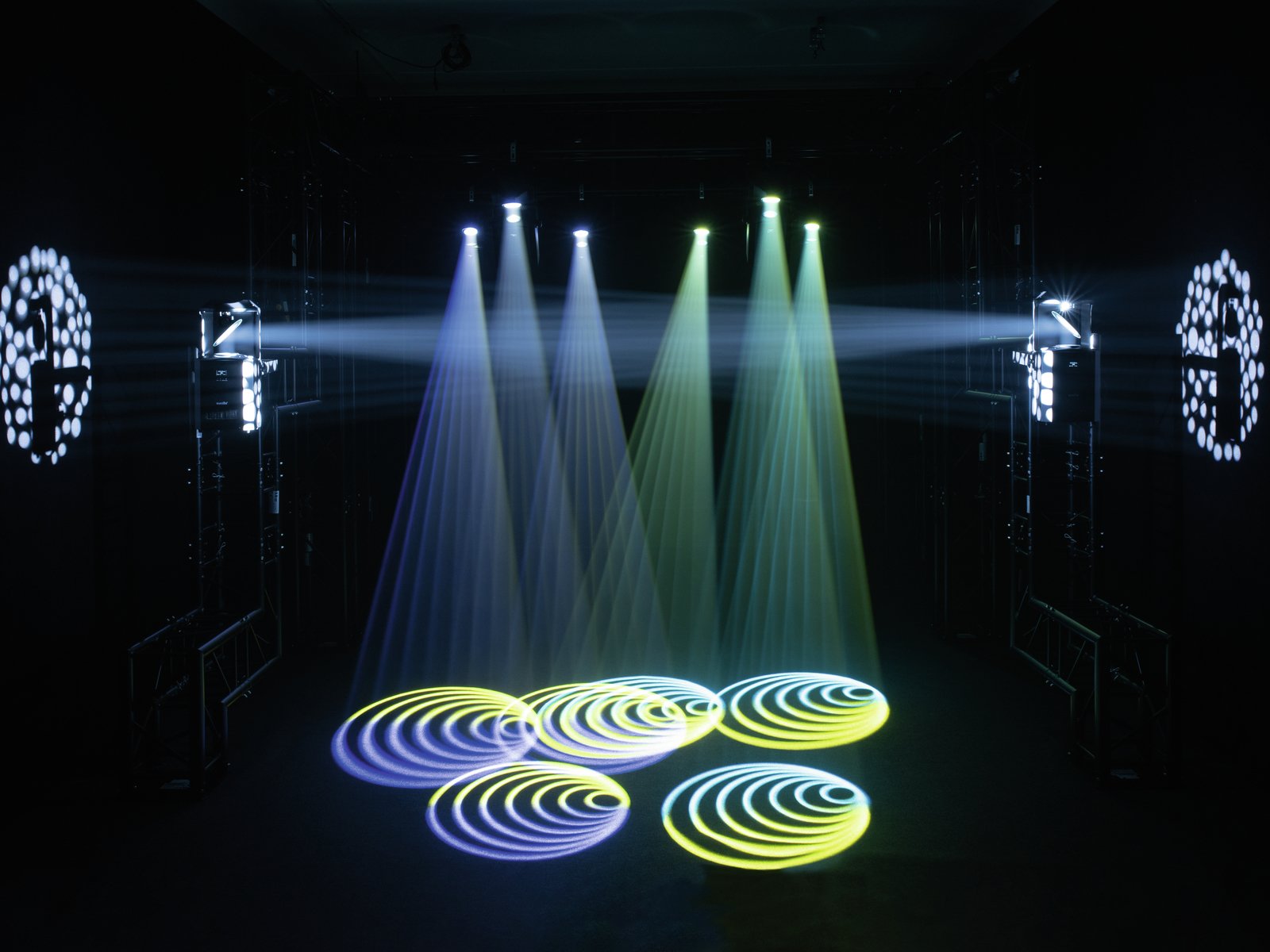

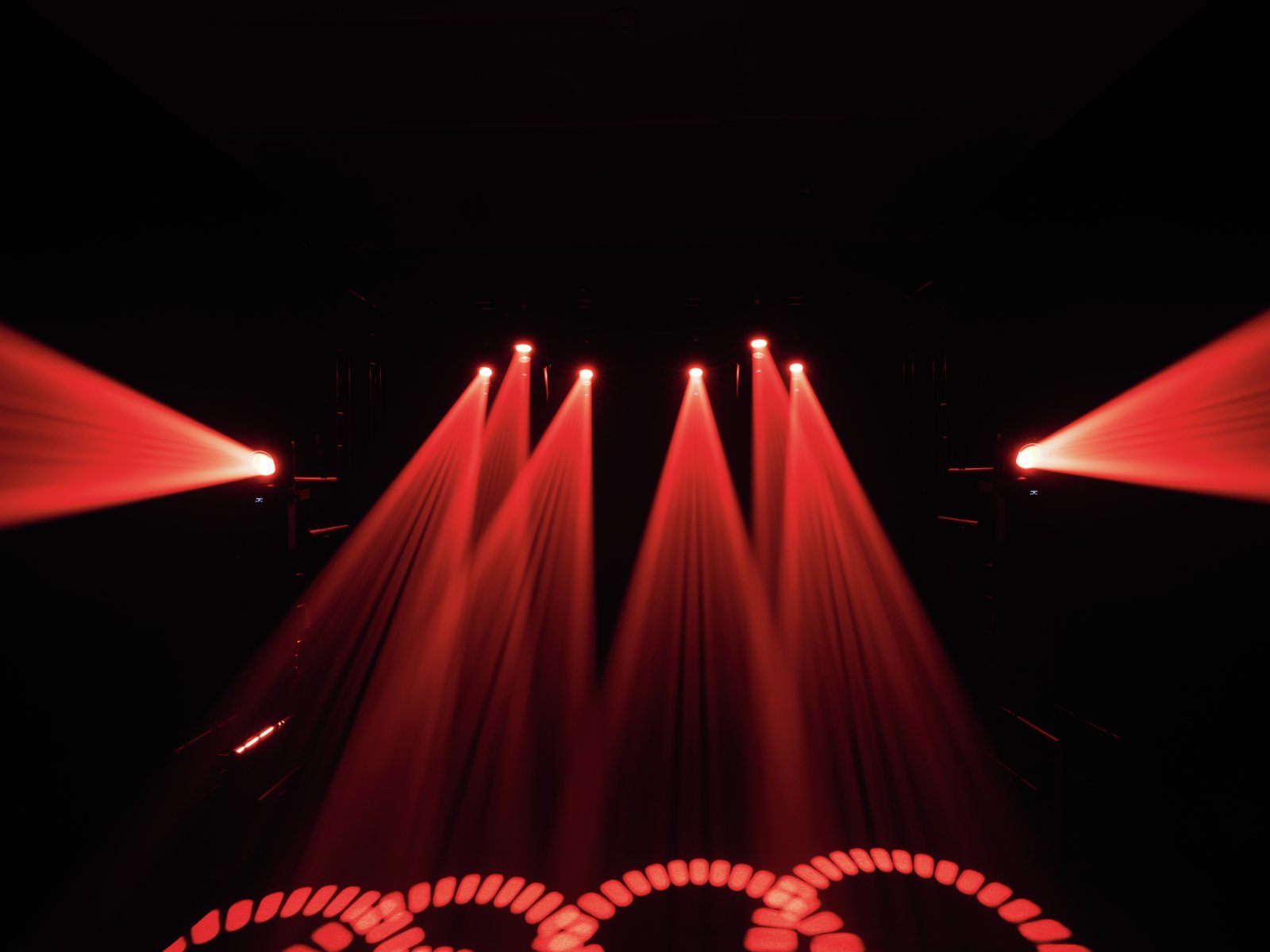

  • Gobo effect; strobe effect

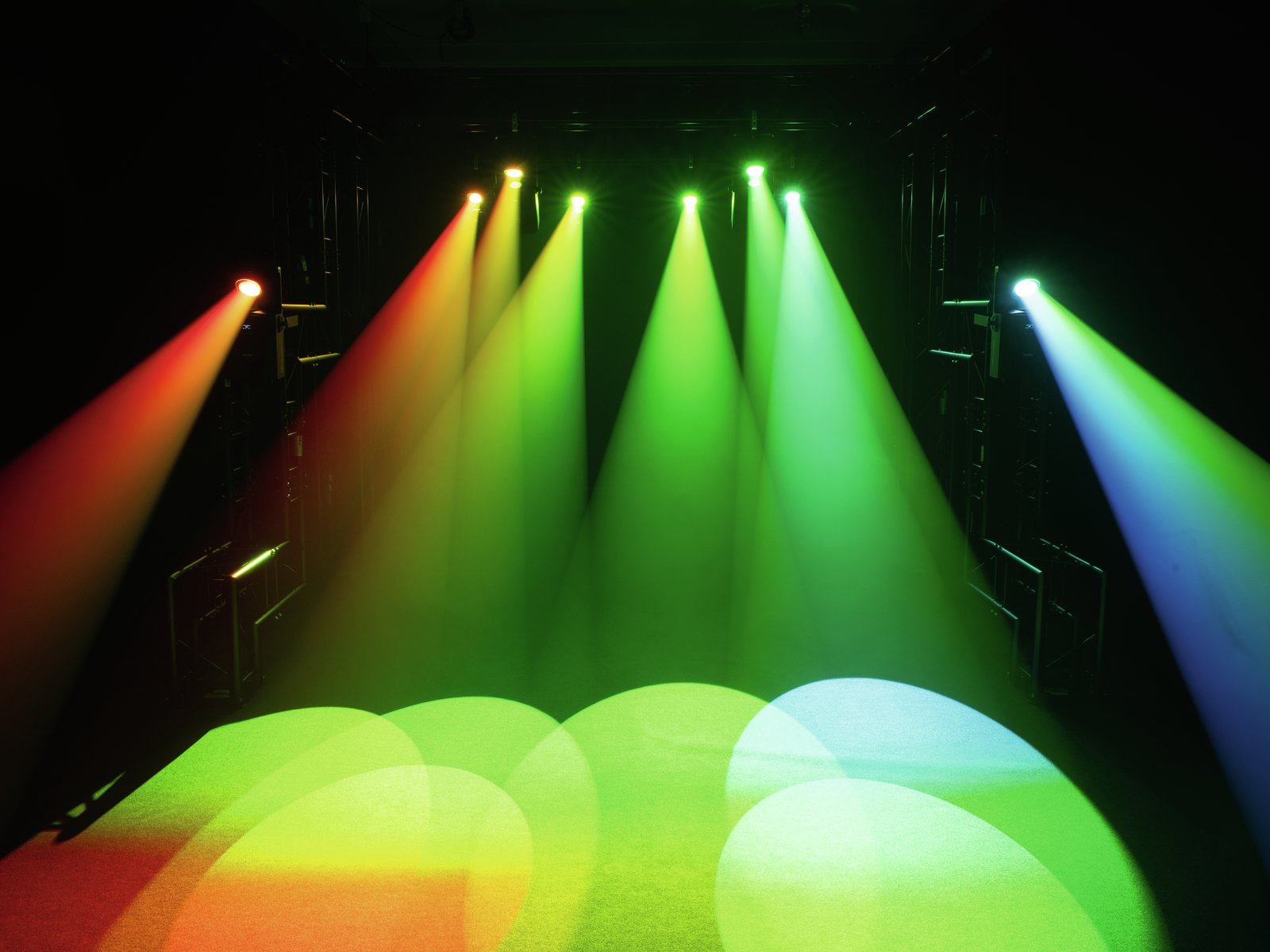

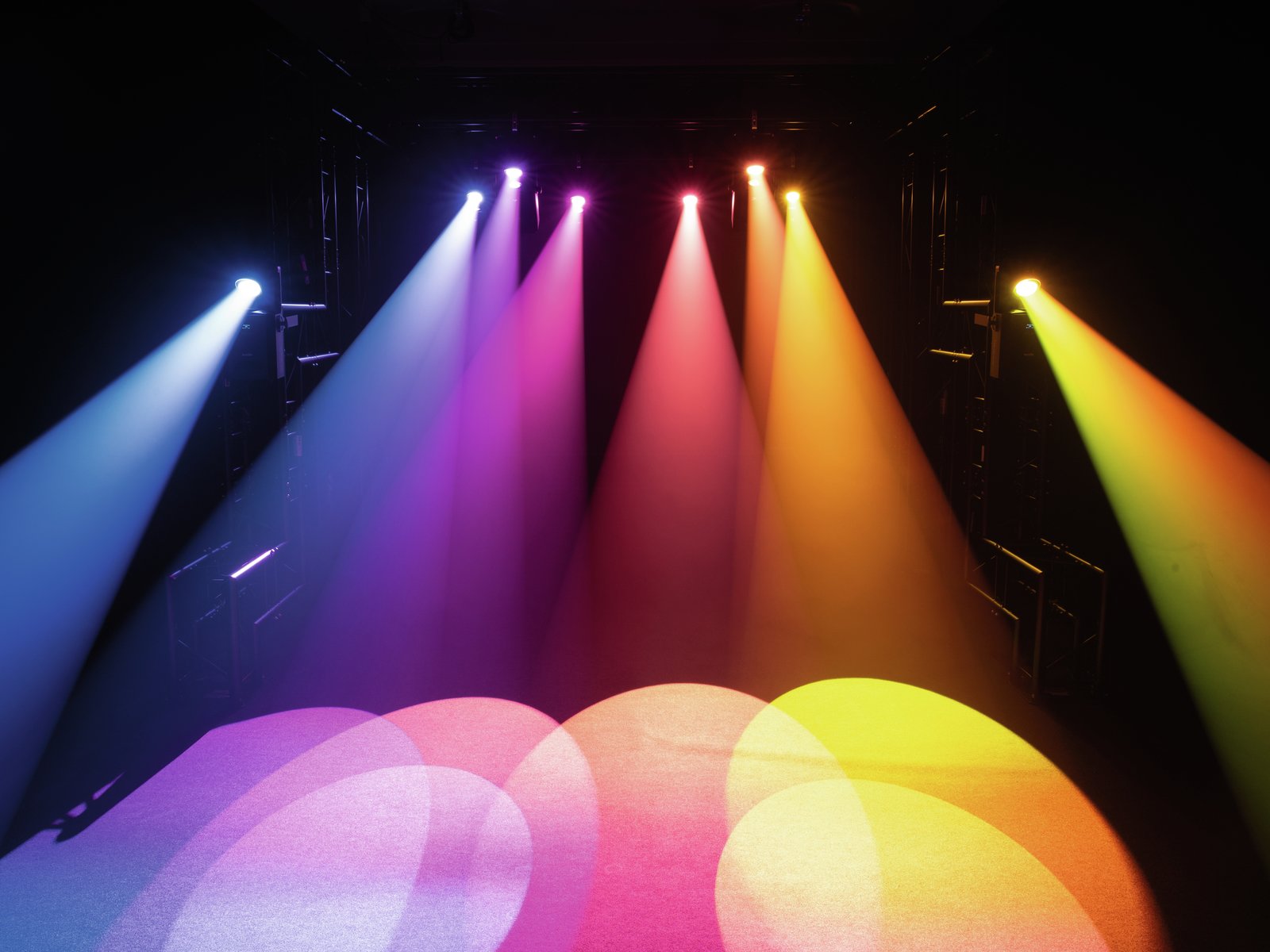

  • Color wheel with 8 dichroic filters plus open
    half colors selectable, Rainbow effect with adjustable speed in both directions
  • Gobo wheel with rotating gobos, 7 gobos and open
    shake effect
  • Gobos changeable
  • Slot-in gobo system for easy gobo replacement
  • 9 integrated show programs
  • The device is cooled by temperature-controlled fan
  • Control via stand-alone; sound to light via microphone; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
  • Flicker-free
  • With a beam angle of 11°

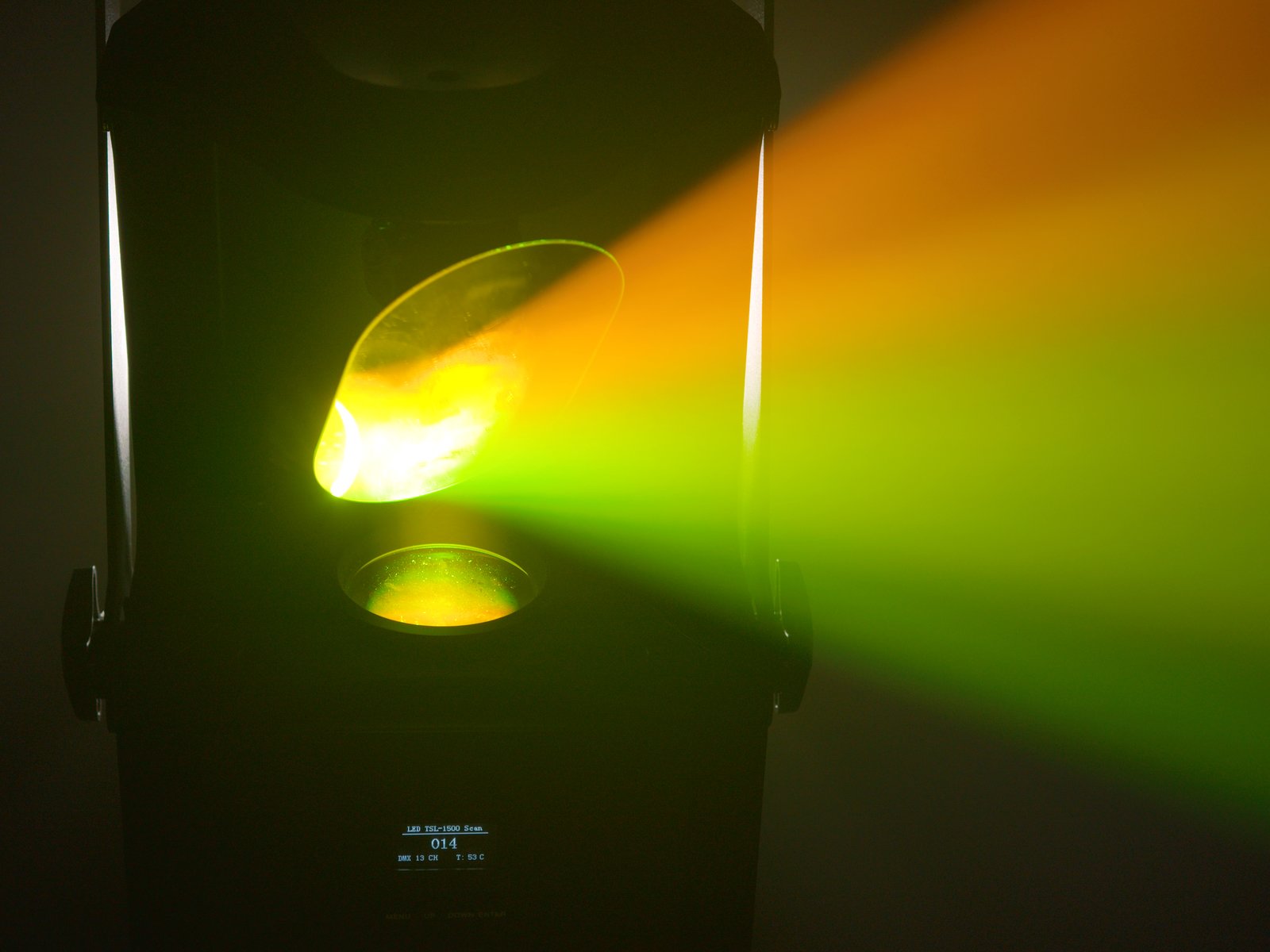

  • OLED display
  • Rubber feet
  • Preprogrammed in Light Captain
  • Mains input and output for power linking up to 8 units
  • For application areas such as: Clubs/dancing school; wedding/gala/events; stage; rental
  • Application possibility: Standing; suspended; on stand

Package contents

  • 1 x device, 1 x user manual, 1 x power cord, 1 x safety eyelet

Technical specifications

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 175 W
IP classification: IP20
Protection class: Protection class I

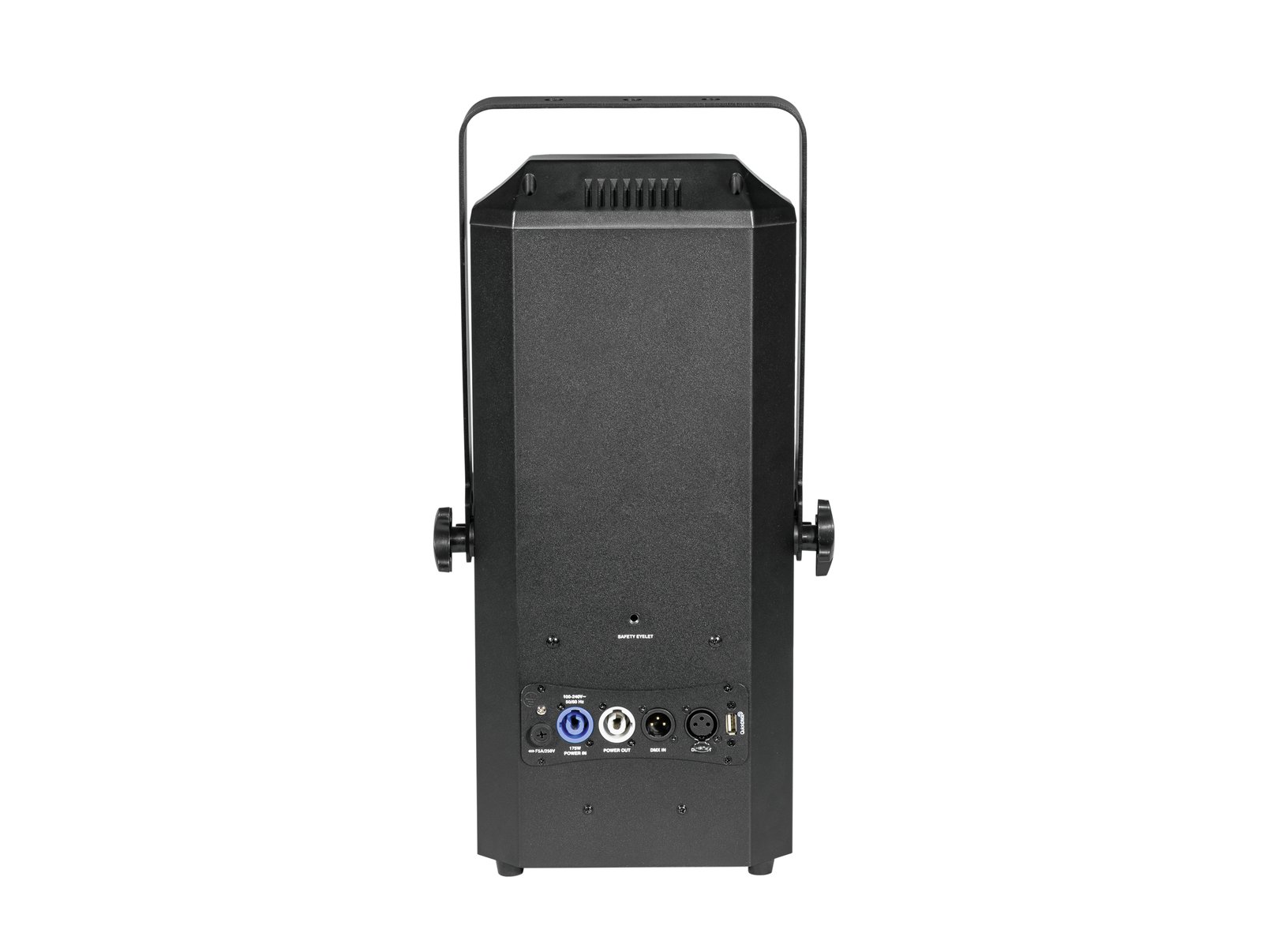

Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output: 1 x P-Con (gray), mounting version
Fuse: 5 x 20 mm, F 5 A fuse replaceable
Lamp type: LED lamp
LED type: 1 x 150 W COB (chip-on-board) cold white (CW)
Max. TILT movement: 70° positioning
Max. PAN movement: 180°
Flash rate: 1 – 30 Hz
Equipment: Focus motor-driven; color wheel; gobo wheel with rotating gobos; prism 4-fold rotating
Color generation: Color wheel with 8 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos: Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 19,8mm
Image diameter 17mm
Shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement
DMX channels: 13
DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Cooling: Temperature-controlled fan
Control: Stand-alone; sound to light via microphone; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in: Light Captain
Projection: Flicker-free
Beam angle: 11°
Beam angle (1/2 peak): 11°
Color temperature: 10000K
Illuminance in Lux (lx): Cold white (CW) 3m: 15649 lx, 6m: 4147 lx
Housing color: Black
Display type: OLED display
Transport aid: Rubber feet
Dimensions: Width: 33,5 cm
Depth: 16,5 cm
Height: 47 cm
Weight: 7,05 kg
Legal specifications
Special product: Not designed for household room illumination
Intended use: Show effect lighting
Packaging units
PU EAN Weight Dimensions
1 4026397714456 8,20 kg 60cm x 30cm x 25cm

Additional information

Weight 8,20 kg
Dimensions 60 × 30 × 25 cm
Brand

EUROLITE
