Popular light effect:
EUROLITE TSL-350 Scan
Scanners remain a popular lighting effect, especially in tight spaces. EUROLITE introduces the TSL-350 Scan, another model in the TSL series: With a choice of black or white housing, “the new one” is ideally suited to both dark club environments and gala locations.


The TSL-350 Scan is equipped with a 60 watt LED. It has a color wheel with 8 colors and a rotating gobo wheel with 7 gobos. The gobos can be changed very easily with a few simple steps. Since it has the same gobo size as the TSL-250 from the same series, there are also two alternative gobo sets with 3 gobos each for the “new” one. The TSL-350 is delivered including a gobo set with heart motifs. The white version of the scanner, equipped with heart gobos, is therefore ideal for weddings.
Features
Handy scanner with 60 W COB LED, gobo and color wheel
- Compact design
- 1 powerful LED 60 W COB (chip-on-board) cold white (CW)
- Positioning within TILT
- Color wheel; gobo wheel with rotating gobos; focus manual
- Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed - Gobo wheel with rotating gobos, 7 gobos and open
gobos changeable - Slot-in gobo system for easy gobo replacement
- Shake effect
- Integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; QuickDMX via USB (optional); master/slave function; sound to light via microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 11°
- LCD display
- Available in various colors
- Dimmer electronic
- Preprogrammed in Light Captain; Light´J; EASY SHOW 2; EASY SHOW 3
- Rubber feet
- For application areas such as: Clubs/dancing school; party room; mobile djs / entertainer
- Application possibility: Standing; suspended; on stand
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x mounting bracket, 3 x gobos
Technical specifications
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 70 W |
IP classification: | IP20 |
Protection class: | Protection class I |
Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
Fuse: | 5 x 20 mm, T 1,5 A fuse replaceable |
Lamp type: | LED lamp |
LED type: | 1 x 60 W COB (chip-on-board) cold white (CW) |
Equipment: | Color wheel; gobo wheel with rotating gobos; focus manual |
Color generation: | Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed |
Gobos: | Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 14mm Image diameter 10mm Gobos changeable Slot-in gobo system for easy gobo replacement Shake effect |
DMX channels: | 10 |

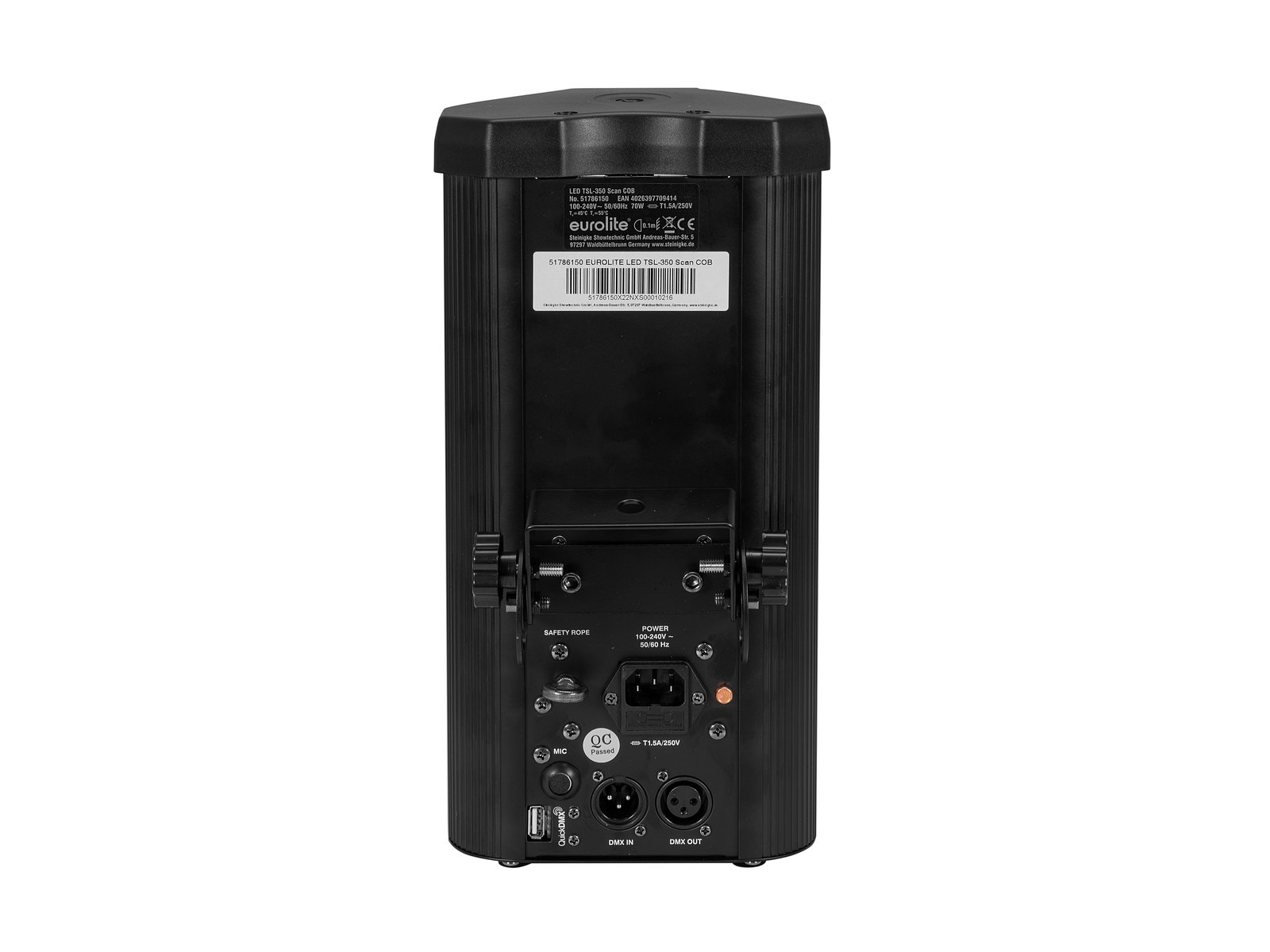

DMX input: | 3-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version |
Cooling: | Cooling fan |
Control: | Stand-alone; DMX; QuickDMX via USB (optional); master/slave function; sound to light via microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
Preprogrammed in: | Light Captain; Light´J; EASY SHOW 2; EASY SHOW 3 |
Projection: | Flicker-free |
Beam angle: | 11° |
Beam angle (1/2 peak): | 11° |
Illuminance in Lux (lx): | Cold white (CW) 1m: 12034 lx, 3m: 1489 lx, 6m: 388 lx |
Housing color: | Black |
Display type: | LCD display |
Transport aid: | Rubber feet |
Dimensions: | Width: 16,0 cm Depth: 15,0 cm Height: 33,0 cm |
Weight: | 3,22 kg |
Legal specifications | |
Special product: | Not designed for household room illumination |
Intended use: | Show effect lighting |
PU | EAN | Weight | Dimensions |
---|---|---|---|
1 | 4026397709414 | 3,60 kg | 39,5cm x 22,2cm x 21cm |
