Description
Features

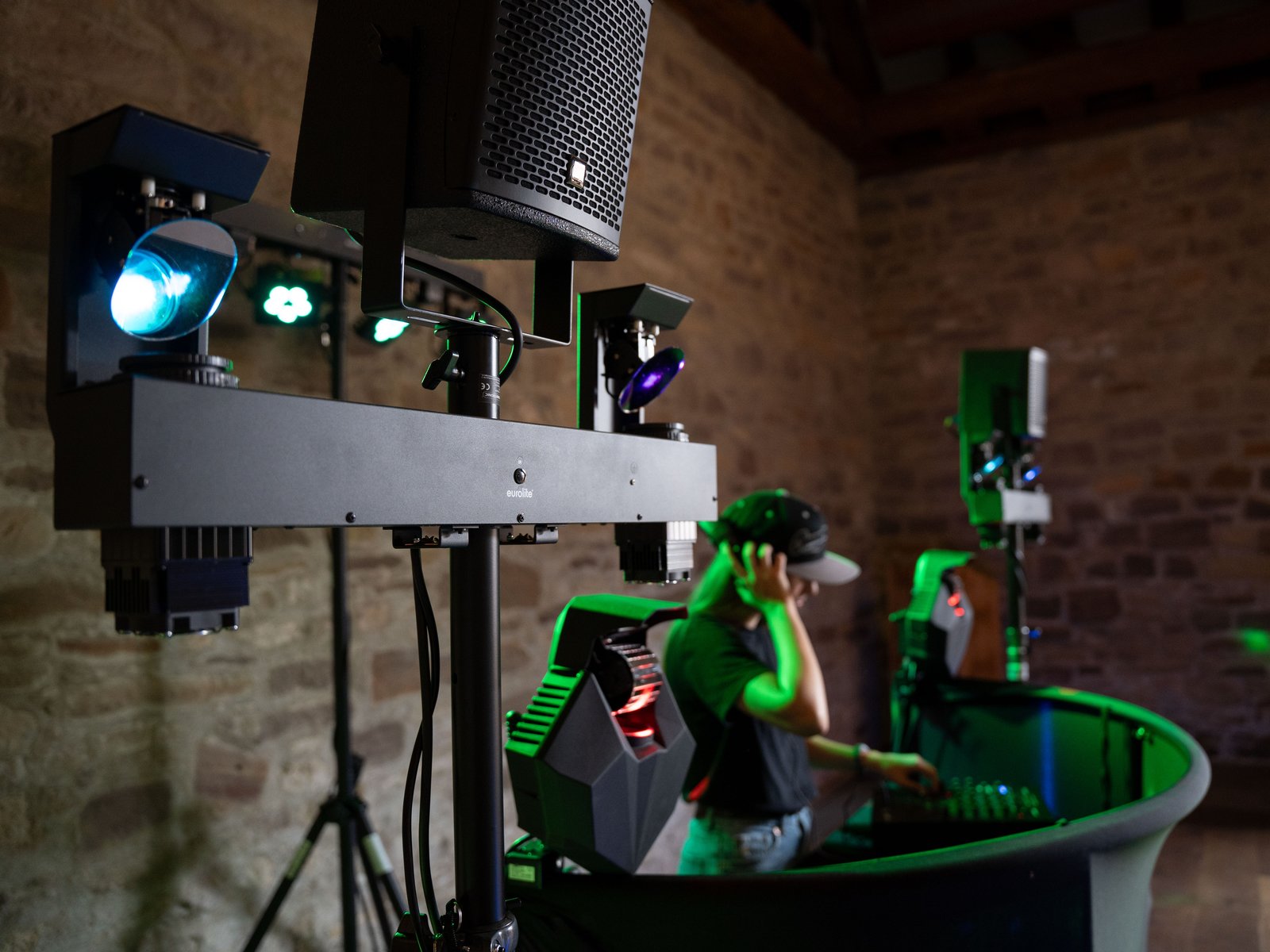

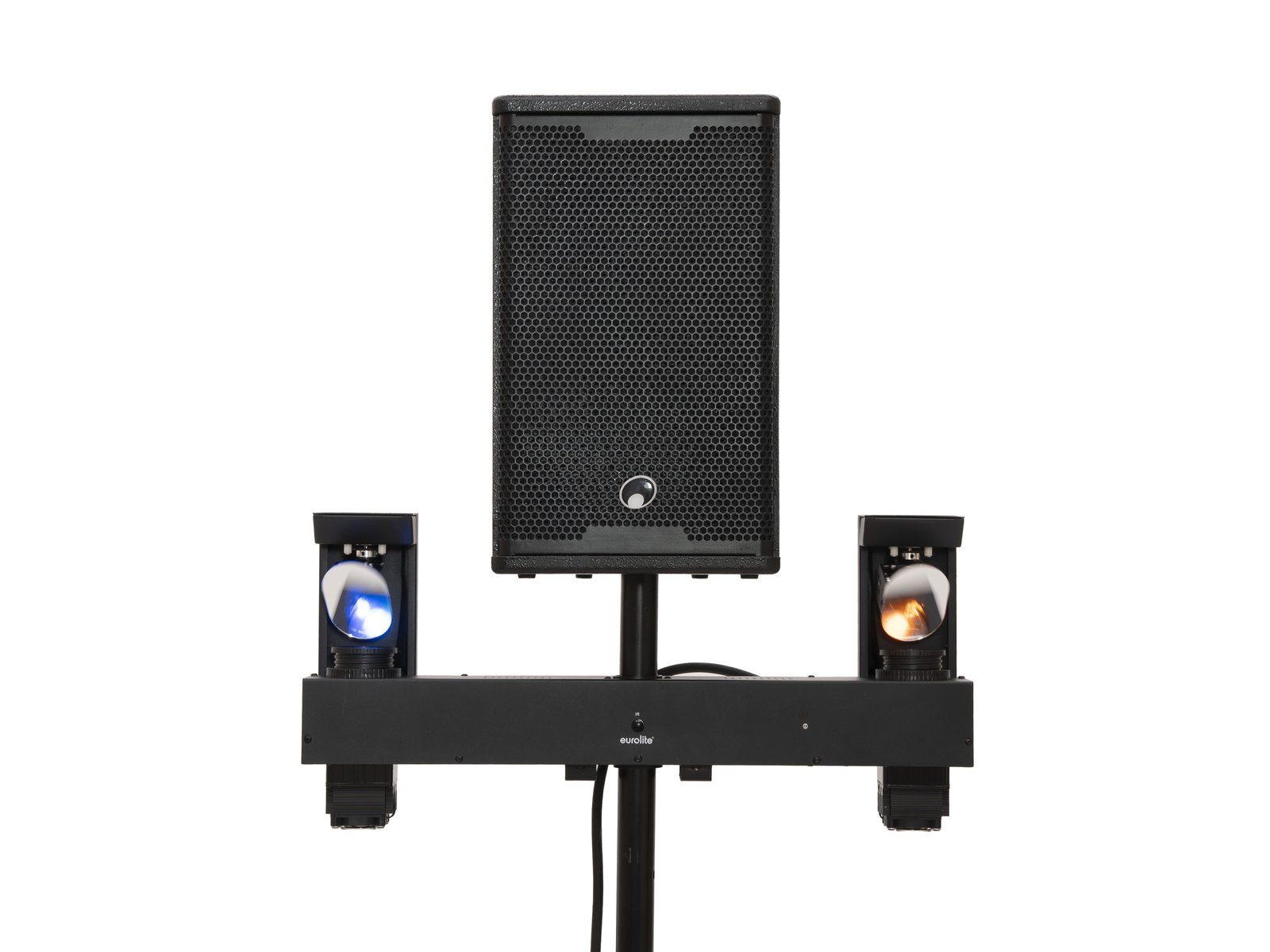

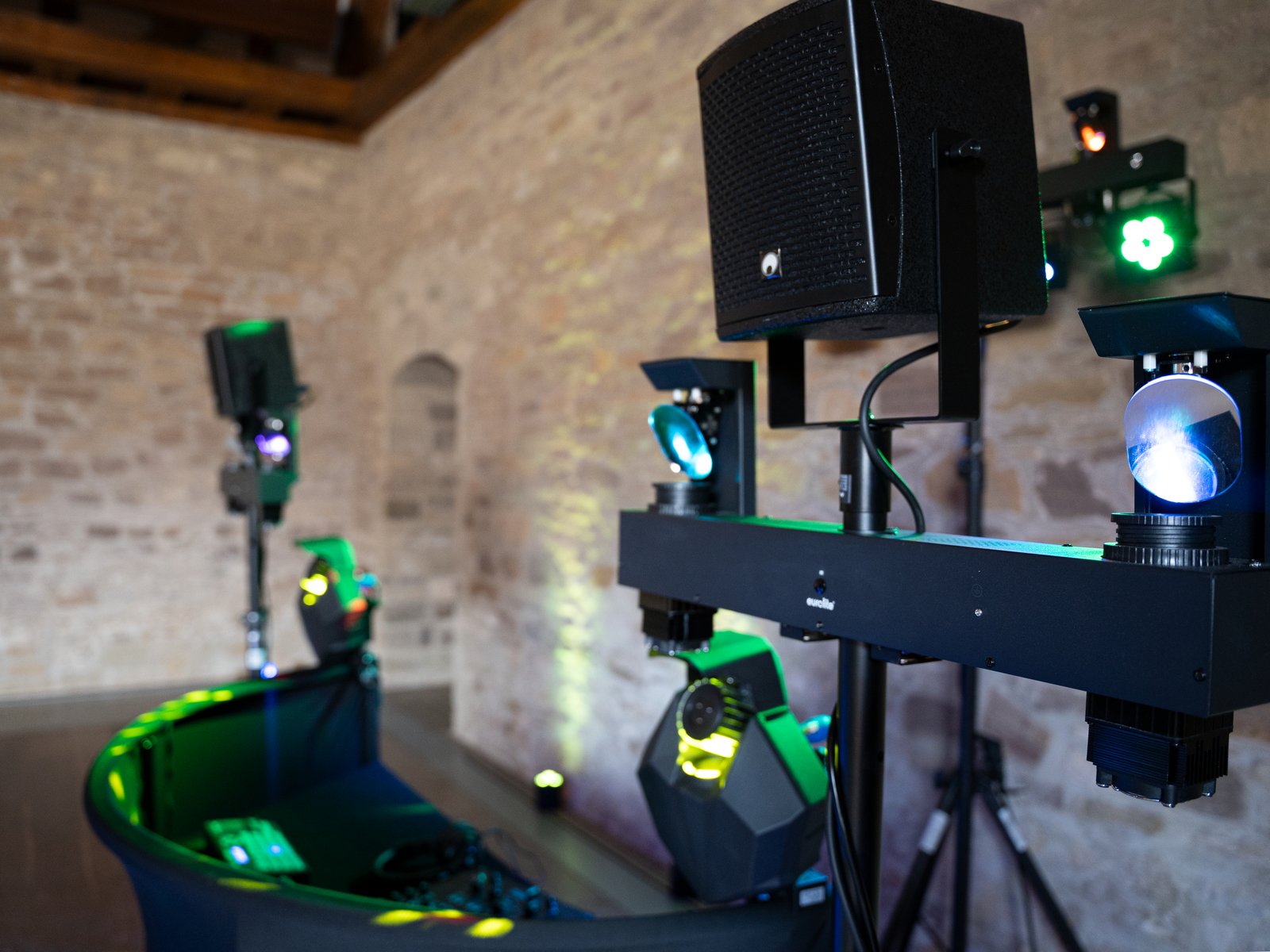

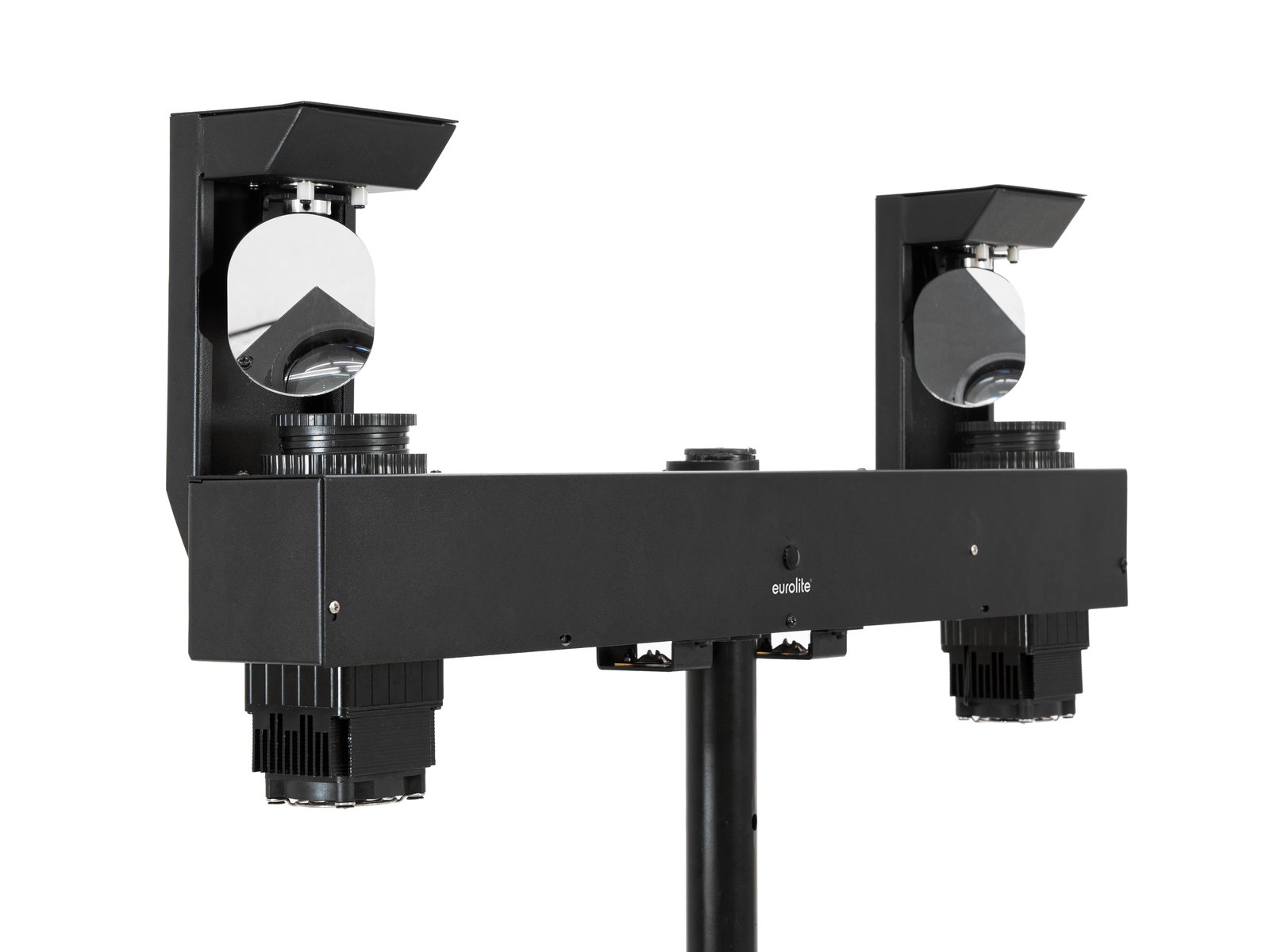

LED Scan Bar with 2 full-fledged scanners, incl. IR remote control
- 2 powerful LEDs 37,5 W COB (chip-on-board) cold white (CW)
moving lights effects controlled separately - Positioning within TILT
- Gobo wheel with static gobos; color wheel

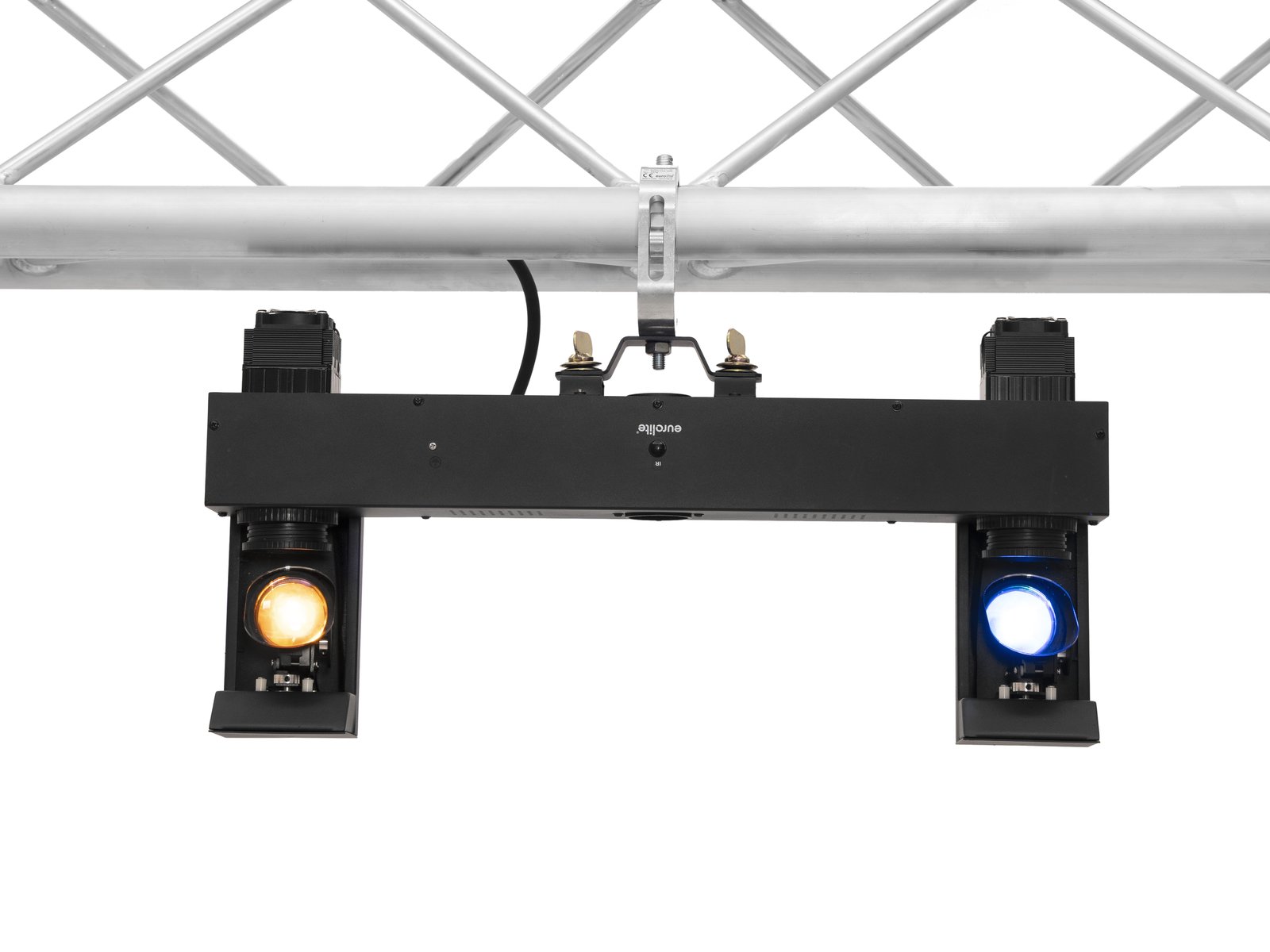

- Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed - Gobo wheel with static gobos, 7 gobos and open
- 16 integrated show programs
- The device is cooled by temperature-controlled fan
- Control via stand-alone; sound to light via microphone; master/slave function; IR remote control; rotary dial for microphone sensitivity; rotary dial for brightness; DMX; QuickDMX (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional)
- The article is delivered pre-assembled
- With a beam angle of 12°
- Multicolor OLED display

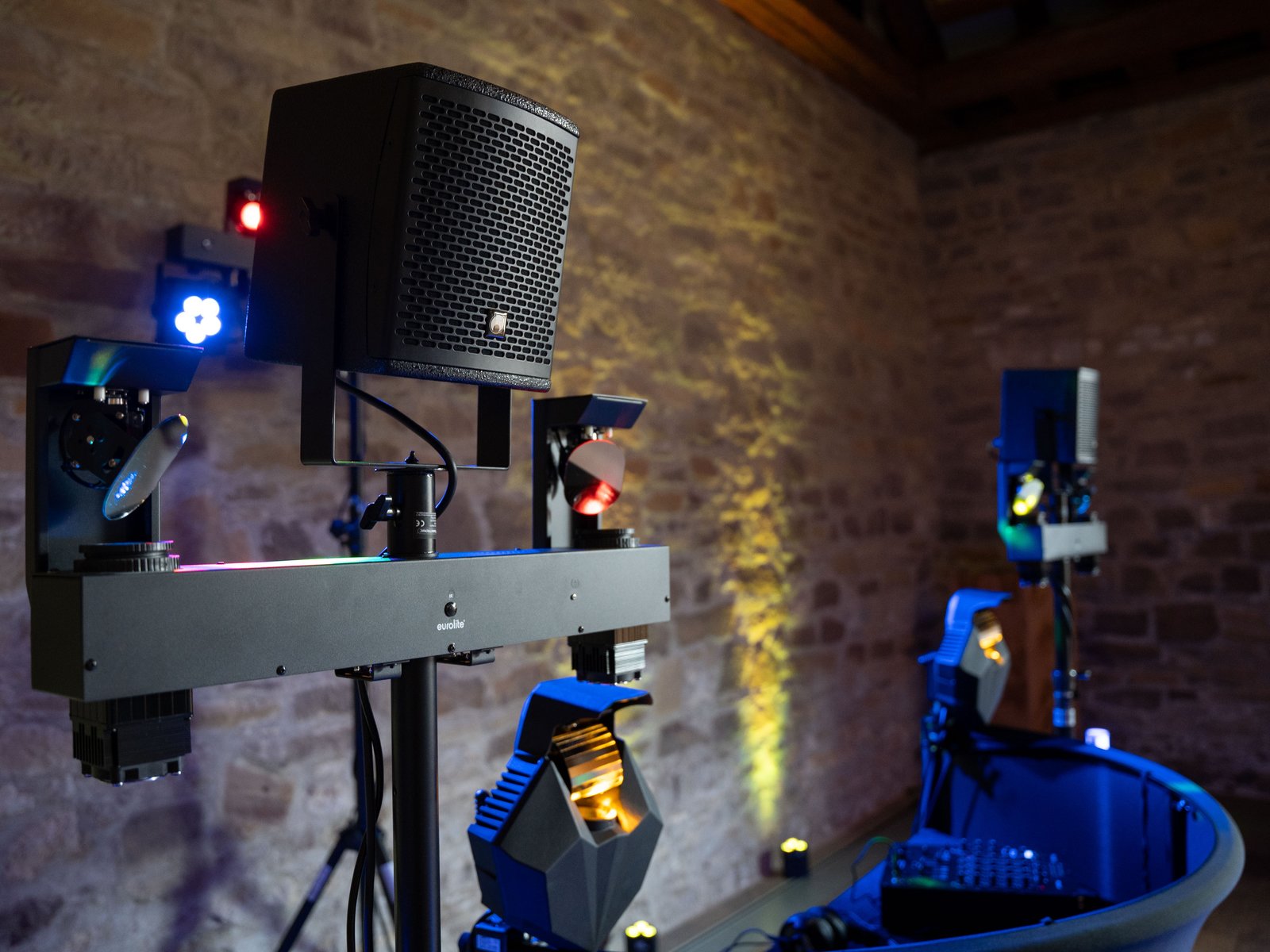

- For application areas such as: Wedding/gala/events; party room; mobile djs / entertainer
- Color selection; Dimmer electronic
- Strobe effect

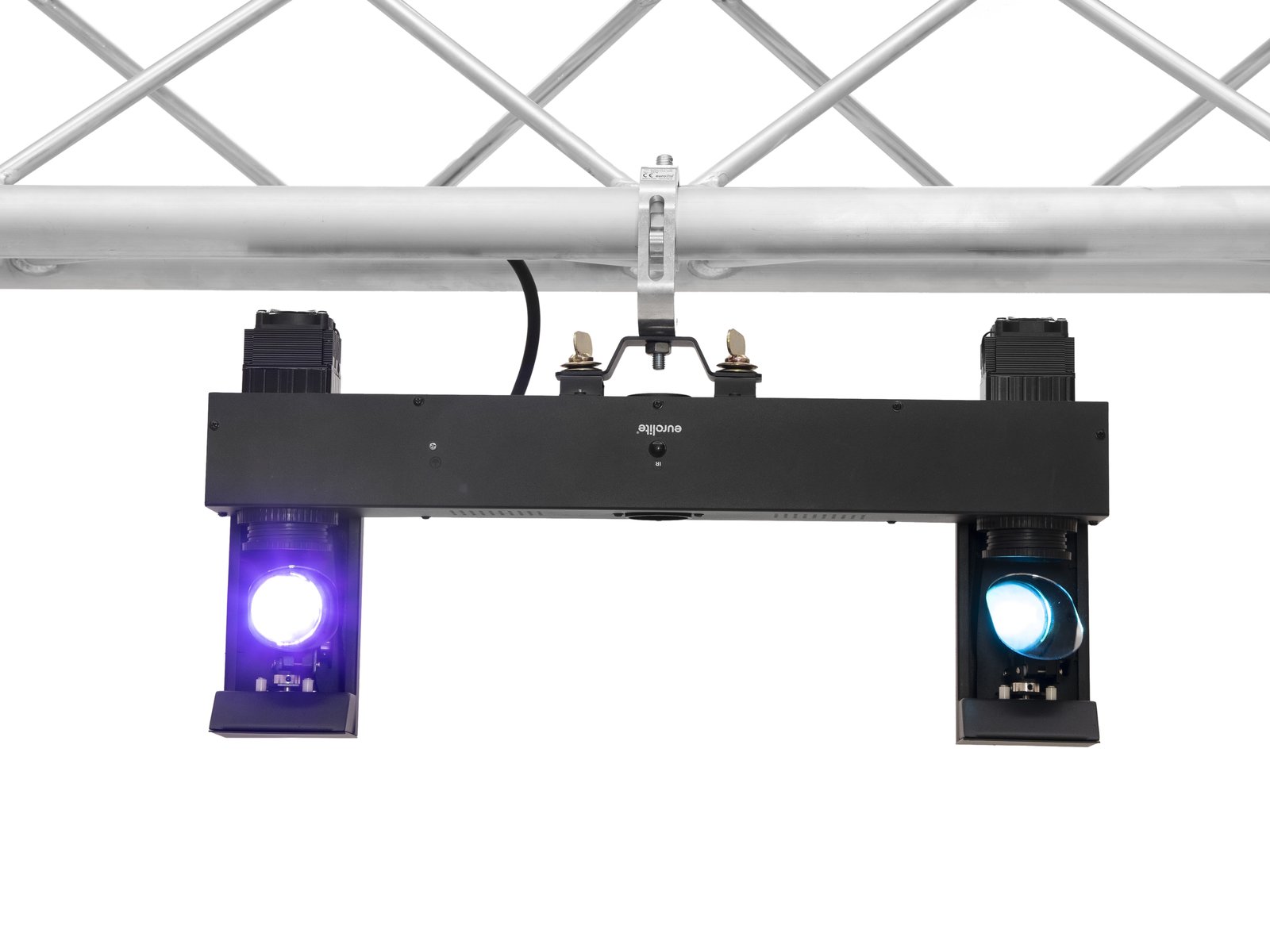

- With omega bracket
- Preprogrammed in Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J

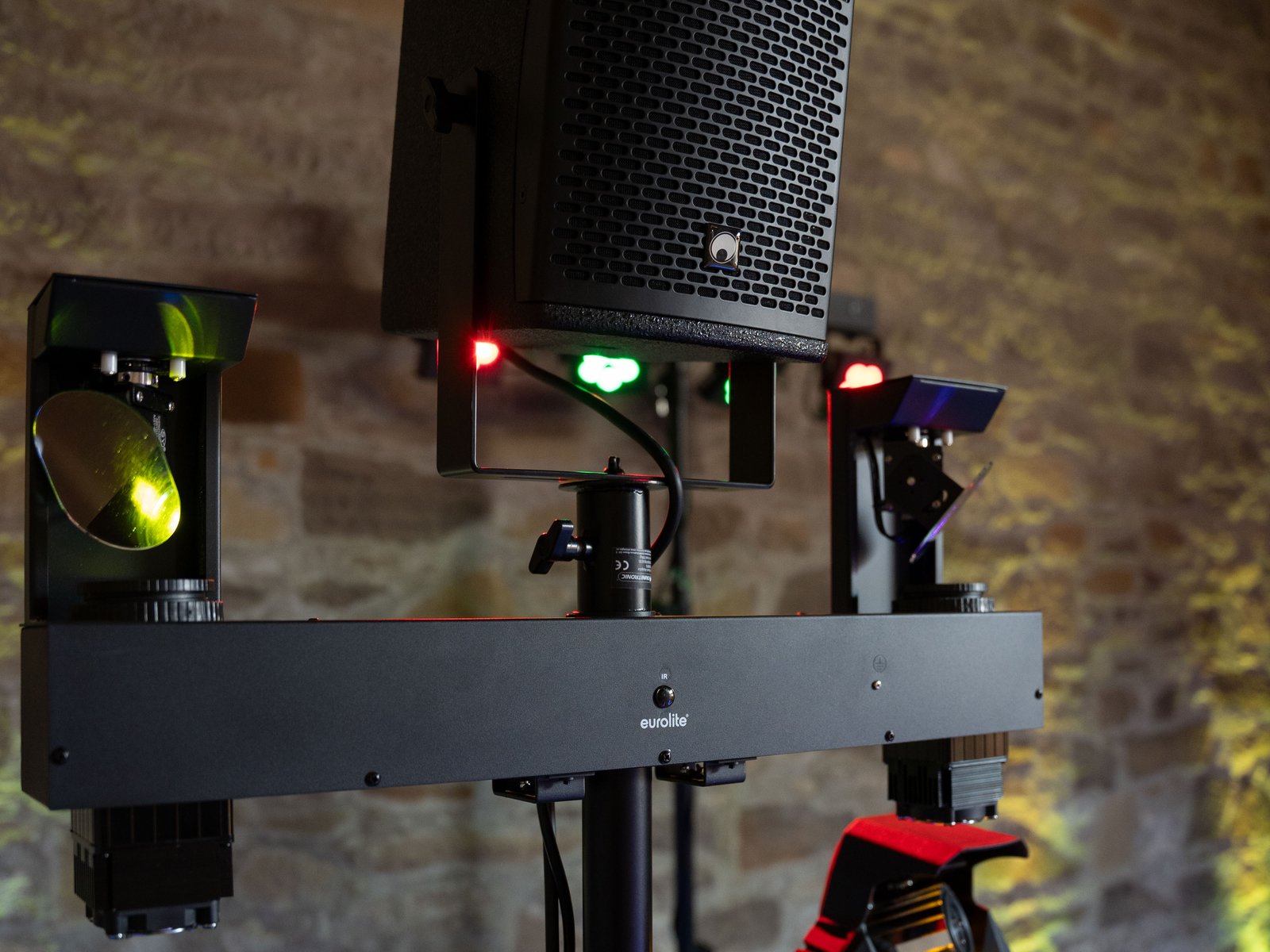

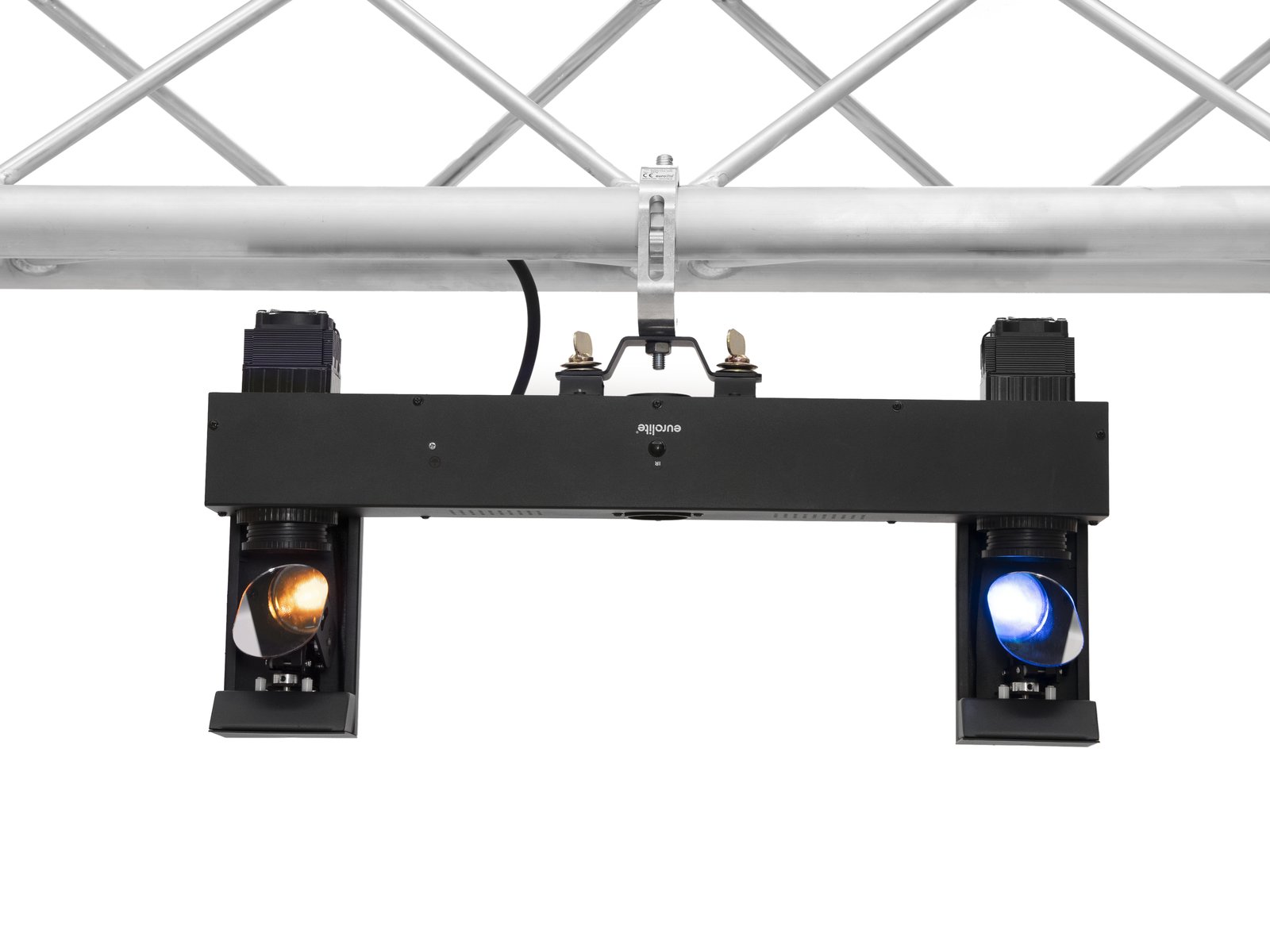

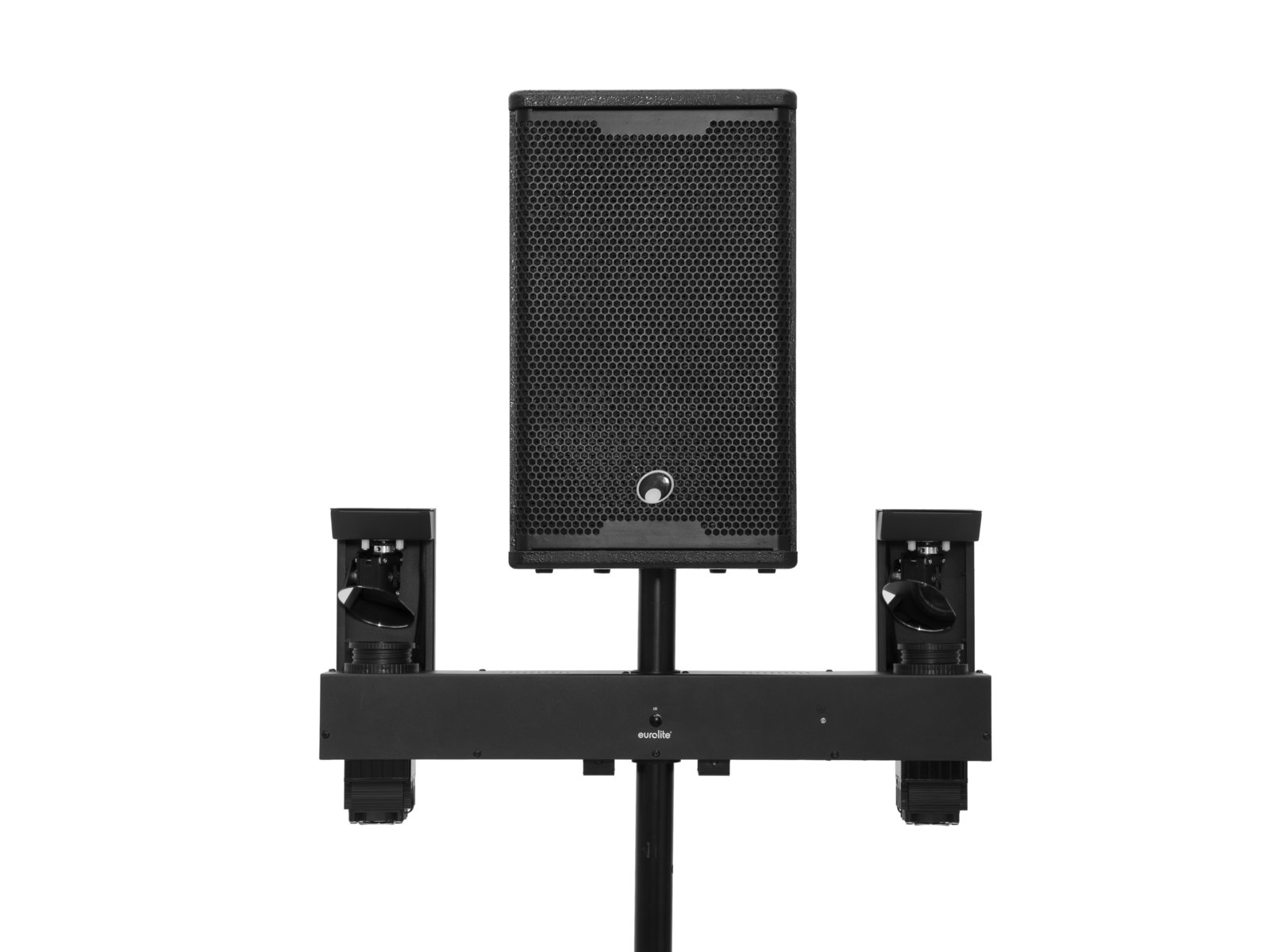

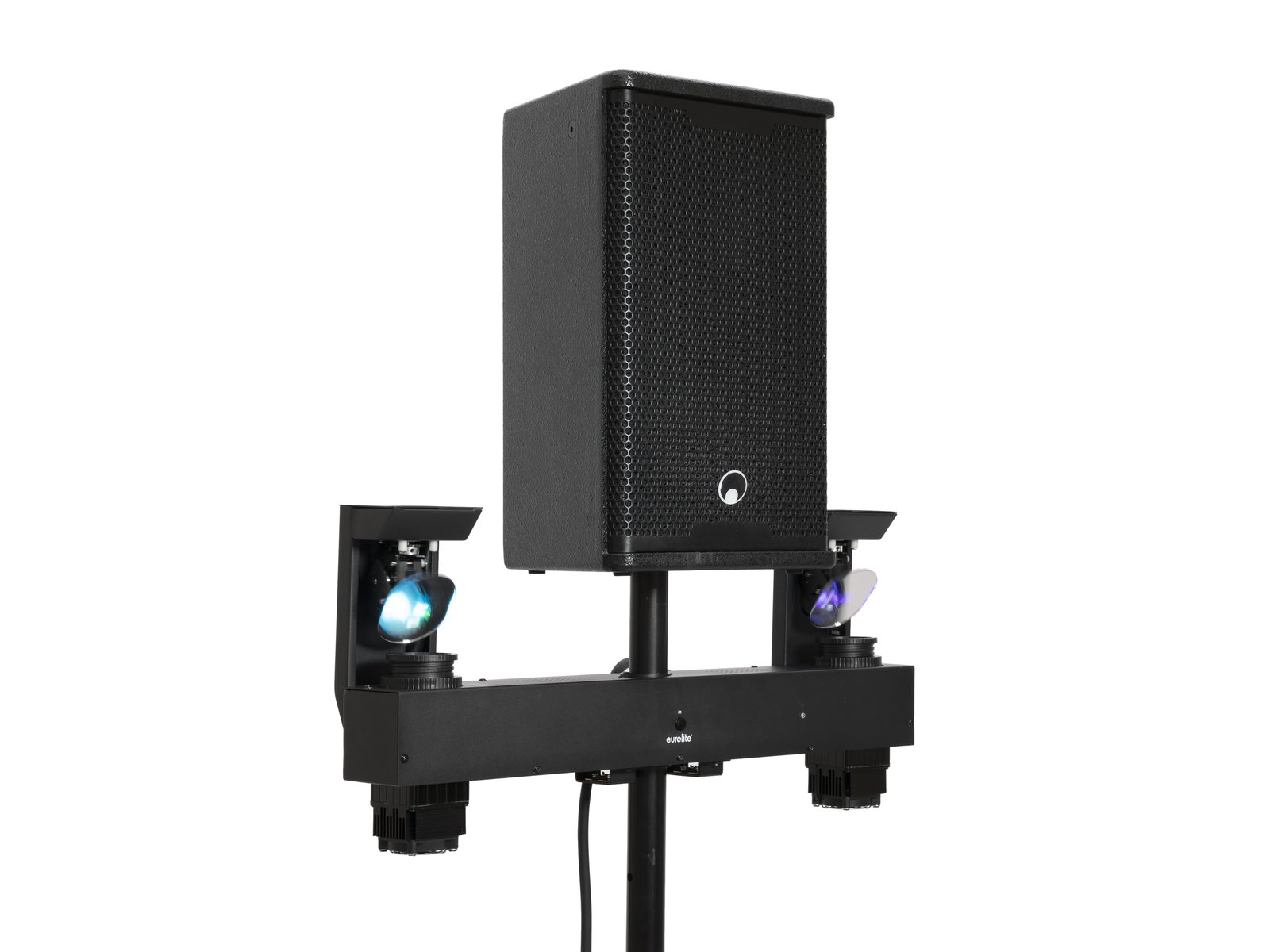

- Application possibility: On stand; suspended
Package contents

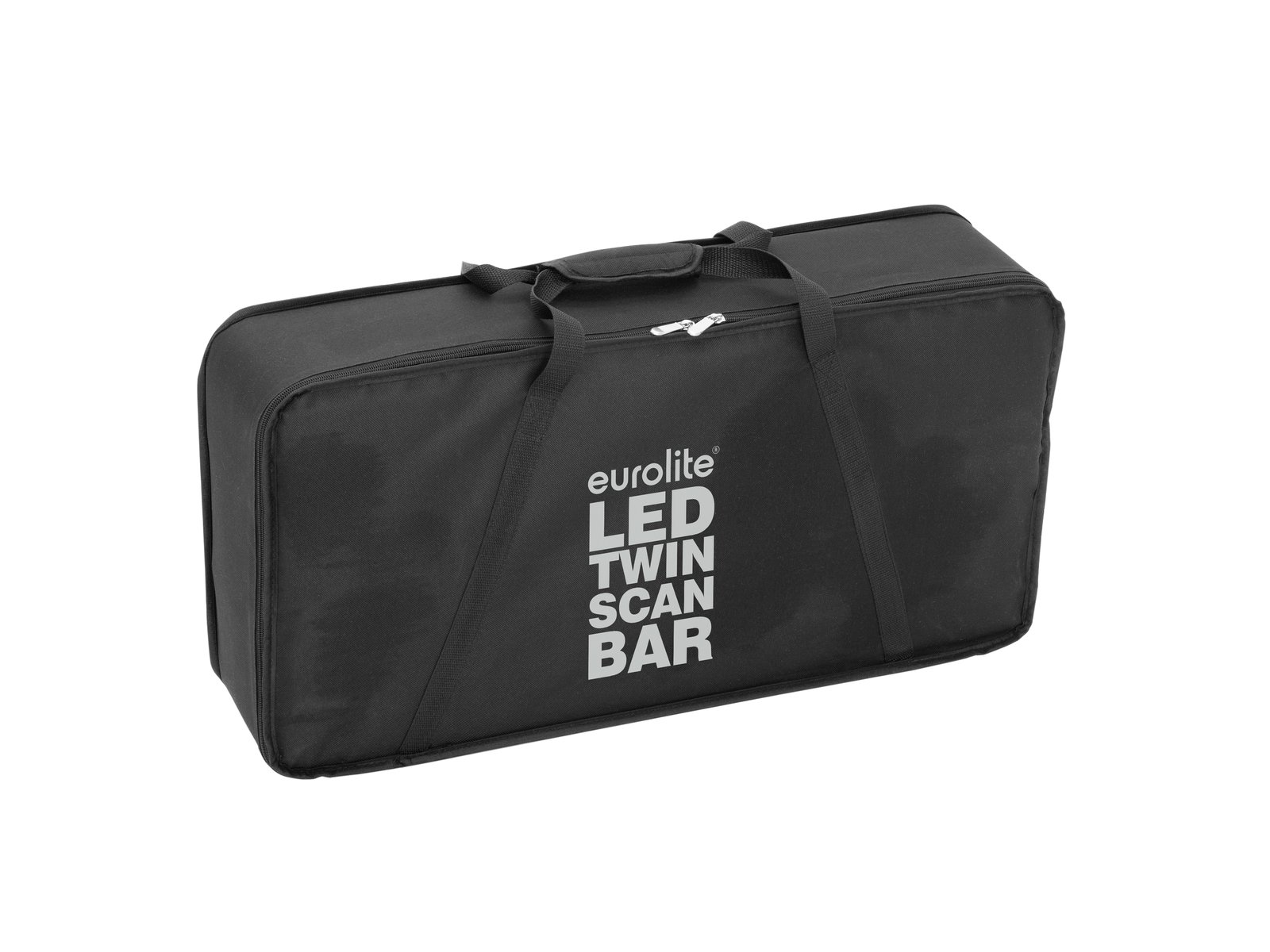

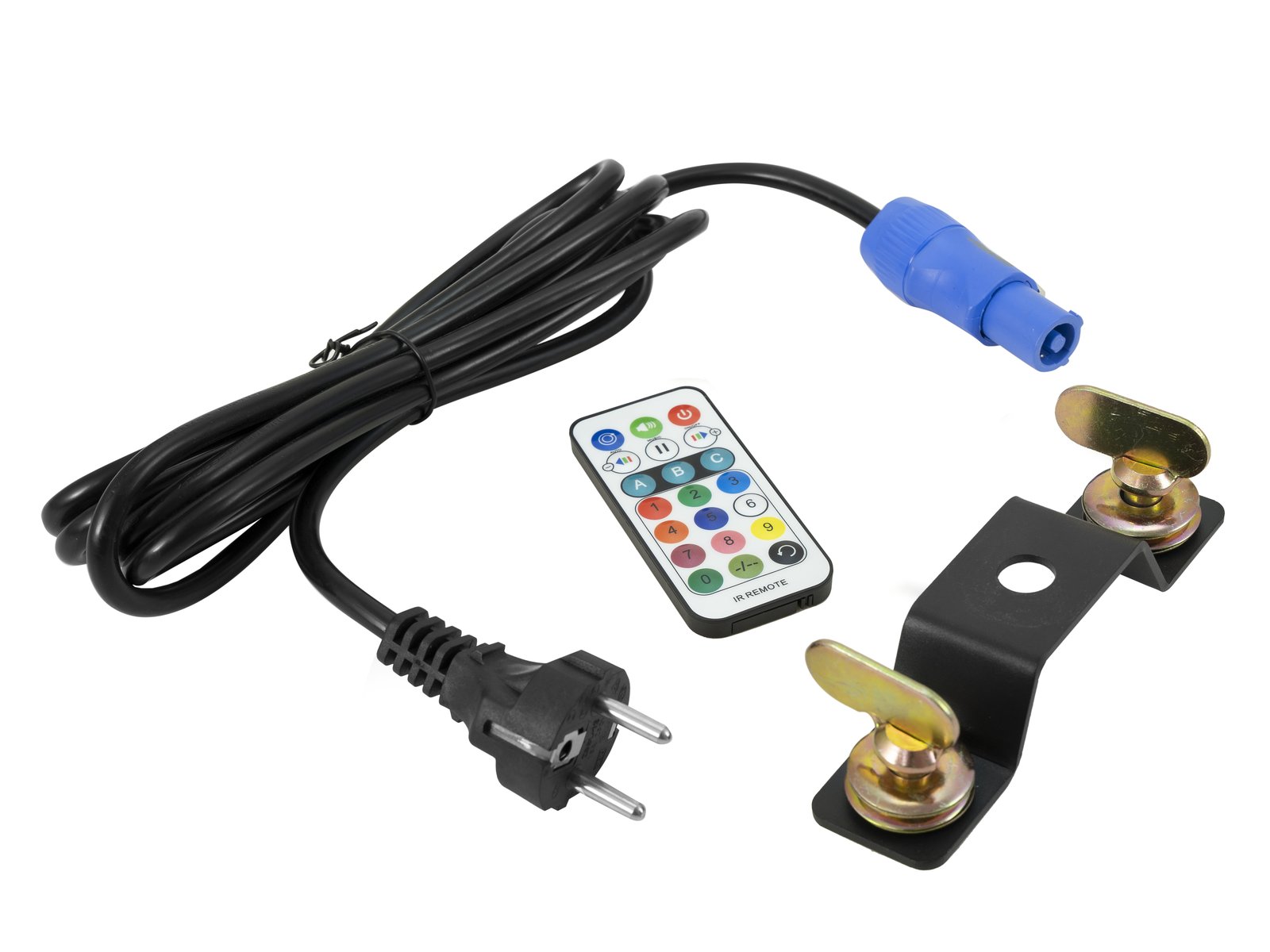

- 1 x device, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x remote control, 1 x battery, 1 x bag
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 125 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x PowerCON (gray) |
| Device fuse: | 5 x 20 mm, T 3,15 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 2 x 37,5 W COB (chip-on-board) cold white (CW) |
| Flash rate: | 0 – 20 Hz |
| Equipment: | Gobo wheel with static gobos; color wheel |
| Color generation: | Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed |

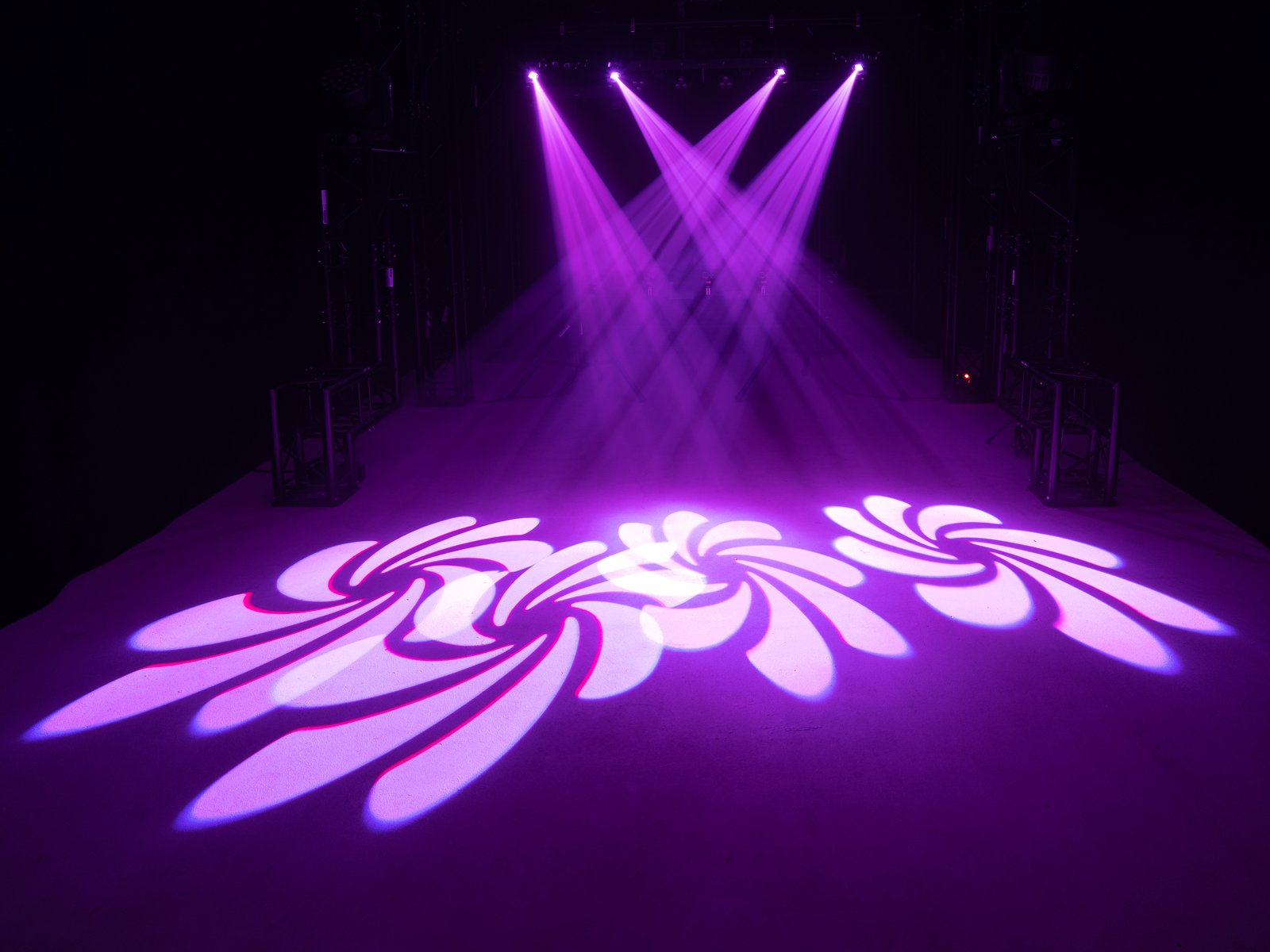

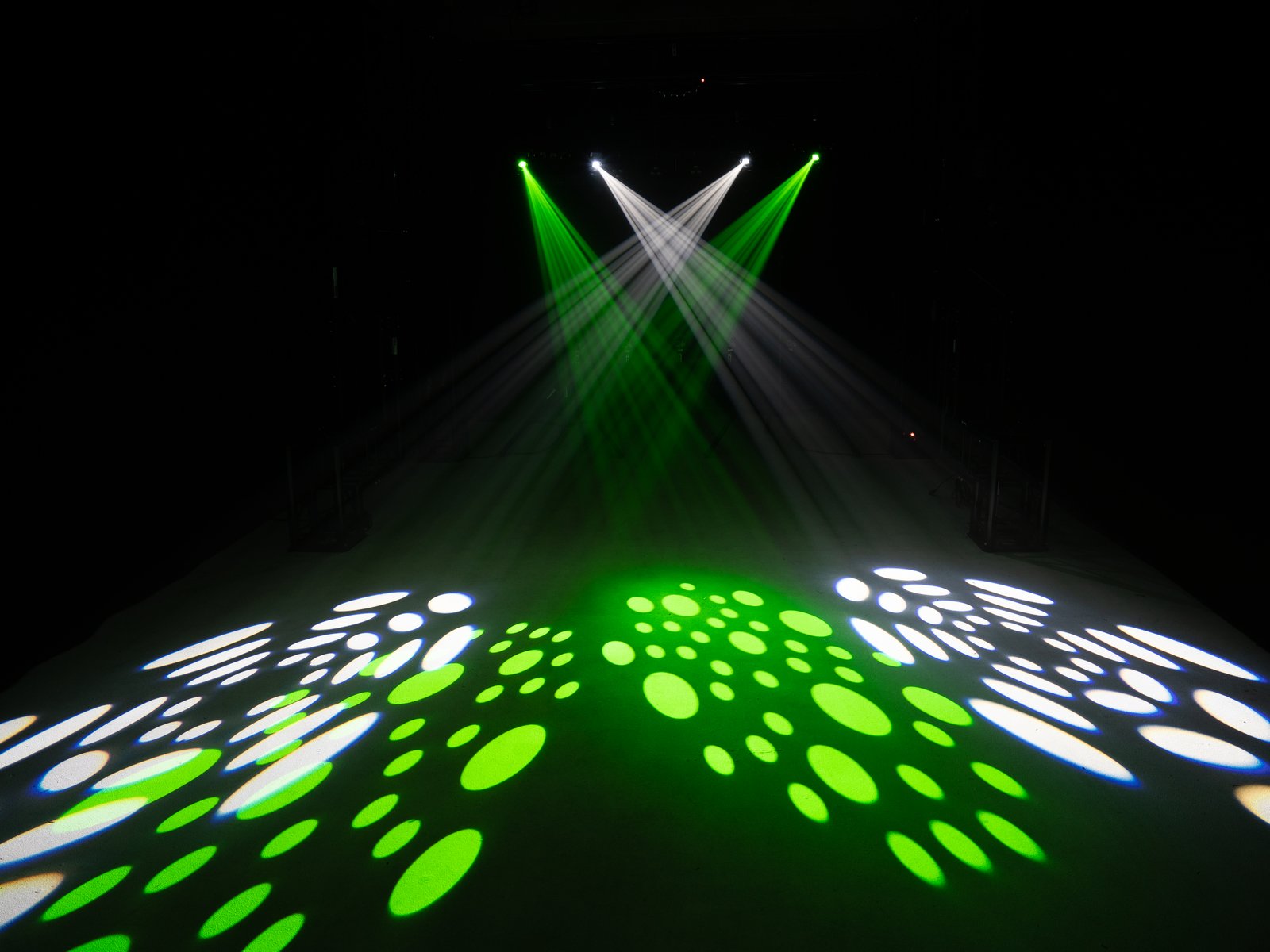

| Gobos: | Gobo wheel with static gobos, 7 gobos and open |
| DMX channels: | 2; 5; 7; 8; 14 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |

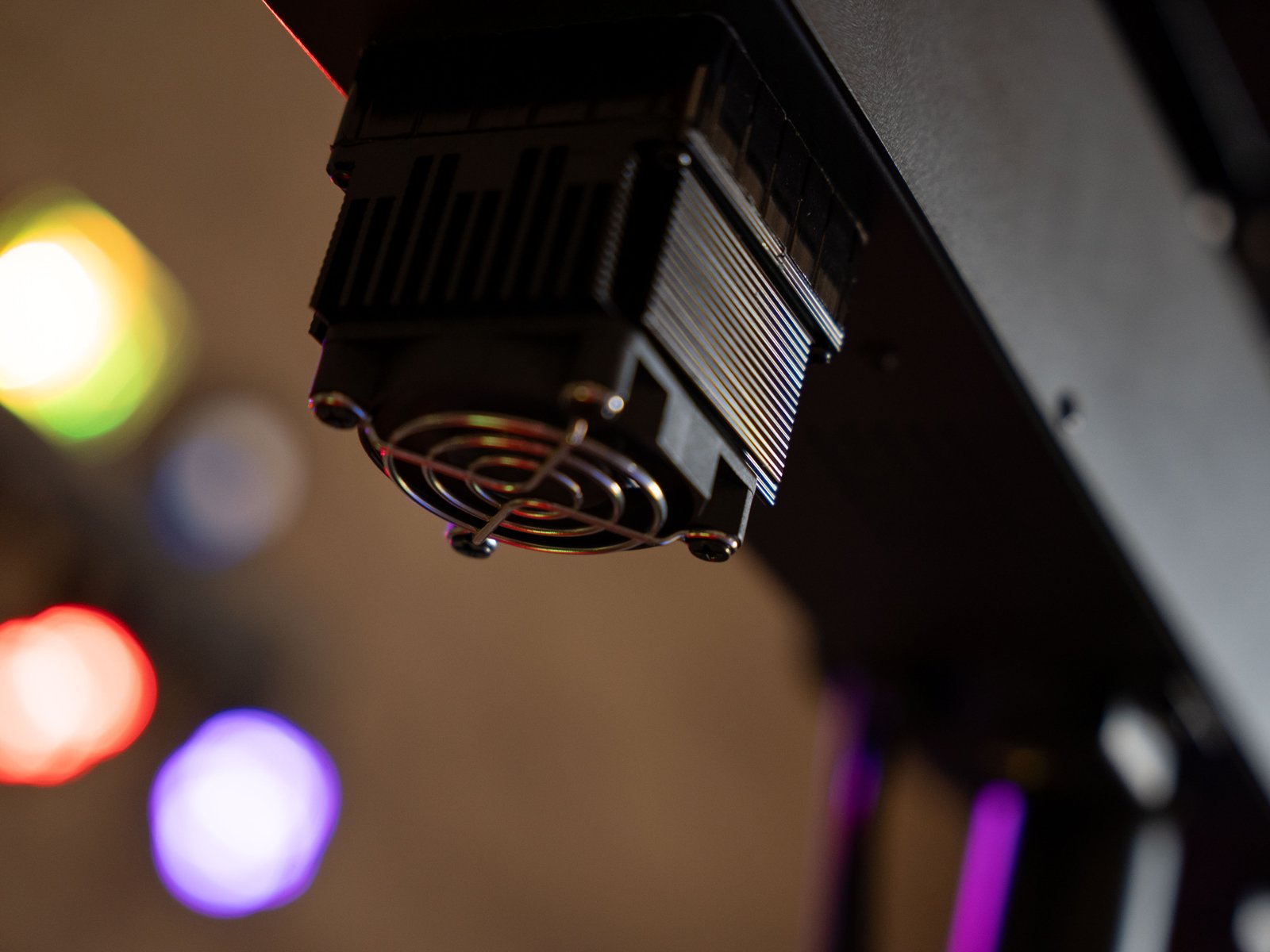

| Cooling: | 2 x temperature-controlled fan |
| Control: | Stand-alone; sound to light via microphone; master/slave function; IR remote control; rotary dial for microphone sensitivity; rotary dial for brightness; DMX; QuickDMX (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional) |
| Preprogrammed in: | Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J |
| Beam angle: | 12° |
| Beam angle (1/2 peak): | 12° |
| Color temperature: | 8500K |
| Housing color: | Black |
| Attachment system: | Omega bracket Ø 35mm |
| Display type: | Multicolor OLED display |
| Dimensions: | Length: 60 cm Width: 11,8 cm Height: 28,5 cm |
| Weight: | 6,25 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397708127 | 6,85 kg | 66cm x 16cm x 34,5cm |
