Description

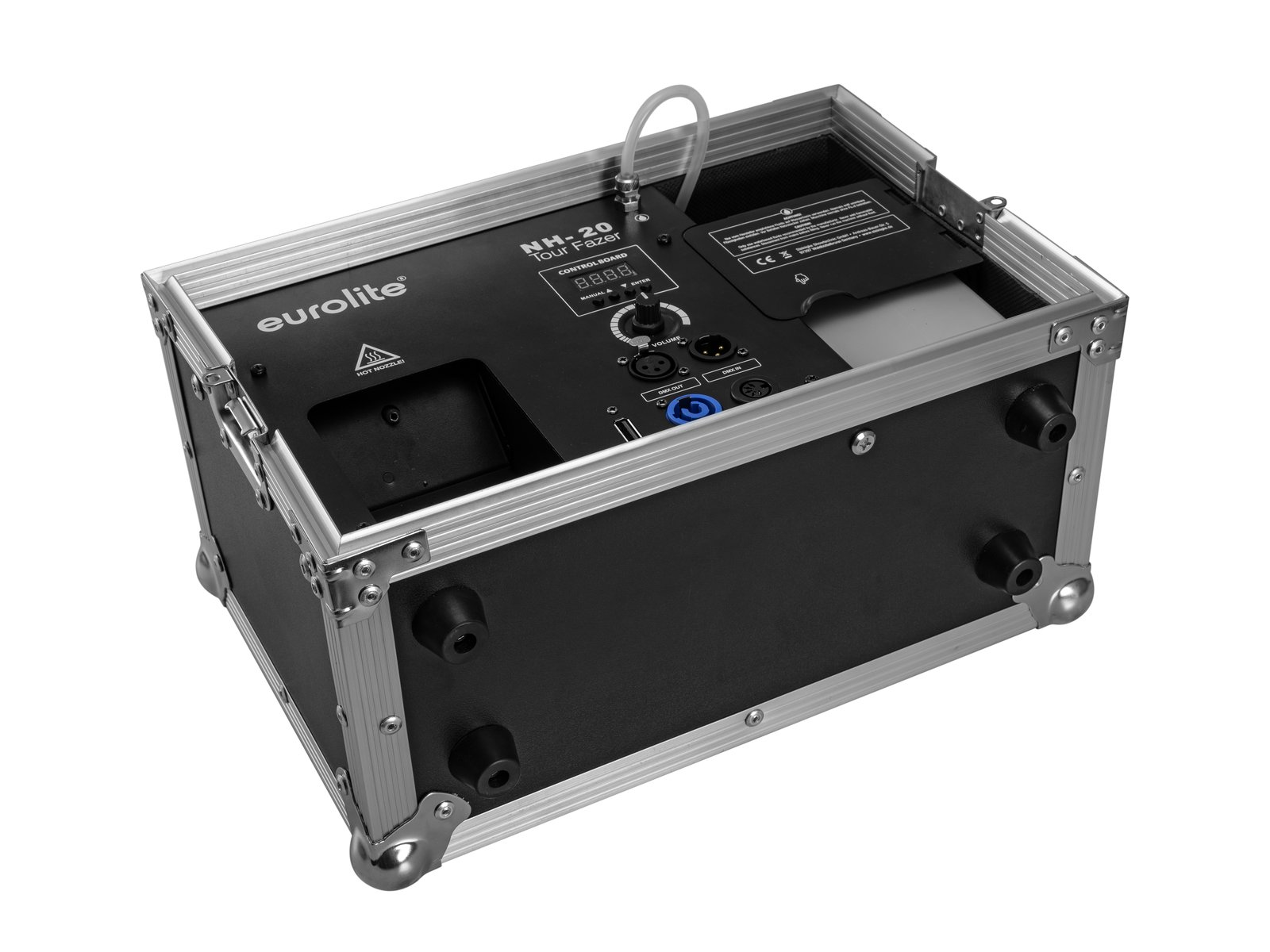

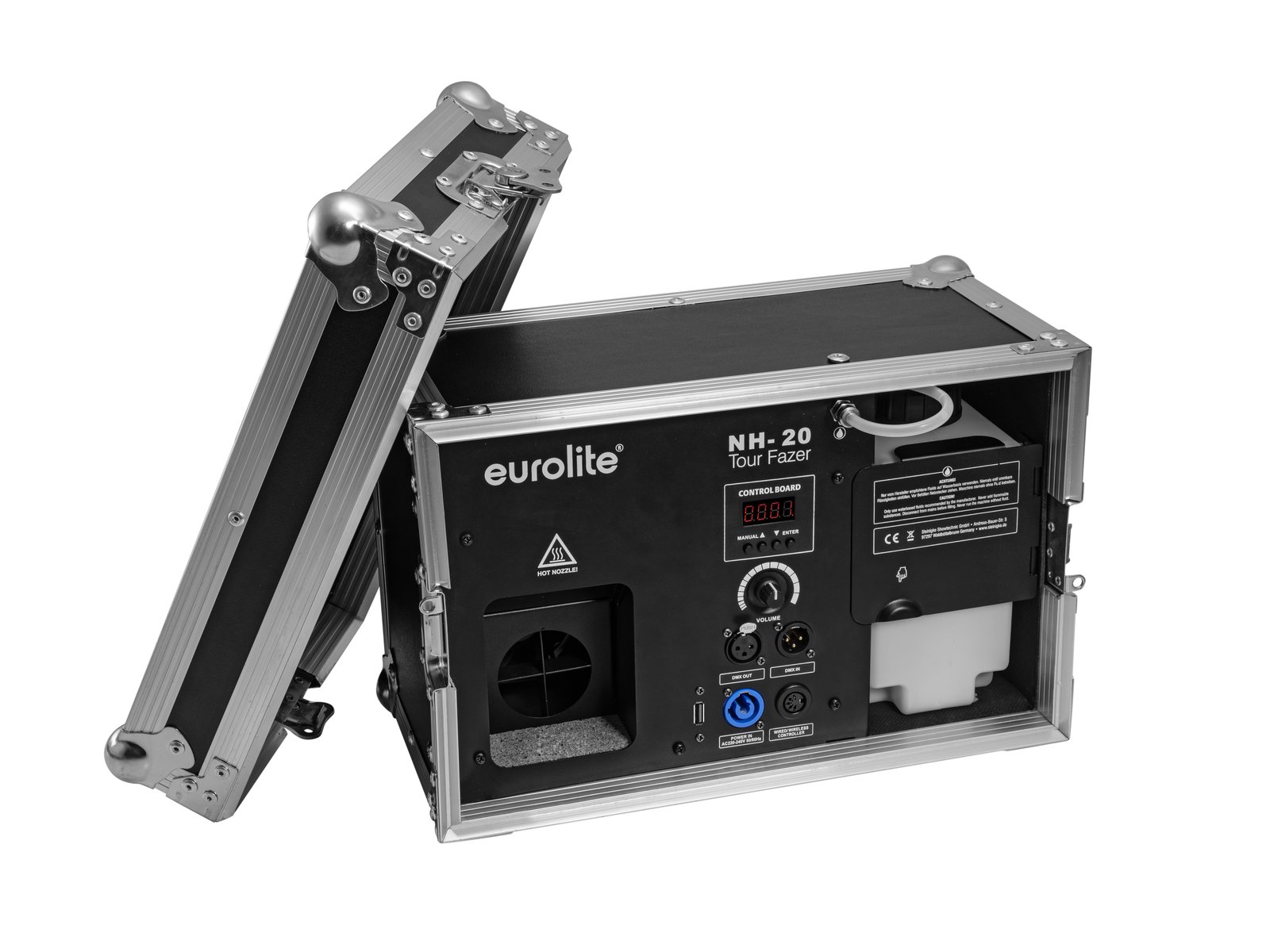

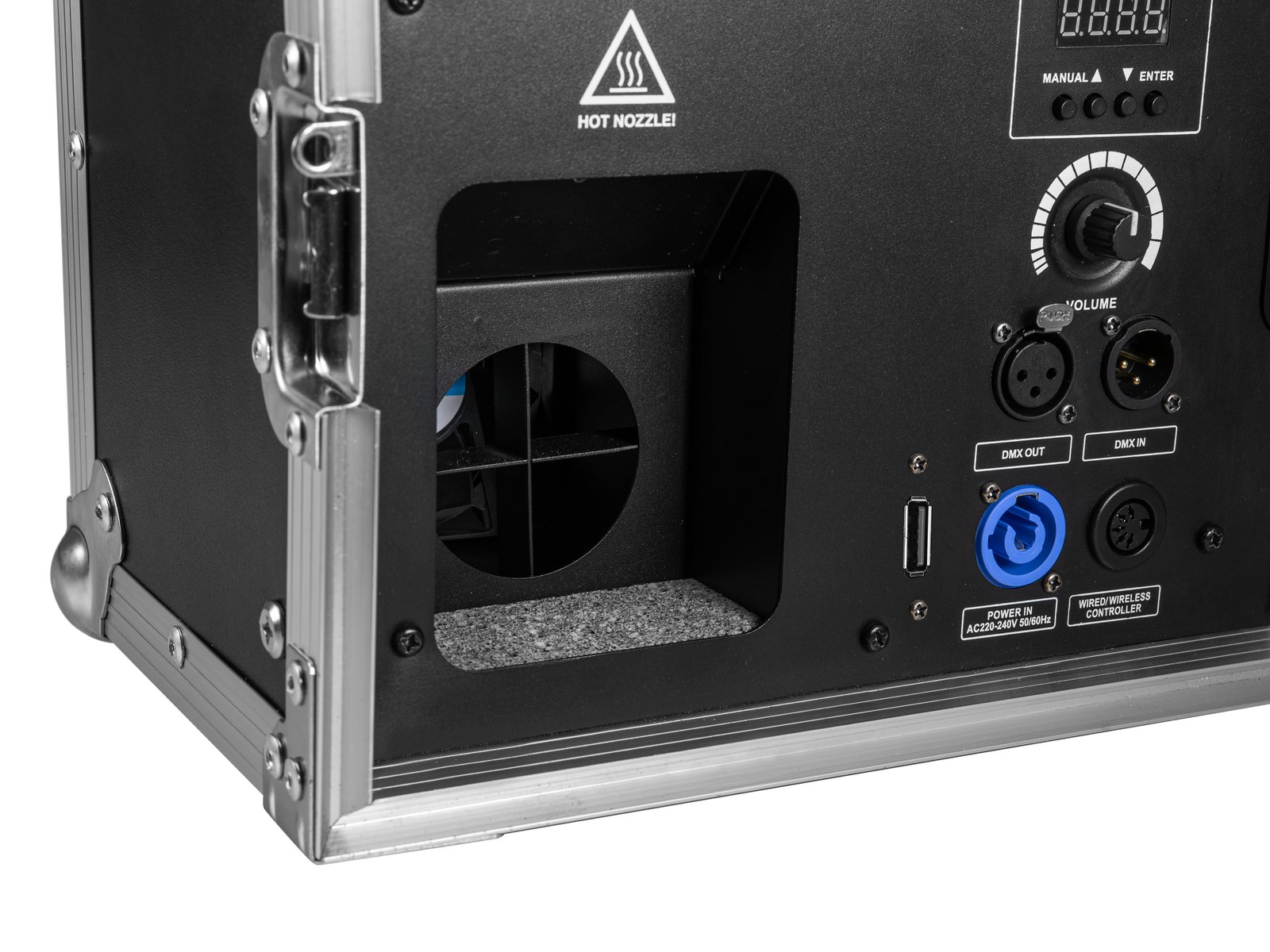

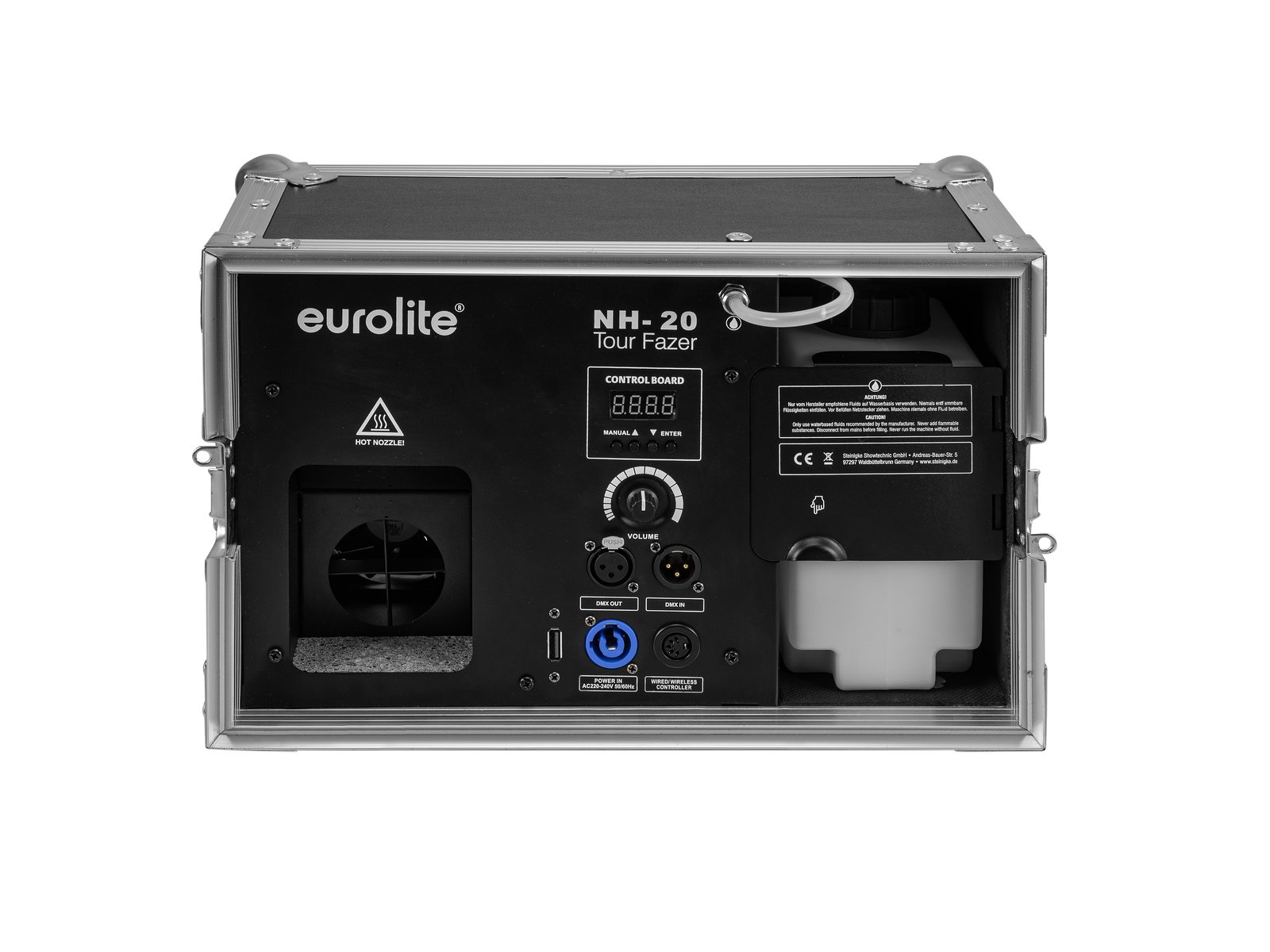

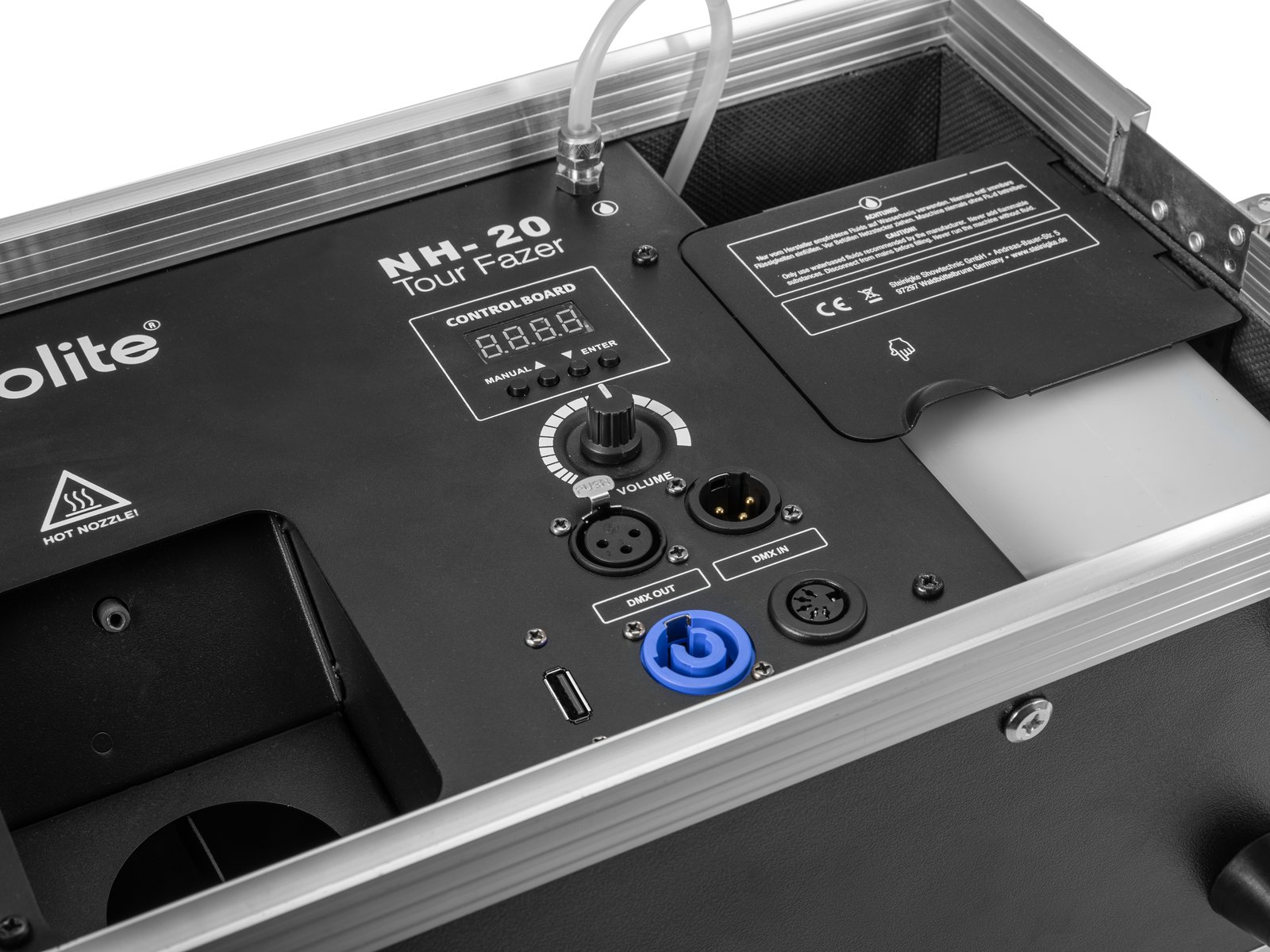

EUROLITE NH-20 Tour Fazer
The EUROLITE NH-20 Tour Fazer offers a compact, powerful solution for enhancing light and laser beams with fine, transparent haze. Its robust, stackable flight case makes it suitable for both mobile and stationary applications.
Efficient and Quick to Use
With a short warm-up time of just 1.5 minutes, the NH-20 is ready for operation in no time. It produces fine haze with a projection range of up to 2 meters, emphasizing light beams without filling the room with dense fog. These features make it an excellent choice for clubs, dance schools, stages, and mobile DJs.
Flexible and Easy to Operate
The NH-20 offers versatile control options, including DMX, stand-alone mode, and optional QuickDMX, W-DMX by Wireless Solution, or CRMX by LumenRadio. Alternatively, it can also be operated via a wired remote control. A removable 1.7-liter tank simplifies refilling with water-based fluid, and the user-friendly 4-digit LED display ensures straightforward operation.
Robust and Compact
The stackable flight case provides optimal protection and facilitates transport. With a compact size of 39 x 27 x 26.5 cm and a weight of only 7.4 kg, the NH-20 is highly portable and easy to store. This powerful 350-watt machine delivers reliable results with minimal maintenance effort.
Features
Compact DMX fazer with QuickDMX port in flight case
- Integration in a stackable flightcase makes the machine tough, durable and easy to carry
- Produces fine, translucent haze without nebulizing the room at the same time
- Ideal for accentuating light and laser beams
- Auto temperature control
- Short warm-up time
- Output distance: Approx. 2 m
- Control via DMX; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); wired remote control (optional)
- 4 digit 7-segment LED display
- Operates on water-based fluid
- Removable tank
- For application areas such as: Clubs/dancing school; small rental; stage; mobile djs / entertainer
- Application possibility: Standing
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x container, 1 x tube
Technical specifications
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 350 W |
| IP classification: | IP20 |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Warm-up time: | Approx. 1,5 min |
| Output distance: | Approx. 2 m |
| Tank capacity: | 1,7 l water-based fluid removable tank |
| Fluid consumption: | Approx. 2,2 ml/min |
| DMX channels: | 1 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); wired remote control (optional) |
| Housing color: | Black |
| Heater: | 300 W |
| Display type: | 4 digit 7-segment LED display |
| Color: | Black |
| Dimensions: | Length: 39 cm Width: 27 cm Height: 26,5 cm |
| Weight: | 7,40 kg |
| Noise classification: | Class 2 (slight noise) |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397717372 | 8,10 kg | 44cm x 32cm x 32cm |
