Description
Features

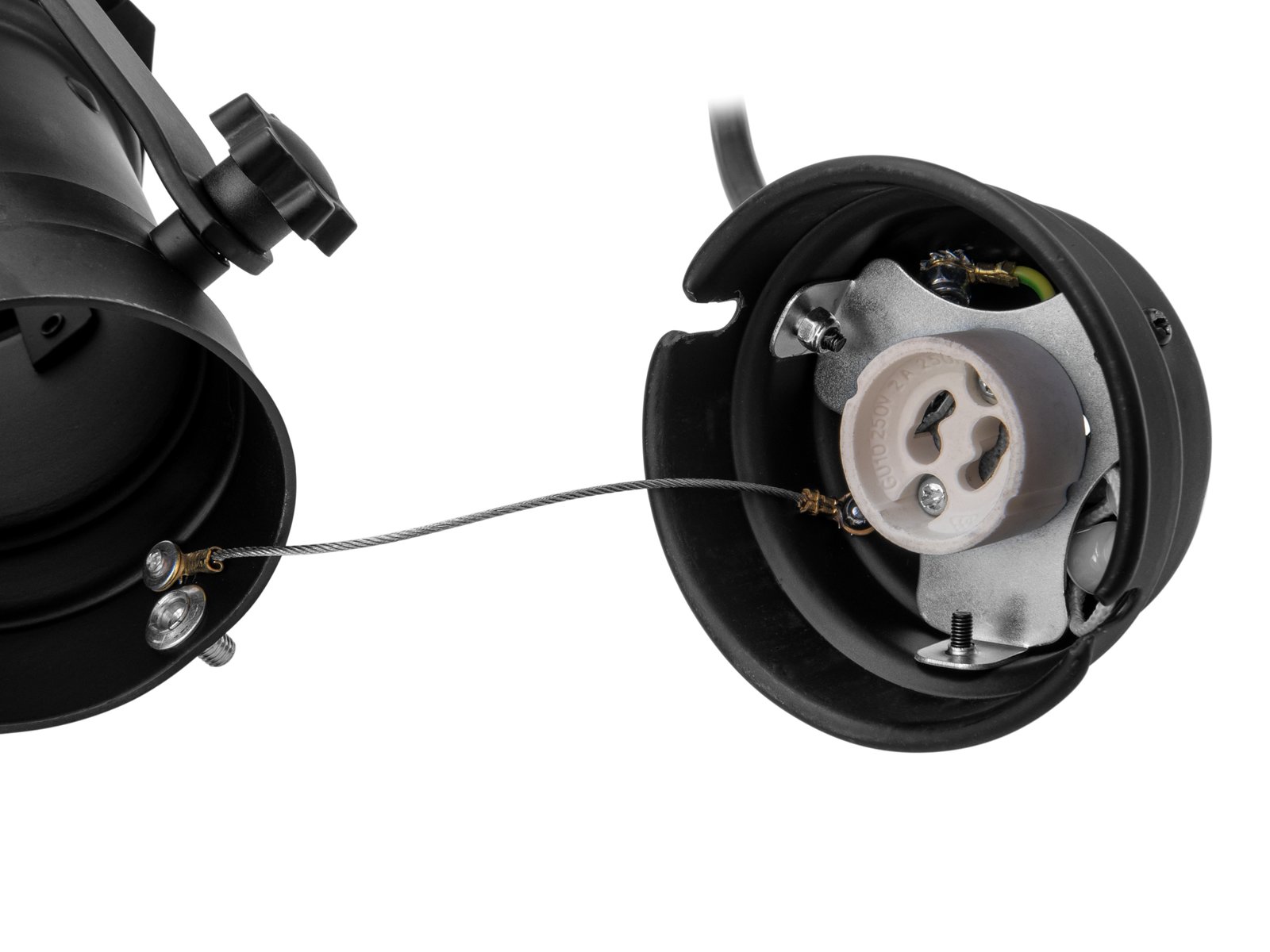

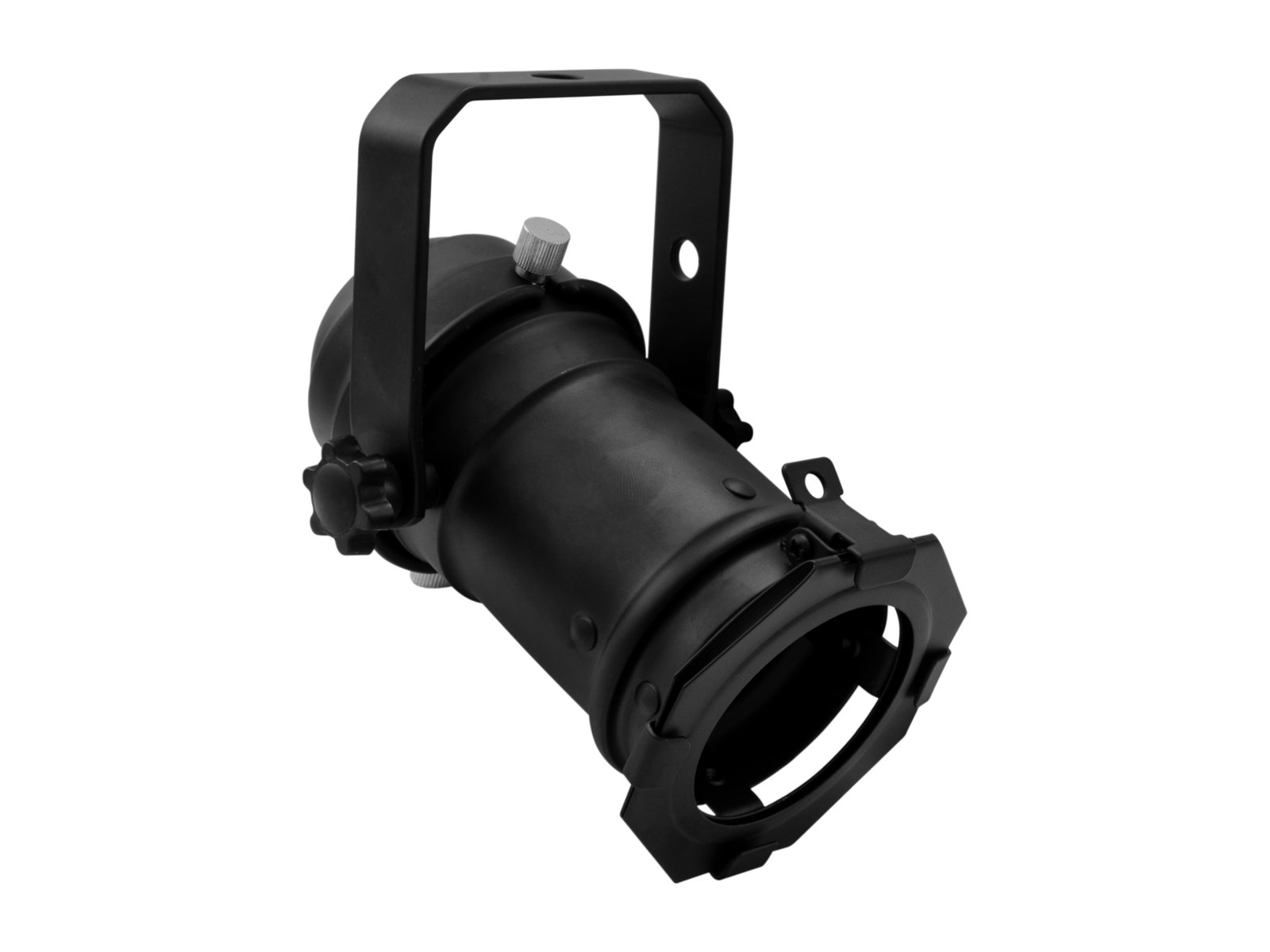

PAR-16 housing with GU10 socket (with plug + cable)
- Mini-spot for GU-10 lamp
- Color-filters attachable
- Control via plug and play
- For PAR 16
Package contents
- 1 x spotlight, 1 x filter frame, 1 x user manual
Technical specifications
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | Max. 75 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 0,75 mm² H05SS-F |
| Cable length: | Approx. 0,4 m |
| Base: | GU10 |
| Lamp type: | Selectable |
| Color generation: | Via color filter frame |
| Control: | Plug and play |
| Construction: | PAR-16 |
| Housing color: | Black |
| Material: | Aluminum, 1 mm |
| Slot for spot length: | 7,8 cm x 7,8 cm |
| Dimensions: | Length: 17 cm Width: 11 cm Height: 13 cm |
| Weight: | 280 g |
| Mounting bracket | |
| Diameter mounting holes: | 2 x Ø10mm |
| Material: | Aluminum, 3 mm |
| Filter frame | |
| Shape: | Octagonal |
| Material: | Aluminum, 0,5 mm |
| Dimensions: | Length: 7,7 cm Width: 7,7 cm Diameter: Ø 5,2 cm |
| Weight: | 10 g |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397614053 | 0,34 kg | 17,5cm x 9,5cm x 9,5cm |
