Description
Features

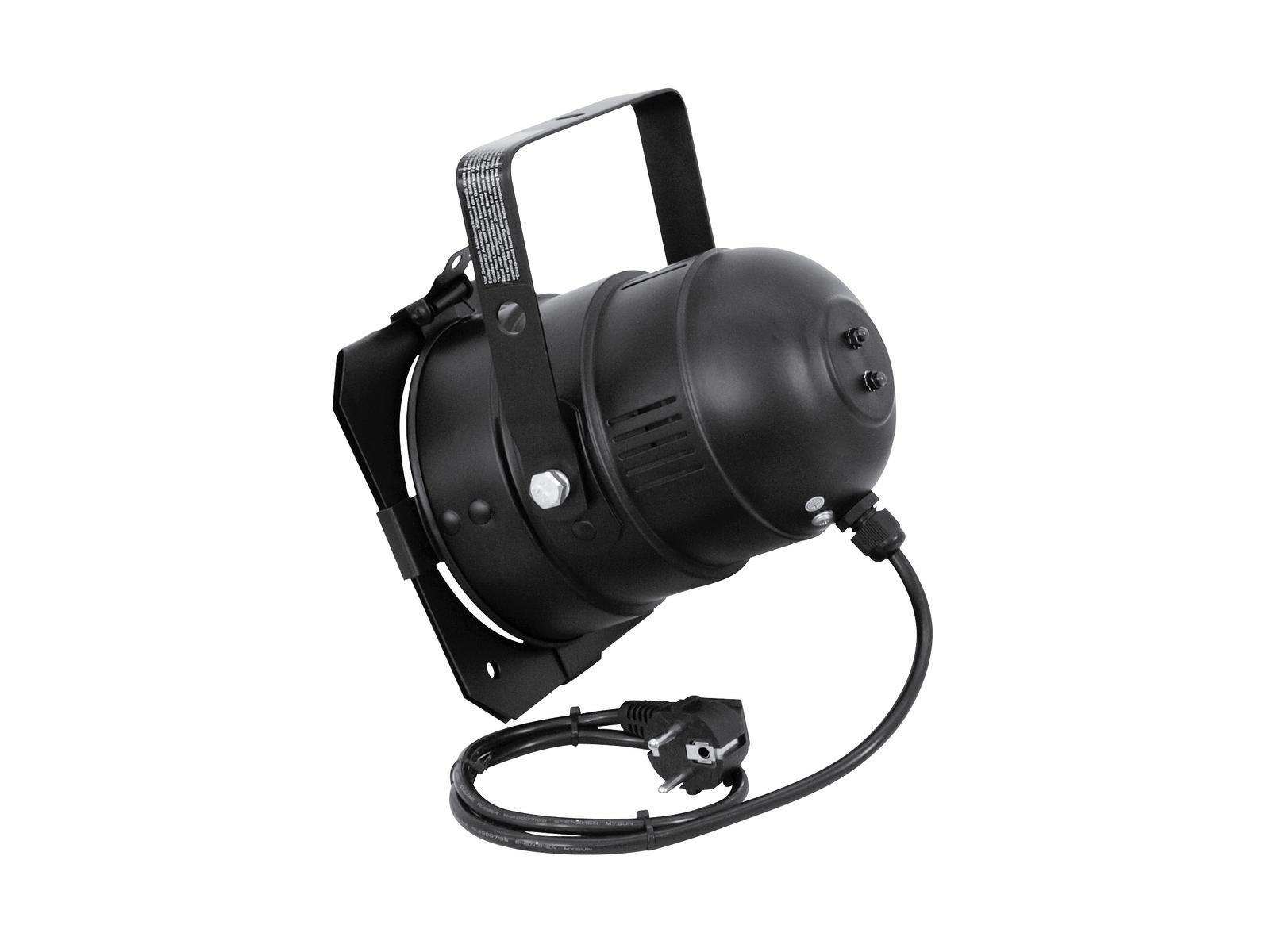

PAR-38 housing with E27 socket (with plug + cable)
- Heat-resistant fixing screw
- Precise light output
- Strong cable tension relief
- Control via plug and play
- With mounting bracket
- For PAR 38
Package contents
- 1 x spotlight, 1 x filter frame, 1 x user manual
Technical specifications
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | Max. 85 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 0,75 mm² H05SS-F |
| Cable length: | Approx. 0,9 m |
| Base: | E27 |
| Lamp type: | Selectable |
| Color generation: | Via color filter frame |
| Control: | Plug and play |
| Construction: | PAR-38 |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Material: | Aluminum; metal |
| Slot for spot length: | 17,2 cm x 17,2 cm |
| Dimensions: | Width: 19 cm Depth: 19 cm Height: 21,5 cm |
| Weight: | 700 g |
| Mounting bracket | |
| Diameter mounting holes: | 2 x Ø12mm |
| Material: | Metal, 2 mm |
| Filter frame | |
| Diameter mounting holes: | 2 x Ø8mm |
| Material: | Metal |
| Dimensions: | Length: 17 cm Width: 17 cm Diameter: Ø 14 cm |
| Weight: | 120 g |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397414295 | 0,85 kg | 17,5cm x 16,5cm x 24,5cm |
