Description
Features

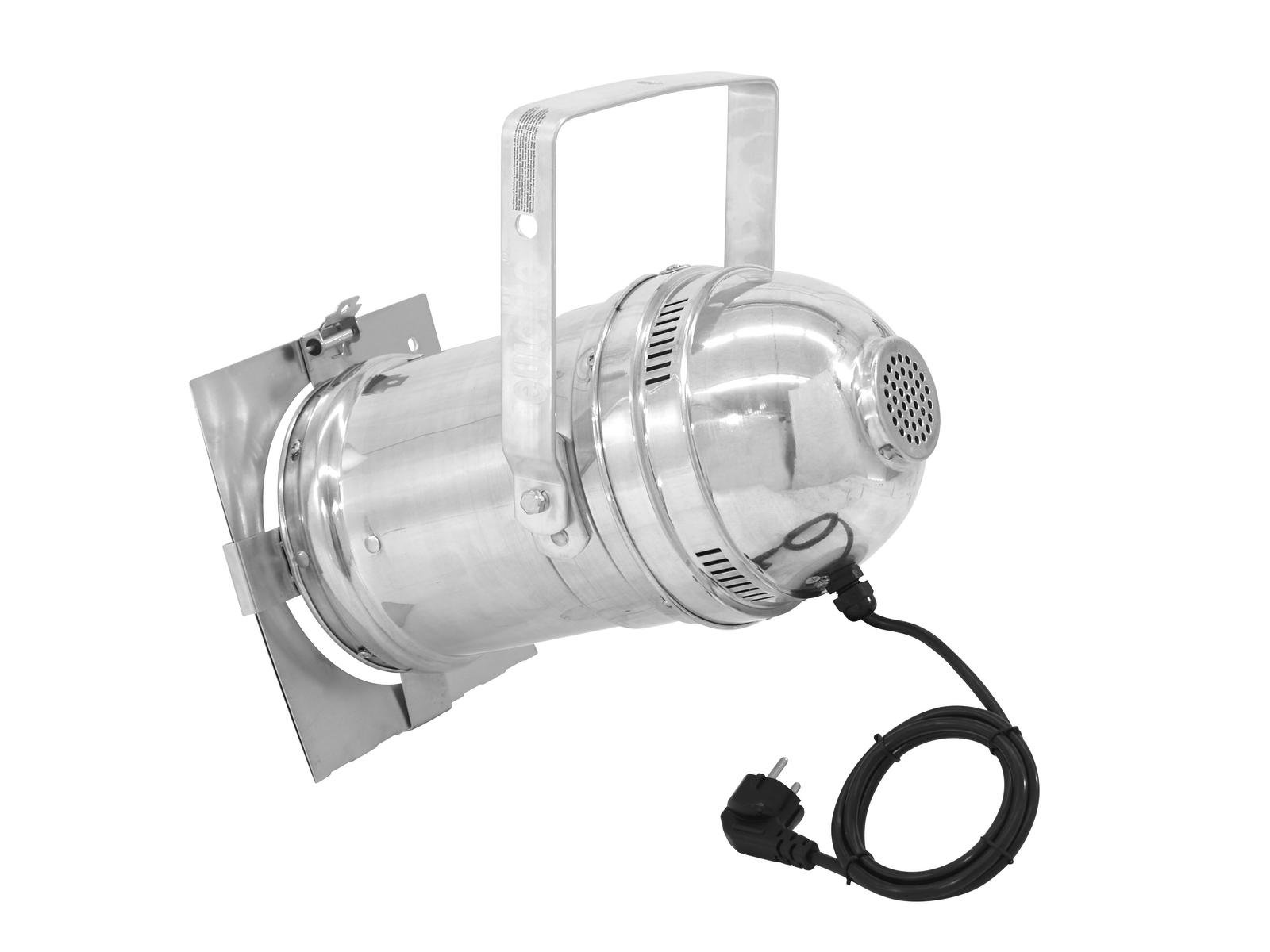

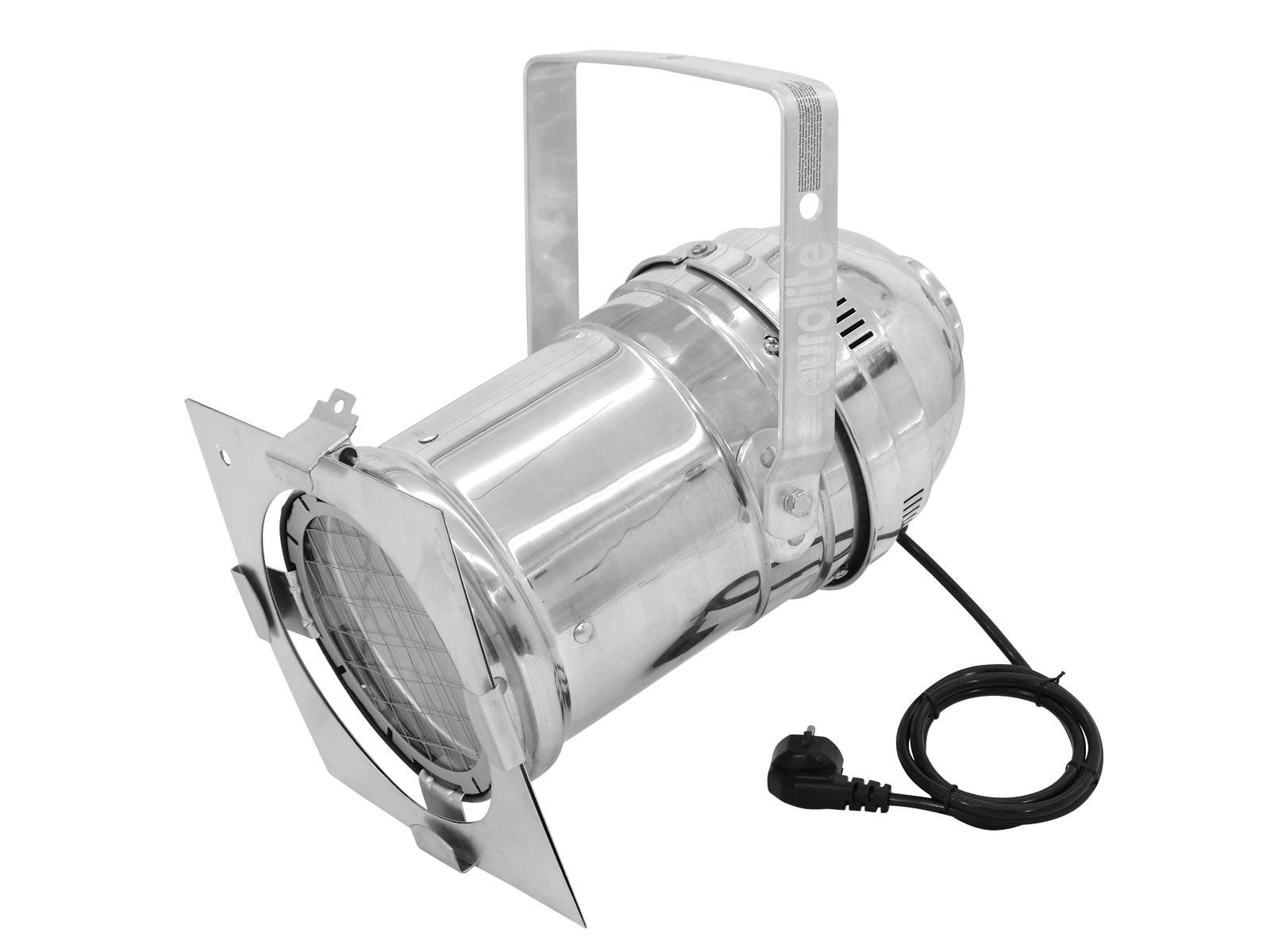

Long PAR-56 housing for CDM-T 150 discharge lamps
- Rugged metal housing
- 4 clip-to-hold clamps with spring locks for comfortable opening of the color filter frame
- Protective shield is integrated in the tube
- Control via plug and play
- With a beam angle of 55°
- With mounting bracket
- For PAR 56
- For application areas such as: Theater; mobile use; Trade fair and shop fitting
Package contents
- 1 x spotlight, 1 x filter frame, 1 x user manual
Technical specifications
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 210 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable length: | Approx. 0,8 m |
| Base: | G-12 |
| Lamp type: | Discharge lamp |
| Color generation: | Via color filter frame (optional) |
| Control: | Plug and play |
| Beam angle: | 55° |
| Beam angle (1/2 peak): | 55° |
| Housing color: | Silver |
| Attachment system: | Mounting bracket |
| Dimensions: | Length: 36 cm Width: 24 cm Height: 32 cm |
| Weight: | 4,00 kg |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397426946 | 4,50 kg | 27cm x 27,5cm x 46cm |
