Description
Features

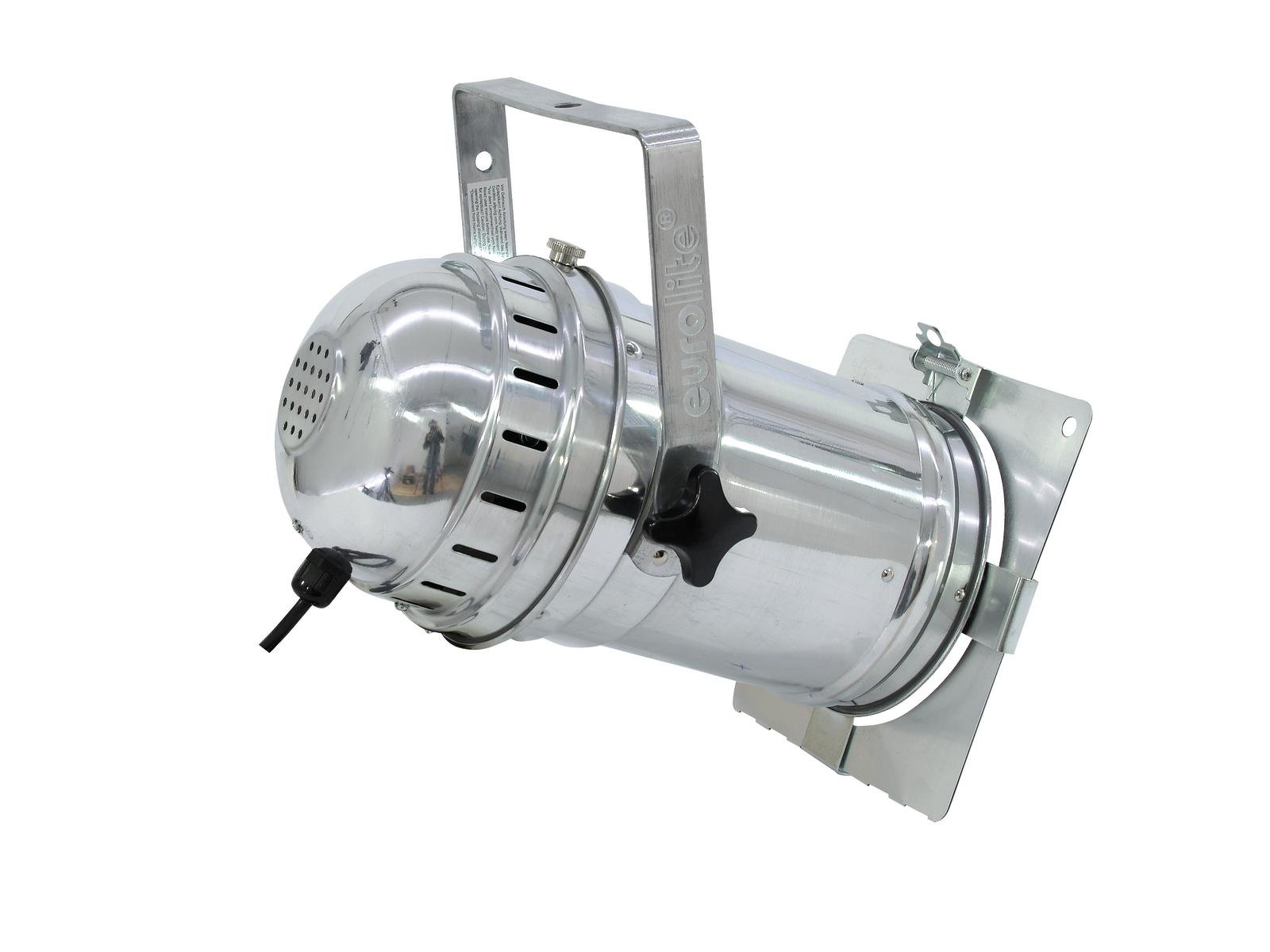

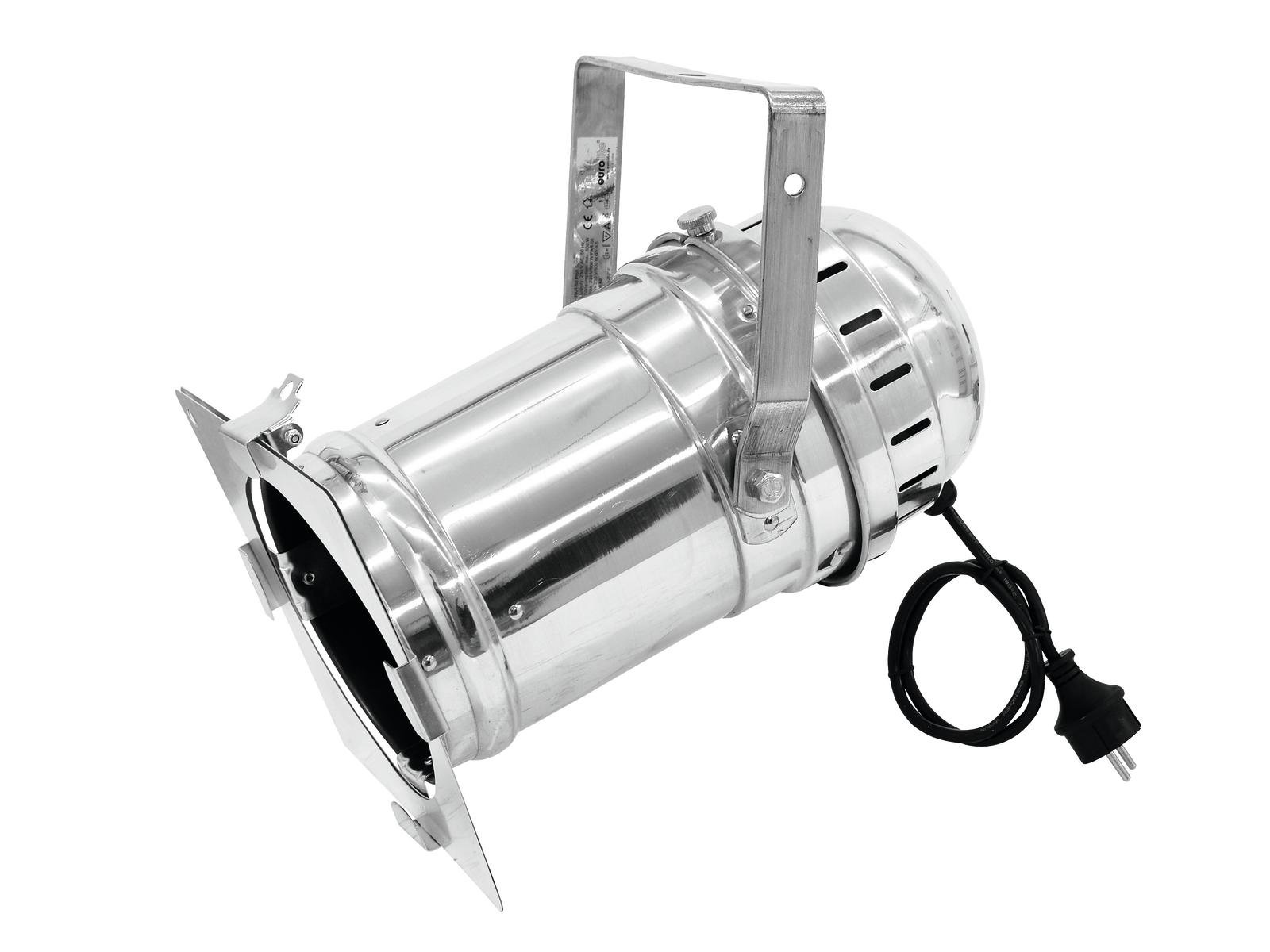

PAR-56 housing long with plug
- Rugged metal housing
- Heat-resistant fixing screw
- 4 clip-to-hold clamps with spring locks for comfortable opening of the color filter frame
- Safety grille (splinter protection) is integrated in the tube

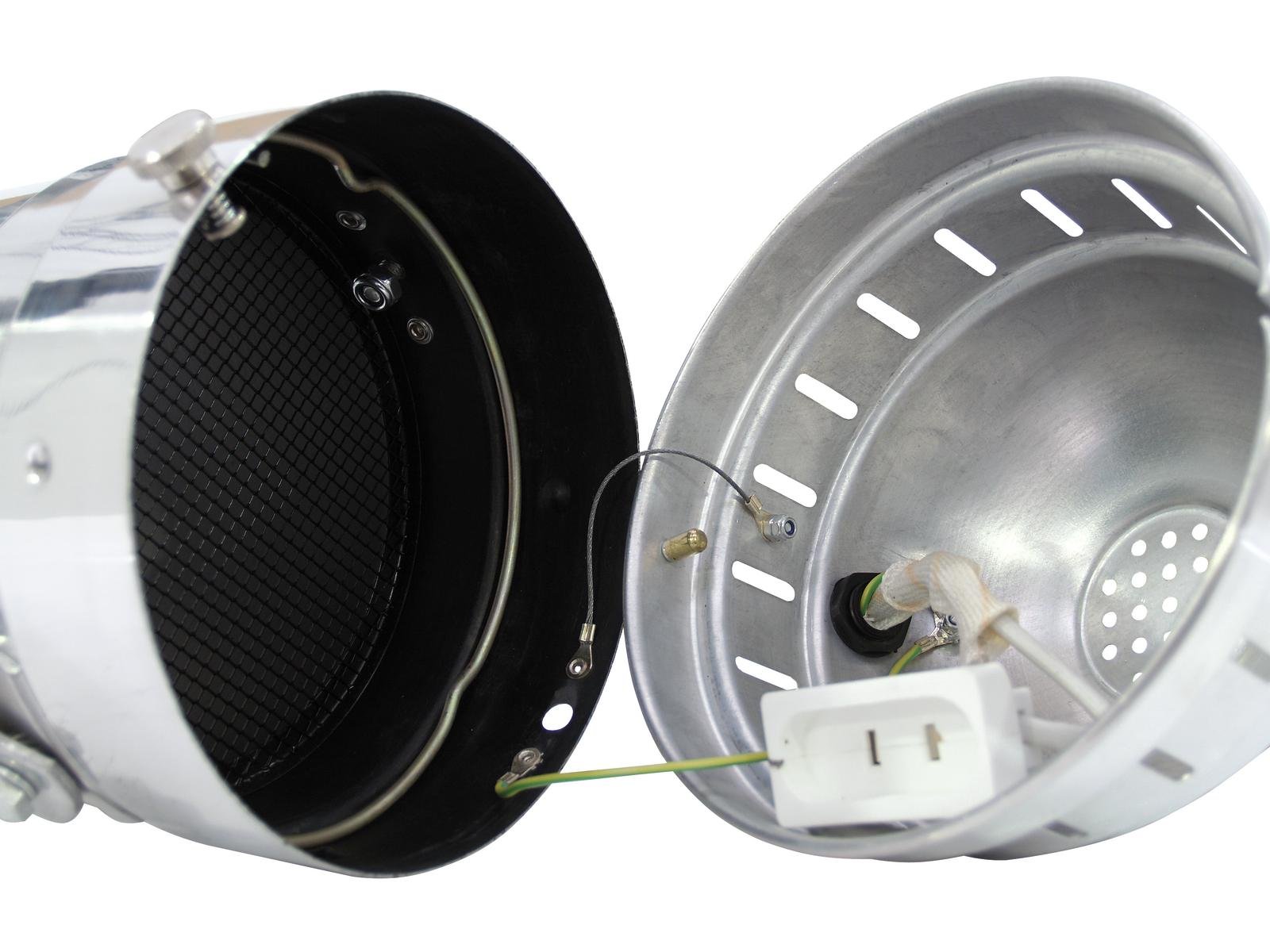

- Strong extension spring for safe hold and for quick opening of the rear housing cover
- Strong cable tension relief
- Control via plug and play
- With mounting bracket
- Available in various colors
- For PAR 56

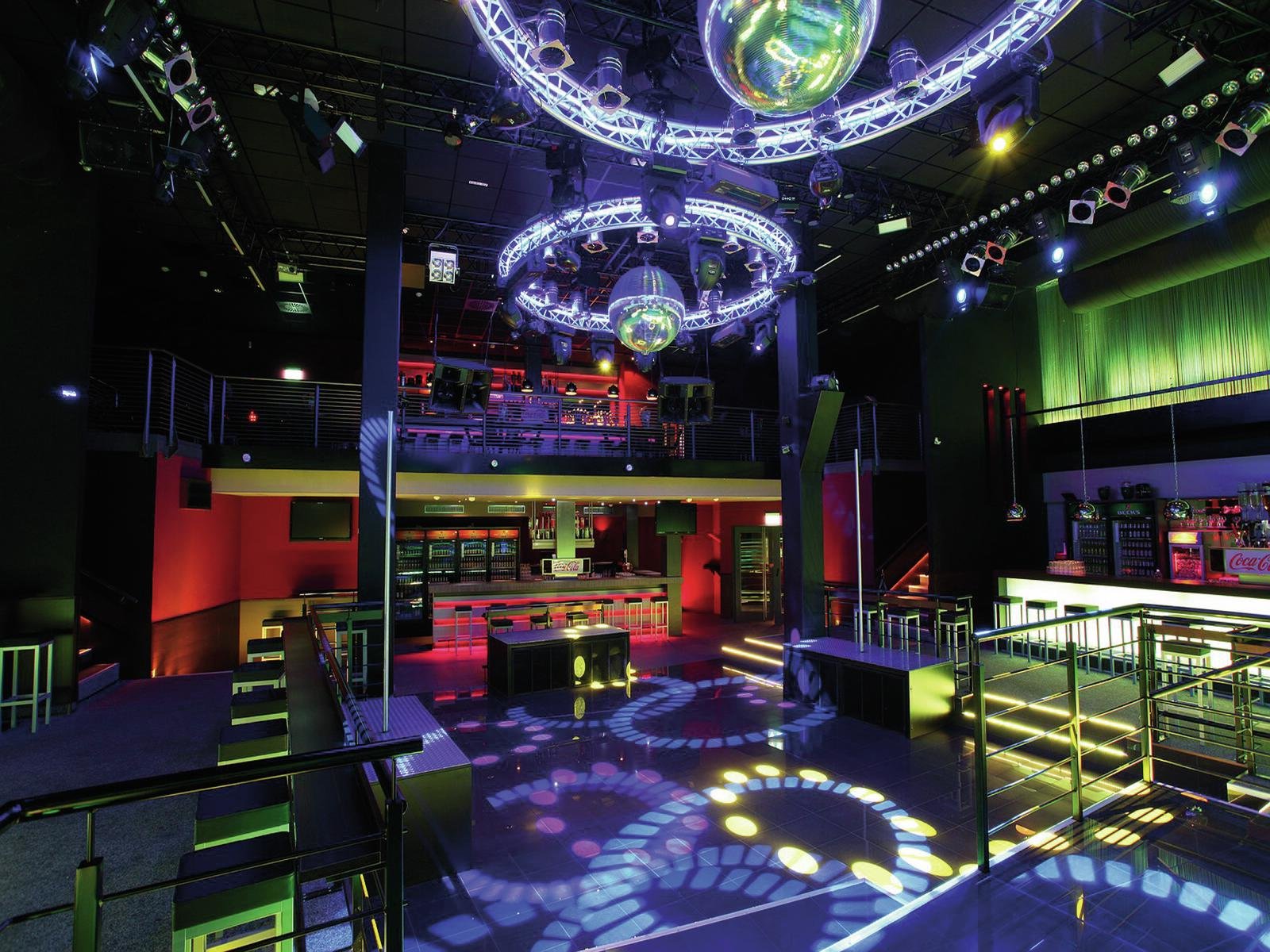

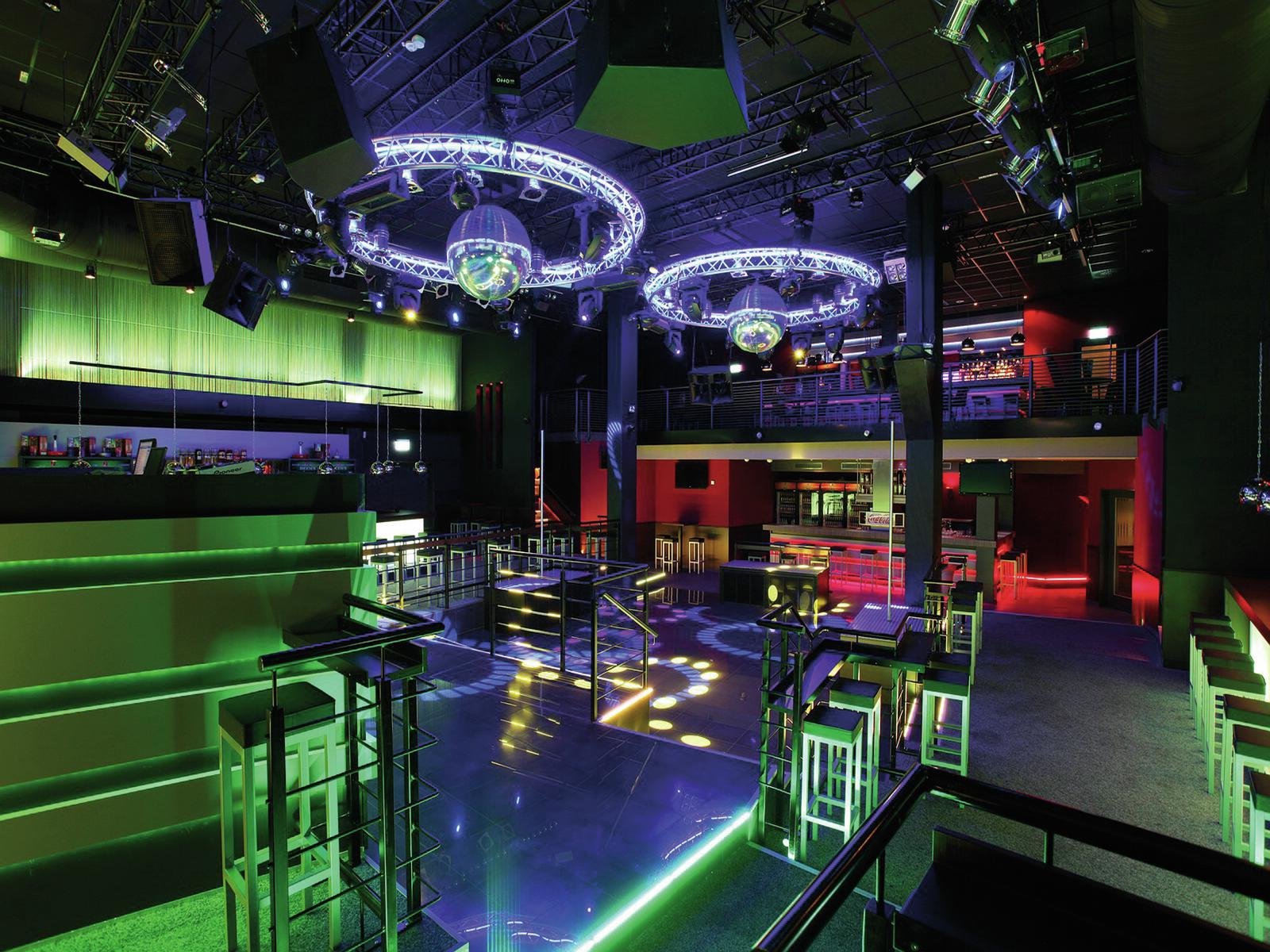

- For application areas such as: Advertisement/Shop window; decoration; clubs/dancing school
Package contents
- 1 x spotlight, 1 x filter frame, 1 x lamp clamping ring, 1 x user manual
Technical specifications
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | Max. 500 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable length: | Approx. 0,7 m |
| Base: | GX16d |
| Lamp type: | Selectable |
| Color generation: | Via color filter frame |
| Control: | Plug and play |
| Housing color: | Silver |
| Attachment system: | Mounting bracket |
| Dimensions: | Length: 36 cm Width: 23 cm Height: 23,5 cm |
| Weight: | 1,36 kg |
| Filter frame | |
| Dimensions: | Length: 22,5 cm Width: 22,5 cm Diameter: Ø 17,6 cm |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397242386 | 1,68 kg | 21cm x 21cm x 41cm |
