Description
Features

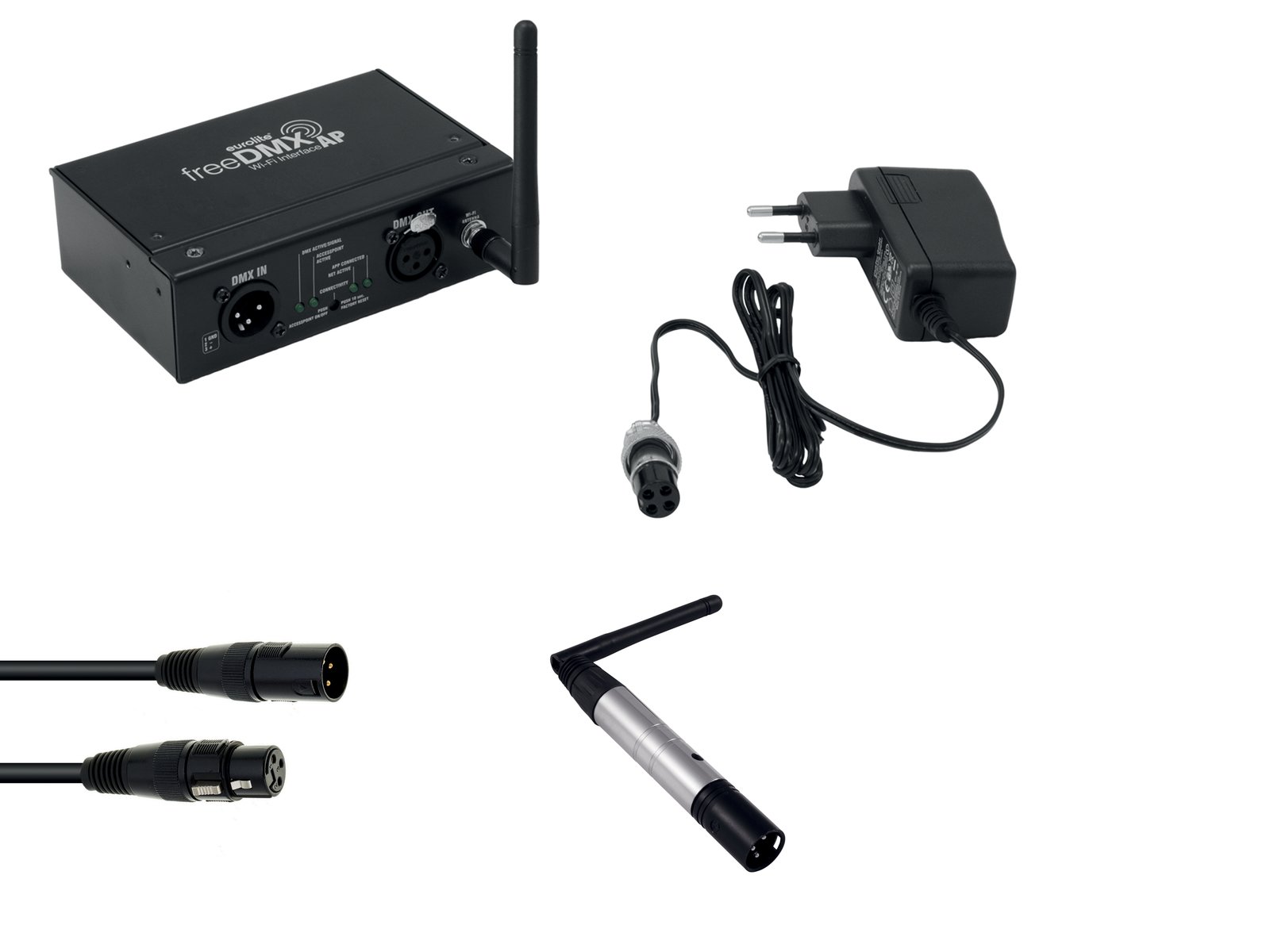

EUROLITE freeDMX AP Wi-Fi Interface
Wi-Fi DMX interface for apps & programs like Light Captain
- Wi-Fi DMX interface for wireless lighting control from your tablet or PC
- Receives the control signals via the network and transmits them to the DMX line via cable
- Works with iOS and Android devices
- The apps’ online fixture library is continuously updated and already includes more than 300 Eurolite and Futurelight fixtures – easily add new ones via the fixture profile editor
- Configuration via integrated webserver
- Access point and infrastructure mode
- 1 DMX feed-through output
- Mounting kits for racks, desks and truss systems available as an option
- Can transmit up to 512 DMX channels
- Control via DMX; Light´J app; Wi-Fi; Light Captain App; Art-Net
- 2.4 GHz license-free worldwide
- Operating range up to 60m in the open air
- Operating range up to 30m in buildings
- Built with NEUTRIK connector
- In connection with f.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC)
- Made in Germany
- For application areas such as: Clubs/dancing school; wedding/gala/events; stage; theater; mobile djs / entertainer
- Silent operation
Package contents
- 1 x device, 1 x external mains adapter, 4 x foot, 2 x user manual, 1 x antenna, 1 x declaration of conformity

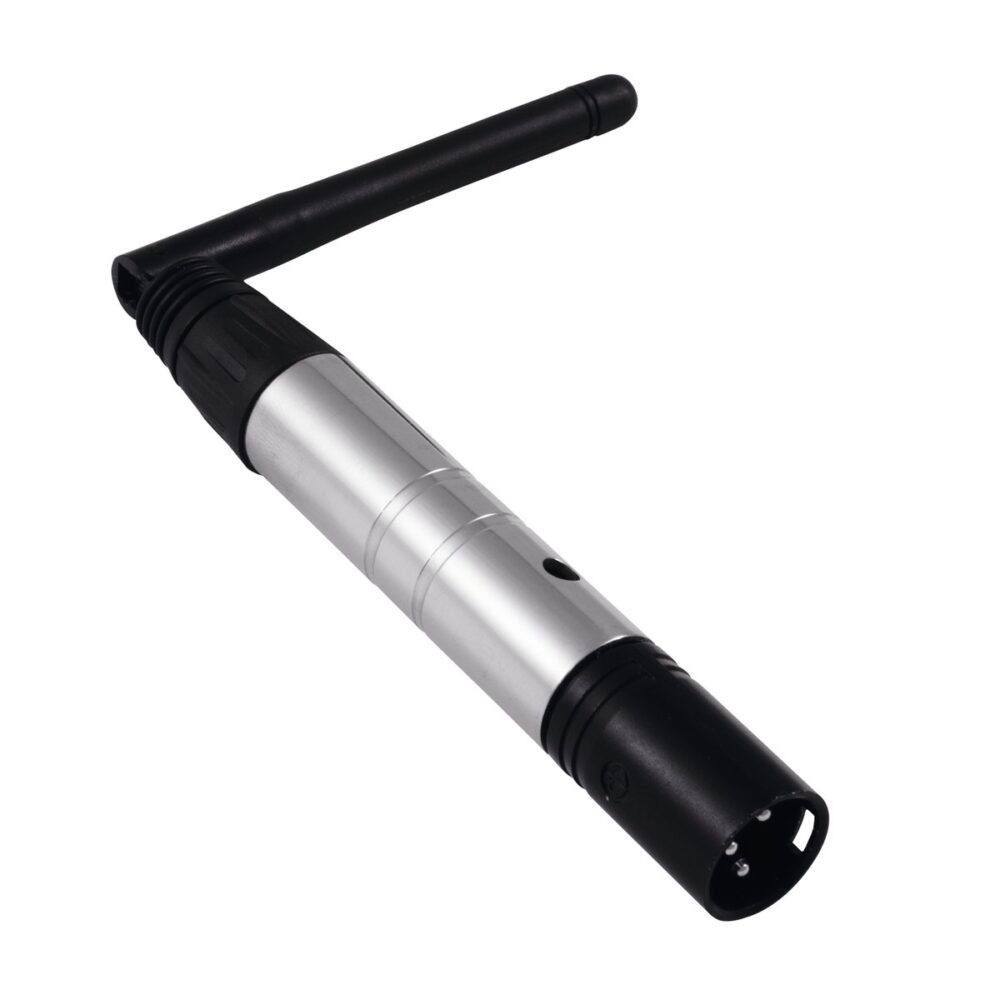

EUROLITE QuickDMX Wireless Transmitter
Compact wireless DMX transmitter 2.4 GHz
- User-friendly 3-pin XLR adapter (male) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Can transmit up to 512 DMX channels
- Control via QuickDMX; DMX; plug and play
- Operating range up to 400m
- Up to 6 transmitters can be operated in parallel without interference
Package contents
- 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x USB cable

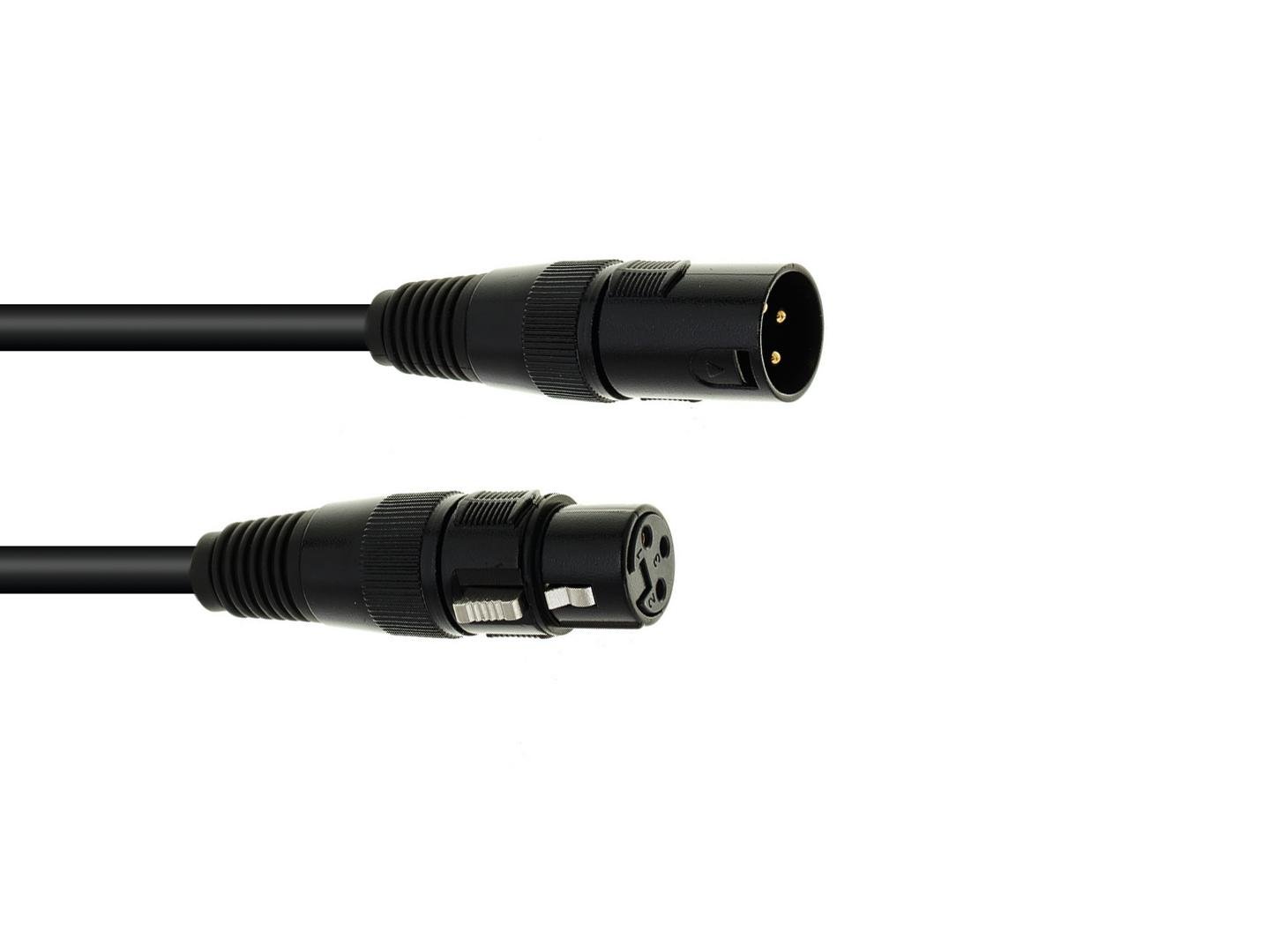

EUROLITE DMX Cable XLR 3-pin 1m bk
High-quality DMX cable
- Adheres to the DMX standard USITT DMX-512/1990/-A
- Very flexible cable
- Electric cable with good shielding
- Robust version
- For building DMX controlled lighting systems, LED spotlights etc.
Technical specifications
| Weight: | 900 g |
| EUROLITE freeDMX AP Wi-Fi Interface | |
| Power supply: | 100-240 V AC, 50/60 Hz 12 V DC 1 A |
| IP classification: | IP20 |
| Wi-Fi: | Standard: IEEE 802.11 b/g/n |
| DMX channels: | Output 512 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; Light´J app; Wi-Fi; Light Captain App; Art-Net |
| Range: | Range up to 60m in the open air Range up to 30m in buildings |
| Frequency band: | 2.4 GHz |
| Antenna gain: | 2 dBi |
| Status LED: | Signal, pairing, link, chanal source |
| Use of brands: | Built with NEUTRIK connector |
| Color: | Black |
| PC connect: | F.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC) |
| Dimensions: | Width: 13 cm Depth: 11,5 cm Height: 4,1 cm |
| Weight: | 640 g |
| Noise classification: | Class 0 (no noise at all) |
| EUROLITE QuickDMX Wireless Transmitter | |
| Power supply: | 100-240 V AC, 50/60 Hz 5 V DC 1 A |
| IP classification: | IP20 |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord for USB A mains connection (provided) |
| DMX channels: | Output 512 |
| DMX input: | 1 x 3-pin XLR (M) |
| Control: | QuickDMX; DMX; plug and play |
| Range: | Range up to 400m |
| Carrier frequency: | 2,4 GHz |
| Parallel mode: | Max. 6 transmitter |
| RF power output: | 19 dBm |
| Modulation: | GFSK |
| Color: | Silver |
| Dimensions: | Length: 21,2 cm Diameter: Ø 1,8 cm |
| Weight: | 150 g |
| EUROLITE DMX Cable XLR 3-pin 1m bk | |
| Cable length: | 1 m |
| Plug A: | 1 x 3-pin XLR (M) |
| Plug B: | 1 x 3-pin XLR (F) |
| Color: | Black |
| Weight: | 110 g |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397691399 | 2,00 kg | 41cm x 31cm x 28cm |
