Description
Features
EUROLITE LED KLS Laser Bar Next FX Light Set
Bar with powerful spots, UV strobe LEDs, laser (RG, 2M), QuickDMX port and carrying bag
- 2 laser diodes project hundreds of red and green laser beams
- 2 rotating derbies for mirror ball effects
- Compact lightweight
- Crossbar with integrated DMX control unit and TV spigot for tripod installation
- For application areas such as: Wedding/gala/events; clubs/dancing school; mobile djs / entertainer; small rental
- When fog is used, this effect becomes especially attractive
- 26 integrated show programs
- Dimmer electronic; color blend stepless; program selection
- Control via DMX; stand-alone; sound to light via microphone; IR remote control; QuickDMX via USB (optional); wireless footswitch (optional)
- TV spigot
- With mounting bracket
- Mains input and output for power linking up to 8 units
- Preprogrammed in Light Captain; EASY SHOW 2; EASY SHOW 3
- Application possibility: On stand
laser
- Laser class 2M
does not require additional protective measures or appointment of a laser safety officer
spotlight
- 3 powerful LEDs 4 W high-power 4in1 QCL RGB/WW (homogenous color mix)
4 spots controlled separately - With a beam angle of 7°
light effect
- 4 powerful LEDs 3 W high-power R/G/B/WW
lighting effects controlled separately - Multi beam effect; fan effect; flower effect
bar
- 4 powerful LEDs 1,5 W high-power ultra violet (UV)
LEDs controlled separately - UV effect; strobe effect
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x bag, 1 x declaration of conformity, 1 x remote control, 2 x mounting bracket, 2 x knurled screw, 2 x washer, 1 x terminating plug (power)
OMNITRONIC M-4 Speaker-System Stand
Aluminum speaker stand, height adjustable 140-345 cm, maximum load 18 kg
- Durable aluminum version
- Tube diameter: Ø 35 mm
- Adjustable height
Package contents
- 1 x user manual

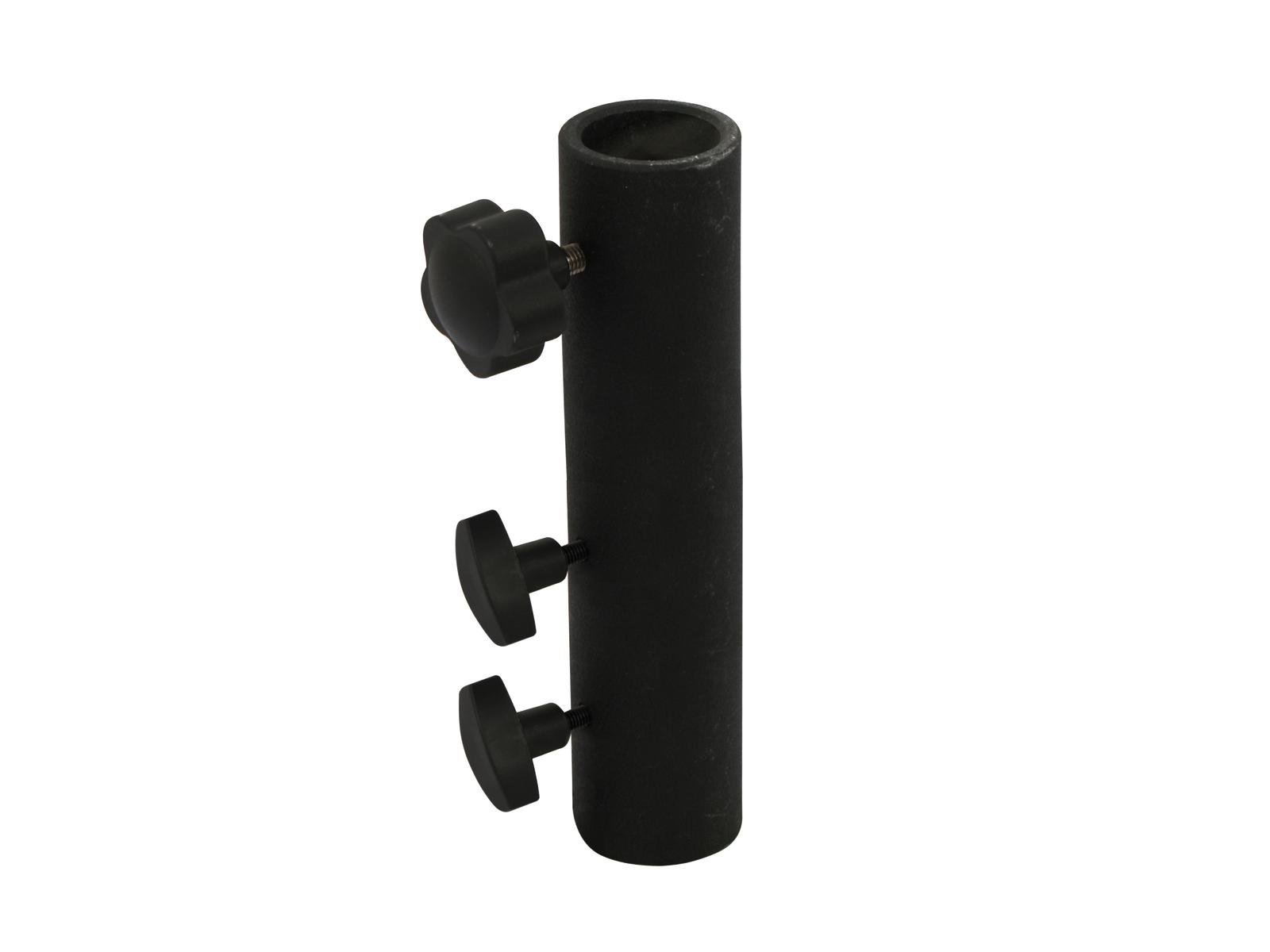

EUROLITE STV-3529 Adapter long
Massive adapter for 35 mm tube, 28 mm TV spigot, maximum load WLL 100 kg
- For stands with telescopic tube 35 mm
- Connection element for cross beam with 28 mm TV spigot
- With M6 and M8 fixation screw
- Heavy version for highest stability
- TV spigot
Package contents
- 1 x device, 1 x user manual, 2 x knurled screw
Technical specifications
| Weight: | 15,30 kg |
| EUROLITE LED KLS Laser Bar Next FX Light Set | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 90 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable length: | 3 m |
| Power output: | 1 x P-Con (gray), mounting version |
| Fuse: | T 1 A fuse replaceable |
| Lamp type: | LED lamp |
| DMX channels: | 6; 8; 11; 21; 25; 29 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX; stand-alone; sound to light via microphone; IR remote control; QuickDMX via USB (optional); wireless footswitch (optional) |
| Preprogrammed in: | Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Housing color: | Black |
| Attachment system: | TV spigot Ø 28mm 2x mounting bracket |
| Display type: | 3 digit 7-segment LED display |
| Dimensions: | Width: 1,11 m Depth: 15 cm Height: 41 cm |
| Weight: | 10,50 kg |
| Noise classification: | Class 2 (slight noise) |
| Remote control | |
| Battery: | Button cell 3.0 V CR2025 lithium manganese built-in |
| Laser | |
| Laser class: | 2M |
| Laser color: | R/G |
| Laser module: | Red (R) 100 mW 650nm Green (G) 30 mW 532nm |
| Light effect | |
| LED type: | 4 x 3 W high-power R/G/B/WW |
| Spotlight | |
| LED type: | 3 x 4 W high-power 4in1 QCL RGB/WW (homogenous color mix) |
| Beam angle: | 7° |
| Beam angle (1/2 peak): | Spot 7° |
| Beam angle (1/10 peak): | Spot 20° |
| Bar | |
| LED type: | 4 x 1,5 W high-power ultra violet (UV) |
| Flash rate: | 0 – 30 Hz |
| OMNITRONIC M-4 Speaker-System Stand | |
| Maximum carrying capacity: | 18 kg |
| Tube diameter sector: | 38 – 35 mm |
| Height: | Maximum: 345 cm Minimum: 140 cm Adjustable in 10 steps with locking pin |
| Attachment system: | Ø 35mm |
| Type (general stands): | Speaker stand/manual |
| Material: | Aluminum |
| Color: | Black |
| Transport dimensions: | 1,4 m x 13,5 cm |
| Weight: | 3,30 kg |
| EUROLITE STV-3529 Adapter long | |
| Maximum load BGV C1 (8-fold): | 50 kg |
| Maximum load WLL (4-fold): | 100 kg |
| Attachment system: | TV spigot Ø 28mm Ø 35mm |
| Type (general stands): | Accessory |
| Material: | Steel, 6 mm, powder-coated |
| Dimensions: | Width: 8,50 cm Depth: 5 cm Height: 19,50 cm |
| Weight: | 1,50 kg |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397689075 | 20,00 kg | 136cm x 34,5cm x 5,8cm |
