Description
Features

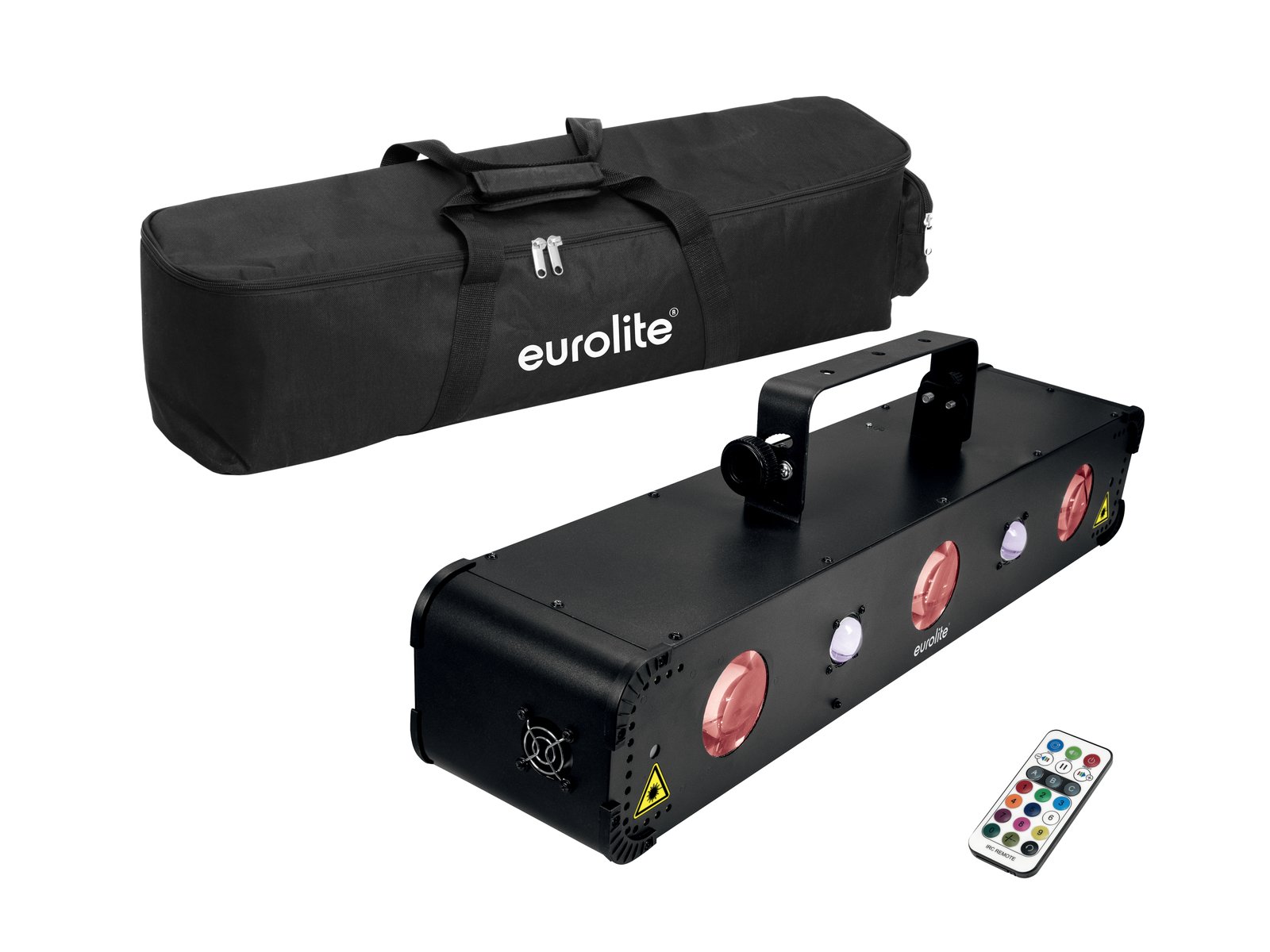

EUROLITE LED Multi FX Laser Bar
Lighting effect with RGBAW LED matrix, UV, RG laser (class 2M) and stroboscope
- Matrix effect with a total of 192 LEDs generates countless moving colourful dots in the room
- 4 laser diodes project thousands of red and green laser beams
- Matrix, blacklight, laser and strobe can be controlled individually
- 14 integrated show programs
- For application areas such as: Clubs/dancing school; party room; mobile djs / entertainer
- The device is cooled by cooling fan
- Control via stand-alone; DMX; sound to light via microphone; master/slave function; IR remote control
- With mounting bracket
- Monochrome 4 digit 7-segment LED display
- Mains input and output for power linking up to 8 units
- Preprogrammed in LED PC-Control 512; Light Captain
- Strobe effect; multi beam effect; flower effect; UV effect; laser
- Application possibility: Suspended
laser
- Laser class 2M
does not require additional protective measures or appointment of a laser safety officer
spotlight
- 2 powerful LEDs 3 W high-power ultra violet (UV)
light effect
- 192 powerful LEDs 5 mm R/G/B/W/A
strobes
- 36 powerful LEDs
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery

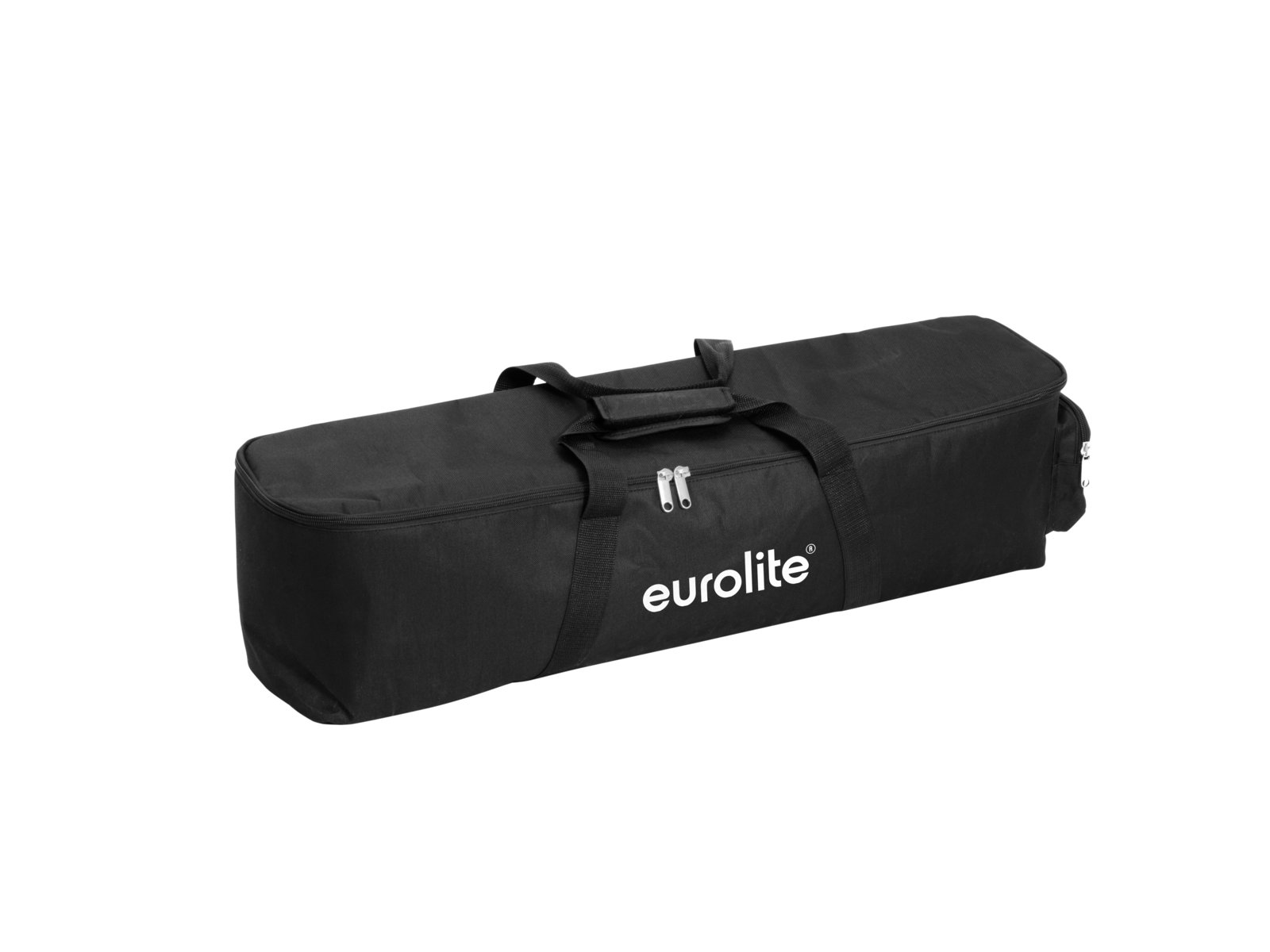

EUROLITE SB-11 Soft Bag
Practical black soft bag for LED Multi FX Laser Bar
- Made of easy-care nylon
- With 1 accessory compartment
- Interior with foam padding
cover with foam padding - 2 carrying straps
Package contents
- 1 x bag
Technical specifications
| Weight: | 5,73 kg |
| EUROLITE LED Multi FX Laser Bar | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 35 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x IEC connector (F) mounting version |
| Fuse: | 5 x 20 mm, T 1 A fuse replaceable |
| Lamp type: | LED lamp |
| DMX channels: | 2; 5; 10 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; sound to light via microphone; master/slave function; IR remote control |
| Preprogrammed in: | LED PC-Control 512; Light Captain |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | Monochrome 4 digit 7-segment LED display |
| Dimensions: | Length: 76 cm Depth: 18 cm Height: 24,5 cm |
| Weight: | 5,25 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Laser | |
| Laser class: | 2M |
| Laser color: | R/G |
| Laser module: | Red (R) 100 mW 650nm Green (G) 30 mW 532nm |
| Spotlight | |
| LED type: | 2 x 3 W high-power ultra violet (UV) |
| Light effect | |
| LED type: | 192 x 5 mm R/G/B/W/A |
| Strobes | |
| LED type: | 36 |
| EUROLITE SB-11 Soft Bag | |
| Carrying strap: | 2 pc/pcs |
| Dimensions: | Width: 81 cm Depth: 19 cm Height: 22 cm |
| Weight: | 480 g |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397084313 | 7,50 kg |
