Description
Stage Panel 16
Floodlights and mobile all-rounders

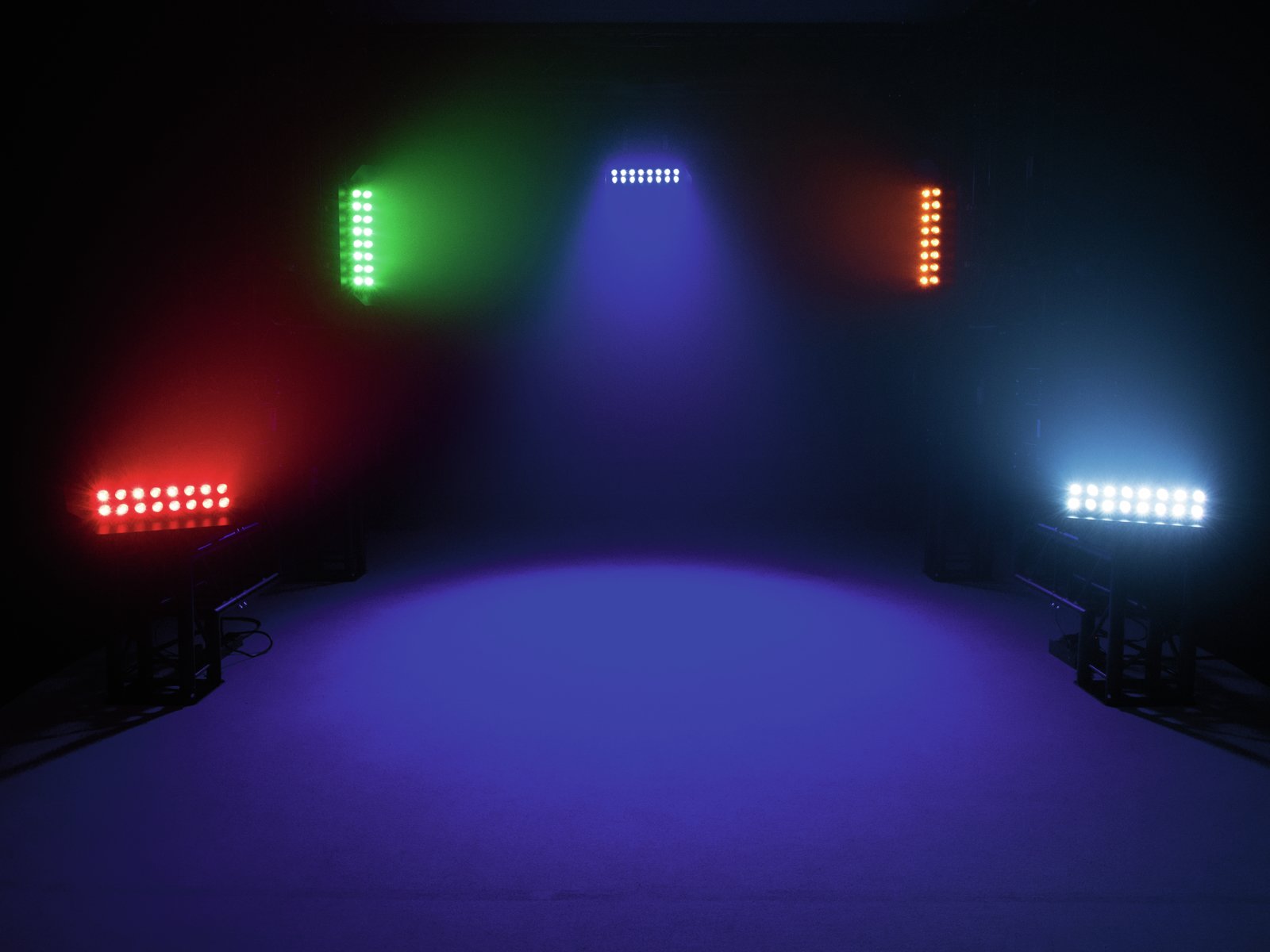

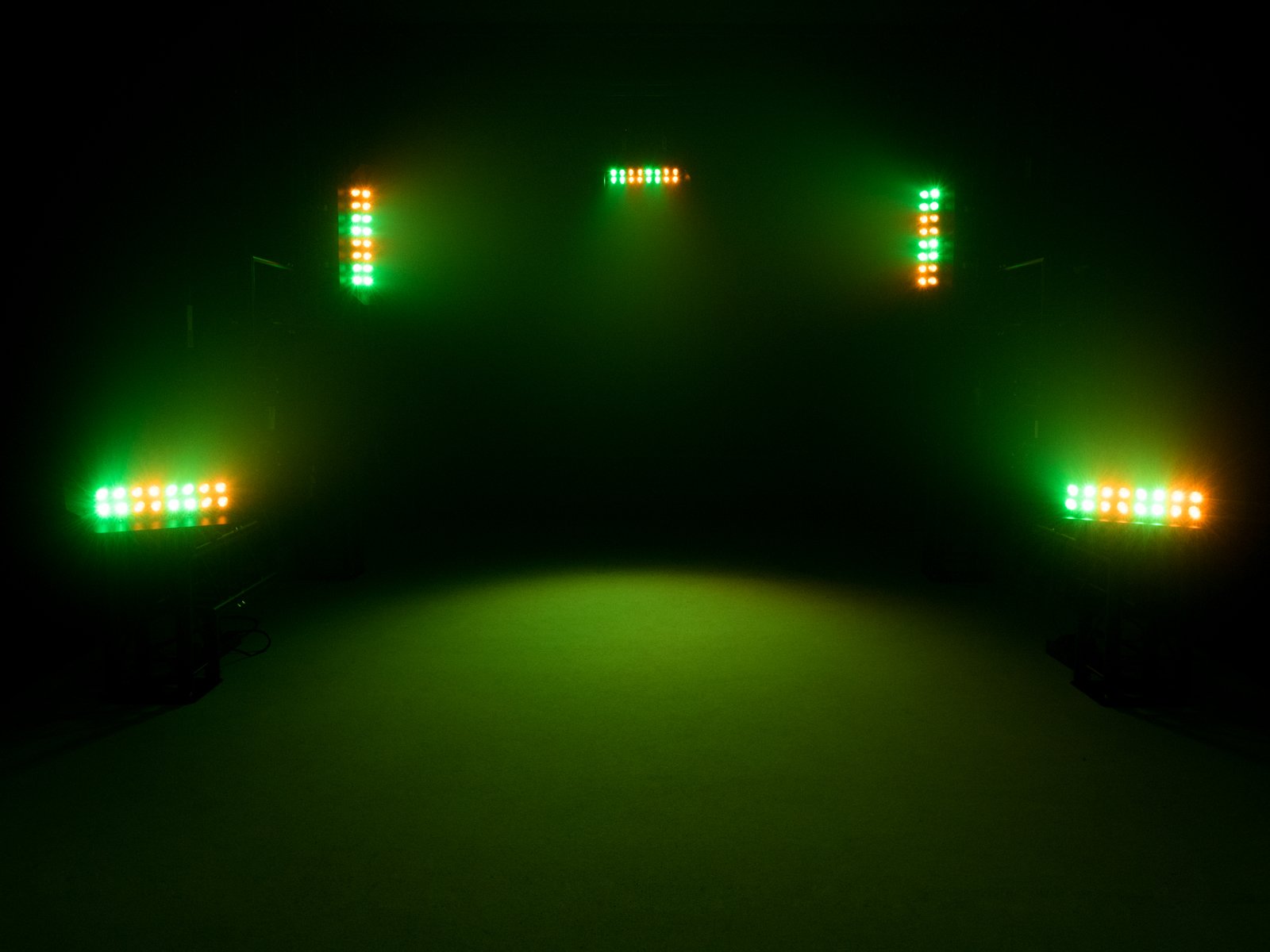

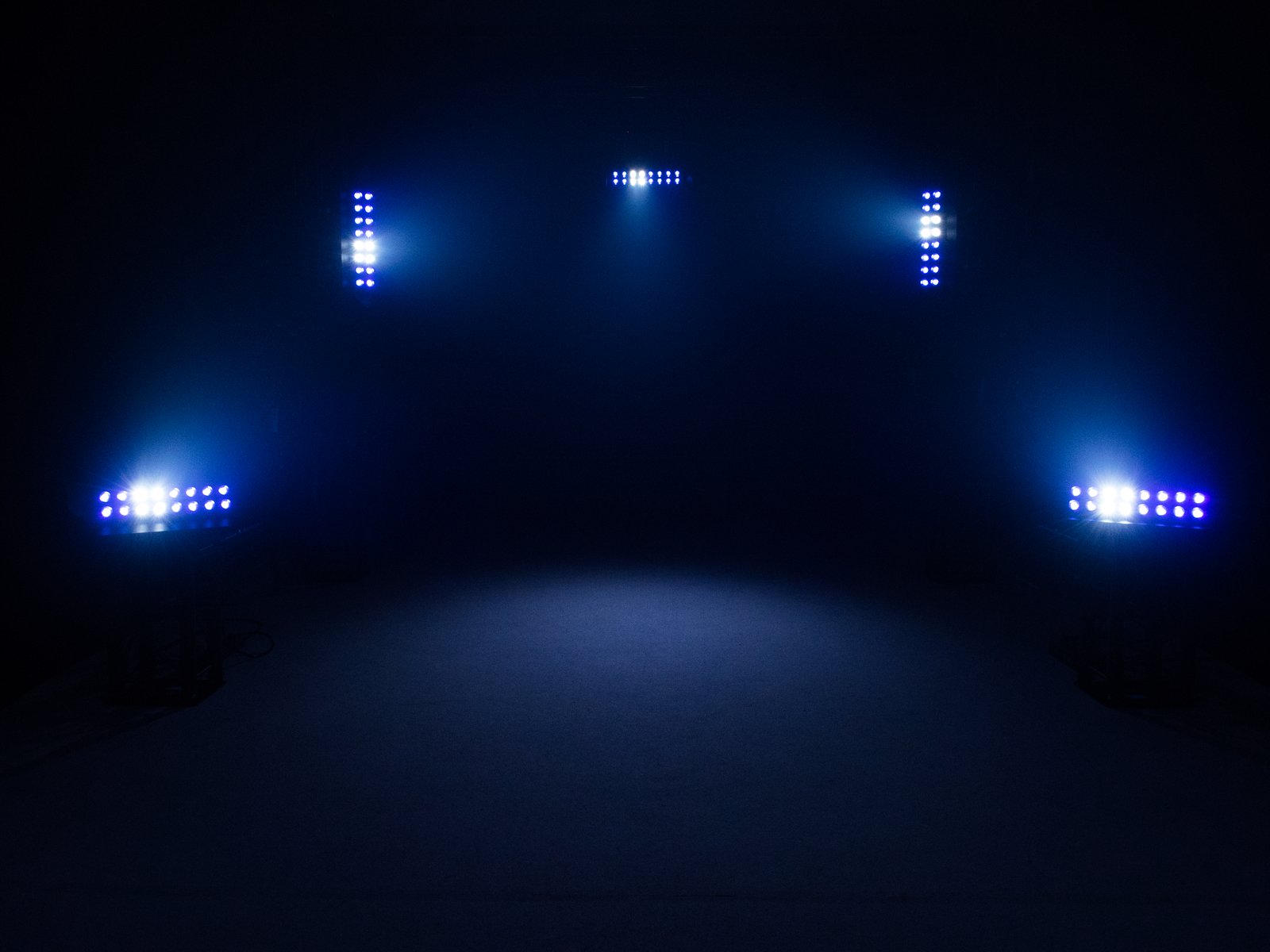

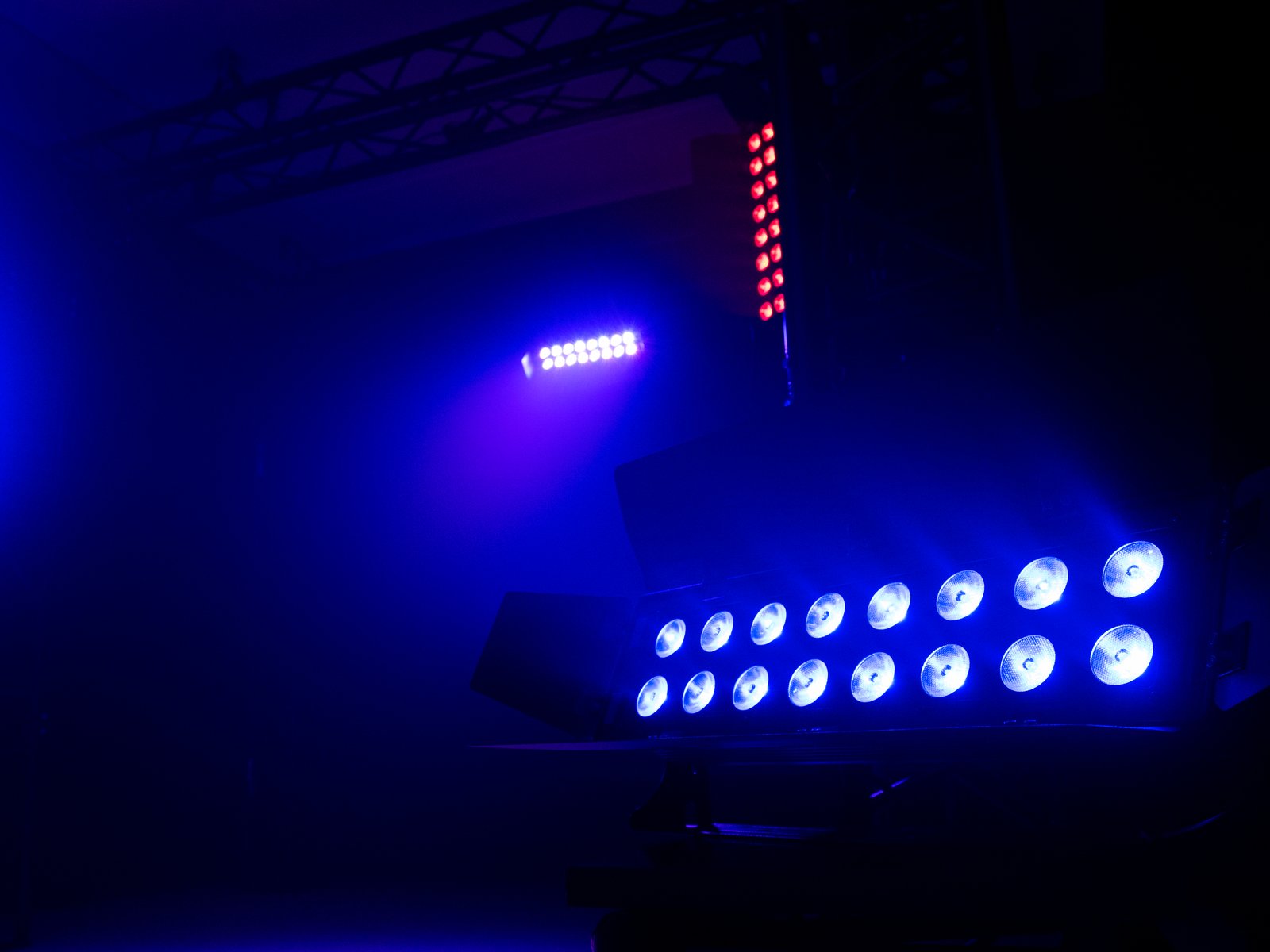

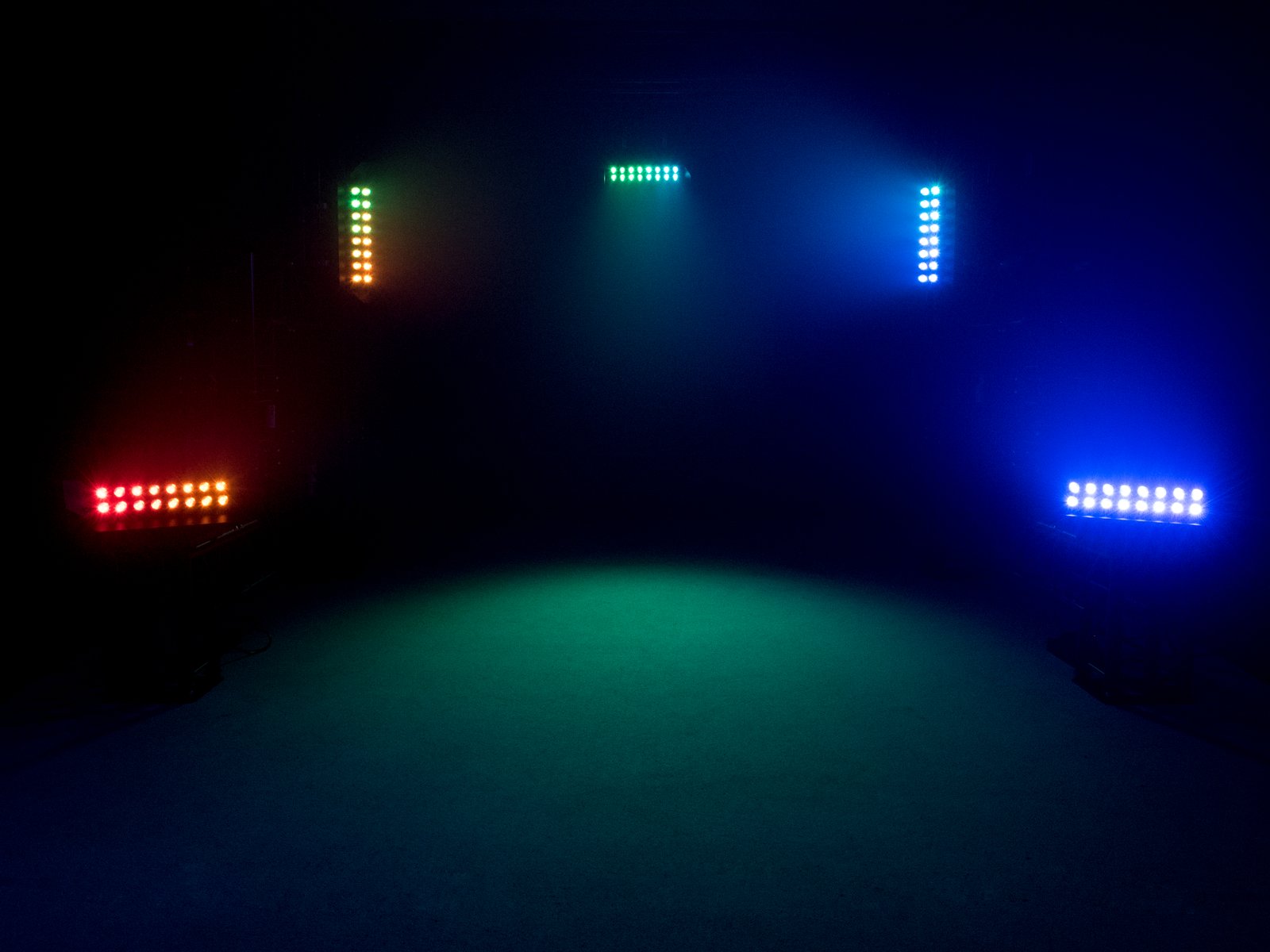

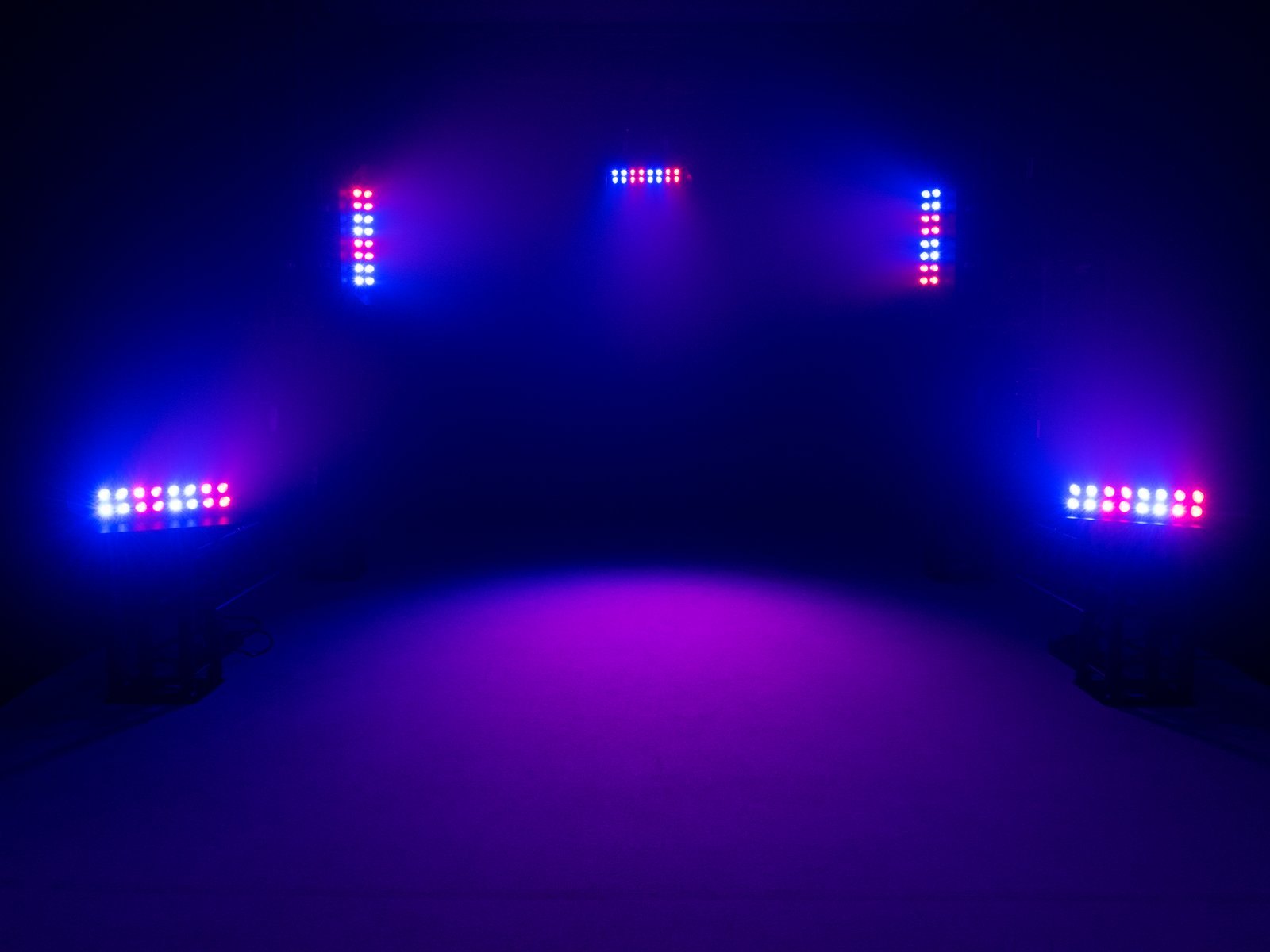

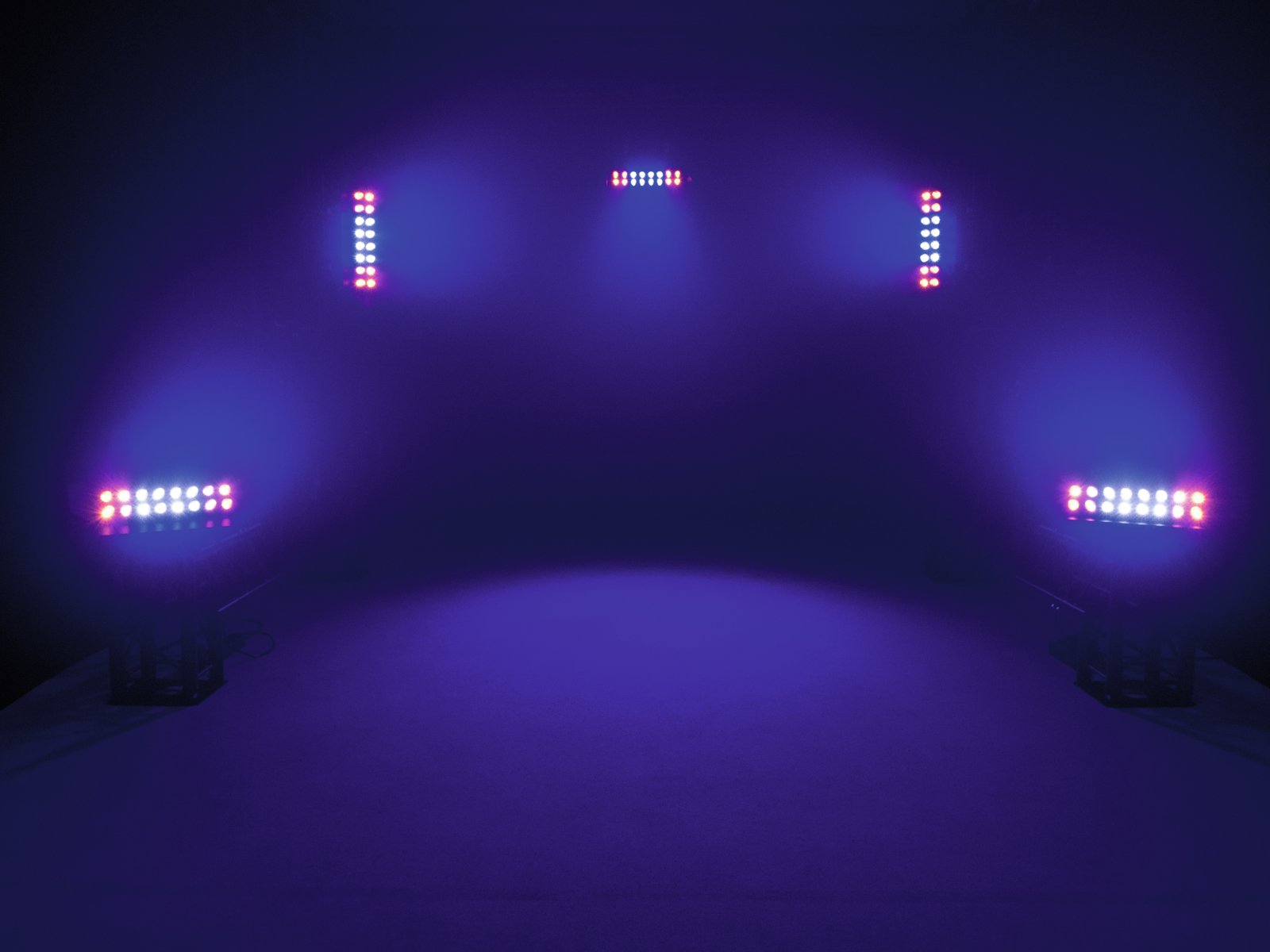

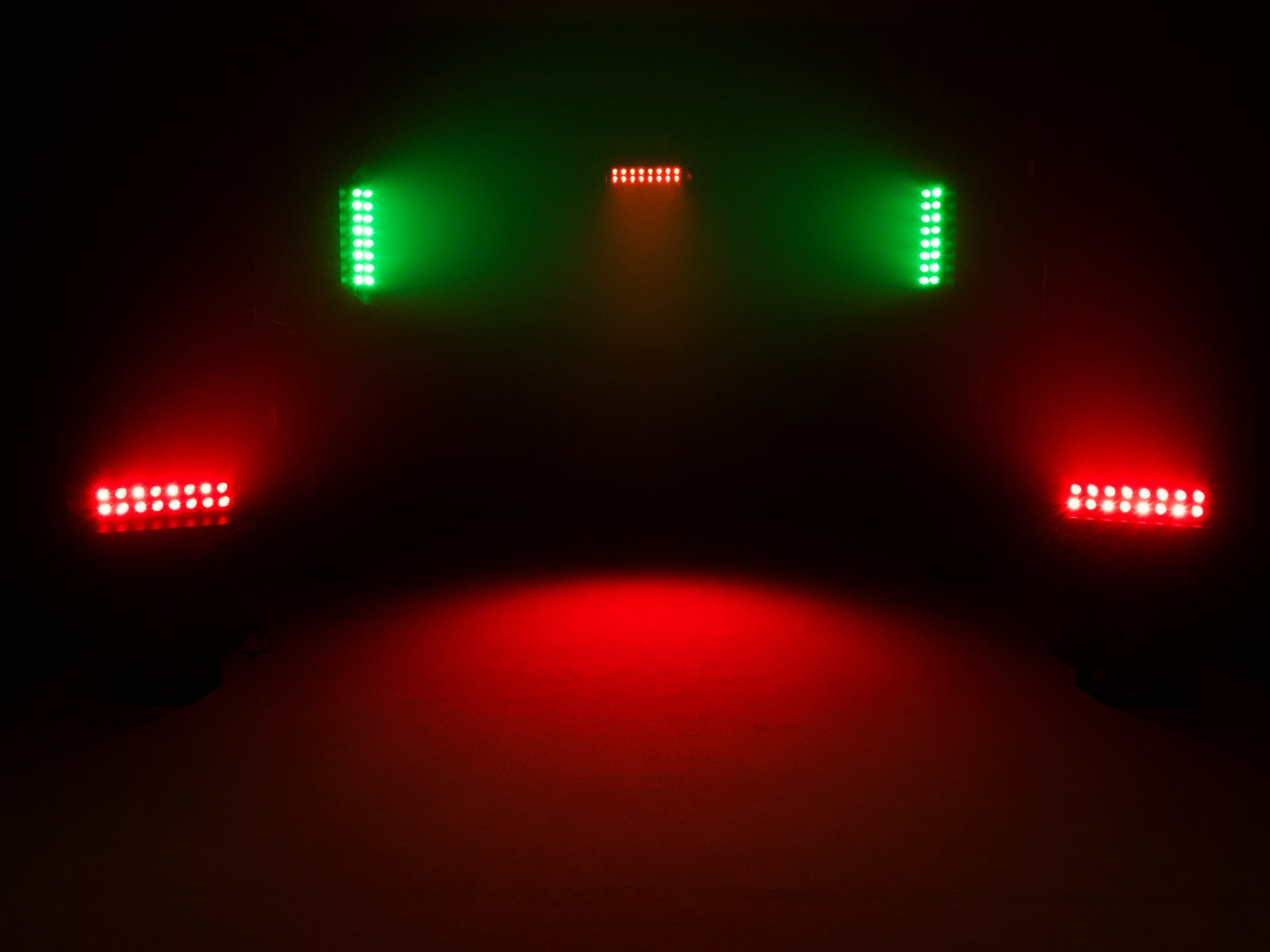

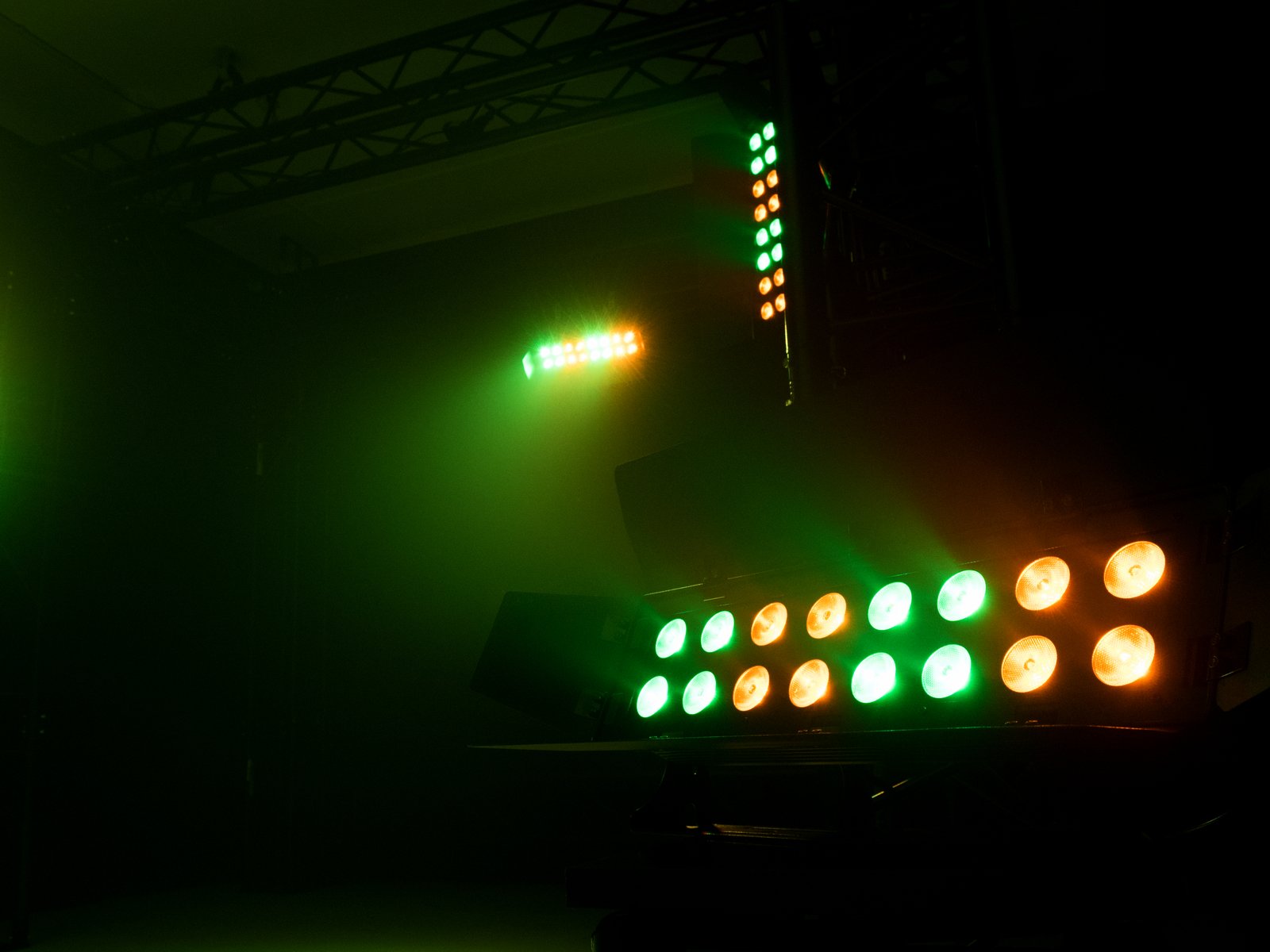

Moodlight for stages, TV studios or theaters, that is what the Eurolite Stage Panels provide you with. The middle range floodlights color in the respective location quickly and beautiful – without acting like a real wide flood.
The Stage Panel 16 is equipped with 16 LEDs and features a very good RGBAW+UV color mixture. It has a beam angel of 32°.

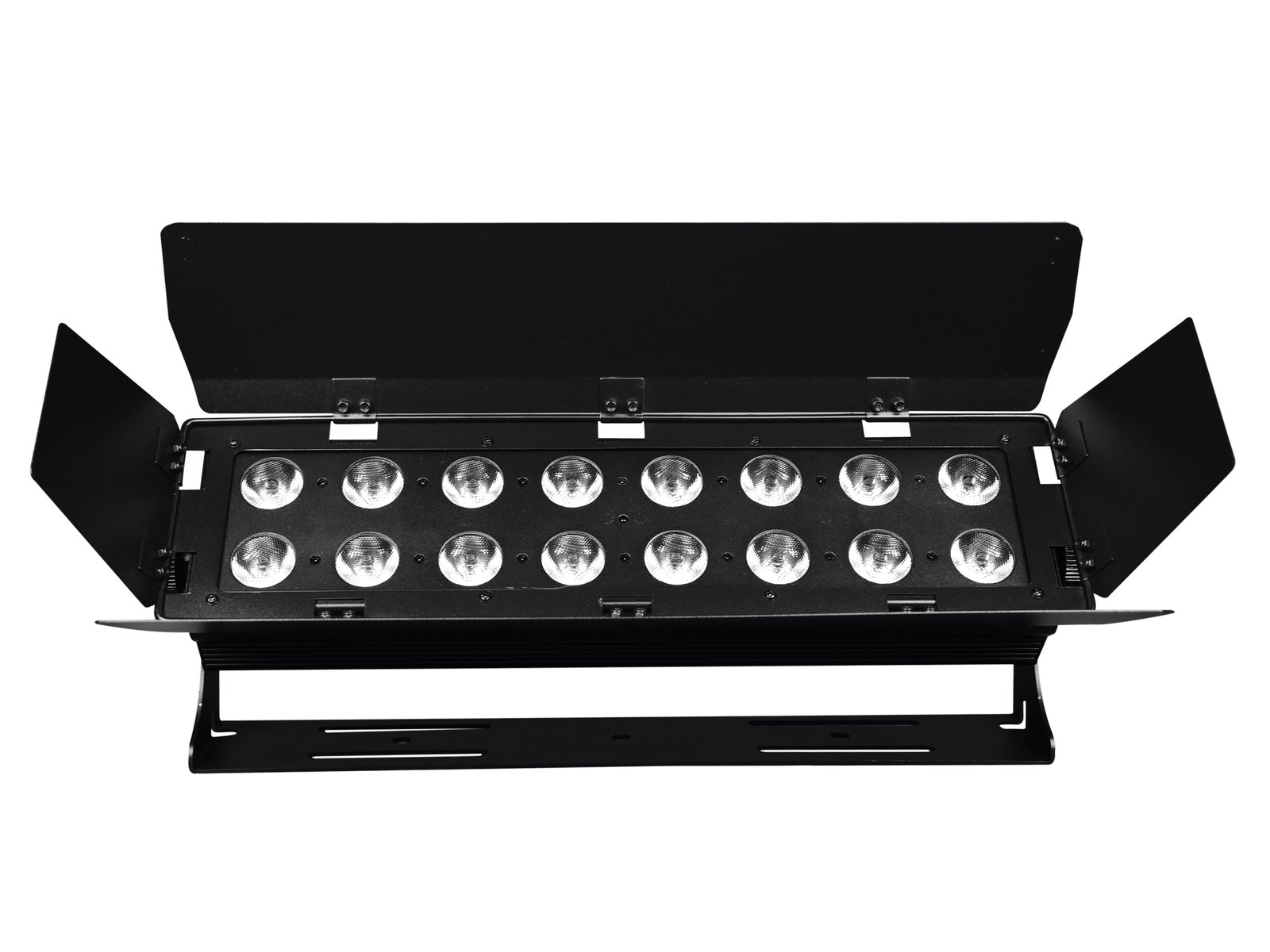

You can control the LEDs in 4 segments and thus create diversified effects. The 4 barn doors not only help you avoid glaring the audience: They also serve as transport.
The Stage Panels are great spots, if you like to be mobile and produce quite some light with only a few devices. They are made for bands, mobile DJs or solo entertainers.
And as they work flicker free and very silently, TV studios and theaters will have fun with them as well.
Features
Light effect bar with RGBAW+UV color mixing, with 5-pin QuickDMX connector
- 4 segments for dynamic running lights

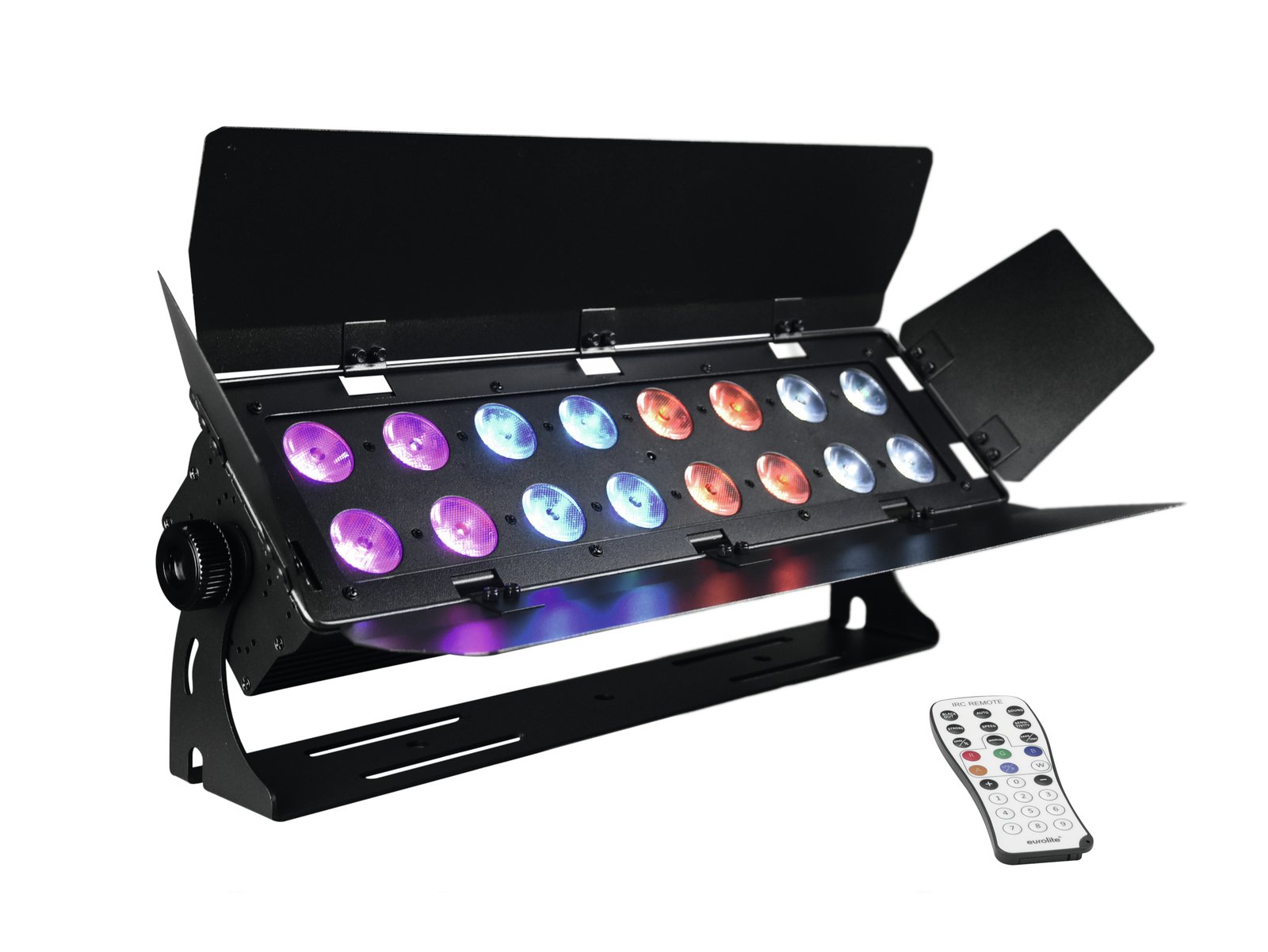

- 4 barn doors to avoid blinding the audience and for protection during transport
- 16 powerful LEDs 12 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Strobe effect; UV effect
- Integrated show programs
- Direct color selection for 26 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; IR remote control; sound to light via microphone; QuickDMX via 5-pin XLR (M) mounting version (optional); master/slave function
- Flicker-free
- With a beam angle of 23°
- With mounting bracket
- 4 digit 7-segment LED display
- Preprogrammed in LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4×6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
- Mains input and output for power linking up to 8 units
- For application areas such as: Wedding/gala/events; stage; mobile djs / entertainer; small rental
- Silent operation
- Application possibility: Standing; suspended; on stand
Package contents
- 1 x spotlight, 1 x power cord, 1 x barndoor, 1 x remote control, 1 x user manual
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 70 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |

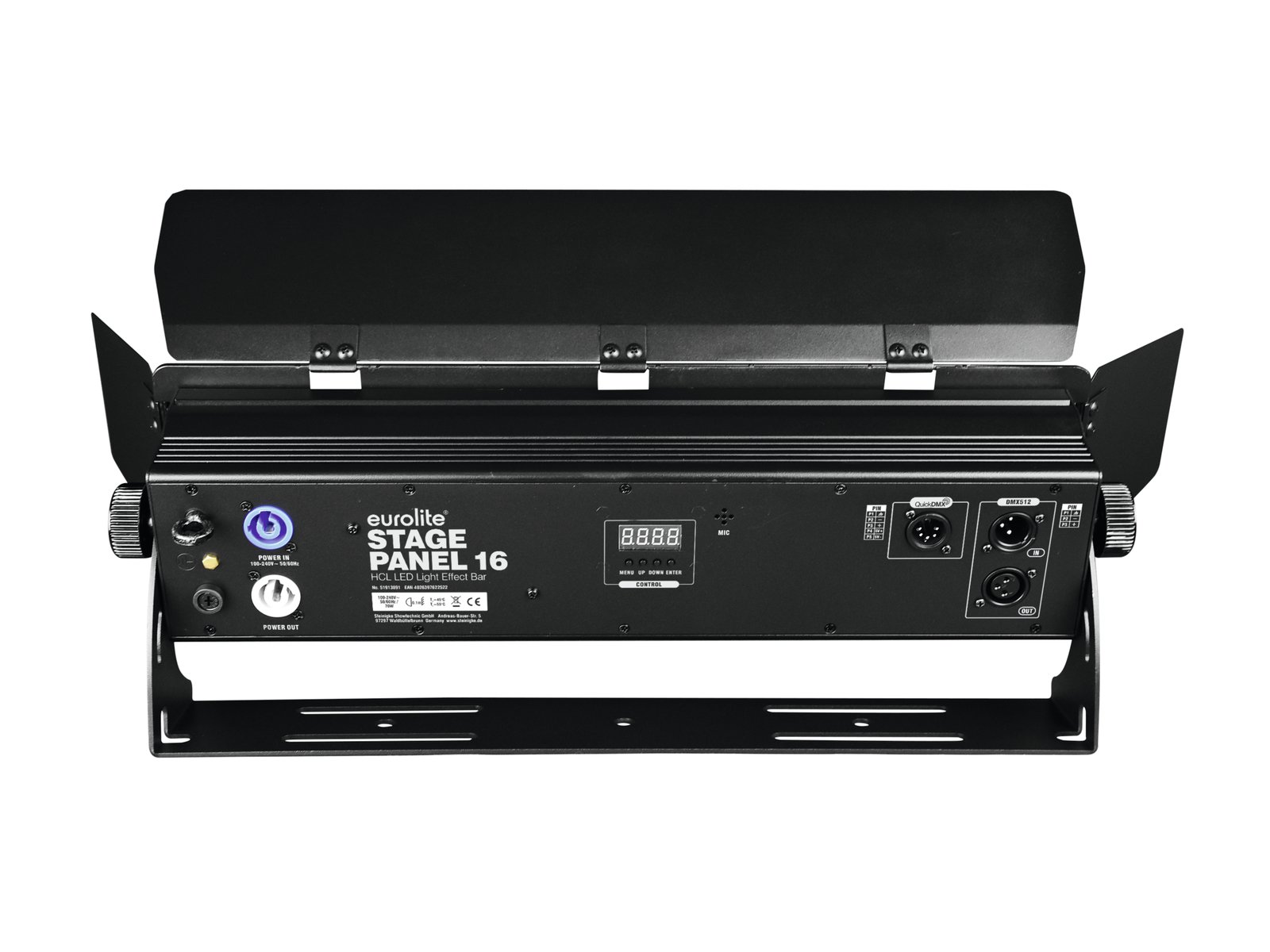

| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Fuse: | T 1 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 16 x 12 W high-power 6in1 HCL RGBWA/UV (homogenous color mix) |
| Flash rate: | 0 – 20 Hz |
| DMX channels: | 2; 3; 5; 6; 8; 11; 24; 32 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; DMX; IR remote control; sound to light via microphone; QuickDMX via 5-pin XLR (M) mounting version (optional); master/slave function |
| Preprogrammed in: | LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4×6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Projection: | Flicker-free |
| Beam angle: | 23° |
| Beam angle (1/2 peak): | 23° |
| Beam angle (1/10 peak): | 42° |
| Wavelength: | Ultra violet (UV) 400 nm |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Material: | Metal, painted; aluminum casting |
| Dimensions: | Width: 59,1 cm Depth: 19,9 cm Height: 30,3 cm |
| Weight: | 5,35 kg |
| Noise classification: | Class 0 (no noise at all) |
| Photobiological safety: | Risk Group 0 |
| Mounting bracket | |
| Diameter mounting holes: | 3 x Ø11mm; 4 x Ø10mm |
| Material: | Metal, 3 mm |
| Power cord | |
| Cable construction: | 3 x 1,0 mm² H05VV-F |
| Cable length: | Approx. 1,2 m |
| Barndoor | |
| Material: | Metal, 0,8 mm |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397622522 | 5,80 kg | 55,5cm x 16cm x 24cm |
