Description

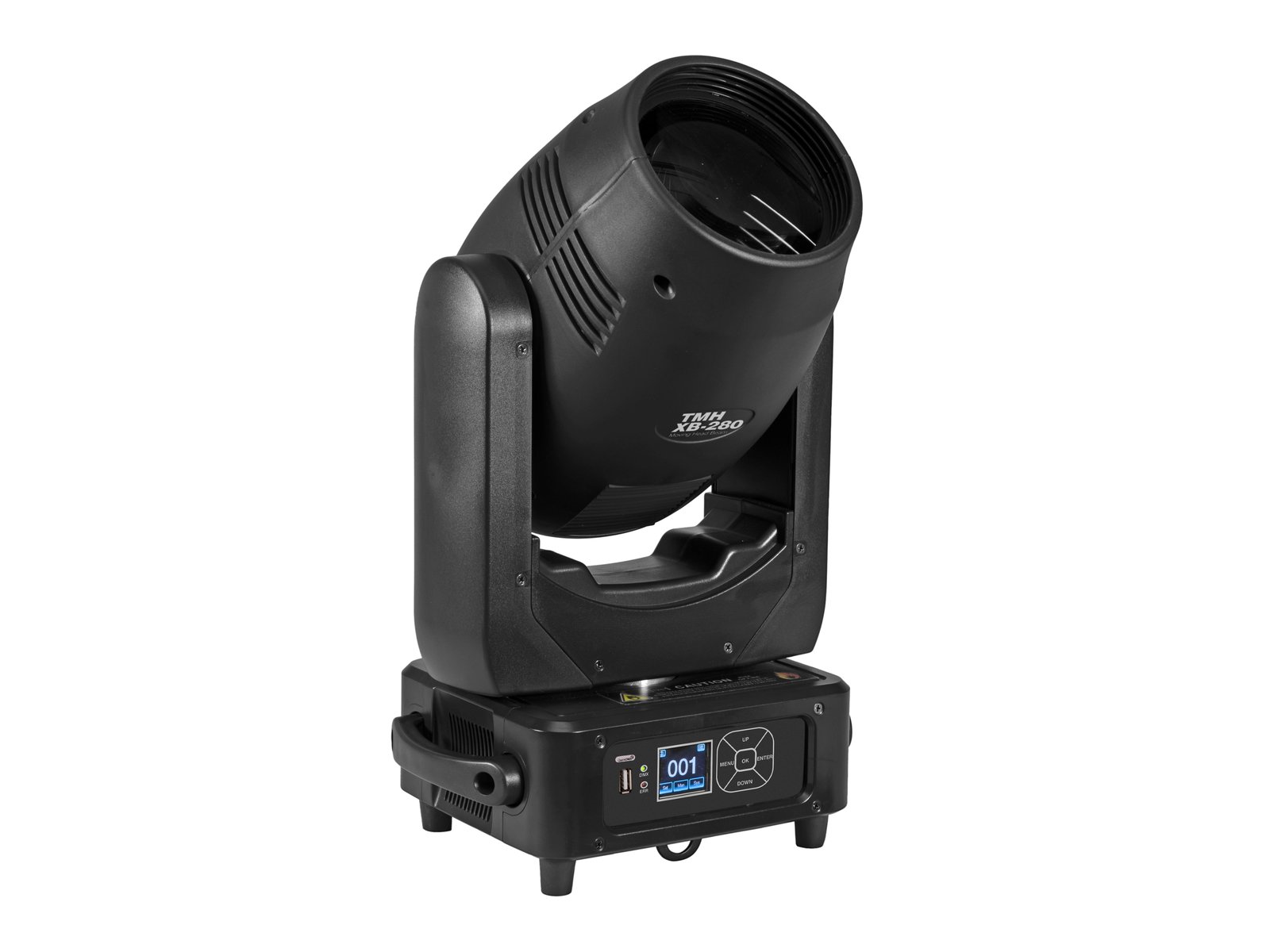

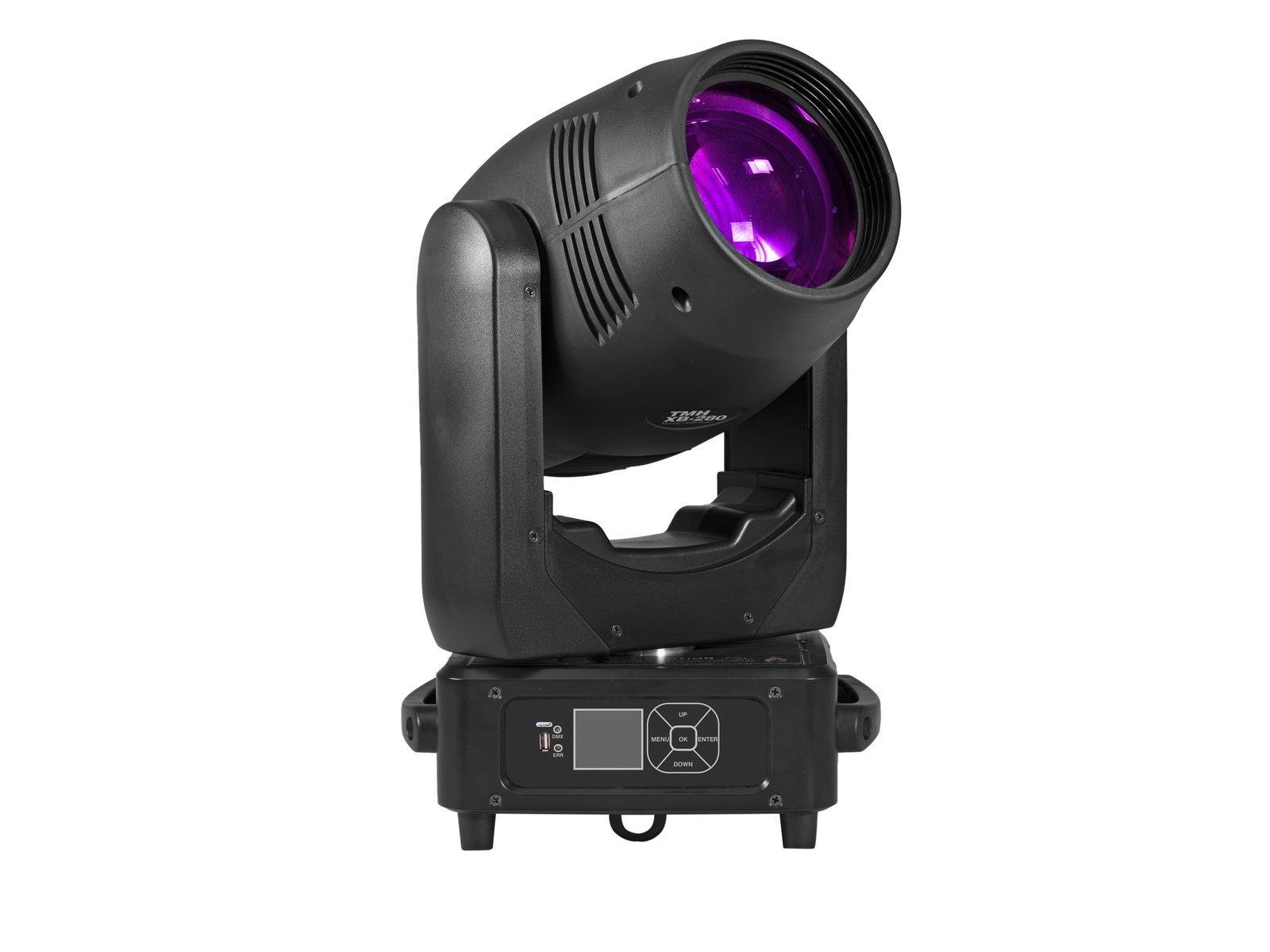

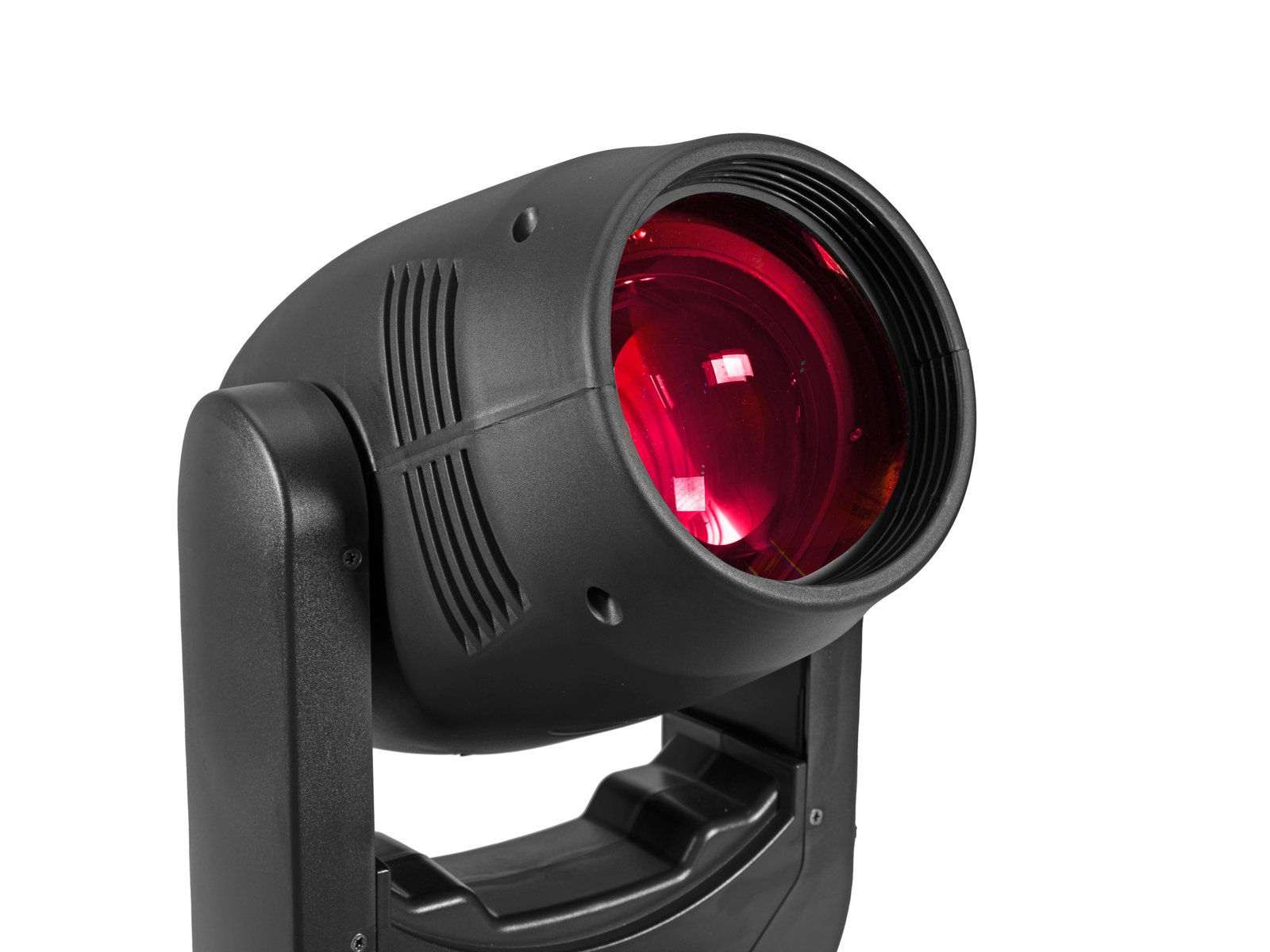

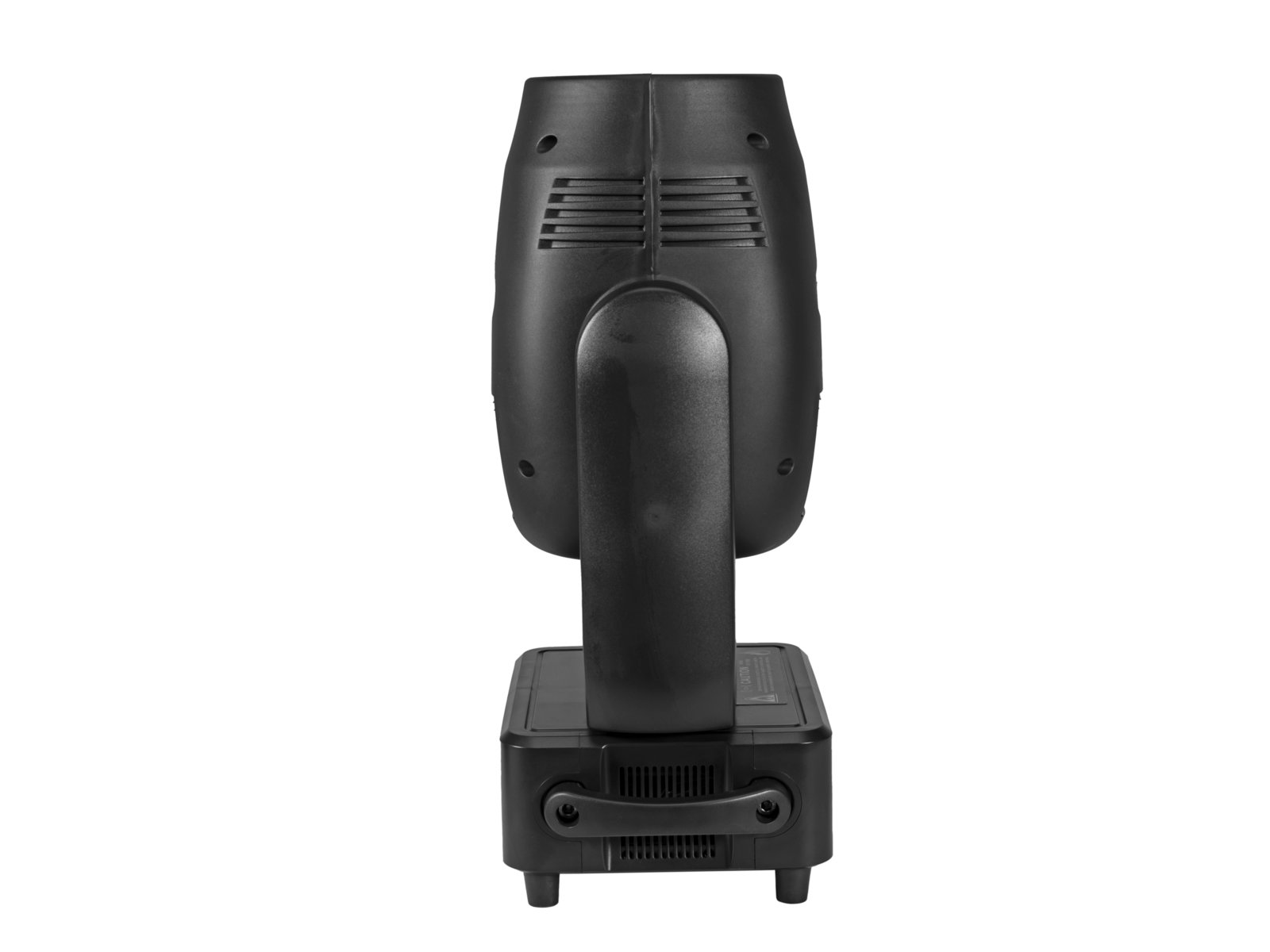

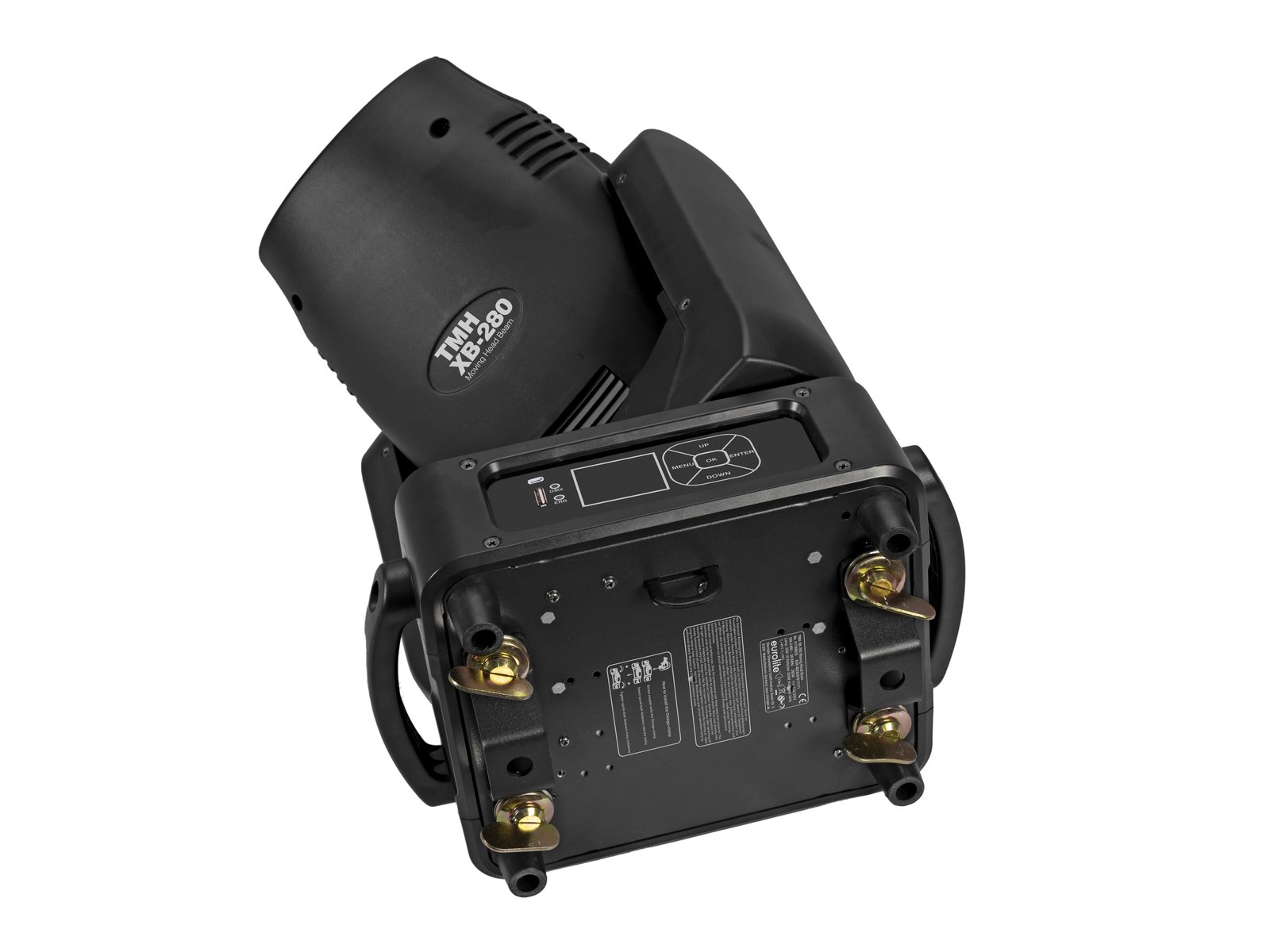

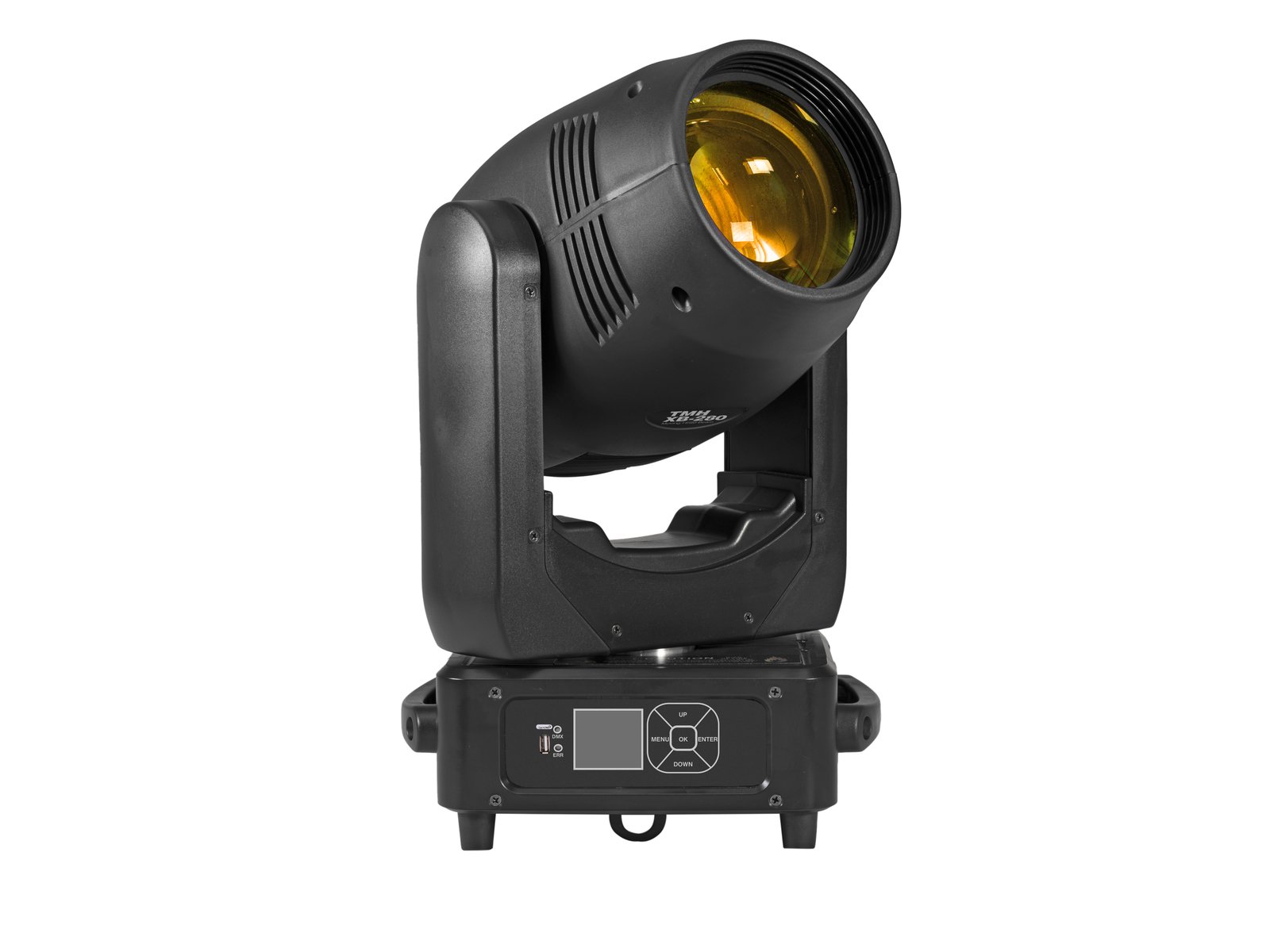

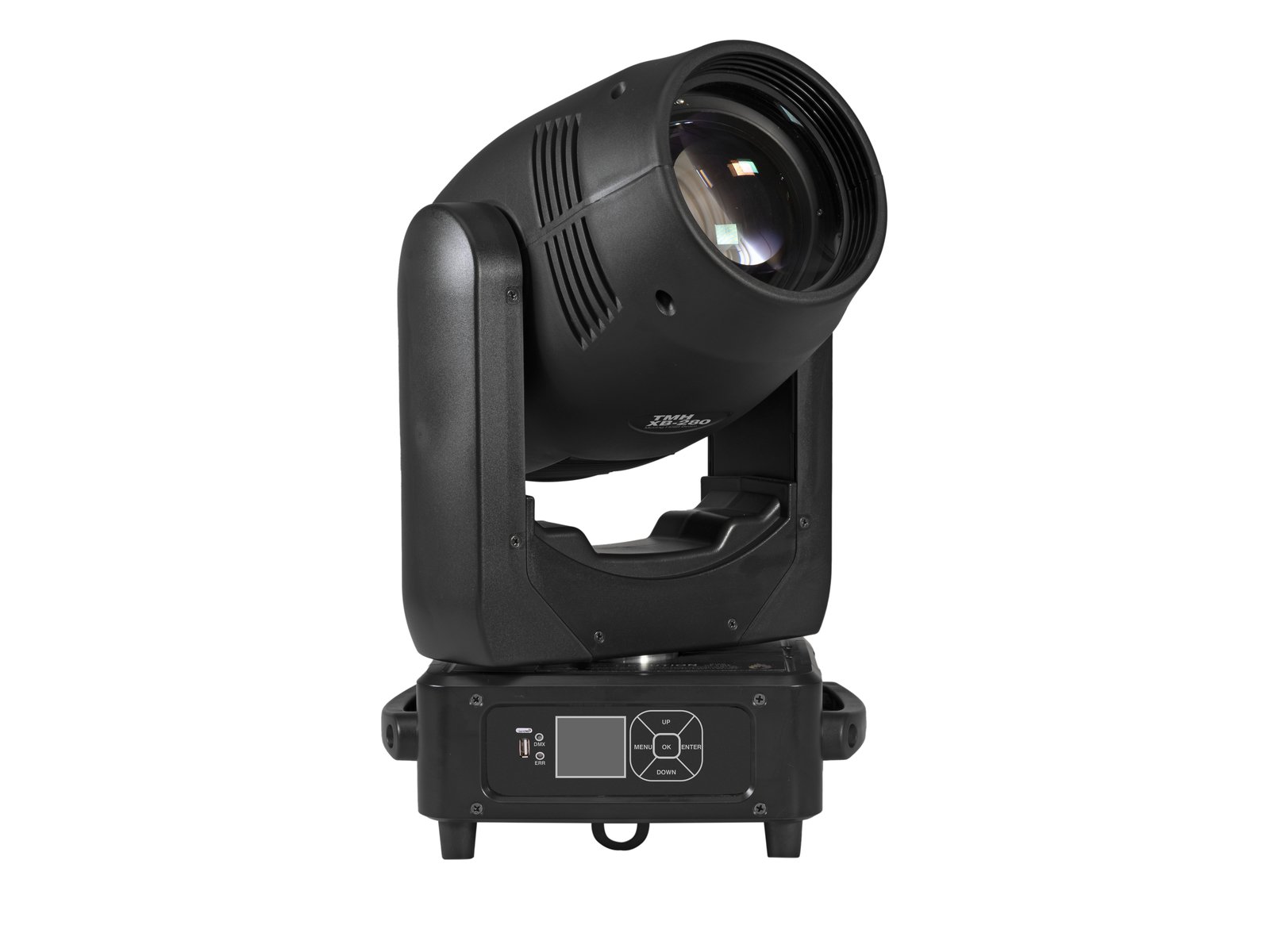

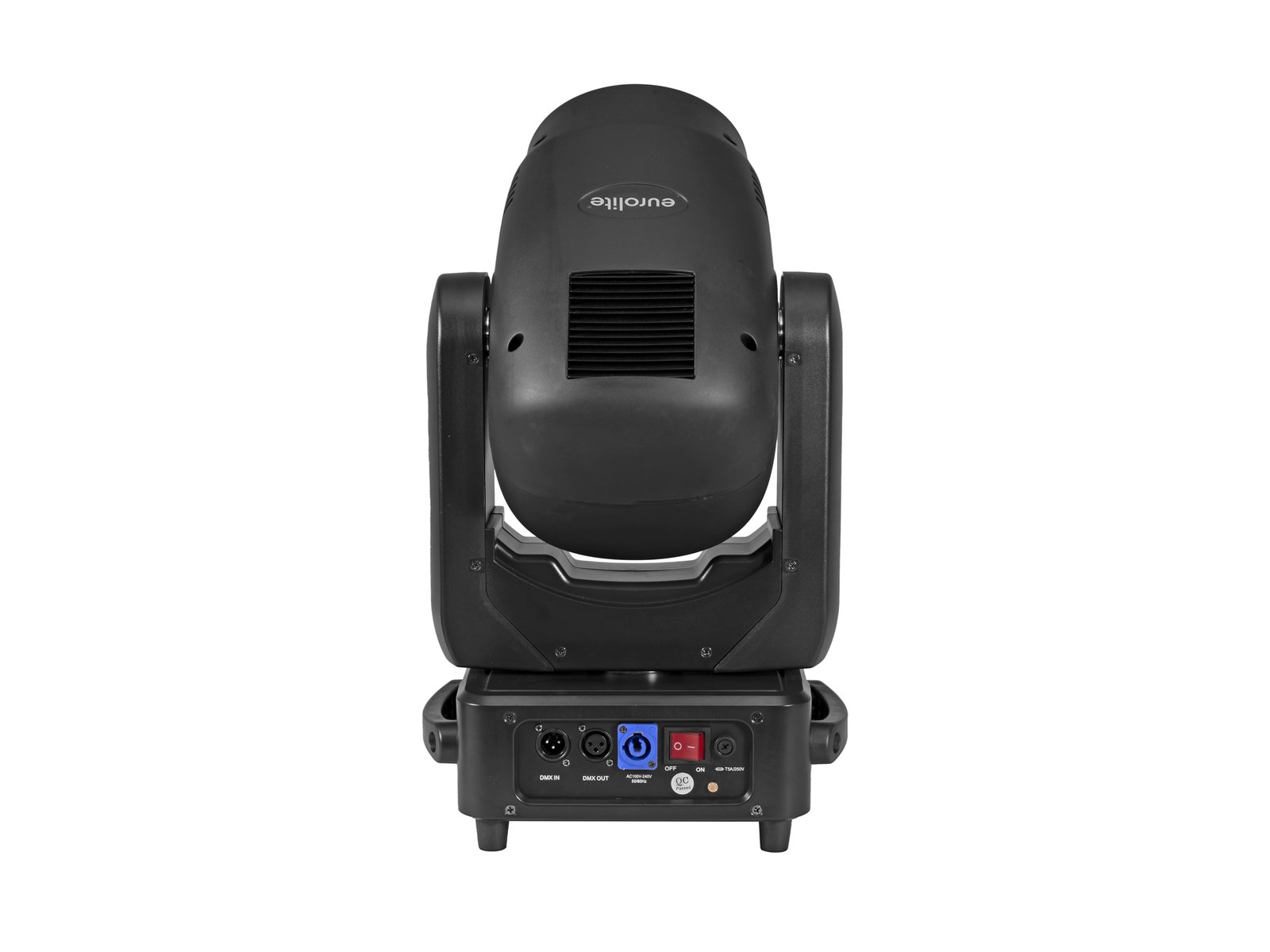

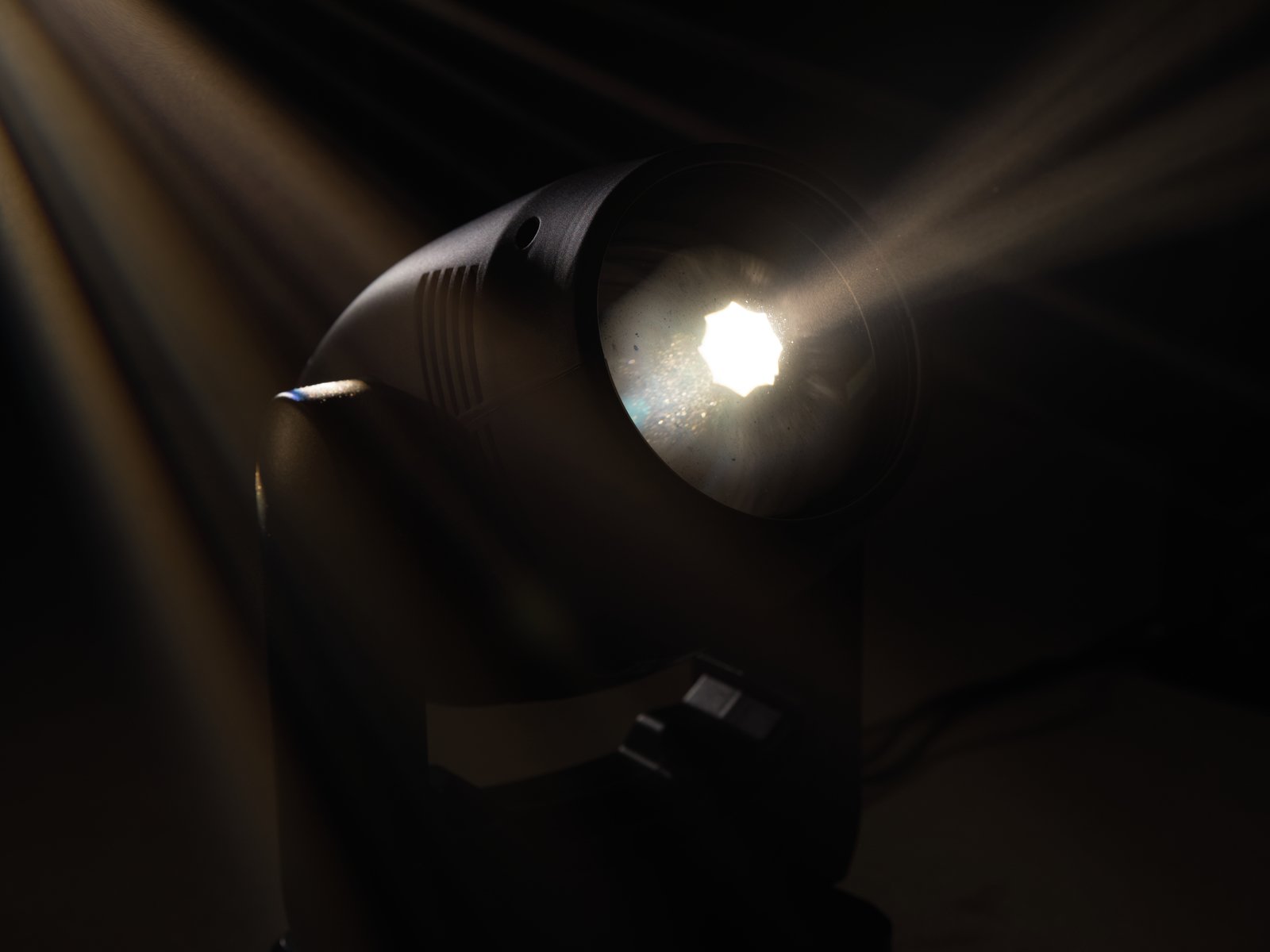

Eurolite TMH XB-280

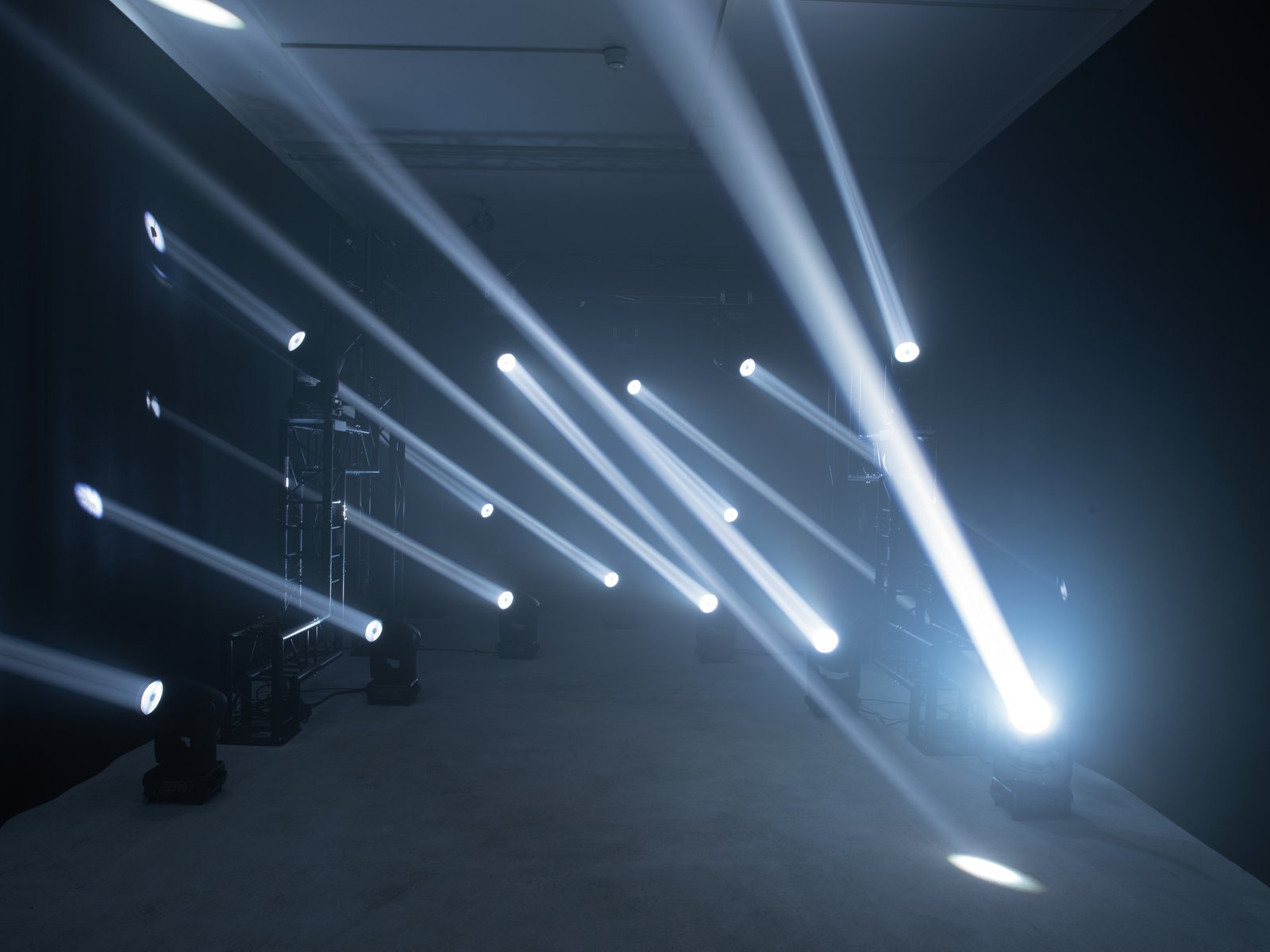

Powerful beam at a good price
With the TMH XB-280 you get a powerful, sharply defined beam moving head with a narrow beam angle of only 2° and an excellent price-performance ratio.
Versatile design options

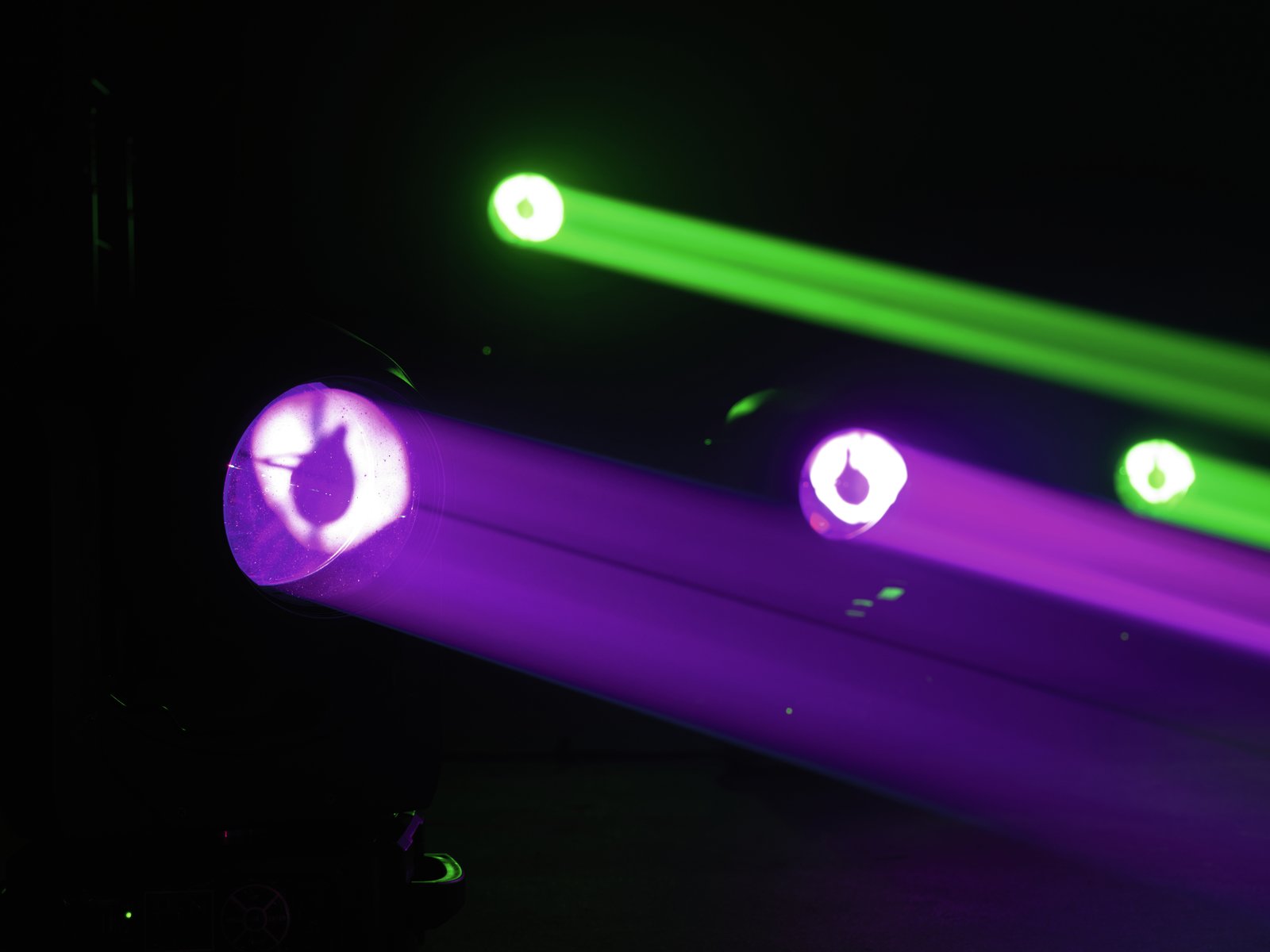

With the 14 dichroic colors of the color wheel, the gobo wheel with 13 static gobos and the 8- and 24-facet prisms, you have a wide range of design options.
Very good price-performance ratio

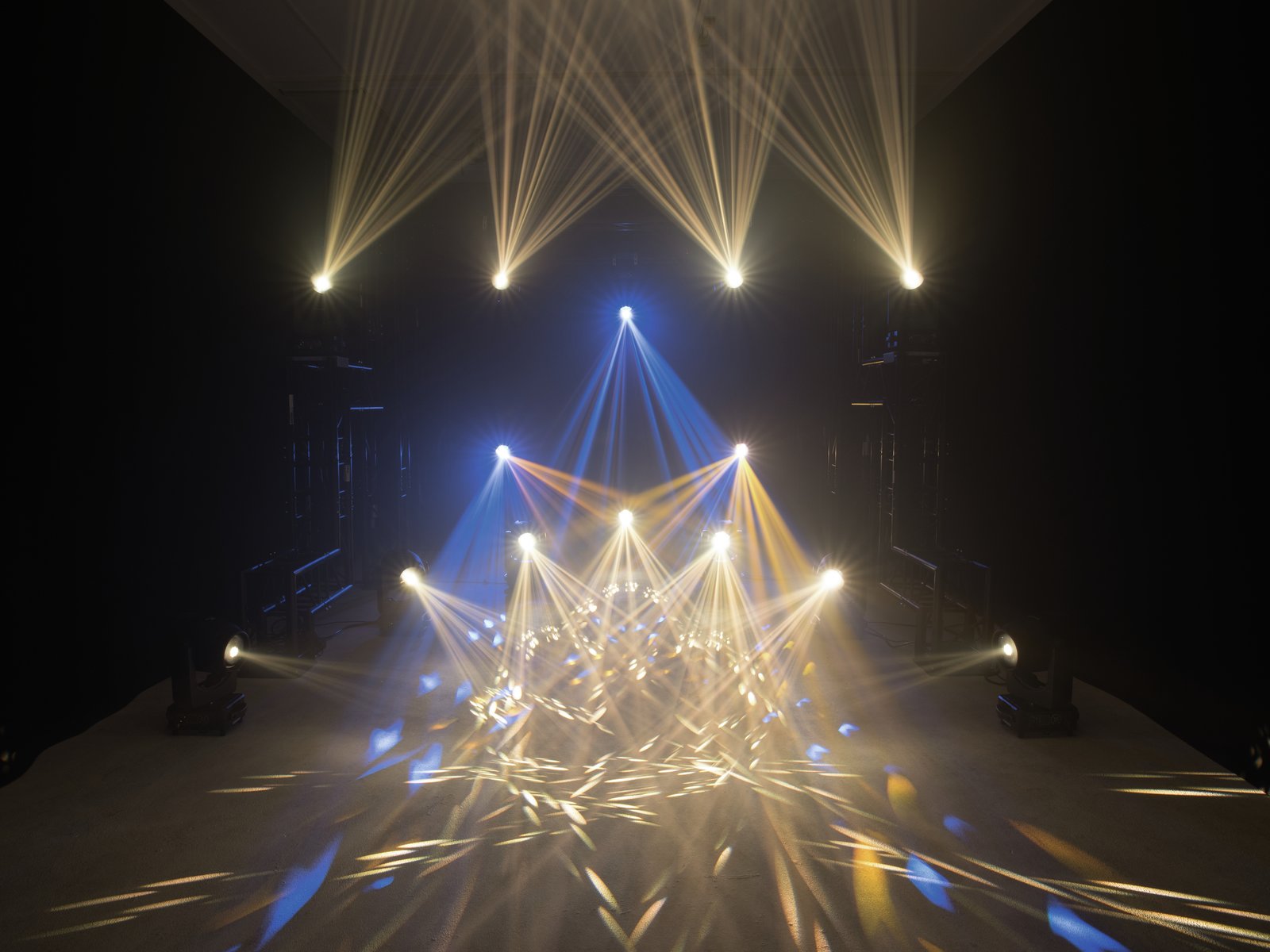

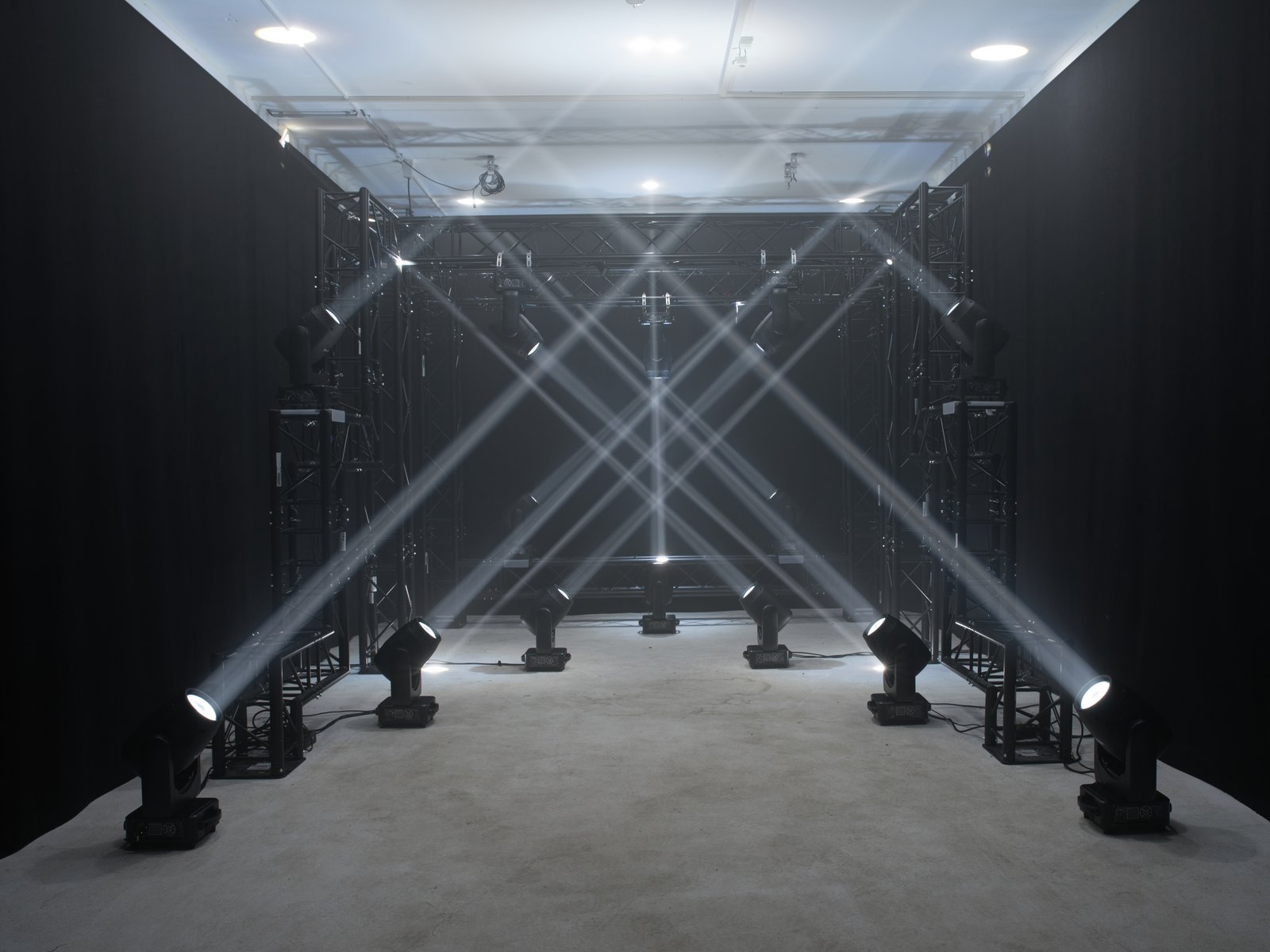

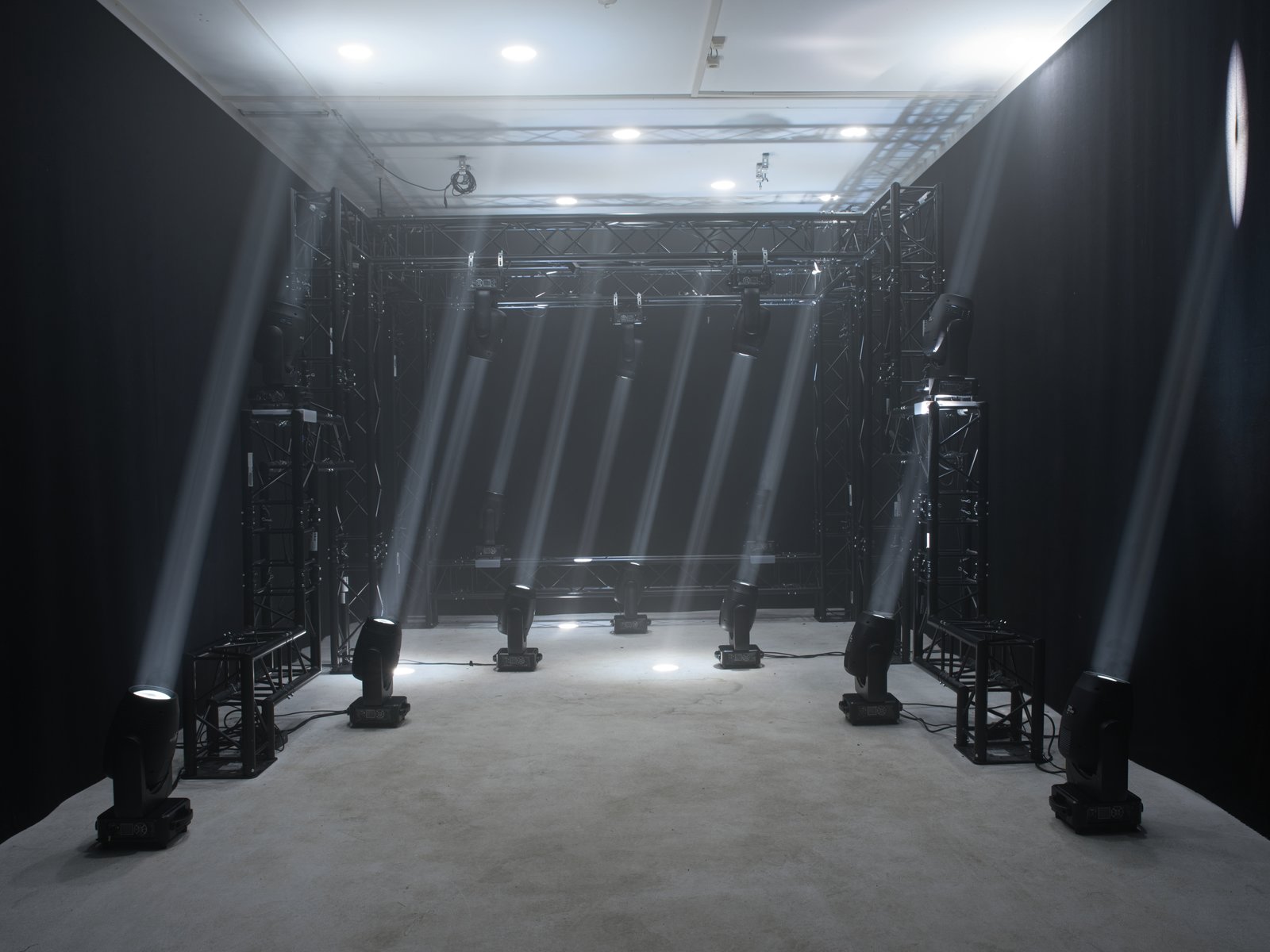

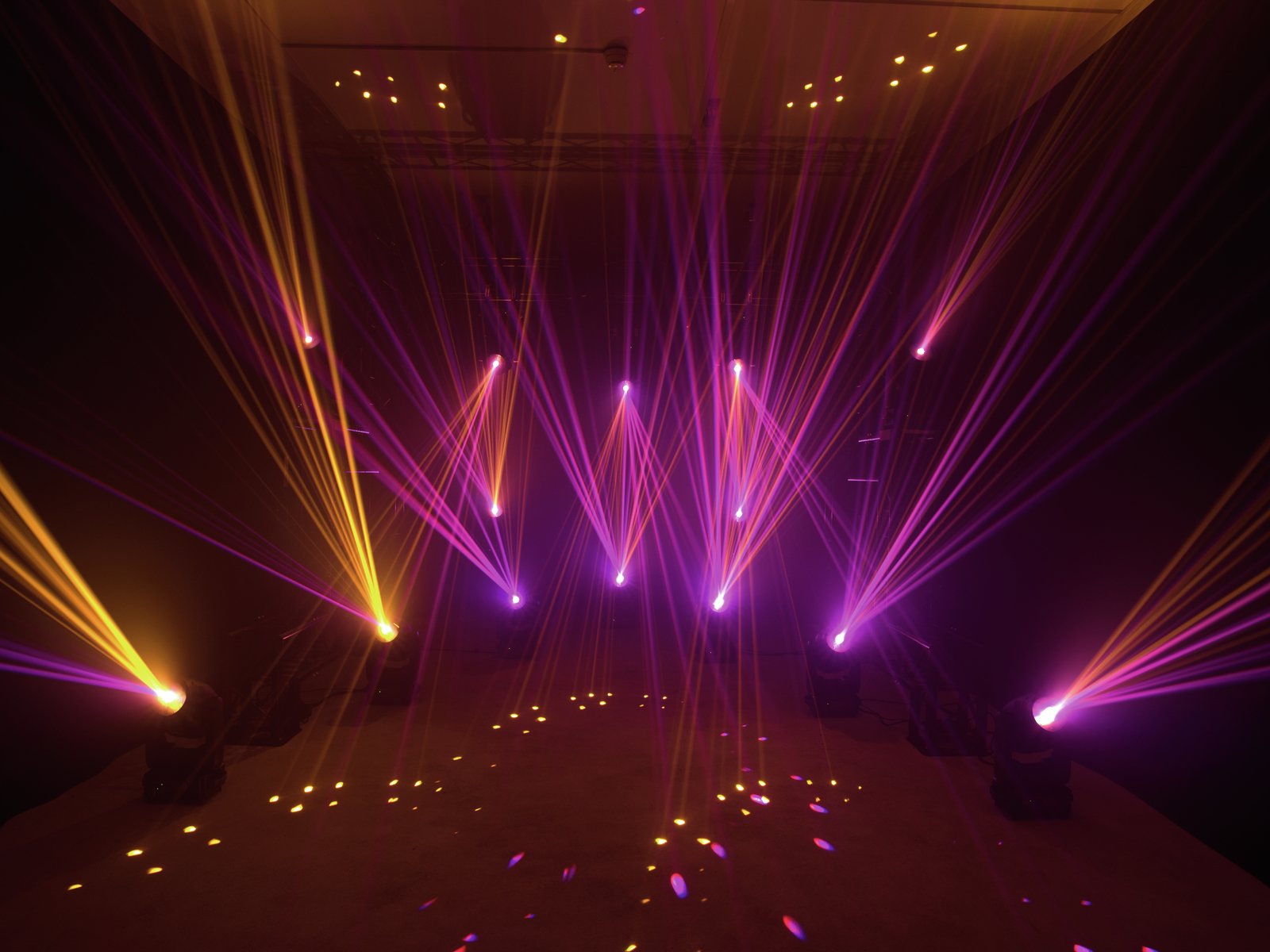

The mix of high quality components, powerful performance and narrow beam angle make this moving head the best choice for stages and discotheques. With its excellent price-performance ratio, it is ideal for all users who want to get the most out of their limited budget.
Features
Bright, narrow beam with OSD 10 280W discharge lamp, color wheel, gobos and prisms
- Equipped with an OSD 10 Reflector 280W discharge lamp
- Positioning within 540° PAN, 270° TILT
- Exact positioning (16 bit resolution)

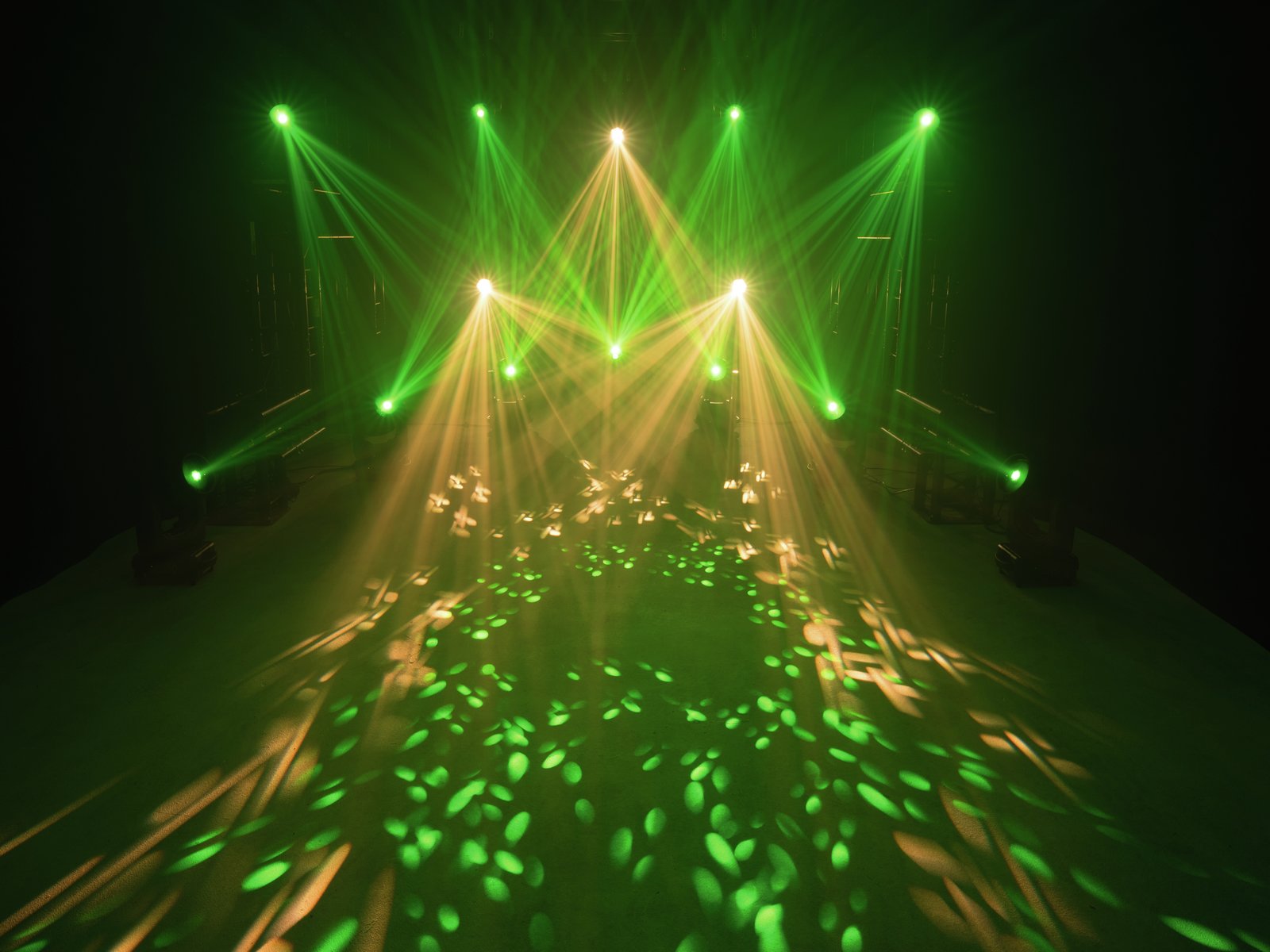

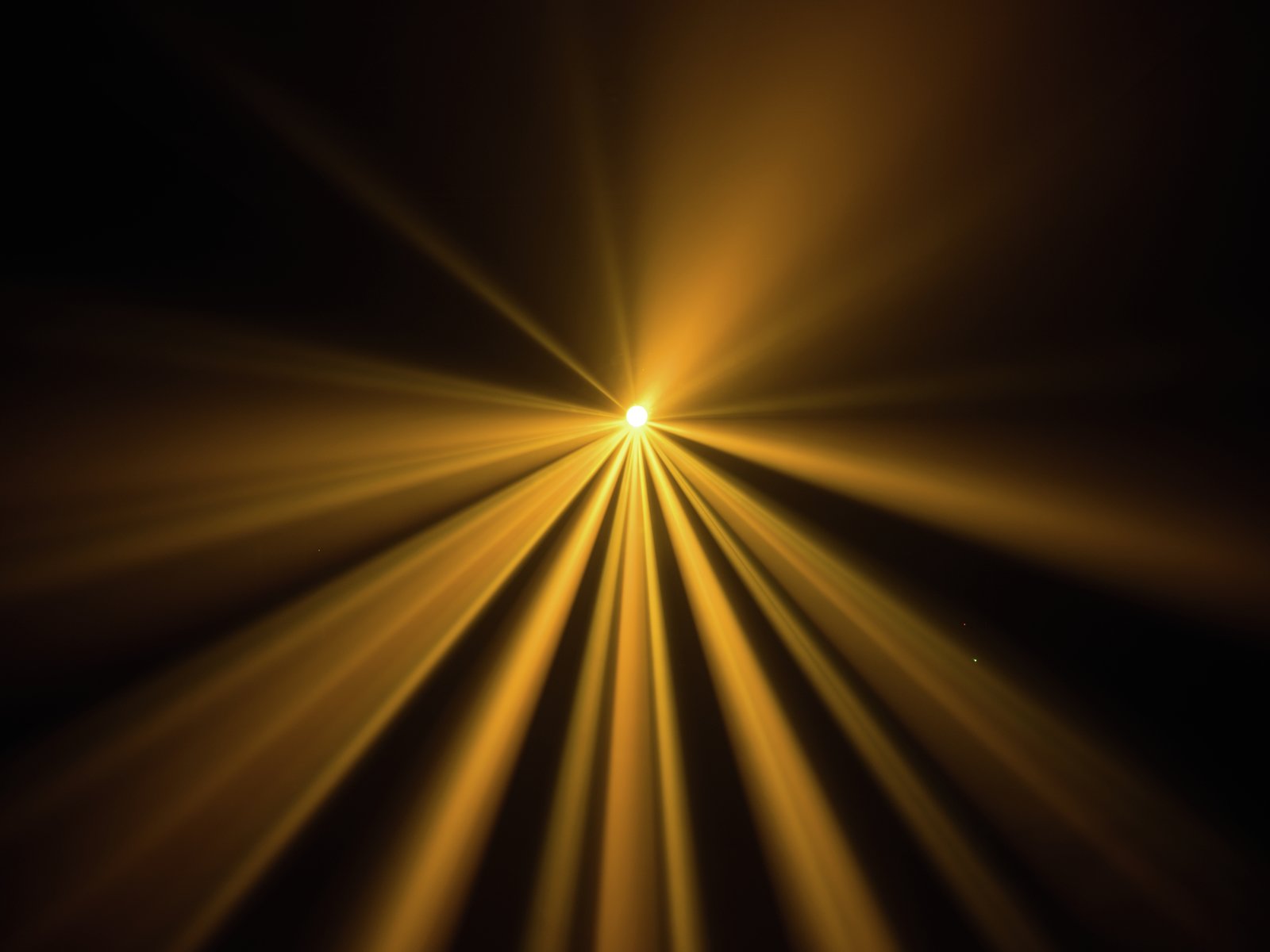

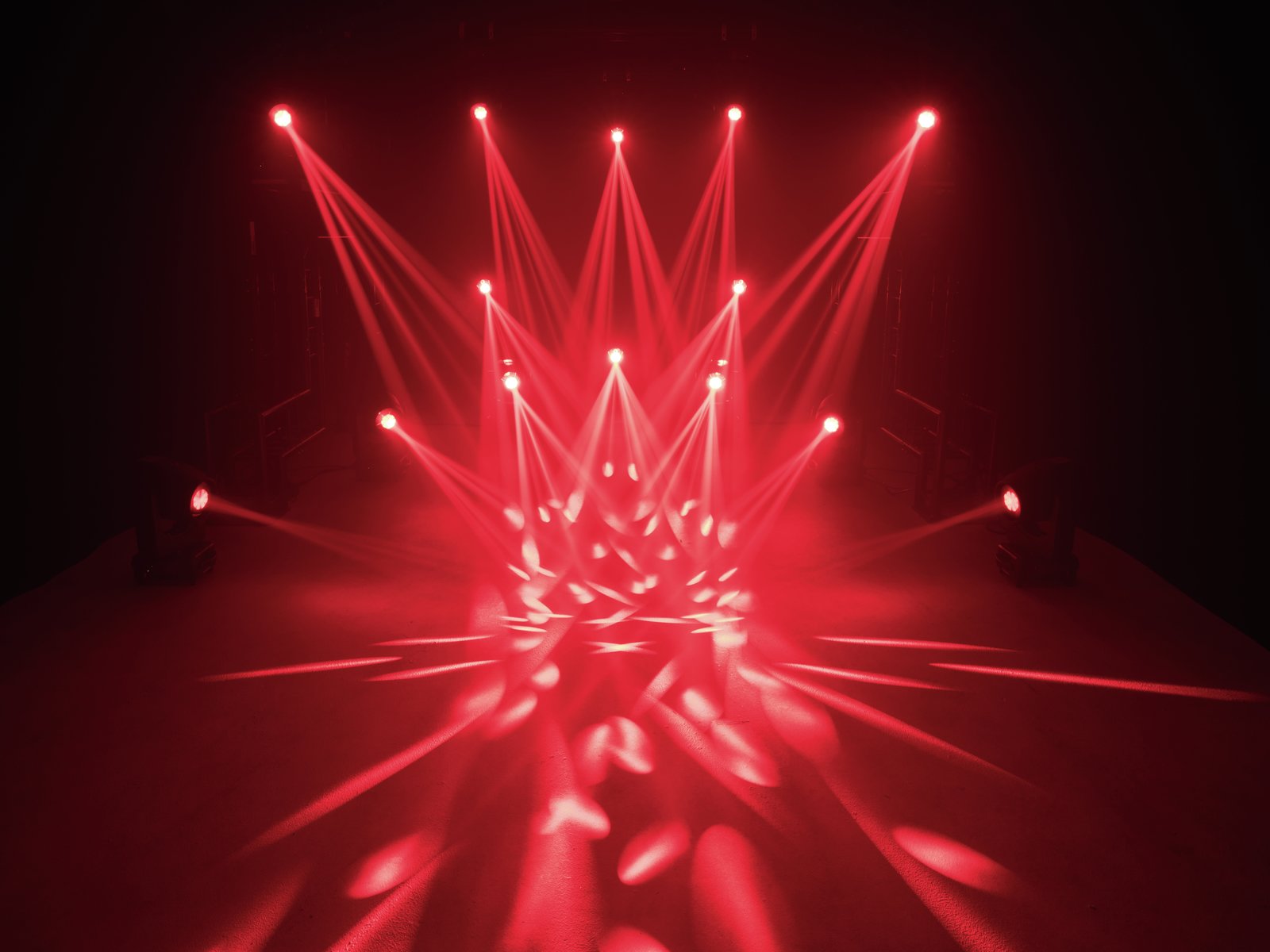

- Color wheel; focus motor-driven; gobo wheel with static gobos; frost filter; prism 8-fold rotating; prism 24-fold rotating
- Color wheel with 14 dichroic filters plus open

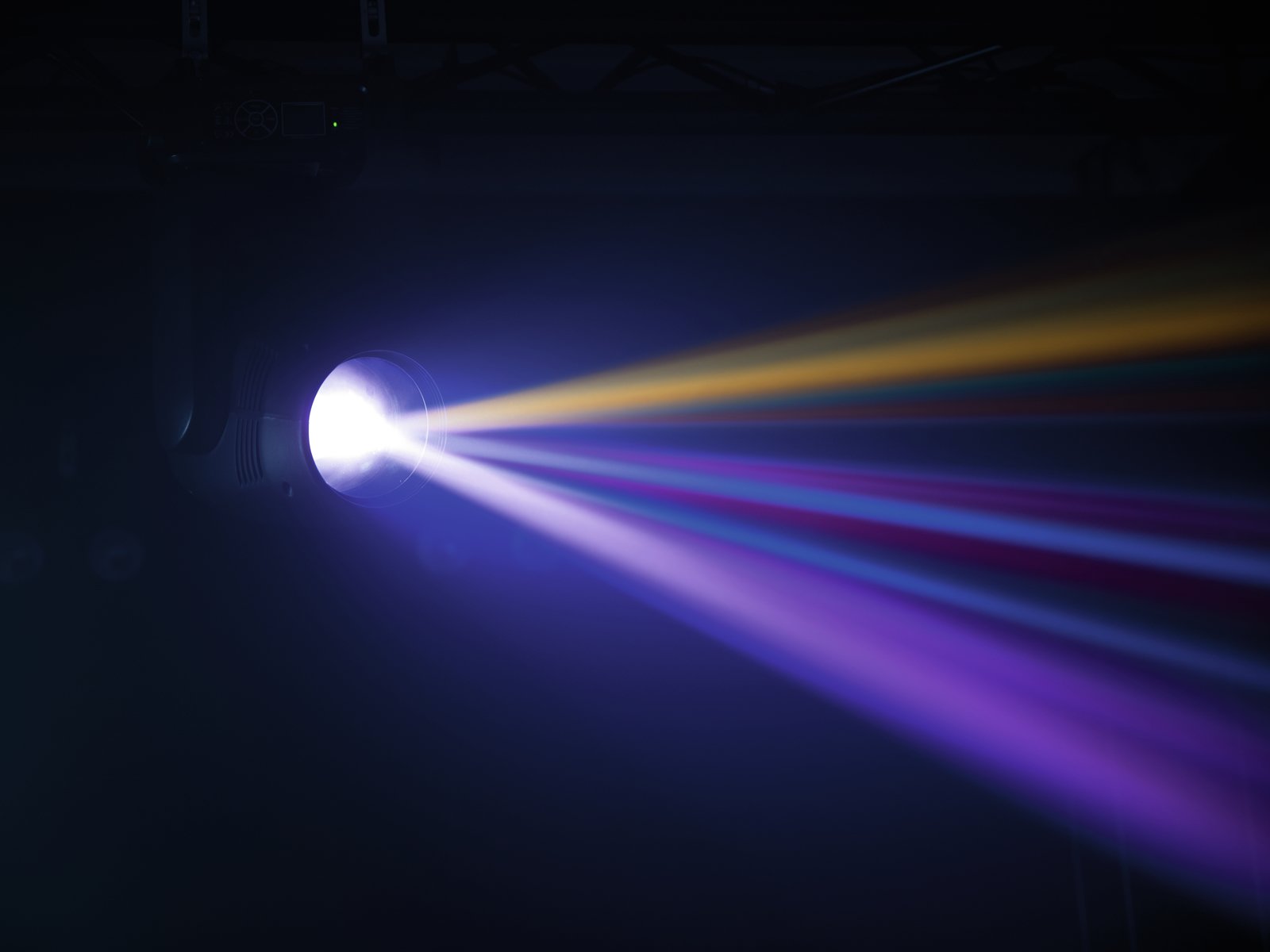

half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 13 gobos und open
shake effect - The device is cooled by cooling fan
- Control via DMX; stand-alone; master/slave function; sound to light via microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)

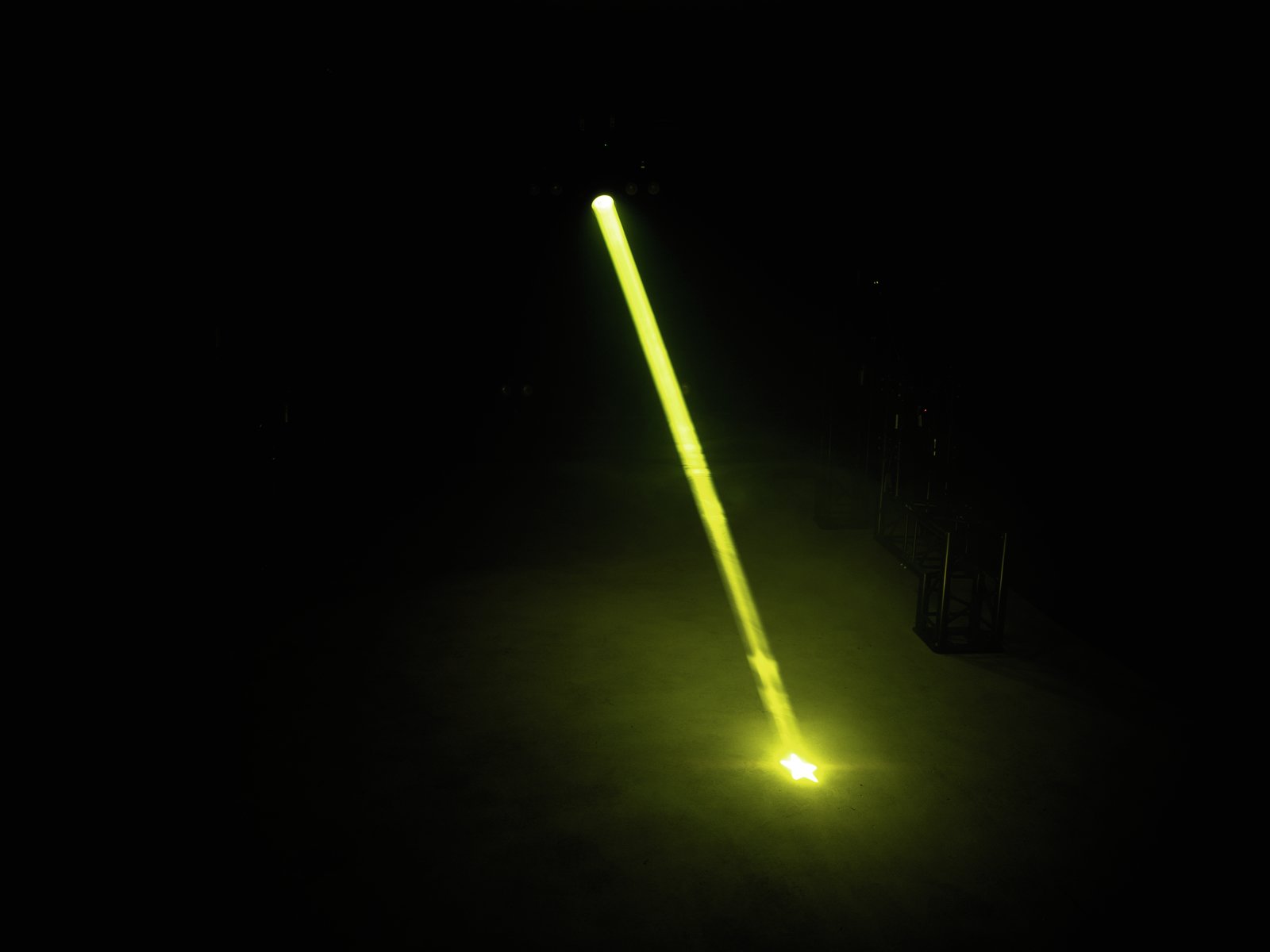

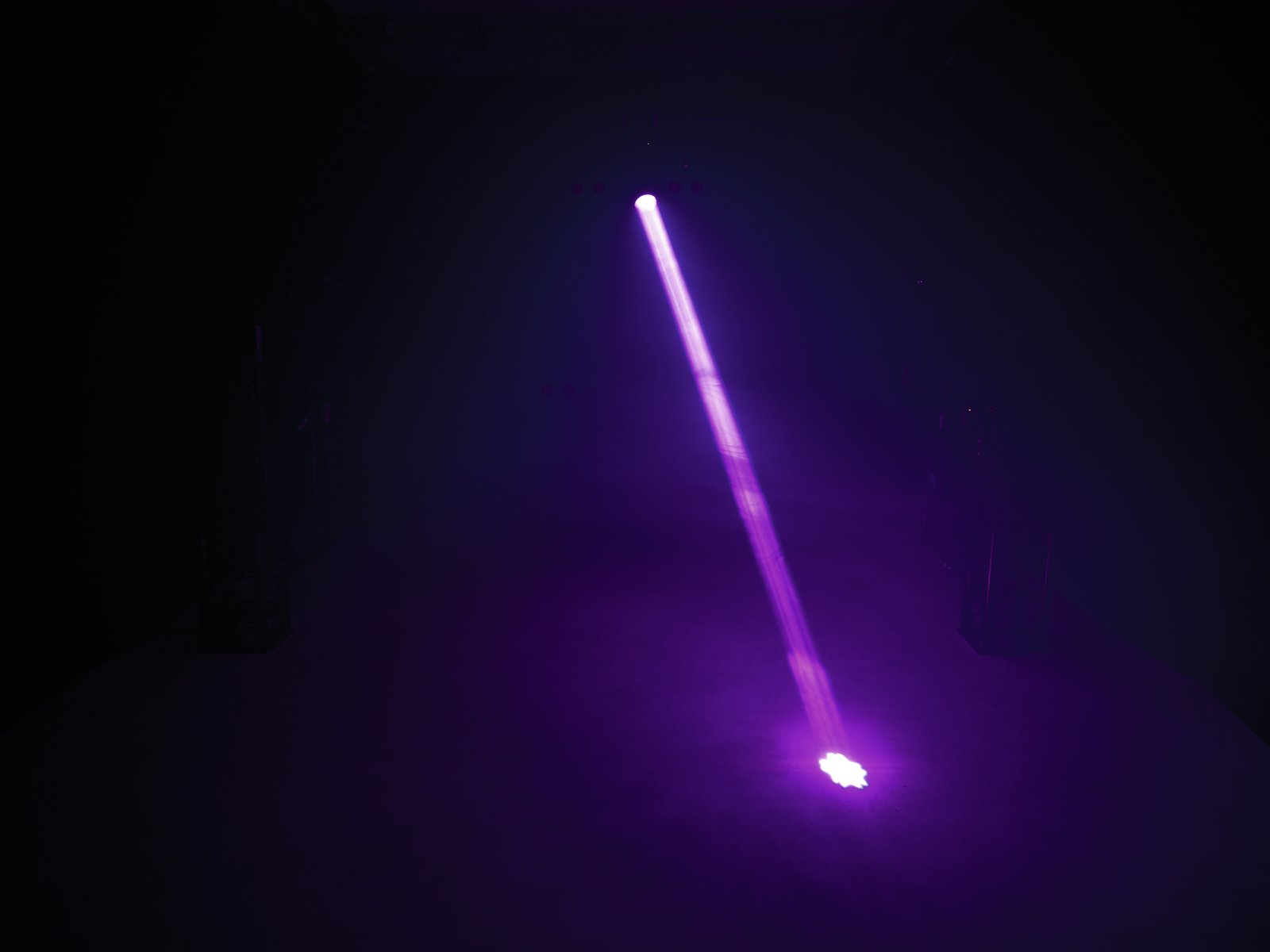

- With a beam angle of 2°
- Multicolor LCD display
- Dimmer electronic
- Strobe effect
- Preprogrammed in LED PC-Control 512; Light Captain
- For application areas such as: Clubs/dancing school; stage; rental
- Application possibility: Standing; suspended
Package contents

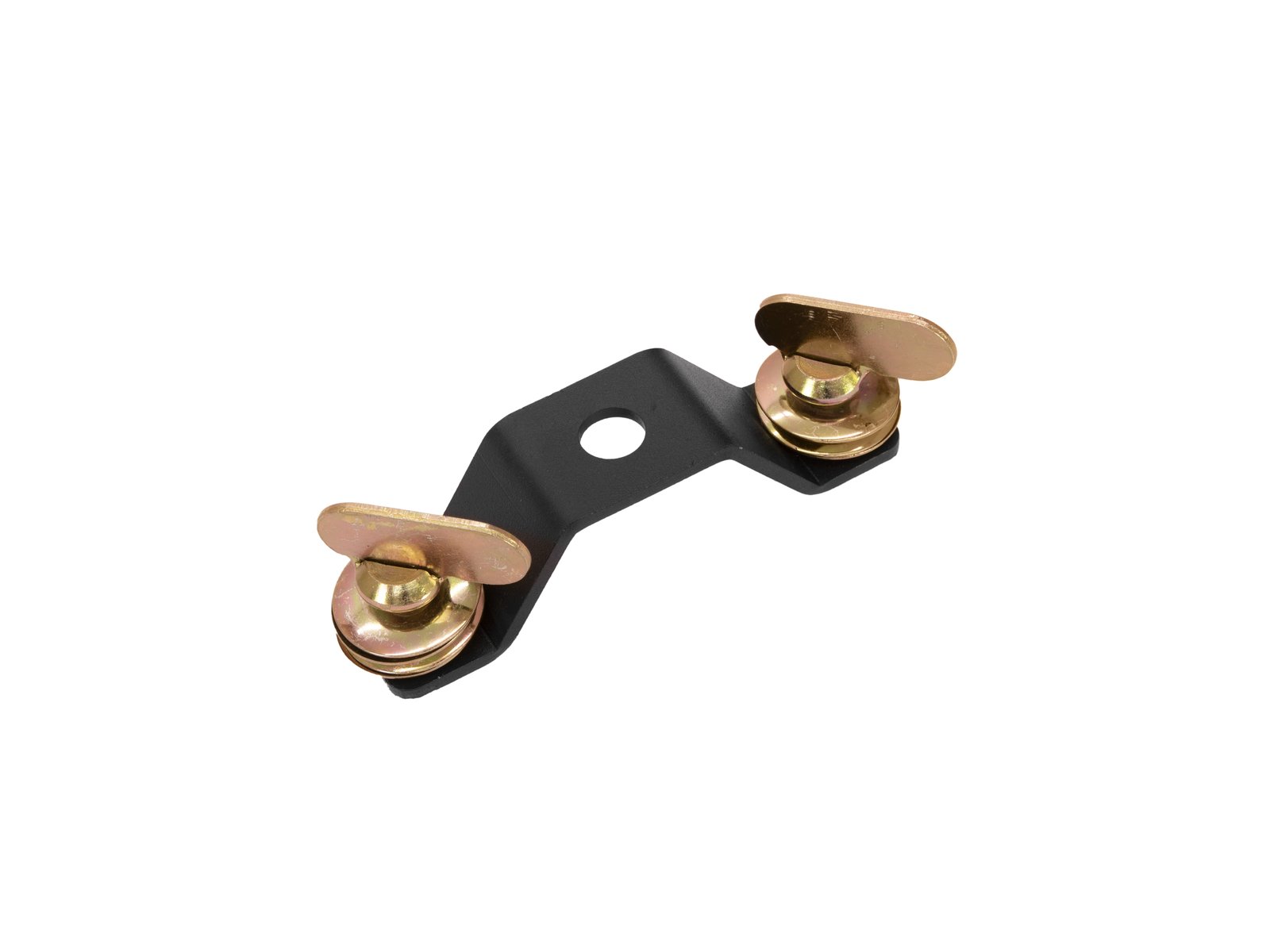

- 1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 385 W |
| IP classification: | IP20 |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Fuse: | T 5 A fuse replaceable |
| Lamp type: | Discharge lamp |
| Max. TILT movement: | 270° exact positioning (16 bit resolution) |
| Max. PAN movement: | 540° exact positioning (16 bit resolution) |
| Flash rate: | 1 – 18 Hz |
| Equipment: | Color wheel; focus motor-driven; gobo wheel with static gobos; frost filter; prism 8-fold rotating; prism 24-fold rotating |
| Color generation: | Color wheel with 14 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions |
| Gobos: | Gobo wheel with static gobos, 13 gobos und open Shake effect |
| DMX channels: | 16; 19 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX; stand-alone; master/slave function; sound to light via microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | LED PC-Control 512; Light Captain |
| Beam angle: | 2° |
| Beam angle (1/2 peak): | 2° |
| Housing color: | Black |
| Display type: | Multicolor LCD display |
| Dimensions: | Width: 30,0 cm Depth: 20,5 cm Height: 50,5 cm |
| Weight: | 14,80 kg |
| Noise classification: | Class 4 (loud noises) |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397677171 | 16,35 kg | 60cm x 42cm x 30cm |
