Description

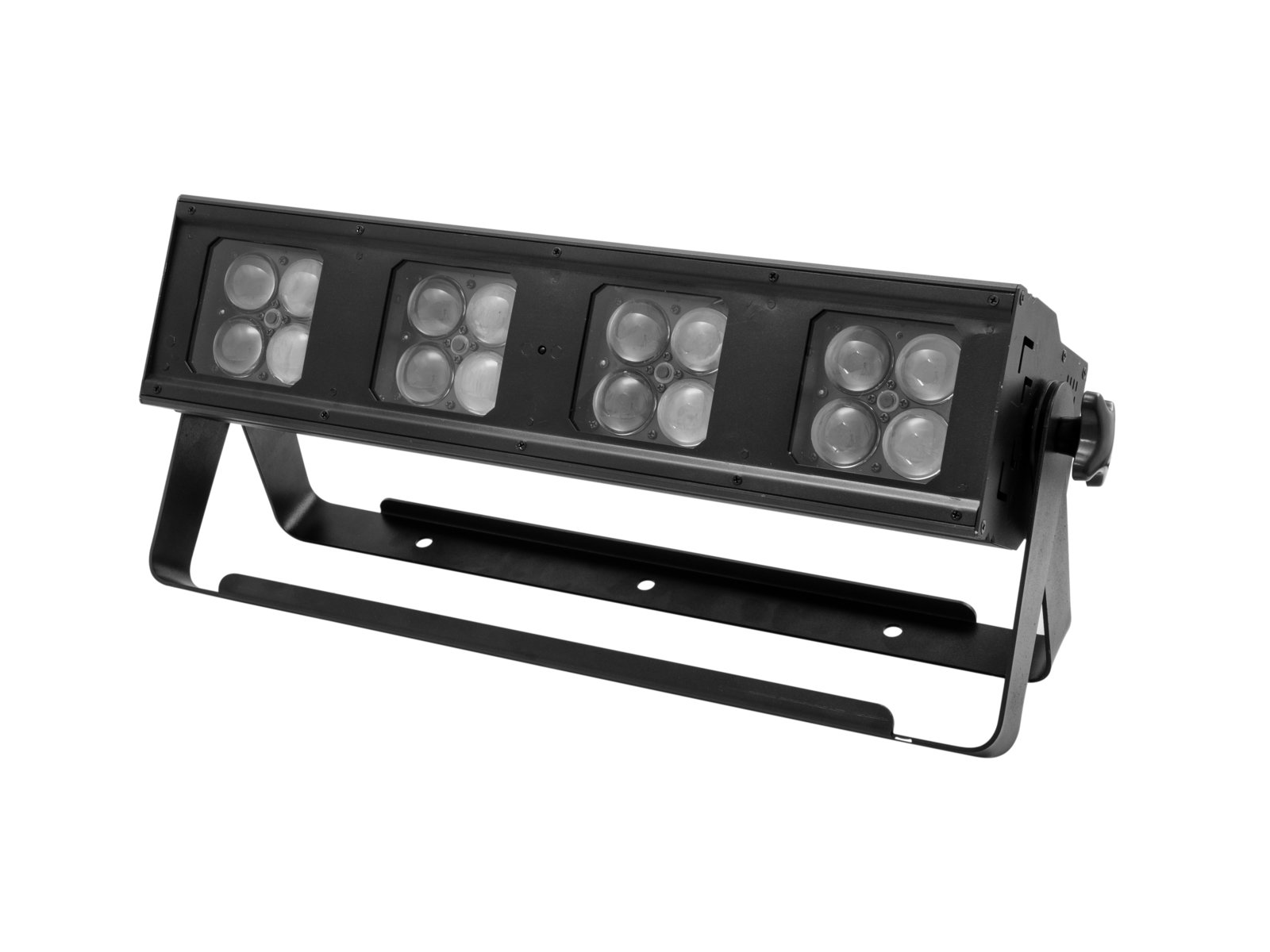

Eurolite Zoom4Bar
The Zoom4Bar is a spotlight bar that stands out for its impressive motorized zoom. It can be adjusted individually for each of the four lenses from a beam angle of 5° to 75° (from very narrow to very wide). Thanks to this flexibility, you can use the Zoom4Bar for a wide range of lighting purposes: Use the bar as backlight, uplight or eye-catching show effect.
Creative lighting design

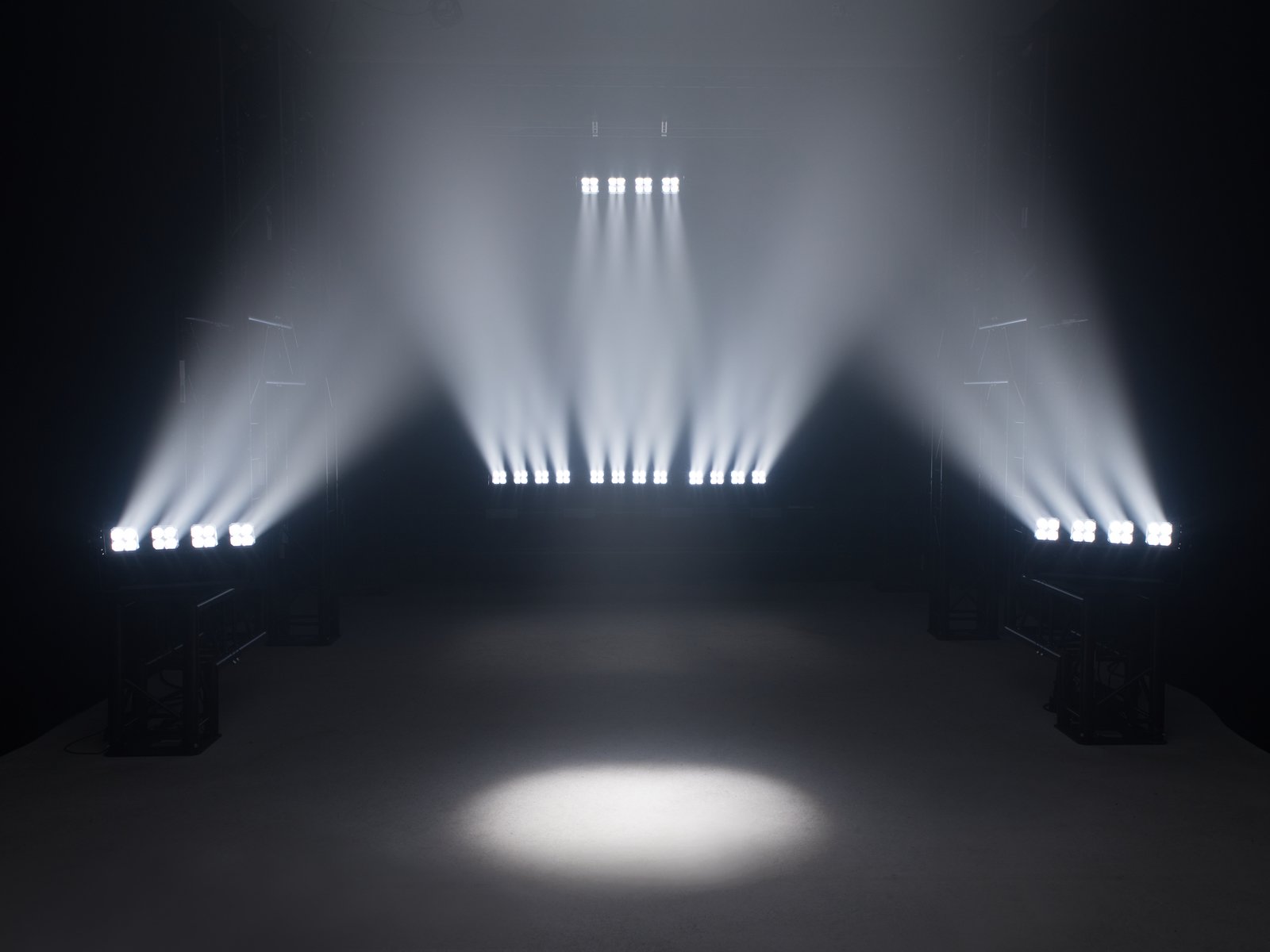

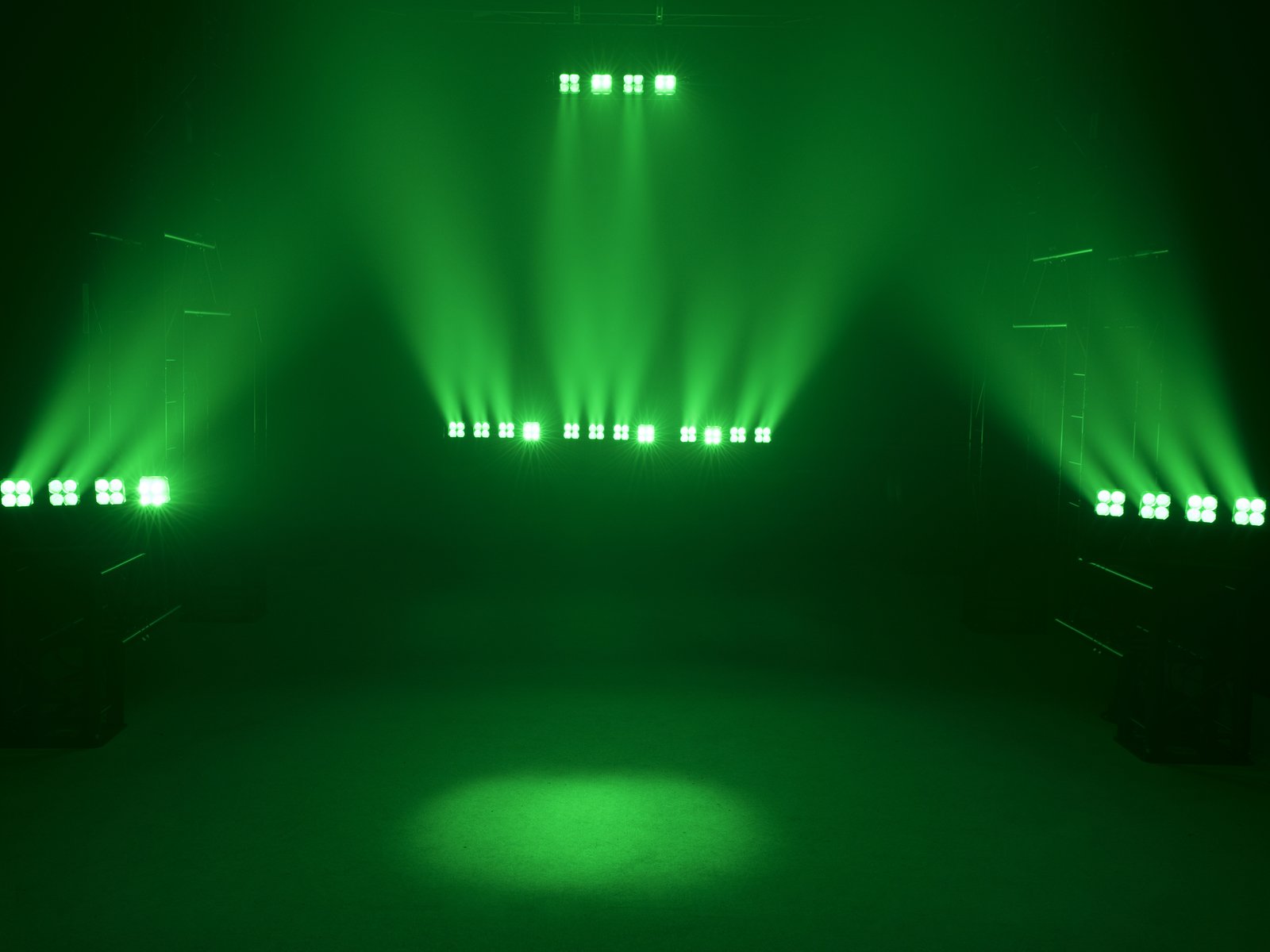

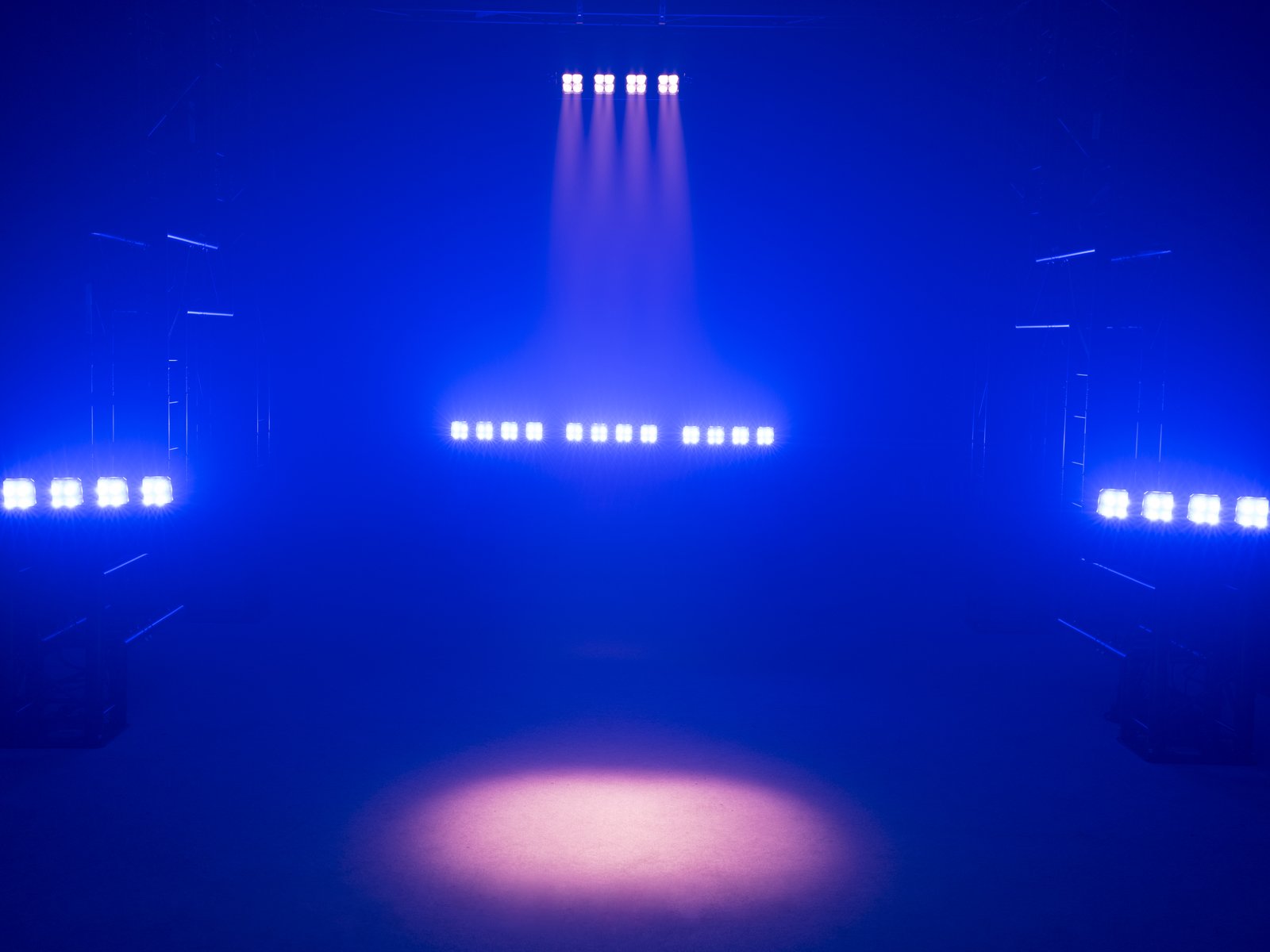

You can achieve a special effect by having the zoom of the four lenses become narrower and wider at different times: Especially in combination with fog, waves and patterns of light are created. When used in this way, the Zoom4Bar is also an effective show effect.
Color mixture

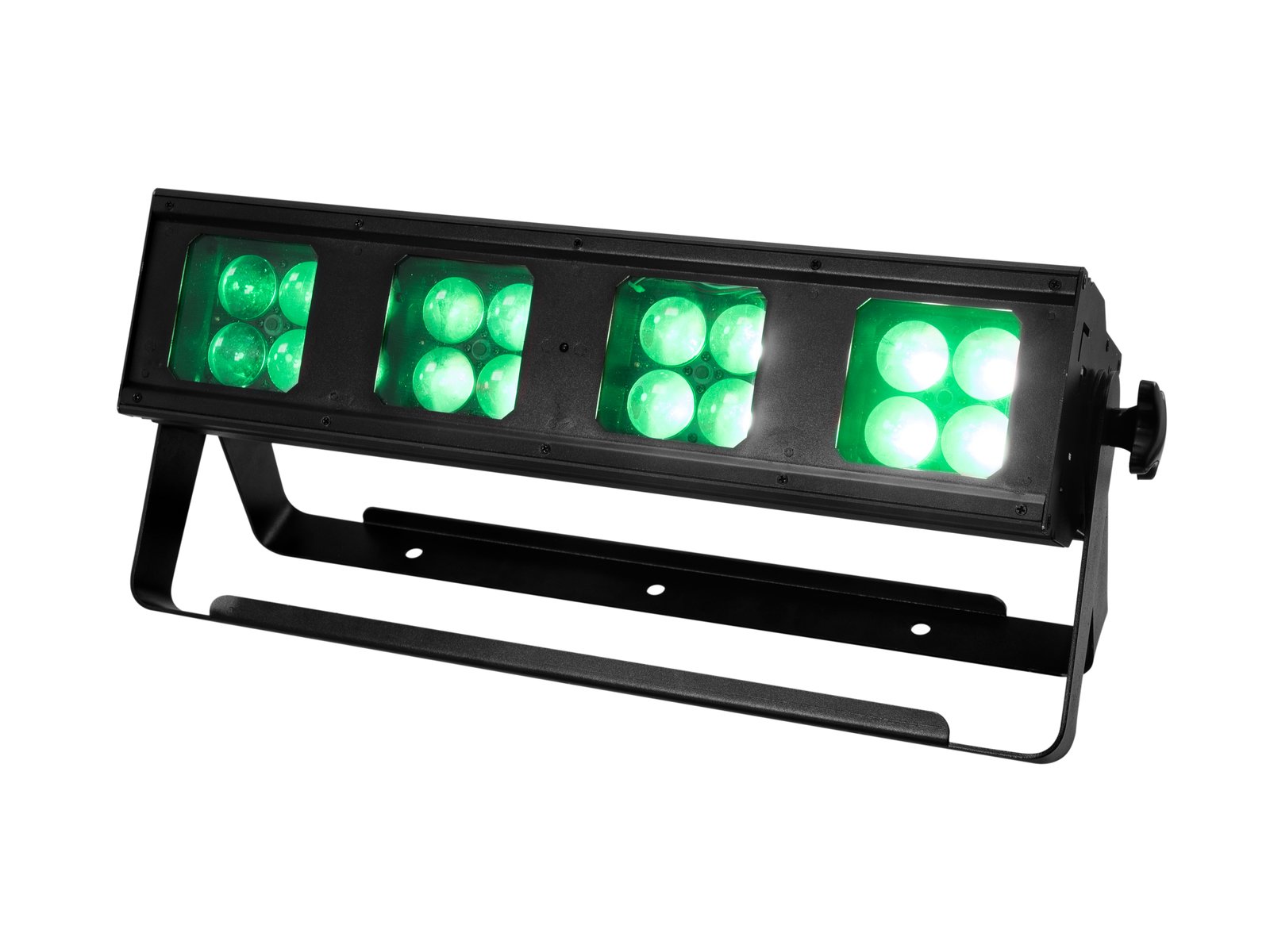

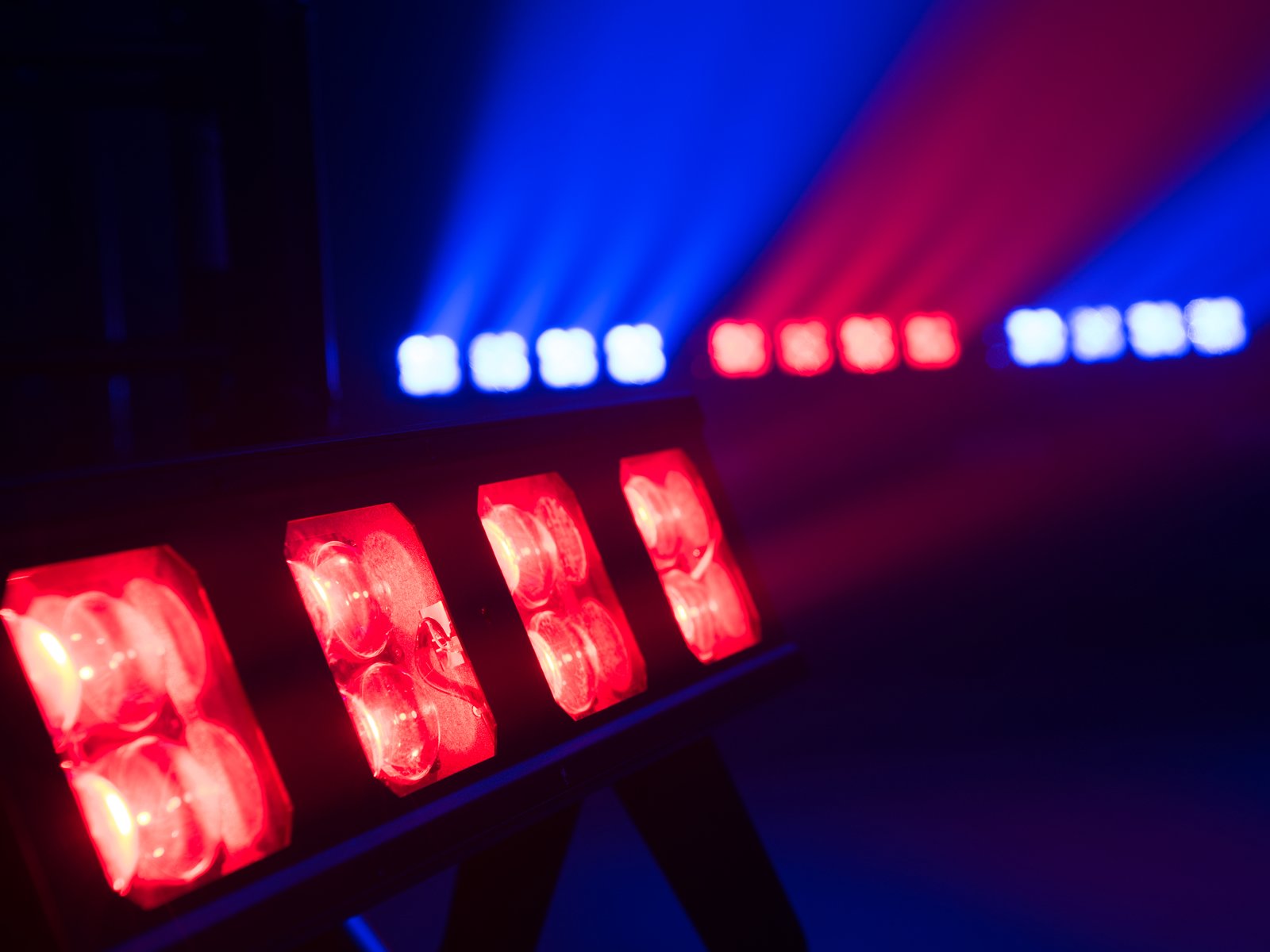

You can adjust the color for each of the 4 lenses individually. This allows you to create either absolutely congruent color mixes or multicolor effects with the 4 lenses.
Features
LED zoom effect bar with RGBW color mixing, incl. IR remote control
- 4 segments for dynamic running lights
- 16 powerful LEDs 10 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
4 segments controlled separately - Zoom motor driven
- Strobe effect
- Integrated show programs
- Direct color selection for 17 preset colors
- The device is cooled by cooling fan
- Control via stand-alone; DMX; IR remote control; sound to light via microphone; QuickDMX via 5-pin XLR (M) mounting version (optional); master/slave function
- Flicker-free
- With a beam angle of 5° – 80°
- With double bracket
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Preprogrammed in Light´J; LED PC-Control 512; Light Captain
- For application areas such as: Clubs/dancing school; stage; mobile djs / entertainer
- Application possibility: Standing; suspended; on stand
Package contents
- 1 x remote control
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 140 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Lamp type: | LED lamp |
| LED type: | 16 x 10 W SMD 5050 4in1 QCL RGBW (homogenous color mix) |
| Flash rate: | 0 – 20 Hz |
| Equipment: | Zoom motor driven |
| DMX channels: | 5; 7; 9; 20; 26 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; IR remote control; sound to light via microphone; QuickDMX via 5-pin XLR (M) mounting version (optional); master/slave function |
| Preprogrammed in: | Light´J; LED PC-Control 512; Light Captain |
| Projection: | Flicker-free |
| Beam angle: | 5° – 80° |
| Beam angle (1/2 peak): | 5 – 75° |
| Beam angle (1/10 peak): | 10 – 80° |
| Housing color: | Black |
| Attachment system: | Double bracket |
| Dimensions: | Width: 57,5 cm Depth: 19,5 cm Height: 23 cm |
| Weight: | 8,95 kg |
| Noise classification: | Class 2 (slight noise) |
| Photobiological safety: | Risk Group 0 |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397643619 | 10,25 kg | 65cm x 20cm x 36cm |
