Description
Futurelight DMH 160 MK2
A proven concept, even better now
As the successor of the proven moving head DMH-160, Futurelight now offers the DMH-160 MK2 with an even brighter 200 watt LED.
Large equipment
The proven high-quality construction and the popular equipment have remained the same: Two gobo wheels, one of them with rotating gobos, a color wheel, two rotating prisms, a continuously adjustable iris and a motorized focus are used. The rotating gobos can be indicated so that logos or lettering are always in the right position. And the gobos can also be replaced without any problems: via a slot-in system, the entire gobo holder can simply be pulled out with a firm grip, the gobo can be conveniently replaced on a table and easily plugged back into the spotlight.
Ideal for shows, concerts and theater
These features and its high light output make it a popular spotlight for shows and concerts. But it is also very precise, the pulse width modulation can be adjusted variably and it is also very quiet. Therefore, it is also used frequently in TV studios and theaters.
Control via DMX
Compared to the previous version, the DMX modes have been extended. The newly added Extented mode now also offers high-resolution 16-bit control for very smooth dimmer runs. The fixture is already prepared for wireless DMX operation, the installation of a corresponding optional receiver, based on Wireless Solution from Sweden, can quickly be done.
Features
PRO moving head with 200 W COB LED and extensive features
- Effect wheel with rotating 3-facet prism and 8-facet prism and frost filter
- The scenes can be modified via the Control Board or via an external controller and loaded into the memory
- Number of scenes can be changed individually
- 1 powerful LED 200 W COB (chip-on-board) cold white (CW)
- Positioning within 630° PAN, 270° TILT

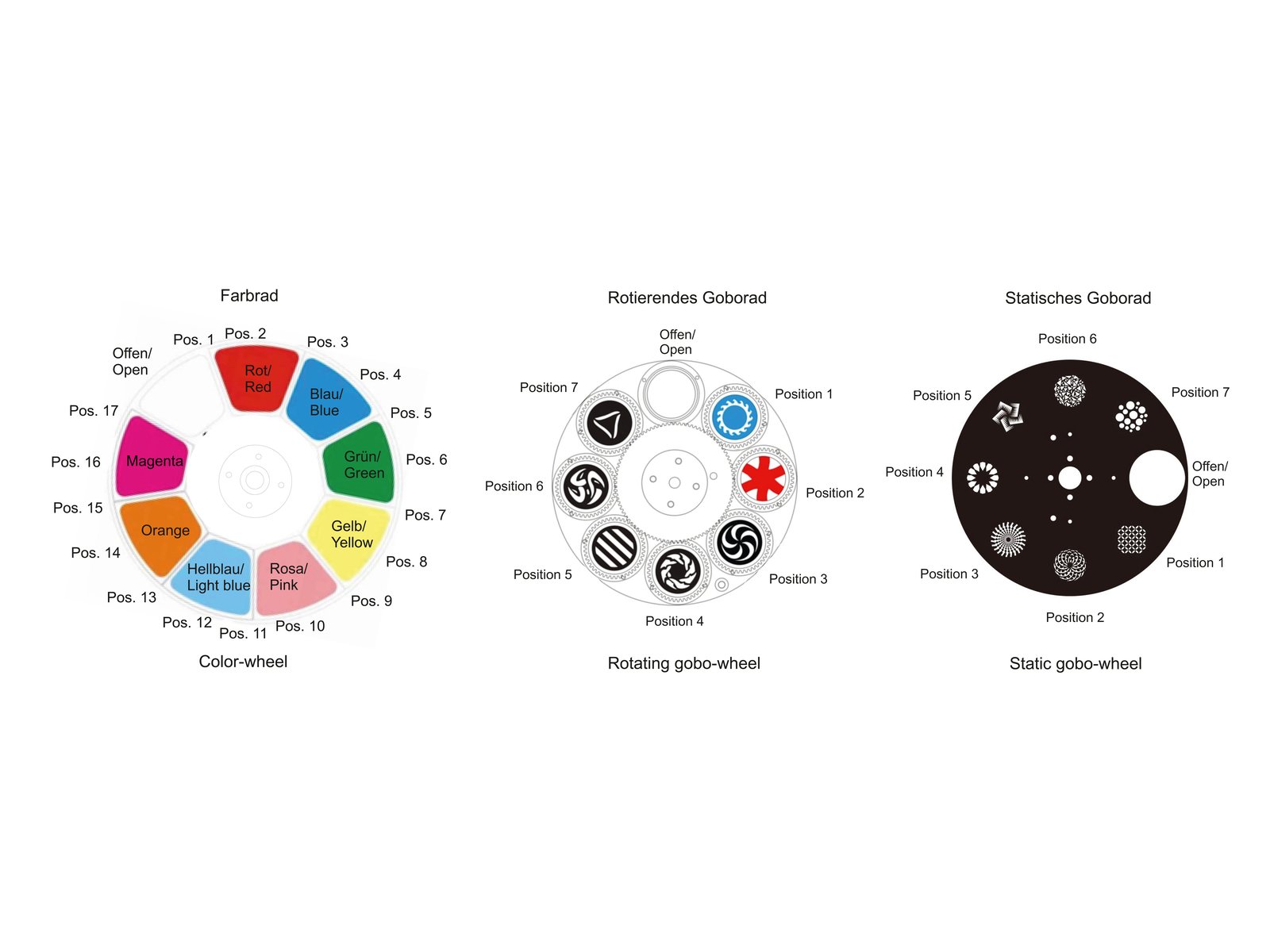

- Iris stepless; gobo wheel with rotating gobos; gobo wheel with static gobos; prism 3-fold; prism 8-fold; focus motor-driven; frost filter; color wheel
- Gobo effect; beam effect; strobe effect
- Color wheel with 8 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 7 gobos and open
- Shake effect
- Gobo wheel with rotating gobos, 7 gobos and open
gobos changeable - Shake effect
- Gobos changeable
- Slot-in gobo system for easy gobo replacement
- The device is cooled by temperature-controlled fan
- Control via stand-alone; RDM; DMX; sound to light via microphone
- Flicker-free
- With a beam angle of 11°
- LCD display,
with battery buffering for easy controlling upgradeable - Built with NEUTRIK connector
- Exact 16 bit resolution at Dimmer
- Pulse-width modulation variable
- Preprogrammed in LED PC-Control 512; Light Captain
- With omega bracket
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; wedding/gala/events; stage; rental
- Application possibility: Standing; suspended
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket, 1 x XLR cable, 1 x declaration of conformity
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 285 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x PowerCON (gray), mounting version |
| Fuse: | 5 x 20 mm, T 3,15 A |
| Lamp type: | LED lamp |
| LED type: | 1 x 200 W COB (chip-on-board) cold white (CW) |
| Max. TILT movement: | 270° |
| Max. PAN movement: | 630° |
| Equipment: | Iris stepless; gobo wheel with rotating gobos; gobo wheel with static gobos; prism 3-fold; prism 8-fold; focus motor-driven; frost filter; color wheel |
| Color generation: | Color wheel with 8 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions |
| Gobos: | Gobo wheel with static gobos, 7 gobos and open Shake effect Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 27mm Image diameter 22mm Gobos changeable Shake effect Gobos changeable Slot-in gobo system for easy gobo replacement |
| DMX channels: | 14; 16; 23; 25 |
| DMX input: | 1 x 5-pin XLR (M) mounting version 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 5-pin XLR (F) mounting version 1 x 3-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | Stand-alone; RDM; DMX; sound to light via microphone |
| Preprogrammed in: | LED PC-Control 512; Light Captain |
| Projection: | Flicker-free |
| Beam angle: | 11° |
| Beam angle (1/2 peak): | 11° |
| Illuminance in Lux (lx): | Cold white (CW) 3m: 27074 lx, 6m: 6796 lx |
| Housing color: | Black |
| Attachment system: | 2x omega bracket |
| Display type: | LCD display battery buffering upgradeable |
| Use of brands: | Built with NEUTRIK connector |
| Color: | Black |
| Dimensions: | Width: 34,3 cm Depth: 26,2 cm Height: 44,1 cm |
| Weight: | 15,85 kg |
| Noise classification: | Class 2 (slight noise) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397659641 | 17,90 kg | 51cm x 43cm x 36cm |
