Description
NEW EDITION:

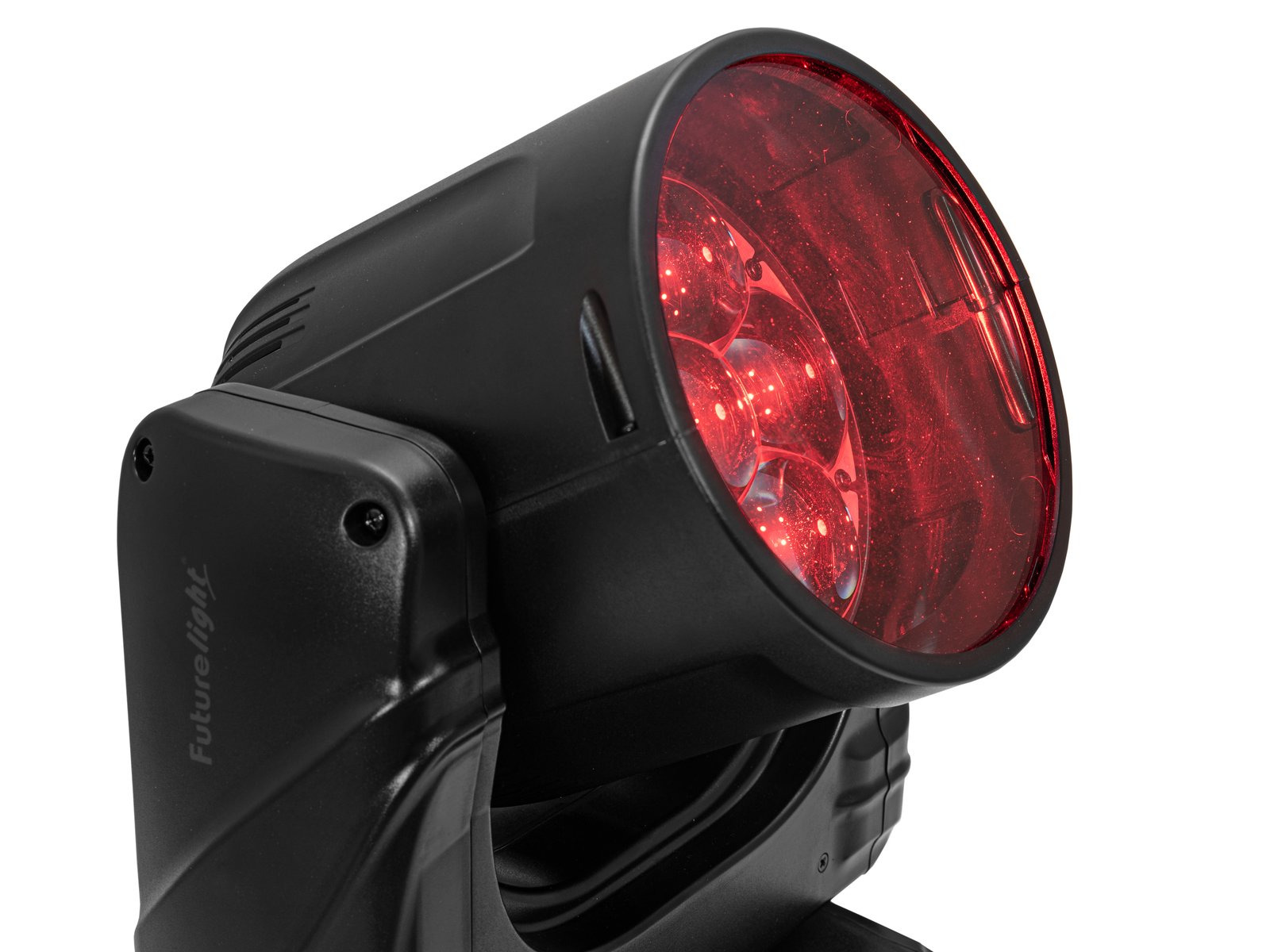

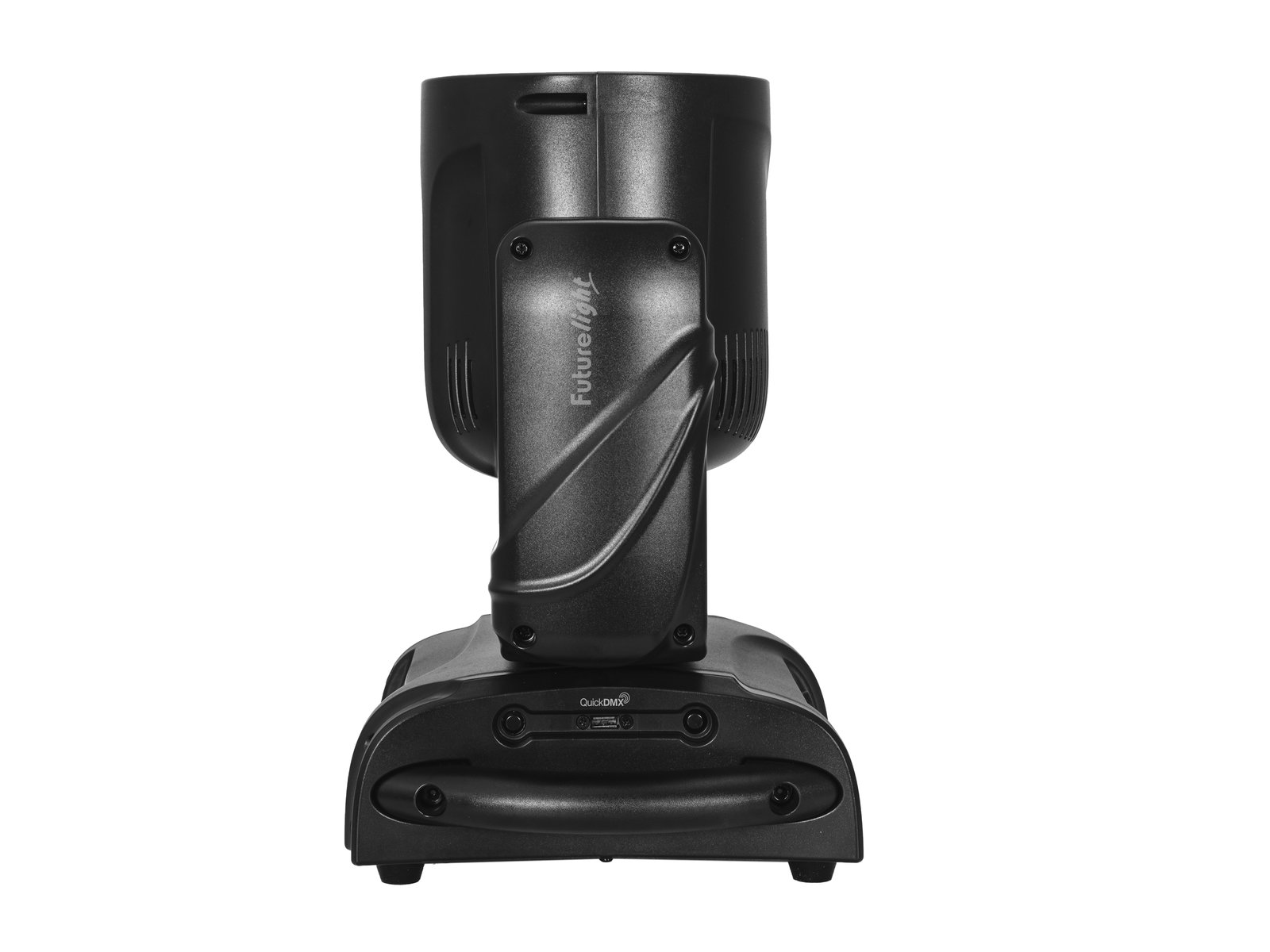

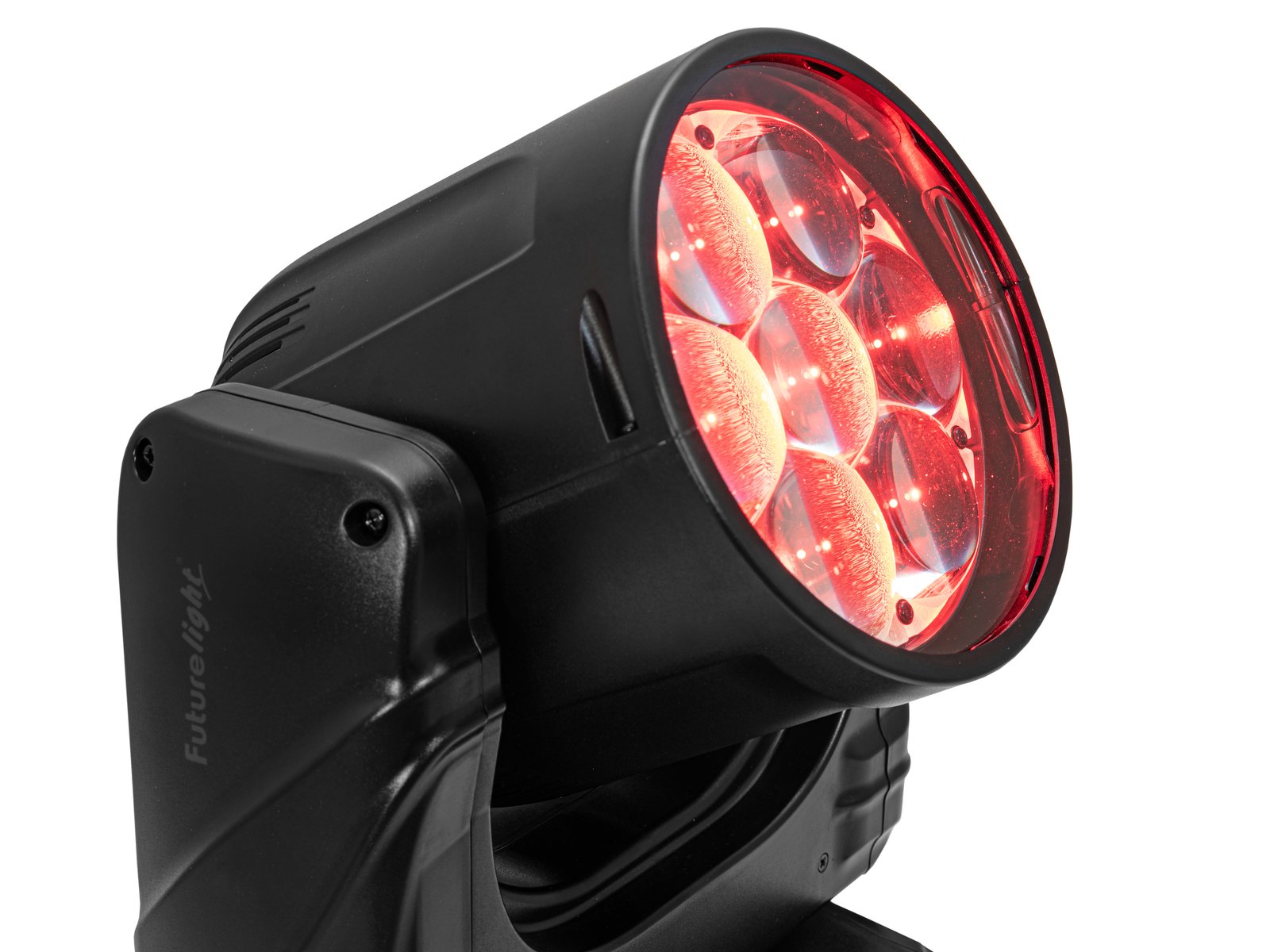

FUTURELIGHT EYE 740 MK2
FUTURELIGHT now offers the popular EYE-740 as MK2 version in a new design. Even though the weight of the spotlight has been significantly reduced – it now weighs only 7.5 kg –, the brightness is even higher than in the original version.
Configuration

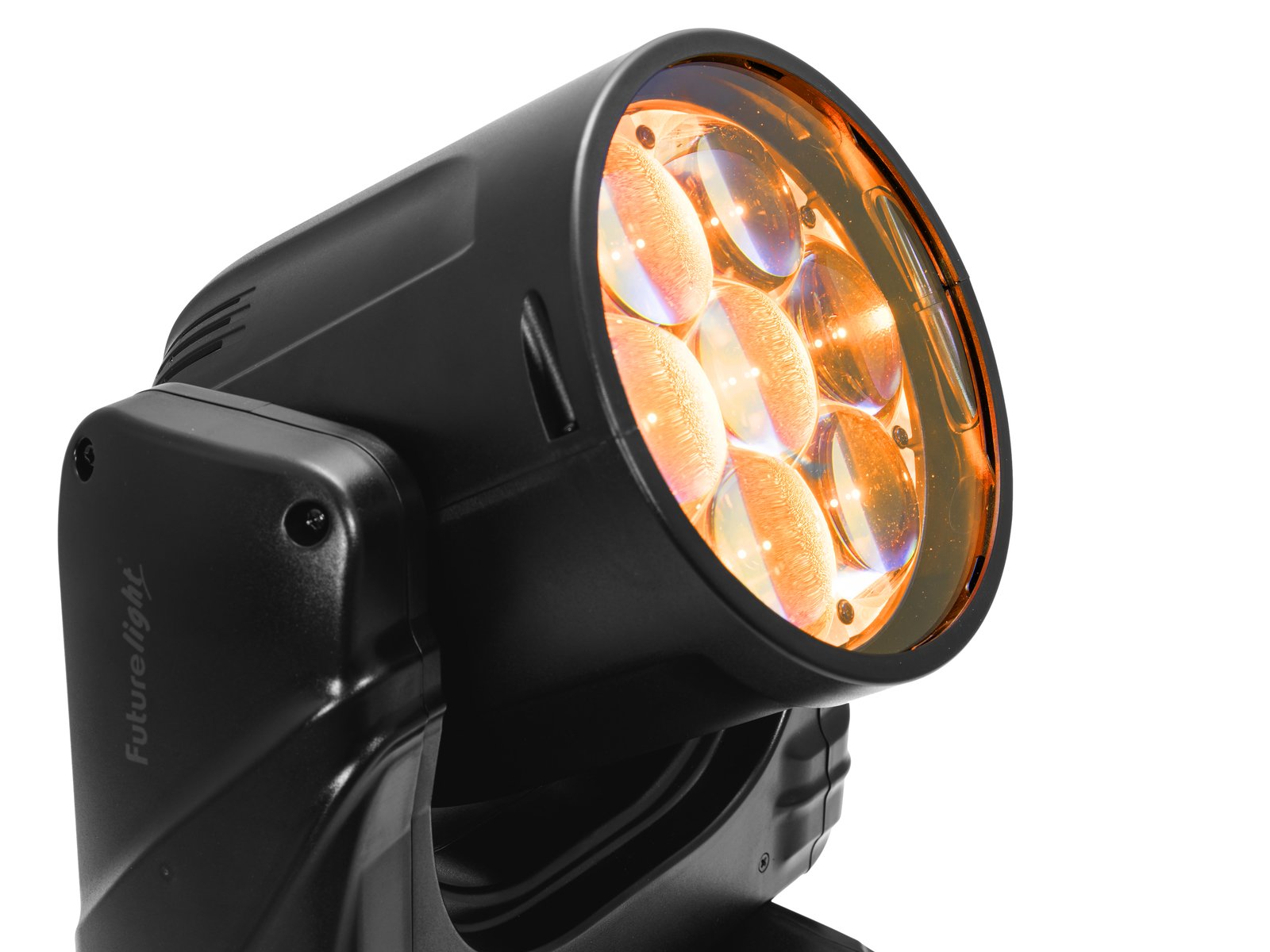

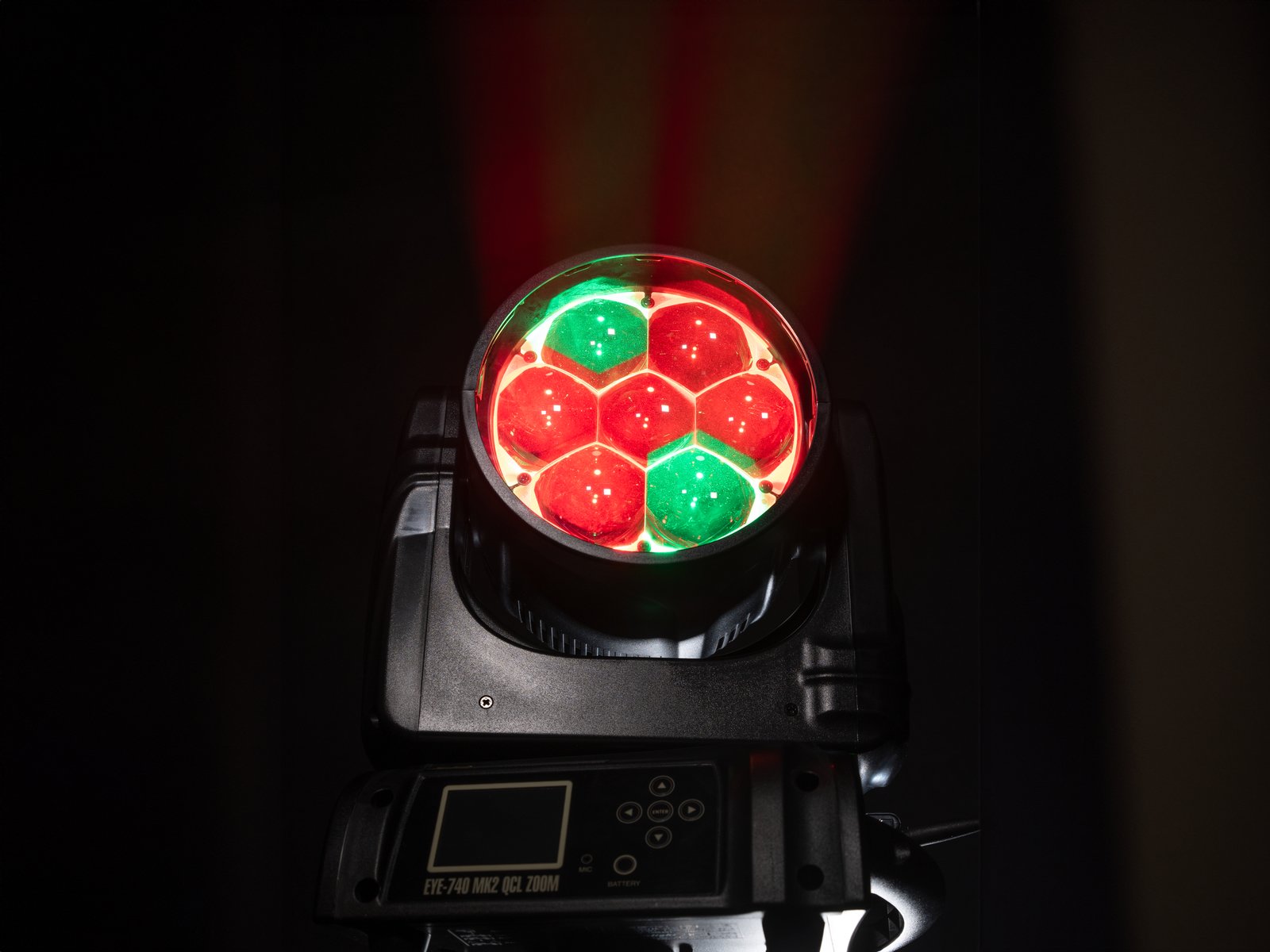

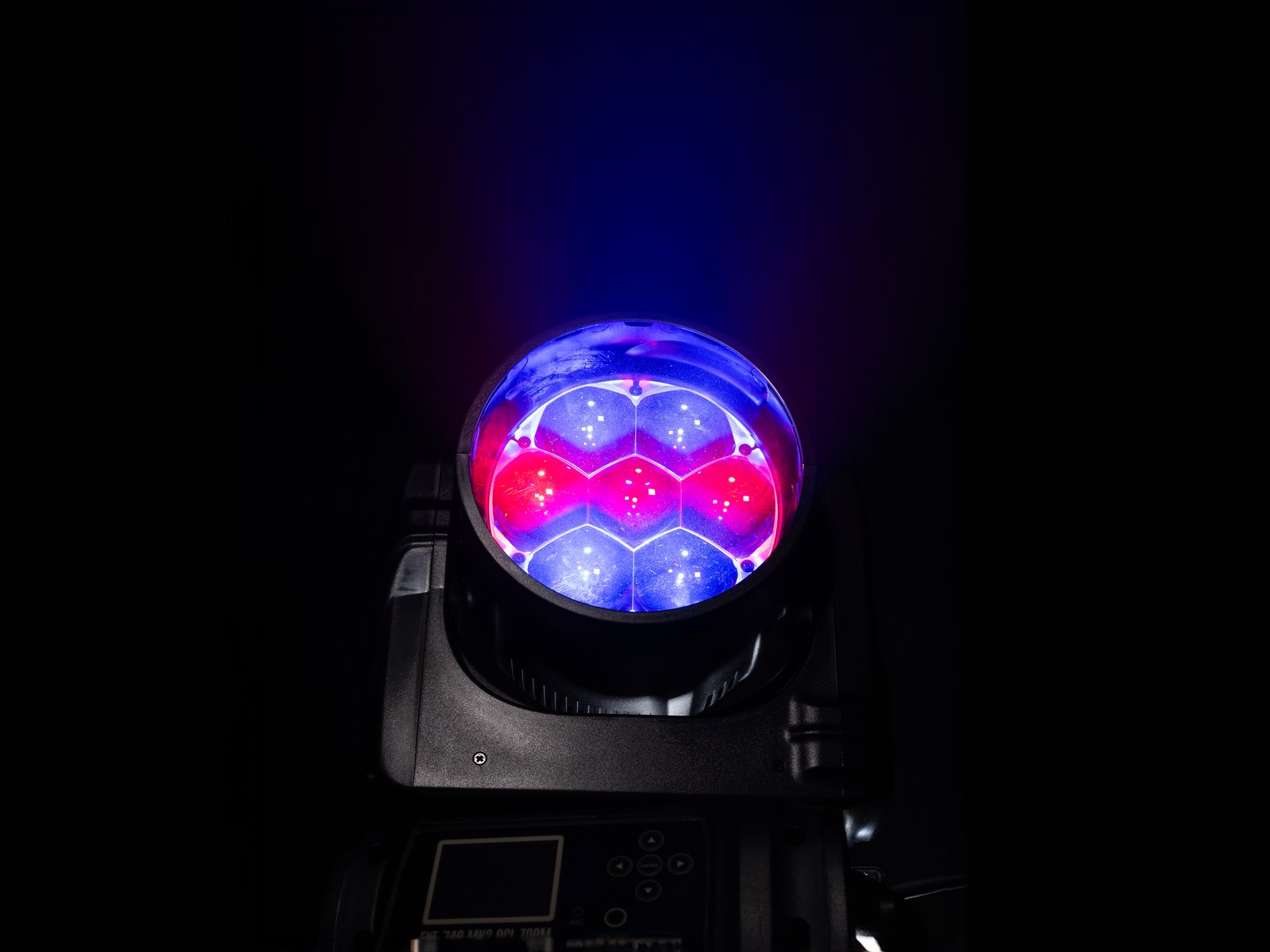

Seven extremely bright 40 watt Osram LEDs with RGBW color mixing are used as light sources. The zoom range is extremely large and extends from 1° to 48°. This makes the moving head ideal for use both as a beam and as a surface light. The Eye 740 MK2 is suitable for any type of stage: Its whisper-quiet operation makes it a popular spotlight even on theater stages and other noise-sensitive locations. Its precision, speed, excellent color mixing and very high brightness also make it an absolute all-rounder.
Control
Even demanding users will be happy with the control. Dimmer and color brightness can be controlled in high-resolution 16-bit mode. The individual LEDs can be controlled individually or in two segments if desired, but pixel effects can also be created via macros and foreground and background colors can be set without pixel control. And, of course, the LED frequency as well as different dimmer modes can be set. A special dim-to-warm function even simulates the dimming of halogen lamps.
Connections

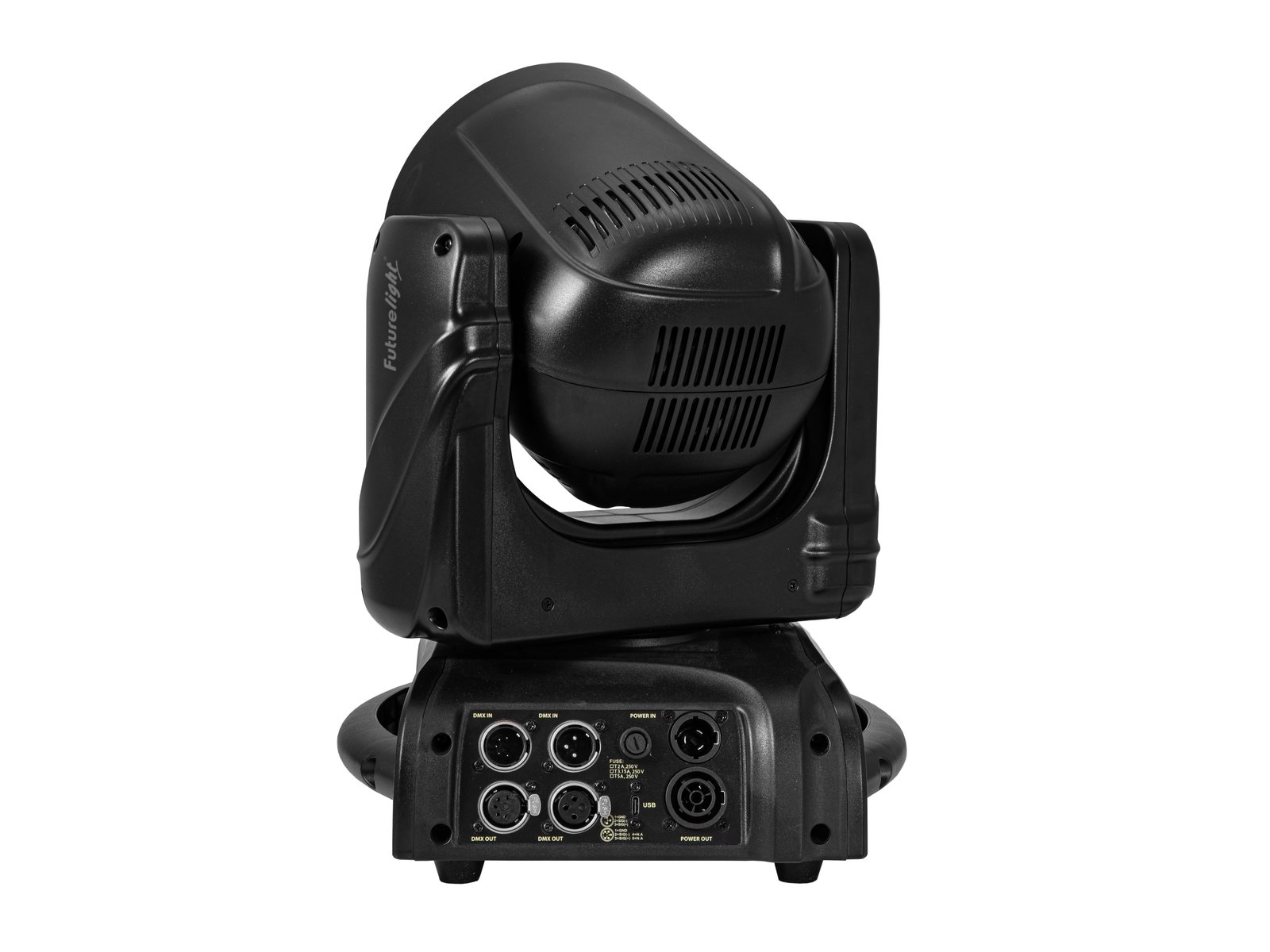

For the connections, FUTURELIGHT also relies on Seetronic T-Con for this model, which are becoming increasingly popular in the professional sector. The DMX connections are both 3-pin and 5-pin. In addition, the Eye 740 MK2 has a special USB socket for wireless DMX operation, for this there are USB DMX receivers either for the EUROLITE QuickDMX system or FUTURELIGHT’s WDR system, which is based on Lumenradio CRMX, the new standard in professional event technology. It is also possible to retrofi t an optionally available built-in board for wireless DMX(WDR) reception.
Features
PRO Washlight with 40 W Osram Ostar RGBW LEDs, large zoom range and pixel control

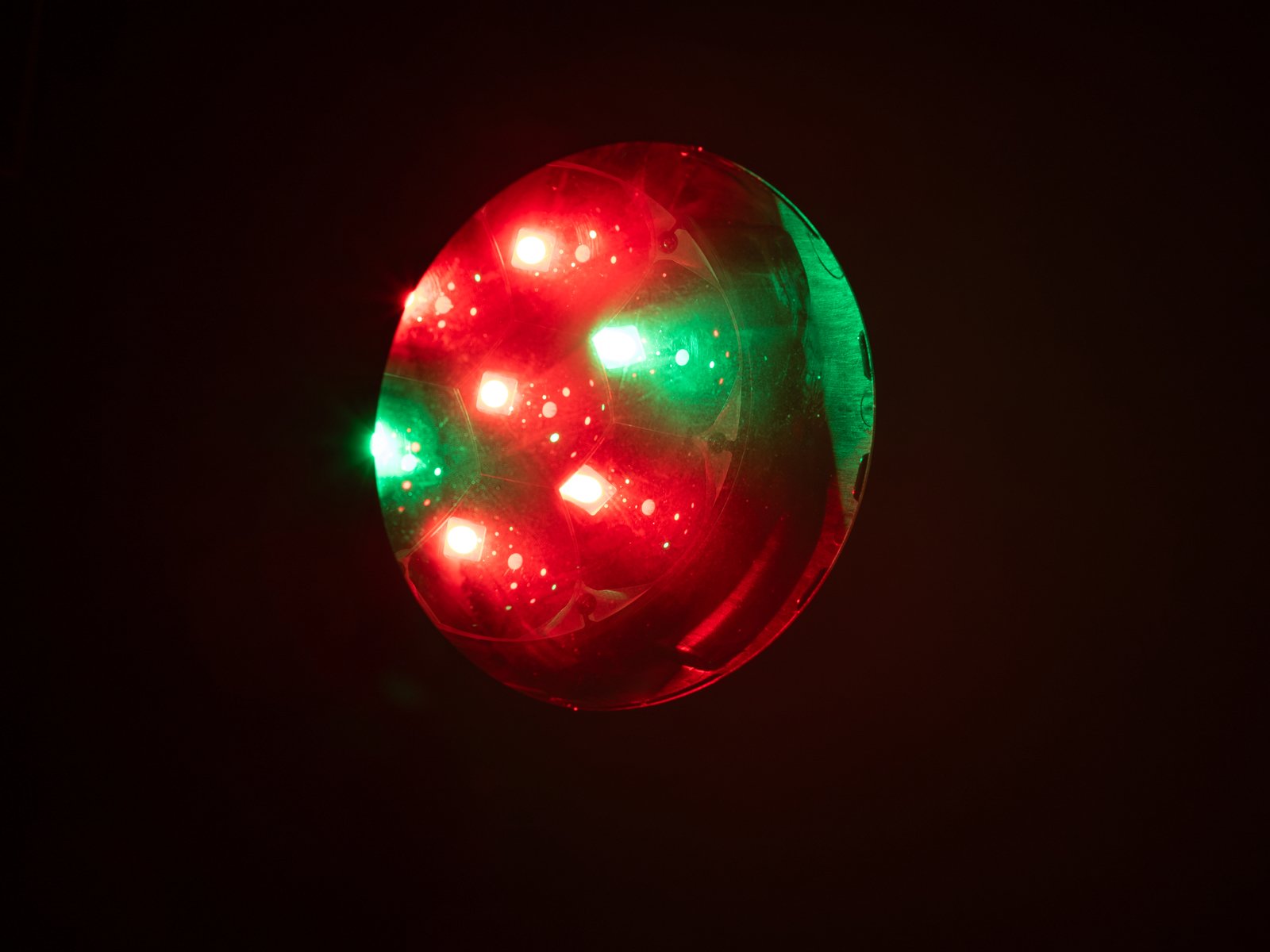

- 7 powerful LEDs 40 W 4in1 QCL RGBW (homogenous color mix)
LEDs controlled separately - Compact lightweight
- Variable color temperature 2800 K – 10000 K
- Crossfade channel from any color to white
- Number of scenes can be changed individually
- Positioning within 540° PAN, 210° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Exact 16 bit resolution at Dimmer, color, zoom
- The device is cooled by temperature-controlled fan
- Control via stand-alone; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); CRMX by LumenRadio upgradeable; RDM; sound to light via microphone
- Flicker-free
- With a beam angle of 1° – 48°
- Multicolor LCD display,
with battery buffering for easy controlling upgradeable - Zoom motor driven
- Patterns animated; foreground color adjustable; background color adjustable; dimmer curves with adjustable response; pulse-width modulation variable; pulse effect adjustable; white balance; scenes user-definable; CTO correction filter virtual; Dim to warm; colors preset; Dimmer speed (step response) adjustable
- Strobe effect
- Very quiet working noise
- OSRAM LED installed
- Preprogrammed in Light Captain

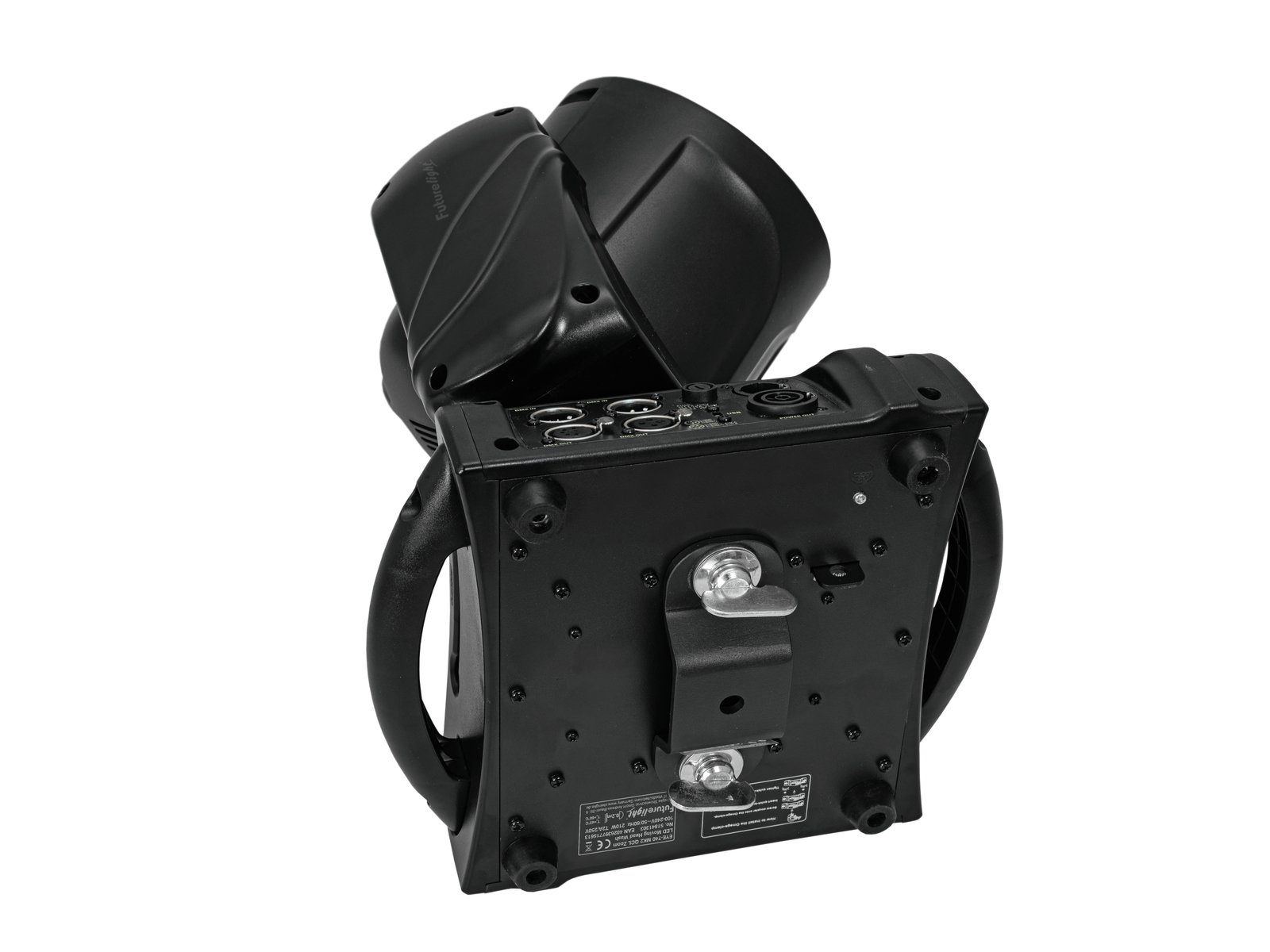

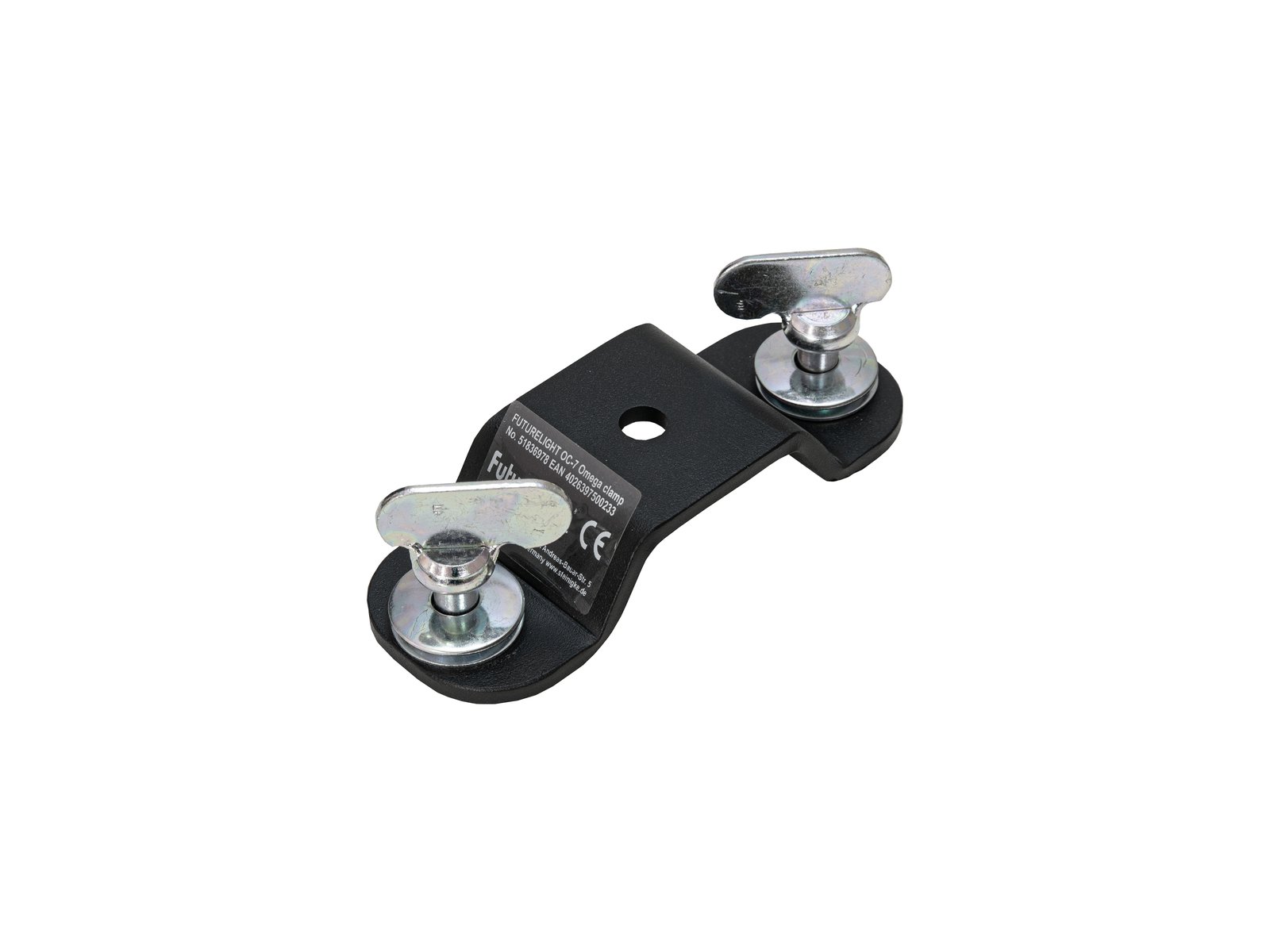

- With omega bracket
- Rubber feet
- Mains input and output for power linking up to 8 units
- For application areas such as: Wedding/gala/events; stage; theater; rental
- Application possibility: Standing; suspended
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x XLR cable
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 210 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Power output: | IP T-Con (F) mounting version |
| Device fuse: | 5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 7 x 40 W 4in1 QCL RGBW (homogenous color mix) |
| LED manufacturer: | OSRAM |
| Max. TILT movement: | 210° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: | 540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Flash rate: | 1 – 16 Hz |
| Equipment: | Zoom motor driven |
| DMX channels: | 18; 25; 37; 26; 33; 45; 46; 53; 65 |
| DMX input: | 3-pin XLR (M) mounting version 5-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version 5-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | Stand-alone; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); CRMX by LumenRadio upgradeable; RDM; sound to light via microphone |
| Preprogrammed in: | Light Captain |
| Projection: | Flicker-free |
| Beam angle: | 1° – 48° |
| Beam angle (1/2 peak): | 1 – 32° |
| Beam angle (1/10 peak): | 5 – 48° |
| Color temperature: | 2800K – 10000K adjustable |
| Illuminance in Lux (lx): | Narrow red (R) 3m: 6818 lx, 6m: 1758 lx Narrow green (G) 3m: 12807 lx, 6m: 3122 lx Narrow blue (B) 3m: 2513 lx, 6m: 21580 lx Narrow cold white (CW) 3m: 21580 lx, 6m: 5431 lx Narrow all 3m: 38576 lx, 6m: 9662 lx Wide red (R) 3m: 162 lx, 6m: 46 lx Wide green (G) 3m: 315 lx, 6m: 89 lx Wide blue (B) 3m: 85 lx, 6m: 25 lx Wide cold white (CW) 3m: 504 lx, 6m: 143 lx Wide all 3m: 915 lx, 6m: 259 lx |
| Housing color: | Black |
| Attachment system: | Omega bracket |
| Display type: | Multicolor LCD display battery buffering upgradeable |
| Transport aid: | Rubber feet |
| Dimensions: | Width: 28,6 cm Depth: 24,5 cm Height: 37,2 cm |
| Weight: | 8,10 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397715613 | 9,35 kg | 44cm x 33cm x 33cm |
