Description

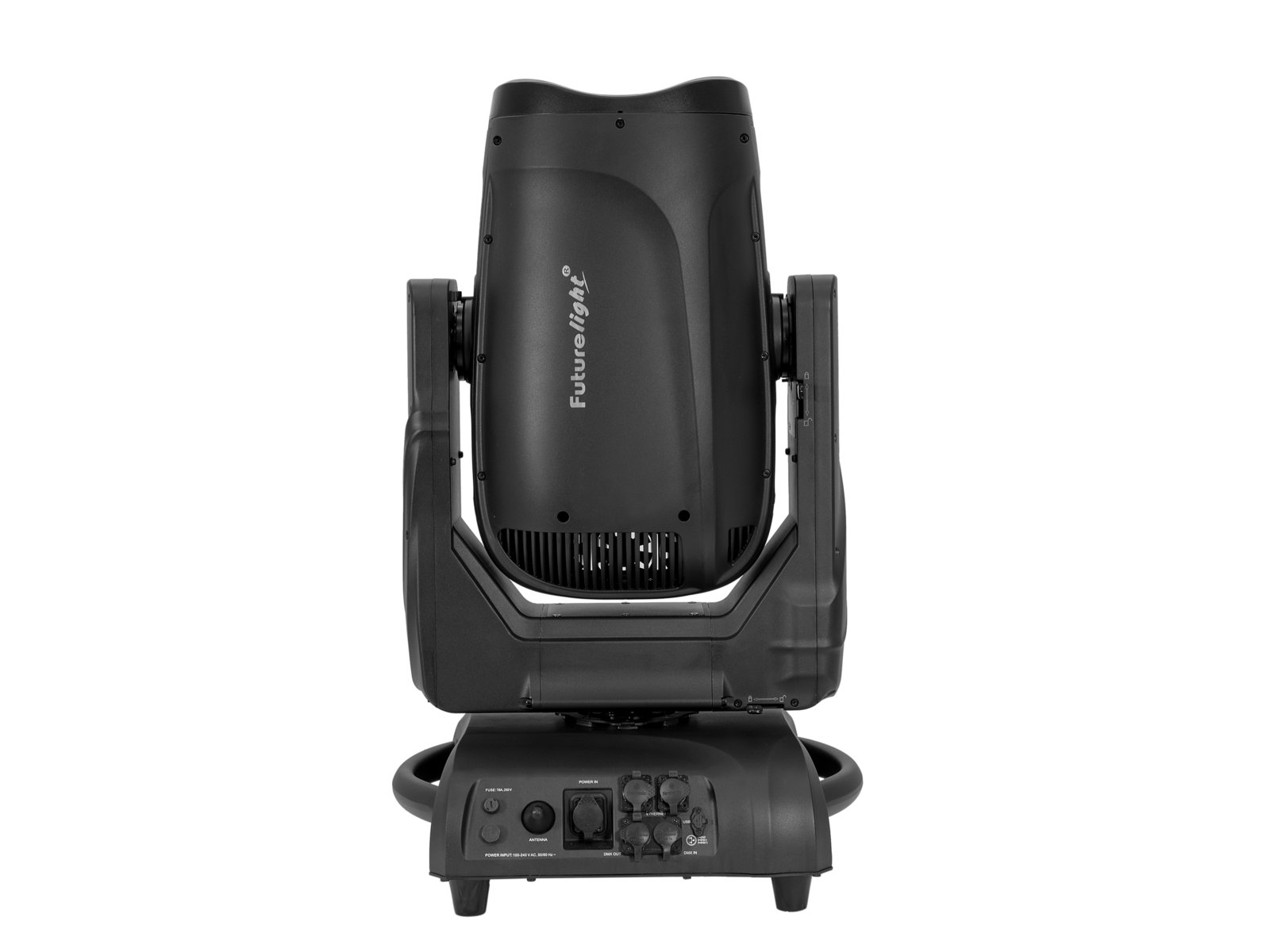

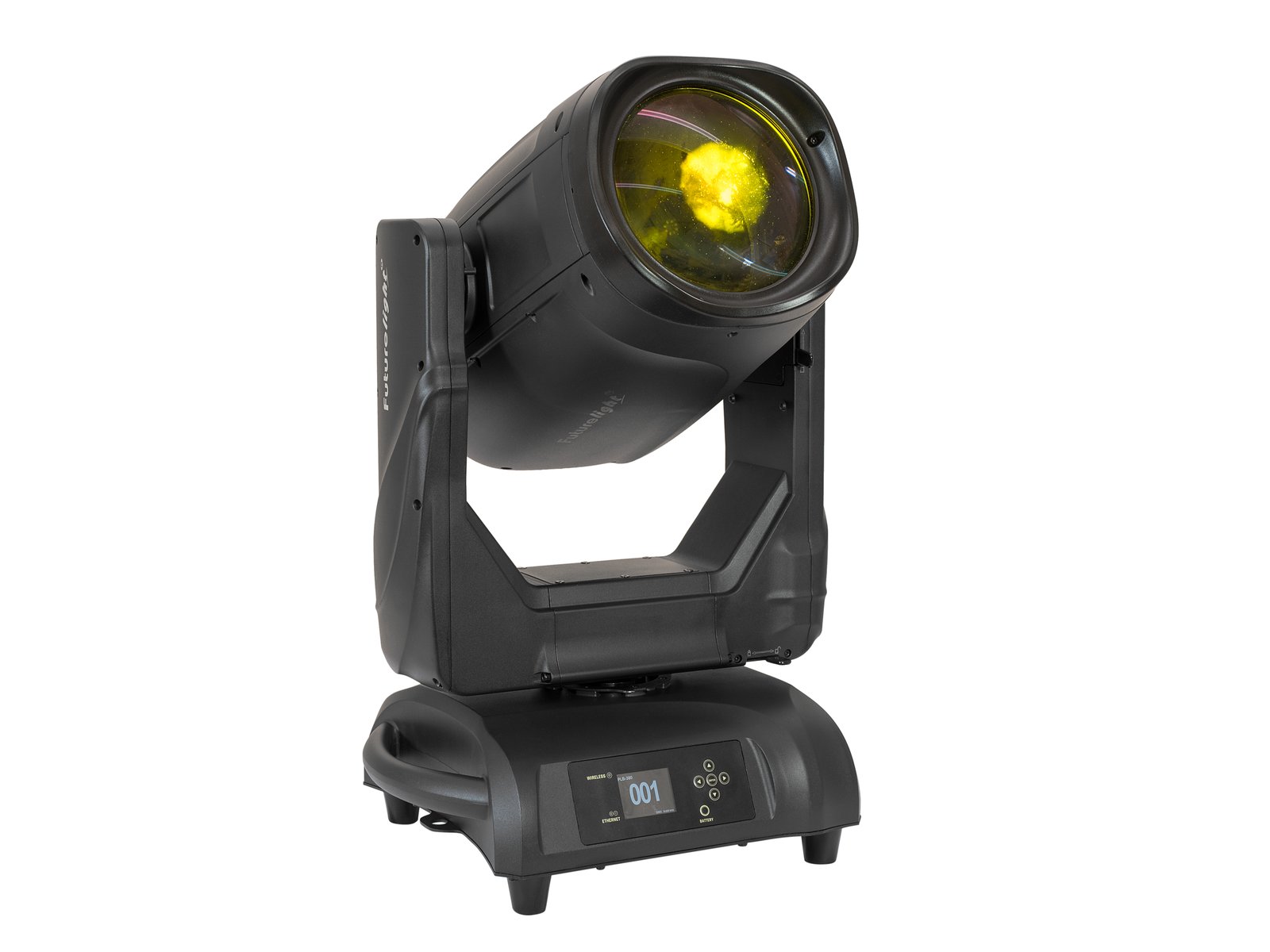

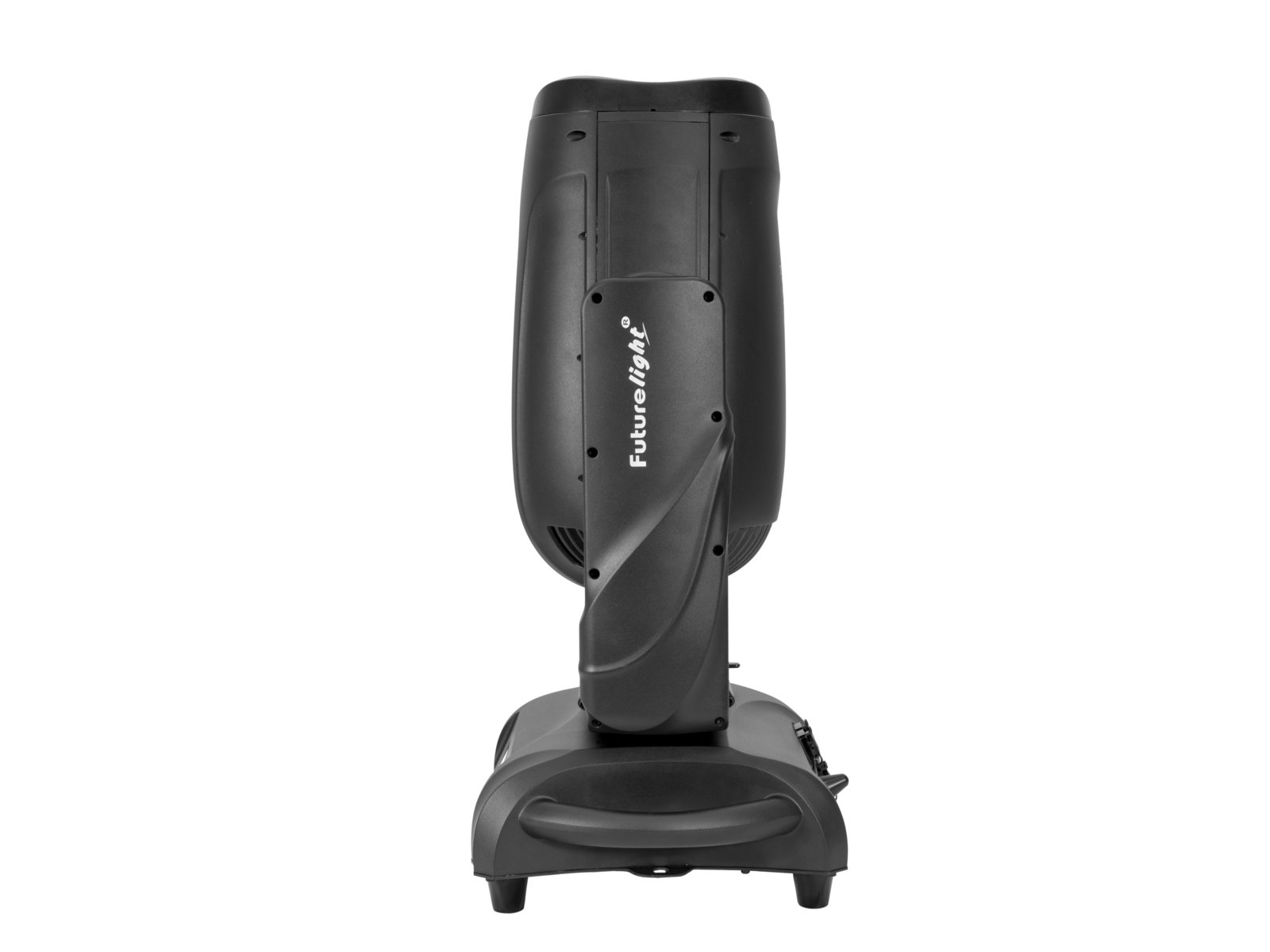

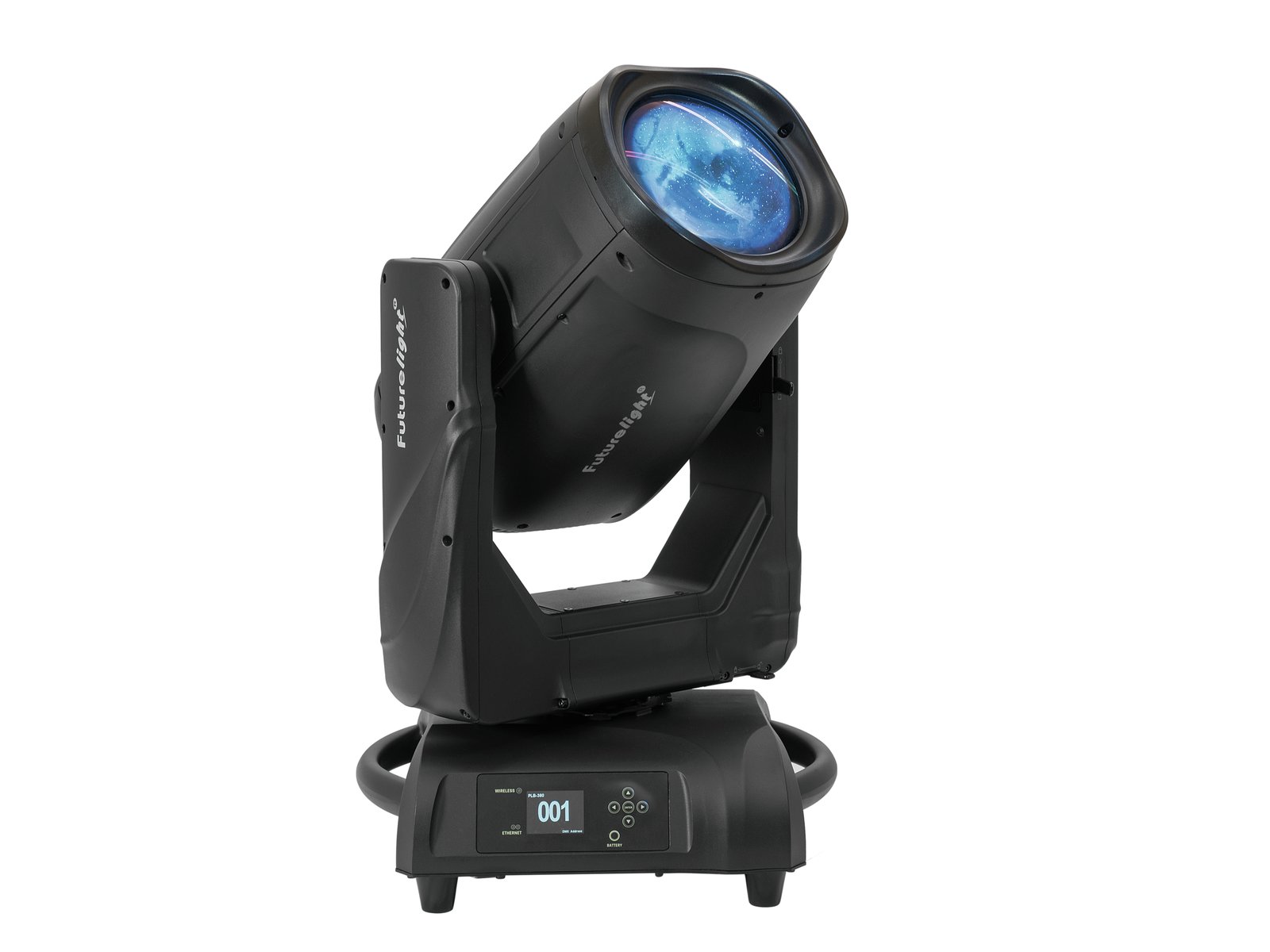

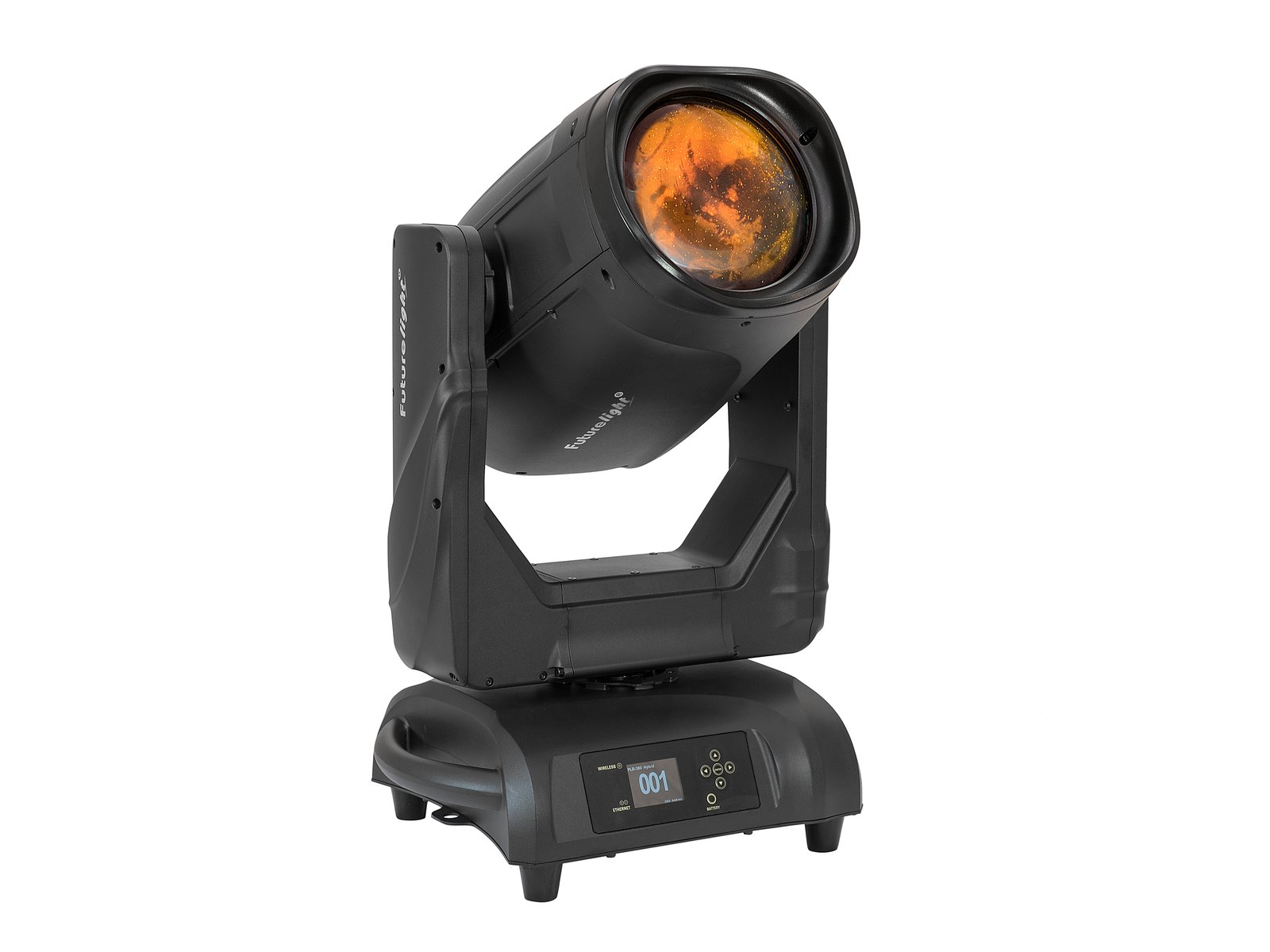

FUTURLIGHT IP PLB-420
Weatherproof Moving Head

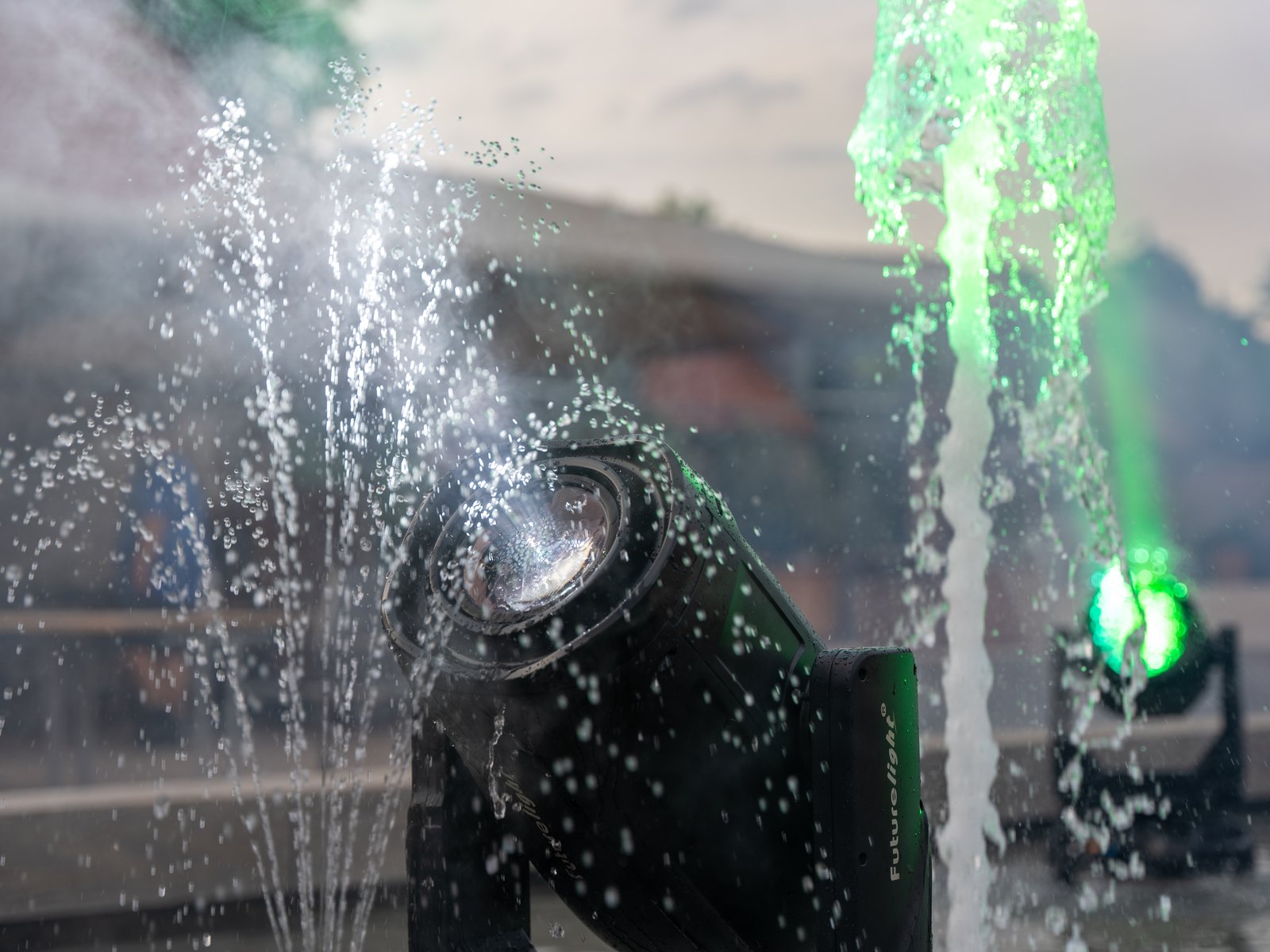

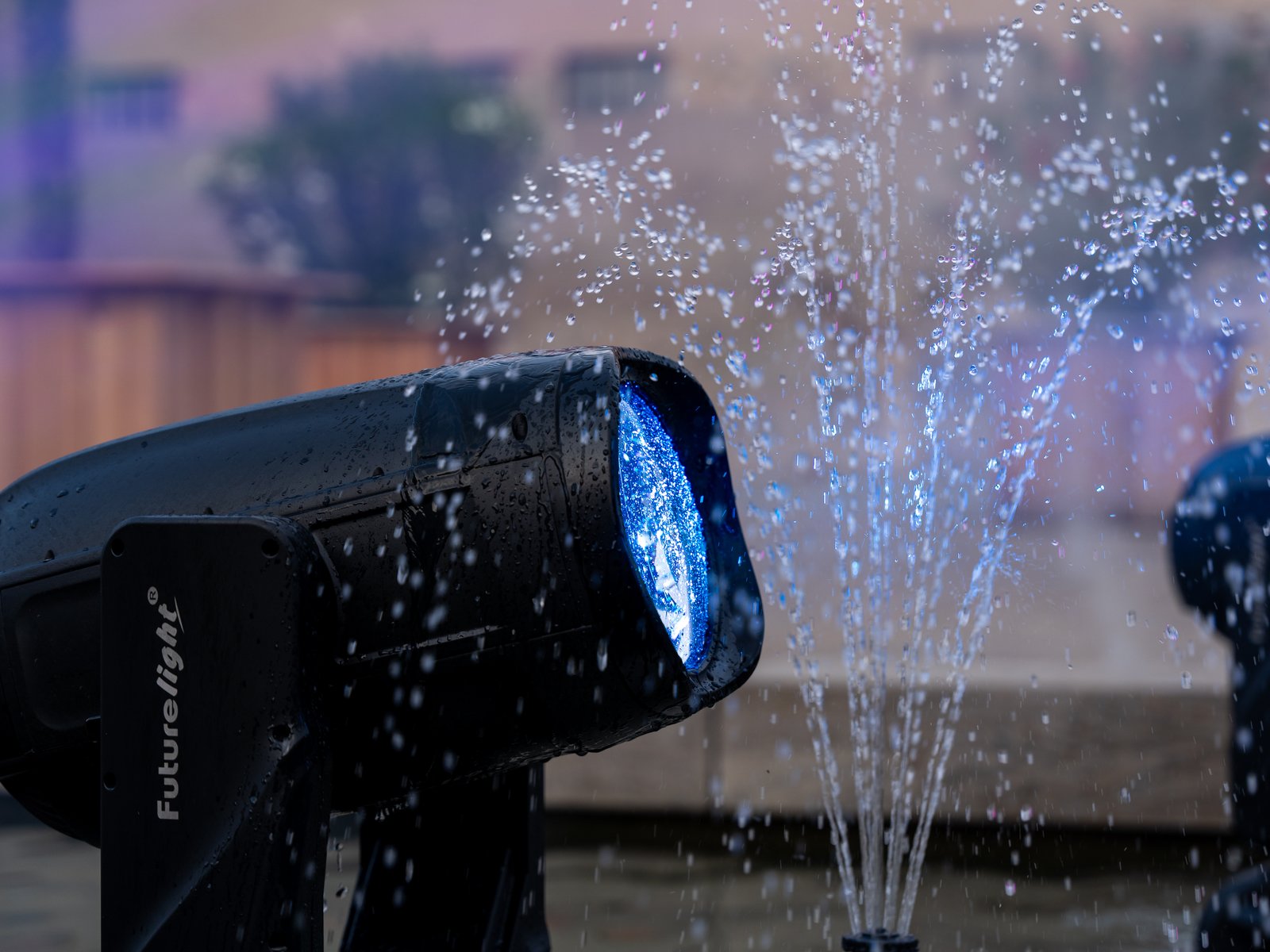

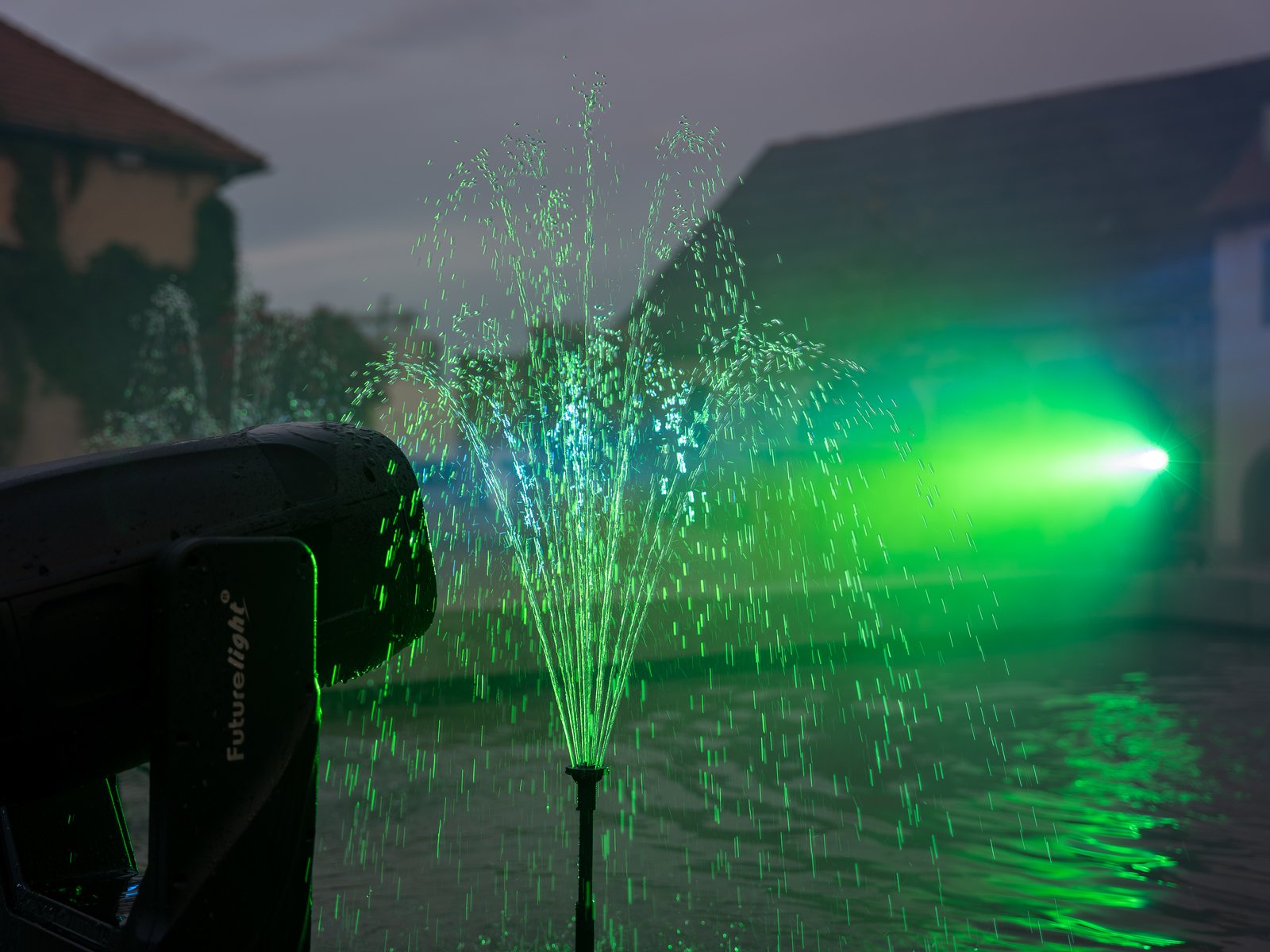

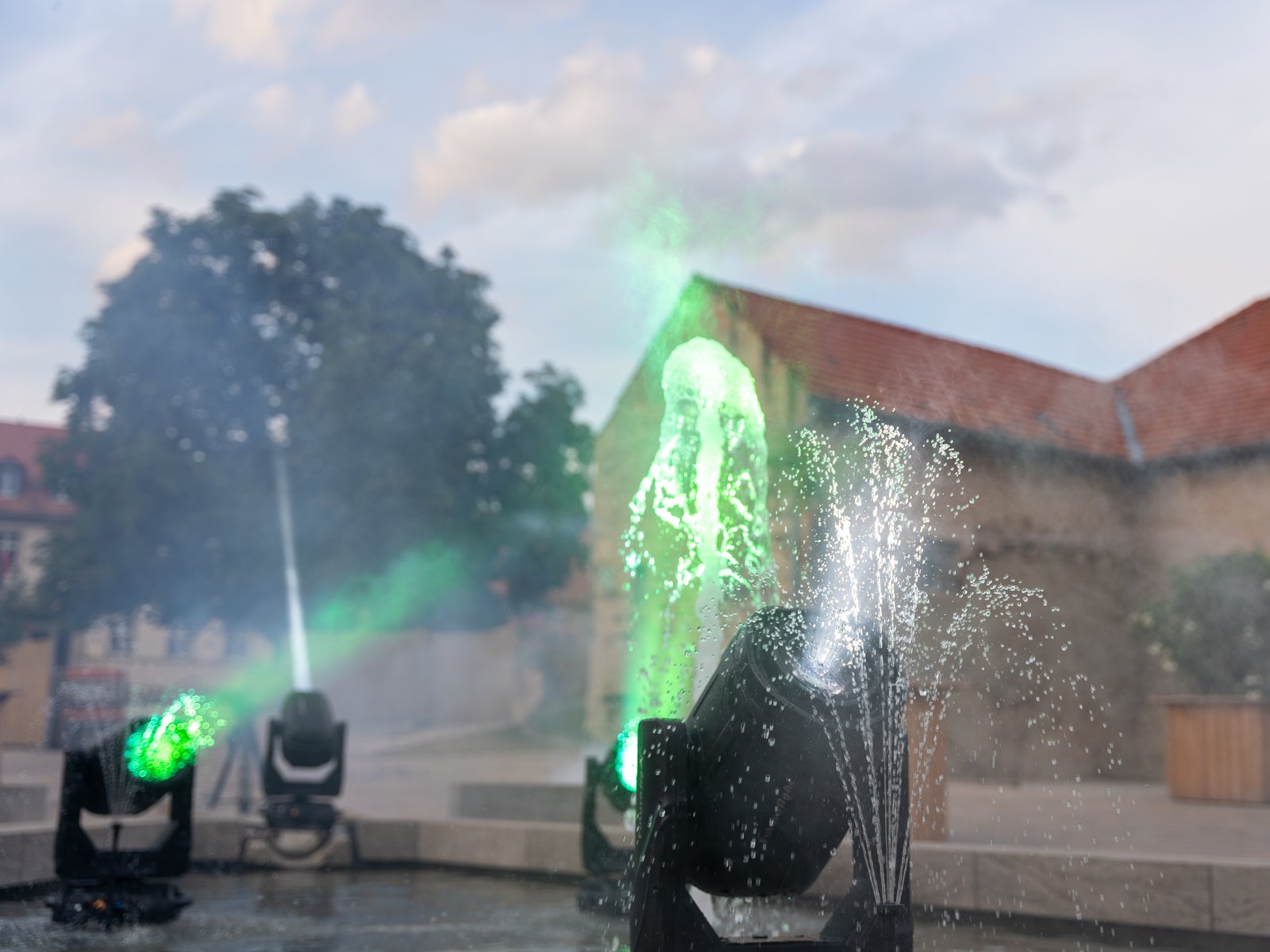

The PLB-420 is a weatherproof beam moving head that provides high light output and allows very narrow beams. Thanks to IP65 class protection, it can even stand in the rain without any problems.
Narrow and powerful beam

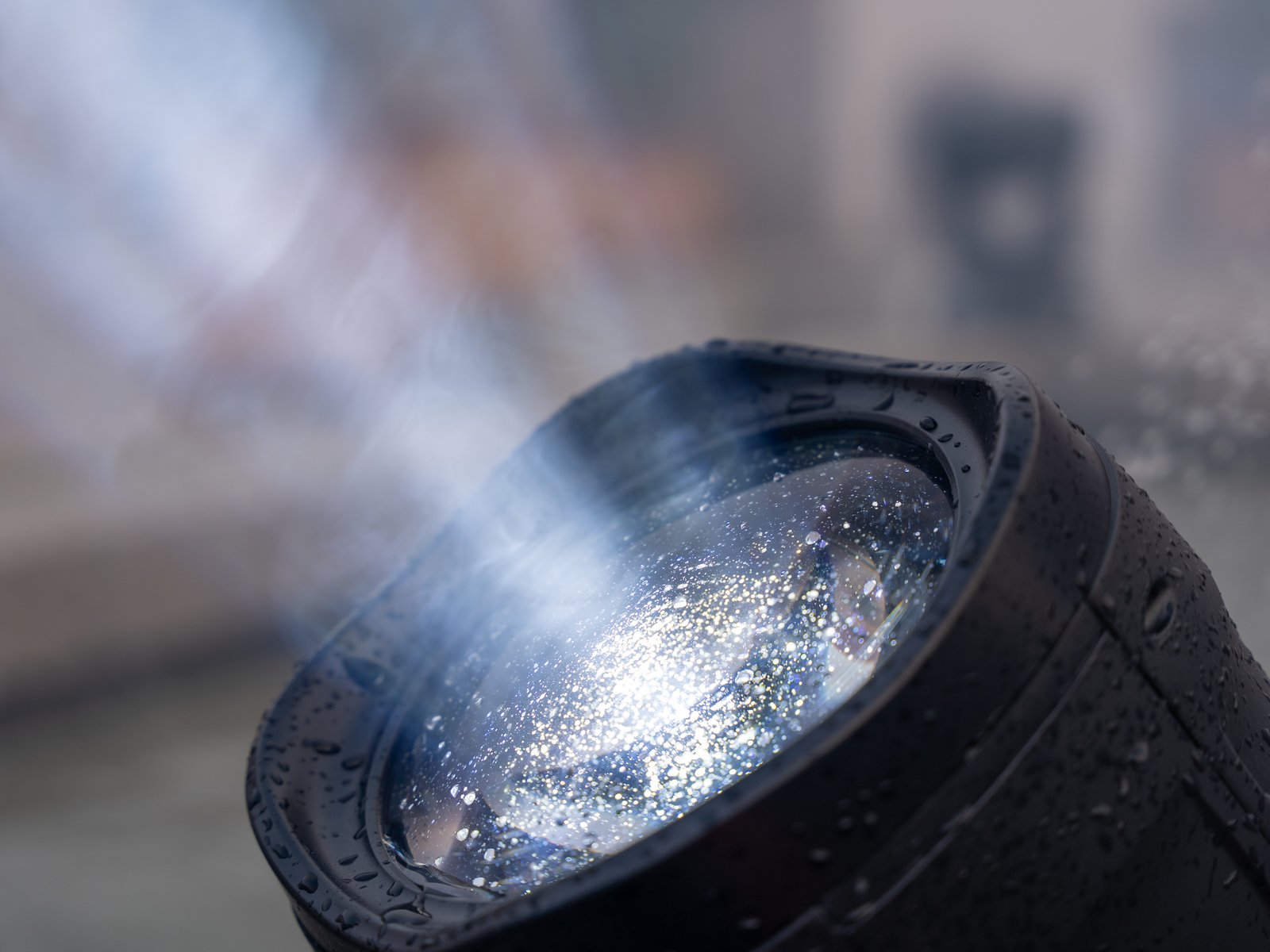

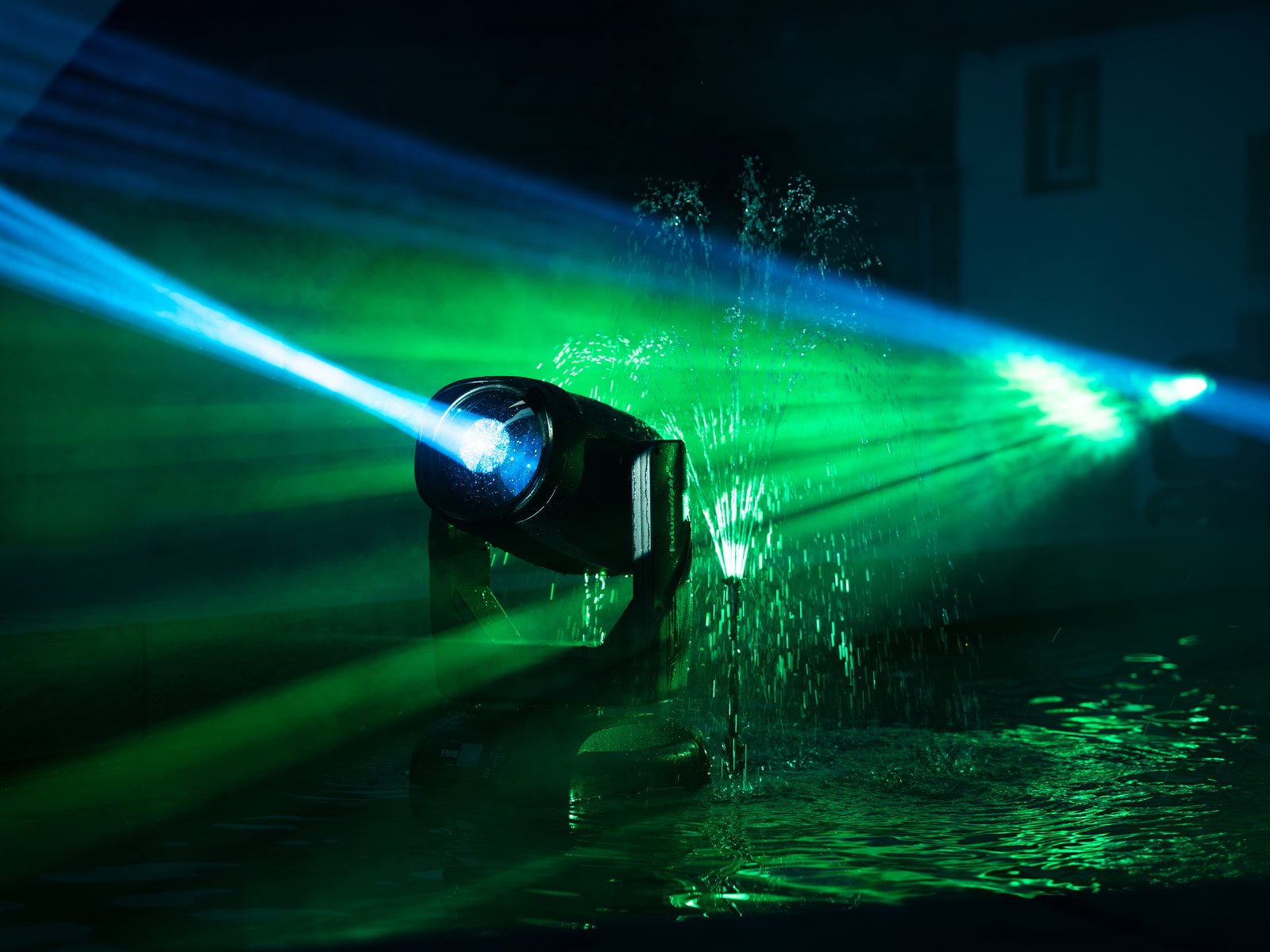

With its 420 watt discharge lamp, the moving head creates a powerful beam with an extremely narrow beam angle of only 1°.
Equipment
The Moving-Head is equipped with 14 fixed gobos and has two rotating prisms. Besides the “normal” 8-fold prism, the spotlight also offers a very interesting honeycomb prism on board, which creates an interesting effect visually. There is also the option to soften the light using a frost filter. The color wheel offers 13 colors and can create a continuous rainbow effect.
Features
Weather-proof beam moving head (IP65) with 420 W discharge lamp & CRMX wireless receiver
- Light source: USHIO NSL 420S discharge lamp (2000 hrs)
- Lamp installed and adjusted ex factory
- Positioning within 540° PAN, 265° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Prism honeycomb rotating; prism 8-fold rotating; focus motor-driven; gobo wheel with static gobos; color wheel
- Color wheel with 13 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 14 gobos und open
shake effect - Integrated show programs
- The device is cooled by temperature-controlled fan
- Control via stand-alone; master/slave function; DMX; RDM; CRMX by LumenRadio; Art-Net; sACN; sound to light via microphone
- With a beam angle of 1°
- With bracket with hinged hooks
- Multicolor LCD display,
with battery buffering for easy controlling - Suitable for outdoor use
- Scenes user-definable; pulse effect adjustable
- Strobe effect
- Preprogrammed in Light Captain
- For application areas such as: Stage; rental
- Application possibility: Standing; suspended
Package contents
- 1 x moving light, 1 x user manual, 1 x XLR cable, 1 x power cord, 2 x holder
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 420 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |

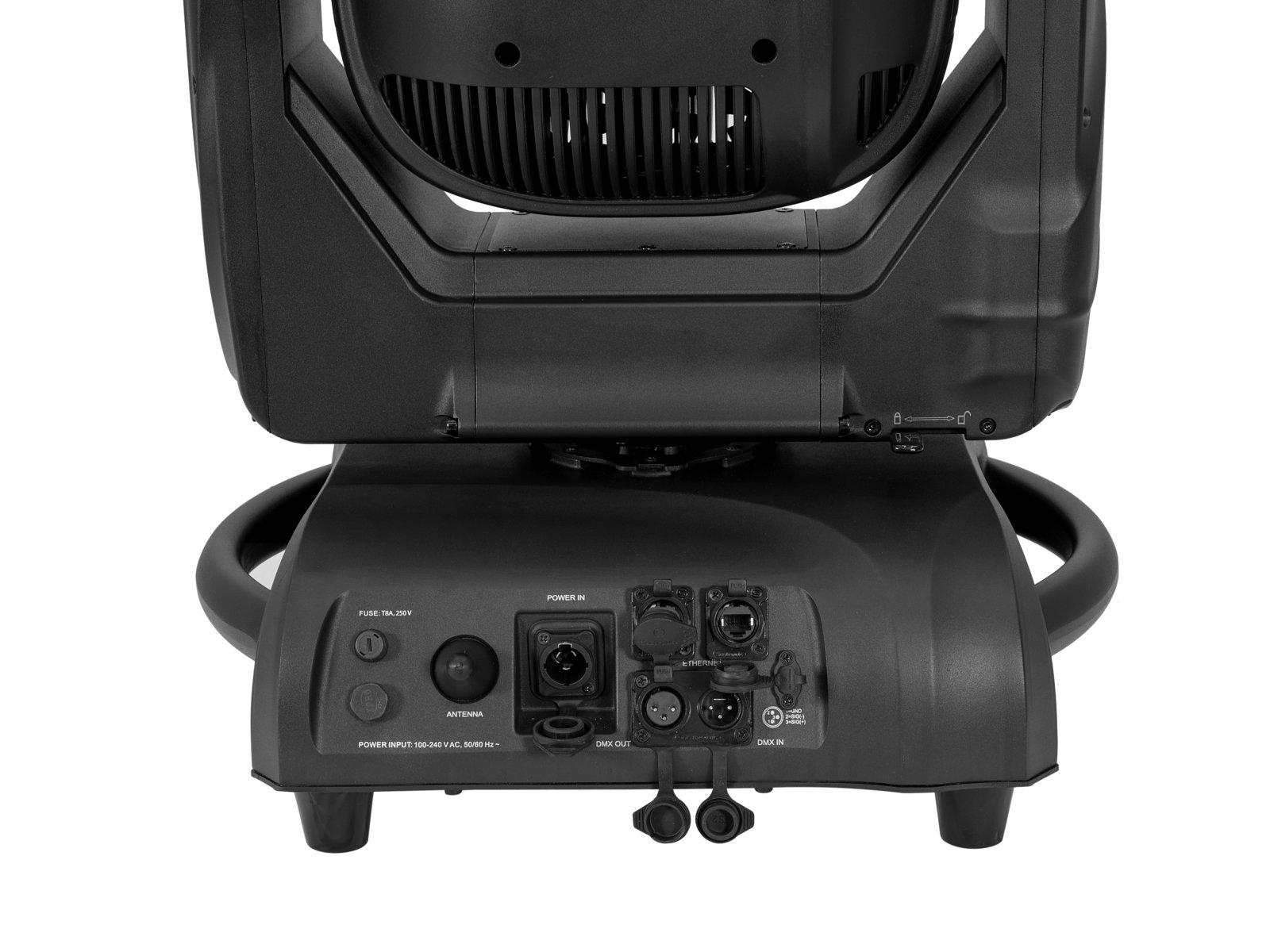

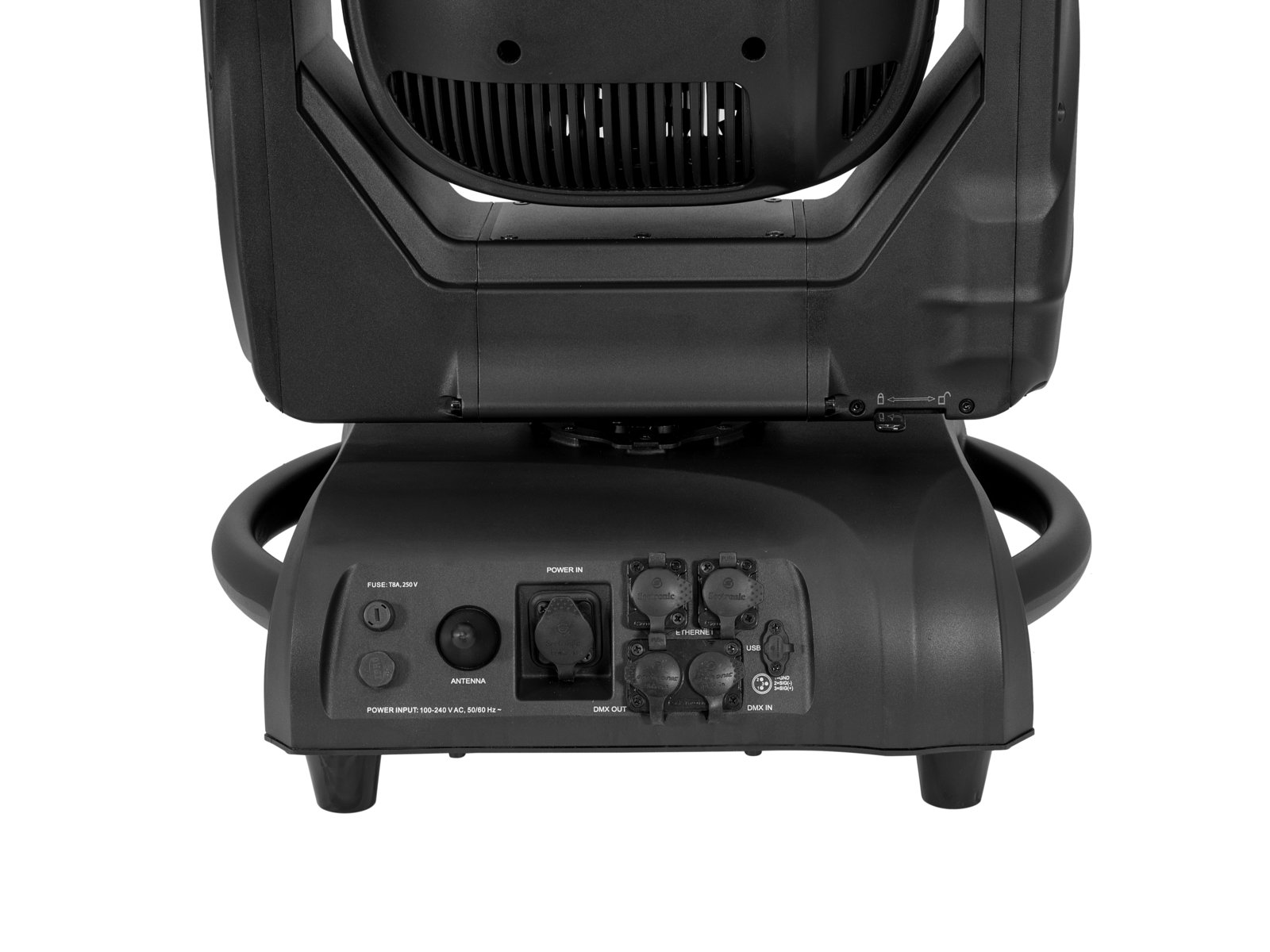

| Power connection: | Mains input via IP T-Con (M) power supply cord with safety plug (provided) |
| Fuse: | 5 x 20 mm, T 5 A |
| Lamp type: | Discharge lamp |
| Max. TILT movement: | 265° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: | 540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Equipment: | Prism honeycomb rotating; prism 8-fold rotating; focus motor-driven; gobo wheel with static gobos; color wheel |
| Color generation: | Color wheel with 13 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions |
| Gobos: | Gobo wheel with static gobos, 14 gobos und open Shake effect |
| DMX channels: | 18 |
| DMX input: | 3-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP |
| Cooling: | Temperature-controlled fan |
| Control: | Stand-alone; master/slave function; DMX; RDM; CRMX by LumenRadio; Art-Net; sACN; sound to light via microphone |
| Preprogrammed in: | Light Captain |
| Carrier frequency: | 2,4 GHz |
| Beam angle: | 1° |
| Beam angle (1/2 peak): | 1° |
| Housing color: | Black |

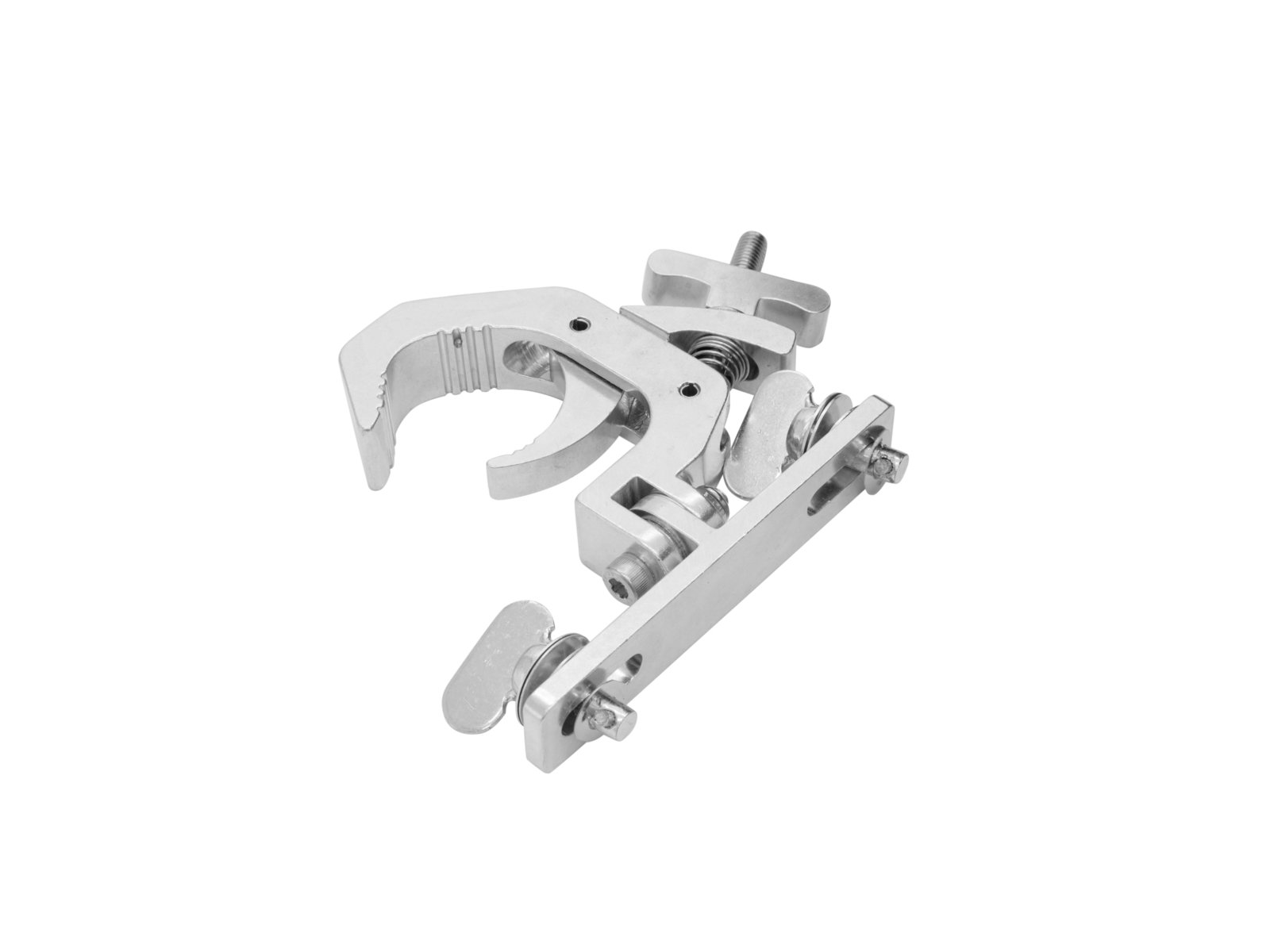

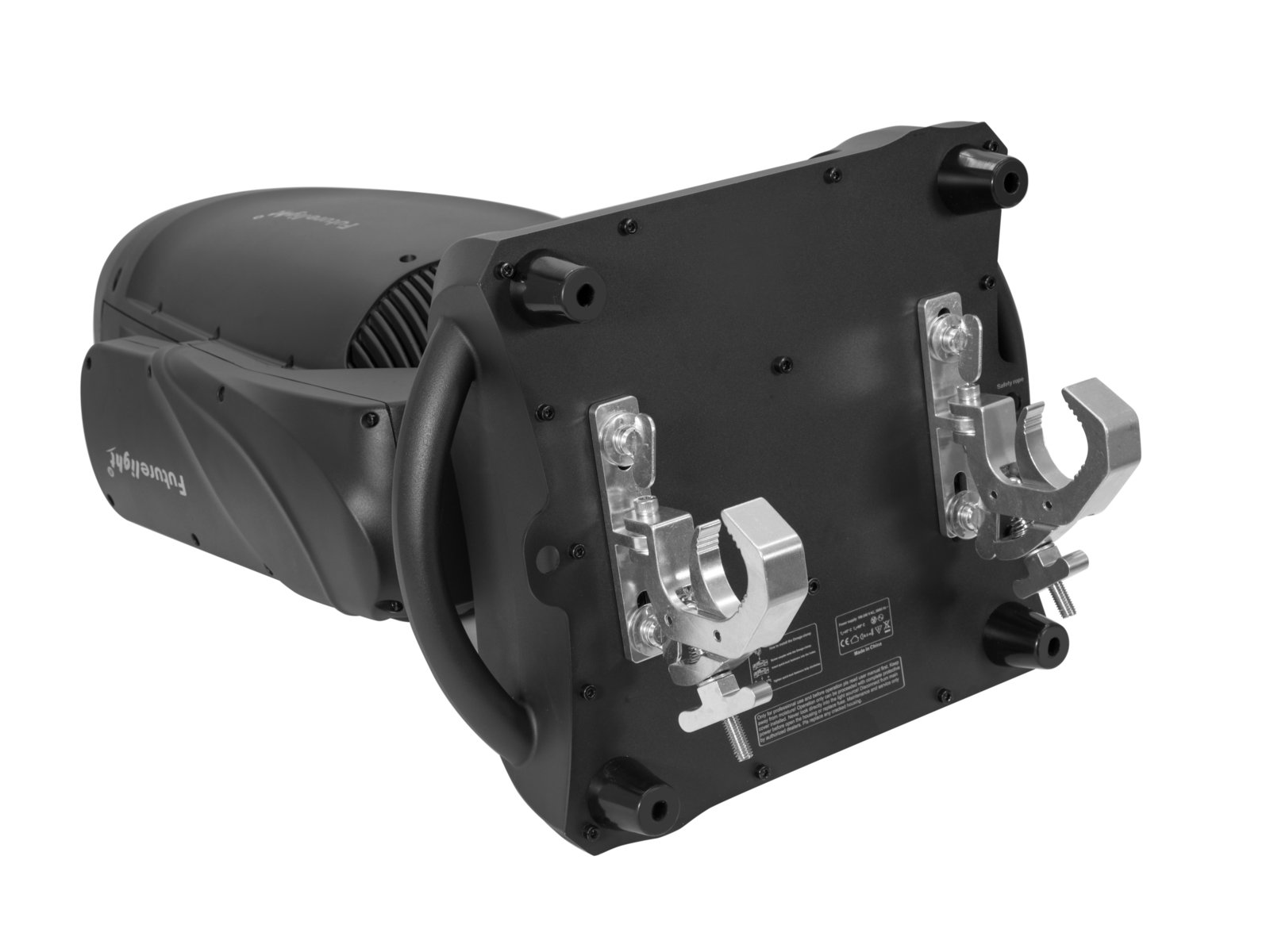

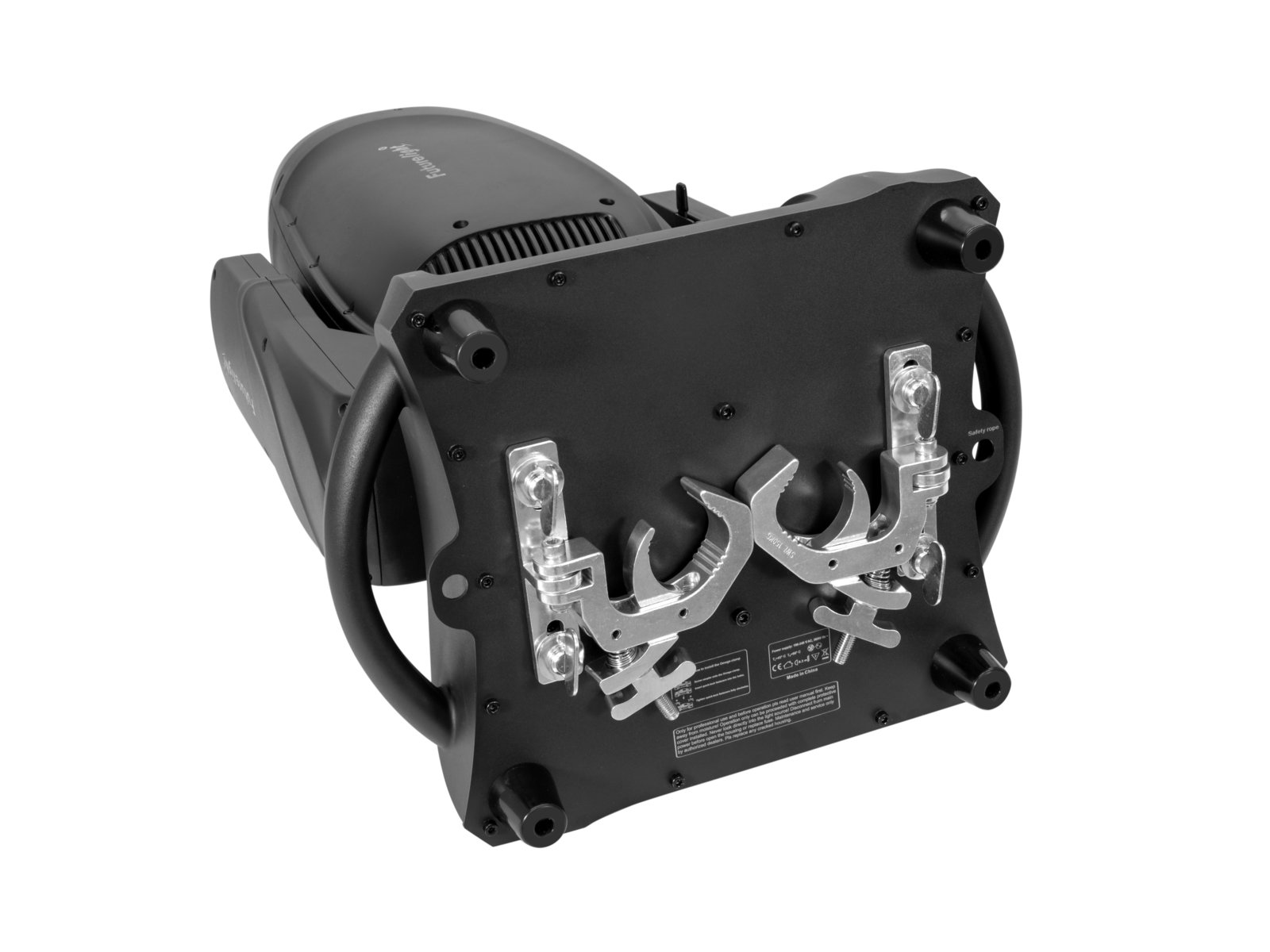

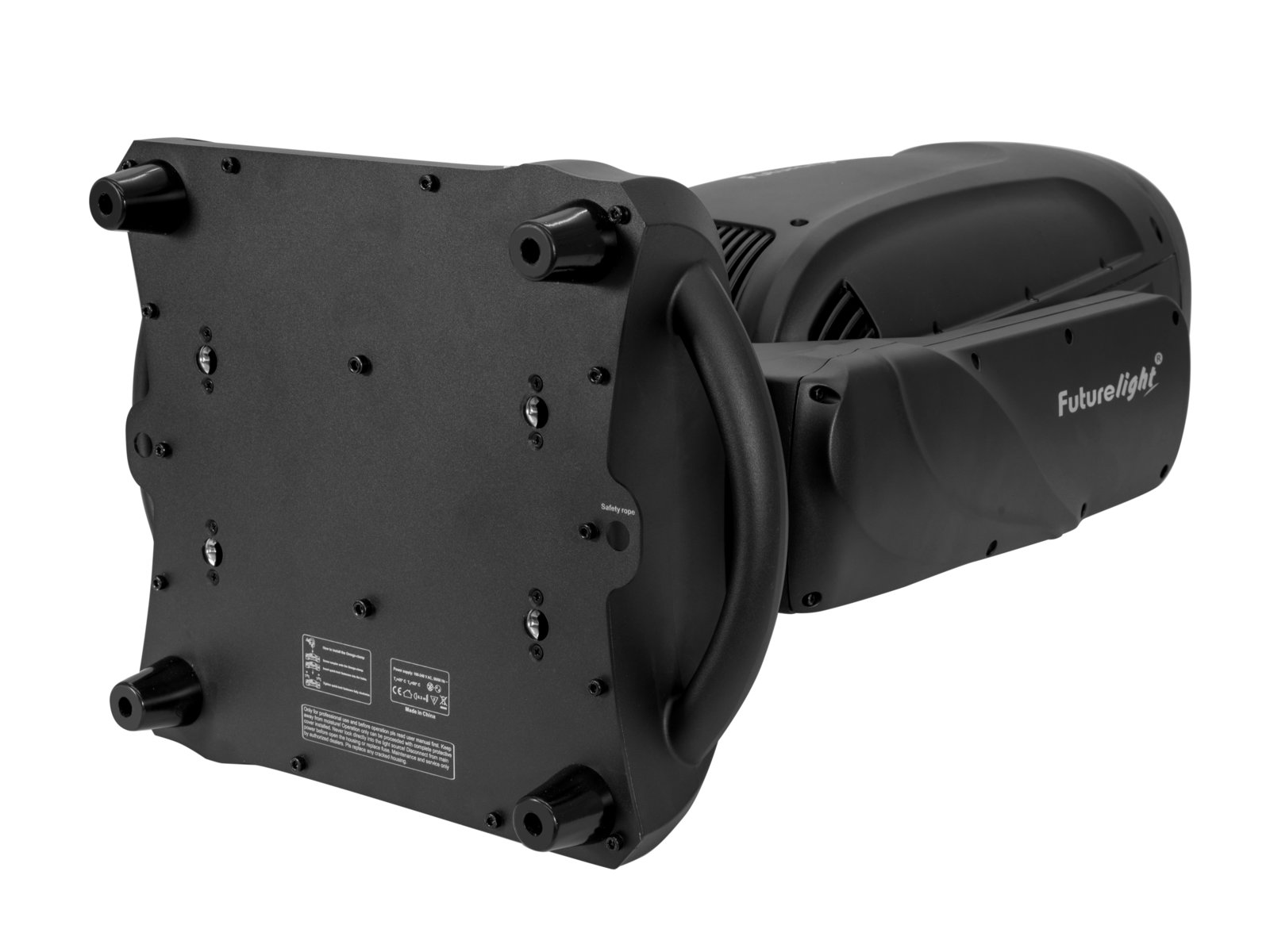

| Attachment system: | 2x bracket with hinged hooks |
| Display type: | Multicolor LCD display battery buffering |
| Connections: | 2 x RJ-45 (F) mounting version |
| Dimensions: | Width: 45 cm Depth: 35 cm Height: 76 cm |
| Weight: | 39,70 kg |
| Noise classification: | Class 4 (loud noises) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397704969 | 45,05 kg | 86cm x 55,5cm x 47cm |
