Description
Features

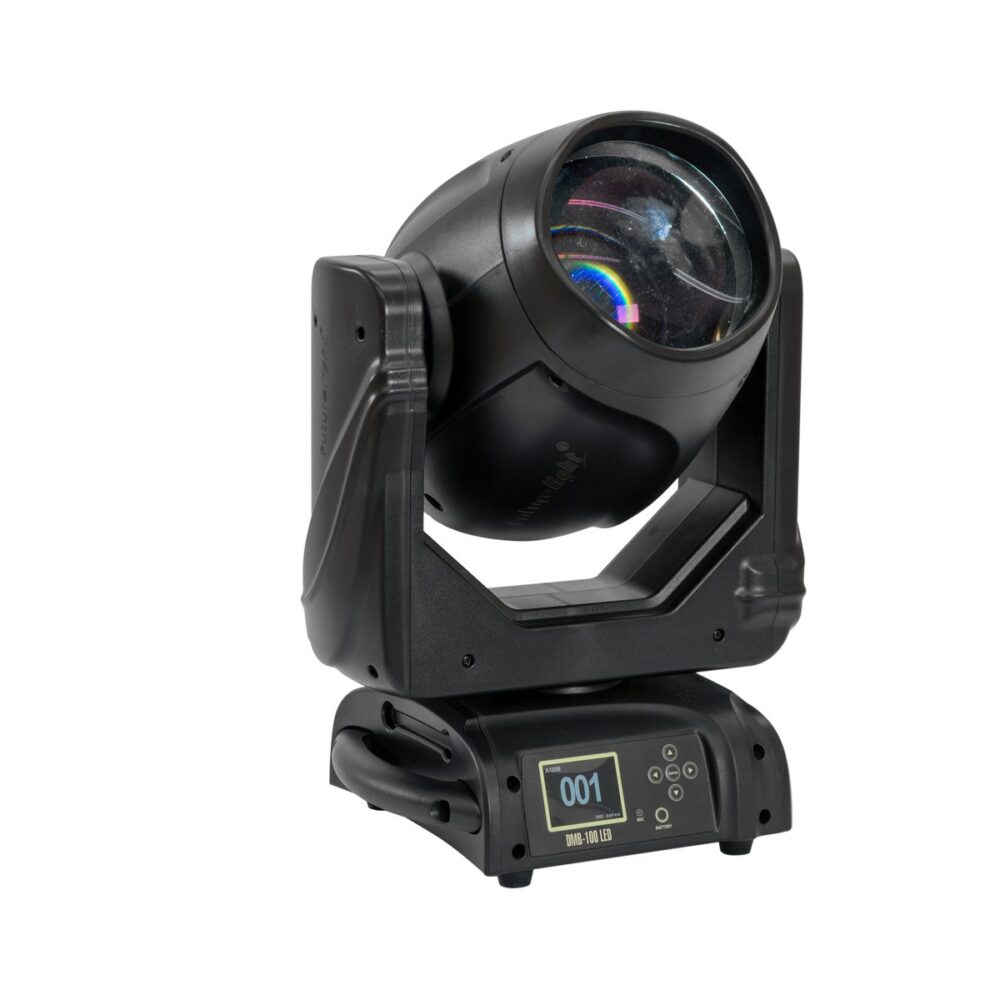

FUTURELIGHT DMB-100 LED Moving Head
PRO beam moving head with 100 W COB LED, 1° beam angle, gobo and color wheel, 2 prisms and QuickDMX port
- Bidirectional rotating 6-fold linear prism and 8-facet prism with variable speed, combinable for multi-facet effects
- 1 powerful LED 100 W COB (chip-on-board) cold white (CW)
- Positioning within 540° PAN, 230° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Gobo wheel with static gobos; prism 8-fold; prism 6-fold linear; frost filter; focus motor-driven
- Color wheel with 14 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 17 gobos and open
shake effect - Integrated show programs
- The device is cooled by temperature-controlled fan
- Control via DMX; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); RDM; sound to light via microphone
- Flicker-free
- With a beam angle of 1°
- With omega bracket
- Multicolor LCD display,
with battery buffering for easy controlling upgradeable - Pulse-width modulation variable; dimmer curves with adjustable response; scenes user-definable; Dimmer speed (step response) adjustable
- Strobe effect
- Preprogrammed in Light Captain
- Rubber feet
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; wedding/gala/events; stage; rental
- Application possibility: Standing; suspended
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x XLR cable, 2 x omega bracket

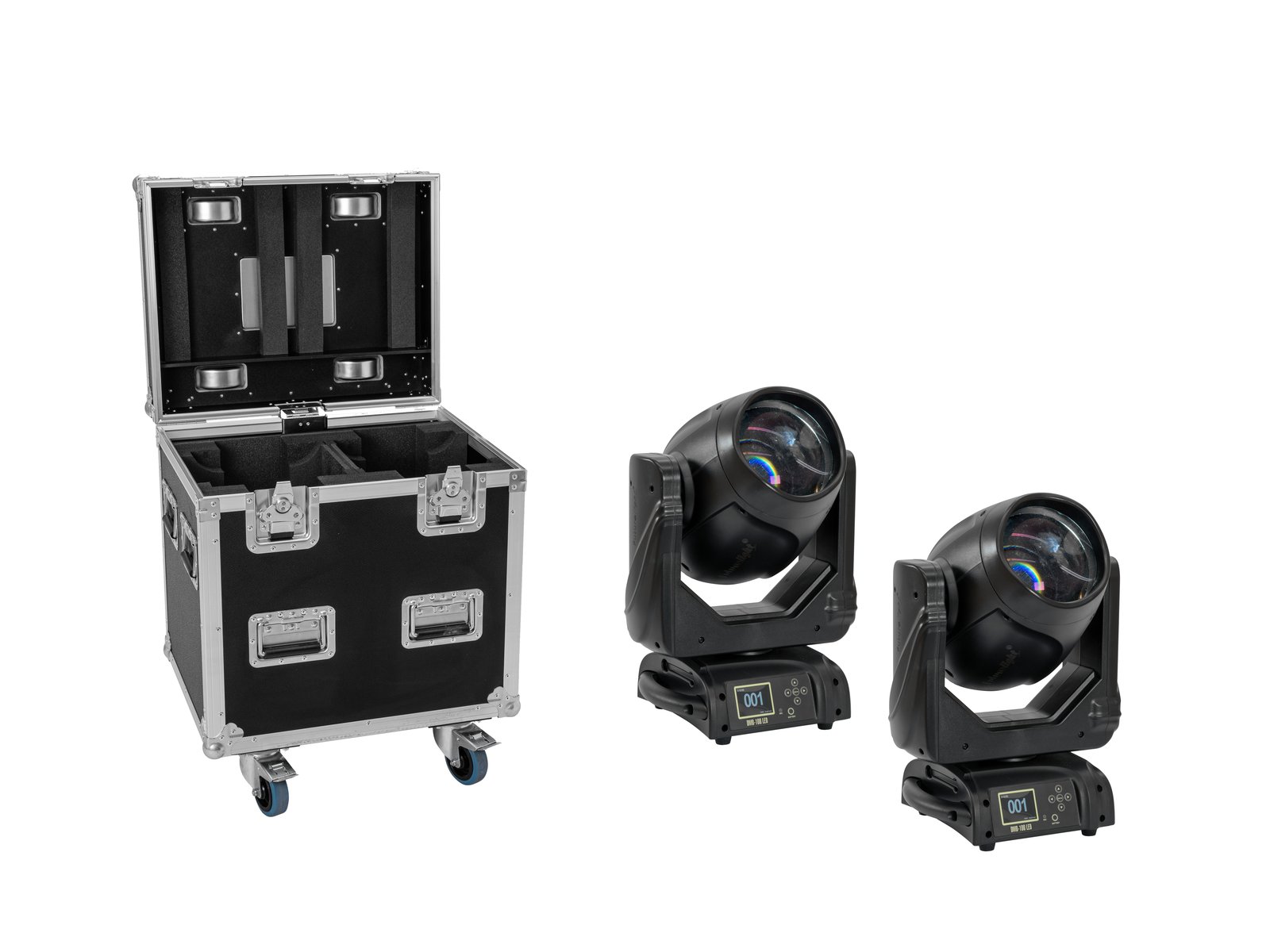

ROADINGER Flightcase 2x DMB-100 LED with wheels
Trunk case with castors, PRO version
- High-quality workmanship with birch multiplex 9,5 mm, black, laminated
- Interior with foam padding
cover with foam padding - Aluminum profile frames 30mm with rounded edges
- 8 hinged, chromium plated case handles
- 2 high-quality butterfly locks
- 4 castors with 2 locking brakes
- 4 built-in stacking trays in the cover
- Branded hardware
- Made in Europe
Technical specifications
| Weight: | 60,50 kg |
| FUTURELIGHT DMB-100 LED Moving Head | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 150 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) power supply cord with safety plug (provided) |
| Power output: | IP T-Con (F) |
| Fuse: | 5 x 20 mm, T 3,15 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 1 x 100 W COB (chip-on-board) cold white (CW) |
| Max. TILT movement: | 230° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: | 540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Flash rate: | 1 – 16 Hz |
| Equipment: | Gobo wheel with static gobos; prism 8-fold; prism 6-fold linear; frost filter; focus motor-driven |
| Color generation: | Color wheel with 14 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions |
| Gobos: | Gobo wheel with static gobos, 17 gobos and open Shake effect |
| DMX channels: | 14; 16 |
| DMX input: | 3-pin XLR (M) mounting version 5-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version 5-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | DMX; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); RDM; sound to light via microphone |
| Preprogrammed in: | Light Captain |
| Projection: | Flicker-free |
| Beam angle: | 1° |
| Beam angle (1/2 peak): | 1° |
| Housing color: | Black |
| Attachment system: | 2x omega bracket |
| Display type: | Multicolor LCD display battery buffering upgradeable |
| Transport aid: | Rubber feet |
| Dimensions: | Width: 33,0 cm Depth: 31,0 cm Height: 48,0 cm |
| Weight: | 13,90 kg |
| Noise classification: | Class 2 (slight noise) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| ROADINGER Flightcase 2x DMB-100 LED with wheels | |
| Aluminum profile frames: | 30 mm |
| Case handle: | 8 pc/pcs |
| Lock: | Butterfly lock: 2 pc/pcs |
| Transport aid: | 4 x castors with 2 locking brakes 4 x built-in stacking trays in the cover |
| Use of brands: | Branded hardware |
| Material: | Birch multiplex, 9,5 mm |
| Color: | Black, laminated |
| Device compartment: | 26,5 cm x 33 cm x 47 cm |
| Inside dimensions: | 55,5 cm x 43 cm x 57 cm |
| Accessory compartment: | 55,5 cm x 8,5 cm x 47 cm |
| Dimensions: | Width: 60 cm Depth: 48 cm Height: 74 cm |
| Weight: | 27,65 kg; 27,65 kg |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397709292 | 62,00 kg |
