Description
Features

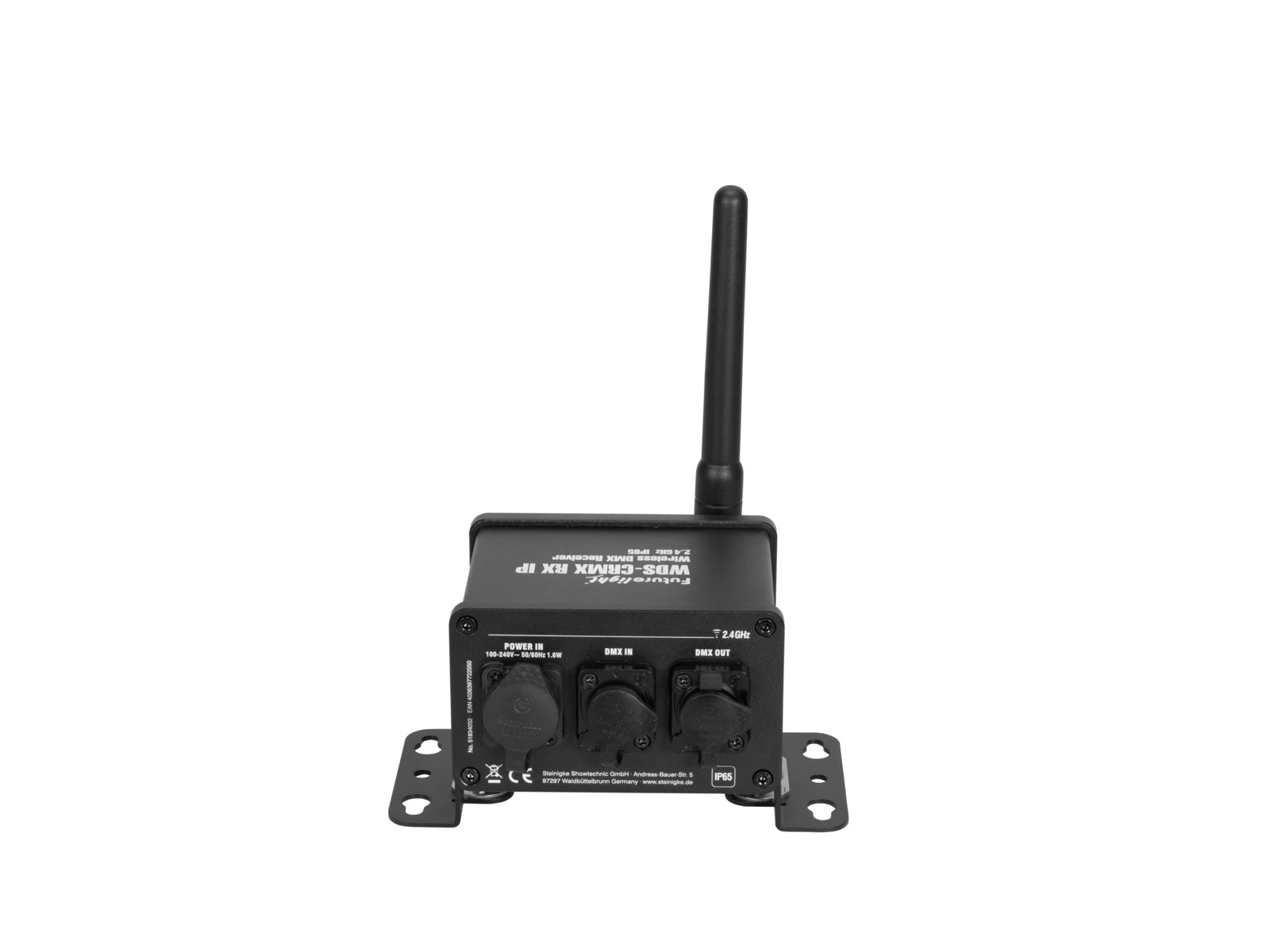

Weather-proof wireless DMX receiver, IP65
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Control via CRMX by LumenRadio; RDM
- Can receive and process up to 512 DMX channels
- Lockable power input (IP T-Con)
- With omega bracket
- Operating range up to 600m with line-of-sight
- Suitable for outdoor use IP65
- 2.4 GHz license-free worldwide
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x declaration of conformity
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 1,6 W |
| IP classification: | IP65 |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| DMX channels: | Input 512 |
| DMX input: | 1 x 3-pin XLR (M) mounting version IP |
| DMX output: | 1 x 3-pin XLR (F) mounting version IP |
| Control: | CRMX by LumenRadio; RDM |
| Range: | Range up to 600m with line-of-sight |
| Frequency band: | 2.4 GHz |
| Antenna gain: | 5 dBi |
| Modulation: | GFSK |
| Attachment system: | Omega bracket |
| Status LED: | DMX; level meter |
| Color: | Black |
| Dimensions: | Length: 17,3 cm Width: 15,6 cm Height: 9,2 cm |
| Weight: | 1,30 kg |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397722550 | 1,55 kg | 30cm x 20cm x 13,5cm |
